Brother MFC-J265W, MFC-J270W, MFC-J410W, MFC-J415W, MFC-J615W Network Guide

...

Multi-Protocol On-board Ethernet Multi-function Print Server and Wireless (IEEE 802.11b/g) Ethernet Multi-function Print Server

NETWORK USER’S GUIDE

Please read this manual thoroughly before using this machine on your network. You can print or view this manual from the Documentation CD-ROM at any time, please keep the Documentation CD-ROM in a convenient place for quick and easy reference at all times.

The Brother Solutions Center (http://solutions.brother.com/ your one stop resource for all your printing needs. Download the latest drivers and utilities for your machine, read FAQs and troubleshooting tips or learn about special printing solutions.

) is

Version 0

ENG

Definitions of warnings, cautions, and notes

We use the following icon throughout this User’s Guide:

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

Compilation and publication notice

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product’s descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

IMPORTANT NOTE

 This product is approved for use in the country of purchase only. Do not use this product outside the

country of purchase as it may violate the wireless telecommunication and power regulations of that country.

 Windows

Edition and Windows

 Windows Server

Edition, Windows Server

 Windows Server

R2.

XP in this document represents Windows® XP Professional, Windows® XP Professional x64

XP Home Edition.

2003 in this document represents Windows Server® 2003, Windows Server® 2003 x64

2003 R2 and Windows Server® 2003 R2 x64 Edition.

2008 in this document represents Windows Server® 2008 and Windows Server® 2008

Brother numbers

IMPORTANT

For technical and operational assistance, you must call the country where you purchased the machine. Calls must be made from within that country.

For Customer Service

In USA 1-877-BROTHER (1-877-276-8437)

1-901-379-1215 (FAX)

In Canada 1-877-BROTHER

514-685-4898 (FAX)

In Europe Visit http://www.brother.com

 Service center locator (USA)

For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-276-8437).

 Service center locations (Canada)

For the location of a Brother authorized service center, call 1-877-BROTHER.

for contact information on your local Brother office.

If you have any comments or suggestions, please write to us at:

In USA Customer Support

Brother International Corporation

100 Somerset Corporate Boulevard Bridgewater NJ 08807-0911

In Canada Brother International Corporation (Canada), Ltd.

Marketing Dept. 1, rue Hôtel de Ville Dollard-des-Ormeaux, PQ, Canada H9B 3H6

In Europe European Product & Service Support

1 Tame Street Audenshaw Manchester, M34 5JE, UK

Internet address

Brother Global Web Site: http://www.brother.com

For Frequently Asked Questions (FAQs), Product Support, Driver Updates and Utilities: http://solutions.brother.com/

Ordering accessories and supplies

In USA: 1-877-552-MALL (1-877-552-6255)

1-800-947-1445 (fax)

http://www.brothermall.com

In Canada: 1-877-BROTHER

http://www.brother.ca

iii

1 Introduction 1

Overview....................................................................................................................................................1

Network features........................................................................................................................................2

Network printing...................................................................................................................................2

Network scanning ................................................................................................................................2

Network PC-FAX (Not available for DCP models)...............................................................................2

Network PhotoCapture Center™.........................................................................................................2

Management utilities............................................................................................................................2

Types of Network Connections..................................................................................................................4

Wired network connection example.....................................................................................................4

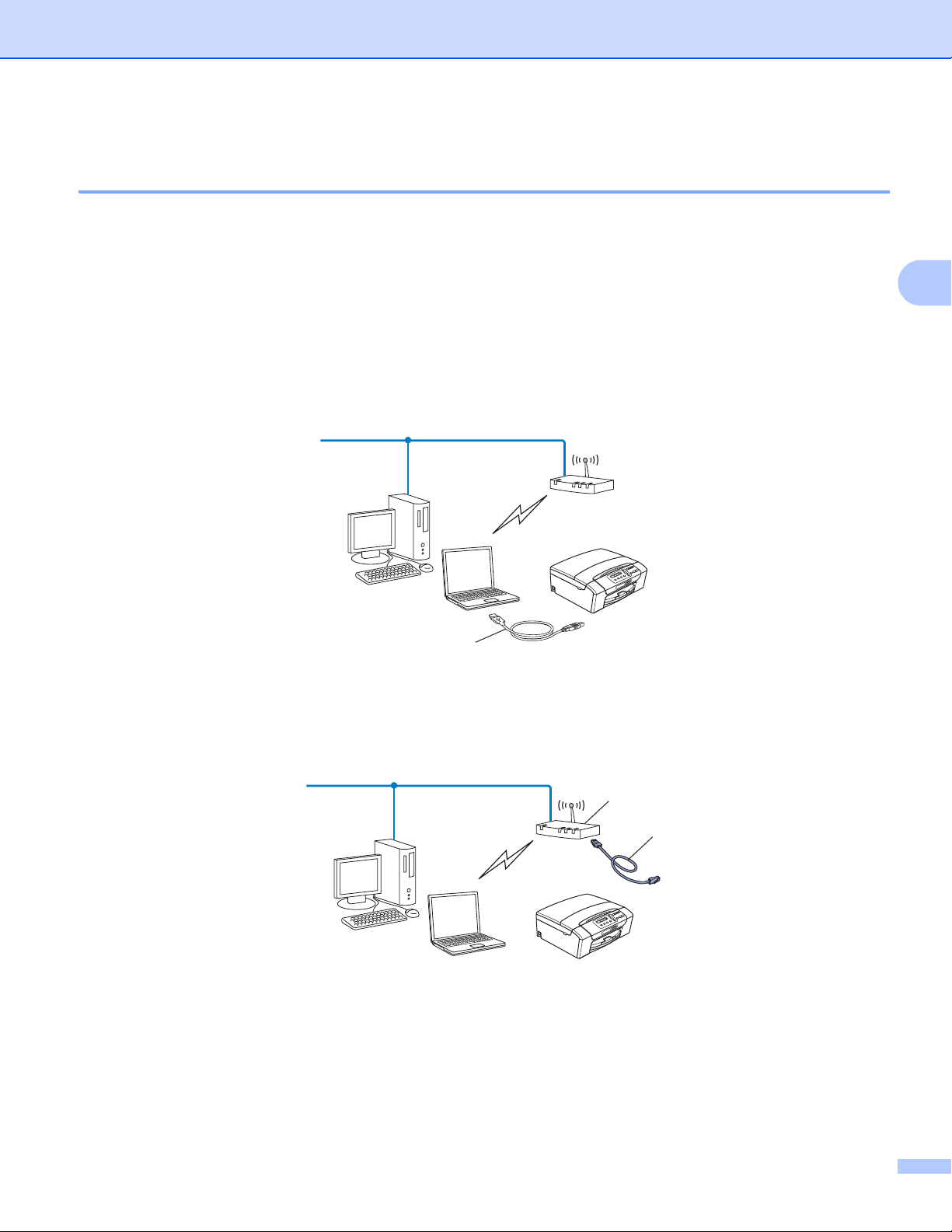

Wireless network connection examples ..............................................................................................6

Protocols....................................................................................................................................................7

TCP/IP protocols and functions...........................................................................................................7

Other Protocol .....................................................................................................................................8

2 Configuring your machine for a network with an Ethernet cable connection

(DCP-J715W, MFC-J615W and MFC-J630W only) 9

Overview....................................................................................................................................................9

IP addresses, subnet masks and gateways ..............................................................................................9

IP address ...........................................................................................................................................9

Subnet mask......................................................................................................................................10

Gateway (and router).........................................................................................................................10

Step by step chart....................................................................................................................................11

Setting up the IP address and subnet mask ............................................................................................12

Using the BRAdmin Light utility to configure your machine as a network printer ..............................12

Using the control panel to configure your machine for a network......................................................14

Using other methods to configure your machine for a network .........................................................14

Changing the print server settings...........................................................................................................15

Using the BRAdmin Light utility to change the print server settings ..................................................15

Using the BRAdmin Professional 3 utility to change the wireless settings (Windows

Using the Remote Setup to change the print server settings

(MFC-J615W and MFC-J630W only) (Not available for Windows Server

Using the control panel to change the print server settings...............................................................17

2003/2008) ...............17

)....................15

3 Configuring your machine for a wireless network 18

Overview..................................................................................................................................................18

Wireless network terms and concepts.....................................................................................................19

SSID (Service Set Identifier) and channels .......................................................................................19

Authentication and encryption ...........................................................................................................19

Step by step chart for wireless network configuration ............................................................................21

For Infrastructure mode.....................................................................................................................21

For Ad-hoc mode...............................................................................................................................22

Confirm your network environment..........................................................................................................23

Connected to a computer with an access point in the network (Infrastructure mode).......................23

Connected to a wireless capable computer without an access point in the network

(Ad-hoc mode)...............................................................................................................................23

Confirm your wireless network setup method..........................................................................................24

Configuration using the machine’s control panel Setup Wizard to configure your wireless network

machine.........................................................................................................................................24

Configuration using the WPS/AOSS™ control panel menu (Infrastructure mode only) ....................24

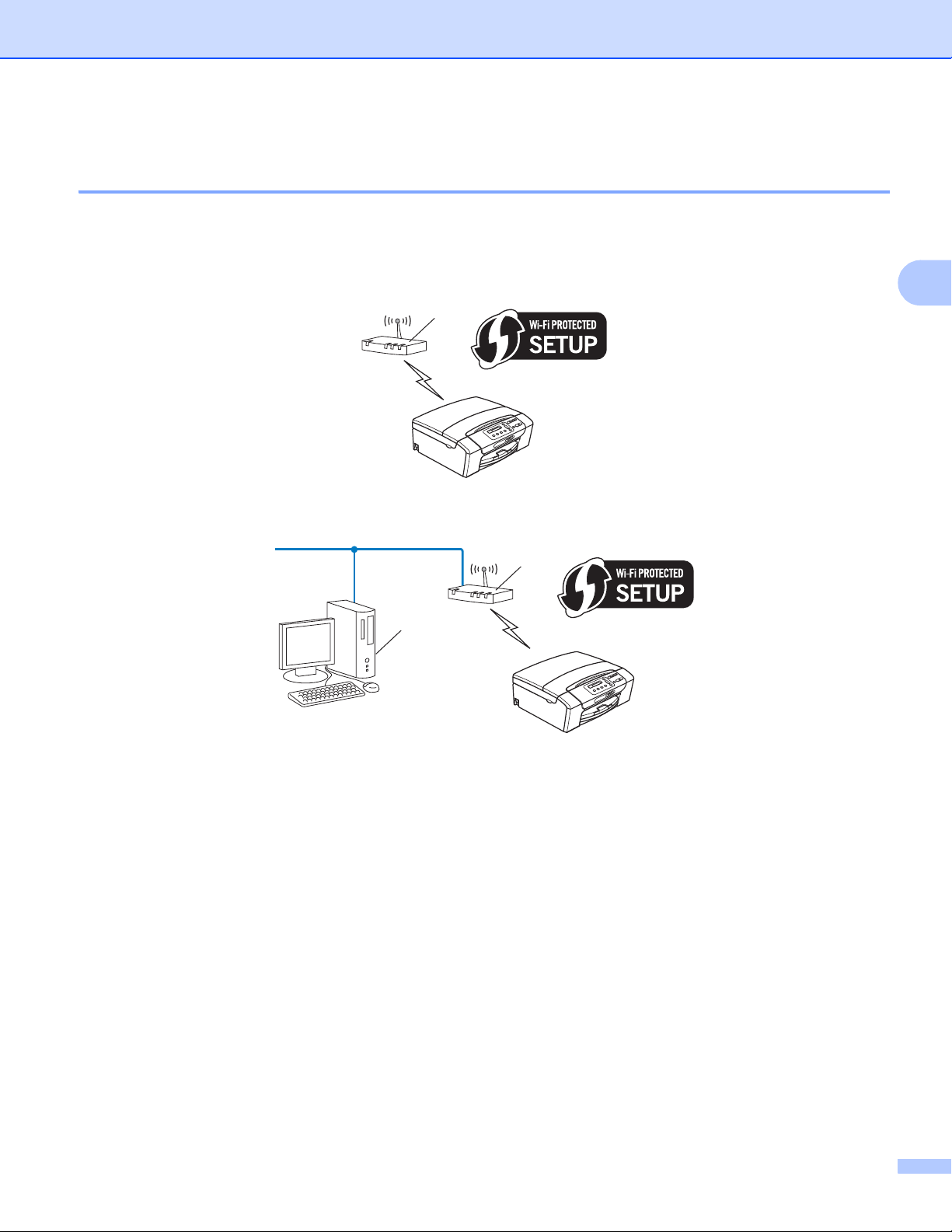

Configuration using the PIN Method of Wi-Fi Protected Setup (Infrastructure mode only) ...............25

Configuration using the Brother installer application on the installation CD-ROM to configure your

wireless network machine .............................................................................................................26

Configuring your machine for a wireless network....................................................................................27

Using the Setup Wizard from the control panel .................................................................................27

Using WPS or AOSS™ from the control panel menu to configure your machine for

a wireless network.........................................................................................................................32

Using the PIN Method of Wi-Fi Protected Setup ...............................................................................34

Using the Brother automatic installer application on the installation CD-ROM to configure your

machine for a wireless network .....................................................................................................36

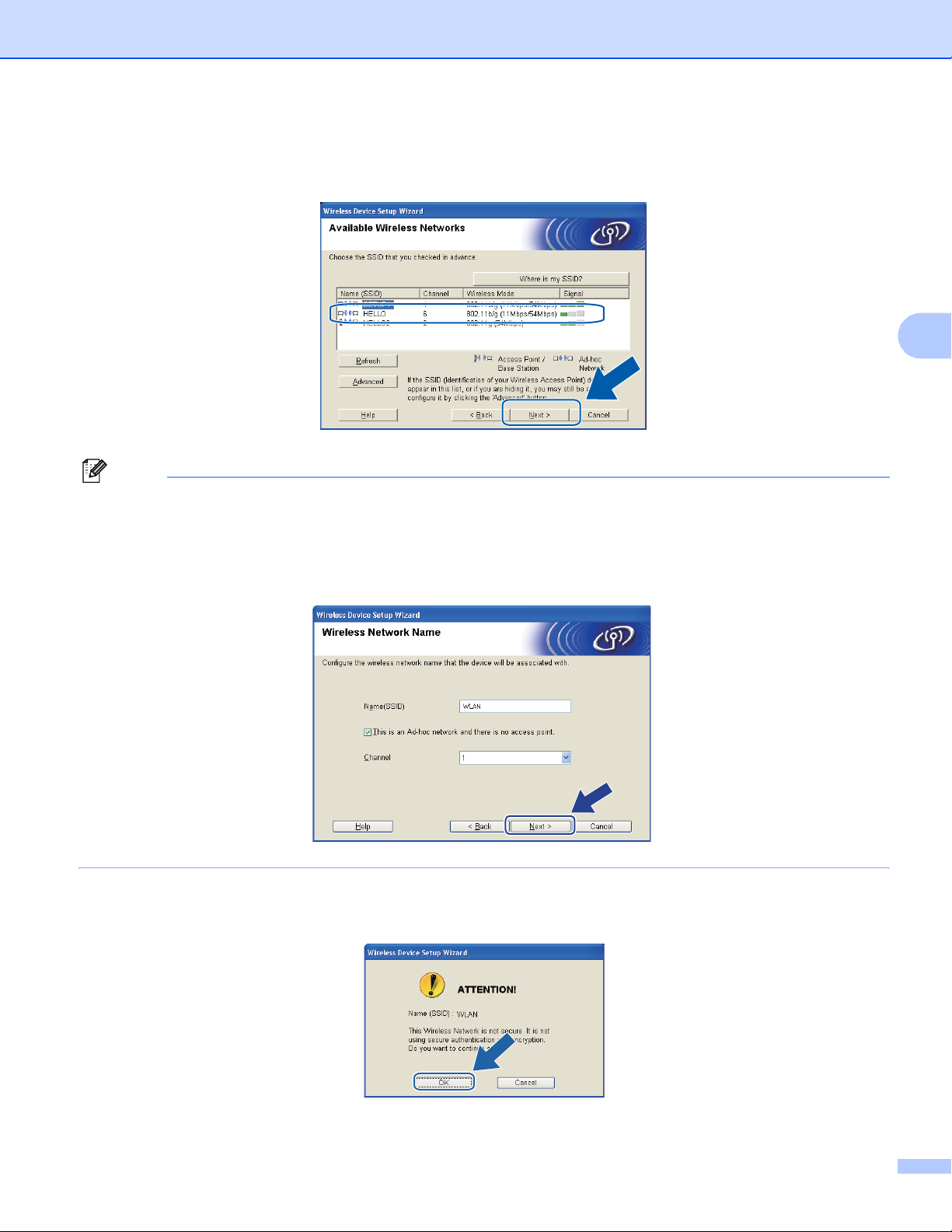

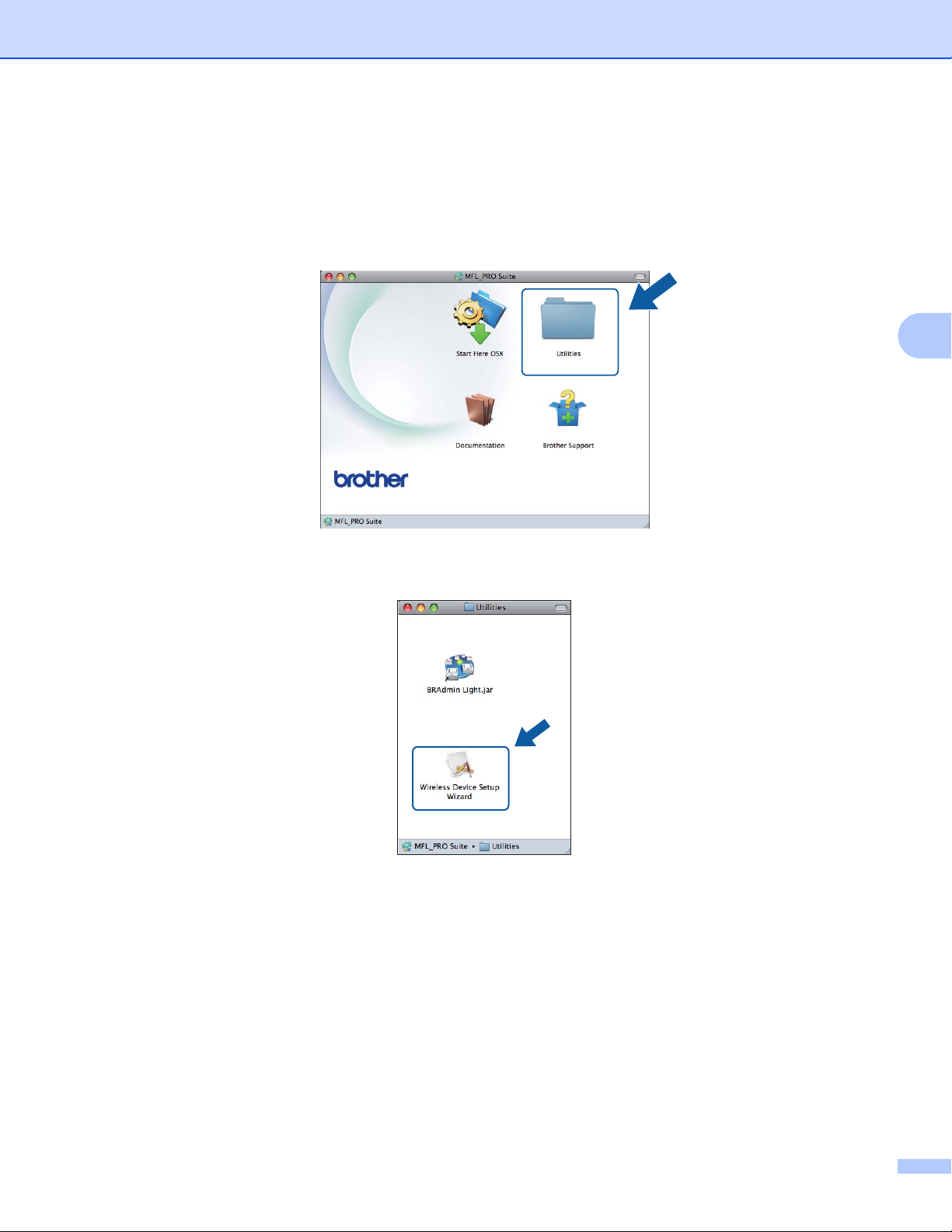

4 Wireless configuration using the Brother installer application 37

Configuration in Infrastructure mode .......................................................................................................37

Before configuring the wireless settings............................................................................................37

Configure the wireless settings..........................................................................................................38

Configuration using WPS or AOSS™ from the control panel menu (Automatic wireless mode).............48

Before configuring the wireless settings............................................................................................48

Configure the wireless settings..........................................................................................................48

Configuration in Ad-hoc Mode.................................................................................................................54

Before configuring the wireless settings............................................................................................54

Configure the wireless settings..........................................................................................................54

5 Control panel setup 65

Network menu..........................................................................................................................................65

TCP/IP...............................................................................................................................................65

Setup Wizard.....................................................................................................................................72

WPS/AOSS™....................................................................................................................................72

WPS w/PIN code ...............................................................................................................................72

WLAN Status.....................................................................................................................................73

Ethernet (DCP-J715W, MFC-J615W and MFC-J630W only)............................................................75

MAC Address ....................................................................................................................................75

Network I/F (For DCP-J715W, MFC-J615W and MFC-J630W) ........................................................76

WLAN Enable (For DCP-J315W, DCP-J515W, MFC-J265W and MFC-J415W) ..............................76

Restoring the network settings to factory default.....................................................................................77

Printing the Network Configuration List ...................................................................................................78

Printing the WLAN Report .......................................................................................................................79

6 Driver Deployment Wizard (Windows® only) 80

Overview..................................................................................................................................................80

Connection methods................................................................................................................................80

Peer-to-Peer ......................................................................................................................................80

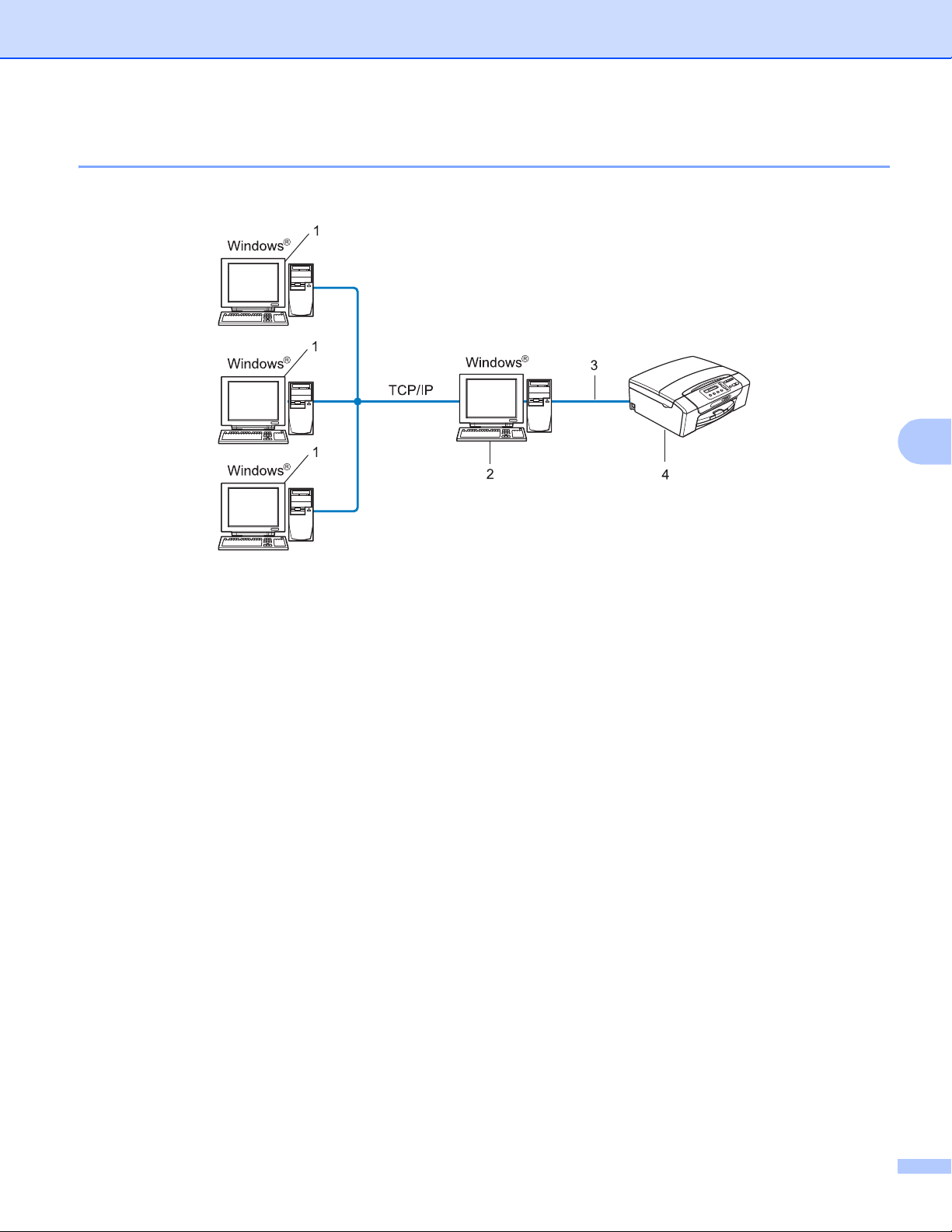

Network Shared.................................................................................................................................81

How to install the Driver Deployment Wizard software............................................................................82

Using the Driver Deployment Wizard software........................................................................................83

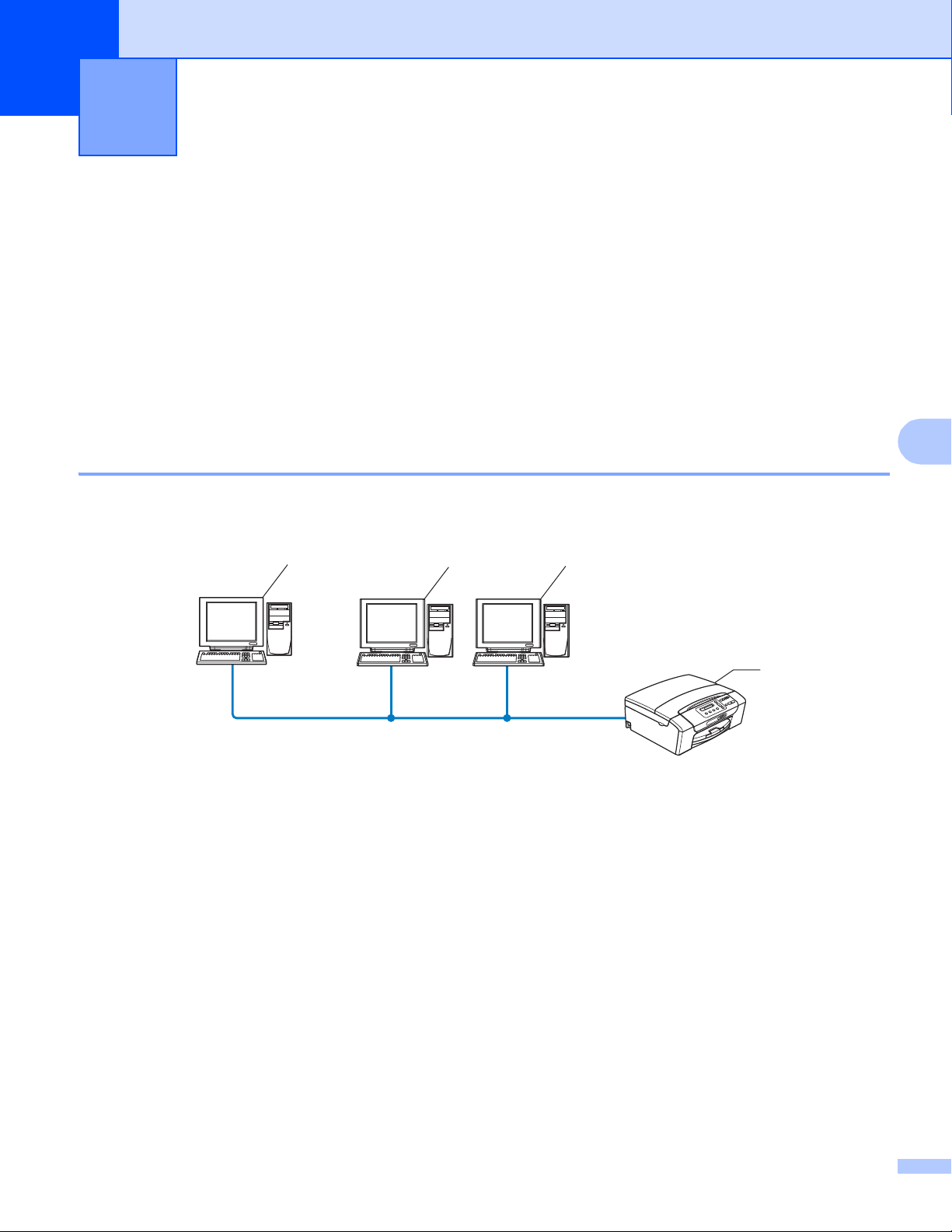

7 Network printing from Windows® basic TCP/IP Peer-to-Peer printing 86

Overview..................................................................................................................................................86

Configuring the standard TCP/IP port......................................................................................................87

Printer driver not yet installed............................................................................................................87

Printer driver already installed...........................................................................................................88

Other sources of information ...................................................................................................................89

8 Network printing from a Macintosh 90

Overview..................................................................................................................................................90

How to choose the print server (TCP/IP)...........................................................................................90

Changing the print server settings...........................................................................................................92

Changing the configuration using the Remote Setup (MFC-J615W and MFC-J630W only).............92

Using the BRAdmin Light utility to change the print server settings ..................................................92

Other sources of information ...................................................................................................................93

9 Troubleshooting 94

Overview..................................................................................................................................................94

A Appendix A 100

Using services .......................................................................................................................................100

Other ways to set the IP address (for advanced users and administrators) ..........................................100

Using DHCP to configure the IP address ........................................................................................100

Using RARP to configure the IP address ........................................................................................101

Using BOOTP to configure the IP address......................................................................................102

Using APIPA to configure the IP address........................................................................................102

Using ARP to configure the IP address ...........................................................................................103

Installation when using a Network Print Queue or Share (printer driver only).......................................104

Installation when using Web Services (Windows Vista

and Windows®7) ..........................................105

B Appendix B 106

Print server specifications......................................................................................................................106

Wired network (DCP-J715W, MFC-J615W and MFC-J630W only) ................................................106

Wireless network .............................................................................................................................107

Function table and default factory settings ............................................................................................109

Entering Text .........................................................................................................................................112

For MFC models ..............................................................................................................................112

For DCP models..............................................................................................................................113

CIndex 114

Introduction 1

Overview 1

The Brother machine can be shared on a 10/100 MB wired or IEEE 802.11b/802.11g wireless Ethernet network using the internal network print server. The print server supports various functions and methods of connection depending on the operating system you are running on a network supporting TCP/IP. These functions include printing, scanning, PC-FAX send, PC-FAX receive, PhotoCapture Center™, Remote Setup and Status Monitor. The following chart shows what network features and connections are supported by each operating system.

Operating Systems

10/100BASE-TX wired Ethernet

(TCP/IP)

IEEE 802.11b/g wireless Ethernet (TCP/IP)

Printing rrr

BRAdmin Light rrr

BRAdmin Professional 3

Web BRAdmin

Scanning rr

PC Fax Send

PC Fax Receive

Remote Setup

Status Monitor rr

Driver Deployment Wizard rr

Windows® 2000

Windows® XP

Windows Vista

Windows®7

rrr

Windows Server® 2003/2008

Mac OS X

10.4.11 - 10.5.x - 10.6.x

Not available for DCP-J315W, DCP-J515W, MFC-J265W and MFC-J415W.

BRAdmin Professional 3 and Web BRAdmin are available as a download from http://solutions.brother.com/

Not available for DCP models.

Not available for DCP models, MFC-J265W and MFC-J415W.

Black and White only.

To use the Brother machine through a network, you need to configure the print server, and set up the computers you use.

Introduction

Network features 1

Your Brother machine has the following basic network functions.

Network printing 1

The print server provides printing services for Windows® 2000/XP, Windows Vista®, Windows®7 and

Windows Server supporting TCP/IP.

Network scanning 1

You can scan documents over the network to your computer. (See Network Scanning in the Software User’s Guide.)

Mac OS X 10.6.x users can also scan documents using the ICA Scanner Driver. (See Scanning a document using the ICA driver (Mac OS X 10.6.x) in the Software User’s Guide.)

Network PC-FAX (Not available for DCP models) 1

2003/2008 supporting the TCP/IP protocols and Macintosh (Mac OS X 10.4.11 - 10.6.x)

You can directly send a PC file as a PC-FAX over your network. (See Brother PC-FAX Software for Windows®

and Sending a Fax for Macintosh in the Software User’s Guide for a complete description.) Windows

can also use PC-FAX receive

PC-Fax Receive is not supported by the MFC-J265W and MFC-J415W.

. (See PC-FAX receiving in the Software User’s Guide.)

users

Network PhotoCapture Center™ 1

You can view, retrieve and save data from a USB flash memory drive or a media card inserted into the Brother machine. The software is automatically installed when you choose network connection during the software

installation. For Windows ControlCenter3 in the Software User’s Guide. For Macintosh, launch any web browser in which FTP is available and enter FTP://xxx.xxx.xxx.xxx (where xxx.xxx.xxx.xxx is the IP address of your Brother machine). For more information, see Remote Setup & PhotoCapture Center in the Software User’s Guide.

, choose the PHOTOCAPTURE tab of ControlCenter3. For more information, see

Management utilities 1

BRAdmin Light 1

BRAdmin Light is a utility for initial setup of network connected Brother devices. This utility can search for Brother products on your network, view the status and configure basic network settings, such as IP address.

The BRAdmin Light utility is available for Windows

Server installed automatically when you install the printer driver. If you have already installed the printer driver, you don’t have to install it again.

2003/2008 and Mac OS X 10.4.11 - 10.6.x computers. For Macintosh users, BRAdmin Light will be

2000/XP, Windows Vista®, Windows®7 and Windows

For more information on BRAdmin Light, visit us at http://solutions.brother.com/

Introduction

BRAdmin Professional 3 (Windows®) 1

BRAdmin Professional 3 is a utility for more advanced management of network connected Brother devices. This utility can search for Brother products on your network and view the device status from an easy to read explorer style window that changes color identifying the status of each device. You can configure network

and device settings along with the ability to update device firmware from a Windows

computer on your LAN. BRAdmin Professional 3 can also log activity of brother devices on your network and export the log data in an HTML, CSV, TXT or SQL format.

For more information and downloading, visit us at http://solutions.brother.com/

Web BRAdmin (Windows®) 1

Web BRAdmin is a utility for managing network connected Brother devices on your LAN and WAN. This utility can search for Brother products on your network, view its status and configure the network settings. Unlike

BRAdmin Professional 3, which is designed for Windows

only, Web BRAdmin is a server based utility that

can be accessed from any client PC with a web browser that supports JRE (Java Runtime Environment). By

installing the Web BRAdmin server utility on a PC running IIS

, connect to the Web BRAdmin server, which

then communicates with the device itself.

For more information and downloading, visit us at http://solutions.brother.com/

Internet Information Server 4.0 or Internet Information Service 5.0/5.1/6.0/7.0/7.5

Remote Setup (MFC-J615W and MFC-J630W only) 1

The Remote Setup software allows you to configure network settings from a Windows® PC or Macintosh (Mac OS X 10.4.11 - 10.6.x) computer. (See Remote Setup in the Software User’s Guide.)

Introduction

Types of Network Connections 1

Wired network connection example 1

Peer-to-Peer printing using TCP/IP 1

In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no central server controlling file access or printer sharing.

Windows

TCP/IP TCP/IP

Windows

1 Switch or Router

2 Network printer (your machine)

 In a smaller network of 2 or 3 computers, we recommend the Peer-to-Peer printing method as it is easier

to configure than the Network Shared Printing method. (See Network Shared Printing on page 5.)

 Each computer must use the TCP/IP Protocol.

 The Brother machine needs an appropriate IP address configuration.

 If you are using a router, the Gateway address must be configured on the computers and the Brother

machine.

Introduction

Network Shared Printing 1

In a Network Shared environment, each computer sends data via a centrally controlled computer. This type of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs.

1 Client computer

2 Also known as “Server” or “Print Server”

3 TCP/IP or USB (where available)

4 Network printer (your machine)

 In a larger network, we recommend a Network Shared printing environment.

 The “Server” or the “Print Server” must use the TCP/IP Print Protocol.

 The Brother machine needs to have an appropriate IP address configuration unless the machine is

connected via the USB interface at the server.

Introduction

Wireless network connection examples 1

Connected to a computer with an access point on the network (Infrastructure mode) 1

This type of network has a central access point at the heart of the network. The access point can also act as a bridge or a gateway to a wired network. When the Brother wireless machine (your machine) is part of this network, it receives all print jobs via an access point.

1 Access point

2 Wireless network printer (your machine)

3 Wireless capable computer communicating with the access point

4 Wired computer (which is not wireless capable) connected to the access point with the Ethernet

cable

Connected to a wireless capable computer without an access point on the network (Ad-hoc mode) 1

This type of network does not have a central access point. Each wireless client communicates directly with each other. When the Brother wireless machine (your machine) is part of this network, it receives all print jobs directly from the computer sending the print data.

1 Wireless network printer (your machine)

2 Wireless capable computer

Introduction

Note

Protocols 1

TCP/IP protocols and functions 1

Protocols are the standardized sets of rules for transmitting data on a network. Protocols allow users to gain access to network connected resources.

The print server used on this Brother product supports the TCP/IP (Transmission Control Protocol/Internet Protocol) protocols.

TCP/IP is the most popular set of protocols used for communication such as Internet and E-mail. This protocol

can be used in almost all operating systems such as Windows The following TCP/IP protocols are available on this Brother product.

DHCP/BOOTP/RARP 1

By using the DHCP/BOOTP/RARP protocols, the IP address can be automatically configured.

To use the DHCP/BOOTP/RARP protocols, please contact your network administrator.

, Windows Server®, Mac OS X and Linux®.

APIPA 1

If you do not assign an IP address manually (using the control panel of the machine or the BRAdmin software) or automatically (using a DHCP/BOOTP/RARP server), the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255.

ARP 1

Address Resolution Protocol performs mapping of an IP address to MAC address in a TCP/IP network.

DNS client 1

The Brother print server supports the Domain Name System (DNS) client function. This function allows the print server to communicate with other devices by using its DNS name.

NetBIOS name resolution 1

Network Basic Input/Output System name resolution enables you to obtain the IP address of the other device using its NetBIOS name during the network connection.

WINS 1

Windows Internet Name Service is an information providing service for the NetBIOS name resolution by consolidating an IP address and a NetBIOS name that is in the local network.

LPR/LPD 1

Commonly used printing protocols on a TCP/IP network.

Introduction

Custom Raw Port (Default is Port 9100) 1

Another commonly used printing protocol on a TCP/IP network.

mDNS 1

mDNS allows the Brother print server to automatically configure itself to work in a Mac OS X Simple Network Configured system. (Mac OS X 10.4.11 - 10.6.x)

SNMP 1

The Simple Network Management Protocol (SNMP) is used to manage network devices including computers, routers and Brother network ready machines.

LLMNR 1

The Link-Local Multicast Name Resolution protocol (LLMNR) resolves the names of neighboring computers, if the network does not have a Domain Name System (DNS) server. The LLMNR Responder function works

when using a computer that has the LLMNR Sender function such as Windows Vista

or Windows®7.

Web Services 1

The Web Services protocol enables Windows Vista® and Windows®7 users to install the Brother printer driver by right-clicking the machine icon from the Network folder. (See Installation when using Web Services

(Windows Vista

the machine from your computer.

and Windows®7) on page 105.) The Web Services also let you check the current status of

Other Protocol 1

LLTD 1

The Link Layer Topology Discovery protocol (LLTD) lets you locate the Brother machine easily on the

Windows Vista and the node name. The default setting for this protocol is Off.

You can activate LLTD using the BRAdmin Professional 3 utility software. Visit the download page for your model at http://solutions.brother.com/

or Windows®7 Network Map. Your Brother machine will be shown with a distinctive icon

to download BRAdmin Professional 3.

Note

Configuring your machine for a network

with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Overview 2

Before using your Brother machine in a network environment, you must install the Brother software and also configure the appropriate TCP/IP network settings on the machine itself. In this chapter, you will learn the basic steps required to print over the network using TCP/IP protocol.

We recommend that you use the Brother installer on the installation CD-ROM to install the Brother software as this will guide you through the software and network installation. Please follow the instructions in the supplied Quick Setup Guide.

If you do not wish to, or are unable to use the automatic installer or any of Brother’s software tools, you can also use the machine’s control panel to change network settings. For more information, see Control panel setup on page 65.

IP addresses, subnet masks and gateways 2

To use the machine in a networked TCP/IP environment, you need to configure its IP address and subnet mask. The IP address you assign to the print server must be on the same logical network as your host computers. If it is not, you must properly configure the subnet mask and the gateway address.

IP address 2

An IP address is a series of numbers that identifies each device connected to a network. An IP address consists of four numbers separated by dots. Each number is between 0 and 255.

 Example: In a small network, you would normally change the final number.

• 192.168.1.1

• 192.168.1.2

• 192.168.1.3

How the IP address is assigned to your print server: 2

If you have a DHCP/BOOTP/RARP server in your network (typically a UNIX®/Linux®, Windows® 2000/XP,

Windows Vista obtain its IP address from that server.

, Windows®7 or Windows Server® 2003/2008 network) the print server will automatically

On smaller networks, the DHCP server may be the Router.

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Note

For more information on DHCP, BOOTP and RARP, see Using DHCP to configure the IP address on page 100, Using BOOTP to configure the IP address on page 102 and Using RARP to configure the IP address on page 101.

If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255. For more information on APIPA, see Using APIPA to configure the IP address on page 102.

Subnet mask 2

Subnet masks restrict network communication.

 Example: Computer1 can talk to Computer2

•Computer1

IP Address: 192.168.1.2

Subnet Mask: 255.255.255.0

•Computer2

IP Address: 192.168.1.3

Subnet Mask: 255.255.255.0

0 denotes that there is no limit to communication at this part of the address.

In the above example, we can communicate with any device that has an IP address that begins with

192.168.1.X.

Gateway (and router) 2

A gateway is a network point that acts as an entrance to another network and sends data transmitted via the network to an exact destination. The router knows where to direct data that arrives at the gateway. If a destination is located at an external network, the router transmits data to the external network. If your network communicates with other networks, you may need to configure the Gateway IP address. If you do not know the Gateway IP address then contact your Network Administrator.

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Step by step chart 2

a Configure the TCP/IP settings.

 Configure the IP address i See page 12

 Configure the subnet mask i See page 12

 Configure the gateway i See page 12

b Change the print server settings.

 Using the BRAdmin Light utility i See page 15

 Using the BRAdmin Professional 3 utility i See page 15

 Using the control panel i See page 65

 Using the Remote Setup i See page 17

 Using other methods i See page 100

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Note

Setting up the IP address and subnet mask 2

Using the BRAdmin Light utility to configure your machine as a network printer2

BRAdmin Light 2

The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings,

such as IP address. The BRAdmin Light utility is available for Windows

Windows

7, Windows Server® 2003/2008 and Mac OS X 10.4.11 - 10.6.x.

How to configure your machine using the BRAdmin Light utility 2

• Please use the BRAdmin Light utility version that was supplied on the installation CD-ROM of your Brother product. You can also download the latest Brother BRAdmin Light utility version from http://solutions.brother.com/

2000/XP, Windows Vista®,

• If you require more advanced printer management, use the latest Brother BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/

Windows

• If you are using Windows

all personal firewall software (other than Windows

users.

Firewall or a firewall function of anti-spyware or antivirus applications, disable

Firewall), anti-spyware or antivirus applications for the

. This utility is only available for

duration of the configuration. Once you are sure that you can print, re-enable them.

• Node Name: Node Name appears in current BRAdmin Light window. The default Node Name of the print server in the machine is “BRNxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

• By default, no password is required. To set a password for, double-click the device you want to set a password. Click Control tab, and then click Change Password. Enter the new password.

a Start the BRAdmin Light utility.

 Windows

Click Start / All Programs

Programs for Windows® 2000 users

 Mac OS X 10.4.11 - 10.6.x

Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.

2000/XP, Windows Vista®, Windows®7 and Windows Server® 2003/2008

/ Brother / BRAdmin Light / BRAdmin Light.

b BRAdmin Light will search for new devices automatically.

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Note

c Double-click the unconfigured device.

Windows

Macintosh

• If the print server is set to its factory default settings (if you don’t use a DHCP/BOOTP/RARP server), the device will appear as Unconfigured in the BRAdmin Light utility screen.

• You can find the Node Name and MAC Address (Ethernet Address) from the machine’s control panel. See Node Name on page 68 and MAC Address on page 75.

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

d Choose STATIC from Boot Method. Enter the IP Address, Subnet Mask and Gateway (if needed) of

your print server.

Windows

Macintosh

e Click OK. f With the correctly programmed IP address, you will see the Brother print server in the device list.

Using the control panel to configure your machine for a network 2

You can configure your machine for a network using the control panel Network menu. (See Control panel setup on page 65.)

Using other methods to configure your machine for a network 2

You can configure your machine for a network using other methods. (See Other ways to set the IP address (for advanced users and administrators) on page 100.)

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Note

Changing the print server settings 2

For wireless network users, you need to configure the wireless settings to change the print server settings. (See Configuring your machine for a wireless network on page 18.)

Using the BRAdmin Light utility to change the print server settings 2

a Start the BRAdmin Light utility.

 Windows

Click Start / All Programs

Programs for Windows® 2000 users

2000/XP, Windows Vista®, Windows®7 and Windows Server® 2003/2008

/ Brother / BRAdmin Light / BRAdmin Light.

 Mac OS X 10.4.11 - 10.6.x

Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.

b Choose the print server which you want to change the settings. c Choose Network Configuration from the Control menu. d Enter a password if you have set one. e You can now change the print server settings.

If you want to change more advanced settings, use the BRAdmin Professional 3 utility that is available as

a download from http://solutions.brother.com/

. For Windows® only.

Using the BRAdmin Professional 3 utility to change the wireless settings (Windows®) 2

• Please use the latest version of the BRAdmin Professional 3 utility that is available as a download from

http://solutions.brother.com/

• If you are using Windows

all personal firewall software (other than Windows duration of the configuration. Once you are sure that you can print, configure the software settings following the instructions again.

• Node name: The node name appears in the current BRAdmin Professional 3 window. The default Node name is “BRNxxxxxxxxxxxx” or “BRWxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is your MAC Address / Ethernet Address.)

. This utility is only available for Windows® users.

Firewall or a firewall function of anti-spyware or antivirus applications, disable

Firewall), anti-spyware or antivirus applications for the

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Note

a Start the BRAdmin Professional 3 utility (from Windows

2000/XP, Windows Vista®, Windows®7 and

Windows Server® 2003/2008), by clicking Start / All Programs1 / Brother Administrator Utilities / Brother BRAdmin Professional 3 / BRAdmin Professional3.

Programs for Windows® 2000 users

b Choose the print server/machine which you want to configure. c Choose Configure Device from the Control menu. d Enter a password if you have set one.

By default, no password is required. To set a password for, double-click the device you want to set a password. Click Control tab, and then click Change Password. Enter the new password.

e You can now change the wireless settings.

• If the print server is set to its factory default settings without using a DHCP/BOOTP/RARP server, the device will appear as APIPA in the BRAdmin Professional 3 utility screen.

• You can find the Node Name and MAC Address (Ethernet Address) from the machine’s control panel. See Node Name on page 68 and MAC Address on page 75.

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only)

Using the Remote Setup to change the print server settings

(MFC-J615W and MFC-J630W only) (Not available for Windows Server 2003/2008) 2

Remote Setup for Windows

The Remote Setup application allows you to configure network settings from a Windows® application. When you access this application, the settings on your machine will be downloaded automatically to your PC and displayed on your PC screen. If you change the settings, you can upload them directly to the machine.

a Click the Start button, All Programs

your model name).

Programs for Windows® 2000 users

, Brother, MFC-XXXX LAN, then Remote Setup (where XXXX is

b Enter a password if you have set one. c Click TCP/IP (Wired) or Setup Misc. d You can now change the print server settings.

Remote Setup for Macintosh 2

The Remote Setup application allows you to configure many MFC settings from a Macintosh application. When you access this application, the settings on your machine will be downloaded automatically to your Macintosh and displayed on your Macintosh screen. If you change the settings, you can upload them directly to the machine.

a Double-click the Macintosh HD icon on your desktop, Library, Printers, Brother, then Utilities. b Double-click the Remote Setup icon. c Enter a password if you have set one. d Click TCP/IP (Wired) or Setup Misc. e You can now change the print server settings.

Using the control panel to change the print server settings 2

You can configure and change the print server settings using the control panel Network menu. (See Control panel setup on page 65.)

Note

Configuring your machine for a wireless

network

Overview 3

To connect your machine to your wireless network, you need to follow the steps in the Quick Setup Guide. We recommend that you use the Setup Wizard from the machine’s control panel Network menu. By using this method, you can easily connect your machine to your wireless network. Please follow the instructions in the supplied Quick Setup Guide.

Please read this chapter for more details on how to configure the wireless network settings. For information on TCP/IP settings, see Setting up the IP address and subnet mask on page 12. Then, in Network printing

from Windows

on page 90, you will learn how to install the network software and drivers into the operating system running on your computer.

• To achieve optimum results with normal every day document printing, place the Brother machine as close to the network access point (or router) as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer (DCP-J715W, MFC-J615W and MFC-J630W only), or USB for the fastest throughput speed.

basic TCP/IP Peer-to-Peer printing on page 86 and Network printing from a Macintosh

• Although the Brother machine can be used in both a wired and wireless network, only one connection method can be used at a time.

Configuring your machine for a wireless network

Wireless network terms and concepts 3

If you want to use your machine in a wireless network you must configure the machine to match the settings of the existing wireless network. This section provides some of the main terms and concepts of these settings, which may be helpful when you configure your machine for a wireless network.

SSID (Service Set Identifier) and channels 3

You need to configure the SSID and a channel to specify the wireless network you want to connect to.

 SSID

Each wireless network has its own unique network name and it is technically referred to as SSID or ESSID (Extended Service Set Identifier). The SSID is a 32-byte or less value and is assigned to the access point. The wireless network devices you want to associate to the wireless network should match the access point. The access point and wireless network devices regularly send wireless packets (referred to as a beacon) which has the SSID information. When your wireless network device receives a beacon, you can identify the wireless network that is close enough for the radio waves to reach your device.

 Channels

Wireless networks use channels. Each wireless channel is on a different frequency. There are up to 14 different channels that can be used when using a wireless network. However, in many countries the number of channels available are restricted. For further information, see Wireless network on page 107.

Authentication and encryption 3

Most wireless networks use some kind of security settings. These security settings define the authentication (how the device identifies itself to the network) and encryption (how the data is encrypted as it is sent on the network). If you do not correctly specify these options when you are configuring your Brother wireless device, it will not be able to connect to the wireless network. Therefore care must be taken when configuring these options. Please refer to the information below to see which authentication and encryption methods your Brother wireless device supports.

Authentication methods 3

The Brother machine supports the following methods:

 Open System

Wireless devices are allowed to access the network without any authentication.

 Shared Key

A secret pre-determined key is shared by all devices that will access the wireless network. The Brother wireless machine uses the WEP keys as the pre-determined key.

 WPA-PSK/WPA2-PSK

Enables a Wi-Fi Protected Access Pre-shared key (WPA-PSK/WPA2-PSK), which enables the Brother wireless machine to associate with access points using TKIP for WPA-PSK or AES for WPA-PSK and WPA2-PSK (WPA-Personal).

Configuring your machine for a wireless network

Encryption methods 3

Encryption is used to secure the data that is sent over the wireless network. The Brother wireless machine supports the following encryption methods:

 None

No encryption method is used.

 WEP

By using WEP (Wired Equivalent Privacy), the data is transmitted and received with a secure key.

 TKIP

TKIP (Temporal Key Integrity Protocol) provides per-packet key mixing a message integrity check and re-keying mechanism.

 AES

AES (Advanced Encryption Standard) is the Wi-Fi

authorized strong encryption standard.

Network Key 3

There are some rules for each security method:

 Open System/Shared Key with WEP

This key is a 64-bit or 128-bit value that must be entered in an ASCII or hexadecimal format.

• 64 (40) bit ASCII:

Uses 5 text characters e.g. “WSLAN” (this is case sensitive).

• 64 (40) bit hexadecimal:

Uses 10 digits of hexadecimal data e.g. “71f2234aba”.

• 128 (104) bit ASCII:

Uses 13 text characters e.g. “Wirelesscomms” (this is case sensitive).

• 128 (104) bit hexadecimal:

Uses 26 digits of hexadecimal data e.g. “71f2234ab56cd709e5412aa2ba”.

 WPA-PSK/WPA2-PSK and TKIP or AES

Uses a Pre-Shared Key (PSK) that is 8 or more characters in length, up to a maximum of 63 characters.

Configuring your machine for a wireless network

Step by step chart for wireless network configuration 3

For Infrastructure mode 3

a Confirm your network environment. (See page 23.)

 Infrastructure mode

Connected to a computer with an access point

b Confirm your wireless network setup method. (See page 24.)

 Ad-hoc mode See page 22.

Connected to a wireless capable computer without an access point

Using the Setup Wizard from the

control panel

(Recommended)

Using the

WPS/AOSS control

panel menu

Using the PIN

Method of Wi-Fi Protected Setup

Temporarily using a

USB cable or

network cable

Using the Brother installer application

Using the

WPS/AOSS control

panel menu

c Configure your machine for a wireless network. (See page 27.)

See page 27. See page 32. See page 34. See page 37. See page 48.

Installing drivers and software (See the Quick Setup Guide.)

Wireless configuration and installing drivers and software have been completed.

Configuring your machine for a wireless network

For Ad-hoc mode 3

a Confirm your network environment. (See page 23.)

 Ad-hoc mode

Connected to a wireless capable computer without

 Infrastructure mode See page 21.

Connected to a computer with an access point

an access point

b Confirm your wireless network setup method. (See page 24.)

Using the Setup Wizard from the control panel

(Recommended)

c Configure your machine for a wireless network. (See page 27.)

See page 27. See page 54.

Using the Brother installer application

Installing drivers and software (See the Quick Setup Guide.)

Wireless configuration and installing drivers and software have been completed.

Configuring your machine for a wireless network

Note

Confirm your network environment 3

Connected to a computer with an access point in the network (Infrastructure mode) 3

1 Access point

2 Wireless network printer (your machine)

3 Wireless capable computer connected to the access point

4 Wired computer (which is not wireless capable) connected to the access point with an Ethernet

cable

Connected to a wireless capable computer without an access point in the network (Ad-hoc mode) 3

1 Wireless network printer (your machine)

2 Wireless capable computer

We do not guarantee the wireless network connection with Windows Server® products in Ad-hoc mode.

Configuring your machine for a wireless network

Confirm your wireless network setup method 3

There are four methods to configure your machine for a wireless network; by using the machine’s control panel (recommended), using WPS or AOSS™ from the control panel menu, using the PIN Method of Wi-Fi Protected Setup or using the Brother installer application. The setup process will be different depending on your network environment.

Configuration using the machine’s control panel Setup Wizard to configure your wireless network machine 3

We recommend that you use the machine’s control panel to configure your wireless network settings. By using the control panel Setup Wizard function, you can easily connect your Brother machine to your wireless network. You must know your wireless network settings before you proceed with this

installation. (See Using the Setup Wizard from the control panel on page 27.)

Configuration using the WPS/AOSS™ control panel menu (Infrastructure mode only) 3

If your wireless access point (A) supports either Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine without a computer. (See Using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network on page 32.)

Push Button Configuration

Configuring your machine for a wireless network

Configuration using the PIN Method of Wi-Fi Protected Setup (Infrastructure mode only) 3

If your wireless access point (A) supports Wi-Fi Protected Setup, you can also configure using the PIN Method of Wi-Fi Protected Setup. (See Using the PIN Method of Wi-Fi Protected Setup on page 34.)

 Connection when the wireless access point (router) (A) doubles as a Registrar

 Connection when another device (C), such as a computer is used as a Registrar1.

The Registrar is a device that manages the wireless LAN.

Configuring your machine for a wireless network

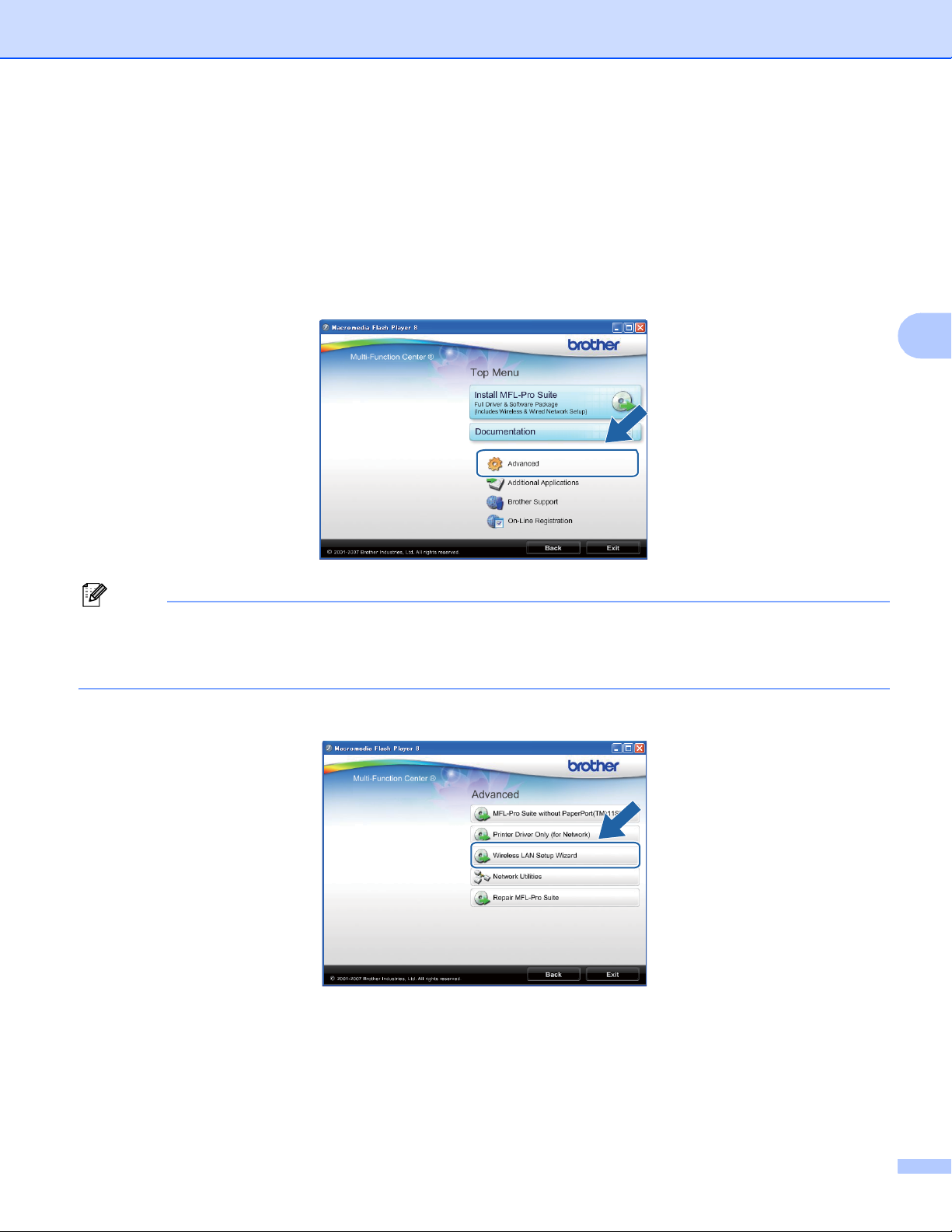

Configuration using the Brother installer application on the installation CD-ROM to configure your wireless network machine 3

You can also use the Brother installer application on the installation CD-ROM we have provided with the machine. You will be guided by the on-screen instructions until you are able to use your Brother wireless network machine. You must know your wireless network settings before you proceed with this

installation. (See Wireless configuration using the Brother installer application on page 37.)

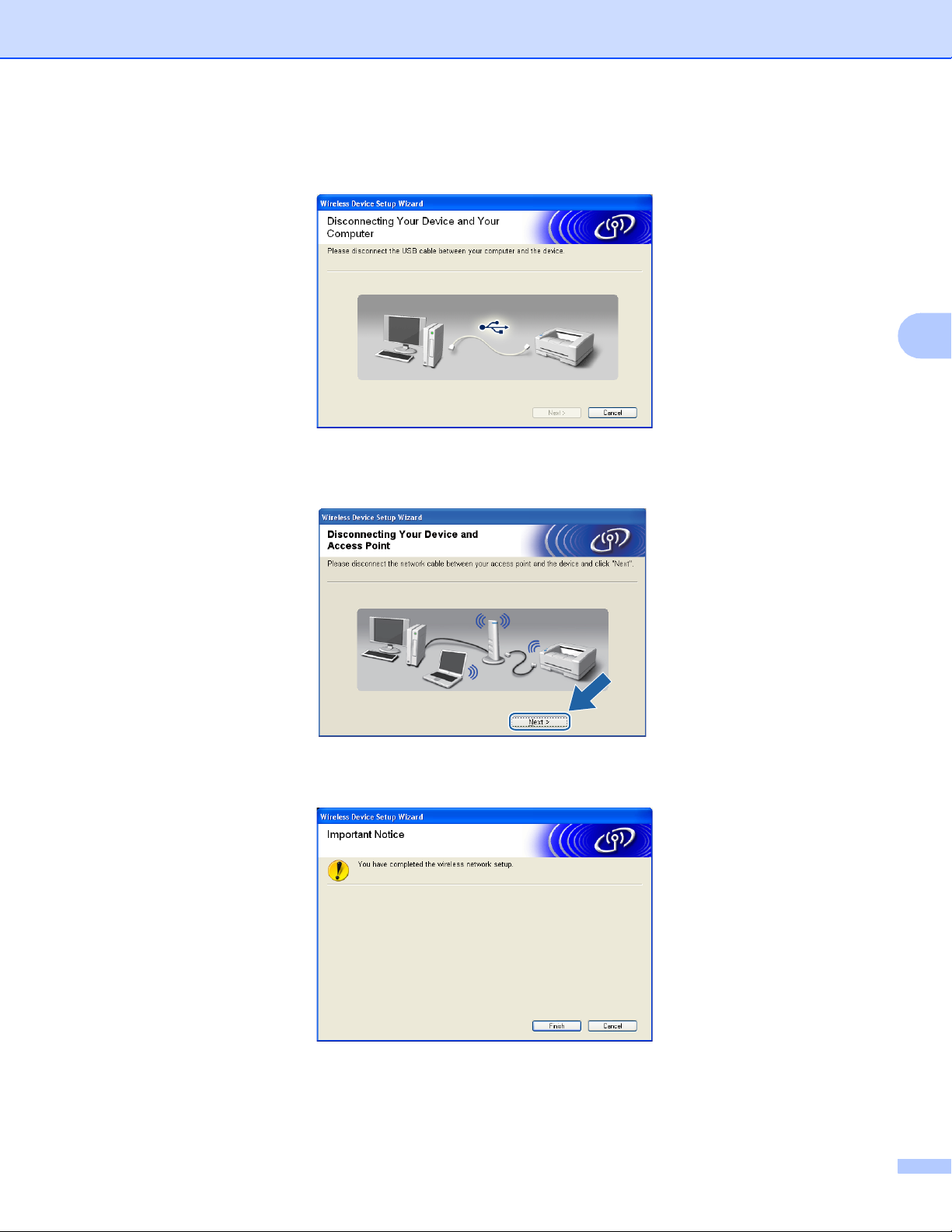

Configuration temporarily using a USB or a network cable 3

You can temporarily use a USB cable or a network cable when you configure your Brother machine in this method. The USB and network cables are not standard accessories included with the machine.

 You can remotely configure the machine from the computer on the network using a USB cable (A)

Connecting a USB cable is available to either the wired computer or the wireless computer.

 If there is an Ethernet Hub or Router in the same network as the wireless access point/router (A) of your

machine, you can temporarily connect the Hub or Router to the machine using a network cable (B). You can then remotely configure the machine from a computer on the network.

Configuring your machine for a wireless network

IMPORTANT

Note

Configuring your machine for a wireless network 3

• If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you

proceed with this installation.

• If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again.

Press Menu, a or b to choose Network, press OK. Press a or b to choose Network Reset, press OK. Press 1 or + to reset and then press 1 or + to accept the change. The machine will restart automatically.

Using the Setup Wizard from the control panel 3

You can configure your print server by using the Setup Wizard function. This is located in the Network menu on the machine’s control panel. See to the steps below for further information.

Configuring your machine for an existing wireless network 3

a Before configuring your machine we recommend you write down the SSID and Password (Network Key)

(if required) for your wireless network. You will need this information before you continue with the configuration. If your wireless access point/router is set to not broadcast the SSID Name, see Configuring your machine when the SSID is not broadcast on page 29.

Item Record the current wireless network settings

Network name: (SSID/ESSID)

Password (Network Key)

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

b Press Menu. c Press a or b to choose Network.

Press OK.

d For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

Configuring your machine for a wireless network

Note

f When WLAN Enable? or Network I/F switched to Wireless. is displayed, press OK to

accept. This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs. You should see the SSID

you wrote down earlier. If the machine finds more than one network (SSID) use a or b key to choose your network, then press OK. If a list of SSIDs is not displayed, make sure your access point is on. Move your machine closer to the access point and try starting from step a again. If your access point is set to not broadcast the SSID, you will have to manually add the SSID name. See Configuring your machine when the SSID is not broadcast on page 29.

h Enter the Password (Network Key) and press OK. (For information how to enter text, see Entering Text

on page 112.)

If your Authentication method is Open system and your Encryption mode is None, skip steps h and i. Go to step j.

i To apply the settings, choose Yes. To cancel, choose No.

If you chose Yes, go to step j. If you chose No, go back to step g.

j The machine starts to connect to the wireless device you have chosen. k If your wireless device is connected successfully, the display shows Connected for 60 seconds and

configuration is completed. If the connection failed, the display shows Wrong Password or Connection Fail for 60 seconds. A Wireless LAN report will also be printed with the connection status. If there is an error code on the printed report refer to Troubleshooting in the Quick Setup Guide.

• If the LCD displays Wrong Password, the Password (Network Key) you entered did not match with your access point. Verify your network settings collected in step a on page 27, then repeat step b to step i to make sure you have entered the correct information.

• If the LCD displays Connection Fail, make sure your access point is on, and verify your network settings collected in step a on page 27.

Temporarily move your machine as close as possible to the access point, repeat step b to step i to make sure you have entered the correct information.

• It may take a few minutes to connect to your wireless network.

Configuring your machine for a wireless network

Note

(Windows®)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from the installation CD-ROM menu.

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please double-click Start Here OSX in the installation CD-ROM.

Configuring your machine when the SSID is not broadcast

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name:(SSID, ESSID)

Communication Mode Authentication method Encryption mode Network key

Infrastructure Open system WEP

NONE —

Shared key WEP

WPA/WPA2-PSK AES

TKIP

Ad-hoc Open system WEP

NONE —

TKIP is supported for WPA-PSK only.

For example:

Network name:(SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Infrastructure WPA2-PSK AES 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

b Press Menu.

Configuring your machine for a wireless network

c Press a or b to choose Network.

Press OK.

d For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable? or Network I/F switched to Wireless. is displayed, press OK to

accept. This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

Choose <New SSID> using a or b. Press OK.

h Enter the SSID name. (For information how to enter text, see Entering Text on page 112.)

Press OK.

i Using a or b, choose Ad-hoc or Infrastructure when instructed.

Press OK. Do one of the following: If you chose Ad-hoc, go to step k. If you chose Infrastructure, go to step j.

j Choose the Authentication method using a or b, and press OK.

Do one of the following: If you chose Open System, go to step k. If you chose Shared Key, go to step l. If you chose WPA/WPA2-PSK, go to step m.

k Choose the Encryption type None or WEP using a or b, and press OK.

Do one of the following: If you chose None, go to step o. If you chose WEP, go to step l.

l Enter the WEP key you wrote down in step a on page 29. Press OK. Go to step o. (For information

how to enter text, see Entering Text on page 112.)

m Choose the Encryption type, TKIP or AES using a or b. Press OK. Go to step n. n Enter the WPA key you wrote down in step a on page 29 and press OK. Go to step o . (For information

how to enter text, see Entering Text on page 112.)

o To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step p. If you chose No, go back to step g.

Configuring your machine for a wireless network

Note

p The machine starts to connect to the wireless device you have chosen. q If your wireless device is connected successfully, the display shows Connected for 60 seconds and

configuration is completed. If the connection failed, the display shows Connection Fail or Wrong Password for 60 seconds. A Wireless LAN report will also be printed with the connection status. If there is an error code on the printed report refer to Troubleshooting in the Quick Setup Guide.

• If the LCD displays Wrong Password, the Password (Network Key) you entered did not match with your access point. Verify your network settings collected in step a on page 29, then repeat step b to step o to make sure you have entered the correct information.

• If the LCD displays Connection Fail, make sure your access point is on, and verify your network settings collected in step a on page 29.

Temporarily move your machine as close as possible to the access point, repeat step b to step o to make sure you have entered the correct information.

(Windows®)

(Macintosh)

Configuring your machine for a wireless network

Note

Using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network 3

If your wireless access point supports either Wi-Fi Protected Setup (PBC1) or AOSS™ (one-push method), you can configure the machine easily without a computer. Your Brother machine has the WPS/AOSS™ menu available from the control panel. This feature automatically detects which mode your access point uses, Wi-Fi Protected Setup or AOSS™. By pushing a button on the wireless access point/router, you can setup the wireless network and security settings. See the User’s Guide for your wireless access point/router for instructions on how to access one-push mode.

Push Button Configuration

Routers or access points that support Wi-Fi Protected Setup or AOSS™ have the appropriate symbols shown below.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WPS/AOSS.

Press OK. This feature will automatically detect which mode (Wi-Fi Protected Setup or AOSS™) your access point uses to configure your machine.

If your wireless access point supports Wi-Fi Protected Setup (PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see Using the PIN Method of Wi-Fi Protected Setup on page 34.

e When WLAN Enable? or Networ k I/F switched to Wireless. is displayed, press OK to

accept. This will start the wireless setup wizard. To cancel, press Stop/Exit.

Configuring your machine for a wireless network

Note

f The machine searches for an access point that supports Wi-Fi Protected Setup or AOSS™ for

2 minutes.

g Put your access point in the Wi-Fi Protected Setup mode or AOSS™ mode, depending on what is

supported by your access point. Please refer to the instruction manual that came with your access point.

h If the LCD shows Connected, the machine has successfully connected to your router or access point.

You can now use your machine in a wireless network. If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from d again. If the LCD shows No Access Point, the machine has not detected your access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the machine closer to your access point/router and try starting from d again. If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router. Try starting from d again. If the same message is indicated again, reset the machine back to the default factory settings and try again. (For resetting, see Restoring the network settings to factory default on page 77.) A Wireless LAN report will also be printed with the connection status. If there is an error code on the printed report refer to Troubleshooting in the Quick Setup Guide.

LCD messages when using the WPS/AOSS™ control panel menu

LCD shows Connection status Action

Searching or accessing the access point,

Setting WLAN

Connecting WPS

Connecting AOSS

Connected Connection succeeded. —

Connection Error Session overlap has been detected.

No Access Point The access point detection failed.

Connection Fail

and downloading settings from the access point.

Connecting to the access point. —

Check that only one router or access point has the Wi-Fi Protected Setup mode or AOSS™ mode enabled and try starting from step d again.

Move the machine closer to your access point/router and try starting from step d again.

 Try starting from step d again.

The machine was not able to connect with the access point.

 If the same message reappears,

reset the machine back to the factory settings and try again.

—

• If you encounter a problem during setup, temporarily place your machine closer to the wireless access point, and go back to step d.

• You can also manually configure the wireless settings following the steps starting at step a on page 27.

Configuring your machine for a wireless network

Note

(Windows®)

(Macintosh)

Using the PIN Method of Wi-Fi Protected Setup 3

If your wireless access point supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily. The PIN (Personal Identification Number) Method is one of the connection methods developed by the

Wi-Fi Alliance that manages the wireless LAN), you can setup the wireless network and security settings. See the User’s Guide for your wireless access point/router for instructions on how to access the Wi-Fi Protected Setup mode.

Routers or access points that support Wi-Fi Protected Setup have a symbol as shown below.

. By inputting a PIN which is created by an Enrollee (your machine) to the Registrar (a device

a Press Menu.

b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WPSw/PINCode.

Press OK.

e When WLAN Enable? or Network I/F switched to Wireless. is displayed, press OK to

accept. This will start the wireless setup wizard. To cancel, press Stop/Exit.

f The LCD will show an 8 digit PIN and the machine begins searching for an access point for 5 minutes.

Configuring your machine for a wireless network

Note

g Using a computer that is on the network, type “http://access point’s IP address/” into your browser.

(Where “access point’s IP address” is the IP address of the device that is used as the Registrar1.) Go to the WPS (Wi-Fi Protected Setup) setting page and input the PIN which the LCD shows in f to the Registrar and follow the on-screen instructions.

The Registrar is normally the access point/router.

The setting page is different, depending on the brand of access point/router. See the instruction manual that came with your access point/router.

If you are using your Windows Vista® or Windows®7 computer as a Registrar, perform following instructions.

To use a Windows Vista® or Windows®7 computer as a Registrar, you need to register it to your network in advance. See the instruction manual that came with your access point/router.

1 (Windows Vista

)

Click , Network, and then Add a wireless device.

(Windows®7)

Click , Control Panel, Network and Internet, and then

Add a wireless device to the network.

2 Choose your machine and click Next.

3 Input the PIN from the printed page and then click Next.

4 Choose your network that you want to connect to, and then click Next.

5 Click Close.

h If the LCD shows Connected, the machine has successfully connected to your router or access point.

You can now use your machine in a wireless network. If the LCD shows No Access Point or Connection Fail, the machine has not successfully connected to your router or access point. Try starting from d again. If the same message is indicated again, reset the machine back to the default factory settings and try again. For resetting, see Restoring the network settings to factory default on page 77. A Wireless LAN report will also be printed with the connection status. If there is an error code on the printed report refer to Troubleshooting in the Quick Setup Guide.

Configuring your machine for a wireless network

(Windows®)

(Macintosh)

Using the Brother automatic installer application on the installation CD-ROM to configure your machine for a wireless network 3

For installation, see Wireless configuration using the Brother installer application on page 37.

IMPORTANT

Wireless configuration using the Brother

• The following instructions will install your Brother machine in a network environment using the Brother installer application found on the installation CD-ROM we have provided with the machine.

• You can also setup your Brother machine using the machine’s control panel which we recommend. You can find instructions in the supplied Quick Setup Guide or see Configuring your machine for a wireless network on page 18.

• You must know your wireless network settings before you proceed with this installation.

If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation.

installer application

Configuration in Infrastructure mode 4

Before configuring the wireless settings 4

• If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again.

• If you are using Windows® Firewall or a firewall function of anti-spyware or antivirus applications, disable

all personal firewall software (other than Windows duration of the configuration. Once you are sure that you can print, configure the software settings following the instructions again.

• You need to temporarily use a USB cable (not included) or Ethernet cable (not included) during configuration.

• If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

• Before configuring your machine we recommend you write down the SSID and Password (Network Key) (if required) for your wireless network. You will need this information before you continue with the configuration.

Item Record the current wireless network settings

Network name: (SSID/ESSID)

Password (Network Key)

Firewall), anti-spyware or antivirus applications for the

Wireless configuration using the Brother installer application

Note

Configure the wireless settings 4

a Turn on your computer. b Start the Brother installer application.

 Windows

1 Put the supplied installation CD-ROM into your CD-ROM drive. The opening screen will appear

2 The CD-ROM main menu will appear. Click Advanced.

automatically. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

• If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.

• The screen on your machine may vary depending on your region.

3 Click Wireless LAN Setup Wizard.

Wireless configuration using the Brother installer application

 Macintosh

1 Put the supplied installation CD-ROM into your CD-ROM drive. Double-click the

MFL_PRO Suite icon on your desktop.

2 Double-click Utilities.

3 Double-click the Wireless Device Setup Wizard.

c Choose No and then click Next.

Wireless configuration using the Brother installer application

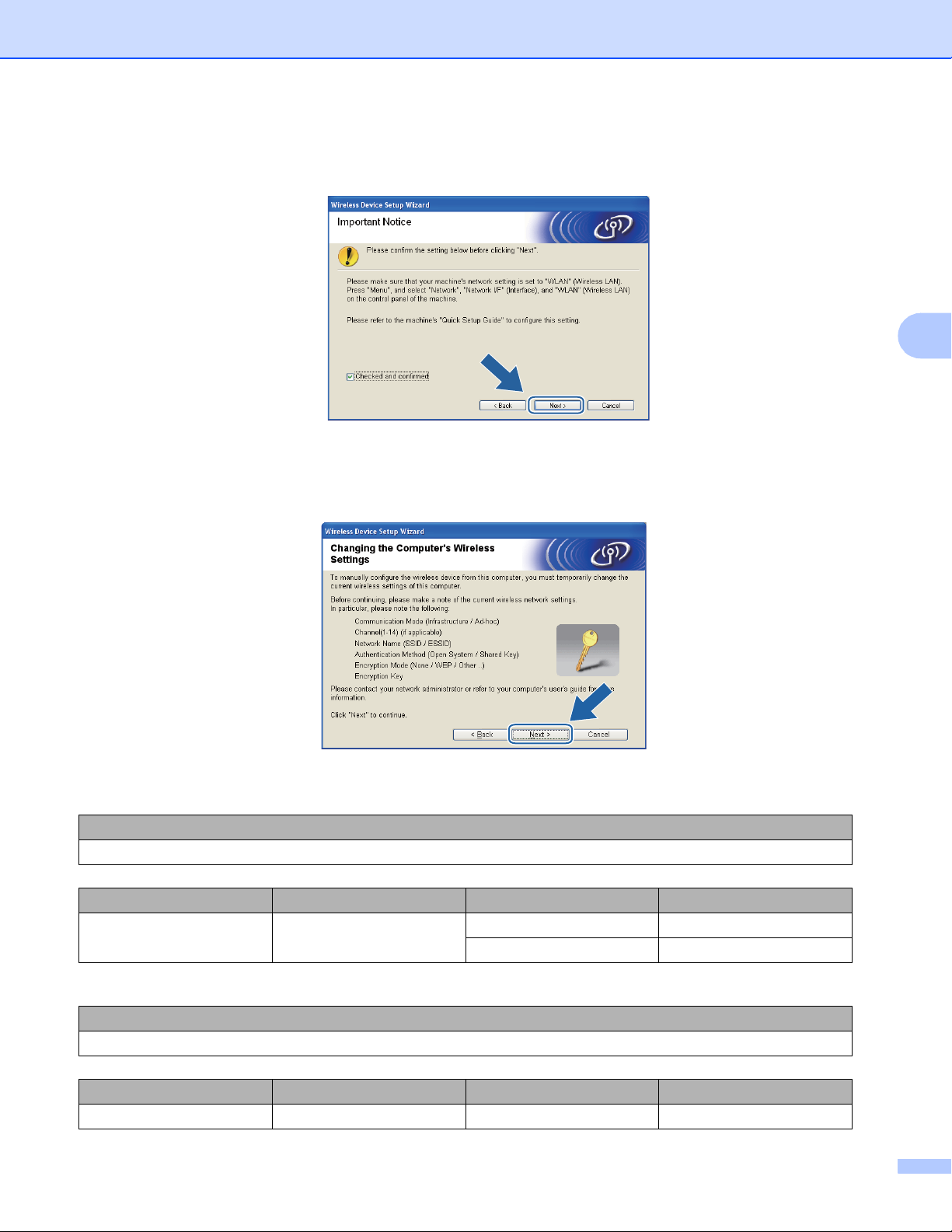

d Read the Important Notice. Check the box after you confirm the SSID and Network Key, and then click

Next.

e Choose Temporarily use a USB cable (Recommend) or Temporarily use an Ethernet (LAN) cable

and then click Next. If you choose Temporarily use a USB cable (Recommend), go to step f. If you choose Temporarily use an Ethernet (LAN) cable, go to step g.

(DCP-J715W, MFC-J615W and MFC-J630W) (DCP-J315W, DCP-J515W, MFC-J265W and

MFC-J415W)

Wireless configuration using the Brother installer application

f (For USB cable users)

Temporarily connect the USB cable (not included) directly to the computer and the machine. Then go to step j.

g (For LAN cable users)

Read the Important Notice. Check the box after you confirm the wired setting is enabled, and then click Next.

Wireless configuration using the Brother installer application

Note

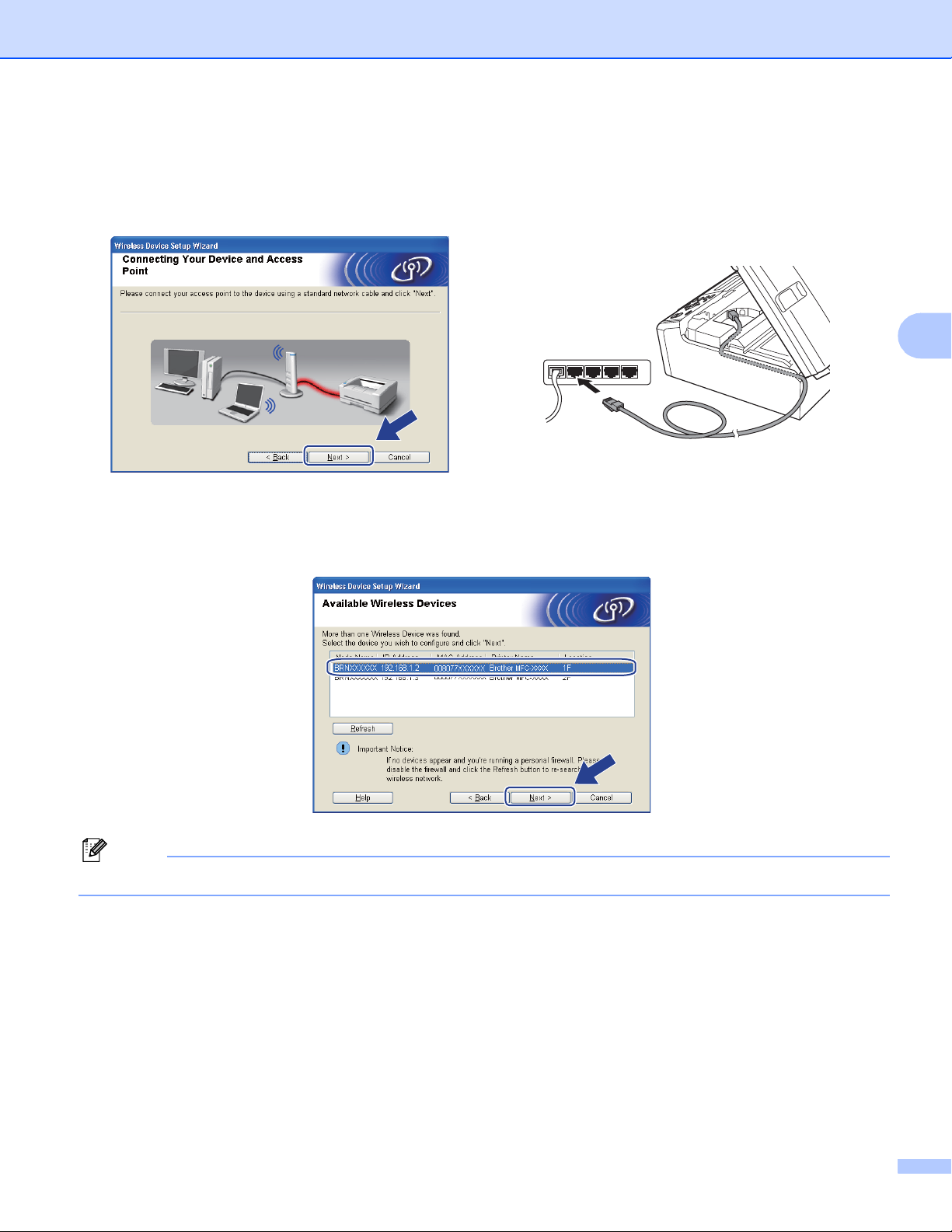

h (For LAN cable users)

Temporarily connect the Brother wireless device to your access point using a network cable (not included) and click Next.

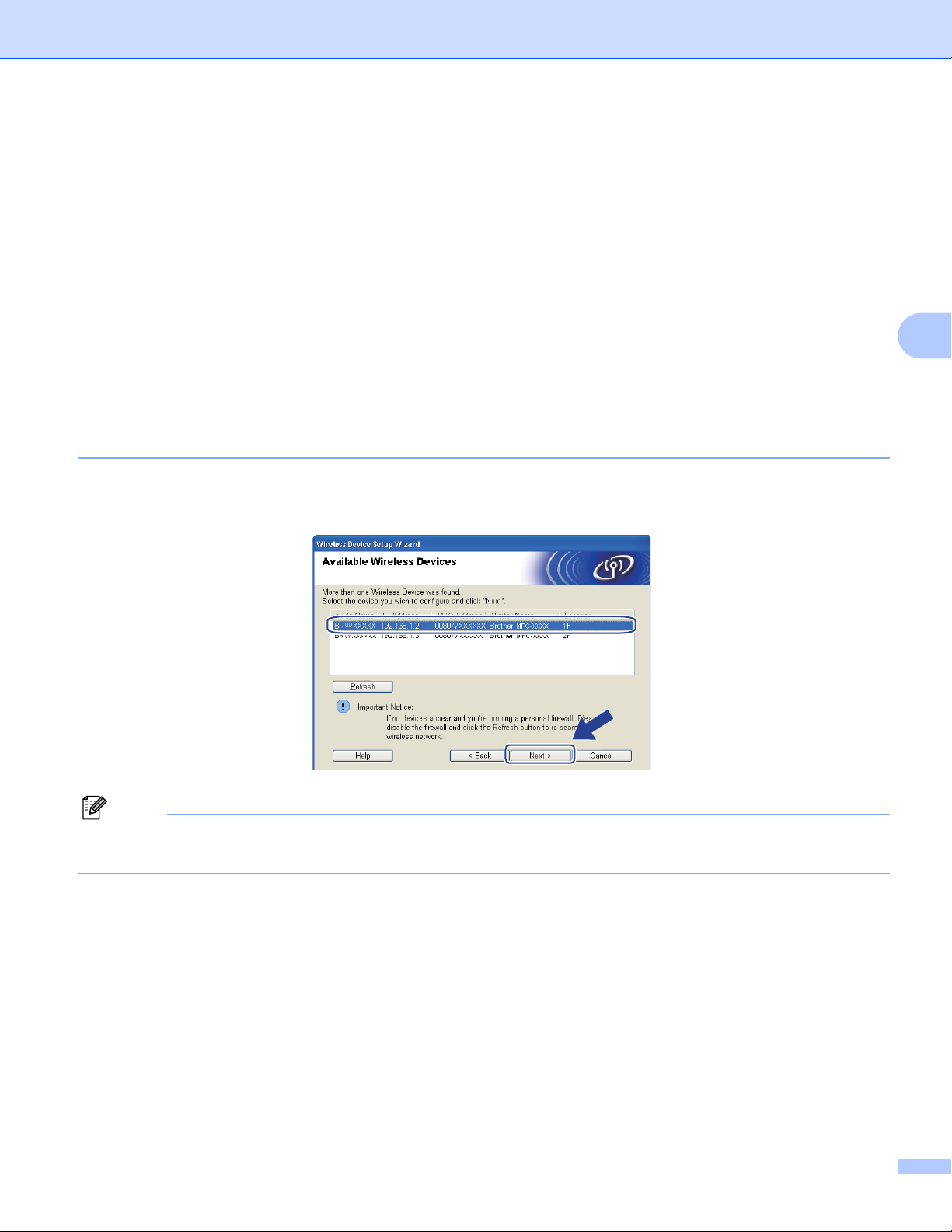

i (For LAN cable users)

Choose the machine you wish to configure, and click Next. If the list is blank, check if the access point and the machine are powered on, and then click Refresh.

The default Node name is “BRNxxxxxxxxxxxx”.

Wireless configuration using the Brother installer application

Note

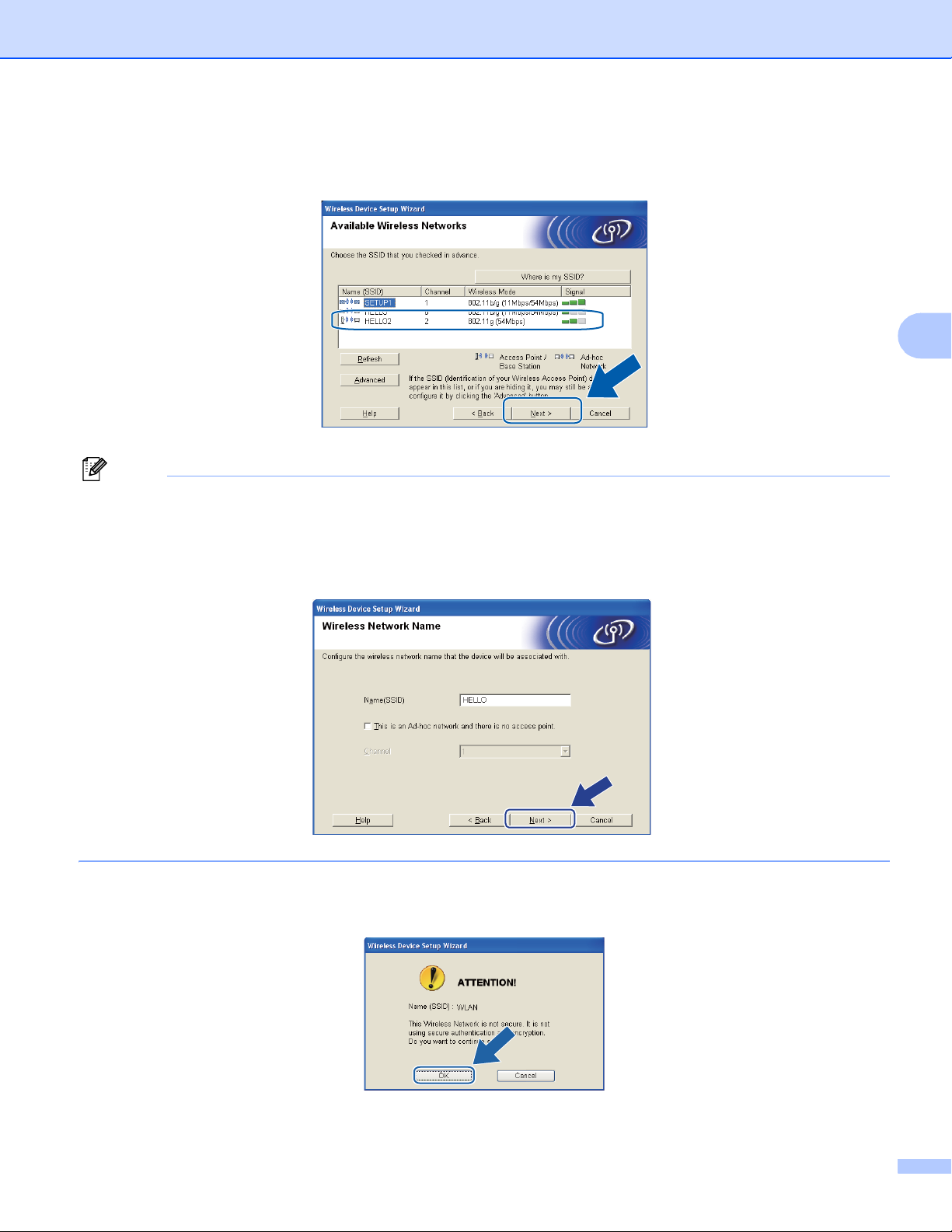

j The wizard will search for wireless networks available from your machine. Choose the access point you

wish to associate the machine with, and then click Next.

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the machine and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Advanced button. Follow the on-screen instructions for entering the Name (SSID).

k If your network is not configured for Authentication and Encryption, the following screen will appear. To

continue configuration, click OK and go to step m.

Wireless configuration using the Brother installer application

Note

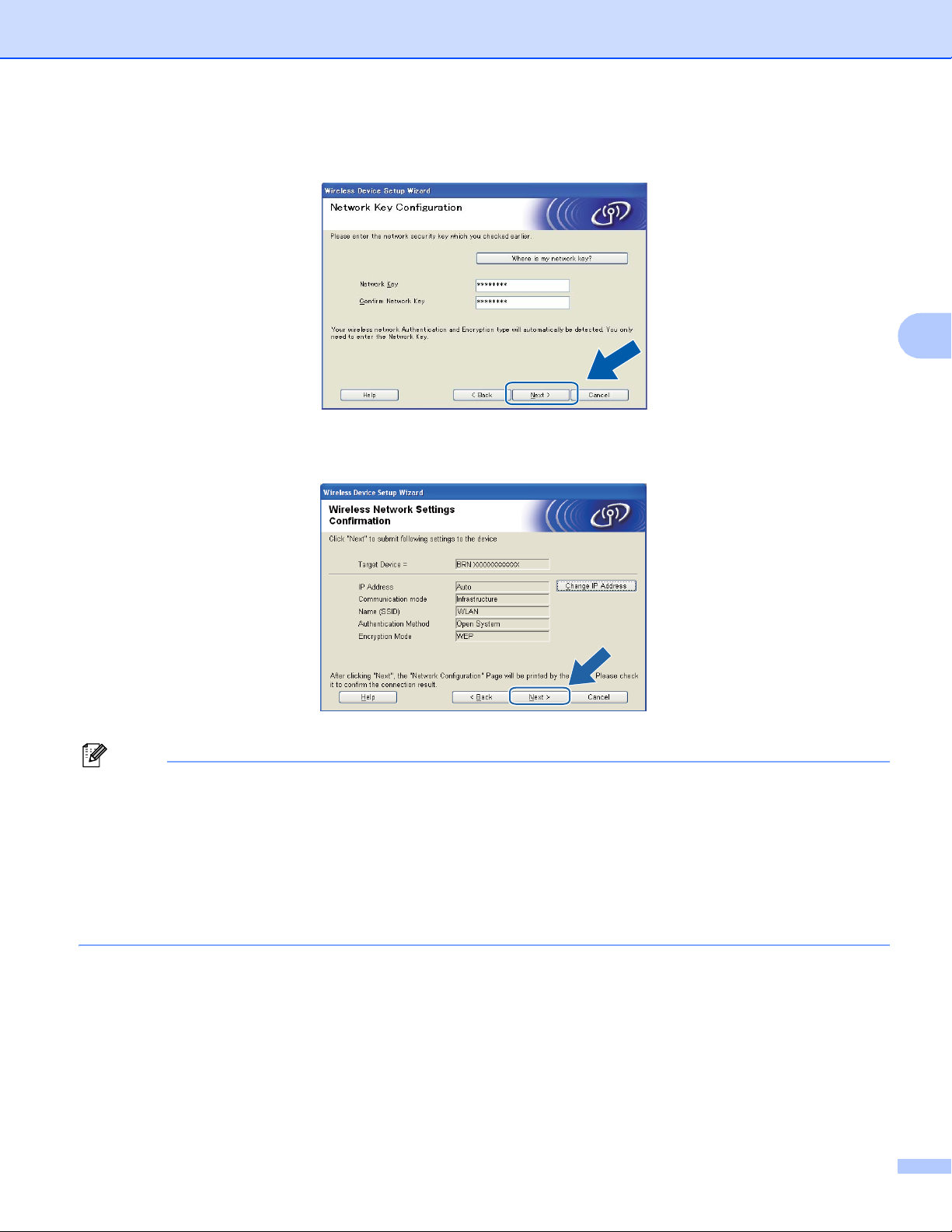

l Enter the Network Key and then enter the key again in Confirm Network Key, then click Next.

m Click Next. The settings will be sent to your machine.

• The settings will remain unchanged if you click Cancel.

• If you want to manually enter the IP address settings of your machine, click Change IP Address and enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN when the wireless settings are sent to your machine.

• (For USB cable users) If the wireless setup failure screen appears, click Retry and try starting from step j again.

Wireless configuration using the Brother installer application

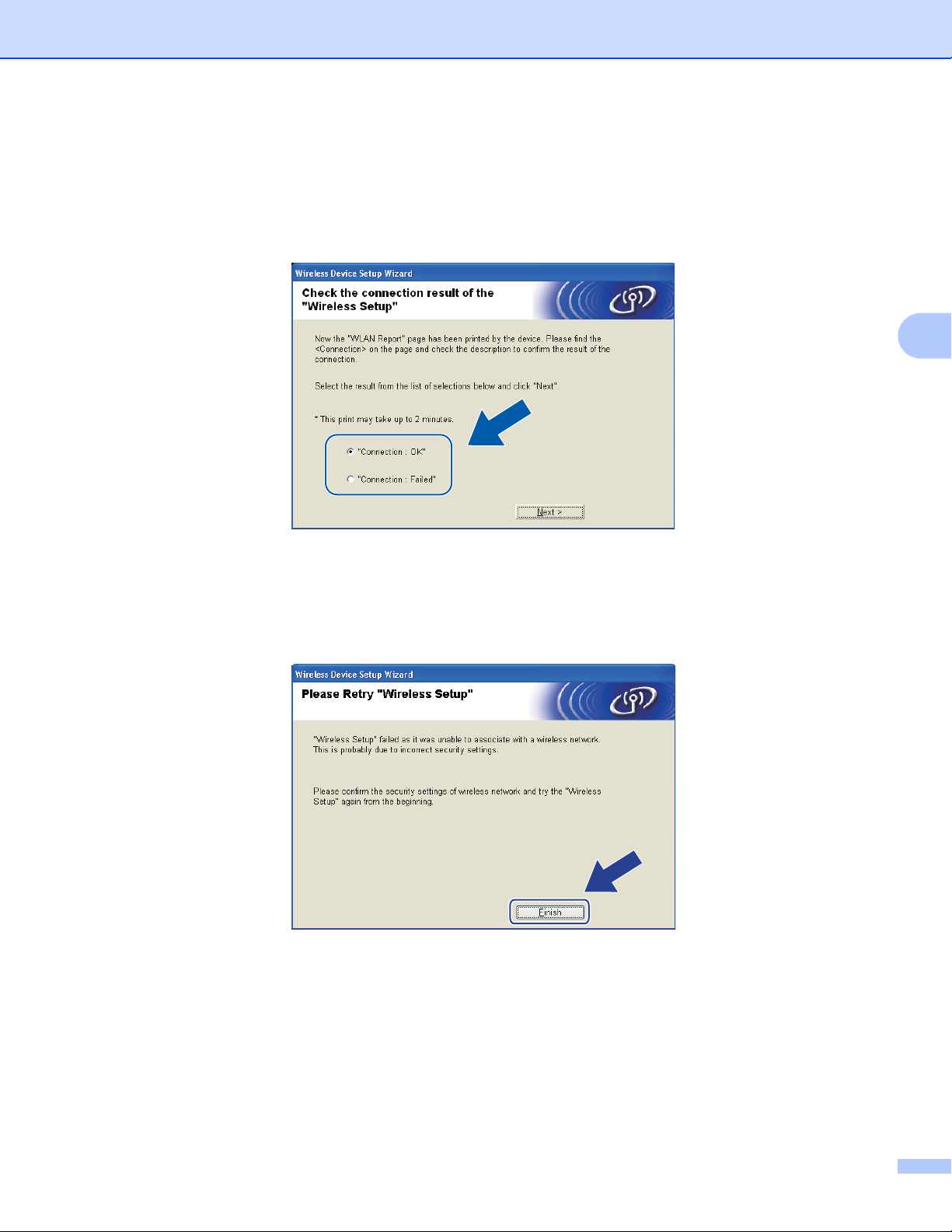

n (For LAN cable users)

A wireless LAN report will automatically be printed. Choose the status as it is shown for the Connection on the wireless LAN report. Click Next. If your status is "Connection:OK", go to step p. If your status is "Connection:Failed", go to step o.

o (For LAN cable users)

Click Finish. Wireless setup failed as it was unable to associate with a wireless network. Check the error code on the printed wireless LAN report and refer to Troubleshooting in the Quick Setup Guide. Then try starting from step b-3 again.

Wireless configuration using the Brother installer application

p (For USB cable users)

Disconnect the USB cable between the computer and the machine.

(For LAN cable users) Disconnect the network cable between your access point and the machine, and click Next.

q Click Finish.

Wireless configuration using the Brother installer application

Note

(Windows®)

(Macintosh)

If your wireless settings fail, the Wireless Device Setup Wizard will appear during the installation of

MFL-Pro Suite. Confirm your settings by following the on-screen instructions.

Wireless configuration using the Brother installer application

IMPORTANT

Configuration using WPS or AOSS™ from the control panel menu (Automatic wireless mode) 4

Before configuring the wireless settings 4

• If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again.

• If you are using Windows

all personal firewall software (other than Windows duration of the configuration. Once you are sure that you can print, configure the software settings following the instructions again.

Firewall or a firewall function of anti-spyware or antivirus applications, disable

Firewall), anti-spyware or antivirus applications for the

Configure the wireless settings 4

a (For DCP-J315W, DCP-J515W, MFC-J265W and MFC-J415W)

Press Menu. Press a or b to choose Network, press OK. Press a or b to choose WLAN Enable, press OK. Press a or b to choose On, press OK.

(For DCP-J715W, MFC-J615W and MFC-J630W) Press Menu. Press a or b to choose Network, press OK. Press a or b to choose Network I/F, press OK. Press a or b to choose WLAN, press OK.

b Turn on your computer.

Close any applications running before you start configuration.

Wireless configuration using the Brother installer application

Note

c Start the Brother installer application.

 Windows

1 Put the supplied installation CD-ROM into your CD-ROM drive. The opening screen will appear

2 The CD-ROM main menu will appear. Click Advanced.

automatically. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

• If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.

• The screen on your machine may vary depending on your region.

3 Click Wireless LAN Setup Wizard.

Wireless configuration using the Brother installer application

 Macintosh

1 Put the supplied installation CD-ROM into your CD-ROM drive. Double-click the

MFL_PRO Suite icon on your desktop.

2 Double-click Utilities.

3 Double-click the Wireless Device Setup Wizard.

Wireless configuration using the Brother installer application

Note

d Choose Yes, my Access Point supports WPS or AOSS and I want to use them. and click Next.

e Read the Important Notice. Check the box after you confirm the wireless setting is enabled, and then

click Next.

f Press Menu, a or b to choose Network and press OK.

(For DCP-J715W, MFC-J615W and MFC-J630W) Press a or b to choose WLAN and then press OK.

Press a or b to choose WPS/AOSS and press OK.

g The machine searches for an access point that supports Wi-Fi Protected Setup or AOSS™ for

2 minutes.

h Put your access point in the Wi-Fi Protected Setup mode or AOSS™ mode, depending on what is

supported by your access point. Please refer to the instruction manual that came with your access point.

Wireless configuration using the Brother installer application

i If the LCD shows Connected, the machine has successfully connected to your router or access point.

You can now use your machine in a wireless network. If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from f again. If the LCD shows No Access Point, the machine has not detected your access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the machine closer to your access point/router and try starting from f again. If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router. Try starting from f again. If the same message is indicated again, reset the machine back to the default factory settings and try again. (For resetting, see Restoring the network settings to factory default on page 77.)

LCD messages when using the WPS/AOSS™ control panel menu

LCD shows Connection status Action

Searching or accessing the access point,

Setting WLAN

Connecting WPS

Connecting AOSS

Connected Connection succeeded. —

Connection Error Session overlap has been detected.

No Access Point The access point detection failed.

Connection Fail

and downloading settings from the access point.

Connecting to the access point. —

Check that only one router or access point has the Wi-Fi Protected Setup mode or AOSS™ mode enabled and try starting from step f again.

Move the machine closer to your access point/router and try starting from step f again.

 Try starting from step f again.

The machine was not able to connect with the access point.

 If the same message reappears,

reset the machine back to the factory settings and try again.

—

Wireless configuration using the Brother installer application

j Click Next.

k Check the box after you confirm that you have completed the wireless settings, and then click Finish.

(Windows®)

(Macintosh)

Wireless configuration using the Brother installer application

IMPORTANT

Configuration in Ad-hoc Mode 4

Before configuring the wireless settings 4

• If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again.

• If you are using Windows

all personal firewall software (other than Windows duration of the configuration. Once you are sure that you can print, configure the software settings following the instructions again.

Configure the wireless settings 4

Firewall or a firewall function of anti-spyware or antivirus applications, disable

Firewall), anti-spyware or antivirus applications for the

a (For DCP-J315W, DCP-J515W, MFC-J265W and MFC-J415W)

Press Menu. Press a or b to choose Network, press OK. Press a or b to choose WLAN Enable, press OK. Press a or b to choose On, press OK.

(For DCP-J715W, MFC-J615W and MFC-J630W) Press Menu. Press a or b to choose Network, press OK. Press a or b to choose Network I/F, press OK. Press a or b to choose WLAN, press OK.

b Turn on your computer.

Close any applications running before configuration.

Wireless configuration using the Brother installer application

Note

c Start the Brother installer application.

 Windows

1 Put the supplied installation CD-ROM into your CD-ROM drive. The opening screen will appear

2 The CD-ROM main menu will appear. Click Advanced.

automatically. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

• If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click Start.exe.

• The screen on your machine may vary depending on your region.

3 Click Wireless LAN Setup Wizard.

Wireless configuration using the Brother installer application

 Macintosh

1 Put the supplied installation CD-ROM into your CD-ROM drive. Double-click the

MFL_PRO Suite icon on your desktop.

2 Double-click Utilities.

3 Double-click the Wireless Device Setup Wizard.

Wireless configuration using the Brother installer application

d Choose No and then click Next.

e Read the Important Notice. Check the box after you confirm the SSID and Network Key, and then click

Next.

f Choose Advanced method and then click Next.

Wireless configuration using the Brother installer application

g Read the Important Notice. Check the box after you confirm the wireless setting is enabled, and then

click Next.

h You need to temporarily change your computer's wireless settings. Follow the on-screen instructions.

Make sure to take note of all the settings such as the SSID or channel of your computer (you will need them to return your computer back to its original wireless settings), and then click Next.

If you want to configure your machine for the wireless network you have been using, write down your wireless network settings before configuration.

Network name:(SSID, ESSID)

Communication Mode Authentication method Encryption mode Network key

Ad-hoc Open system WEP

NONE —

For example:

Network name:(SSID, ESSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Ad-hoc Open system WEP 12345

Wireless configuration using the Brother installer application

Note

i To communicate with the un-configured wireless machine, temporarily change the wireless settings on

your computer to match machine’s default settings shown on this screen. Check the box after you confirm the wireless setting, and then click Next.

• If a message to restart your computer appears after the wireless settings have been changed, restart your computer and then go back to step c and continue with the install skipping steps g, h and i.

•Windows Vista

or Windows®7:

You can temporarily change the wireless settings on your computer, following the steps below:

1 Click and then Control Panel.

2 Click Network and Internet and then Network and Sharing Center icon.

3 Click Connect to a network.

4 You can see the SSID of the wireless Brother machine in the list. Choose SETUP and click Connect.

5 (For Windows Vista

Click Connect Anyway and then Close.

6 (Windows Vista

Click View status of Wireless Network Connection (SETUP).

(Windows Click Wireless Network Connection (SETUP).

only)

)

7 Click Details... and check the Network Connection Details. It may take a few minutes to change

from 0.0.0.0 to 169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

•Windows

XP SP2 or greater:

You can temporarily change the wireless settings on your PC, following the steps below:

1 Click Start and then Control Panel.

Wireless configuration using the Brother installer application

Note

2 Click Network Connections icon.

3 Choose and right click Wireless Network Connection. Click View Available Wireless Networks.

4 You can see the Brother wireless machine in the list. Choose SETUP and click Connect.

5 Check the Wireless Network Connection status. It may take a few minutes to change from 0.0.0.0.

to 169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

•Macintosh:

You can temporarily change the wireless settings on your computer, following the steps below:

1 Click the AirPort status icon in the menu bar.

2 Select SETUP from the pop-up menu.

3 Your wireless network is connected successfully.

j Choose the machine you wish to configure, and click Next. If the list is blank, check if the machine is

powered on, and then click Refresh.

The default Node name is “BRWxxxxxxxxxxxx” (where “xxxxxxxxxxxx” is your MAC Address / Ethernet Address).

Wireless configuration using the Brother installer application

Note

k The wizard will search for wireless networks available from your machine. Choose the Ad-hoc network

you wish to associate the machine with, and then click Next.

• If the list is blank, check if the machine is within range for wireless communication. Then, click Refresh.

• If your target Ad-hoc network does not appear on the list, you can manually add it by clicking the

Advanced button. Check This is an Ad-hoc network and there is no access point., and then enter the Name (SSID) and the Channel number, and then click Next.

l If your network is not configured for Authentication and Encryption, the following screen will appear. To

continue configuration, click OK and go to step n.

Wireless configuration using the Brother installer application

Note

m Then enter the Network Key and Confirm Network Key, and then click Next.

n Click Next. The settings will be sent to your machine.

• The settings will remain unchanged if you click Cancel.

• If you want to manually enter the IP address settings of your machine, click Change IP Address and enter the necessary IP address settings for your network.

Wireless configuration using the Brother installer application

Note

o A wireless LAN report will automatically be printed. Choose the status as it is shown for the Connection

on the wireless LAN report. Click Next. If your status is "Connection:OK", go to step q. If your status is "Connection:Failed", go to step p.

If you are using WEP and your status is "Connection:OK" but your machine is not found, make sure you entered the WEP key correctly. The WEP key is case sensitive.

p Click Finish. Wireless setup failed as it was unable to associate with a wireless network. Check the error

code on the printed wireless LAN report and refer to Troubleshooting in the Quick Setup Guide. Then try starting from step c-3 again.

Wireless configuration using the Brother installer application

Note

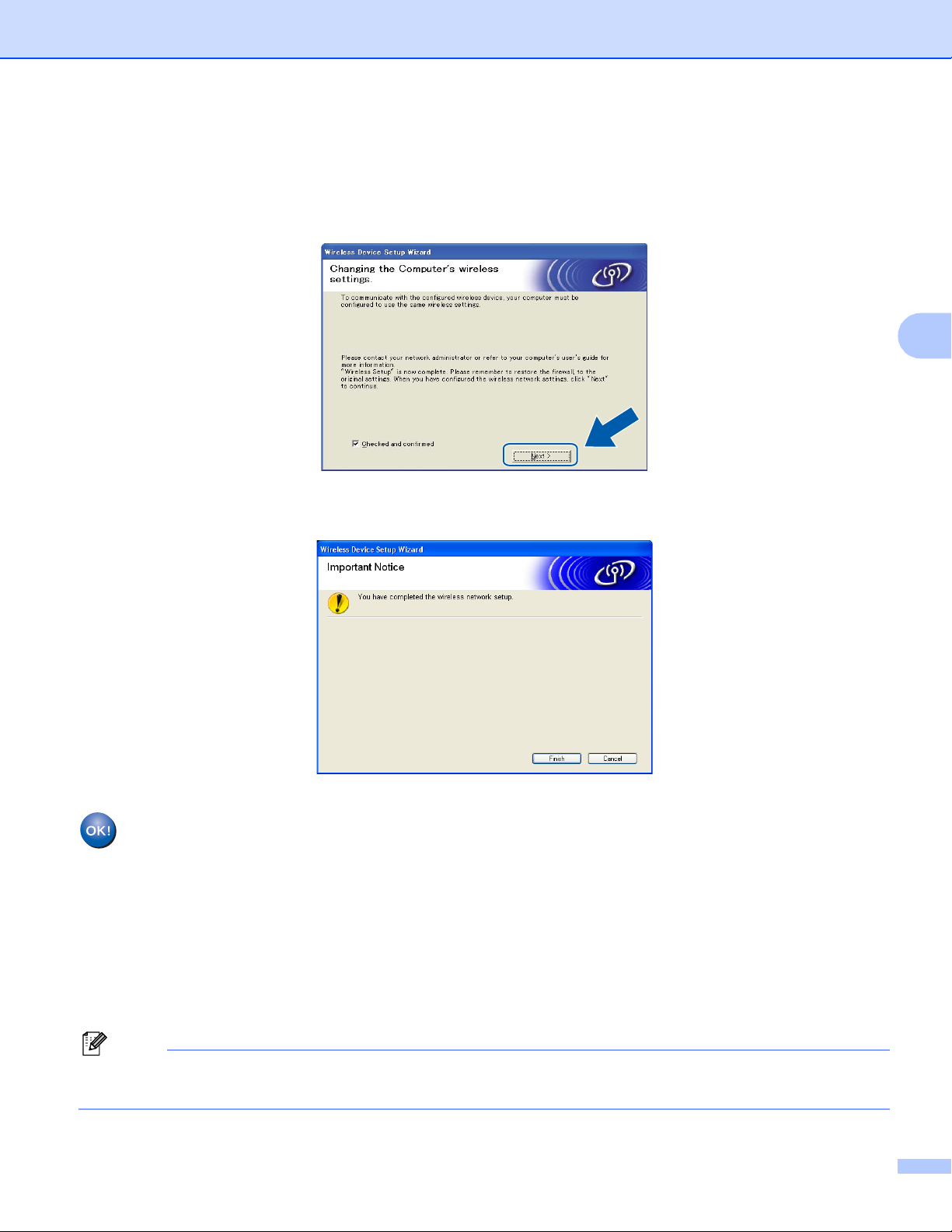

q To communicate with the configured wireless device, you must configure your computer to use the same

wireless settings. Manually change the wireless settings on your computer to match the machine’s wireless settings shown on the wireless LAN report printed in step n. Check the box after you confirm these settings, and then click Next.

r Click Finish.

(Windows®)

(Macintosh)

If your wireless settings fail, the Wireless Device Setup Wizard will appear during the installation of

MFL-Pro Suite. Confirm your settings by following the on-screen instructions.

Note

Control panel setup 5

Network menu 5

Before using your Brother product in a network environment, you need to configure the correct TCP/IP settings.

In this chapter, you will learn how to configure the network settings using the control panel, located on the front of the machine.

The Network menu selections of the control panel allow you to set up the Brother machine for your network configuration. Press Menu, then press a or b to choose Network. Proceed to the menu selection you wish to configure. (See Function table and default factory settings on page 109.)

Please note that the machine is supplied with the BRAdmin Light software and Remote Setup applications

for Windows

Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only) on page 9 for a wired connection or Changing the print server settings on page 15 for a

wireless connection.)

TCP/IP 5

and Macintosh, which also can be used to configure many aspects of the network. (See

If you connect the machine with an Ethernet cable to your network, use the Wired LAN menu selections. If you connect the machine to a wireless Ethernet network, use the WLAN menu selections. (DCP-J715W, MFC-J615W and MFC-J630W only)

This menu has 9 sections: BOOT Method, IP Address, Subnet Mask, Gateway, Node Name, WINS Config, WINS Server, DNS Server and APIPA.

BOOT Method 5

This selection controls how the machine obtains an IP address. The default setting is Auto.

If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the BOOT Method to Static so that the print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any of these systems. To change the BOOT Method, use the machine’s control panel, BRAdmin Light utility or Remote Setup.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

Control panel setup

e Press a or b to choose BOOT Method.

Press OK.

f (For DCP-J315W, MFC-J265W and MFC-J415W)

Press a or b to choose Auto1, Static2, RARP3, BOOTP4 or DHCP5. Press OK.

(For DCP-J515W, DCP-J715W, MFC-J615W and MFC-J630W)

Press d or c to choose Auto

, Static2, RARP3, BOOTP4 or DHCP5.

Press OK.

g Press Stop/Exit.

Auto mode In this mode the machine will scan the network for a DHCP server. If it can find one, and if the DHCP server is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will be used. If no DHCP server is available, then the machine will scan for a BOOTP server. If a BOOTP server is available, and it is configured correctly, the machine will take its IP address from the BOOTP server. If a BOOTP server is not available, the machine will scan for a RARP server. If a RARP server also does not answer, the IP Address is set using the APIPA protocol, see Using APIPA to configure the IP address on page 102. After the machine is initially powered ON, it may take a few minutes for the machine to scan the network for a server.

Static mode In this mode the machine’s IP address must be manually assigned. Once entered the IP address is locked to the assigned address.

RARP mode The Brother print server IP address can be configured using the Reverse ARP (RARP) service on your host computer. For more information on RARP, see Using RARP to configure the IP address on page 101.

BOOTP mode BOOTP is an alternative to RARP that has the advantage of allowing configuration of the subnet mask and gateway. For more information on BOOTP, see Using BOOTP to configure the IP address on page 102.

DHCP mode (DHCP) Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address allocation. If you have a DHCP server in

your network (typically a UNIX server will automatically obtain its IP address from a DHCP server and register its name with any RFC 1001 and 1002 compliant dynamic name services.

Linux®, Windows Server® 2003/2008, Windows® 2000/XP, Windows Vista®, Windows®7 network) the print

IP Address 5

This field displays the current IP address of the machine. If you have chosen a BOOT Method of Static, enter the IP address that you wish to assign to the machine (check with your network administrator for the IP address to use). If you have chosen a method other than Static, the machine will attempt to determine its IP address using the DHCP or BOOTP protocols. The default IP address of your machine will probably be incompatible with the IP address numbering scheme of your network. We recommend that you contact your network administrator for an IP address for the network the unit will be connected on.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

Control panel setup

Note

e Press a or b to choose IP Address.

Press OK.

f Enter the IP address.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models

To enter the number, press a, b, d or c to select a number displayed on the LCD. Then press OK. Repeat this step until you have entered all the numbers.

g Press Stop/Exit.

Subnet Mask 5

This field displays the current subnet mask used by the machine. If you are not using DHCP or BOOTP to obtain the subnet mask, enter the desired subnet mask. Check with your network administrator for the subnet mask to use.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose Subnet Mask.

Press OK.

f Enter the Subnet Mask address.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models

To enter the number, press a, b, d or c to select a number displayed on the LCD. Then press OK. Repeat this step until you have entered all the numbers.

g Press Stop/Exit.

Control panel setup

Note

Gateway 5

This field displays the current gateway or router address used by the machine. If you are not using DHCP or BOOTP to obtain the gateway or router address, enter the address you wish to assign. If you do not have a gateway or router, leave this field blank. Check with your network administrator if you are unsure.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose Gateway.

Press OK.

f Enter the Gateway address.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models

To enter the number, press a, b, d or c to select a number displayed on the LCD. Then press OK. Repeat this step until you have entered all the numbers.

g Press Stop/Exit.

Node Name 5

You can register the machine name on the Network. This name is often referred to as a NetBIOS name; it will be the name that is registered by the WINS server on your network. Brother recommends the name BRNxxxxxxxxxxxx for a wired network or BRWxxxxxxxxxxxx for a wireless network (where xxxxxxxxxxxx is your machine’s Ethernet address) (up to 15 characters).

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

Control panel setup

Note

e Press a or b to choose Node Name.

Press OK.

f Enter the Node Name.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models, for information how to enter text, see Entering Text on page 112.

g Press Stop/Exit.

WINS Config 5

This selection controls how the machine obtains the IP address of the WINS server.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose WINS Config.

Press OK.

f (For DCP-J315W, MFC-J265W and MFC-J415W)

Press a or b to choose Auto or Static. Press OK.

(For DCP-J515W, DCP-J715W, MFC-J615W and MFC-J630W) Press d or c to choose Auto or Static. Press OK.

g Press Stop/Exit.

Auto 5

Automatically uses a DHCP request to determine the IP addresses for the primary and secondary WINS servers. You must set the BOOT Method to Auto or DHCP for this feature to work.

Static

Uses a specified IP address for the primary and secondary WINS servers.

Control panel setup

Note

WINS Server 5

Primary WINS Server IP Address 5

This field specifies the IP address of the primary WINS (Windows® Internet Name Service) server. If set to a

non-zero value, the machine will contact this server to register its name with the Windows Service.

Secondary WINS Server IP Address 5

This field specifies the IP address of the secondary WINS server. It is used as a backup to the Primary WINS server address. If the Primary server is unavailable, the machine still can register itself with a secondary

server. If set to a non-zero value, the machine will contact this server to register its name with the Windows Internet Name Service. If you have a primary WINS server, but no secondary WINS server, simply leave this field blank.

Internet Name

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose WINS Server.

Press OK.

f Press a or b to choose Primary or Secondary.

Press OK.

g Enter the WINS Server address.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models

To enter the number, press a, b, d or c to select a number displayed on the LCD. Then press OK. Repeat this step until you have entered all the numbers.

h Press Stop/Exit.

Control panel setup

Note

DNS Server 5

Primary DNS Server IP Address 5

This field specifies the IP address of the primary DNS (Domain Name System) server.

Secondary DNS Server IP Address

This field specifies the IP address of the secondary DNS server. It is used as a backup to the Primary DNS server address. If the Primary server is unavailable, the machine will contact the Secondary DNS server.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose DNS Server.

Press OK.

f Press a or b to choose Primary or Secondary.

Press OK.

g Enter the DNS Server address.

(For MFC models) Press OK.

(For DCP models) Press a, b, d or c to select , and press OK.

For DCP models

To enter the number, press a, b, d or c to select a number displayed on the LCD. Then press OK. Repeat this step until you have entered all the numbers.

h Press Stop/Exit.

APIPA 5

The setting of On will cause the print server to automatically allocate a Link-Local IP address in the range (169.254.1.0 - 169.254.254.255) when the print server cannot obtain an IP address through the BOOT Method you have set (see BOOT Method on page 65). Choosing Off means the IP address doesn’t change, when the print server cannot obtain an IP address through the BOOT Method you have set.

a Press Menu. b Press a or b to choose Network.

Press OK.

Control panel setup

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose TCP/IP.

Press OK.

e Press a or b to choose APIPA.

Press OK.

f (For DCP-J315W, MFC-J265W and MFC-J415W)

Press a or b to choose On or Off. Press OK.

(For DCP-J515W, DCP-J715W, MFC-J615W and MFC-J630W) Press d or c to choose On or Off. Press OK.

g Press Stop/Exit.

Setup Wizard 5

The Setup Wizard guides you through the wireless network configuration. For more information, see Using the Setup Wizard from the control panel on page 27.

WPS/AOSS™ 5

If your wireless access point supports either Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine easily without knowing your wireless network settings. Your Brother machine has the WPS/AOSS™ menu on the control panel. This feature automatically detects which mode your access point uses, Wi-Fi Protected Setup or AOSS™. By pushing a button on the wireless access point/router and the machine, you can setup the wireless network and security settings. See the User’s Guide for your wireless access point/router for instructions on how to access one-push mode. (See Using WPS or AOSS™ from the control panel menu to configure your machine for a wireless network on page 32.)

Push Button Configuration

WPS w/PIN code 5

If your wireless access point supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily without a computer. The PIN (Personal Identification Number) Method is one of the connection

methods developed by the Wi-Fi Alliance to the Registrar (a device that manages the wireless LAN), you can setup the wireless network and security settings. See the User’s Guide for your wireless access point/router for instructions on how to access the Wi-Fi Protected Setup mode. (See Using the PIN Method of Wi-Fi Protected Setup on page 34.)

. By inputting a PIN which is created by an Enrollee (your machine)

Control panel setup

WLAN Status 5

Status 5

This field displays the current wireless network status; Active(11b), Active(11g), Connection Fail, Confirm I/F or AOSS Active.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WLAN Status.

Press OK.

e Press a or b to choose Status.

Press OK.

f The current wireless network status will be displayed; Active(11b), Active(11g),

Connection Fail, Confirm I/F or AOSS Active.

g Press Stop/Exit.

Signal 5

This field displays the current wireless network signal strength; Signal:Strong, Signal:Medium, Signal:Weak or Signal:None.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WLAN Status.

Press OK.

e Press a or b to choose Signal.

Press OK.

f The current wireless network signal strength will be displayed; Signal:Strong, Signal:Medium,

Signal:Weak or Signal:None.

g Press Stop/Exit.

Control panel setup

SSID 5

This field displays the current wireless network SSID. The display shows up to 32 characters of the SSID name.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WLAN Status.

Press OK.

e Press a or b to choose SSID.

Press OK.

f The current wireless network SSID will be displayed.

g Press Stop/Exit.

Comm.Mode 5

This field displays the current wireless network communication mode; Ad-hoc or Infrastructure.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

Press a or b to choose WLAN. Press OK.

d Press a or b to choose WLAN Status.

Press OK.

e Press a or b to choose Comm. Mode.

Press OK.

f The current wireless network communication mode will be displayed; Ad-hoc or Infrastructure. g Press Stop/Exit.

Control panel setup

Note

Ethernet (DCP-J715W, MFC-J615W and MFC-J630W only) 5

Ethernet link mode. Auto allows the print server to operate in 100BaseTX full or half duplex, or in 10BaseT full or half duplex mode by auto negotiation.

You can fix the server link mode to 100BASE-TX Full Duplex (100B-FD) or Half Duplex (100B-HD) and 10BASE-T Full Duplex (10B-FD) or Half Duplex (10B-HD). This change is valid after the print server has been reset (default is Auto).

If you incorrectly set this value, you may not be able to communicate with your print server.

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose Wired LAN.

Press OK.

d Press a or b to choose Ethernet.

Press OK.

e Press d or c to choose Auto/100B-FD/100B-HD/10B-FD/10B-HD.

Press OK.

f Press Stop/Exit.

MAC Address 5

The MAC address is a unique number assigned for the machine's network interface. You can check your machine's MAC address from the control panel.

a Press Menu. b Press a or b to choose Network.

Press OK.

c For DCP-J715W, MFC-J615W and MFC-J630W

(For Wired) Press a or b to choose Wired LAN, and press OK. (For Wireless) Press a or b to choose WLAN, and press OK.

d Press a or b to choose MAC Address.

Press OK.

e Press Stop/Exit.

Control panel setup

Network I/F (For DCP-J715W, MFC-J615W and MFC-J630W) 5

You can choose the network connection type, wired network connection or wireless network connection. If you want to use the wired network connection, choose Wired LAN, and if you want to use the wireless network connection, choose WLAN. You can only have one network connection type active at a time.

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose Network I/F.

Press OK.

d Press a or b to choose Wired LAN or WLAN.

Press OK.

e Press Stop/Exit.

WLAN Enable (For DCP-J315W, DCP-J515W, MFC-J265W and MFC-J415W) 5

If you want to use the wireless network connection, set WLAN Enable to On.The default setting is Off.

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose WLAN Enable.

Press OK.

d Press a or b to choose On or Off.

Press OK.

e Press Stop/Exit.

Control panel setup

Note

Restoring the network settings to factory default 5

If you wish to reset the print server back to its default factory settings (resetting all information such as the password and IP address information), please follow these steps:

This function restores all wired and wireless network settings to the factory default.

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose Network Reset.

Press OK.

d Press 1 for Reset. e Press 1 for Reboot.

For DCP models, press + for Network Reset and then press + for Reboot.

f The machine will re-start.

(For DCP-J715W, MFC-J615W and MFC-J630W) You can now reconnect the network cable and configure the network settings to work with your network.

Control panel setup

Note

Printing the Network Configuration List 5

Node Name: Node Name appears in the Network Configuration List. The default Node Name is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address).

The Network Configuration List prints a report listing the current network configuration including the network print server settings.

a Press Menu. b Press a or b to choose Print Reports.

Press OK.

c Press a or b to choose Network Config.

Press OK.

d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

Control panel setup

Note

Printing the WLAN Report 5

The WLAN Report shows you the state of a wireless connection, OK or Failed. You can also see reasons why the connection error occurred, and methods to help solve the problem.

a Press Menu. b Press a or b to choose Print Reports.

Press OK.

c Press a or b to choose WLAN Report.

Press OK.

d (For US) Press Black Start or Color Start.

(For UK) Press Mono Start or Colour Start.

• If the WLAN Report does not print, try starting step a again after a while.

• For a list of error codes displayed by the WLAN Report see Troubleshooting in the Quick Setup Guide.

Driver Deployment Wizard

(Windows

Overview 6

The Driver Deployment Wizard software can be used to ease the installation or even automate the installation of network connected printers. The Driver Deployment Wizard can also be used to create self running executable files which when run on a remote PC, completely automate the installation of a printer driver. The remote PC does not have to be connected to a network.

Connection methods 6

The Driver Deployment Wizard supports the two connection methods.

Peer-to-Peer 6

The device is connected to the network but each user prints directly to the machine WITHOUT printing through a central queue.

111

Windows

only) 6

Windows

1 Client Computer

2 Network Printer (your machine)

TCP/IP

Driver Deployment Wizard (Windows® only)

Network Shared 6

The device is connected to a network and a central print queue is used to manage all print jobs.

1 Client computer

2 Also known as “Server” or “Print Server”

3 TCP/IP or USB

4 Printer (your machine)

Driver Deployment Wizard (Windows® only)

Note

How to install the Driver Deployment Wizard software 6

a Put the supplied installation CD-ROM into your CD-ROM drive. If the model name screen appears,

choose your machine. If the language screen appears, choose your language.

b The CD-ROM main menu will appear. Click Advanced, then Network Utilities. c Choose the Driver Deployment Wizard installation program.

For Windows Vista® and Windows®7, when the User Account Control screen appears, click Continue or Yes.

d Click Next in response to the Welcome message. e Read the license agreement carefully. Then follow the on-screen instructions. f Click Finish. Now the Driver Deployment Wizard software has been installed.

Driver Deployment Wizard (Windows® only)

Using the Driver Deployment Wizard software 6

a When you run the Wizard for the first time you will see a welcome screen. Click Next. b Choose MFC, and then click Next. c Choose your connection type to the machine that you want to print to. d Choose the option you require, and follow the on-screen instructions.

If you choose Brother Peer-to-Peer Network Printer, the following screen is displayed.

 Setting the IP Address

If the machine does not have an IP address, the Wizard will allow you to change the IP address by choosing the machine from the list and by choosing the Configure IP option. A dialog box then appears which allows you to specify information such as the IP address, subnet mask and also the gateway address.

Driver Deployment Wizard (Windows® only)

e Choose the machine you wish to install.

 If the printer driver you wish to use is installed on your computer:

Check the box of Currently installed drivers and choose the machine you wish to install, and then click Next.

 If the driver you wish to use is not installed on your computer:

Click Have Disk and then specify the path of the printer driver.

f Click Next after you choose the correct driver. g A summary screen will appear. Confirm the settings of the driver.

 Creating an executable file

The Driver Deployment Wizard software can also be used to create self running .EXE files. These self-running .EXE files can be saved to the network, copied to a CD-ROM, a floppy disc or even E-mailed to another user. Once run, the driver and its settings are automatically installed without any user intervention.

• Copy the Driver files to this PC and create an installation program for other users.

Choose this option if you wish to install the driver onto your computer and also create a self-running executable file for use with another computer using the same operating system as your own.

• Only create an Installation Program for other users.

Choose this option if the driver is already installed on your computer and you wish to create a self-running executable file without installing the driver again on your own computer.

Driver Deployment Wizard (Windows® only)

Note

If you work in a “queue” based network and you create an executable file for another user who does not have access to the same printer queue that you define into the executable file, the driver when installed on the remote computer will default to LPT1 printing.

h Click Finish. The driver is automatically installed to your computer.

Note

Network printing from Windows® basic

TCP/IP Peer-to-Peer printing

Overview 7

To connect your machine to your network, you need to follow the steps in the Quick Setup Guide. We recommend that you use the Brother installer application on the installation CD-ROM which we have provided with the machine. By using this application, you can easily connect your machine to your network and install the network software and printer driver which you need to complete the configuration of your machine for a network. You will be guided by the on-screen instructions until you are able to use your Brother network printer.

If you are a Windows application, use the TCP/IP protocol in a Peer-to-Peer environment. Please follow the instructions in this chapter. This chapter explains how to install the network software and the printer driver which you will need to be able to print using your network printer.

user and want to configure your machine without using the Brother installer

• You must configure the IP address on your machine before you proceed with this chapter. If you need to configure the IP address, see Setting up the IP address and subnet mask on page 12 first.

• Verify the host computer and the machine are either on the same subnet, or that the router is properly configured to pass data between the two devices.

• If you are connecting to a Network Print Queue or Share (printing only), see Installation when using a Network Print Queue or Share (printer driver only) on page 104 for installation details.

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Note

Configuring the standard TCP/IP port 7

Printer driver not yet installed 7

a Put the supplied installation CD-ROM into your CD-ROM drive. If the model name screen appears,

choose your machine. If the language screen appears, choose your language.

b The CD-ROM main menu will appear. Click Advanced. c Click Printer Driver Only (for Network). d Choose Standard and click Next. e Choose Brother Peer-to-Peer Network Printer, and then click Next. f Follow the on-screen instructions.

Contact your administrator if you are not sure about the location and name of the printer on the network.

g Continue through the Wizard clicking Finish when complete.

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Printer driver already installed 7

If you have already installed the printer driver and wish to configure it for network printing, follow these steps:

a (Windows

Click the button, Control Panel, Hardware and Sound, and then Device and Printers.

(Windows Vista

Click the button, Control Panel, Hardware and Sound, and then Printers.

(Windows Server Click the Start button, Control Panel, Hardware and Sound, and then Printers.

(Windows Click the Start button and choose Printers and Faxes.

(Windows Click the Start button and choose Settings and then Printers.

b (Windows

Choose the printer driver you wish to configure, and then click Print server properties from the menu.

(Other Windows Right click on the printer driver you wish to configure, and then choose Properties.

)

2008)

XP and Windows Server® 2003)

2000)

Operating Systems)

c Click the Ports tab and click Add Port. d Choose the port that you wish to use. Typically this would be Standard TCP/IP Port. Then click the

New Port... button.

e (Windows

The Add Standard TCP/IP Printer Port Wizard will start.

(Other Windows The Standard TCP/IP Port Wizard will start.

Operating Systems)

f Enter the IP address of your network printer. Click Next. g Click Finish. h (Windows

Close Printer Ports and Printer Server Properties dialog box.

(Other Windows Close Printer Ports and Properties dialog box.

Operating Systems)

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Other sources of information 7

See Configuring your machine for a network with an Ethernet cable connection (DCP-J715W, MFC-J615W and MFC-J630W only) on page 9 to learn how to configure the IP address of the machine.

Network printing from a Macintosh 8

Overview 8

This chapter explains how to print from a Macintosh on a Network using the Simple Network Configuration capabilities on Mac OS X 10.4.11 - 10.6.x.

For updated information on printing from a Macintosh, visit the Brother Solutions Center at: http://solutions.brother.com/

How to choose the print server (TCP/IP) 8

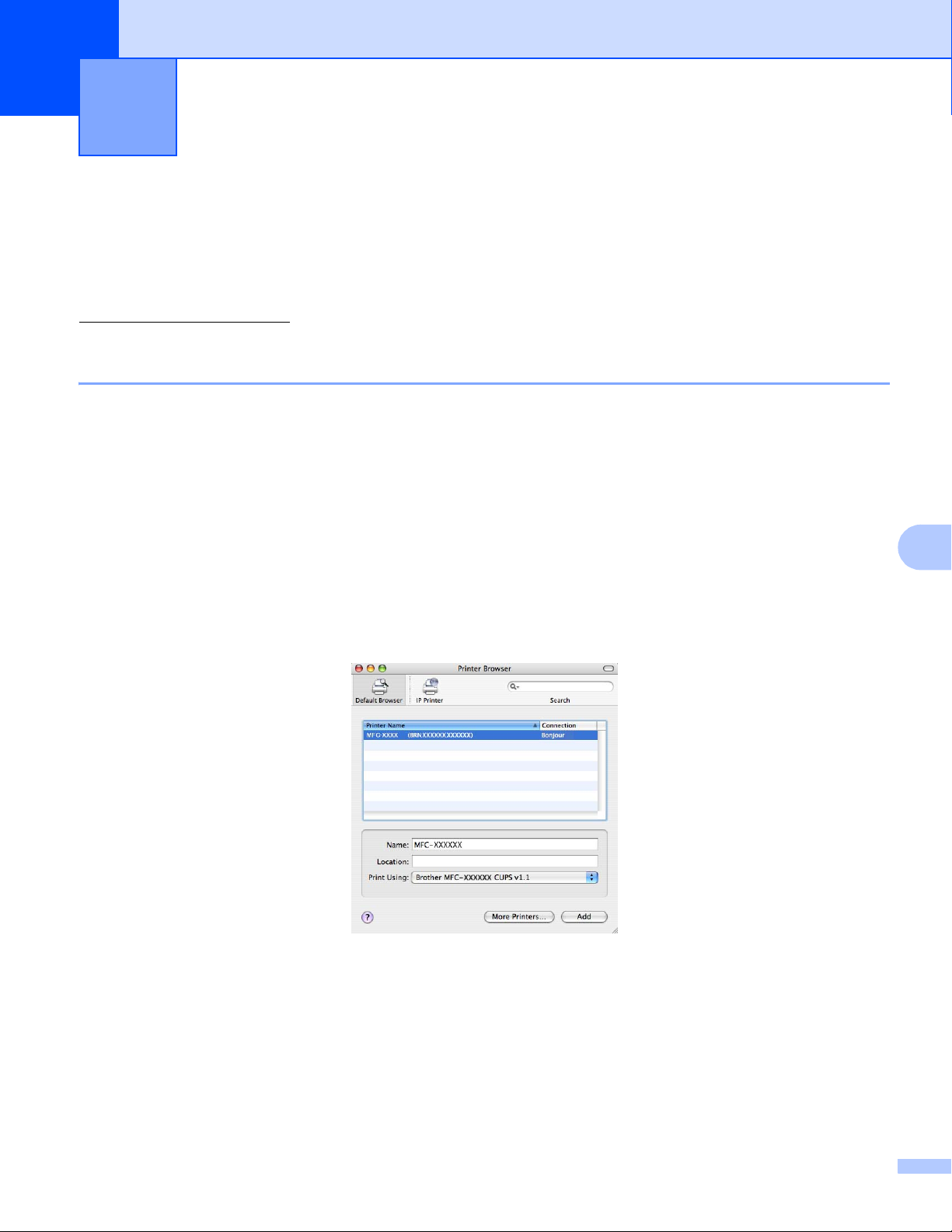

For Mac OS X 10.4.11 8

a Turn on the machine by plugging in the power cord. b From the Go menu, choose Applications. c Open the Utilities folder. d Double-click the Printer Setup Utility Icon.

e Click Add. f Choose Brother MFC-XXXX (XXXX is your model name), and then click Add.

g Click the printer, then click Make Default to set the printer as the default printer. The printer is now ready.

Network printing from a Macintosh

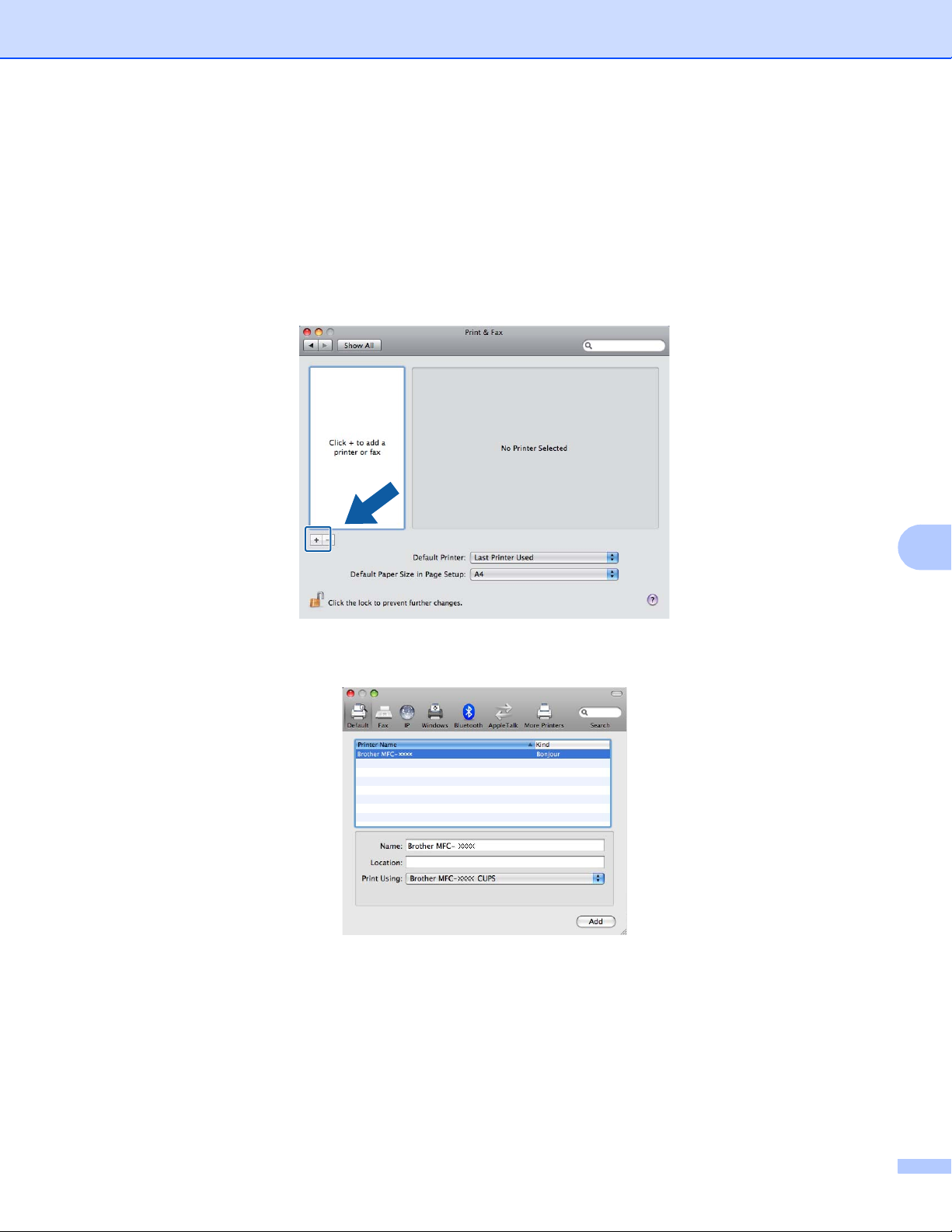

For Mac OS X 10.5.x, 10.6.x 8

a Turn on the machine by plugging in the power cord. b From the Apple menu, choose System Preferences. c Click Print & Fax. d Click + button to add your machine.

e Choose Brother MFC-XXXX (XXXX is your model name), and then click Add.

f From the Default Printer pop-up menu choose your model to set as the default printer. The printer is

now ready.

Network printing from a Macintosh

Note

Changing the print server settings 8

Changing the configuration using the Remote Setup (MFC-J615W and MFC-J630W only) 8

From a Macintosh, you can change the machine or print server parameters using the Remote Setup application. (See Using the Remote Setup to change the print server settings (MFC-J615W and MFC-J630W

only) (Not available for Windows Server

Using the BRAdmin Light utility to change the print server settings 8

Brother BRAdmin Light utility is a Java application that is designed for Mac OS X 10.4.11 - 10.6.x environment. BRAdmin Light allows you to change network settings on Brother network ready machine.

• Please use the BRAdmin Light utility that was supplied on the installation CD-ROM of your Brother product. You can also download the latest version of the BRAdmin Light utility from http://solutions.brother.com/

• Node Name: Node Name appears in current BRAdmin Light. The default Node Name is BRNxxxxxxxxxxxx for a wired network or BRWxxxxxxxxxxxx for a wireless network (where xxxxxxxxxxxx is your machine’s Ethernet address).

a Start the BRAdmin Light utility, by double-clicking the Macintosh HD icon on your desk top and clicking

Library / Printers / Brother / Utilities. And then, double-click the BRAdmin Light.jar file.

2003/2008) on page 17.)

b Choose the print server which you want to change the settings. c Choose Configure Print Server from the Control menu. d Enter a password if you have set it. You can now change the print server settings.

Network printing from a Macintosh

Other sources of information 8

a Visit http://solutions.brother.com/ for more information on network printing. b See Configuring your machine for a network with an Ethernet cable connection (DCP-J715W,

MFC-J615W and MFC-J630W only) on page 9 to learn how to configure the IP address of the machine.

Brother MFC-J265W, MFC-J270W, MFC-J410W, MFC-J415W, MFC-J615W Network Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Definitions of warnings, cautions, and notes

Compilation and publication notice

IMPORTANT NOTE

Brother numbers

For Customer Service

Internet address

Ordering accessories and supplies

Table of Contents

Introduction 1

Overview 1

Network features 1

Network printing 1

Network scanning 1

Network PC-FAX (Not available for DCP models) 1

Network PhotoCapture Center™ 1

Management utilities 1

Types of Network Connections 1

Wired network connection example 1

Peer-to-Peer printing using TCP/IP 1

Network Shared Printing 1
