FACSIMILE EQUIPMENT

PARTS REFERENCE LIST
MODEL: DCP8040 / 8045D/8045DN

MFC8440 / 8840D / 8840DN

(For Germany / United Kingdom / France /

Belgium / Netherlands / Switzerland /
Ireland / Denmark / Austria / Spain / Italy /
Portugal / Asia / China
Oceania (Austria/ New Zealand) /
Pan-Nordic (Norway / Finland / Sweden) /
Euro Generic)

© Copyright Brother 2004
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
(4) Recommend (The √ mark is attached to recommend parts at this column.)
(5) Symbol (PCB No., Revision, and Parts location mounted on the PCB.)

Note: No orders without Parts Code or Tool No. can be accepted.

[Example]

(1) (2) (3) (4) (5)

REF.NO. CODE Q' TY DESCRIPTION

RECOMMEND SYMBOL

REMARKS

2. Design-changed parts:

When the parts are changed, any one of the following symbols is mentioned in the REMARKS column.
CHG (chg): The part is changed to a new part.
ADD (add): The part is newly added.
DEL (del): The part is deleted.
Symbol in capital letters indicates that the change is the latest one in the page.

3. Parts change will be informed by the technical information.

COUNTRIES

GERMAN ----- GER
UNITED KINGDOM ----- UK

FRANCE ---- FRA
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
PORTUGAL ---- POR
CHINA ---- CHN
ASIA ---- ASA
OCEANIA ---- OCE
PAN NORDIC ---- PND
EURO GENERIC ---- GNR

LIST1(FRAME L)

0

R

R

N

6

0

0

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LF2680001 1 MAIN FRAME L UNIT, DCP8040, MFC844
1 LF2685001 1 MAIN FRAME L UNIT, DCP8045D/8045DN,

1 LF2721001 1 MAIN FRAME L UNIT, DCP8045DN, MFC8840DN FOR

1-1 LM2440001 1 MAIN MOTOR ASSY
1-2 LJ7386001 1 F/R SOLENOID ASSY
1-3 LJ7391001 1 P/R SOLENOID ASSY
1-4 LJ5014001 1 SOLENOID RELEASE SPRING P/R
1-5 LJ9166001 1 TONER LED PCB UNIT ASSY
1-6 LJ7403001 2 RUBBER FOOT
1-7 LG3218001 1 DOCUMENT COVER SENSO
1-8 LJ7784001 1 SENSOR CLIP
1-9 LJ7678001 1 REVERSING RELEASE SOLENOID, DCP8045D/8045DN,

1-10 LG4518001 1 THERMISTOR ASSY
1-11 08732061
1-12 LJ7377001 1 DEVELOP JOINT
1-13 LJ7376001 1 JOINT SPRING
1-14 UH304400
1-15 UL656900
1-16 UL8977001 1 GEAR 45 ARM F/R
1-17 LM2444001 1 GEAR 20 CENTER F/R

MFC8840D/8840DN FOR BEL/NLD/SPA/PO

GER/UK/FRA/AUS

MFC8840D/8840D

4 TAPTITE, CUP S M3X6

1 GEAR, 40/54Y
2 GEAR 17 PLANETARY

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST2(FRAME R)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK

1 LM2733001 1 MAIN FRAME R UNIT
1-1 LJ9612001 1 TONER SENSOR PCB UNIT
1-2 LJ7403001 2 RUBBER FOOT
1-3 LM2731001 1 TE FILM

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST3(FRAME UNIT)

R

V

T

,

N

N

0

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LJ7490001 1 GROUND SPRING

2 LM2445001 1 FILTER

3 LJ7496001 1 SPRING, EXTENSION P/R

4 LJ7501001 1 MIDDLE ROLLER GEA

5 LJ7502001 1 IDLE GEAR 22

6 LJ7504001 1 GROUND WIRE

7 LM2473001 1 FAN MOTOR 60 UNIT L

8 LM2474001 1 FAN MOTOR 60 UNI

9 LJ7579001 1

10 LJ9237001 1 DX-SENSOR PCB ASSY, DCP8045D/8045DN,

11 LG3218001 1 DOCUMENT COVER SENSOR, DCP8045D/8045DN,

12 LM2720001 1 SECTOR GEAR PR ASSY
13 UH237800

MP SOLENOID HOLDER UNIT, DCP8045D/8045DN
MFC8840D/8840DN

MFC8840D/8840D

MFC8840D/8840D

1 SPRING HOOK

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST4(LASER UNIT)

(SP)

√

A

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK
1 LM2835001 1 LASER UNIT
2 0873208156 TAPTITE, CUP S M3X8
3 LJ0908001 1 LASER CAUTION LABEL EXCEPT FOR CHN
3 UL7931001 1 LASER CAUTION LABEL FOR CHN

REMARK

DD

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST5(PAPER FEEDER)

R

(SP)

0

N

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK
1 LJ7322001 1 REGIST FRONT ACTUATOR
2 LM2590001 1 REGIST FRONT ACTUATOR SPRING
3 LJ7324001 1 REGIST REAR ACTUATOR
4 LJ7325001 1 REGIST REAR ACTUATOR SPRING
5 LJ7703001 1 PAPER PICK-UP ROLLER ASSY
6 LM2601001 1 PE ACTUATOR
7 LJ9235001 1 CASSETTE SENSOR PCB ASSY
8 LJ5155001 1 CA ACTUATOR
9 LJ5211001 1 PE SENSOR COVER

10 LM2033001 1 FRONT CHUTE GUIDE ASSY
11 LM2032001 1 FRONT TRAY CHUTE ASSY
12 LJ5021001 1 BUSHING R
13 LJ7730001 2 ROLLER COLLA
14 LJ5020001 1 BUSHING L
15 LM2953001 1 ROLLER 6 GUIDE ASSY
16 LJ7342001 1 FRONT CHUTE, DCP8040, MFC844
16 LM2558001 1 FRONT CHUTE, DCP8045D/8045DN, MFC8840D/8840D

REMARK

CHG

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

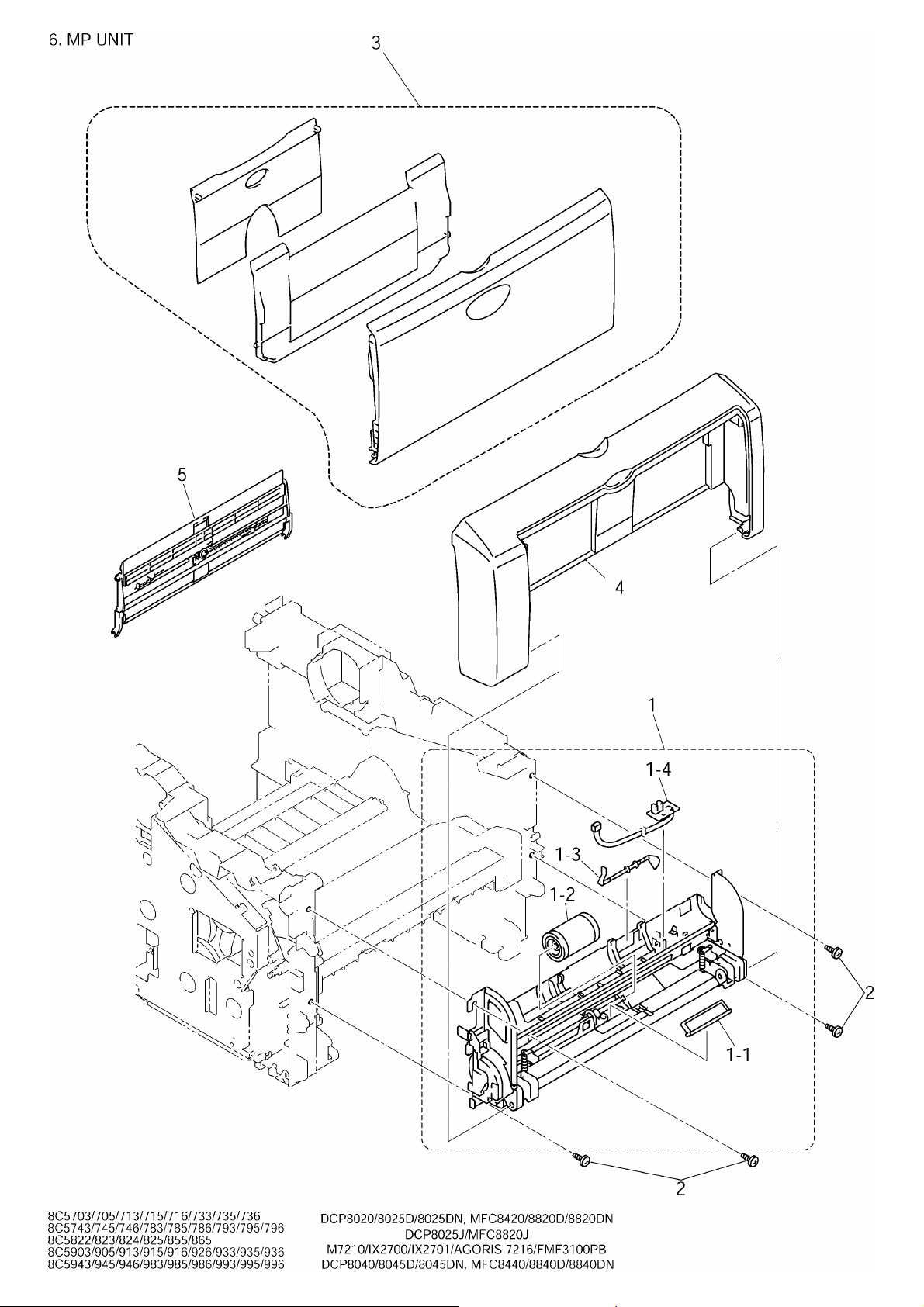

LIST6(MP UNIT)

N

N

N

N

N

(

)

N

N

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK

1 LJ7551001 1 MP UNIT ASSY, DCP8045D/8045DN, MFC8840D/8840D

1-1 LJ7555001 1 SEPARATION PLATE ASSY, DCP8045D/8045DN,

MFC8840D/8840D

1-2 LM2050001 1 PAPER PICK-UP ROLLER ASSY (SP), DCP8045D/8045DN,

MFC8840D/8840D

1-3 LJ7571001 1 MP-PE ACTUATOR, DCP8045D/8045DN,

MFC8840D/8840DN

1-4 LJ9222001 1 MP-PE SENSOR PCB ASSY, DCP8045D/8045DN,

MFC8840D/8840D

2 085411216 4 TAPTITE, BIND B M4X12, DCP8045D/8045DN,

MFC8840D/MFC8840D

3 LJ7587001 1 MP TRAY ASSY, DCP8045D/8045DN, MFC8840D/8840DN

NOT INCLUDING A BROTHER EMBLEM.

4 LM2313001 1 MP FRONT COVER ASSY, DCP8045D/8045DN,

MFC8840D/8840D

5 LJ7589001 1 MP PAPER GUIDE ASSY, DCP8045D/8045DN,

MFC8840D/8840D

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST7(DUPLEX)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LJ7661001 1 DX FEED ASSY, DCP8045D/8045DN, MFC8840D/8840DN

1-1 LJ7663001 2

1-2 LJ7664001 1 DX FEED ROLLER, DCP8045D/8045DN, MFC8840D/8840DN

1-3 LJ5015001 1 T-BELT (S), DCP8045D/8045DN, MFC8840D/8840DN
1-4 LJ5240001 1 T-BELT (L), DCP8045D/8045DN, MFC8840D/8840DN
1-5 LJ5248001 1 GUIDE ACTUATOR, DCP8045D/8045DN,

1-6 LJ7669001 1 GROUND WIRE, DCP8045D/8045DN, MFC8840D/8840DN

1-7 LJ7670001 1 DX ROLLER HOLDER, DCP8045D/8045DN,

1-8 LJ7671001 3 PRESSURE ROLLER, DCP8045D/8045DN,

1-9 LJ7672001 3 PRESSURE ROLLER SPRING, DCP8045D/8045DN,

1-10 085310816 6 TAPTITE, BIND B M3X8, DCP8045D/8045DN,

SIDE REGIST ROLLER, DCP8045D/8045DN,
MFC8840D/8840DN

MFC8840D/8840DN

MFC8840D/8840DN

MFC8840D/8840DN

MFC8840D/8840DN

MFC8840D/8840DN

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST8(PAPER TRAY)

R

6

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK
1 LJ7300001 1 PAPER TRAY ASSY

1-1 LJ7307001 1 PAD HOLDE
1-2 LJ5923001 1 SEPARATION PAD SPRING
1-3 LJ7315001 1 PAPER TRAY FRONT COVER
1-3 LJ7608001 1 PAPER TRAY FRONT COVER LT
1-4 LJ7616001 1 PAPER TRAY COVER
1-5 08541121

4 TAPTITE, BIND B M4X12

1-6 087311016 2 TAPTITE, CUP B M3X10

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST9(FIXING UNIT)

(SP)

√

V

5

(

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LM2578001 1 FIXING UNIT, 230V

1-1 LM2706001 1 HEAT ROLLER 25 CHG
1-2 LJ7539001 1 HALOGEN LAMP, 230
1-3 LJ7877001 4 SEPARATE CLAW ASSY
1-4 LJ7419001 1 THERMISTOR ASSY
1-5 08731121
1-6 LJ7428001 3 CLEANER PINCH ROLLER ASSY S
1-7 LJ7432001 1 CLEANER PINCH ROLLER ASSY L
1-8 LM2477001 1 PRESSURE ROLLER 25

1-9 LJ9174001 1 THERMISTOR RELAY PCB ASSY
1-10 LJ5289001 1 PAPER EJECT ACTUATOR
1-11 LJ5066001 1 EJECT ACTUATOR SPRING
1-12 LJ9176001 1 EJECT SENSOR PCB ASSY
1-13 LJ7416001 1 HR GEAR 34
1-14 LJ7414001 2 HR BEARING 25
1-15 LM2254001 2 SCREW, PAN
1-16 LM2255001 2 WASHER, PLAIN 26
1-17 LM2047001 2 IDLE GEAR 13
1-18 LJ4118001 1 EJECT ROLLER ASSY

2 085411216 1 TAPTITE, BIND B M4X12
3 LJ4740001 1 SHOULDER SCREW

1 TAPTITE, CUP B M3X12

S/P WASHER) M26X8

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST10(COVERS)

6

(*)

A

"

0

N

N

0

N

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LF2126001 1 JOINT COVER ASSY
1-1 LE8599001 1 JOIN COVER
1-2 LE8600001 1 JOINT COVER FRONT L
1-3 LE8601001 1 JOINT COVER FRONT R
1-4 08541121

2 LG2630001 1 SPEAKER ASSY

3 LG4377001 1 DRIVER PCB ASSY

4 LE8603001 1 DRIVER PCB ACCESS COVER

5 LJ7453001 1 SIDE COVER R

6 LM2448001 1 SIDE COVER L

7 LM2724001 1 FRONT COVER ASSY, DCP8040, MFC8440 EXCEPT FOR CHN (*)

7 LF6615001 1 FRONT COVER ASSY, MFC8440 FOR CHN

8 LJ7465001 1 REAR COVER R, DCP8040, MFC844

8 LJ7617001 1 REAR COVER R MP, DCP8045D/8045DN, MFC8840D/8840D

9 LJ7466001 1 REAR COVER L, DCP8040

9 LJ7618001 1 REAR COVER L MP, DCP8045D/8045DN

9 LE8767001 1 REAR COVER L, MFC8440

9 LE8604001 1 REAR COVER L MFC MP, MFC8840D/8840DN

10 LJ7469001 1 OUTER CHUTE, DCP8040, MFC8440
11 LJ7610001 1 REAR COVER MP, MFC8840D/8840DN, DCP8045D/8045DN
12 LJ7467001 1 REAR COVER C, DCP8040, MFC8440
13 LJ7470001 1 OUTER CHUTE TRAY, DCP8040, MFC8440
14 LJ7613001 1 REAR COVER MP TRAY, DCP8045D/8045DN, MFC8840D/8840DN
15 LJ7699001 1 OUTER CHUTE MP ASSY, DCP8045D/8045DN, MFC8840D/8840DN
16 LF2455001 1 ACCESS COVER
17 LJ7895001 1 SUPPORT FLAP
18 LJ7896001 1 SUPPORT FLAP S
19 LJ7353001 1 HEATER CAUTION LABEL EXCEPT FOR CHN
19 LJ7981001 1 HEATER CAUTION LABEL FOR CHN ADD
20 085411216 14 TAPTITE, BIND B M4X12
21 087311016 3 TAPTITE, BIND B M3X10

(22) UF5745000 1 MJ COVER, EXT, MFC8440/8840D/8840DN FOR

23 LE8812001 1 BROTHER EMBLEM FOR MFC8840D/MFC8840D
23 LE8890001 1 BROTHER EMBLEM FOR MFC844
23 LE8891001 1 BROTHER EMBLEM FOR DCP8040/DCP8045D/DCP8045D

8 TAPTITE, BIND B M4X12

*: FRONT COVER ASSY FOR DCP8045D/ DCP8045D/ MFC8840D/
MFC8840DN is listed in List 6 as a "MP TRAY ASSY

GER/UK/FRA/BEL/DEN/AUS/ITA

TO BIUK

REMARK

DD

add
add
add

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST11(SCANNER)

√

(SP)

6

5

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LF2923001 1 SCANNER UNIT SUPPLY ASSY
1-1 LG2239001 1 PHOTO INTERRUPTER
1-2 LE8618001 1 FFC CABLE ASSY
1-3 LE8632001 1 SCANNING MOTOR FB
1-4 LE8634001 1 PULLEY ASSY
1-5 LE8640001 1 PULLEY SPRING
1-6 LF2037001 1 CCD MODULE
1-7 LE8642001 1 BELT
1-8 LE8646001 1 TOP COVER ASSY

1-8-1 LF2004001 1 LOCK LEVER ASSY
1-8-2 LE8649001 1 LOCK LEVER B
1-8-3 UF5034001 3 TAPTITE, B 3X6

1-9 08741121

1-10 LE2861001 4 TAPTITE, PAN B M3X8
1-11 0A430060
1-12 UF5034001 1 TAPTITE, B 3X6

2 087412016 2 TAPTITE, CUP B M4X20

6 TAPTITE, CUP B M4X12
2 SCREW, PAN (S/P WASHER) M3X6

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST12(ADF)

Y

√

Y

R

R

5

R

A

R

A

R

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LE8659001 1 DOCUMENT COVER LGL ASS

1-1 LE8660001 1 DOCUMENT COVER LGL SUB ASSY
1-1-1 LE8663001 1 DOCUMENT EJECTION TRA
1-1-2 LG3218001 1 DOCUMENT COVER SENSO
1-1-3 LE6245001 1 HINGE ARM
1-1-4 0873110163 TAPTITE, CUP B M3X10
1-1-

LG4567001 1 DOCUMENT REAR SENSO

1-1-6 LE8998001 1 REAR SENSOR FILM

1-2 LE8688001 1

1-3 LG4376001 1

1-4 LE8704001 1 LF ROLLER2 ASSY

1-5 LE8711001 1 EJECTION ROLLER ASSY

1-6 LG2239001 1 PHOTO INTERRUPTER

1-7 LE8828001 1 FRONT SENSOR ACTUATOR ASSY

1-8 LE2011001 1 COMPRESSION SPRING

1-9 LE2551001 1 RUBBER HOLDE

1-10 UU2055001 1 SEPARATION RUBBER
1-11 LE1513001 1 SPRING PLATE ADF FRONT A ASSY
1-12 LE2470001 1 ADF FILM
1-13 UF9009001 10 PRESSER ROLLER
1-14 LE8722001 1 LF ROLLER1 ASSY
1-15 LE2919001 1 PF ROLLER HOLDER ASSY
1-16 UU1290001 4 CONDUCTIVE BUSHING
1-17 LE8727001 1 SIDE COVER F
1-18 LE8728001 1 SIDE COVER R
1-19 LE8729001 1 ADF COVER
1-20 LE8834001 1 DOCUMENT HOLD ASSY
1-21 LF2026001 1 DOCUMENT HOLD SPRING
1-22 0A4300605 2 SCREW, PAN (S/P WASHER) M3X6
1-23 087320616 1 TAPTITE, CUP S M3X6
1-24 087311016 6 TAPTITE, CUP B M3X10

2 LF6847001 1 HINGE ASSY L CHG
3 LE6244001 1 HINGE BASE R
4 087311016 3 TAPTITE, CUP B M3X10

DF MOTO
DF RELAY PCB ASSY

TO BIUK

REMARK

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST13(PANEL)

√

R

√

√

S

√

√

R

√

R

√

R

√

√

A

√

A

√

A

√

√

√

√

E

√

√

√

√

A

√

√

A

√

√

√

√

A

√

√

R

√

R

√

R

√

√

A

√

√

5

N

√

√

N

√

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LF2958001 1 PANEL UNIT, DCP8040 FOR GER
1 LF2972001 1 PANEL UNIT, DCP8045D/8045DN FOR GE
1 LE8798001 1 PANEL UNIT, MFC8440 FOR GER/AUS
1 LE8850001 1 PANEL UNIT, MFC8840D/8840DN FOR GER/AU
1 LF2683001 1 PANEL UNIT, DCP8040 FOR UK/ASA/GNR
1 LF2686001 1 PANEL UNIT, DCP8045D/8045DN FOR UK/ASA/GN
1 LE8942001 1 PANEL UNIT, MFC8440 FOR UK/IRE/GN
1 LE8999001 1 PANEL UNIT, MFC8840D/8840DN FOR UK/IRE/GN
1 LF2963001 1 PANEL UNIT, DCP8040 FOR FRA
1 LF2974001 1 PANEL UNIT, DCP8045D/8045DN FOR FR
1 LE8947001 1 PANEL UNIT, MFC8440 FOR FR
1 LF2005001 1 PANEL UNIT, MFC8840D/8840DN FOR FR
1 LF2987001 1 PANEL UNIT, DCP8040 FOR BEL/NLD/CHE/DEN/PND
1 LF6017001 1 PANEL UNIT, DCP8045D FOR BEL/NLD/CHE/DEN/PND
1 LE8952001 1 PANEL UNIT, MFC8440 FOR BEL/NLD/CHE
1 LF2003001 1 PANEL UNIT, MFC8840D/8840DN FOR BEL/NLD/CH
1 LE8973001 1 PANEL UNIT, MFC8440 FOR DEN/PND
1 LF2010001 1 PANEL UNIT, MFC8840D FOR DEN/PND
1 LF2988001 1 PANEL UNIT, DCP8040 FOR SPA
1 LF6022001 1 PANEL UNIT, DCP8045D/8045DN FOR SP
1 LE8984001 1 PANEL UNIT, MFC8440 FOR SPA
1 LF2013001 1 PANEL UNIT, MFC8840D/8840DN FOR SP
1 LF2989001 1 PANEL UNIT, DCP8040 FOR ITA
1 LF6026001 1 PANEL UNIT, DCP8045D FOR ITA
1 LE8968001 1 PANEL UNIT, MFC8440 FOR ITA
1 LF2017001 1 PANEL UNIT, MFC8840D FOR IT
1 LF6016001 1 PANEL UNIT, DCP8040 FOR POR
1 LF6024001 1 PANEL UNIT, DCP8045D FOR PO
1 LE8985001 1 PANEL UNIT, MFC8440 FOR PO
1 LF2019001 1 PANEL UNIT, MFC8840D/8840DN FOR PO
1 LF6619001 1 PANEL UNIT, MFC8440 FOR CHN
1 LE8732001 1 PANEL UNIT, MFC8440 FOR ASA/OCE

1 LE8846001 1 PANEL UNIT, MFC8840D FOR ASA/OCE
1-1 LG4383001 1 LCD
1-2 LG4411001 1 PANEL PCB ASSY, DCP8040/8045D/8045DN
1-2 LG4384001 1 PANEL PCB ASSY, MFC8440/8840D/8840DN
1-3 LG4393001 1 FPC KEY ONE TOUCH
1-4 LG4392001 1 FPC KEY COPY
1-5 08731081

2 LE8771001 1 LCD SHEET, DCP8040/8045D/8045D

3 LF2681001 1 LCD SHEET, MFC8440

3 LF2688001 1 LCD SHEET, MFC8840D/8840D

4 087411215 4 TAPTITE, CUP B M4X12

5 LE8752001 1 ADDRESS LABEL, MFC8440/8840D/8840DN

2 TAPTITE, CUP B M3X8

TO BIUK

√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√

REMARK

DD

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST14(PCB)

N

A

R

N

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LG5374001 1 MAIN PCB ASSY, DCP8040/8045D/8045DN

1 LG5378001 1 MAIN PCB ASSY, MFC8440 EXCEPT FOR CHN, MFC8840D,

MFC8840D

1 LG6108020 1 MAIN PCB ASSY, MFC8440 FOR CHN

2 LG4823001 1 BATTERY, MFC8440/8840D/8840DN

3 LG5602001 1 NCU PCB ASSY, MFC8440/8840D/8840DN EXCEPT FOR

CHN/ASA/OCE

3 LG4520040 1 NCU PCB ASSY, MFC8440/8840D/8840DN FOR CHN/ASA

3 LG4520006 1 NCU PCB ASSY, MFC8440/8840D/8840DN FOR OCE

4 LG5288001 1 LOW-VOLTAGE PS PCB ASSY, DCP8040/8045D/8045DN,

MFC8440/8840D/8840DN FOR
GER/UK/FRA/BEL/NLD/CHE/IRE/DEN/AUS/SPA/ITA/POR/O
CE/PND/GN

4 LG5220001 1 LOW-VOLTAGE PS PCB ASSY, MFC8440 FOR CHN ADD

4 LG5564001 1 LOW-VOLTAGE PS PCB ASSY, MFC8440/8840D FOR ASA

5 LM2048001 1 SCREW, PAN (S/P WASHER) M3.5X6

6 LJ9200001 1 HIGH-VOLTAGE PS PCB ASSY

7 LG4404001 1 ENGINE PCB ASSY, MFC8440, DCP8040

7 LJ9274001 1 ENGINE PCB ASSY, MFC8840D/8840DN,

DCP8045D/8045D

√
√

√

√

√

√

TO BIUK

REMARK

B53K627
B53K627

B53K627

DD

B53K666

B53K666

B53K666

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST15(ACCESSORIES)

A

>

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

1 LG4424001 1 AC CORD BAG ASSY, VDE FOR

1 LG6208001 1 AC CORD BAG ASSY LF BS/PSB FOR UK/IRE/ASA CHG

1 LG4718001 1 AC CORD BAG ASSY, SEV FOR CHE

1 LG4720001 1 AC CORD BAG ASSY, DEMCO FOR DEN

1 LJ9353001 1 AC CORD BAG ASSY, FOR CHN add

1 LJ9667001 1 AC CORD BAG ASSY, SAA FOR OCE, DCP8040/8045D FOR

2 LE8833001 1 DOCUMENT TRAY BAG ASSY

3

LF2808001 1 CD-ROM ASSY, DCP8040/8045D/8045DN FOR

3 LF6298001 1 CD-ROM ASSY FOR DCP8040/8045D/8045DN <Macintosh> chg

LF6042001 1 CD-ROM ASSY, MFC8440/8840D/8840DN FOR

3

3 LF6299001 1 CD-ROM ASSY FOR MFC8440/8840D/8840DN EXCEPT FOR

4 LF6290001 1 CD-ROM ASSY, DCP8040/8045D/8045DN FOR

4 LF6294001 1 CD-ROM ASSY, MFC8440/8840D/8840DN FOR

4 LF6291001 1 CD-ROM ASSY, DCP8040/8045D FOR BEL/NLD/PND/GNR

4 LF6295001 1 CD-ROM ASSY, MFC8440/8840D/8840DN FOR

4 LF6292001 1 CD-ROM ASSY, DCP8040/8045D FOR DEN/PND <Windows>

4 LF6296001 1 CD-ROM ASSY, MFC8440/8840D FOR DEN/PND <Windows>

4 LF6293001 1 CD-ROM ASSY, DCP8040/8045D/8045DN FOR SPA/ITA/POR

4 LF6288001 1 CD-ROM ASSY, MFC8440/8840D/8840DN FOR SPA/ITA/POR

4 LF6621001 1 CD-ROM ASSY, MFC8440 FOR CHN add

5 UG3625001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR GER

GER/FRA/BEL/NLD/AUS/SPA/ITA/POR/PND/ASA/GNR

SA

GER/UK/FRA/ASA/OCE <Macintosh>

GER/UK/FRA/IRE/AUS/ASA/OCE <Macintosh>

CHN <Macintosh

GER/UK/FRA/CHE/ASA <Windows>

GER/UK/FRA/CHE/IRE/AUS /ASA/OCE <Windows>

<Windows>

BEL/NLD/PND/GNR <Windows>

<Windows>

<Windows>

TO BIUK

√
√

√
√
√

√

REMARK

del

del

chg

chg

chg

chg

chg

chg
chg
chg

chg

5 UG3626001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR UK

5 UG3627001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR FRA

5 UG1575001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR BEL

5 LG3077001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR

5 UG3469000 1 TELEPHONE LINE CORD, MFC8440/8840D FOR CHE

5 LG5827001 1 TELEPHONE LINE CORD, MFC8440/8840D FOR DEN/PND

5 UG4205001 1 TELEPHONE LINE CORD, MFC8440/8840D/8840DN FOR AUS

5 UG3634001 1 TELEPHONE LINE CORD, MFC8440/8840D FOR ITA

5 UG3629001

5 UG3635001

5 UG3632001

5 UG3290001 1 TELEPHONE LINE CORD, MFC8440/8840D FOR ASA/OCE

6 LJ7920001 1 PAPER FEEDING KIT
6-1 LJ7703001 1 PAPER PICK-UP ROLLER ASSY
6-2 LJ7307001 1 PAD HOLDER

7 LM2102001 1 FU LAMP ASSEMBLY JIG ASSY

8 LG3622001 1 TELEPHONE PLUG, MFC8440/8840D/8840DN FOR NLD

8 LG5828001 1 TELEPHONE PLUG, MFC8440/8840D FOR DEN/PND

8 LG5829001 1 TELEPHONE PLUG, MFC8440/8840D FOR PND <FINLAND> add

8 LG5830001 1 TELEPHONE PLUG, MFC8440/8840D FOR PND <SWEDEN> add

9 LG3509001 1 TELEPHONE PLUG, MFC8440/8840D/8840DN FOR OCE

10 UG3468000 1 BT-MJ ADAPTER, MFC8440/8840D FOR ASA

NLD/IRE/SPA/POR/CHN/ASA/OCE/GNR

1 TELEPHONE LINE CORD, MFC8440/8840D FOR PND

<NORWAY>

1 TELEPHONE LINE CORD, MFC8440/8840D FOR PND

<SWEDEN>

1 TELEPHONE LINE CORD, MFC8440/8840D FOR PND

<FINLAND>

<DENMARK>

√

√

√

√
√

√

√

√

chg

del

del

del

add

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST16(PRINTED MATTER)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK

(1) LF6336001 1 USER'S GUIDE, DCP8040/8045D/8045DN FOR GER chg
(1) LF6340001 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR GER/AUS chg
(1) LF6335004 1 USER'S GUIDE, DCP8040/8045D/8045DN FOR

UK/ASA/PND/GNR

(1) LF6337004 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR

UK/IRE/PND/GNR
(1) LF6335005 1 USER'S GUIDE, DCP8040/8045D/8045DN FOR FRA chg
(1) LF6337005 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR FRA chg

(1) LF6338008 1 USER'S GUIDE, DCP8040/8045D FOR BEL/CHE

√

<FRENCH>
(1) LF6335008 1 USER'S GUIDE, DCP8040/8045D FOR BEL/NLD <DUTCH>
(1) LF6339008 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR BEL/CHE

√
√

<FRENCH>
(1) LF6337008 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR BEL/NLD

√

<DUTCH>
(1) LF6335010 1 USER'S GUIDE, DCP8040/8045D FOR CHE <GERMAN>
(1) LF6337010 1 USER'S GUIDE, MFC8440/8840D FOR CHE <GERMAN>
(1) LF6335013 1 USER'S GUIDE, DCP8040/8045D FOR DEN
(1) LF6337013 1 USER'S GUIDE, MFC8440/8840D FOR DEN
(1) LF6335015 1 USER'S GUIDE, DCP8040/8045D/8045DN FOR SPA
(1) LF6337015 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR SPA
(1) LF6335016 1 USER'S GUIDE, DCP8040/8045D FOR ITA
(1) LF6337016 1 USER'S GUIDE, MFC8440/8840D FOR ITA
(1) LF6335018 1 USER'S GUIDE, DCP8040/8045D FOR POR
(1) LF6337018 1 USER'S GUIDE, MFC8440/8840D/8840DN FOR POR

√
√
√
√
√
√
√
√
√
√

(1) LF6337020 1 USER'S GUIDE, MFC8440 FOR CHN ADD
(1) LF6337040 1 USER'S GUIDE, MFC8440/8840D FOR ASA/OCE chg

REMARK

chg

chg

chg

chg
chg

chg

chg
chg
chg
chg
chg
chg
chg
chg
chg
chg

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

LIST17(PACKING MATERIALS)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

(1) LF6348001 1 CARTON, BROTHER, DCP8040
(1) LF6349001 1 CARTON, BROTHER, DCP8045D
(1) LF6350001 1 CARTON, BROTHER, DCP8045DN
(1) LF6351001 1 CARTON, BROTHER, MFC8440
(1) LF6623001 1 CARTON, BROTHER, MFC8440 FOR CHN
(1) LF6352001 1 CARTON, BROTHER, MFC8840D
(1) LF6353001 1 CARTON, BROTHER, MFC8840DN
(2) UE1688001 1 PE BAG 1000X1000H
(3) LE8762001 1 POLYSTYRENE FORM PAD ASSY, DCP8040, MFC8440
(3) LE8757001 1 POLYSTYRENE FORM PAD ASSY, FOR

DCP8045D/8045DN, MFC8840D/8840DN
(4) LF6358001 1 QUICK SETUP GUIDE, DCP8040/8045D/8045DN FOR GER chg
(4) LF6360001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR

GER/AUS
(4) LF6366001 1 QUICK SETUP GUIDE, DCP8040/8045D/8045DN FOR

UK/ASA/PND/GNR <ENGLISH>
(4) LF6361001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR

UK/IRE
(4) LF6359001 1 QUICK SETUP GUIDE, DCP8040/8045D/8045DN FOR FRA chg
(4) LF6362001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR FRA chg
(4) LF6367001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR BEL/NLD

<DUTCH>
(4) LF6369001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR BEL/CHE

<FRENCH>
(4) LF6368001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR

BEL/NLD <DUTCH>
(4) LF6371001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR

BEL/CHE <FRENCH>
(4) LF6370001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR CHE

<GERMAN>
(4) LF6372001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR CHE

<GERMAN>
(4) LF6374001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR DEN/PND

<DANISH>
(4) LF6375001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR DEN/PND

<DANISH>
(4) LF6376001 1 QUICK SETUP GUIDE, DCP8040/8045D/8045DN FOR SPA

(4) LF6377001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR SPA
(4) LF6378001 1 QUICK SETUP GUIDE, DCP8040/045D FOR ITA
(4) LF6379001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR ITA
(4) LF6380001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR POR
(4) LF6381001 1 QUICK SETUP GUIDE, MFC8440/8840D/8840DN FOR POR
(4) LF6373001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR PND

<ENGLISH>
(4) LF6382001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR PND

<NORWEGIAN>
(4) LF6385001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR PND

<NORWEGIAN>
(4) LF6383001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR PND

<SWEDISH>
(4) LF6386001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR PND

<SWEDISH>
(4) LF6384001 1 QUICK SETUP GUIDE, DCP8040/8045D FOR PND

<FINNISH>
(4) LF6387001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR PND

<FINNISH>
(4) LF6624001 1 QUICK SETUP GUIDE, MFC8440 FOR CHN ADD
(4) LF6363001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR ASA/OCE chg
(4) LF6364001 1 QUICK SETUP GUIDE, MFC8440/8840D FOR GNR chg

√
√
√
√
√
√
√

TO BIUK

√

√

√

√

√

√

√

√

√
√
√
√
√
√
√

√

√

√

√

√

√

REMARK

chg
chg
chg
chg

ADD

chg
chg

chg

chg

chg

chg

chg

chg

chg

chg

chg

chg

chg

chg
chg
chg
chg
chg
chg
chg

chg

chg

chg

chg

chg

chg

8C5933/935/936/943/945/946
8C5983/985/986/993/995/996

DCP8040/8045D/8045DN
MFC8440/8840D/8840DN

PL-FAX085
8C5933
Ver.K-1
