Brother MFC 8440, MFC 8840D, MFC8840DN User Manual

<

Always at your side

Brother MFC

MFC-8440

MFC-8840D

MFC-8840DN

Contact:

MFC-8440
MFC-8840D
MFC-8840DN

* This feature is also available for Network connected users when the NC-9100h Print/Fax Server is installed. ** Brother Scanner Utility enables enhancement up to 9600 x 9600dpi

MFC-8840D and MFC-8840DN
Duplex function

The MFC-8840D and the MFC-8840DN come with duplex
feature as standard. This facility is built-in, so there is nothing to
add to the machine. It is ready to duplex straight out of the box.

Automatic duplex printing

Whether your intentions are to produce professional
documents or reduce paper usage, the MFC-8840D and
MFC-8840DN enable you to automatically print to both sides
of the paper. Simply select the option in the printer driver and
the machine will do the rest.

Semi-automatic duplex copying

By placing multiple single sided originals into the auto
document feeder, the MFC-8840D and MFC-8840DN can
automatically copy to both sides of the output paper.

Automatic duplex fax receive

This useful feature is standard on the MFC-8840D and
MFC-8840DN. When activated, any multiple page fax
messages received can be printed onto both sides of the
paper, cutting your paper usage and costs at the same time
as keeping your fax messages in order.

Multi-purpose tray

The MFC-8840D and MFC-8840DN come with a built-in
multi-purpose tray as standard. It accommodates various
paper types including labels, transparencies and envelopes.
Up to 50 sheets can be placed in the multi-purpose tray at
one time. This is ideal when you want to print on alternative
stock.

Brother consumables

Brother has made every effort to make consumable
replacement as easy as possible.

Benefits of this to the customer are:
Toner and drum compatibility with the complete range of
products in this generation including, multifunction
machines and printers. This reduces the stock of
consumables required to keep all your machines working
at their optimum efficiency.

Separate toner and drums reduce wastage and overall
costs.

High yield and standard yield toners available depending
on your usage.

The consumables:

TN-3030 ­Standard yield toner

TN-3060 ­High yield toner

DR-3000 ­Printing drum

MFC-8420
MFC-8820D
MFC-8820DN

Microsoft Windows

®

95
98/Me/2000 Professional
NT4.0 Workstation
XP

Macintosh

™

OS 8.6
OS 9.x
OS 10.1
OS 10.2.1 or greater

Scanner TWAIN/ Scan to Image Scan to Scan to File Scan to Brother PC-FAX Printer Driver Brother Remote NewSoft Presto ScanSoft™

Resolution WIA Driver E-mail/OCR E-mail Server PC-FAX Send Receive Control Centre Setup Page Manager 4.0 PaperPort

®

8.0SE

9600x9600 TWAIN ✓✓✓✓* ✓* ✓✓* ✓✓ ✓
9600x9600 TWAIN ✓* ✓* ✓* ✓* ✓* ✓✓* ✓* ✓✓*
9600x9600 TWAIN ✓✓✓ ✓ ✓✓✓* ✓✓ ✓

1200x1200** WIA ✓* ✓* ✓* ✓* ✓* ✓✓* ✓* ✓✓*

9600x9600 TWAIN ✓* ✓* ✓* ✓
9600x9600 TWAIN ✓* ✓* ✓* ✓

–– ✓* ✓* ✓* ✓✓

9600x9600 TWAIN ✓* ✓* ✓* ✓✓

MINIMUM SYSTEM REQUIREMENTS

AVAILABLE HARD

DISK SPACE

COMPUTING OPERATING PROCESSOR MINIMUM RECOMMENDED for Drivers and for NewSoft®
SYSTEM SYSTEM VERSION SPEED RAM RAM ScanSoft

™

Software Page Manager Software

95 Pentium 75MHz 32MB 32MB 180MB
98/98SE Pentium 75MHz 32MB 32MB 180MB
Me Pentium 150MHz 32MB 64MB 180MB
NT4.0 Pentium 75MHz 32MB 64MB 180MB
2000 Professional Pentium 133MHz 64MB 128MB 180MB

XP Pentium 233MHz 64MB 128MB 180MB

OS 8.6 - OS 9.2 All base models meet minimum requirements 200MB
OS 10.1 128MB 160MB 200MB
OS 10.2.1 or greater 128MB 160MB 200MB

WINDOWS

®

MAC

™

■

Laser Printer

■

Laser Fax

■

Laser Copier

■

Colour Scanner

MFC -8440

■

Optional Network Interface

MFC -8840D

■

Duplex Printing as Standard

■

Optional Network Interface

■

Multi-purpose Tray

MFC -8840DN

■

Duplex Printing as Standard

■

Multi-purpose Tray

■

Network Interface as Standard

Laser Fax

Dual access Scan a fax for transmission whilst receiving a fax
Modem 33.6kbps Super G3

Approx 2 seconds transmission

Data compression MH / MR / MMR / JBIG
Automatic redial Automatic redial if the recipient fax is busy
One-touch dials 40 locations for one-touch auto dialling of pre stored numbers
Speed dials 300 locations for two-touch auto dialling of pre-stored numbers
Group dials Up to 6 groups
Fax / Tel switch Automatic recognition of fax and telephone reception
Super fine Enables quality transmission and reception of very small print or

line drawings

Grey scale 256 shades of grey
Delayed timer Yes - up to 50
Page memory Up to 500 pages (ITU-T Test Chart No 1)
Broadcasting locations Send the same fax message to up to 390 pre-programmed numbers
Batch transmission Stores documents for the same location in the machines memory for

transmission in a single call

Auto reduction Automatically reduces a received fax to fit on to a single sheet of A4
Error correction mode Where machines share ECM, it resends the page(s) of a document where an

error has occured

Fax forwarding Sends a fax received in memory to another pre-programmed fax number
Remote access Allows the user to remotely access their machine by using another touch-

tone phone

Fax retrieval Allows the user to retrieve fax messages using another touch-tone phone
PBX Enables compatability with PBX's that use Time Break Recall
Duplex fax Standard On MFC-8840D and MFC-8840DN

Weights & Dimensions

Dimensions / weight With Carton MFC-8440 567(w) x 628(d) x 575(h) mm / 21.8kg

Without Carton 532(w) x 444(d) x 469(h) mm / 16.6kg
With Carton MFC-8440D/MFC-8840DN 567(w) x 628(d) x 575(h) mm / 23.3kg
Without Carton 532(w) x 444(d) x 469(h) mm / 18.1kg

Consumables & Options

Ton er Standard TN-3030 - approx 3,500 pages with 5% coverage

High Yield TN-3060 - approx 6,700 pages with 5% coverage

Drum DR-3000 - up to 20,000 pages @ 1 page per job
Lower paper tray LT-5000 - additional 250 sheets
Network print/fax server NC-9100h - with 5 user licence

NL-5 - optional 5 user licence

†

Other Information

Power consumption Operating 450W or less (Copying)

Sleep / Standy / Peak 14 W / 85 W / 1090W or less
CPU Sleep 16W or less with MFC-8820DN

General

Engine Laser
LCD display 5 lines x 22 characters
Back-up for clock Keeps time and date backed up for 4 days
Memory capacity 32MB standard / 160MB maximum
Automatic document feeder Up to 50 sheets
Paper handling size A4/LTR/LGL/B5/A5/B6/A6/EXE
Paper capacity Standard paper casette Up to 250 sheets

Optional paper casette Up to 250 sheets (LT-5000)
Output paper capacity Up to 150 sheets

Simultaneous operation (Print/Fax) (Print/Copy) (Print/Scan)
Multi-purpose tray Up to 50 sheets on MFC-8840D and MFC-8840DN

Laser Printer

Speed Up to 20ppm
Resolution Max. 2400 x 600dpi
Duplex printing Standard On MFC-8840D and MFC-8840DN
Standard print language Windows GDI
Emulation PCL6 & BR-Script 3
Secure print Prevents unauthorised printing of protected documents

Laser Copier

Speed Up to 20cpm
Resolution Max. 1200 x 600dpi
Multi copy Produces up to 99 copies of each original
Stack & Sort Stacks or sorts output copies
Enlargement / reduction ratio 25% - 400% in 1% increments
N in 1 Compress 2 or 4 pages on to a single sheet
Poster printing Enlarge image to poster size
Semi auto duplex copying Standard On MFC-8840D and MFC-8840DN

Colour Scanner

Resolution Optical Max. 600 x 2400dpi

Interpolated Max. 9600 x 9600dpi

Grey scale 256 shades of grey
Colour depth 48 bit internal / 24 bit external
'Scan' key Scan to e-mail/OCR/Image/File

Interface

External TAD Interface Interface for connecting external telephone answering device
Parallel IEEE1284 Parallel Cable Port
USB Hi-Speed USB2.0
Network 10/100Base-TX Optional - NC-9100h On MFC-8440 and MFC-8840D

Ethernet Standard - NC-9100h On MFC-8840DN

Technical Information

†

Up to a maximum of 25 users

MFC-8440
MFC-8840D
MFC-8840DN

http://solutions.brother.com/index-eu.html

Brother UK Ltd

Audenshaw, Manchester M34 5JD
Tel:[phone] (National Rate Call) Fax:[phone]
Web-site: www.brother.co.uk

Your calls to us may be monitored or recorded for training purposes.

Specification correct at time of going to print. Brother is a registered trademark of Brother Industries Ltd.

Brand product names are registered trademarks or trademarks of their respective companies.

www.brother.co.uk

Scansoft™

PaperPort®

NewSoft Presto

Page Manager

®

24MB

24MB

NT®4.0

ZLFTMFC8440SERIESU1 DXG 05/04

Laser Copying

The performance as a desktop copier is
consistently impressive.
The flatbed design comfortably
accommodates A4 and legal sized
originals, whilst the automatic document
feeder is capable of handling up to 50
A4 sheets.
It has a paper capacity of up to 250 sheets
as standard and this can be expanded to
up to 500 sheets with the optional cassette
tray (LT-5000).
Up to 99 copies can be generated at one
time and stack and sort functions ensure
that your copies are presented exactly how
you’d like them. In addition to this, 2 in 1
and 4 in 1 scale options enable you to
maximise your paper efficiency.

Colour Scanner

An increasingly popular function.
Scans can be generated through the flatbed
or the auto document feeder. The ‘Scan’ key
offers flexibility by enabling you to scan directly
to OCR, E-mail, Image or File.
The resolution is high at up to 9600x9600 dpi
(Interpolated). Besides these four main functions,

this all-in-one machine also offers: Simultaneous

operation, which means that, for example, you
can start scanning while a print-out is being
generated or print a document whilst sending a
fax. A large, five line back-lit display helps make
operation simple – as do the clear instructions it
shows. Back-lit keys for Fax, Copy and Scan
enable instant access to each function.

Laser Printing

The laser printing performance is outstanding.
It’s fast: up to 20 pages per minute and the
quality is pin sharp with a printing resolution
of up to 2400x600 dpi.
There’s a generous 32MB of memory as
standard, with the option to expand up
to 160MB.
It features both PCL

®

6 and BR-Script 3
(PostScript 3 language) emulations.
The choice of parallel, USB 2.0 and optional
Network means that connectivity isn’t a
problem.
Secure print for Windows

®

users ensures

confidential documents remain that way.

Laser Faxing

An essential communications tool, this
machine offers an impressive laser
fax performance which includes faxing
bound documents using the flatbed scanner.
A modem speed of 33.6kbps means
that faxes can be sent in as little as
2 seconds per page.
It has a combined ‘out of paper’ and ‘fax
transmission’ memory facility that allows up
to 500 pages to be stored.

†

40 one-touch numbers can be dialled
quickly and easily, as can a further
300 speed dial numbers.
Memory security ensures that private and
confidential means just that.

†

ITU-T Test Chart No.1

Four essential functions… …each individually impressive.

Network Connectivity as standard

The MFC-8440 and MFC-8840D offer an optional NC-9100h Print/Fax
Server, with this feature coming as standard on the MFC-8840DN. This
Network Connectivity enhances your machine into a workgroup MFC
and has been specifically designed to ensure effortless implementation
into the majority of networks and supporting industry standard speed
(10/100BaseTX) and protocols (TCP/IP/IPX/SPX/AppleTalk).

For the User

Network Printing

The NC-9100h offers Network printing functionality across the most
popular protocols and platforms including Microsoft Windows

®

,

Macintosh™, Novell, Unix and Linux operating systems.

Network scanning

Scansoft PaperPort with 5 user licence
Brother control centre for effortless Network Scanning
Scan to key functionality
Further optional 5 user licence agreements to extend workgroup
capability up to a maximum of 25 users

Network PC Fax

Allows unlimited users to send faxes from their desktop applications

For the IT Administrator

Network Management

Manageability is essential in today’s busy network environments so
Brother provides a number of tools to help you proactively manage
your network-connected printers and MFC’s.

An Embedded Web Server provides a platform that can be accessed
from any web browser to manage your device. E-mail notification can
alert administrators or users when a consumable is running low or an
error occurs.

In addition Brother provides its BRAdmin Professional Software for
administering LAN connected printers and MFC’s. An Enterprise edition
of this software for administering WAN connected printers and MFC’s
can be downloaded from the web-site.

For a full list of specifications for the NC-9100h Print/Fax Server please
go to http://solutions.brother.com/index-eu.html

Software

Brother supplies industry standard
software to enhance the key
functions of your machine:

Scansoft Paperport

®

Turns piles of paper and photos into
organised digital files that you can
quickly find, use and share.

OCR software supplied*

Scan a document and this software
allows you to edit the text in a digital
format.

Brother PC-Fax software*

Send and receive faxes directly from
your PC.

Remote set up utility*

Configure the settings of your machine
from your PC.

Presto! PageManager for
Macintosh™ including OCR*

Document management software for
Macintosh™ users including OCR.

* See driver table for details on your operating system.

PRINT

FAX

COPY

SCAN

MFC-8440 Without / with lower tray

■ Optional Network Interface

MFC-8840D Without / with lower tray

■ Duplex printing as standard

■ Optional Network Interface

MFC-8840DN Without / with lower tray

■ Duplex printing as standard

■ Network Interface as standard

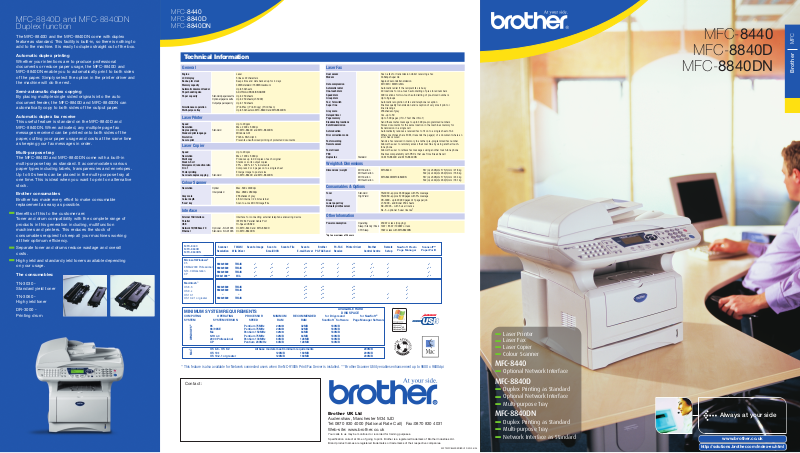

MFC-8440

All-in-one machines

MFC-8840D

MFC-8840DN

TCO 99 Certification

Responsibility for employee

welfare has never been more

critically discussed than right now. Nor is

there any escaping it, the onus for

environmental improvement in the

workplace is most definitely on the

employer. Increasingly, as a policy of ‘green

procurement’ influences buying decisions,

products that are people friendly and

environmentally sound are the products of

choice. And that’s where Brother can help.

Working hand in hand with TCO - the

organisation that campaigns globally for

people friendly, environmentally sound and

safer equipment for the workplace - Brother

is developing office equipment designed to

safeguard your employees.

Equipment designed with you, your

employees - their welfare - and your

business in mind. All products in this range

are TCO approved.
