Brother LX-180, LX-910D, LX-900, LX-200 Part List

PARTS REFERENCE LIST

MODEL: LX-180/LX-200/
LX-900/LX-910D

Aug., 2001

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:
(1) Code

(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO.

SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 1 01 A

Design change indication
Specification No.
Pattern alteration No.
Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established

3. The original of this list was made based on the information available in Sep, 2000.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . B-CHASSIS........................................................................... 1

2 . CHASSIS MECHA-1 .............................................................1

3 . CHASSIS MECHA -2 ............................................................3

4 . CHASSIS MECHA -3 ............................................................3

5 . CHASSIS MECHA -4 ............................................................5

6 . CHASSIS MECHA -5 ............................................................5

7 . CHASSIS MECHA -6 ............................................................7

8 . CHASSIS MECHA -7 ............................................................7

9 . CHASSIS MECHA -8 ............................................................9

10 . CHASSIS MECHA -9 ...........................................................9

11 . T-CHASSIS ....................................................................... 11

12 . MOTORS ........................................................................... 11

13 . COVERS............................................................................ 13

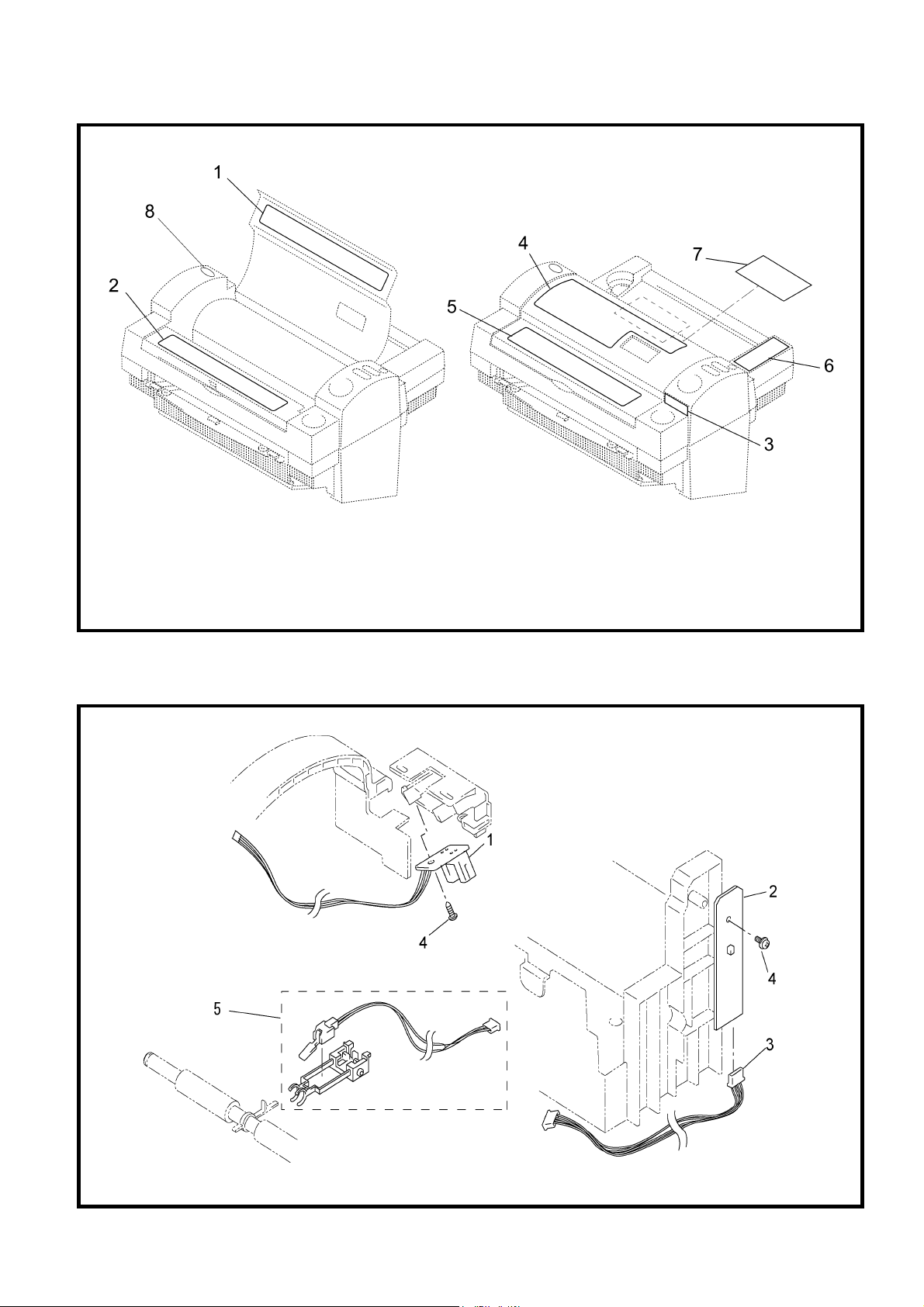

14 . LABELS.............................................................................. 16

15 . SENSORS.......................................................................... 16

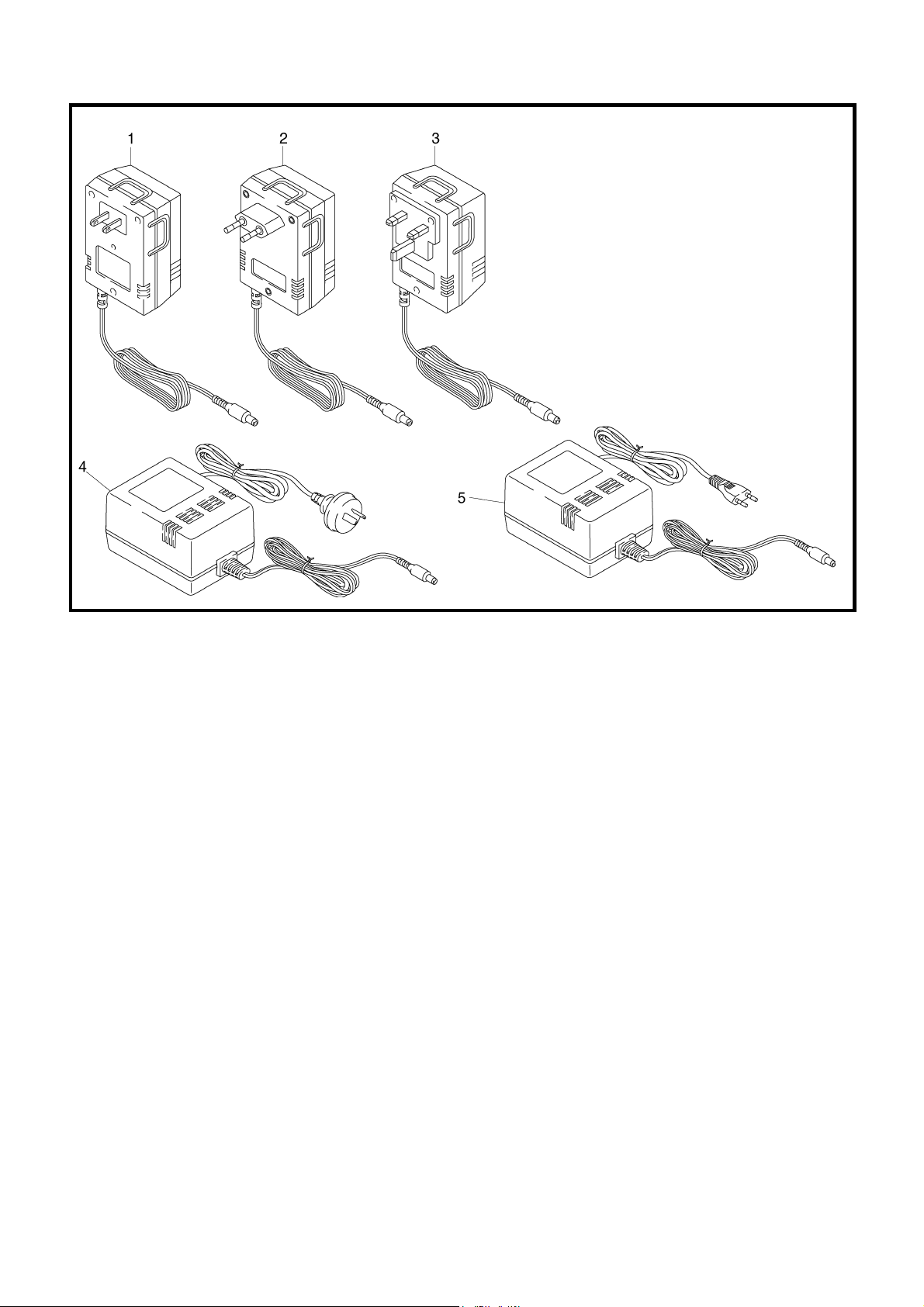

16 . AC ADAPTERS.................................................................. 18

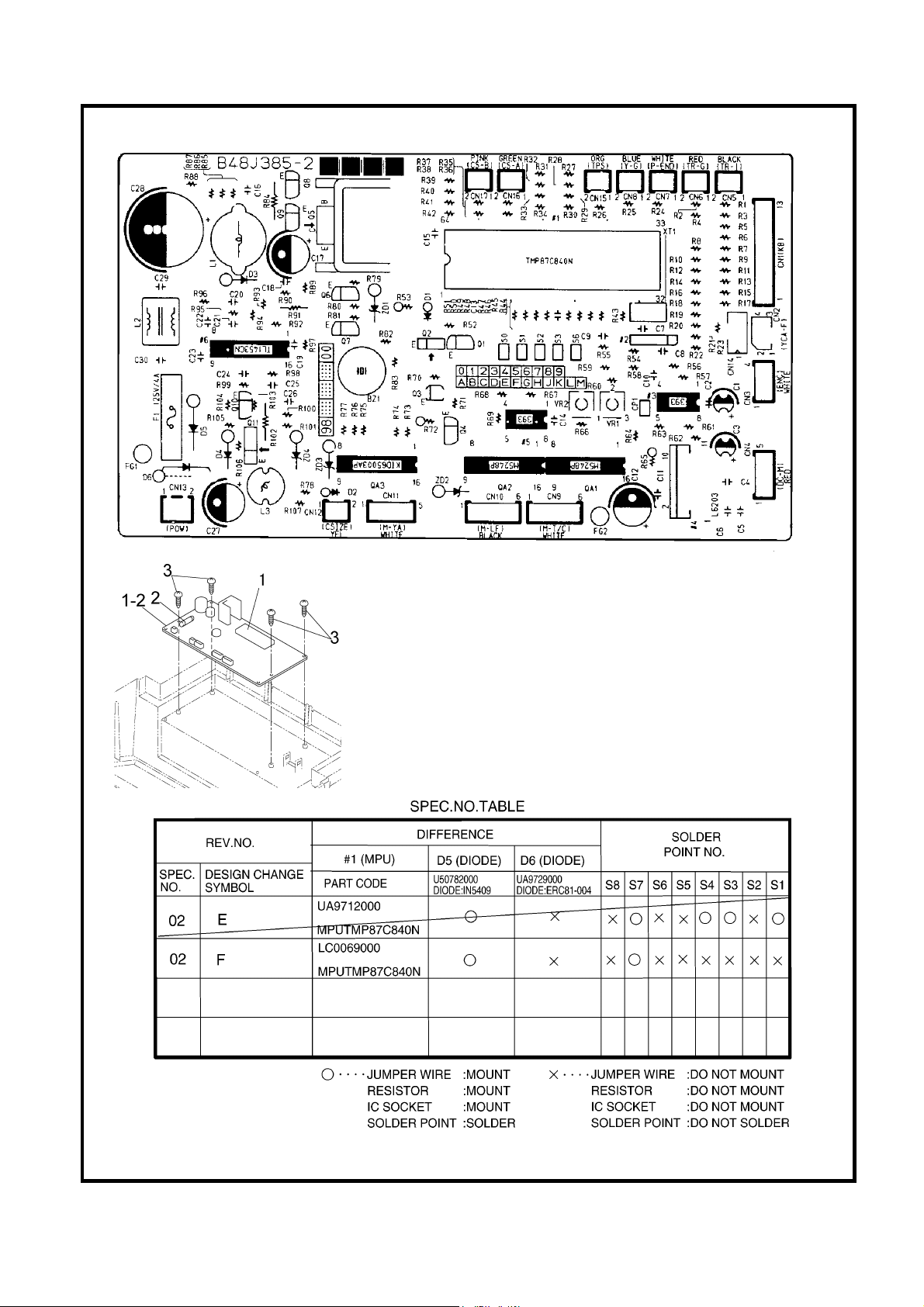

17 . MAIN PCB.......................................................................... 19

18 . SWITCH PCB .................................................................... 21

19 . JACK PCB.......................................................................... 21

20 . OPTIONS........................................................................... 23

21 . PRINTED MATTER............................................................ 23

22 . PACKING MATERIALS...................................................... 25

23 . ADJUSTMENT TOOL ........................................................ 27

1 . B-CHASSIS

2 . CHASSIS MECHA-1

MODEL LX-180,200,900,910D 86S-101-033

MODEL LX-180,200,900,910D 86S-101-034

1

1 . B-CHASSIS CL2001006

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9514001
2 UA9325036
3 UA9327000
4 UA9326036
5 UA9905001
6 LC0895001
7 062260805

EDGING SADDLE EDS-1

1

ROLLER GUIDE R

1

Y-SENSOR LEVER

1

ROLLER GUIDE L

1

TAPTITE, CUP M3X5 (SIDE CHASSIS SCREW)

6

LEAF SWITCH C ASSY

1

PAN-HEAD (LEAF SW C SCREW)

1

CHNG#B

MODEL LX-180,200,900,910D 86S-101-033

2 . CHASSIS-MECHA-1

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9321001
2 UA9323000
3 048060346
4 048080142
5 UA9324000

DRIVING ROLLER SHAFT

1

BEARING L (DRIVING ROLLER BEARING))

2

RETAINING RING, E6 (DRIVING ROLLER E RING)

1

RETAINING RING, C8 (DRIVING ROLLER C RING)

1

GEAR 16M1 HOOK

1

MODEL LX-180,200,900,910D 86S-101-034

3 . CHASSIS MECHA-2

4 . CHASSIS MECHA-3

MODEL LX-180,200,900,910D 86S-101-034

MODEL LX-180,200,900,910D 86S-101-034

3

3 . CHASSIS MECHA-2

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1-2 UA9542001

1 UA9513001
2 083210615
3 UA9505001
4 UA9905001
5

UG3005000

X-CUTTER UNIT

1

LEAF SWITCH F ASSY

1

TAPTITE, PAN B M2X6 (LEAF SW SCREW)

1

X-CUTTER HARNESS ASSY

1

TAPTITE, CUP M3X5 (X-CUTTER SCREW)

2

FERRITE CORE:16X8X10

1

MODEL LX-180,200,900,910D 86S-101-034

4 . CHASSIS MECHA-3

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9357001
2 UA9365001
3 UA9359000
4 UA9360000
5 048040346
6 UA9361000
7 UA9362001
8
9

UA9906001
UA9363001

PAPER FEED ROLLER ASSY

1

PAPER FEED SUB ROLLER ASSY

1

ROD HOLDER

2

BEARING (PAPER FEED ROLLER BEARING)

2

RETAINING RING, E4 (PAPER FEED ROLLER RING)

1

GEAR 16 HOOK

2

PAPER FEED SHAFT SPRING

1

PAPER FEED SHAFT SPRING R

1

PAPER SENSOR CRANK

1

MODEL LX-180,200,900,910D 86S-101-034

4

5 . CHASSIS MECHA-4

6 . CHASSIS MECHA-5

MODEL LX-180,200,900,910D 86S-101-034

MODEL LX-180,200,900,910D 86S-101-034

5

5 . CHASSIS MECHA-4

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9543001
2 UA9375000
3 UA9361000
4 UA9402000
5 UA9905001
6 UA9369000
7
8

9
10
11
12 UA9546001 1 PAPER EJECT ROLLER UNIT
13 UA9547001 1 PAPER EJECT SUB ROLLER UNIT

UA9370000
UA9373001
UA9399001
UA9400000
UA9401000

Y-DIVERSION LEVER ASSY

1

PAPER EJECT ROLLER BEARING

2

GEAR 16 HOOK

1

Y-DRIVING GEAR

1

TAPTITE, CUP M3X5 (PAPER EJECT ROLLER SCREW)

1

PAPER EJECT SHAFT HOLDER R

1
1 PAPER EJECT SHAFT HOLDER L
2 PAPER EJECT SUB ROLLER SPRING
1 Y-D SHAHT
1 Y-CUTTER CAM R
1 Y-CUTTER CAM L

MODEL LX-180,200,900,910D 86S-101-034

6 . CHASSIS MECHA-5 CL2001006

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9403000

2 UA9511001

3 UA9404001

4 UA9381000

5 UA9382001

6

7

8

9
10
11
12

UA9383000
UA9384000
UA9548001
LC0891001

062260805
UA9437000
UA9905001

Y-GEAR 40-20

1

Y-EXTENSION SPRING R

1

Y-EXTENSION SPRING L

2

TY-PLANET GEAR

1

TY-SPRING WASHER

1

TY-PLANET GEAR HOLDER

1

TY-IDLE GEAR

1

FELT

1

LEAF SWITCH Y ASSY

1

PAN HEAD (LEAF SWITCH Y SCREW)

1

PLATE SPRING

1

TAPTITE, CUP M3X5 (PLATE SPRING SCREW)

1

CHNG#B

MODEL LX-180,200,900,910D 86S-101-034

7 . CHASSIS MECHA-6

8 . CHASSIS MECHA-7

MODEL LX-180,200,900,910D 86S-101-034

MODEL LX-180,200,900,910D 86S-101-034

7

7 . CHASSIS MECHA-6

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9376000
2 UA9377000
3 UA9378000
4 UA9379000
5 UA9385000
6 UA9386000
7 UA9387000
8 UA9388000

9 UA9389000
10 UA9393000
11 UA9394000
12 UA9395000
13 048030346
14 UA9381000
15 UA9382001
16 UA9383000
17 UA9384000
18 UA9548001
19 UA9381000
20 UA9382001
21 UA9391000
22 UA9392000
23 UA9548001

GEAR 50

1

GEAR 20

4

GEAR 48/24

1

GEAR 60/16

1

GEAR 37 HOOK

1

GEAR 16M1

1

GEAR 60/16M1

1

GEAR 60/20 HOOK

1

GEAR 25 HOOK

1

GEAR 21

3

GEAR 40/16 HOOK

1

GEAR 36/12 HOOK

2

RETAINING RING, E3 (GEA R 20 RI NG)

1

TY-PLANET GEAR

1

TY-SPRING WASHER

1

TY-PLANET GEAR HOLDER

1

TY-IDLE GEAR

1

FELT

1

TY-PLANET GEAR

2

TY-SPRING WASHER

2

PLANET GEAR HOLDER

2

PLANET GEAR 20 HOOK

2

FELT

2

MODEL LX-180,200,900,910D 86S-101-034

8 . CHASSIS MECHA-7

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9405021

2 UA9406001

3 048040346

4 UA9424021

5 UA9425001

6 085270617

7 UA9422000

8 UA9426000

9 UA9427000
10
11 UA9905001 2 TAPTITE, CUP M3X5 (SENSO R FRA ME SCREW)

UA9364001

Y-CUTTER ARM L

1

Y-CUTTER ARM SHAFT

1

RETAINING RING, E4 (ARM S HA F T RING)

2

P S PCB HOLDER

1

P L DETECT LEVER

1

TAPTITE, BIND B M2.6X6 (SENSOR HOLDER SCREW)

1

SENSOR FRAME

1

FPC HOLDER A

1

FPC HOLDER B

1

SENSOR CRANK PROTECT FILM

1

MODEL LX-180,200,900,910D 86S-101-034

8

9 . CHASSIS MECHA—8 CL2000017

10 . CHASSIS MECHA-9

MODEL LX-180,200,900,910D 86S-101-034

MODEL LX-180,200,900,910D 86S-101-034

9

9 . CHASSIS MECHA-8 CL2000017

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9544001

2 UA9905001

3 Z26601001

Y-CA CHASSIS ASSY

1

TAPTITE, CUP M3X5 (Y-CA CHASSIS SCREW)

2

Y-CA MOTOR

1

ADD

MODEL LX-180,200,900,910D 86S-101-034

10 . CHASSIS MECHA-9

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9545001

2 UA9356001

3 048040346

ROLLER HOLDER ASSY

1

ROLLER HOLDER SPRING

1

RETAINING RING, E4 (ROLLER HOLDER RING)

2

MODEL LX-180,200,900,910D 86S-101-034

10

11 . T-CHASSIS

12 . MOTORS

MODEL LX-180,200,900,910D 86S-101-035

11

MODEL LX-180,200,900,910D 86S-101-054

11 . T-CHASSIS CL2001006

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1-4 UA9535001

1 LC0892001

2 062260805

3 UA9444001

4

5

083210615

UA9905001

T-CHASSIS UNIT

1

LEAF SWITCH TRG ASSY

1

SCREW, PAN M2.6X8 (LEAF SW TRG SCREW)

1

LEAF SWITCH TRI ASSY

1

TAPTITE, PAN B M2X6 (LEAF SW TRI SCREW)

1

TAPTITE, CUP M3X5 (T-CHASSIS SCREW)

2

CHNG#B

MODEL LX-180,200,900,910D 86S-101-035

12 . MOTORS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 Z26776001

2 UA9506001

3 Z26584001

4 UA9507001

5 000300605

6

U74327001

BP484223LM45-TC ( TC MOTOR)

1

PM MOTOR R HARNESS ASSY ( TC MOTOR HARNESS )

1

BP484223LM42-LF ( LF MOTOR)

1

PM MOTOR L HARNESS ASSY ( LF MOTOR HARNESS )

1

SCREW, BIND M3X6 (TC / LF MOTOR SCREW)

3

SCREW, CUP M3X16 (LF MOTOR SCREW)

1

MODEL LX-180,200,900,910D 86S-101-054

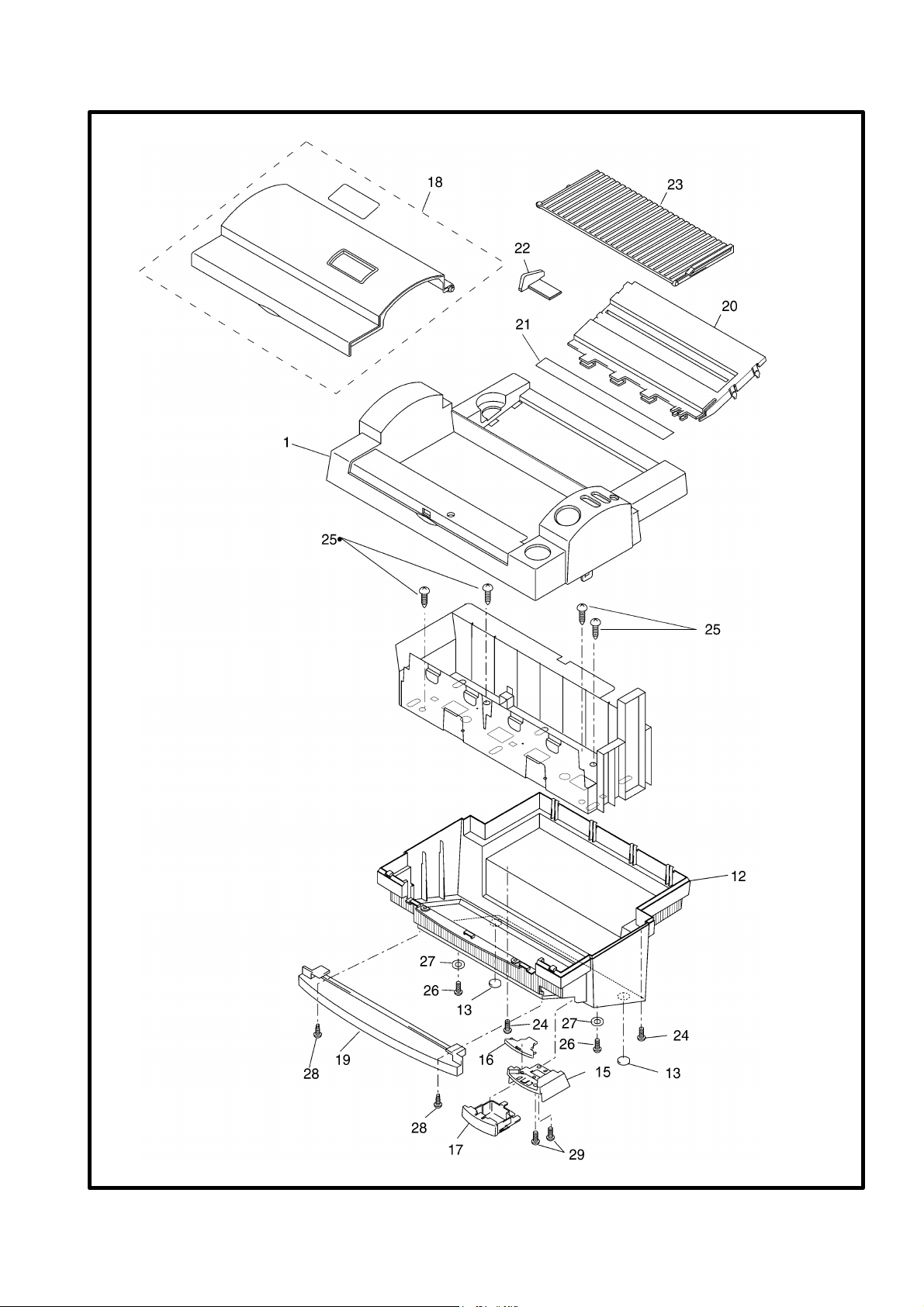

13 . COVERS

MODEL LX-180,200,900,910D 86S-101-061

13

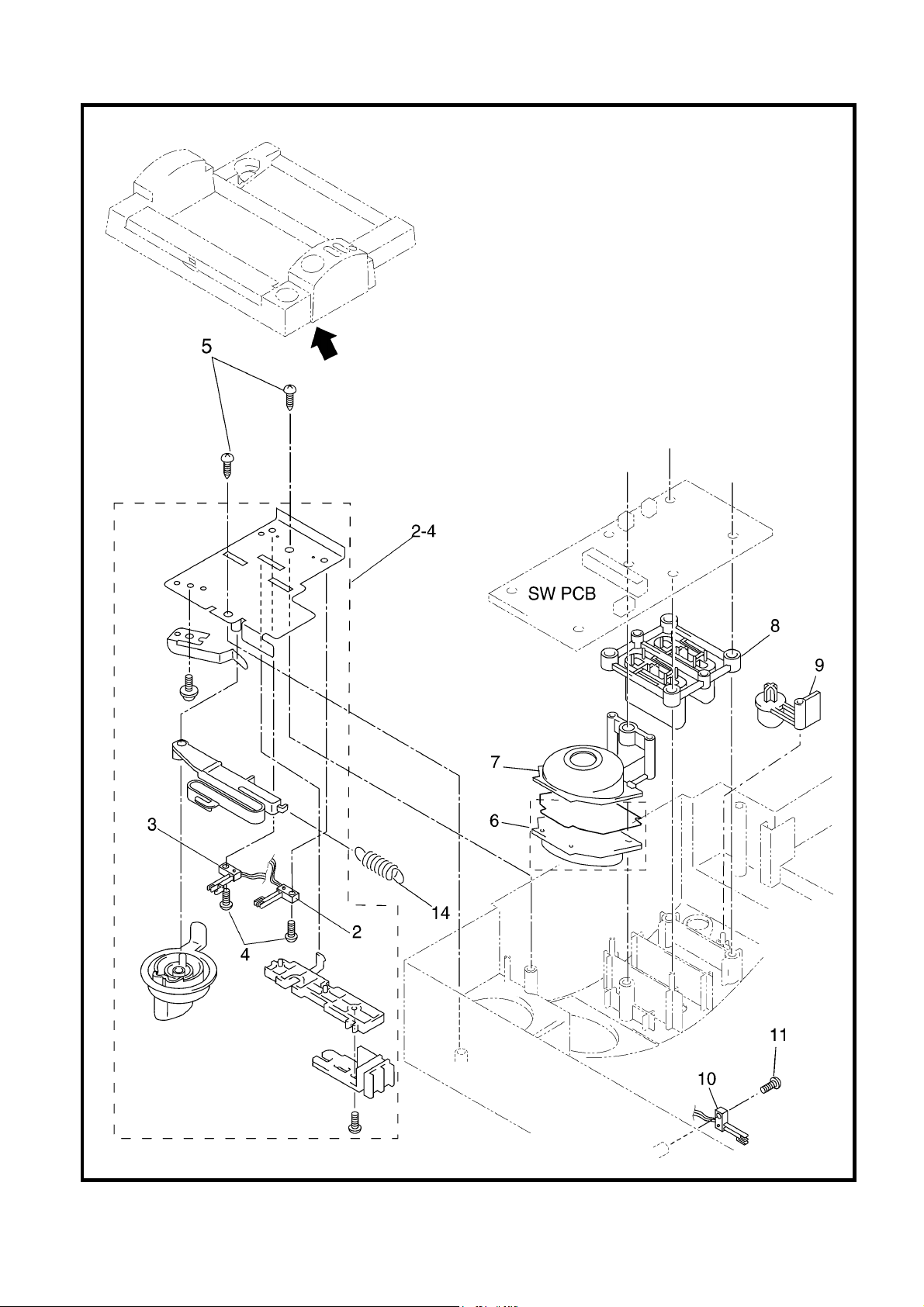

13 . COVERS

14

MODEL LX-180,200,900,910D 86S-101-061

13 . COVERS CL99016, CL2000013, CL2001006

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9503031

2-4 UA9537031

2 LC0893001
3 LC0896001
4 062260805
5 085310815
6 LC0161001
7 UA9486001
8 UA9487021

9 UA9524037
10 LC0894001
11 083271215
12 UA9489031
13 U41192001
14 UA9549001
15 UA9490031
16 UA9446034
17 UA9491031
18 UA9541031
18 LC0101031
18 LC0156031
18 LC0801031
19 UA9496034
19 UA9496021
20 UA9497034
20 UA9497021
21 LC0002001
22 UA9498034
23 UA9499034
23 UA9499021
24 085311215
25 087411215
26 U74231001
27 026050135
28
29

085270617
000300605

BODY COVER B

1

DIAL SWITCH HOLDER ASSY B

1

LEAF SWITCH R ASSY

1

LEAF SWITCH L ASSY

1

SCREW,PAN M2.6X8 (LEAF SW R.L SCREW)

2

TAPTITE, BIND B M3X8 (DIAL HOLDER SCREW)

2

START SWITCH B ASSY (SP)

1

START KEY ACTUATER

1

TWO CONNECTION SWITCH

1

POWER SUPPLY SWITCH

1

COVER SWITCH ASSY

1

PHILLIPS (COVER SW SCREW)

1

BOTTOM COVER

1

FELT FOOT

2

SPRING (DIAL ROCK ARM SPRING)

1

TRIMMER UPPER COVER

1

T-CUTTER PLATE

1

TRIMMER BOTTOM COVER

1

TOP COVER ASSY B (LX200)

1

TOP COVER LX900 ASSY

1

TOP COVER LX910D ASSY

1

TOP COVER ASSY LX180

1

FRONT COVER (LX200/LX900)

1

FRONT COVER (LX910D)

1

PAPER TRAY (LX200/LX900)

1

PAPER TRAY (LX910D)

1

PAPER TRAY FILM

1

PAPER GUIDE

1

SUB TRAY (LX200/LX900)

1

SUB TRAY (LX910D)

1

TAPTITE, BIND B M3X12 (BOTTOM COVER SCREW A)

2

TAPTITE, CUP B M4X12 (CASSETTE HOLDER SCREW)

4

TAPTITE, CUP M3X8 (BOTTOM COVER SCREW B)

2

WASHER, PLAIN S 5 (BOTTOM COVER WASHER)

2

TAPTITE, BIND B M2.6X6 (FRONT COVER SCREW)

2

SCREW BIND M3X6 (TRIMMER COVER SCREW)

2

CHNG#B
CHNG#B

CHNG#B

CHNG#D
CHNG#D

ADD

MODEL LX-180,200,900,910D 86S-101-061

14 . LABELS CL2000002

15 . SENSORS

MODEL LX-180,200,900,910D 86S-101-063

16

MODEL LX-180,200,900,910D 86S-101-100

14 . LABELS CL2000002, CL2000013

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9618001
2 UA9619001
3 UA9620001
4 UA9572001
4 UA9570001
4 LC0093001
4 LC0252001
5 UA9573001
5 UA9571001
5 LC0094001
5 LC0253001
6 LC0003001
7
7 UA9911001

7 UA9866001
7
7 LC0158001 1 RATING LABEL, BRO LX910D

7 LC0803001
8 LC0628001

LC0134001 1 RATING LABEL, BRO (CAN,USA)

UA9862001

ATTENTION LABEL A BRO

1

ATTENTION LABEL B BRO

1

CAUTION LABEL LX900/910D, USA

1

MYLAR LABEL A UK (AUS/GBR/NZL/SGP)

1

MYLAR LABEL A USA (USA), LX900

1

MYLAR LABEL A CANADA (CAN)

1

MYLAR LABEL A CHINA (CHN)

1

MYLAR LABEL B UK (AUS/GBR/NZL/SGP)

1

MYLAR LABEL B USA (USA),LX900

1

MYLAR LABEL B CANADA (CAN)

1

MYLAR LABEL B CHINA (CHN)

1

DOCUMENT SET CAUTION LABEL BRO

1

RATING LABEL, BRO EUROPE

1

(AUT/BEL/CHE/DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/ITA/NLD/NOR/PRT/SWE)
RATING LABEL, BRO OTHER (NZL/SGP)

1

RATING LABEL, BRO AUS (AUS)

1

RATING LABEL, BRO LX180 CE

1

XYRON LABEL (DEU, FRA, ZAF, CHE, SWE, AUT, ITA, FIN, NOR, ESP, CHN, GBR,

1

IRL, NLD, DNK, GRC, AUS, BEL, PRT, NZL, SGP )

CHNG#A

ADD

CHNG#A

ADD

ADD
ADD

MODEL LX-180,200,900,910D 86S-101-063

15 . SENSORS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9942001
2 UA9943001
3 UA9742001
4 085270617
5 LC0047001

Y-CA SENSOR PCB ASSY, (SP)

1

ENC SENSOR PCB ASSY, (SP)

1

ENC HARNESS ASSY

1

TAPTITE, BIND B M2.6X6

2

PE SENSOR UNIT

1

MODEL LX-180,200,900,910D 86S-101-100

17

16 . AC ADAPTERS

MODEL LX-180,200,900,910D 86S-101-101

18

17 . MAIN PCB

19

MODEL LX-180,200,900,910D 86S-101-102

16 . AC ADAPTERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 US3593001
2 US3594001

3 US3595001
4 US3610001
5 US3681001

AC ADAPTOR ASSY AXIS-120 (SP), CAN/USA

1

AC ADAPTOR ASSY AXIS-230 (SP) ,

1

AUT/BEL/CHE/DEU/DNK/ESP/FIN/FRA/GRC/ITA/NLD/NOR/PRT/SWE
AC ADAPTOR ASSY AXIS-UK (SP), GBR/IRL

1

AC ADAPTER ASSY AXIS-SAA(SP), AUS/NZL

1

AC ADAPTER ASSY AXIS-230S(SP), SGP

1

REF.NO. SYMBOL CODE Q'T

1-2 B48J385-202F

1#1
2F1
3

UA9938002
LC0069000
US3413000

085310815

17 . MAIN PCB

Y

LC PCB ASSY 1, (SP)

1

MPUTMP87C840N (LC0069)

1

GLASS FUSE, 4A-235

1

TAPTITE, BIND B M3X8

4

MODEL LX-180,200,900,910D 86S-101-101

DESCRIPTION REMARKS

20

MODEL LX-180,200,900,910D 86S-101-102

18 . SWITCH PCB

19 . JACK PCB

MODEL LX-180,200,900,910D 86S-101-103

21

MODEL LX-180,200,900,910D 86S-101-104

18 . SWITCH PCB

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9939002
2 UA9737001
3 085311215
4 085311417

SWITCH PCB ASSY 1, (SP)

1

SWITCH HARNESS ASSY

1

TAPTITE, BIND B M3X12 (SWITCH PCB SCREW A)

2

TAPTITE, BIND B M3X14 (SWITCH PCB SCREW B)

3

MODEL LX-180,200,900,910D 86S-101-103

19 . JACK PCB

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9940001
2 UA9739001
3 UG3005000
4 085310815

JACK PCB ASSY 1, (SP)

1

POWER HARNESS ASSY

1

FERRITE CORE:16X8X10

1

TAPTITE, BIND B M3X8 (JACK PCB SCREW)

1

22

MODEL LX-180,200,900,910D 86S-101-104

20 . OPTIONS CL2000003

MODEL LX-180,200,900,910D 86S-101-910

21 . PRINTED MATTER CL2001005

MODEL LX-180,200,900,910D 86S-101-920

20 . OPTIONS CL2000003, CL2000013

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9589001
1 UA9590001
1 UA9591001
2 LC0159001

CD ROM ASSY ENGLISH

1

CD ROM ASSY FRENCH

1

CD ROM ASSY GERMAN

1

DUST COVER LX910D

1

MODEL LX-180,200,900,910D 86S-101-910

21 . PRINTED MATTER CL2001005

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UA9551001
1 UA9559001
1 UA9560001
1 UA9558001
1 UA9552001
1 LC0064001 1 USER'S MANUAL, ITALIAN
1 UA9555001
1 UA9557001
1 UA9553001
1 UA9554001
1 UC0074001
1 UC0075001
1 LC0804001
2 UA9567001
2 UA9568001
2 UH3851001

2 LC0133001
3
4 UA9988001
5 LC0048001 1 ACCESSORY ORDER FORM BRO ADD

UA9900001

USER'S MANUAL, ENGLISH (AUS/CAN/GBR/GRC/IRL/NZL/PRT/SGP/USA)

1

USER'S MANUAL, DANISH (DNK)

1

USER'S MANUAL, SWEDISH (SWE)

1

USER'S MANUAL, FINNISH (FIN)

1

USER'S MANUAL, GERMAN (AUT/CHE/DEU)

1

USER'S MANUAL, SPANISH (ESP)

1

USER'S MANUAL, NORWEGIAN (NOR)

1

USER'S MANUAL, FRENCH (BEL/CAN/CHE/FRA)

1

USER'S MANUAL, DUTCH (BEL/NLD)

1

USER'S MANUAL, LX900,910D (USA)

1

USER'S MANUAL, (CAN)

1

USER’S MANUAL, LX180

1

WARRANTY CARD, USA (LX910D)

1

WARRANTY CARD, CANADA

1

WARRANTY CARD EUR

1

(AUT/BEL/CHE/DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/ITA/NLD/NOR/PRT/SWE
WARRANTY CARD, USA

1

SET UP GUIDE BRO

1

BAG (300X220)

1

ADD

MODEL LX-180,200,900,910D 86S-101-920

22 . PACKING MATERIALS

MODEL LX-180,200,900,910D 86S-101-930

25

26

22 . PACKING MATERIALS CL99016, CL2000013, CL2000014, CL2001002

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 LC0737022
1 LC0213041
1 LC0214054

1 LC0215022
1 LC0805054
2 LC0097000
3 LC0098000
4 UA9885000
5 UA9907001
6 UA9924001
7 UA9987000

CARTON3, USA LX900

1

CARTON2, CAN LX900

1

CARTON2, EUR LX200

1

(AUS/AUT/BEL/CHE/CHN/DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/ITA/NLD/NOR/NZL/PR
T/SGP/SWE,ZAF)
CARTON2, USA LX910D

1

CARTON, EUR LX180

1

STYROFOAM PAD R2

1

STYROFOAM PAD L2

1

CASSETTE PAD

1

BAG (700X800)

1

BAG 280X600

1

LABEL PROTECT SHEET

1

CHNG#D
CHNG#D
CHNG#D

CHNG#D

ADD
CHNG#B
CHNG#B

MODEL LX-180,200,900,910D 86S-101-034

22 . ADJUSTMENT TOOL

27

MODEL LX-180,200,900,910D 86S-101-99A

22 . ADJUSTMENT TOOL

REF.NO. CODE DESCRIPTION REMARKS

1 LC0044001 SLANT ADJUST GAUGE

28

MODEL

LX-180,200,900,910D 86S-101-99A

Aug., 2001
86S003BE2
Printed in Japan
