Home Sewing Machine
PARTS REFERENCE LIST
MODEL: LS-1717
LS-1817
LS-1717P/LS-1717B
LS-2020/LS-2020P
LS-30/X-3
LS-2000/LS2250PRW
CONTENTS
(1) PRINCIPAL PARTS............................................................... 2
(2) UPPER SHAFT AND NEEDLE BAR..................................... 4
(3) FEED MECHANISM .............................................................. 6
(4) PATTERN SELECTION, SHUTTLE HOOK AND
UPPER TENSION.................................................................. 8
(5) LAMP AND MOTOR............................................................ 10
(6) OTHER PARTS ................................................................... 12
Note on parts:
We keep performance parts for this sewing machine for at least 8 years after this model is discontinued.
Performance parts are the necessary parts to maintain the function of the sewing machine.
- 1 -
(1) PRINCIPAL PARTS
No.
CODE NAME REMARKS
1 XD0288021 FRONT COVER (OTHER) 050102 27 060400816 SCREW BIND M4X8
XE2350001 FRONT COVER (LS-30, X-3)
XE7053001 FRONT COVER (LS-2000)
XE9006001 FRONT COVER (LS2250PRW)
2 0A0211850 PIN SPRING ROLL BW2
3 X53625121 UPPER COVER THREAD GUIDE
4 XA9970021 DECORATION PLATE (LS-1717, 1717P)
XA9970022 DECORATION PLATE (LS-1817)
XA9970023 DECORATION PLATE (LS-1717B) ADD
XA9970024 DECORATION PLATE (LS-2020) ADD
XA9970025 DECORATION PLATE (LS-2020P)
XA9970026 DECORATION PLATE (LS-2000)
XA9970027 DECORATION PLATE (LS2250PRW)
XE2467001 DECORATION SHEET (LS-30)
XE3861001 DECORATION SHEET (X-3)
5 XA3337022 TAPTITE, CUP P M4X20 CHG
6 053400806 SCREW, PAN (T WASHER) M4X8
7 XC1201121 REAR COVER ASSEMBLY (OTHER)
XE7055001 REAR COVER (LS-2000)
XD0291121 REAR COVER (X-3, LS2250PRW) ADD
8 XE7029001 THREAD GUIDE ASSY
9 0A5301006 SCREW PAN (S/P WASHER) M3X10
10 021300106 NUT 1 M3
11 XC8701021 SPOOL PIN (Metal Model)
XE6223001 SPOOL PIN (Plastic Model)
12 XA0628121 SPOOL PIN SPRING
13 XA8851021 SPOOL PIN STAND 050073
14 XE8912001 BOBBIN PRESSER
15 052301606 SCREW, PAN (S/P WASHER) M3X16
16 X57891021 REFLECTOR
17 XA7926021 HINGED DOOR
18 X53638121 SPRING CHG
19 XA9974021 FACE PLATE (OTHER)
XE2217001 FACE PLATE (LS-30, X-3)
XE7057001 FACE PLATE (LS-2000)
20 XD0793021 ACCESSORY TABLE (OTHER) 050102
XE2218001 ACCESSORY TABLE (LS-30, X-3)
XE7058001 ACCESSORY TABLE (LS-2000)
21 X58361021 RUBBER CUSHION CHG
22 X56474021 SPACER
23 X57297021 SCREW
24 XA7932021 BASE PLATE
25 XA1805021 BASE RUBBER A
26 XA4687021 ADJUSTING SCREW ASSY CHG
1000001718
1000014502
1000019930
1000000507
1000014502
1000019930
1000001718
1000006063
1000009386
1000014502
1000014592
1000013717
1000012082
1000019930
1000001718
1000014502
1000001718
1000014502
No.
CODE NAME REMARKS
- 2 -
- 3 -
(2) UPPER SHAFT AND NEEDLE BAR
No.
CODE NAME REMARKS
1 XE3692001 UPPER SHAFT SUPPLY ASSY
2 XA0637120 CLUTCH PLATE 41 XD1220131 NEEDLE BAR ASSY N
3 XA0636020 CLUTCH SPRING 42 XC3015031 PRESSER FEED HOLDER ASSY
4 XA0638120 TIMING PULLEY
5 048080346 RETAINING RING E8
6 012500532 SET SCREW SOCKET (FT) M5X5
7 014400432 SET SCREW SOCKET (CP) M4X4
8 X52478021 BUSHING PRESSER
9 X57908021 TAPTITE, BIND S M4X10 CHG
10 XA0639021 BALANCE WHEEL
11 XA2358121 NEEDLE BAR (LS-1717, 1817) DEL
12 XA0642120 NEEDLE BAR THREAD GUIDE DEL
(LS-1717, 1817)
13 XA0643121 NEEDLE CLAMP (LS-1717, 1817) DEL
14 XC8563031 NEEDLE CLAMP SCREW
XA0644021 NEEDLE CLAMP SCREW (LS-1717, 1817) DEL
15 012400432 SET SCREW SOCKET (FT) M4X4
16 XA8983021 NEEDLE BAR SUPPORTER
17 XA3477021 NEEDLE BAR SUPPORTER STUD
18 X54369021 SPRING
19 X56851021 LOCK NUT
20 XE3167001 NEEDLE BAR SUPPORTER GUIDE
21 XA1289121 NEEDLE BAR CRANK ROD ASSY
22 XA1113221 NEEDLE BAR CRANK
23 132051022 SCREW, FLAT SM3.57-40X7 L
24 XA3954121 ZIGZAG NEEDLE PLATE
25 X50487021 SCREW M4
26 X57908021 TAPTITE, BIND S M4X10 CHG
27 XA1112121 THREAD TAKE-UP ASSY CHG
28 XA0648120 THREAD TAKE-UP LEVER STUD 050091
29 048050346 RETAINING RING E5
30 X57913021 TAPTITE, BIND S M4X16
31 128437020 PRESSER BAR 040158
32 X55770021 PRESSER BAR SPRING
33 XA0975021 PRESSER BAR GUIDE BRACKET
34 X52760021 SET SCREW, PAN M6X12
35 XA2511121 PRESSER FOOT LIFTER
36 XA0977150 PRESSER FOOT LIFTER STUD
37 138135122 ZIGZAG PRESSER FOOT
38 132730122 TIGHTENING SCREW 3.57 CHG
39 XA1866021 WASHER, SPRING 050209
40 X53330020 WASHER
1000006160
1000001452
1000010653
1000002936
1000002222
1000003433
1000001814
1000011532
1000010447
1000001452
1000001718
1000001718
1000001718
1000003111
No.
CODE NAME REMARKS
New Spec
1000001718
1000001718
- 4 -
- 5 -
(3) FEED MECHANISM
No.
CODE NAME REMARKS
1 XA0978021 FEED CONNECTING ROD ASSY 44 XA9976021 REVERSE SEWING BUTTON (OTHER)
2 XA0980021 SPRING XE2219001 REVERSE SEWING BUTTON
3 XA0982020 HORIZONTAL FEED SHAFT (LS-30, X-3)
4 XA0983121 HORIZONTAL FEED ARM ASSEMBLY 45 XA9977021 FEED DIAL CAM
5 021400205 NUT 2 M4 46 X50532021 PRESSER PLATE
6 060401416 SCREW BIND M4X14 47
7 X53330020 WASHER CHG
8 048050346 RETAINING RING E5
9 XA0987021 HORIZONTAL FEED PLATE
10 XA0988021 FEED STAND SHAFT
11 XA3960021 FEED STAND
12 048030346 RETAINING RING E3
13 146200021 RETAINING RING, CS4
14 XA4430021 FEED DOG
15 060300416 SCREW BIND M3X4
16 060400816 SCREW BIND M4X8
17 XA3474021 DUST PROTECT PLATE
18 XA4042120 FEED STAND SUPPORT
19 025040133 WASHER, PLAIN S 4
20 XA1082051 TAPER POINT STUD R
21 XZ0074021 TAPTITE, CUP S 4X16 060158
22 XA0991021 SPRING
23 X55472021 TAPER POINT STUD L ASSEMBLY
24 XA4692021 SPRING CHG
25 XA0649021 TAPTITE, CUP S M4X14
26 X56613021 SPRING
27 XA3480021 VERTICAL FEED ARM
28 XA3481021 VERTICAL FEED ADJUSTER
29 X50559020 ZIGZAG ADJUSTING NUT CHG
30 062300806 SCREW PAN M3X8
31 060400516 SCREW BIND M4X5
32 XA0995121 VERTICAL FEED SHAFT 050091
33 048060346 RETAINING RING E6
34 XA0030021 FEED SQUARE BLOCK CHG
35 XA0996020 FEED REGULATOR CHG
36 XA0997020 FEED REGULATOR SHAFT CHG
37 X57908021 TAPTITE, BIND S M4X10 CHG
38 XA4675021 SPRING 050091
39 XA9167021 FEED REGULATOR PLATE ASSEMBLY
40 XA1002020 REVERSE SEWING REGULATOR SHAFT
41 0A5300606 SCREW PAN (S/P WASHER) M3X6
42 XA7989021 REVERSE SEWING LEVER PLATE
43 XA1004120 REVERSE SEWING SHAFT 050091
1000001452
1000001452
1000017555
1000017555
1000001452
1000011101
No.
CODE NAME REMARKS
138172021
SCREW, PAN (S/P WASHER) M4X10
1000001718
1000017555
- 6 -
- 7 -
(4) PATTERN SELECTION, SHUTTLE HOOK AND UPPER TENSION
No.
CODE NAME REMARKS
1 XA4693121 CAM DRIVE CONNECTING ROD A 45 XA7985021 BOBBIN WINDER HOLDER ASSEMBLY
2 XA1012221 CAM DRIVE CONNECTING ROD B 46 XA1049021 BOBBIN WINDER SPINDLE ASSEMBLY
3 XA1014021 CAM DRIVE ROD C SUB ASSY 47 X59939021 BOBBIN WINDER SPRING
4 XA1017120 RACK 48 XA7988021 F DIAL SPRING
5 XC7564021 SCREW, PAN (S/P WASHER) M3X6
6 XA3439021 SPRING DEL XE3453001 UPPER TENSION CONTROL DIAL
7 146200051 STOP RING DEL (LS-2000, LS2250PRW)
8 048040346 RETAINING RING E4
9 060400816 SCREW BIND M4X8
10 XA6909021 TOOTHED WASHER
11 131976020 WASHER THRUST CHG 53 XA6907021 SCREW 4X8
12 XA1019021 RACK PLATE SPRING
13 XA8290021 TAPTITE, BIND S M4X8 CHG
14 X50559020 ZIGZAG ADJUSTING NUT
15 062301006 SCREW PAN M3X10
16 X52077121 COLLAR 050091
17 014400432 SET SCREW SOCKET (CP) M4X4
18 X53330020 WASHER
19 XA1317022 SHUTTLE RACE ASSEMBLY
20 128581022 SHUTTLE HOOK
21 XA1021021 SHUTTLE DRIVE ASSY
22 XA1025021 DRIVER SHAFT GEAR
23 128582023 BOBBIN CASE ASSEMBLY 040130
24 014400632 SET SCREW SOCKET (CP) M4X6
25 X57313121 RACK STOPPER
26 X57908021 TAPTITE, BIND S M4X10 CHG
27 XA5702021 RACK STOPPER A
28 XA7976021 ZIGZAG CONNECTING ROD
29 XC0842021 ZIGZAG BASE ASSEMBLY
30 XA9978021 NEEDLE POSITION SELECTOR ASSY
31 XA1036021 ZIGZAG LINK
32 X57953021 SCREW
33 X56960021 NUT 4 CHG
34 048030346 RETAINING RING E3
35 XA7980021 ZIGZAG ADJUSTER CONNECTING ROD
36 XA7981020 CONNECTING ROD PIN
37 XA1040021 SPRING
38 025040133 WASHER, PLAIN S 4
39 XA7982021 NOTCHED SPRING
40 060300416 SCREW BIND M3X4
41 XA9980021 Z DIAL
42 137999020 POLYESTER SLIDER CHG
43 XA7984021 ZIGZAG CAM
44 XA1044021 SPRING
1000008646
1000001452
1000005128
1000005128
1000001452
No.
CODE NAME REMARKS
49 XA1052021 UPPER TENSION CONTROL DIAL (OTHER)
50 XA4425021 TREAD TENSION BRACKET ASSY
51 XA1255121 THREAD TENSION LABEL
52 XA8474021 UPSET 4X12 DB 050221
- 8 -
1000005128
- 9 -

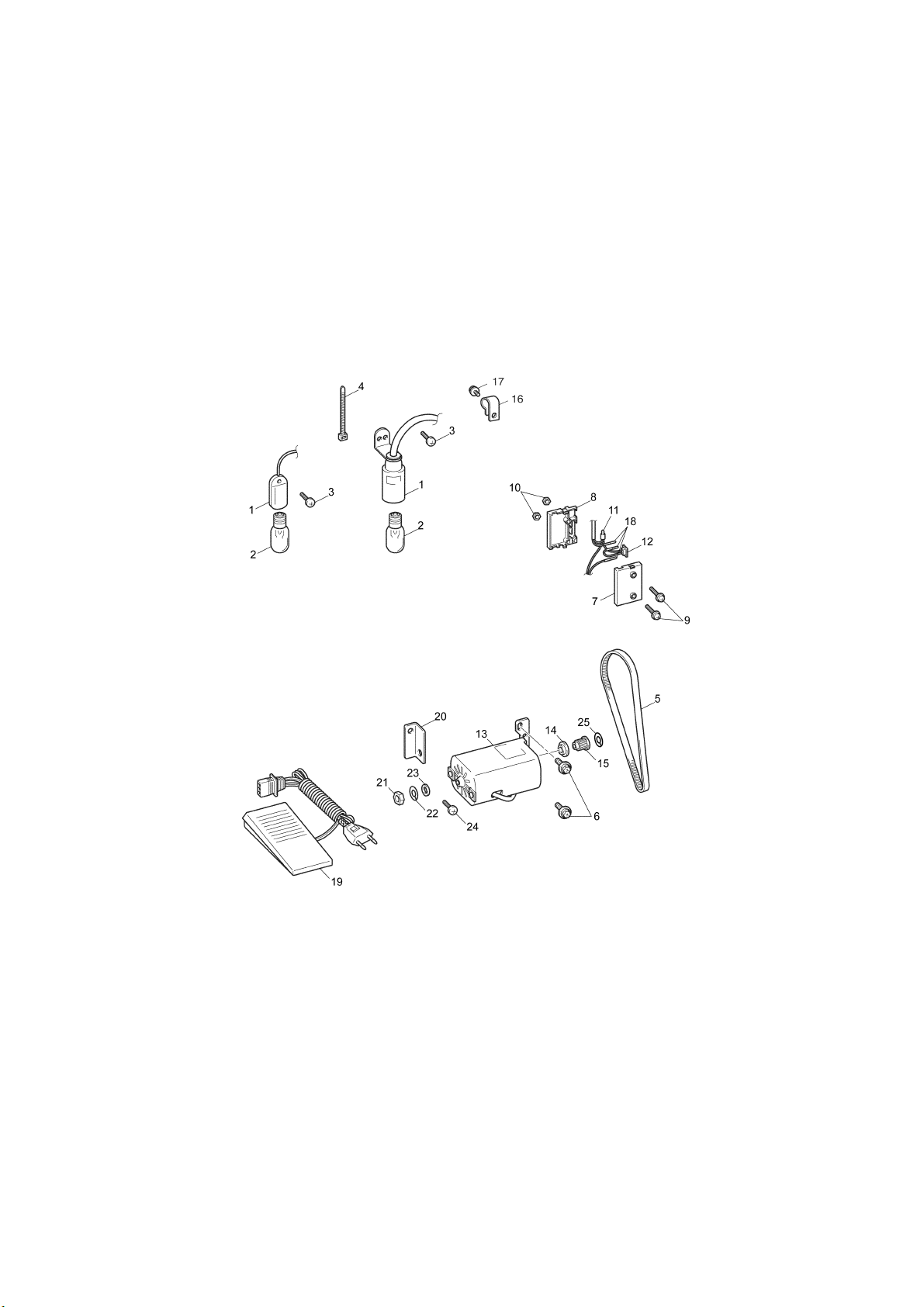

(5) LAMP AND MOTOR
No.
CODE NAME REMARKS
1 XC6789021 ASSY: SEWING LAMP E12C#025 060049 20 XE2842001 MOTOR SUPPORTER (USA, CAN)
(USA, CAN) 21 021400205 NUT 2 M4
XA1064021 SEW-LIGHT ASSY (EXCEPT: USA, CAN) 22 028040242 WASHER SPRING 2-4 (USA, CAN)
2 X53061030 SEW-LIGHT BULB (100-120V)
205336030 SEW-LIGHT BULB L-4 (220-240V)
3 X57984021 TAPTITE, BIND S M3X20 (USA, CAN)
XA1623021 TAPTITE, BIND S M3X10 25 048060142 RETAINING RING EXTERNAL C6
(EXCEPT: USA, CAN)
4 X53169020 BAND (EXCEPT: USA, CAN) 050245
5 XA1196021 T BELT B163XXL4.8
6 XA3004021 BOLT, (S/P WASHER) M5X12
7 XA8786021 3P SOCKET BODY
8 XA8787021 3P SOCKET COVER
9 052403006 SCREW, PAN (S/P WASHER) M4X30
10 021400205 NUT 2 M4
11 214808020 CONNECTOR: #3 CHG
12 XA1070021 PW SWITCH ASSY (USA, CAN)
XA1073021 PW SWITCH ASSY (EXCEPT: USA, CAN)
13 XC7354221 MOTOR: HFA-07150 FDM (120V 60Hz)
XC7599421 MOTOR: NS-70 FDM220V
(LS-1717: ARG, CHN)
XC7436321 MOTOR: NS-70 FDM230V
(LS-1717: OTHER) (LS-1817, X-3)
XD0851221 MOTOR: NS-70 FDM220V/60HZ
(LS-1717: KOREA)
14 XA1265120 MOTOR T-PULLEY A
15 XC7355021 MOTOR T-PULLEY B 050145
16 XA7678021 CORD CLAMP
17 X57908021 TAPTITE, BIND S M4X10
18 138598021 SOCKET PIN 040105
19 XC7359021 FOOT CONTROLLER: KD-1902 060049
(USA, CAN)
XC7456321 FOOT CONTROLLER: KD-2902UK 050086
(LS-1717: IRE, X-3: UK)
XC7438321 FOOT CONTROLLER: KD-2902 050145
(LS-1717: OTHER, LS-1817, X-3: NEU)
XD0105021 FOOT CONTROLLER: KD-2902CHN
(LS-1717: CHN)
XD0852021 FOOT CONTROLLER: KD-2902KOREA
(LS-1717: KOR)
XD0112021 FOOT CONTROLLER: KD-2902IRAM
(LS-1717: ARG)
XE5369001 FOOT CONTROLLER: KD-1902
(LS30, LS-2000, LS2250PRW)
1000013742
1000012695
1000002958
1000015143
1000013997
1000013997
1000013997
1000008457
1000002958
No.
CODE NAME REMARKS
1000002813
1000002958
23 102707023 WASHER (USA, CAN) CHG
24 XA8474021 UPSET 4X12 DB (USA, CAN)
1000002958
1000015143
- 10 -
- 11 -

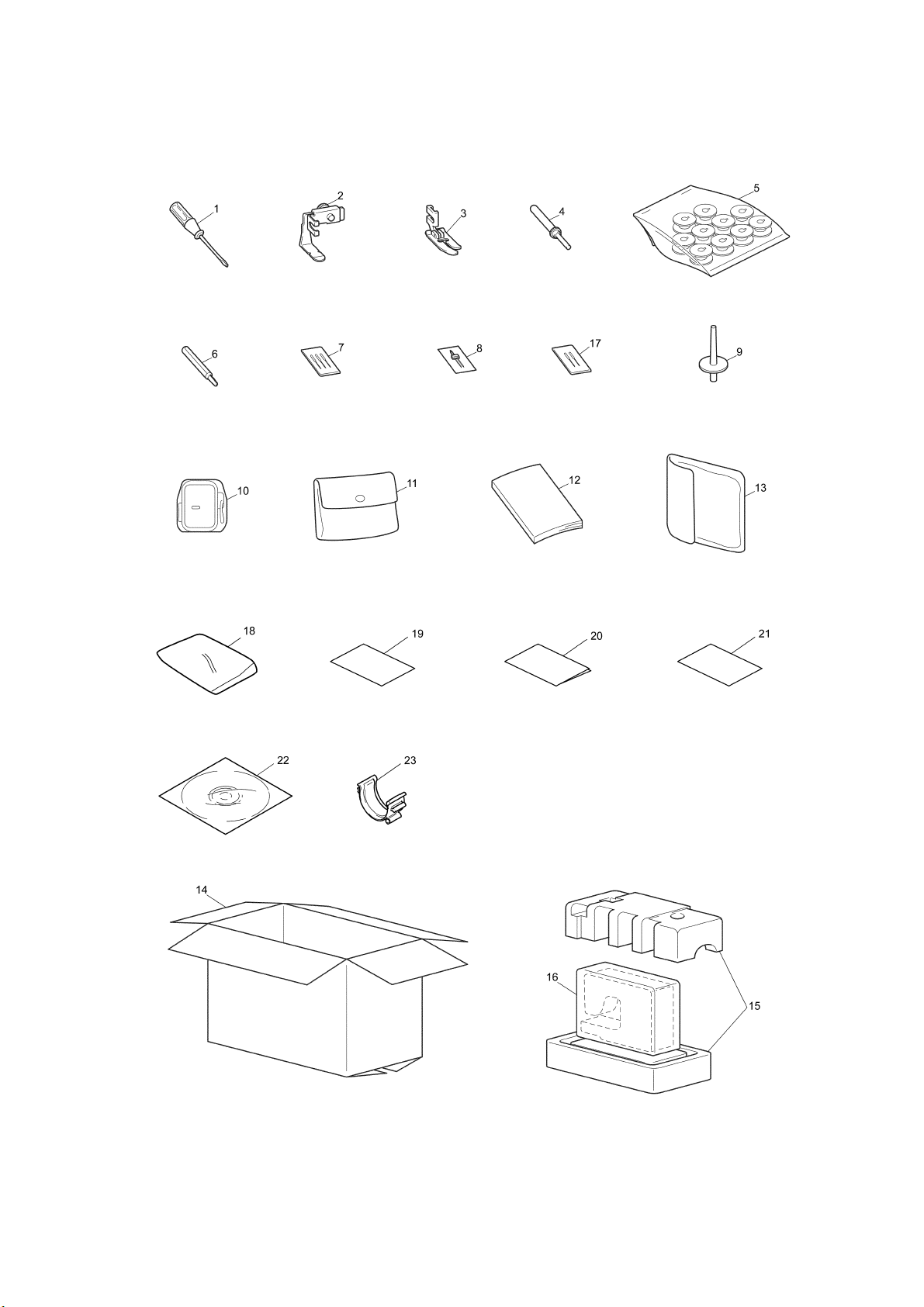

(6) OTHER PARTS
No.
CODE NAME REMARKS
1 X55467051 SCREW DRIVER (LS-1717: KOR) 060020 X61674047 CARTON (X-3: RUS)
X55468051 SCREW DRIVER S (LS-1717: KOR) X61674049 CARTON (X-3: NEU)
2 X59370021 ZIPPER FOOT
3 125469251 STRAIGHT STITCH FOOT ASSY (X-3: CHE, UK)
(LS-1717: KOR) X60360040 COLOR CARTON (KOR)
4 X54243051 SEAM RIPPER (LS-1717: KOR) XE7341001 COLOR CARTON MODEL: LS-30 (LS30)
5 X52800120 BOBBIN XE7068001 COLOR CARTON MODEL: LS-2000 (LS-2000)
6 X55465051 OILER (LS-1717: KOR) 060183 XE8995001 COLOR CARTON MODEL:LS2250PRW
7 129583021 NEEDLE SET (3PCS) (EXCEPT: KOR) (LS2250PRW)
X57117051 NEEDLE SET (3PCS) (KOR) 15 XE2342101 PS FOAM PAD ASSY 407 (LS-30, X-3)
8 131096121 NEEDLE SET (1PCE) CHG X61509220 403SF ASSY (OTHER)
(LS-1717, 1817, 2020, 2020P, LS-30, X-3) 16 X60439121 BAG 630X630T
9 130920021 EXTRA SPOOL PIN (EXCEPT: LS-2000) CHG 17 XE7064001 NEEDLE SET (2PCS)
10 XA3442121 FEED DOG COVER (EXCEPT: KOR) (LS-2000, LS2250PRW)
XA3442051 FEED DOG COVER (KOR) 18 130800021 BAG 230X310H (EXCEPT: KOR)
11 XC4487021 ACCESSORY BAG (LS-1717, 1817) CHG 19 XD1328021 WARRANTY CARD CHINA (CHN) 050203
12 194403111 INSTRUCTION MANUAL CHG XC0380021 WARRANTY CARD (USA)
(USA, CAN, ARG, IRE, POR, RUS, SIN) XC1153021 WARRANTY CARD (ARG)
(LS-1717, 1817)
194403012 INSTRUCTION MANUAL XE8671001 WARRANTY CARD BROTHER CANADA (CAN)
(GER, BER, FRA, ITA, SWI) XE5572001 WARRANTY CARD BROTHER RUS (RUS)
194403013 INSTRUCTION MANUAL (CHN) 20 XA8545221 QUICK REFERENCE GUIDE (USA, CAN)
XD0774221 INSTRUCTION BOOK
(LS-1717P, 1717B, 2020, 2020P, LS30: CAN) (LS-2000, LS2250PRW)
XE4683001 INSTRUCTION BOOK (X-3)
XE7490001 INSTRUCTION BOOK (X-3: CHE)
194412014 INSTRUCTION BOOK (LS-1717: SWE)
XC1931021 INSTRUCTION BOOK (LS-1717: FIN)
XC1932021 INSTRUCTION BOOK (LS-1717: FIN)
XE7071101 INSTRUCTION BOOK (LS-2000, LS2250PRW)
XE4549001 MYLAR INSTRUCTION ASSY (X-3, LS30: USA)
13 XA2112022 DUST COVER ASSY (EXCEPT: USA, CAN) 23 XE3060001 BOBBIN CLIP (LS2250PRW)
14 X60360036 COLOR CARTON (LS-1717: USA, CAN) LA6041001 SECURITY TAG
X61674021 CARTON (LS-1717: EUROPE, ARG) XD0789021 BAG, 120X135C
X61674030 CARTON (LS-1717: SIN) ADD XC6911021 ACCINFO SHEET (LS-30: USA)
X61674026 CARTON (LS-1817: SWI) X60726020 FOOT CONTROLLER BOX
X61674033 CARTON (LS-1817: SIN) CHG X60352020 ACCESSORY TABLE PRESSER D
X61674038 CARTON (LS-1717: CHN) (LS-1717, 1817)
XD0834021 COLOR CARTON (LS-1717P) ADD X55608143 UPC CODE LABEL (ARG)
XD0834022 COLOR CARTON (LS-1717B) ADD X57325021 LABEL (SIN)
XD0834029 COLOR CARTON (LS-2020) ADD XE5479001 CONTROLLER PAD D
XE7272001 COLOR CARTON MODEL: LS-2020P
(LS-2020P) XE7297001 NEEDLE PAD D (LS-2000, LS30, LS2250PRW)
XE6109001 COLOR CARTON (LS-30: USA)
1000001718
1000008470
1000007951
1000015326
1000019930
1000008470
1000015005
1000012623
No.
CODE NAME REMARKS
XE7456001 COLOR CARTON MODEL:X-3
UH3851001
XE7072001 QUICK REFERENCE GUIDE
21 XE6623001 INSERTION (LS-2020P, LS30: CAN)
XD0256121 INSERTION WEEE (EUROPE)
XE4888001 NOT RETURN INSERTION SHEET
22 XE6308001 INNOV-IS RANGE PROMOTION DVD (X-3)
XE5844201 INSTRUCTION DVD NTSC ASSY
WARRANTY CARD EUR (EUROPE)
(LS-30: USA)
(LS-2000: USA, LS2250PRW)
(LS-2000, LS2250PRW)
1000006063
1000015326
1000015289
1000014502
1000019930
1000014516
1000014516
1000013192
1000014502
1000011228
1000016851
1000018691
1000017862
1000015640
1000014502
1000014468
1000008470
1000013646
1000014594
1000019930
1000013831
1000001718
1000008470
1000015171
- 12 -
- 13 -
LS-1717/1817/1717P/1717B/2020/2020P/LS-30/X-3/LS-2000/LS2250PRW
HF885403/406
03. 2001.
06. 2010.
Loading...
