HL-L9200CDW / HL-L9200CDWT
HL-L9300CDW / HL-L9300CDWT / HL-L9300CDWTT

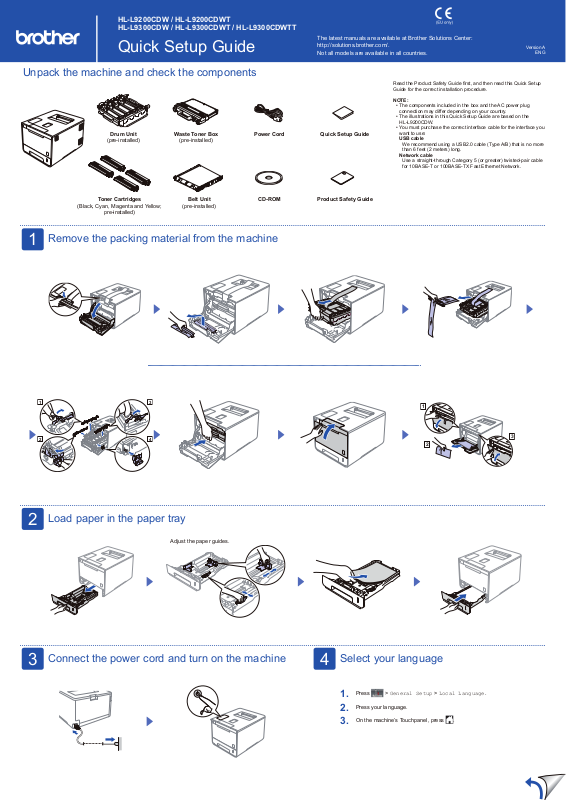

Quick Setup Guide
Unpack the machine and check the components
Drum Unit |
Waste Toner Box |
Power Cord |
(pre-installed) |
(pre-installed) |
|
Toner Cartridges |
Belt Unit |
CD-ROM |
(Black, Cyan, Magenta and Yellow; |
(pre-installed) |
|
pre-installed) |
|
|
The latest manuals are available at Brother Solutions Center: |
|
http://solutions.brother.com/. |
Version A |
Not all models are available in all countries. |
ENG |
Read the Product Safety Guide first, and then read this Quick Setup
Guide for the correct installation procedure.
|
NOTE: |
|
• The components included in the box and the AC power plug |
|
connection may differ depending on your country. |
|
• The illustrations in this Quick Setup Guide are based on the |
|
HL-L9200CDW. |
|
• You must purchase the correct interface cable for the interface you |
Quick Setup Guide |
want to use: |
|
USB cable |
|
We recommend using a USB2.0 cable (Type A/B) that is no more |
|
than 6 feet (2 meters) long. |
|
Network cable |
|
Use a straight-through Category 5 (or greater) twisted-pair cable |
|
for 10BASE-T or 100BASE-TX Fast Ethernet Network. |
Product Safety Guide
1 Remove the packing material from the machine
1 |
3 |
1 |
|
|
|
||
2 |
4 |
3 |
|
2 |
|||
|
|
2
3
Load paper in the paper tray
Adjust the paper guides.
Connect the power cord and turn on the machine |
4 Select your language |
1.
2.
3.
Press
> General Setup > Local Language.
Press your language.
On the machine’s Touchpanel, press
.
5 |
Configuration using the CD-ROM (Windows®) |
Follow the on-screen instructions until the Connection Type screen appears.
For USB Connection
For Wired Network Connection
Follow the on-screen
instructions to continue Finish the installation.
Connect a network cable first.
For Wireless Network Connection
NOTE:
If connection is unsuccessful, repeat this step.
Wireless Network Connection
[Recommended]
Temporarily use a USB cable for easy setup.
[Option]
Select if you do not have a USB cable.
Follow the on-screen
instructions to continue Finish the installation.
NOTE:
If connection is unsuccessful, repeat this step.
Configuration without using the CD-ROM (Windows® without CD-ROM drive or Macintosh)
Download the full driver and software package from the Brother Solutions Center. (For Windows®) solutions.brother.com/windows
(For Macintosh) solutions.brother.com/mac
Print using your mobile device
Print from your mobile devices using our free application “Brother iPrint&Scan”.
1. Connect the machine and wireless LAN access point/router from the machine's Touchscreen.
Press |
. |
Press Setup Wizard. |
Press Yes for Wireless Network. |
Select the specified SSID, |
|
and then enter the Network key. |
|||||
|
|
|
|
2. Download “Brother iPrint&Scan" to start using your machine with mobile devices. |
|
|
Finish |
|
|
solutions.brother.com/ips |
|
|
|
|
|
|
|
|
|
|
|
