HL-2170W
Laser Printer
Before you can use the printer, you must set up the hardware and install the driver. Please
read this ‘Quick Setup Guide’ for proper set up and installation instructions.
STEP 1
Setting Up the Machine
STEP 2
Installing the Printer Driver
Setup is Complete!
Quick Setup Guide
How to use the printer, see the User’s Guide on the CD-ROM.
Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and
easy reference at all times.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com
.
Version 1
1
Symbols used in this guide
Warning
Warnings tell you what to do
to prevent possible personal
injury.
Improper Setup
Improper Setup icons alert
you to devices and
operations that are not
compatible with the printer.
Electrical Hazard
Electrical Hazard icons alert
you to a possible electrical
shock.
Note
Notes tell you how you should
respond to a situation that
may arise or give tips about
how the current operation
works with other features.
Hot Surface
Hot Surface icons warn you
not to touch machine parts
that are hot.
User's Guide
Network User's Guide
Indicates reference to the
User's Guide or Network
User's Guide which is on the
CD-ROM we have supplied.
Caution
Cautions specify procedures
you must follow or avoid to
prevent possible damage to
the printer or other objects.
Table of Contents
Safety Precautions ....................................................................................................................................... 2
To Use the Printer Safely........................................................................................................................ 2
Regulations ............................................................................................................................................. 4
Getting Started
Carton Components ..................................................................................................................................... 7
Control panel................................................................................................................................................ 7
Printer LED Indications ................................................................................................................................ 8
Supplied CD-ROM ....................................................................................................................................... 9
STEP 1— Setting Up the Machine
Installing the drum unit and toner cartridge assembly................................................................................ 10
Loading paper in the paper tray ................................................................................................................. 11
Printing a test page .................................................................................................................................... 12
STEP 2— Installing the Printer Driver
Windows
For USB interface cable users .................................................................................................................. 14
For wired network interface cable users ................................................................................................... 16
For Peer-to-Peer network printer users ............................................................................................... 16
For shared network printer users ......................................................................................................... 18
For wireless network users ....................................................................................................................... 20
Macintosh
For USB interface cable users .................................................................................................................. 30
For wired network interface cable users ................................................................................................... 32
For wireless network users ....................................................................................................................... 34
®
®
For Network Users
BRAdmin Light utility (For Windows® users).............................................................................................. 44
BRAdmin Light utility (For Mac OS
Web Based Management (web browser)................................................................................................... 46
Network default settings............................................................................................................................. 46
Print the Printer Settings Page................................................................................................................... 46
®
X users)............................................................................................ 45
Consumables
Consumables ............................................................................................................................................. 47
Repacking Information
Shipment of the printer............................................................................................................................... 48
Troubleshooting
User’s Guide Chapter 6
1
Safety Precautions
To Use the Printer Safely
Warning
There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure that
you have turned off the power switch and unplugged the printer from the AC power outlet.
DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.
After you have just used the printer, some internal parts of the printer will be extremely hot. DO NOT touch the
shaded parts shown in the illustration when you open the front or back cover of the printer.
Inside the printer
Inside the printer
(Front View)
DO NOT remove or damage the caution labels located on or around the fuser.
(Back View)
DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite
inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free
cloth and dispose of it according to local regulations.
2
Safety Precautions
DO NOT use flammable substances or any type of spray to clean the inside or outside of the machine. Doing
this may cause a fire or electrical shock. Refer to the User's Guide for how to clean the machine.
3
Safety Precautions
Regulations
Federal Communications Commission (FCC) Declaration of Conformity (For USA)
Responsible
Party:
declares, that the products
Product name: Laser Printer HL-2170W
Model number: HL-21
comply with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Brother International Corporation
100 Somerset Corporate Boulevard
P.O. Box 6911
Bridgewater, NJ 08807-0911
USA
Telephone: (908) 704-1700
Important
A shielded interface cable should be used in order to
ensure compliance with the limits for a Class B digital
device.
Changes or modifications not expressly approved by
Brother Industries, Ltd. could void the user's authority
to operate the equipment.
Industry Canada Compliance Statement (For Canada)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à
la norme NMB-003 du Canada.
Radio interference (220-240 volt model only)
This printer follows EN55022 (CISPR Publication
22)/Class B.
4
Safety Precautions
EC Declaration of Conformity
International ENERGY STAR® Compliance Statement
The purpose of the International E
NERGY STAR
®
Program is to promote the development and
popularization of energy-efficient office equipment.
As an E
NERGY STAR
®
Partner, Brother Industries, Ltd.
has determined that this product meets the
E
NERGY STAR
®
guidelines for energy efficiency.
Laser Safety (110 to 120 volt Model Only)
This printer is certified as a Class 1 laser product as
defined in IEC 60825-1+A2: 2001 specifications
under the U.S. Department of Health and Human
Services (DHHS) Radiation Performance Standard
according to the Radiation Control for Health and
Safety Act of 1968. This means that the printer does
not produce hazardous laser radiation.
Since radiation emitted inside the printer is
completely confined within protective housings and
external covers, the laser beam cannot escape from
the machine during any phase of user operation.
FDA Regulations (110 to 120 volt Model Only)
The U.S. Food and Drug Administration (FDA) has
implemented regulations for laser products
manufactured on and after August 2, 1976.
Compliance is mandatory for products marketed in
the United States. The following label on the back of
the printer indicates compliance with the FDA
regulations and must be attached to laser products
marketed in the United States.
MANUFACTURED:
Brother Technology (Shenzhen) Ltd.
NO6 Gold Garden Ind., Nanling Buji, Longgang,
Shenzhen, China
This product complies with FDA performance standards
for laser products except for deviations pursuant to Laser
Notice No.50, dated June 24, 2007.
Caution
Use of controls, adjustments or performance of
procedures other than those specified in this manual
may result in hazardous invisible radiation exposure.
5
IEC 60825-1 specification (220 to 240 volt model only)
This printer is a Class 1 laser product as defined in
IEC 60825-1+A2: 2001 specifications. The label
shown below is attached in countries where it is
needed.
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
LASER KLASSE 1 PRODUKT
Maschinenlärminformations- Verordnung 3. GPSGV (For Germany only)
Der höchste Schalldruckpegel beträgt 70 dB(A) oder
weniger gemäß EN ISO 7779.
Disconnect device
You must install this printer near a power outlet that is
easily accessible. In case of an emergency, you must
disconnect the power cord from the power outlet to
shut off the power completely.
This printer has a Class 3B laser diode which
produces invisible laser radiation in the laser unit. You
should not open the laser unit under any
circumstances.
Caution
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
For Finland and Sweden
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
Varoitus!
Laitteen käyttäminen muulla kuin tässä
käyttöohjeessa mainitulla tavalla saattaa altistaa
käyttäjän turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Varning
Om apparaten används på annat sätt än i denna
Bruksanvisning specificerats, kan användaren
utsättas för osynlig laserstrålning, som överskrider
gränsen för laserklass 1.
Internal laser radiation
Maximum radiation power: 10 mW
Wave length: 780 - 800 nm
Laser class: Class 3B
Caution for LAN connection
Connect this product to a LAN connection that is not
subjected to over voltages.
IT power system (For Norway only)
This product is also designed for an IT power system
with phase-to-phase voltage 230V.
Wiring information (for UK) Important
If you need to replace the plug fuse, fit a fuse that is
approved by ASTA to BS1362 with the same rating as
the original fuse.
Always replace the fuse cover. Never use a plug that
does not have a cover.
Warning - This printer must be earthed.
The wires in the mains lead are coloured in line with
the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
If in any doubt, call a qualified electrician.
Wi-Fi Alliance certification
This wireless Ethernet multi-function print server is a
Wi-Fi certified IEEE 802.11b/802.11g product by the
Wi-Fi Alliance. For more information on the Wi-Fi
Alliance and other Wi-Fi certified products, visit
http://www.wi-fi.org
.
IMPORTANT - For Your Safety
To ensure safe operation, the supplied three-pin plug
must be inserted only into a standard three-pin power
outlet that is properly grounded through the normal
household wiring.
Extension cords used with this printer must be threepin plug type and correctly wired to provide proper
grounding. Incorrectly wired extension cords may
cause personal injury and equipment damage.
The fact that the equipment operates satisfactorily
does not imply that the power is grounded and that
the installation is completely safe. For your safety, if
in any doubt about the effective grounding of the
power, call a qualified electrician.
This product should be connected to an AC power
source within the range indicated on the rating label.
DO NOT connect it to a DC power source. If you are
not sure, contact a qualified electrician.
6
Getting Started
1
1
Carton components may vary from one country to another.
Save all packing materials and the printer carton in case for any reason you must ship your printer.
Carton Components
1
2
3
4
5
10
1 Face-down output tray support flap 1 (Support flap 1)
2 Control panel
3 Manual feed paper guide
4 Manual feed slot
5 Manual feed slot cover
9
8
6 Paper tray
7 Front cover
7
6
8 Power switch
9 Ventilation hole
10 Face-down output tray
CD-ROM
(including User’s Guide and
Network User’s Guide)
Quick Setup Guide
Drum unit and toner
cartridge assembly
AC power cord
The interface cable is not a standard accessory. Buy the appropriate cable for the interface you are going to use.
USB cable
• Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2 meters).
• Your printer has a USB interface that is compatible with the USB 2.0 specification. This interface is also
compatible with Hi-Speed USB 2.0; however, maximum data transfer rate will be 12 Mbits/s. The printer can
also be connected to a computer that has a USB 1.1 interface.
• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the printer
driver installation process.
• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB
port on a keyboard or non-powered USB hub.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet
Network.
2
Control panel
1 Toner LED
1
2
3
The Toner LED indicates when the toner is low or at the end of its life.
2 Drum LED
The Drum LED indicates when the drum is nearing the end of its life.
3 Error LED
The Error LED indicates when the printer is in one of the following states:
No paper / Paper jam / Cover open
4 Ready LED
4
The Ready LED will flash depending on the printer status.
Go button
Wake-up / Error recovery / Form feed / Job Cancel / Reprint /
Enable or Disable the wireless network
For the details of the control panel, see Chapter 4 of the User’s Guide on the CD-ROM.
7
Getting Started
3
Printer LED Indications
: Blinking
: ON
: OFF
Printer LED OFF Sleep Warming up
Cooling down
Toner
Drum
Error
Ready
(Blue)
Dimmed
Printer LED
Toner
Toner low
3
Toner life
end
Drum near
end of life
3
(Yellow)
Drum
(Yellow)
Error
(Red)
Ready
(Blue)
1
Ready Receiving
Cover open
Paper jam
No paper
2
2
data
Drum Error
remaining
2
Service
call
Print Data
2
2
Chapter 5 Chapter 5 Chapter 5 Chapter 6 Chapter 6 Chapter 4 Chapter 4
User's Guide
1
The LED will blink in a pattern of ON for 1 second and then OFF for 1 second.
2
The LED will blink in a pattern of ON for 0.5 seconds and then OFF for 0.5 seconds.
3
The yellow LED will blink in a pattern of ON for 2 seconds and then OFF for 3 seconds.
LED indications when using the one-push wireless setting mode
Printer
LED
Toner
(Yellow)
Drum
(Yellow)
Error
(Red)
Ready
(Blue)
1
The LED will blink (turn on for 0.2 seconds and off for 0.1 second).
2
The LED will turn on for 5 minutes.
3
The LED will blink (turn on for 0.1 second and off for 0.1 second) for 30 seconds.
4
The LED will flash 10 times and then turn OFF for half a second. This pattern will repeat 20 times.
Searching or
accessing the access
1
point
Connecting and
downloading settings
from the access point
Connection
succeeded
1
2
Connection
3
failed
Session overlap is
detected
4
8
Getting Started
4
Supplied CD-ROM
You can find a variety of information on the CD-ROM.
Windows
®
Install Printer Driver
Install the printer driver.
Install Other Drivers or Utilities
Install optional drivers, utilities and Network
management tools.
Documentation
View the Printer User’s Guide and Network User's
Guide in HTML format.
You can also view the manuals in PDF format by
accessing the Brother Solutions Center.
The User’s Guide and Network User’s Guide in HTML
format will be installed automatically when you install
the driver. Click the Start button, All Programs
1
,
your printer, and then User’s Guide in HTML format.
If you do not want to install the User’s Guide, choose
Custom setup from Install Printer Driver, and
uncheck User’s Guides in HTML format when you
install the driver.
1
Programs for Windows® 2000 users
On-Line Registration
Register your product on-line.
Brother Solutions Center
The Brother Solutions Center
(http://solutions.brother.com
) is a one-stop resource
for all your printer support needs. Download the latest
drivers and utilities for your printers, read FAQs and
troubleshooting tips, or learn about printer solutions.
Macintosh
®
Install Printer Driver
Install the printer driver.
Documentation
View the Printer User’s Guide in HTML format.
You can also view the User’s Guide in PDF format by
accessing the Brother Solutions Center.
On-Line Registration
Register your product on-line.
Brother Solutions Center
The Brother Solutions Center
(http://solutions.brother.com
) is a one-stop resource
for all your printer support needs. Download the latest
drivers and utilities for your printers, read FAQs and
troubleshooting tips, or learn about printer solutions.
Supplies Information
Visit our web site for original/genuine Brother supplies
at http://www.brother.com/original/
Supplies Information
Visit our web site for original/genuine Brother supplies
at http://www.brother.com/original/
Note
For visually impaired users, we have prepared an HTML file
on the supplied CD-ROM: readme.html. This file can be read
by Screen Reader ‘text-to-speech’ software.
9
STEP 1
Setting Up the Machine
1
1 Installing the drum unit and
1 Open the front cover.
toner cartridge assembly
Improper Setup
DO NOT connect the interface cable.
Connecting the interface cable is done when
installing the driver.
4 Put the drum unit and toner cartridge assembly
into the printer.
2 Unpack the drum unit and toner cartridge
assembly.
3 Rock it from side to side several times to
distribute the toner evenly inside the assembly.
5 Close the front cover of the printer.
10
STEP 1
Setting Up the Machine
2 Loading paper in the paper
1 Pull the paper tray completely out of the printer.
tray
3 Fan the stack of paper well to avoid paper jams
and misfeeds.
4 Put paper in the paper tray. Make sure that the
paper is flat in the tray and below the maximum
paper mark (1).
1
2 While pressing the green paper-guide release
lever, slide the paper guides to fit the paper
size you are using. Make sure that the guides
are firmly in the slots.
Note
For Legal size paper, press the release button in
the bottom of the paper tray and then pull out the
back of the paper tray.
5 Put the paper tray firmly back into the printer.
Make sure that it is completely inserted into the
printer.
11
Setting Up the Machine
3 Printing a test page
Improper Setup
DO NOT connect the interface cable yet.
1 Make sure that the printer power switch is off.
Connect the AC power cord to the printer.
4 After the printer has finished warming up, the
Ready LED / Go button (1) stops blinking and
stays blue.
1
5 Press the Go button. The printer prints a test
page. Check that the test page has printed
correctly.
2 Plug the AC power cord into an AC power
outlet. Turn on the printer power switch.
3 Unfold support flap 1.
Note
This function will not be available after the first
print job you send from your computer.
12
STEP 2
Follow the instructions on this page for your operating system and interface.
For the latest drivers, documentation, and to find the best solution for your problem, access the Brother Solution Center
directly from the CD-ROM / Driver or visit http://solutions.brother.com.
Installing the Printer Driver
Windows
For USB interface cable users....................................................................................... 14
For wired network interface cable users...................................................................... 16
For wireless network users ........................................................................................... 20
Macintosh
For USB interface cable users....................................................................................... 30
®
®
For wired network interface cable users...................................................................... 32
For wireless network users ........................................................................................... 34
The screens for Windows® in this Quick Setup Guide are based on Windows® XP.
The screens for Mac OS
®
X in this Quick Setup Guide are based on Mac OS® X 10.4.
13
STEP 2
1
1
®
USB
Windows
Improper Setup
DO NOT connect the interface cable yet.
Note
If the Found New Hardware Wizard appears on
your computer, click Cancel.
Installing the Printer Driver
For USB interface cable users
Windows
4 Put the supplied CD-ROM into your CD-ROM
drive. The opening screen will appear
automatically.
Choose your printer model and the language.
Note
If the opening screen does not appear, use
®
Windows
from the root folder of the Brother CD-ROM.
Explorer to run the start.exe program
5 Click Install Printer Driver on the menu
screen.
®
Installing the driver and connecting the printer to
your computer
1 Turn off the printer power switch.
2 Make sure the USB interface cable is NOT
connected to the printer, and then begin
installing the driver. If you have already
connected the cable, remove it.
3 Turn on your computer. (You must be logged
on with Administrator rights.)
Note
Choose the Install Printer Driver icon for your
region.
6 Click USB cable users.
14
Installing the Printer Driver
Note
For Windows Vista™, when the User Account
Control screen appears, click Continue.
7 When the License Agreement window
appears, click Yes if you agree to the License
Agreement.
Windows
9 Click Finish.
Note
• If you want to register your product on-line, check
On-Line Registration.
• If you do not want to set your printer as Default
printer, uncheck Set as Default Printer.
Setup is now complete.
®
®
USB
Windows
8 When this screen appears, make sure the
printer power switch is on.
Connect the USB interface cable to your
computer, and then connect it to the printer.
Click Next.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com
.
15
STEP 2
Installing the Printer Driver
Windows
®
®
Windows
2
For wired network interface cable users
For Peer-to-Peer network printer users
Windows
Wired
Network
TCP/IP
1 Router
2 Network printer
R
1
Note
• If you are going to connect the printer to your
network, we recommend that you contact your
system administrator prior to installation or see the
Network User’s Guide on the CD-ROM.
• If you are using Personal Firewall software (e.g.
Windows Firewall), disable it. Once you are sure
that you can print, restart your Personal Firewall
software.
Connecting the printer to your network and
installing the driver
Macintosh
TCP/IP
R
4 Put the supplied CD-ROM into your CD-ROM
drive. The opening screen will appear
automatically.
Choose your printer model and the language.
2
Note
If the opening screen does not appear, use
®
Windows
from the root folder of the Brother CD-ROM.
Explorer to run the start.exe program
5 Click Install Printer Driver on the menu
screen.
1 Connect the network interface cable to the
printer, and then connect it to a free port on
your hub.
2 Make sure the printer power switch is on.
3 Turn on your computer. (You must be logged
on with Administrator rights.)
Note
Choose the Install Printer Driver icon for your
region.
6 Click Network cable users.
16
Installing the Printer Driver
Note
For Windows Vista™, when the User Account
Control screen appears, click Continue.
7 When the License Agreement window
appears, click Yes if you agree to the License
Agreement.

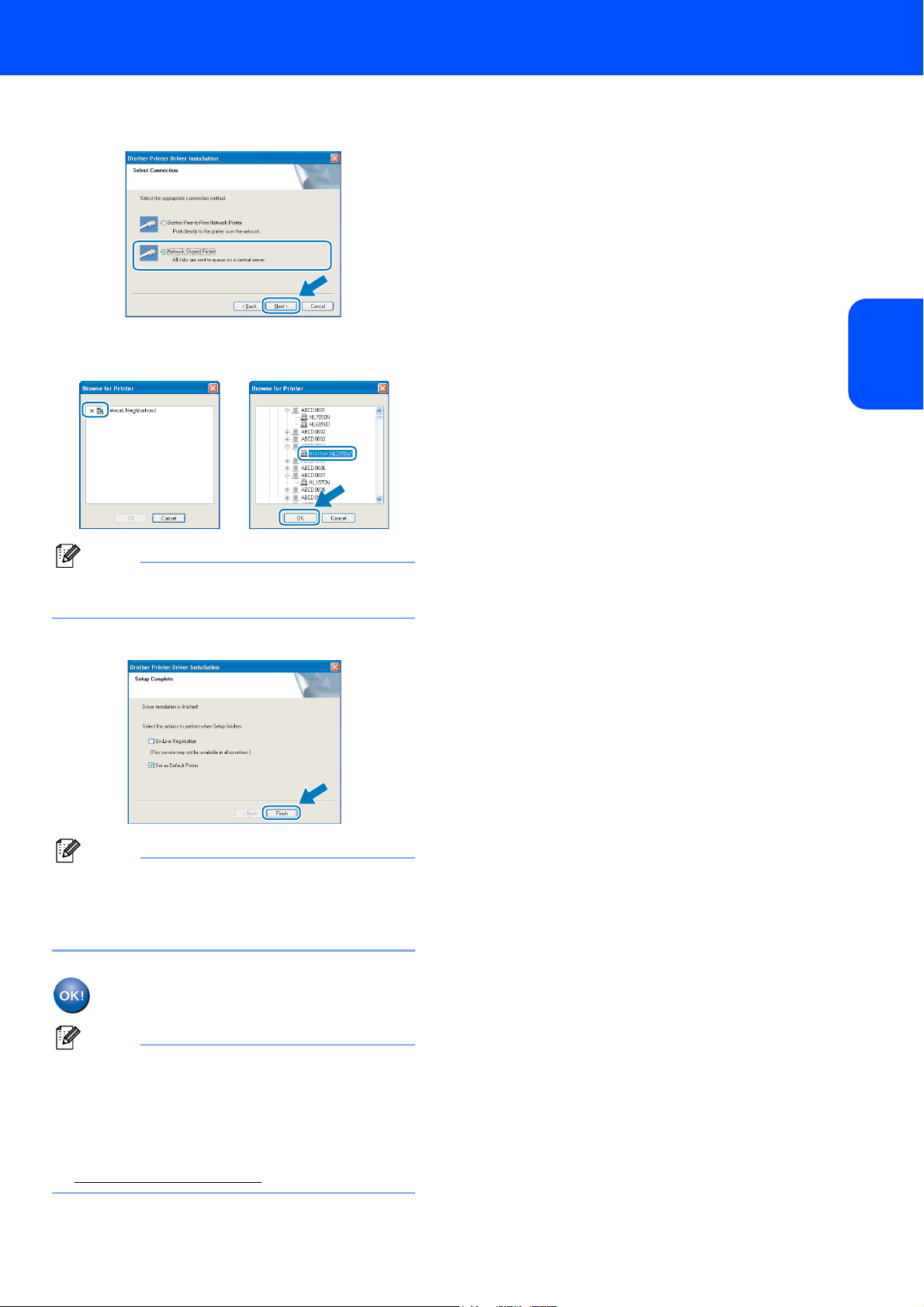

10 Choose your printer, and then click Next.
11 Click Finish.
Windows
®
Windows
®
Wired
Network
8 Choose Brother Peer-to-Peer Network
Printer, and then click Next.
9 Choose Search the network for devices and
choose from a list of discovered devices
(Recommended). Or enter your printer's IP
address or its node name. Click Next.
Note
• If you want to register your product on-line, check
On-Line Registration.
• If you do not want to set your printer as Default
printer, uncheck Set as Default Printer.
Setup is now complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com
.
Note
You can find your printer’s IP address and the
node name by printing out the Printer Settings
Page. See Print the Printer Settings Page
on page 46.
17
STEP 2
For shared network printer users
Installing the Printer Driver
Windows
®
®
Windows
Windows
Wired
Network
Windows
1 Network Shared
2 Also known as “Server” or “Printer server”
3 Printer
4 TCP/IP or USB
R
TCP/IP
R
Windows
2
R
Note
If you are going to connect to a shared printer on
your network, we recommend that you ask your
system administrator about the queue or share
name for the printer prior to installation.
Installing the driver and choosing the correct
printer queue or share name
3 Click Install Printer Driver on the menu
screen.
4
3
1
Note
Choose the Install Printer Driver icon for your
region.
4 Click Network cable users.
1 Turn on your computer. (You must be logged
on with Administrator rights.)
2 Put the supplied CD-ROM into your CD-ROM
drive. The opening screen will appear
automatically.
Choose your printer model and the language.
Note
If the opening screen does not appear, use
®
Windows
from the root folder of the Brother CD-ROM.
Explorer to run the start.exe program
Note
For Windows Vista™, when the User Account
Control screen appears, click Continue.
5 When the License Agreement window
appears, click Yes if you agree to the License
Agreement.
18
Installing the Printer Driver
6 Choose Network Shared Printer, and then
click Next.
7 Choose your printer's queue, and then click
OK.
Windows
®
Windows
®
Wired
Network
Note
Contact your administrator if you do not know the
location or the name of the printer in the network.
8 Click Finish.
Note
• If you want to register your product on-line, check
On-Line Registration.
• If you do not want to set your printer as Default
printer, uncheck Set as Default Printer.
Setup is now complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com
.
19
STEP 2
Installing the Printer Driver
Windows
®
®
Network
Wireless
Windows
3
For wireless network users
Connecting your wireless printer and wireless network together and installing the printer driver in infrastructure mode
First you must configure the wireless network settings of your printer to communicate with your network access
point (router). After the printer is configured to communicate with your access point (router) computers on your
network will have access to the printer. To use the printer from these computers, you will need to install the printer
driver. The following steps will guide you through the configuration and installation process.
To achieve optimum results with normal everyday document printing, place the Brother printer as close to the
network access point (router) as possible with minimal obstructions. Large objects and walls between the two
devices as well as interference from other electronic devices can affect the data transfer speed of your documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you
may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.
Although Brother HL-2170W can be used in a both wired and wireless network, only one of the connection
methods can be used at a time.
Important
The following instructions will offer two methods for installing your Brother machine in a wireless
network environment. Both methods are for infrastructure mode, using a wireless router or access
point that uses DHCP to assign IP addresses. Choose your setup method from the next page and follow
the instructions. To set up your machine in any other wireless environment you can find instructions
in the Network User’s Guide on the CD-ROM.
You can view the Network User’s Guide by following the instructions below.
1 Turn on your computer. Insert the Brother CD-ROM into your CD-ROM drive.
2 Choose your printer model and the language. The CD-ROM main menu will appear.
3 Click the Documentation, and then click HTML documents.
Note
• If you are going to connect the printer to your network, we recommend that you contact your system
administrator prior to installation. You must know your wireless network settings before you proceed with this
installation.
• If you are using Personal Firewall software (e.g. Windows Firewall), disable it. Once you are sure that you can
print, restart your Personal Firewall software.

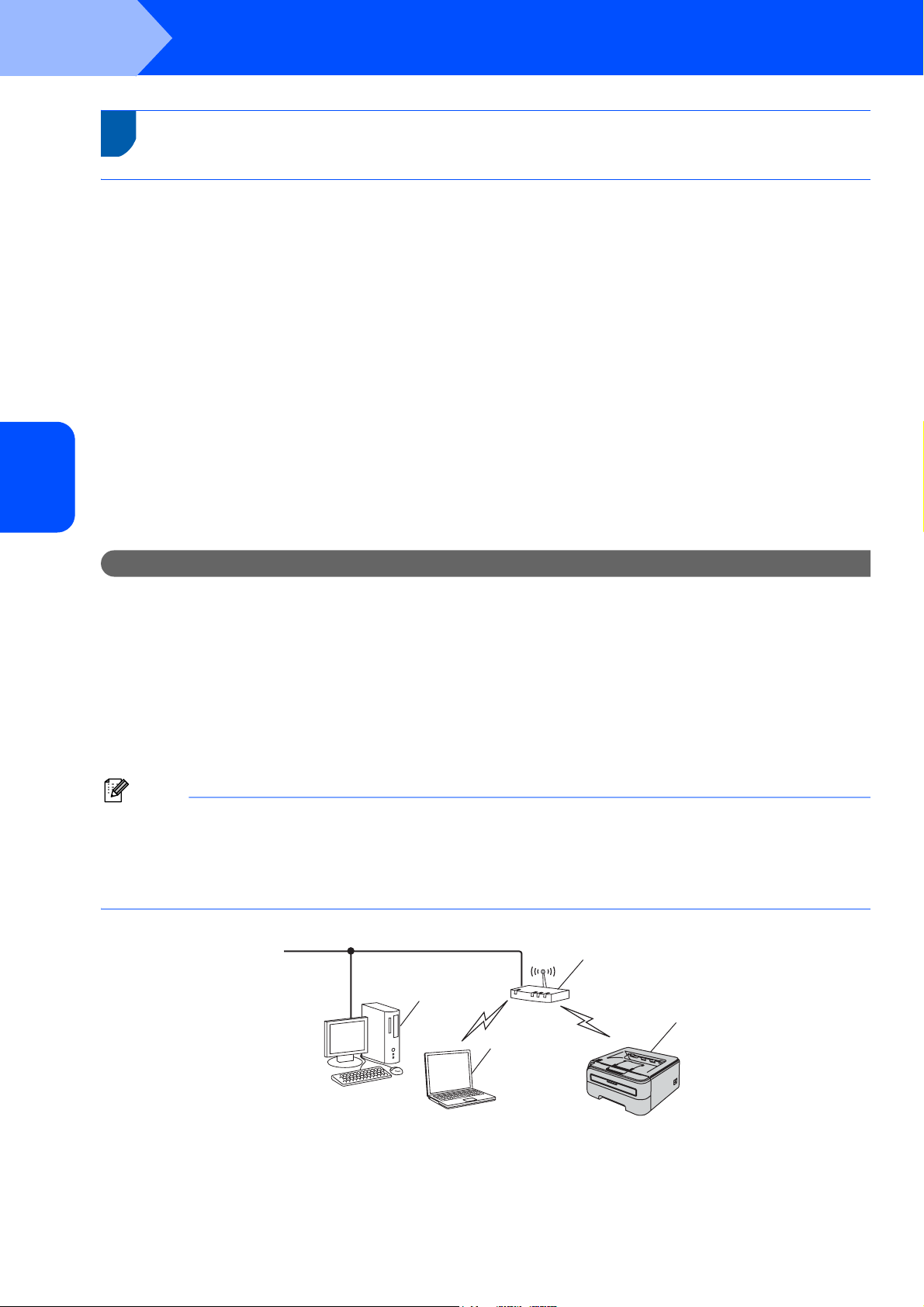

Infrastructure Mode
11
4
2
1 Access Point
2 Wireless Network printer (your machine)
3 Wireless capable computer connected to the access point
4 Wired computer connected to the access point
20
3
Installing the Printer Driver
Confirm your wireless network setup method
The setup process will be different depending on your network environment.
Configuration using the Brother installer application on the CD-ROM to configure your wireless network printer
(Recommended)
• Configuration temporarily using a network cable
A
B
Windows
®
If there is an Ethernet Hub or Router in the same network as the wireless access point (A) of your printer, you can
temporarily connect the Hub or Router to the printer using an Ethernet cable (B), this is an easy way to configure the
printer. You can then remotely configure the printer from a computer on the network.
For instructions, go to Configuration in Infrastructure mode, using a network cable temporarily on page 22.

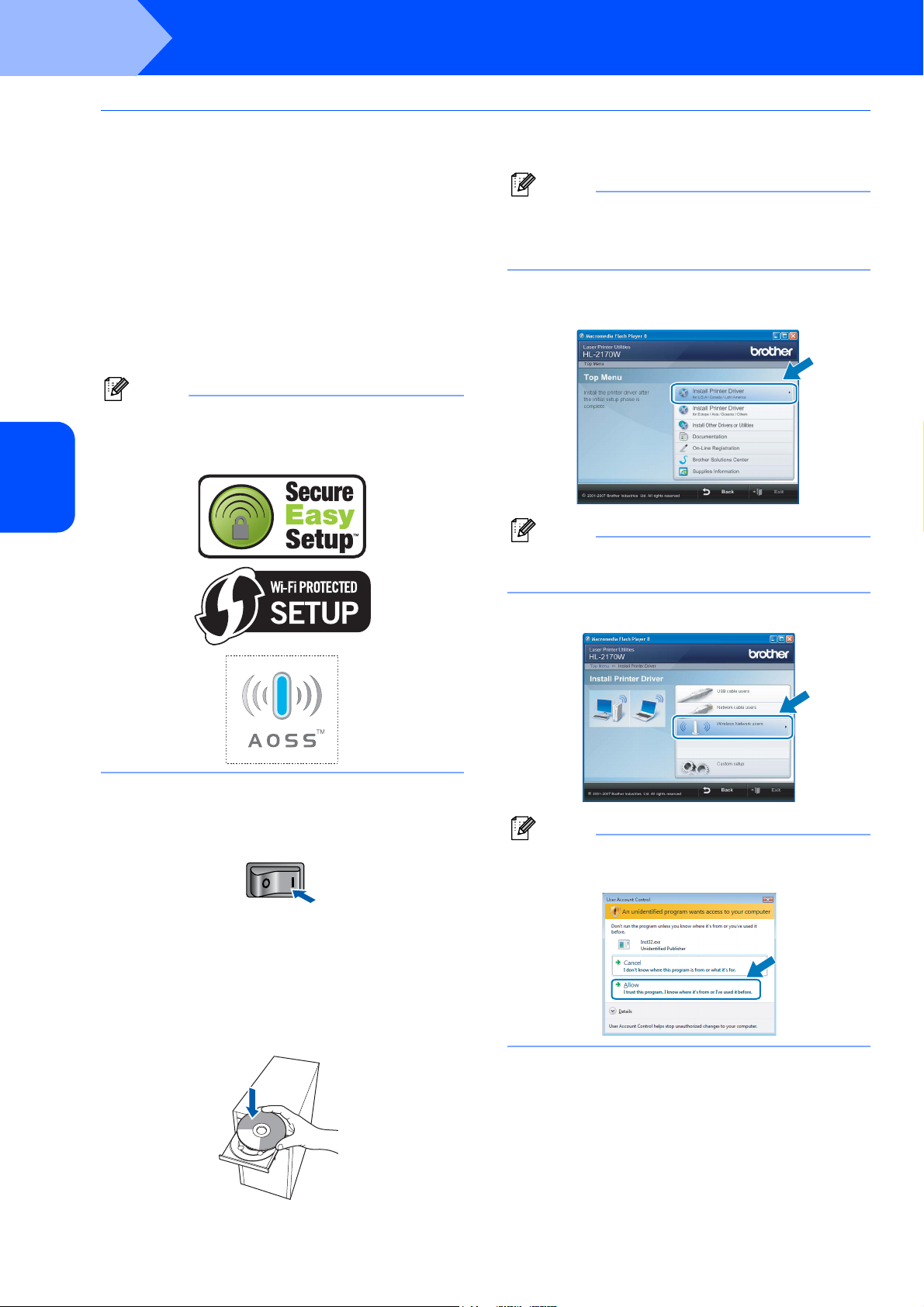

Configuration using the automatic wireless (one-push) method
A
If your wireless access point (A) supports either SecureEasySetup™, Wi-Fi Protected Setup™ (PBC1) or AOSS™, you
do not need to use a computer to configure the wireless settings. The access point (router) and your printer can
automatically negotiate using the SecureEasySetup™, Wi-Fi Protected Setup™ or AOSS™ procedure.
1
Push Button Configuration
For instructions, see Configuration using the automatic wireless (one-push) method on page 26.
Configuration using the PIN Method of Wi-Fi Protected Setup™
If your wireless access point (A) supports Wi-Fi Protected Setup™, you can also configure using the PIN Method of
Wi-Fi Protected Setup™.
For instructions, see Chapter 7 in the Network User’s Guide on the CD-ROM.
®
Network
Wireless
Windows
21
STEP 2
Configuration in Infrastructure mode, using a network cable temporarily
Installing the Printer Driver
Windows
®
®
Network
Wireless
Windows
Before configuring the wireless settings
Important
• If you have previously configured the wireless
settings of the printer, you must reset the print
server back to the default factory settings (see
page 46)
• You must know your wireless network settings
before you proceed with this installation.
• You need to temporarily use an Ethernet cable
during configuration.
Configure the wireless settings
1 Make sure the printer power switch is on.
2 Turn on your computer. (You must be logged
on with Administrator rights.)
Note
Choose the Install Printer Driver icon for your
region.
5 Click Wireless Network users.
Note
For Windows Vista™, when the User Account
Control screen appears, click Allow.
3 Put the supplied CD-ROM into your CD-ROM
drive. The opening screen will appear
automatically.
Choose your printer model and the language.
Note
If the opening screen does not appear, use
®
Windows
from the root folder of the Brother CD-ROM.
Explorer to run the start.exe program
4 Click Install Printer Driver on the menu
screen.
6 Choose Wireless Setup and Driver Install
(Recommended), and then click Next.
7 Choose Step by Step install
(Recommended) and then click Next.
22
Installing the Printer Driver
Windows
®
8 Choose With cable (Recommended) and
then click Next.
9 For configuration, you must temporarily
connect your Brother wireless device (your
printer) directly to a free port on your access
point, hub or router using a network cable.
When the following screen appears, insert the
network cable to the access point and then to
the printer. Click Next.
11 The wizard will search for wireless networks
available from your printer. Choose the access
point you wish to associate the printer with, and
then click Next.
Note
• "SETUP" is the default SSID of the printer. Do not
choose this SSID.
• If the list is blank, check that the access point has
power and is broadcasting the SSID, and then see
if the printer and the access point are within range
for wireless communication. Then, click Refresh.
• If your access point is set to not broadcast the
SSID you can manually add it by clicking the Add
button. Follow the on-screen instructions for
entering the Name (SSID), and then click Next.
®
Network
Wireless
Windows
10 Choose the printer you wish to configure, and
click Next. If the list is blank, check if the
access point and the printer are powered on,
and then click Refresh.
Note
The default Node name is “BRNxxxxxxxxxxxx”.
12 If your network is not configured for
Authentication and Encryption, the following
screen will appear. To continue configuration,
click OK.
23
STEP 2
Installing the Printer Driver
Windows
®
®
Network
Wireless
Windows
13 If your network is configured for Authentication
and Encryption, the following screen will
appear. When configuring your Brother
wireless printer, you must ensure that it is
configured to match the Authentication and
Encryption settings of your existing wireless
network. Choose the Authentication Method
and Encryption Mode from the pull-downs in
each setting box. Then enter the Network key
and Confirm Network Key, and then click
Next.
Note
• If you want to setup more than WEP key1, click
Advanced.
• If you do not know the Authentication or
Encryption settings for your network, contact your
network administrator.
• If the Authentication Method is set to
Open System and the Encryption Mode is set to
WEP, an error indication will NOT appear if the
Network key is incorrect.
14 Click Next. The settings will be sent to your
printer. The settings will remain unchanged if
you click Cancel.
15 Disconnect the network cable between your
access point (hub or router) and the printer,
and click Next.
Installing the printer driver
Improper Setup
• DO NOT try to cancel any of the screens during
this installation.
• If your wireless settings fail, an error message
will appear during the installation of the printer
driver and the installation will be terminated. If
you encounter this failure, please go back to
step 4 and setup the wireless connection
again.
16 When the License Agreement window
appears, click Yes if you agree to the License
Agreement.
24
Note
If you want to manually enter the IP address
settings of your printer, click Change IP Address
and enter the necessary IP address settings for
your network.
17 Choose Standard Installation, and then click
Next.
Installing the Printer Driver
Windows
®
18 Choose Search the network for devices and
choose from a list of discovered devices
(Recommended). Or enter your printer's IP
address or its node name. Click Next.
Note
You can find your printer’s IP address and the
node name by printing out the Printer Settings
Page. See Print the Printer Settings Page
on page 46.
19 Choose your printer, and then click Next.
Setup is now complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com
.
®
Network
Wireless
Windows
Note
If your printer takes a long time to appear on the
list, 1 minute or more, then click Refresh. If your
printer still fails to appear, reset the print server
back to the default factory settings (see page 46)
and go back to step 4 and try the wireless setup
again.
20 Click Finish.
Note
• If you want to register your product on-line, check
On-Line Registration.
• If you do not want to set your printer as Default
printer, uncheck Set as Default Printer.
• Turn your Personal Firewall back on.
25
STEP 2
Configuration using the automatic wireless (one-push) method
Installing the Printer Driver
Windows
®
®
Network
Wireless
Windows
If your wireless access point supports either
SecureEasySetup™, Wi-Fi Protected Setup™
1
(PBC
) or AOSS™, you can configure the machine
easily without a computer. By pushing a button on the
wireless LAN router / access point and the machine,
you can setup the wireless network and security
settings. See the user’s guide for your wireless LAN
router / access point for instructions on how to access
one-push mode.
1
Push Button Configuration
Note
Routers or access points that support
SecureEasySetup™, Wi-Fi Protected Setup™ or
AOSS™ have the symbols shown below.
Note
If the opening screen does not appear, use
®
Windows
Explorer to run the start.exe program
from the root folder of the Brother CD-ROM.
4 Click Install Printer Driver on the menu
screen.
Note
Choose the Install Printer Driver icon for your
region.
5 Click Wireless Network users.
Configure the wireless settings
1 Make sure the printer power switch is on.
2 Turn on your computer. (You must be logged
on with Administrator rights.)
3 Put the supplied CD-ROM into your CD-ROM
drive. The opening screen will appear
automatically.
Choose your printer model and the language.
Note
For Windows Vista™, when the User Account
Control screen appears, click Allow.
26
Installing the Printer Driver
Windows
®
6 Choose Wireless Setup and Driver Install
(Recommended), and then click Next.
7 Choose Automatic install (Advanced) and
click Next.
8 Confirm the on-screen message and click
Next.
Note
• Use a pointy object such as a ballpoint pen to
press the button.
• If you press the button for 3 seconds or more, the
printer will change to the PIN Method of the Wi-Fi
Protected Setup™ mode.
10 The printer starts the one-push wireless setting
mode.
The printer searches for an access point that
supports SecureEasySetup™,
Wi-Fi Protected Setup™ or AOSS™ for 2
minutes.
11 Put your access point in the
SecureEasySetup™ mode, the Wi-Fi
Protected Setup™ mode or the AOSS™ mode,
depending on what is supported by your
access point. Please refer to the instruction
manual that came with your access point.
12 Wait for the Ready LED (Go button) of your
printer to indicate connection succeeded. The
Ready LED will turn on for 5 minutes. (See the
table LED indications when using the one-push
wireless setting mode on page 8) This
indication means the machine has successfully
connected to your router or access point. You
can now use your printer on the wireless
network.
®
Network
Wireless
Windows
9 Press the wireless setup button located at the
back of the machine for less than 2 seconds as
show in the illustration below. This will put the
printer in one-push wireless setting mode. This
feature will automatically detect which mode
your access point uses for one-push
configuration (SecureEasySetup™,
Wi-Fi Protected Setup™ or AOSS™) of your
printer.
If the LED indicates connection failed (See the
table LED indications when using the one-push
wireless setting mode on page 8), the machine
has not successfully connected to your router
or access point. Try starting from 9 again. If the
same message is indicated again, reset the
machine back to the default factory settings
and try again. For resetting, see Network
default settings on page 46.
If the LED indicates session overlap (See the
table LED indications when using the one-push
wireless setting mode on page 8), the machine
has detected more than 2 routers or access
points on your network that have the Wi-Fi
Protected Setup™ mode or the AOSS™ mode
enabled. Make sure that only one router or
access point has the Wi-Fi Protected Setup™
mode or the AOSS™ mode enabled and try
starting from 9 again.
27
STEP 2
Installing the Printer Driver
Windows
®
®
Network
Wireless
Windows
13 Click Next.
14 Check the box after you confirm that you have
completed the wireless settings, and then click
Next.
16 Choose Standard Installation, and then click
Next.
17 Choose Search the network for devices and
choose from a list of discovered devices
(Recommended). Or enter your printer's IP
address or its node name. Click Next.
Installing the printer driver
Improper Setup
• DO NOT try to cancel any of the screens during
this installation.
• If your wireless settings fail, an error message
will appear during the installation of the printer
driver and the installation will be terminated. If
you encounter this failure, please go back to
step 4 and setup the wireless connection
again.
15 When the License Agreement window
appears, click Yes if you agree to the License
Agreement.
Note
You can find your printer’s IP address and the
node name by printing out the Printer Settings
Page. See Print the Printer Settings Page
on page 46.
18 Choose your printer, and then click Next.
Note
If your printer takes a long time (about 1 minute) to
appear on the list, click Refresh.
28
Installing the Printer Driver
19 Click Finish.
Note
• If you want to register your product on-line, check
On-Line Registration.
• If you do not want to set your printer as Default
printer, uncheck Set as Default Printer.
• Turn your Personal Firewall back on.
Setup is now complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com
.
Windows
®
Windows
®
Network
Wireless
29
STEP 2
Installing the Printer Driver
Macintosh
®
4
Connecting the printer to your Macintosh® and
installing the driver
1 Connect the USB interface cable to your
For USB interface cable users
Macintosh
®
, and then connect it to the printer.
5 Click Install Printer Driver on the menu
screen.
6 Click USB cable users and follow the
on-screen instructions. Then, restart your
Macintosh
Improper Setup
DO NOT connect the printer to a USB port on a
keyboard or a non-powered USB hub.
®
2 Make sure the printer power switch is on.
®
.
Macintosh
USB
3 Turn on your Macintosh
ROM into your CD-ROM drive.
®
. Put the supplied CD-
4 Double-click the HL2100 icon on your desktop.
Double-click the Start Here icon. Follow the
on-screen instructions.
For Mac OS® X 10.2.4 to 10.2.8 users:
Go to step 9.
For Mac OS
®
X 10.3 or greater users:
Go to step 7.

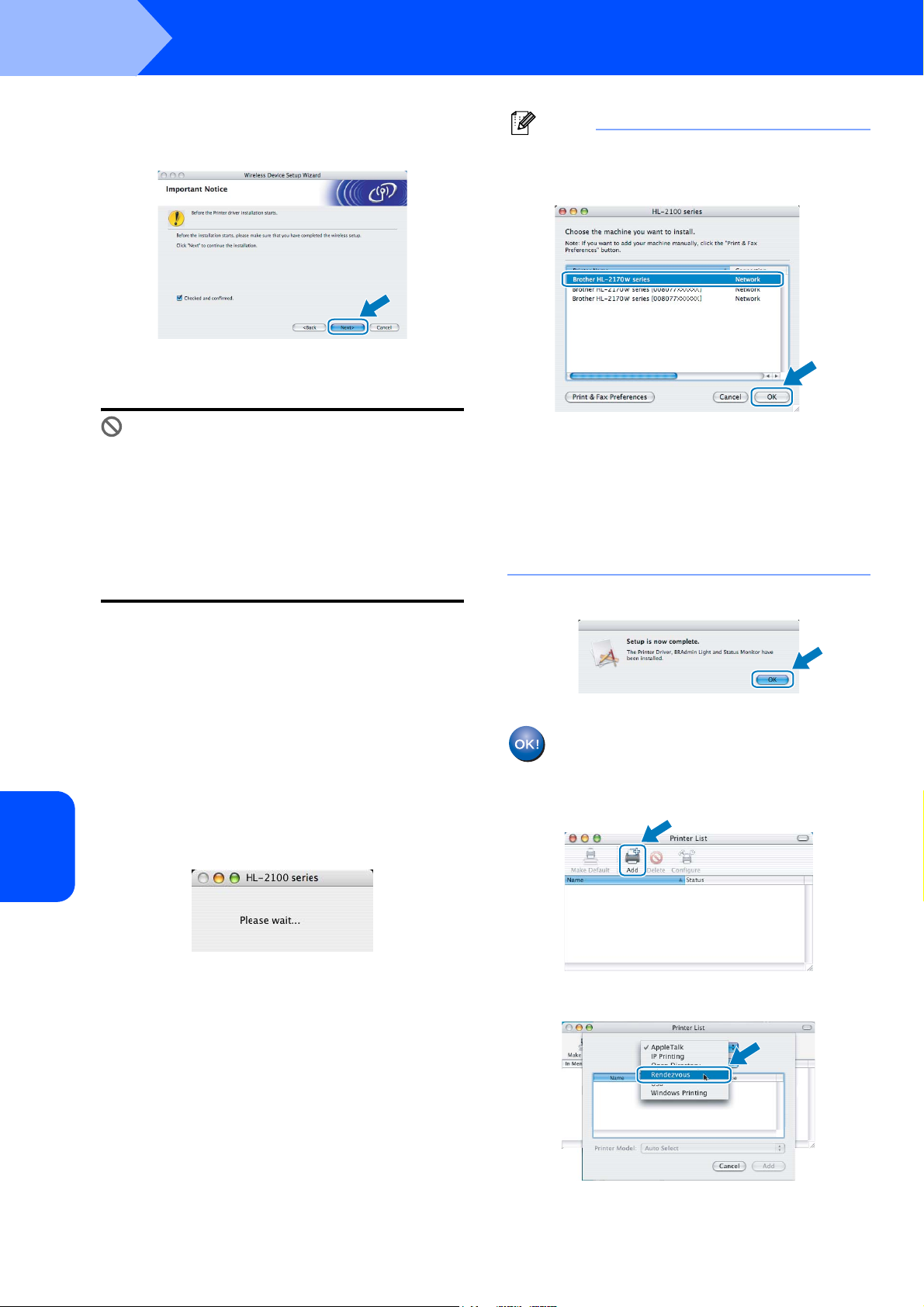

7 The Brother software will search for the Brother
printer. During this time the following screen
will appear.
8 When this screen appears, click OK.
30
For Mac OS® X 10.3 or greater users:
Setup is now complete.
Installing the Printer Driver

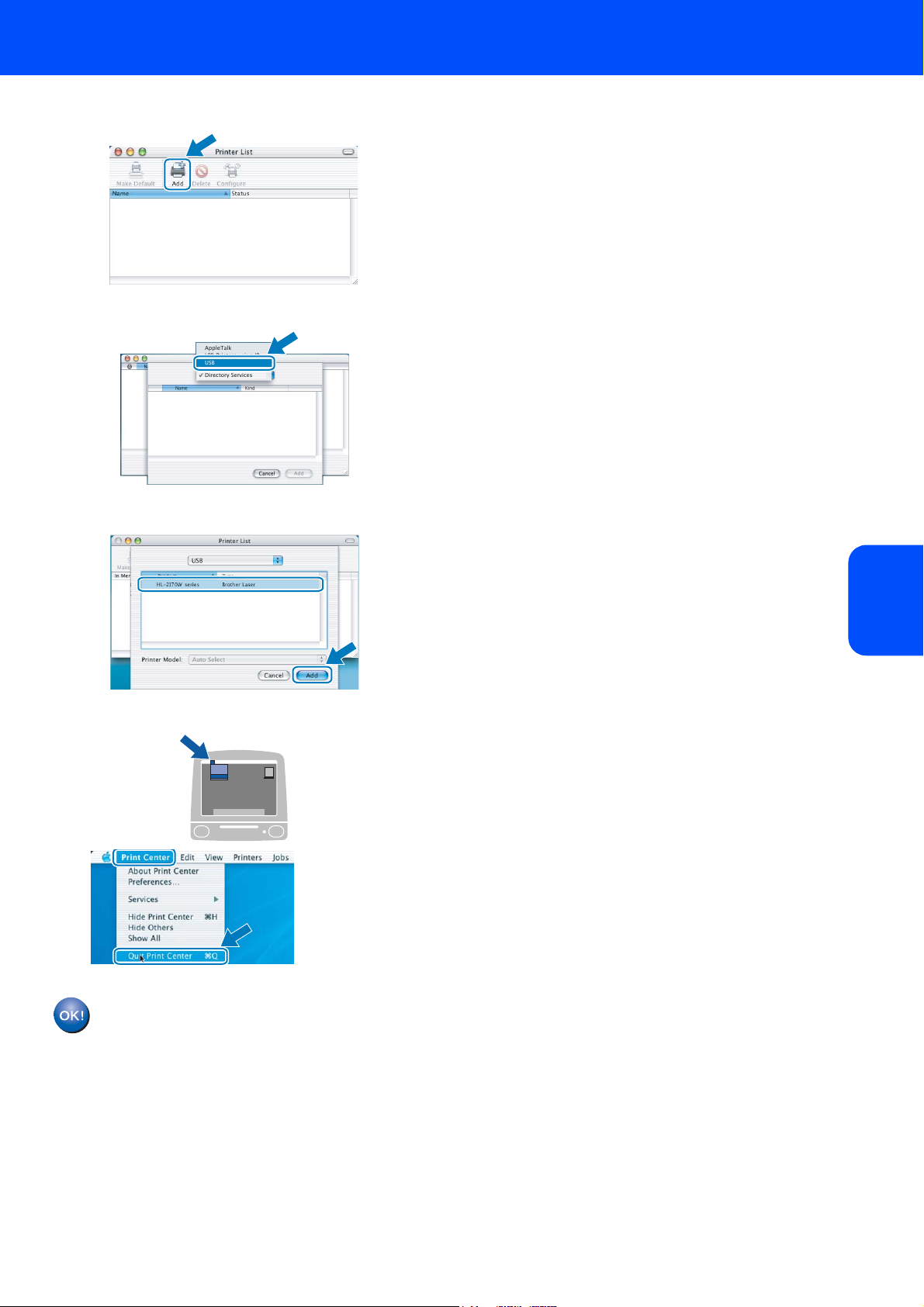

9 When this screen appears, click Add.
10 Choose USB.
Macintosh
®
11 Choose your printer, and then click Add.
12 Click Print Center, then Quit Print Center.
®
USB
Macintosh
For Mac OS® X 10.2.4 to 10.2.8 users:
Setup is now complete.
31
STEP 2
Installing the Printer Driver
Macintosh
®
5
For wired network interface cable users
Connecting the printer to your Macintosh® and
installing the driver
1 Connect the network interface cable to the
printer, and then connect it to a free port on
your hub.
2 Make sure the printer power switch is on.
3 Turn on your Macintosh
ROM into your CD-ROM drive.
®
. Put the supplied CD-
6 Click Network cable users and follow the
on-screen instructions. Then, restart your
Macintosh
For Mac OS® X 10.2.4 to 10.2.8 users:
Go to step 9.
For Mac OS
Go to step 7.
®
.
®
X 10.3 or greater users:
7 The Brother software will search for the Brother
printer. During this time the following screen
will appear.
®
Macintosh
Wired
Network
4 Double-click the HL2100 icon on your desktop.
Double-click the Start Here icon. Follow the
on-screen instructions.
5 Click Install Printer Driver on the menu
screen.
Note
If more than one printer is available, the following
list appears. Choose the printer you wish to
connect, and then click OK.
• If there is more than one of the same printer
model connected on your network, the
Ethernet address (MAC address) will be
displayed after the model name.
• You can find your printer’s Ethernet address
(MAC address) by printing out the Printer
Settings Page. See Print the Printer Settings
Page on page 46.
32
Installing the Printer Driver
Macintosh
®
8 When this screen appears, click OK.
For Mac OS® X 10.3 or greater users:
Setup is now complete.
9 When this screen appears, click Add.
10 Make the following selection.
12 Click Print Center, then Quit Print Center.
For Mac OS® X 10.2.4 to 10.2.8 users:
Setup is now complete.
11 Choose your printer, and then click Add.
Note
• If there is more than one of the same printer model
connected on your network, the Ethernet address
(MAC address) will be displayed after the model
name.
• You can find your printer’s Ethernet address (MAC
address) by printing out the Printer Settings Page.
See Print the Printer Settings Page on page 46.
®
Macintosh
Wired
Network
33
STEP 2
Installing the Printer Driver
Macintosh
®
6
For wireless network users
Connecting your wireless printer and wireless network together and installing the printer driver in infrastructure mode
First you must configure the wireless network settings of your printer to communicate with your network access
point (router). After the printer is configured to communicate with your access point (router) computers on your
network will have access to the printer. To use the printer from these computers, you will need to install the printer
driver. The following steps will guide you through the configuration and installation process.
To achieve optimum results with normal everyday document printing, place the Brother printer as close to the
network access point (router) as possible with minimal obstructions. Large objects and walls between the two
devices as well as interference from other electronic devices can affect the data transfer speed of your documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you
may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.
Although Brother HL-2170W can be used in a both wired and wireless network, only one of the connection
methods can be used at a time.
Important
®
Macintosh
The following instructions will offer two methods for installing your Brother machine in a wireless
network environment. Both methods are for infrastructure mode, using a wireless router or access
point that uses DHCP to assign IP addresses. Choose your setup method from the next page and follow
the instructions. To set up your machine in any other wireless environment you can find instructions
in the Network User’s Guide on the CD-ROM.
You can view the Network User’s Guide by following the instructions below.
1 Turn on your computer. Insert the Brother CD-ROM into your CD-ROM drive.
2 Choose your printer model and the language. The CD-ROM main menu will appear.
3 Click the Documentation, and then click HTML documents.
Note
• If you are going to connect the printer to your network, we recommend that you contact your system
administrator prior to installation. You must know your wireless network settings before you proceed with this
installation.
• If you are using Personal Firewall software, disable it. Once you are sure that you can print, restart your
Network
Wireless
Personal Firewall software.
Infrastructure Mode
11
4
2
1 Access Point
2 Wireless Network printer (your machine)
3 Wireless capable computer connected to the access point
4 Wired computer connected to the access point
34
3
Installing the Printer Driver
Macintosh
Confirm your wireless network setup method
The setup process will be different depending on your network environment.
Configuration using the Brother installer application on the CD-ROM to configure your wireless network printer
(Recommended)
• Configuration temporarily using a network cable
A
B
If there is an Ethernet Hub or Router in the same network as the wireless access point (A) of your printer, you can
temporarily connect the Hub or Router to the printer using an Ethernet cable (B), this is an easy way to configure the
printer. You can then remotely configure the printer from a computer on the network.
For instructions, go to Configuration in Infrastructure mode, using a network cable temporarily on page 36.
®
Configuration using the automatic wireless (one-push) method
A
If your wireless access point (A) supports either SecureEasySetup™, Wi-Fi Protected Setup™ (PBC1) or AOSS™, you
do not need to use a computer to configure the wireless settings. The access point (router) and your printer can
automatically negotiate using the SecureEasySetup™, Wi-Fi Protected Setup™ or AOSS™ procedure.
1
Push Button Configuration
For instructions, see Configuration using the automatic wireless (one-push) method on page 40.
Configuration using the PIN Method of Wi-Fi Protected Setup™
If your wireless access point (A) supports Wi-Fi Protected Setup™, you can also configure using the PIN Method of
Wi-Fi Protected Setup™.
For instructions, see Chapter 7 in the Network User’s Guide on the CD-ROM.
®
Macintosh
Network
Wireless
35
STEP 2
Configuration in Infrastructure mode, using a network cable temporarily
Installing the Printer Driver
Macintosh
®
Before configuring the wireless settings
Important
• If you have previously configured the wireless
settings of the printer, you must reset the print
server back to the default factory settings (see
page 46)
• You must know your wireless network settings
before you proceed with this installation.
• You need to temporarily use an Ethernet cable
during configuration.
Configure the wireless settings
1 Make sure the printer power switch is on.
2 Turn on your Macintosh
ROM into your CD-ROM drive.
®
. Put the supplied CD-
4 Click Install Printer Driver on the menu
screen.
5 Click Wireless Network users.
6 Choose Wireless Setup and Driver Install
(Recommended), and then click Next.
®
Macintosh
3 Double-click the HL2100 icon on your desktop.
Double-click the Start Here icon. Follow the
on-screen instructions.
Network
Wireless
7 Choose Step by Step install
(Recommended) and then click Next.
36
Installing the Printer Driver
Macintosh
®
8 Choose With cable (Recommended) and
then click Next.
9 For configuration, you must temporarily
connect your Brother wireless device (your
printer) directly to a free port on your access
point, hub or router using a network cable.
When the following screen appears, insert the
network cable to the access point and then to
the printer. Click Next.
11 The wizard will search for wireless networks
available from your printer. Choose the access
point you wish to associate the printer with, and
then click Next.
Note
• "SETUP" is the default SSID of the printer. Do not
choose this SSID.
• If the list is blank, check that the access point has
power and is broadcasting the SSID, and then see
if the printer and the access point are within range
for wireless communication. Then, click Refresh.
• If your access point is set to not broadcast the
SSID you can manually add it by clicking the Add
button. Follow the on-screen instructions for
entering the Name (SSID), and then click Next.
10 Choose the printer you wish to configure, and
click Next. If the list is blank, check if the
access point and the printer are powered on,
and then click Refresh.
Note
The default Node name is “BRNxxxxxxxxxxxx”.
12 If your network is not configured for
Authentication and Encryption, the following
screen will appear. To continue configuration,
click OK.
®
Macintosh
Network
Wireless
37
STEP 2
Installing the Printer Driver
Macintosh
®
13 If your network is configured for Authentication
and Encryption, the following screen will
appear. When configuring your Brother
wireless printer, you must ensure that it is
configured to match the Authentication and
Encryption settings of your existing wireless
network. Choose the Authentication Method
and Encryption Mode from the pull-downs in
each setting box. Then enter the Network key
and Confirm Network Key, and then click
Next.
Note
• If you want to setup more than WEP key1, click
Advanced.
• If you do not know the Authentication or
Encryption settings for your network, contact your
network administrator.
• If the Authentication Method is set to
Open System and the Encryption Mode is set to
WEP, an error indication will NOT appear if the
Network key is incorrect.
14 Click Next. The settings will be sent to your
printer. The settings will remain unchanged if
you click Cancel.
Note
If you want to manually enter the IP address
settings of your printer, click Change IP Address
and enter the necessary IP address settings for
your network.
15 Disconnect the network cable between your
access point (hub or router) and the printer,
and click Next.
®
Macintosh
Network
Wireless
Installing the printer driver
Improper Setup
• DO NOT try to cancel any of the screens during
this installation.
• If your wireless settings fail, an error message
will appear during the installation of the printer
driver and the installation will be terminated. If
you encounter this failure, please go back to
step 4 and setup the wireless connection
again.
16 The driver installation starts.
Follow the on-screen instructions. Then, restart
your Macintosh
For Mac OS
Go to step 19.
For Mac OS
Go to step 17.
®
.
®
X 10.2.4 to 10.2.8 users:
®
X 10.3 or greater users:
38
Installing the Printer Driver
Macintosh
®
17 The Brother software will search for the Brother
printer. During this time the following screen
will appear.
Note
If more than one printer is available, the following
list appears. Choose the printer you wish to
connect, and then click OK.
• If there is more than one of the same printer
model connected on your network, the
Ethernet address (MAC address) will be
displayed after the model name.
• You can find your printer’s Ethernet address
(MAC address) by printing out the Printer
Settings Page. See Print the Printer Settings
Page on page 46.
• If your printer fails to appear on the list, reset
the print server back to the default factory
settings (see page 46) and go back to step 4
and try the wireless setup again.
18 When this screen appears, click OK.
20 Make the following selection.
21 Choose your printer, and then click Add.
Note
• If there is more than one of the same printer model
connected on your network, the Ethernet address
(MAC address) will be displayed after the model
name.
• You can find your printer’s Ethernet address (MAC
address) by printing out the Printer Settings Page.
See Print the Printer Settings Page on page 46.
• If your printer fails to appear on the list, reset the
print server back to the default factory settings
(see page 46) and go back to step 4 and try the
wireless setup again.
22 Click Print Center, then Quit Print Center.
®
For Mac OS® X 10.3 or greater users:
Setup is now complete.
19 When this screen appears, click Add.
For Mac OS® X 10.2.4 to 10.2.8 users:
Setup is now complete.
39
Wireless
Macintosh
Network
STEP 2
Configuration using the automatic wireless (one-push) method
Installing the Printer Driver
Macintosh
®
If your wireless access point supports either
SecureEasySetup™, Wi-Fi Protected Setup™
1
(PBC
) or AOSS™, you can configure the machine
easily without a computer. By pushing a button on the
wireless LAN router / access point and the machine,
you can setup the wireless network and security
settings. See the user’s guide for your wireless LAN
router / access point for instructions on how to access
one-push mode.
1
Push Button Configuration
Note
Routers or access points that support
SecureEasySetup™, Wi-Fi Protected Setup™ or
AOSS™ have the symbols shown below.
3 Double-click the HL2100 icon on your desktop.
Double-click the Start Here icon. Follow the
on-screen instructions.
4 Click Install Printer Driver on the menu
screen.
®
Macintosh
Configure the wireless settings
1 Make sure the printer power switch is on.
Network
Wireless
2 Turn on your Macintosh
ROM into your CD-ROM drive.
®
. Put the supplied CD-
5 Click Wireless Network users.
6 Choose Wireless Setup and Driver Install
(Recommended), and then click Next.
40
Installing the Printer Driver
Macintosh
®
7 Choose Automatic install (Advanced) and
click Next.
8 Confirm the on-screen message and click
Next.
9 Press the wireless setup button located at the
back of the machine for less than 2 seconds as
show in the illustration below. This will put the
printer in one-push wireless setting mode. This
feature will automatically detect which mode
your access point uses for one-push
configuration (SecureEasySetup™,
Wi-Fi Protected Setup™ or AOSS™) of your
printer.
11 Put your access point in the
SecureEasySetup™ mode, the Wi-Fi
Protected Setup™ mode or the AOSS™ mode,
depending on what is supported by your
access point. Please refer to the instruction
manual that came with your access point.
12 Wait for the Ready LED (Go button) of your
printer to indicate connection succeeded. The
Ready LED will turn on for 5 minutes. (See the
table LED indications when using the one-push
wireless setting mode on page 8) This
indication means the machine has successfully
connected to your router or access point. You
can now use your printer on the wireless
network.
If the LED indicates connection failed (See the
table LED indications when using the one-push
wireless setting mode on page 8), the machine
has not successfully connected to your router
or access point. Try starting from 9 again. If the
same message is indicated again, reset the
machine back to the default factory settings
and try again. For resetting, see Network
default settings on page 46.
If the LED indicates session overlap (See the
table LED indications when using the one-push
wireless setting mode on page 8), the machine
has detected more than 2 routers or access
points on your network that have the
Wi-Fi Protected Setup™ mode or the AOSS™
mode enabled. Make sure that only one router
or access point has the
Wi-Fi Protected Setup™ mode or the AOSS™
mode enabled and try starting from 9 again.
13 Click Next.
®
Note
• Use a pointy object such as a ballpoint pen to
press the button.
• If you press the button for 3 seconds or more, the
printer will change to the PIN Method of the Wi-Fi
Protected Setup™ mode.
10 The printer starts the one-push wireless setting
mode.
The printer searches for an access point that
supports SecureEasySetup™,
Wi-Fi Protected Setup™ or AOSS™ for 2
minutes.
41
Wireless
Macintosh
Network
STEP 2
Installing the Printer Driver
Macintosh
®
14 Check the box after you confirm that you have
completed the wireless settings, and then click
Next.
Installing the printer driver
Improper Setup
• DO NOT try to cancel any of the screens during
this installation.
• If your wireless settings fail, an error message
will appear during the installation of the printer
driver and the installation will be terminated. If
you encounter this failure, please go back to
step 4 and setup the wireless connection
again.
15 The driver installation starts.
Follow the on-screen instructions. Then, restart
your Macintosh
®
.
Note
If more than one printer is available, the following
list appears. Choose the printer you wish to
connect, and then click OK.
• If there is more than one of the same printer
model connected on your network, the
Ethernet address (MAC address) will be
displayed after the model name.
• You can find your printer’s Ethernet address
(MAC address) by printing out the Printer
Settings Page. See Print the Printer Settings
Page on page 46.
17 When this screen appears, click OK.
®
Macintosh
For Mac OS
Go to step 18.
For Mac OS
Go to step 16.
®
X 10.2.4 to 10.2.8 users:
®
X 10.3 or greater users:
16 The Brother software will search for the Brother
printer. During this time the following screen
will appear.
Network
Wireless
For Mac OS® X 10.3 or greater users:
Setup is now complete.
18 When this screen appears, click Add.
19 Make the following selection.
42
Installing the Printer Driver
20 Choose your printer, and then click Add.
Note
• If there is more than one of the same printer model
connected on your network, the Ethernet address
(MAC address) will be displayed after the model
name.
• You can find your printer’s Ethernet address (MAC
address) by printing out the Printer Settings Page.
See Print the Printer Settings Page on page 46.
21 Click Print Center, then Quit Print Center.
Macintosh
®
For Mac OS® X 10.2.4 to 10.2.8 users:
Setup is now complete.
®
Macintosh
Network
Wireless
43
For Network Users
1
1
BRAdmin Light utility (For Windows® users)
The BRAdmin Light is a utility for initial setup of Brother network connected devices. It can also search for Brother
products on your network, view the status and configure basic network settings, such as IP address.
For more information on BRAdmin Light, visit us at http://solutions.brother.com
.
Note
• If you require more advanced printer management, use the latest Brother BRAdmin Professional utility version
that is available as a download from http://solutions.brother.com
.
• If you are using Personal Firewall software (e.g. Windows Firewall), BRAdmin Light may fail to detect the
unconfigured device. In that case, disable your Personal Firewall software, try BRAdmin Light again. Re-start
your Personal Firewall software after the address information is set.
Installing the BRAdmin Light configuration utility
Setting your IP address, Subnet Mask and Gateway using BRAdmin Light
Note
The default password for the print server is
‘access’. You can use BRAdmin Light to change
this password.
1 Click Install Other Drivers or Utilities on the
menu screen.
Note
If you have a DHCP/BOOTP/RARP server in your
network, you don’t have to do the following
operation. Because the print server will
automatically obtain its IP address.
1 Start BRAdmin Light. It will search for new
devices automatically.
2 Click BRAdmin Light and follow the on-screen
instructions.
Note
For Windows Vista™, when the User Account
Control screen appears, click Allow.
44
2 Double-click the unconfigured device.
3 Choose STATIC for the Boot Method. Enter
the IP Address, Subnet Mask and Gateway,
and then click OK.
4 The address information will be saved to the
printer.
For Network Users
2
The BRAdmin Light is a utility for initial setup of Brother network connected devices. It can also search for Brother
products on your network, view the status and configure basic network settings, such as IP address from a
computer running Mac OS
The BRAdmin Light software will be installed automatically when you install the printer driver. If you have already
installed the printer driver, you don’t have to install it again. For more information on BRAdmin Light, visit us at
http://solutions.brother.com
BRAdmin Light utility (For Mac OS® X users)
®
X 10.2.4 or greater.
.
3 Double click the file BRAdmin Light.jar and
Setting your IP address, Subnet Mask and Gateway using BRAdmin Light
Note
• If you have a DHCP/BOOTP/RARP server in your
network, you don’t have to do the following
operation. The print server will automatically
obtain its own IP address.
• Make sure that version 1.4.1_07 or later of Java™
client software is installed on your computer.
• The default password for the print server is
‘access’. You can use BRAdmin Light to change
this password.
run the software. BRAdmin Light will then
search for new devices automatically.
4 Double-click the unconfigured device.
1 Double-click the Macintosh HD icon on your
desktop.
2 Choose Library, Printers, Brother and then
Utilities.
5 Choose STATIC for the BOOT Method. Enter
the IP Address, Subnet Mask and Gateway,
and then click OK.
6 The address information will be saved to the
printer.
45
For Network Users
3
The Brother print server is equipped with a web server
that allows you to monitor its status or change some
of its configuration settings, using HTTP (Hyper Text
Transfer Protocol).
Web Based Management (web browser)
Note
• The User Name is ‘admin’ and the default
password is ‘access’. You can use a web browser
to change this password.
• We recommend Microsoft Internet Explorer 6.0
®
(or greater) or Firefox
®
Windows
Please also make sure that JavaScript and
Cookies are always enabled in whichever browser
you use. We recommend you upgrade to Safari™
1.2 or greater to enable JavaScript. To use a web
browser, you will need to know the IP address of
the print server.
and Safari™ 1.0 for Macintosh®.
1.0 (or greater) for
®
4
To restore all network settings of the internal print
server to default, follow the steps below.
Network default settings
1 Turn off the printer.
2 Make sure that the front cover is closed and the
power cord is plugged in.
3 Hold down the Go button as you turn on the
power switch. Keep the Go button pressed
down until the Toner, Drum and Error LEDs
light up. Release the Go button. Make sure that
all the LEDs turn off.
4 Press the Go button seven times. Make sure
that all the LEDs light up when the print server
has been reset to its default factory settings.
5
The Printer Settings Page lists all the current printer
settings, including network settings. To print the
printer settings page:
Print the Printer Settings Page
1 Type http://printer_ip_address/ into
your browser.
(Where printer_ip_address is the IP
address or the print server name)
For example: http://192.168.1.2/
(if the printer’s IP address is 192.168.1.2.)
See Chapter 13 of the Network User's Guide.
1 Make sure that the front cover is closed and the
power cord is plugged in.
2 Turn on the printer and wait until the printer is
in the Ready state.
3 Press the Go button three times within 2
seconds. The printer will print the current
printer settings page.
46
Consumables
1
1
When the time comes to replace consumable items, an error will be indicated by the LED’s on the control panel.
For more information about the consumables for your printer, visit us at http://solutions.brother.com
local Brother reseller.
Consumables
or contact your
Toner cartridge Drum unit
See Chapter 5 of the User's Guide on the CD-ROM.
47
Repacking Information
1
1
Shipment of the printer
If for any reason you must ship your printer, carefully
package the printer to avoid any damage during
transit. We recommend that you save and use the
original packaging. The printer should also be
adequately insured with the carrier.
Caution
When shipping the printer, the DRUM UNIT and
TONER CARTRIDGE assembly must be removed
from the printer and put in a plastic bag. Failure to
remove the unit and put it in a plastic bag before
shipping may cause severe damage to the printer
and may VOID THE WARRANTY.
1 Turn off the printer power switch, and then
unplug the AC power cord.
3 Repack the printer.
2 Remove the drum unit and toner cartridge
assembly. Put it in a plastic bag and seal the
bag completely.
