COPYBOARD
PARTS REFERENCE LIST
MODEL: CP1800/CP2000
(For U.S.A.)
CB200
( Canada /
Germany / United Kingdom / Switzerland)
© Copyright Brother 1999
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
USA ----- US
Canada ------ CAN
Germany ----- GER
United Kingdom ----- UK
Switzerland ----- CHE
List1_PRINTER_1
(FAX2000287)
(FAX2000080)
(FAX2000080)
(FAX2000080)
(FAX2000112)
REF.NO. CODE Q'TY DESCRIPTION
1 LE2592001 1 DRIVE UNIT
2 LE2789001 1 PRINTER MOTOR
3 U09759001 1 SCREW, PAN (S/P WASHER) M3X6
4 LE2601001 1 MOTOR COVER
5 U24014001 1 TAPTITE, CUP S M3.0X6
6 LE2613001 1 GROUNDING SPRING R
7 085411215 2 SCREW, BIND B TITE 4X12
8 LG2253001 1 PRINTER MOTOR HARNESS
9 LE2873001 1 RECORDER FRAME ASSY
10 LE2605001 1 SENSOR ACTUATOR
11 LG2254001 1 PE/COVER SENSOR PCB
12 LG2256001 1 SENSOR HARNESS
13 U24014001 2 TAPTITE, CUP S M3.0X6
14 085411215 2 SCREW, BIND B TITE 4X12
15 UF9852002 1 RECORDING HEAD ASSY
16 LG2258001 1 RECORDING HEAD SIGNAL HARNESS
17 LG2259001 1 RECORDING HEAD POWER HARNESS
18 UF8072001 3 HEAD SPRING
19 UF9856001 1 HEAD PROTECTOR
20 LE2609001 1 PRINTER BASE COVER
21 LE2858001 1 GROUNDING SPRING L
22 LG2260001 1 CONTROL PANEL PCB
23 LG2262001 1 PANEL HARNESS
24
25
26
27
28
29
30
31
32
33
34
34
35
35
35
35
(36)
(36)
087310815 2 TAPTITE, CUP B M3X8
LE2614001 1 PANEL COVER
LE2617001 1 SUB COVER
U24014001 2 TAPTITE, CUP S M3.0X6
085411215 7 SCREW, BIND B TITE 4X12
LE2636001 2 BLIND FILM
LG2524001 1 MAIN PCB ASSY
U24014001 2 TAPTITE, CUP S M3.0X6
085411215 2 SCREW, BIND B TITE 4X12
UF4759002 1 PC INTERFACE COVER
LE2584001 4 DECORATIVE SCREW, CP2000/CB200
LE2976001 4 SCREW, CUP M4X14, CP1800
LE2615001 1 PANEL SHEET, CP2000 FOR US
LE3016001 1 PANEL SHEET, CB200 FOR CAN
LE3098001 1 PANEL SHEET, CP1800 FOR US
LE2499003 1 PANEL SHEET, CB200 FOR GER/UK/CHE
LE3451001 1 HEAD PROTECTION SHEET FOR US
LE2641001 1 HEAD PROTECTION SHEET EXCEPT FOR US
REMARKS
CP1800,CP2000,CB200
List2_PRINTER_2
REF.NO. CODE Q'TY DESCRIPTION
1
1-1
1-2 085411215 4 SCREW, BIND B TITE 4X12
1-3 LE2626001 2 LOCK LEVER
1-4 LE2627001 2 LOCK LEVER SPRING
1-5 LE2628001 1 LOCK SHAFT
1-6 LE2629001 1 PAPER COMPARTMENT LATCH
1-7 UF9720001 1 PLATEN
1-8 UF9722001 1 PAWLED BUSING L
1-9 UF9723001 1 BUSHING R
1-10 UF9724001 1 PLATEN GEAR
1-11 LE2630001 1 PLATEN STOPPER
1-12 083412015 1 TAPTITE, PAN B 4X20
1-13 LE2631001 1 PAPER STOPPER L
1-14 LE2632001 1 PAPER STOPPER R
1-15 LE2633001 1 STOPPER SPRING L
1-16 LE2634001 1 STOPPER SPRING R
1-17 LE2635001 1 PAPER GUIDE BAR
1-18 048020346 2 RETAINING RING, E2
1-19 LE2898001 1 HINGE SPRING
1-20 048050345 1 RETAINING RING, E5
LE2618001 1 PAPER COMPARTMENT COVER ASSY
LE2619001 1 PAPER COMPARTMENT COVER
REMARKS
CP1800, CP2000, CB200
List3_BOARD_1
(FAX2000080)
(FAX2000047)
(FAX2000080)
REF.NO. CODE Q'TY DESCRIPTION
1 LE2928001 2 CABLE CLIP
2 LE2651001 1 LOWER PIPE HOLDER L ASSY
3 LE2789001 1 WB MOTOR
4 U09759001 2 SCREW, PAN (S/P WASHER) M3X6
5 LE2662001 2 PIPE HOLDER SPRING
6 LE2668001 2 PIPE GEAR
7 LE2669001 2 PIPE SPACER
8 LE2673001 1 UPPER CORNER PLATE R (PLATE A)
9 LE2674001 1 UPPER CORNER PLATE L (PLATE B)
10 LE3040001 1 LOWER CORNER PLATE R (PLATE C)
11 LE3041001 1 LOWER CORNER PLATE L (PLATE D)
12 LE3035001 4 DUMMY WALL-MOUNTING BRACKET, CP2000/CB200
12 LE3035001 2 DUMMY WALL-MOUNTING BRACKET, CP1800
13 LE2738001 4 BOARD FOOT
14 085310815 2 TAPTITE, BIND B M3X8
15 087320815 2 TAPTITE, CUP S M3X8
16 087321016 26 TAPTITE, CUP S M3X10
17 LE2938001 1 TAPTITE, WASHER S M3X10
18 LE2975001 4 SCREW, CUP M4X8
19 LE2976001 4 SCREW, CUP M4X14
20 LE2678001 1 CIS FRAME
21 LE3093001 1 CIS SUPPLY ASSY (INCLUDING 3 CIS UNITS AND RETAINER)
22 085310815 6 TAPTITE, BIND B M3X8
23 LE2679001 3 TRANSPARENT SHEET (FOR DUST SEAL)
24
25
26
27
28
29
30
31
32
33
34
35
36
UU0275001 3 HARNESS SPONGE
LG2276001 1 CIS HARNESS (INCLUDING 3 HARNESSES)
LG2280001 1 MOTOR WB HARNESS
LE2910001 4 SPACER
LE2682001 2 PIPE HOLDER STOPPER
LG2281001 1 RELAY PCB ASSY
LE2690001 1 PCB SUPPORT
LG2285001 1 PRINTER INTERFACE CABLE
LE2691001 1 CABLE CLAMP
LE2799001 1 CABLE CLAMP PLATE
U24014001 6 TAPTITE, CUP S M3.0X6
LE3059001 2 STAND SPACER, CP2000/CB200
LE3037001 1 WALL-MOUNTING BRACKET, CP1800 (INCLUDING 2PCS)
REMARKS
CP1800, CP2000, CB200
List4_BOARD_2
REF.NO. CODE Q'TY DESCRIPTION
1 LE3020001 1 WHITE SHEET SUPPLY ASSY (INCLUDING BLACK MARK)
2 LE2670001 1 SHEET BACKUP BOARD
3 LE2959001 2 BACKUP BOARD SUPPORT
4 LE2683001 1 UPPER COVER
5 LE2684001 1 LOWER COVER
6 LE2685001 1 SIDE COVER R
7 LE2686001 1 SIDE COVER L
8 LE2687001 2 CORNER COVER A
9 LE2688001 2 CORNER COVER B
10 LE2689001 6 SHOULDER SCREW
11 084321016 8 SCREW, FLAT S M3X10
12 087321016 6 TAPTITE, CUP S M3X10
13 LE3048001 1 WHITE TAPE
(14) LE2991001 1 TEST CHART TC-WB002
REMARKS
CP1800, CP2000, CB200
List5_STAND
REF.NO. CODE Q'TY DESCRIPTION
1 LE2591001 2 UPPER CAP
2 LE2702001 2 LOWER CAP
3 LE2589001 4 BLIND SEAL
4 LE2868001 2 PROTECT RUBBER
5 LE2708001 2 ADJUST FOOT ASSY
6 LE2712001 2 STAND STOPPER SCREW
7 LE2894001 2 STAND STOPPER SPRING
8 LE3044001 1 STAND BASE COVER L (REAR VIEW)
9 LE3045001 1 STAND BASE COVER R (REAR VIEW)
10 085411215 4 SCREW, BIND B TITE 4X12
11 LE3055001 6 SCREW, CUP M4X18
(12) LE3019001 1 EASEL STAND SUPPLY ASSY
REMARKS
CP2000, CB200

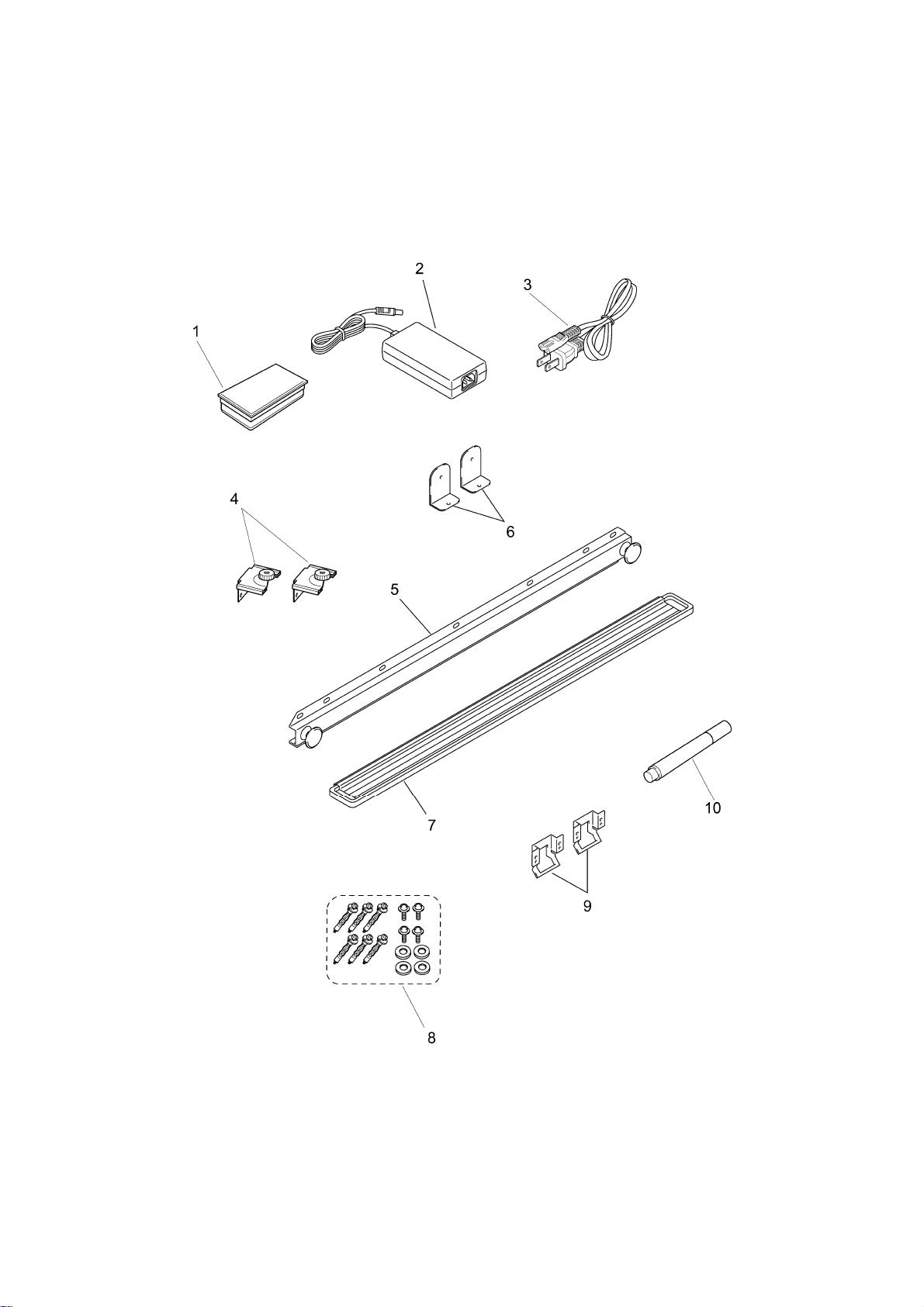

List6_ACCESSORIES
(FAX2000080)
(FAX2000080)
(FAX2000080)
(FAX2000046)
REF.NO. CODE Q'TY DESCRIPTION
1 LE2717001 1 ERASER
2 LG2286001 1 AC ADAPTOR
3 LG2421001 1 AC CORD FOR US/CAN
3 LG2453001 1 AC CORD FOR GER
3 LG2454001 1 AC CORD FOR UK
3 LG2455001 1 AC CORD FOR CHE
4 LE2943001 1 PARTITION-MOUNTING BRACKET (INCLUDING 2PCS)
5 LE2731001 1 WALL-MOUNTING BAR
6 LE2920001 1 L-SHAPED BRACKET (INCLUDING 2PCS)
7 LE2800001 1 TRAY
8 LE2931001 1 SCREW PACKET
(INCLUDING 6 ANCHORS, 4 SCREWS AND 4 WASHERS)
9 LE3037001 1 WALL-MOUNTING BRACKET (INCLUDING 2PCS), CP2000/CB200
10 LE2721001 2 MARKER (BLACK)
(11) LE3603001 1 MFL I/F ASSY, CP2000, CB200 FOR CAN
REMARKS
CP1800, CP2000, CB200
List7_MANUALS
(FAX2000080)
(FAX2000080)
(FAX2000080)
(FAX2000080)
(FAX2000080)
(FAX2000046)
(FAX2000080)
(FAX2000046)
(FAX2000046)
(FAX2000046)
(FAX2000080)
REF.NO. CODE Q'TY DESCRIPTION
(1) LE2739001 1 OWNER'S MANUAL ASSY, CP2000 FOR US
(INCLUDING OWNER'S MANUAL, REORDER FORM, WARRANTY CARD
LICENSE GUIDE, MFL MANUAL, MFL CD-ROM AND BLIND SEAL)
(1) LE3071002 1 OWNER'S MANUAL ASSY, CB200 FOR CAN
(INCLUDING OWNER'S MANUAL, REORDER FORM, WARRANTY CARD
LICENSE GUIDE, MFL MANUALS, MFL CD-ROM AND BLIND SEAL)
(1) LE3101001 1 OWNER'S MANUAL ASSY, CP1800 FOR US
(INCLUDING OWNER'S MANUAL, REORDER FORM AND WARRANTY CARD)
(1) LE2946003 1 OWNER'S MANUAL ASSY, CB200 FOR GER
(INCLUDING OWNER'S MANUAL, WARRANTY CARDS,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1) LE2951004 1 OWNER'S MANUAL ASSY, CB200 FOR UK
(INCLUDING OWNER'S MANUAL, WARRANTY CARDS,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1) LE2953010 1 OWNER'S MANUAL ASSY, CB200 FOR CHE
(INCLUDING OWNER'S MANUAL, WARRANTY CARD,
RECORDING PAPER GUIDE AND BLIND SEAL)
(1-1) LE2740001 1 OWNER'S MANUAL, CP2000 FOR US
(1-1) LE3110001 1 OWNER'S MANUAL, CP1800 FOR US
(1-1) LE3088001 1 OWNER'S MANUAL, CB200 FOR CAN
(1-1) LE2947003 1 OWNER'S MANUAL, CB200 FOR GER/UK/CHE
(1-2) LE2742001 1 BLIND SEAL
(1-3) LE2993001 1 MFL CD-ROM ASSY, CP2000, CB200 FOR CAN
(1-4) LE2995001 1 MFL MANUAL, CP2000, CB200 FOR CAN<ENGLISH>
(1-4) LE3089001 1 MFL MANUAL, CB200 FOR CAN<FRENCH>
(1-5) UF6925001 1 RECORDING PAPER GUIDE FOR GER/UK/CHE
REMARKS
CP1800, CP2000, CB200
List8_CARTONS
(FAX2000080)
(FAX2000080)
(FAX2000111)
(FAX2000111)
REF.NO. CODE Q'TY DESCRIPTION
(1) LE2744001 1 INNER CARTON, BROTHER CP2000 FOR US
(1) LE3094001 1 INNER CARTON, BROTHER CP1800 FOR US
(1) LE2949001 1 CARTON, BROTHER CB200 FOR CAN/GER/UK/CHE
(2) LE2745001 1 STYROFOAM ASSY, CP2000/CB200
(2) LE3102001 1 STYROFOAM ASSY, CP1800
(3) LE2753001 1 POLY-ETHYLENE BAG, 1450X1050 FOR COPYBOARD
(4) LE3448001 1 OUTER CARTON, BROTHER CP2000 FOR US
(4) LE3449001 1 OUTER CARTON, BROTHER CP1800 FOR US
REMARKS
CP1800, CP2000, CB200
5B1101 Ver. D
