1 INTRODUCTION
The Ex-proof modules have been designed for powering and signal conversion of intrinsic safe meters.
Furthermore a valve drive circuit may be incorporated in the system. The output stage for the valve can,
depending on the limits of the valve also be made intrinsically safe by using an isolating repeater. Without
isolating repeater a valve with “II 2 G (ATEX group and category) - Ex e mb II T4” (Cenelec) classification can
be powered. With isolating repeater a valve with ” II 1 G/D (ATEX group and category) - Ex ia IIC T6” (Cenelec)
classification can be powered.
Note: Readout units with its I.S. isolators should be situated outside zone 2.
9.17.034 page 7
BRONKHORST HIGH-TECH B.V.
Module output signal
Code
Other/Specify
Z
Housing
Power supply
Modules
Ext. setpoint/module input signal
Code
0 - 5 Vdc
Other/Specify
A
Z

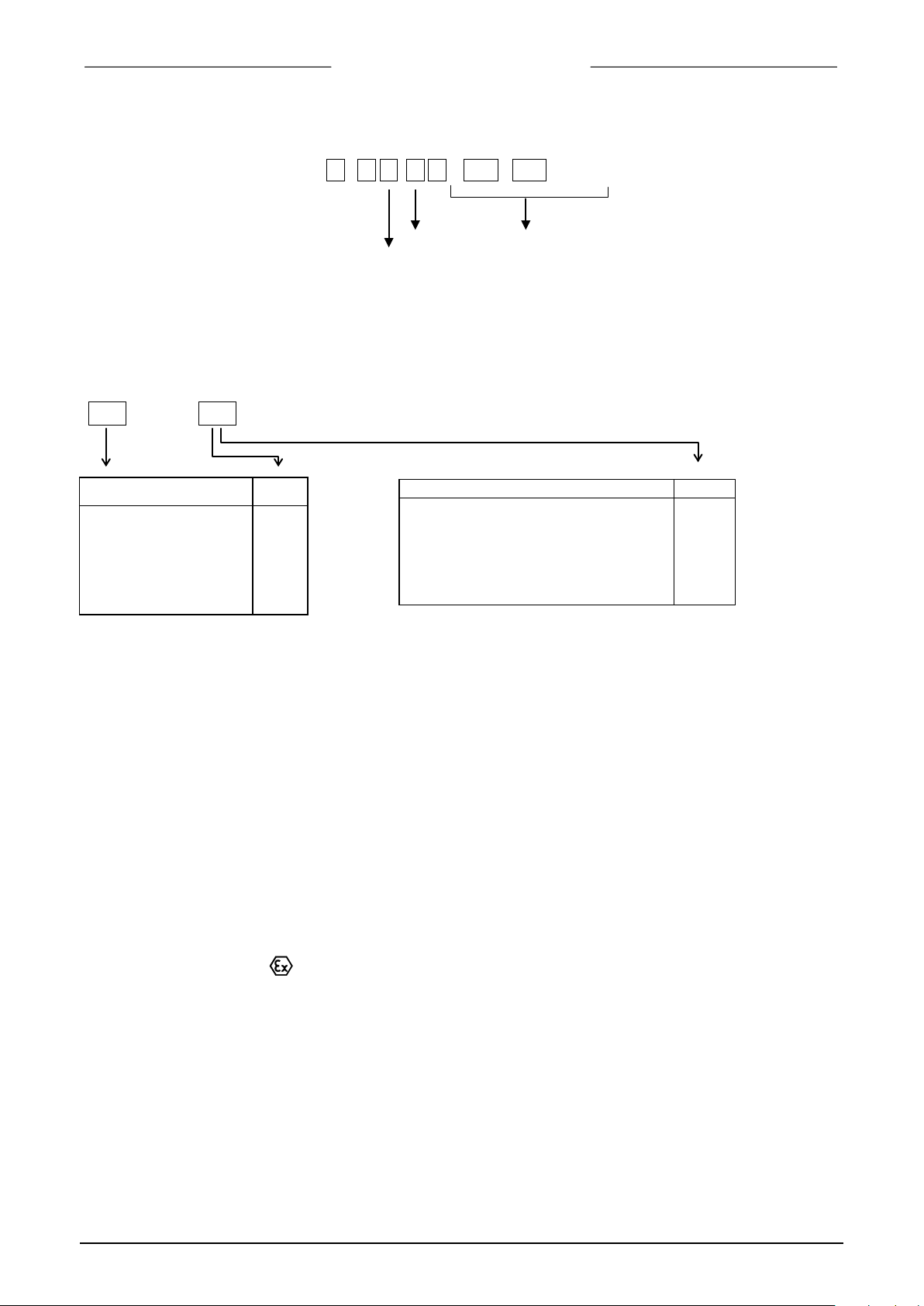

2 MODEL CONFIGURATION
E - 7 N N 0 - N N - N N - . . . . .
Module code (14TE)
20 R/C panel + transmitter supply unit for MFM (Ex-proof)
21 R/C panel + supply for MFM (Ex-proof) + control function for valve with XB-coil
22 R/C panel + supply for MFM (Ex-proof) + control function for valve with XC-coil
Code for external output/input signals:
N N - A A
0 - 5 Vdc
0 - 10 Vdc
0 - 20 mA
4 - 20 mA
A
B
C
D
0 - 10 Vdc
0 - 20 mA
4 - 20 mA
1 - 5 Vdc
B
C
D
F
2.1 Modules
An Ex-proof module is a combination of an R/C panel, a transmitter supply unit and if needed, an isolating
repeater to drive a XB coil. To comply with the intrinsic safe requirements, the system power supply is located
in a separate 14 TE wide location.
2.2 Intrinsic safe electronic units
2.2.1 Transmitter supply unit for flow sensors
Power supply for intrinsic safe flow sensor, providing galvanic isolation between input, output and power
supply.
The unit is a one channel power supply and signal converter. 4(15) - 20 mA input; 4(15) - 20 mA output.
Power supply for the transmitter supply unit is 18 .. 35 Vdc (24 Vdc nominal)/63 mA.
Manufacturer : R. Stahl Schaltgeräte GmbH
Type : ISPac 9160/**-1*-1*
Type of protection II 3 (1) G Ex nA nC [ia] IIC T4
Certificate no. : DMT 03 ATEX E 010 X
Uo = 27 V
Io = 88 mA
Po = 576 mW
Co ≤ 90 nF (IIC) / ≤ 705 nF (IIB)
Lo ≤ 2.3 mH (IIC) / ≤ 14 mH (IIB)
Ci negligible
Li negligible
Mechanical data
Dimensions : 17.6 x 108 x 114 mm
Mounting type : on top hat rail 35
page 8 9.17.034
BRONKHORST HIGH-TECH B.V.
power &
signals
R/C
panel
Stahl 9160
MFM
2 wire
intrinsic
safe input
in/output I/O
+/-15Vdc
MFM
2 wire
intrinsic
safe input
2 wire
intrinsic
safe output
valve
in/output I/O
+/-15Vdc
power &
signals
R/C
panel
conversion
and
control
module
Stahl 9160
Stahl 9167
2.2.2 Isolating repeater for XB coil
Repeater for isolating the output of the controller circuit and the (XB) valve.
The unit is capable of handling one channel. 0 - 50 mA input; 0 - 50 mA output.
Manufacturer : R. Stahl Schaltgeräte GmbH
Type : ISPac 9167/**-11-00
Type of protection II 3 (1) G Ex nA [ia] IIC T4
Certificate no. : BVS 04 ATEX E 082 X
Uo = 25 V
Io = 99 mA
Po = 613 mW
Co ≤ 110 nF (IIC) / ≤ 840 nF (IIB)
Lo ≤ 2.5 mH (IIC) / ≤ 11 mH (IIB)
Ci negligible
Li negligible
Mechanical data
Dimensions : 17.6 x 108 x 114 mm
Mounting type : on top hat rail 35

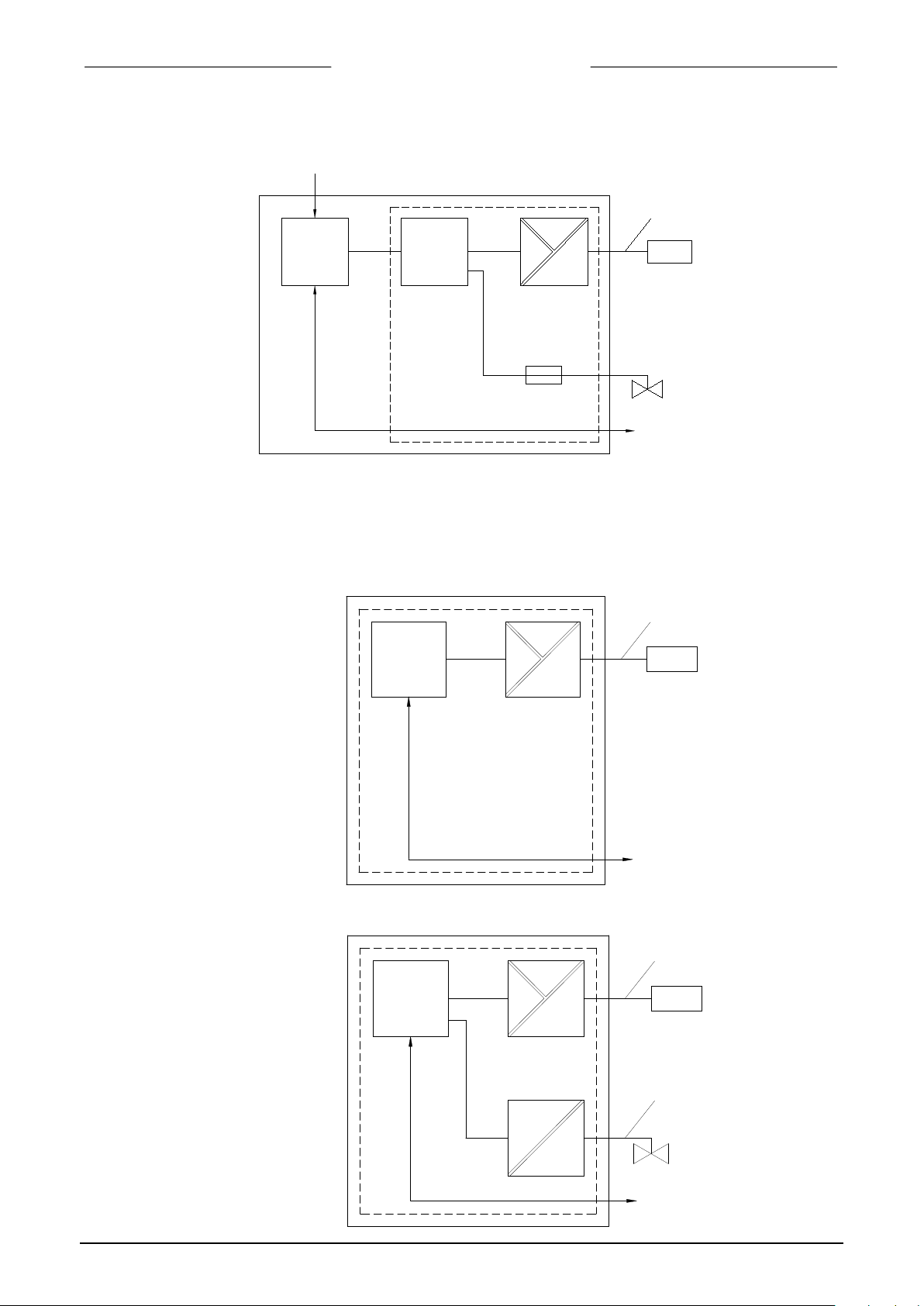

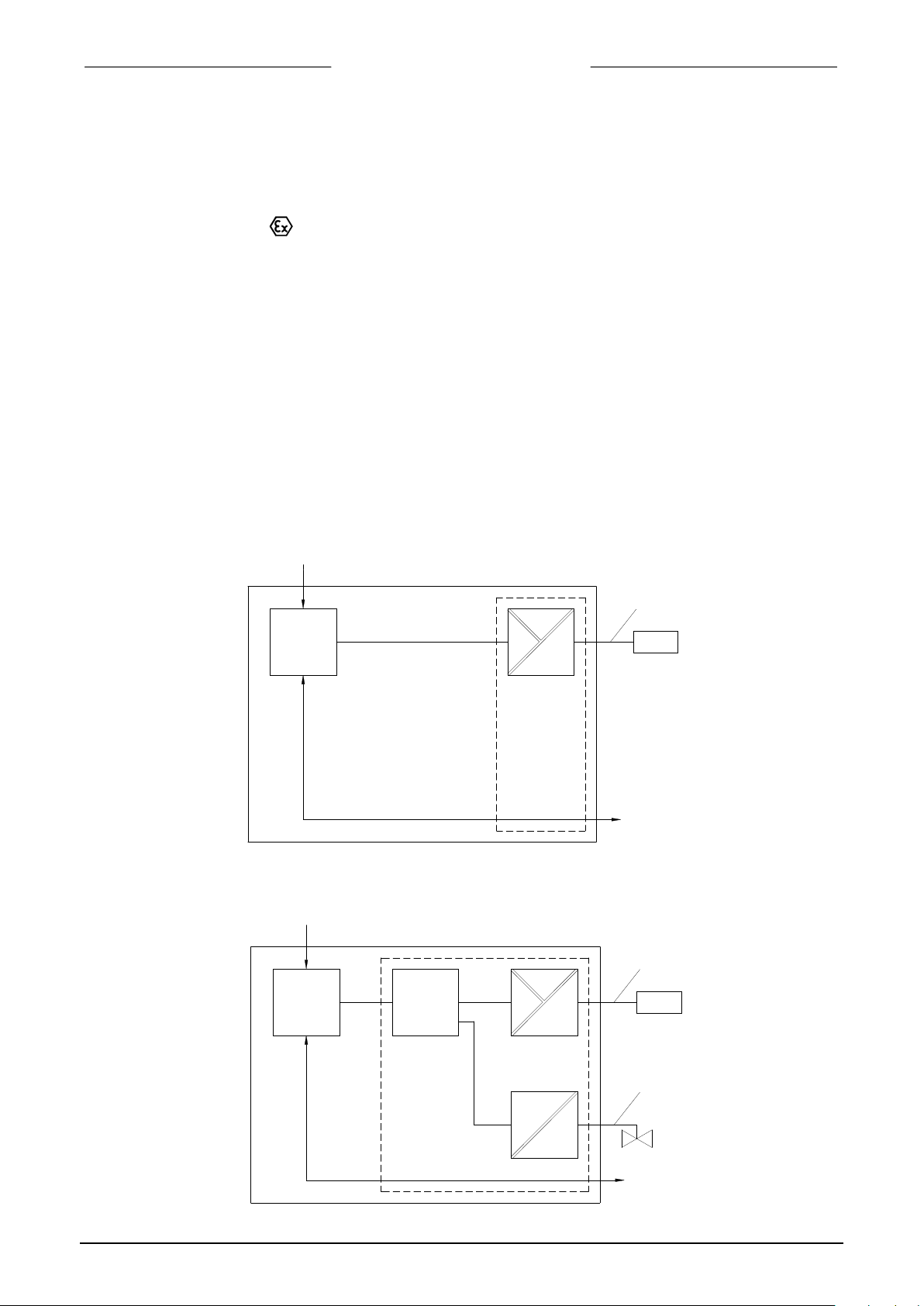

2.3 Module setup
2.3.1 Model "20"
2.3.2 Model "21"
9.17.034 page 9
BRONKHORST HIGH-TECH B.V.
power & signals
conversion
and
control
module
Stahl 9160
MFM
2 wire
intrinsic
safe input
power & signals
conversion
and
control
module
Stahl 9160
Stahl 9167
MFM
2 wire
intrinsic
safe input
2 wire
intrinsic
safe output
valve
power &
signals
R/C
panel
conversion
and
control
module
Stahl 9160
2 wire
intrinsic
safe input
valve
in/output I/O
+/-15Vdc
MFM
Fuse *
2.3.3 Model "22"
* Module is provided with a 400 mA fuse according to IEC 60127-3 to meet the special conditions for safe use
of the applied valve coil.
2.3.4 Model "23"
2.3.5 Model "24"
page 10 9.17.034
BRONKHORST HIGH-TECH B.V.
power & signals
conversion
and
control
module
Stahl 9160
2 wire
intrinsic
safe input
valve
MFM
Fuse *

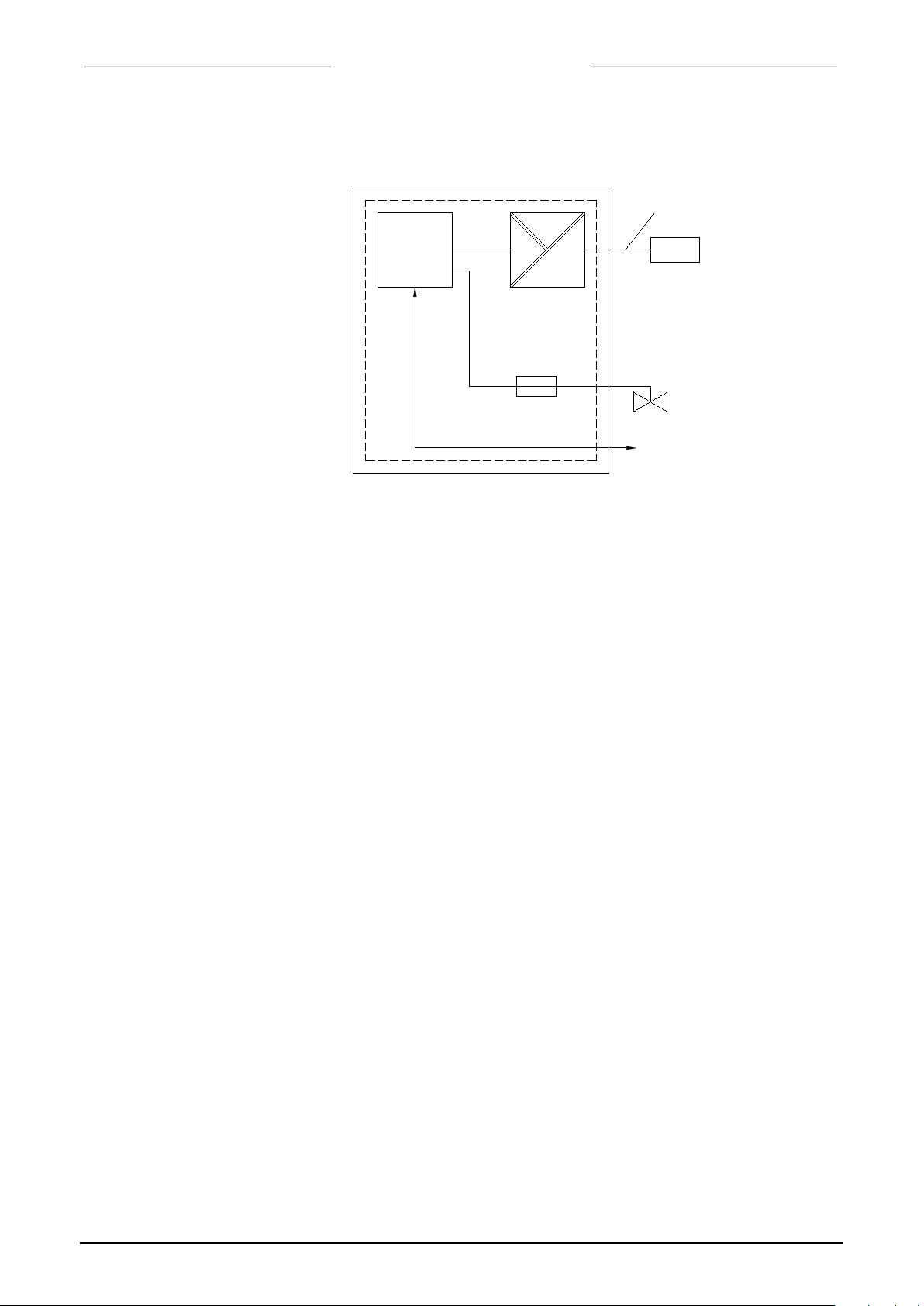

2.3.6 Model "25"
* Module is provided with a 400 mA fuse according to IEC 60127-3 to meet the special conditions for safe use
of the applied valve coil.
9.17.034 page 11
BRONKHORST HIGH-TECH B.V.
1 : + 2 4 V d c / 2 4 V a c 2 : 0 V d c / 2 4 V a c 3 : n o t c o n n e c t e d P E : g r o u n d 3 PE 1 2
3 IN/OUTPUT SIGNALS
If applicable, connection of cables carrying in- and/or output signals is further explained in the customer system
description.

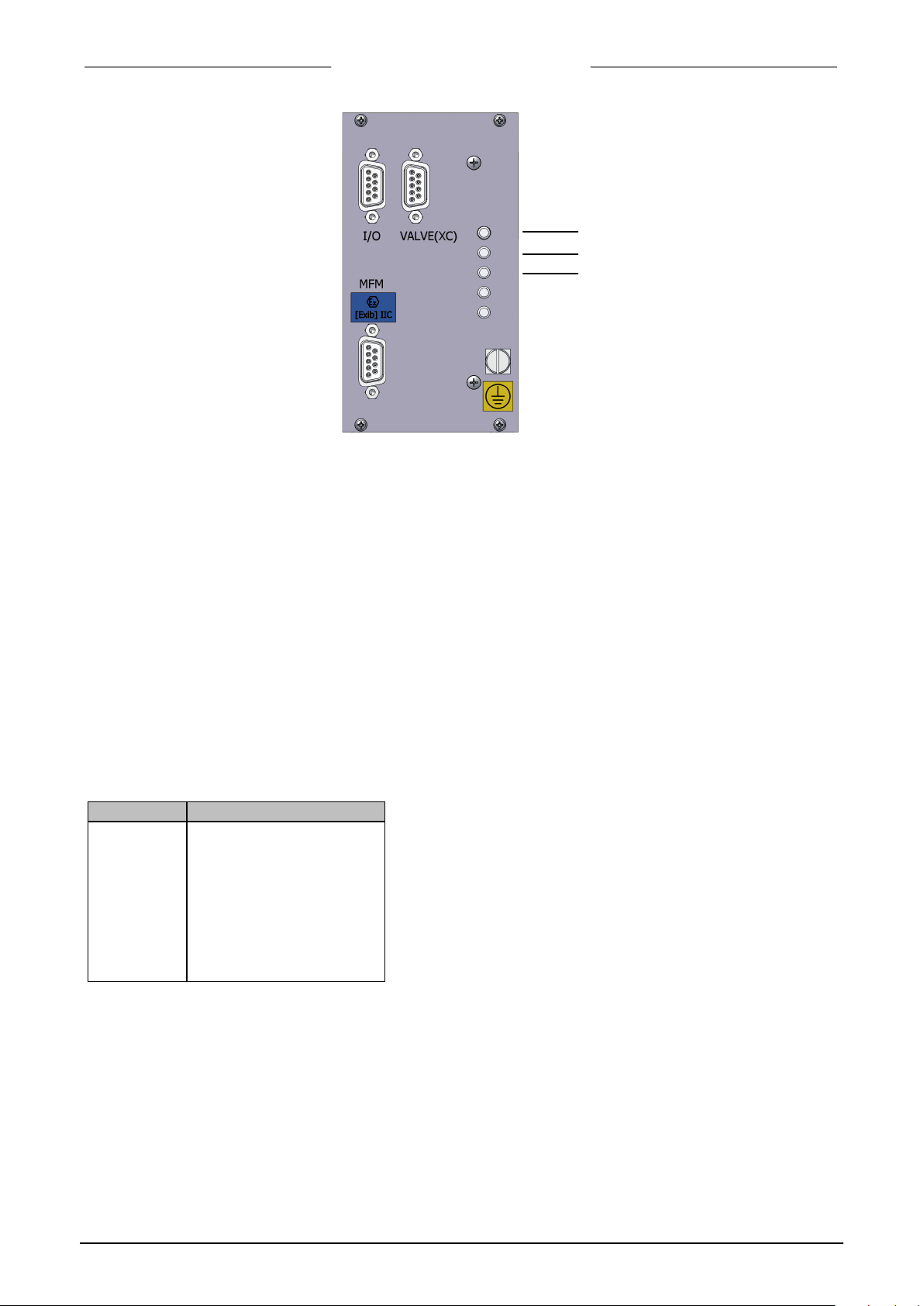

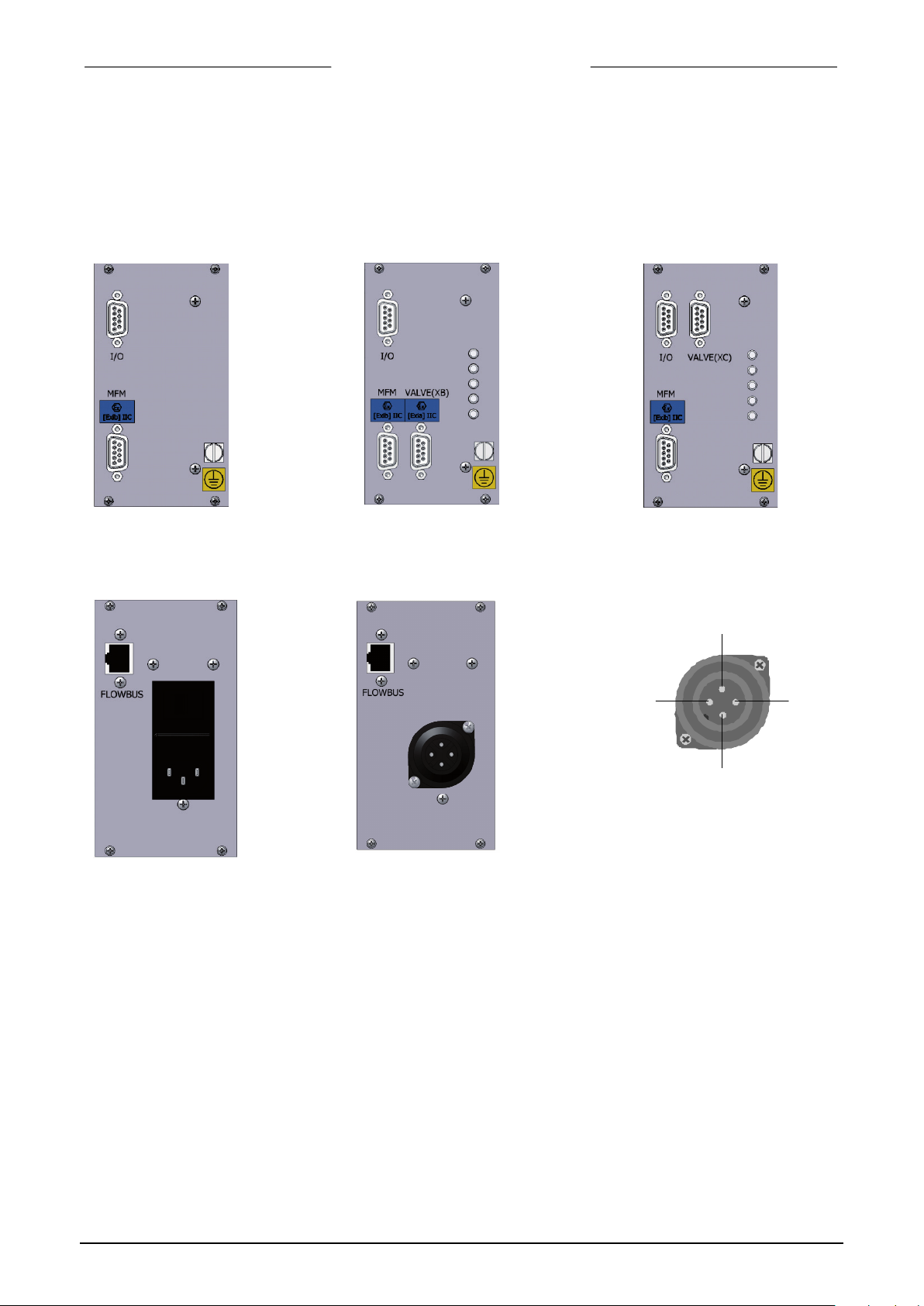

3.1 Rear panel connectors and controls
Rear (code 20 / 23) Rear (code 21 / 24) Rear (code 22 / 25)
Mains operated 24Vac/dc
power supply power supply
page 12 9.17.034
BRONKHORST HIGH-TECH B.V.
pinnumber
description
1
9
not connected
ground
6 3 4 P P
P
Potmeters for controller parameter setting are accessible via holes in the rear panel.
Potmeter:
P6: controls the valve quick start-up voltage. Set for optimum fast response behaviour from zero
setpoint. (optional)
P3: (flow control only) Controls the output differentiating network. This determines the dynamic
response characteristic of the system.
P4: (flow control only) Controls the D-action of the control circuit.
3.2 Connection to measuring devices
The instrument connector is a female sub-miniature 9-pin D-connector. The pin designation is according to the
Bronkhorst High-Tech B.V. standard for intrinsic safe instruments
The + and - current signal input is intended for loop powered transducers.
9.17.034 page 13
2
3
4
5
6
7
8
+ 15 - 20 mA/4 - 20 mA
not connected
not connected
not connected
not connected
-15 - 20 mA/4 - 20 mA
not connected
BRONKHORST HIGH-TECH B.V.
pinnumber
description
1
9
not connected
ground
pinnumber
description
1
9
output signal
ground (shield)
pinnumber
description
1
9
not connected
ground
3.3 Connection to valves
The valve connector is a female sub-miniature 9-pin D-connector. The pin designation is according to the
Bronkhorst High-Tech B.V. standard for control valves.
2
3
4
5
6
7
8
Only XB or XC type valves may be connected. Consult the label on the module for the correct valve model.
not connected
not connected
0 V valve
+ V valve
not connected
not connected
not connected
3.4 Connection to remote equipment
For modules 20, 21 and 22:
The female in/out (1) (sub-miniature 9-pin) D-connector has the following pin configuration:
2
3
4
5
6
7
8
For modules 23, 24 and 25:
The I/O connector is a male
Bronkhorst High-Tech B.V. standard for analog instruments.
input signal
0 V (common)
not connected
relay contact MC
relay contact NO
relay contact NC
reset input
sub-miniature 9-pin D-connector. The pin designation is according to the
2
3
4
5
6
7
8
Power supply (default +24Vdc) must be connected to pin 7 (+) and pin 8 (0Vdc / common)
Analog input signals should be connected to pin 3 (+) and 0 Vdc/common.
Analog output signals are available at pin 2 (+) and 0 Vdc/common.
Signals are according to one of the Bronkhorst High-Tech B.V. standards. The model configuration contains a
code, describing the input/output signals.
Notes:
a. Max. load current output (0 – 20 mA / 4 – 20 mA sourcing) : 375 Ohm
b. Min. load voltage output (0 – 5 Vdc / 0-10 Vdc) : 2 kOhm
c. Input load resistance (voltage 0 – 5 Vdc / 0-10 Vdc) : 1M
d. Input load resistance (current 0 – 20 mA / 4 – 20 mA) : 250 Ohm
The power supply of the modules 23, 24 and 25 is factory set to default +24Vdc.
output signal
setpoint signal
not connected
not connected
default: not connected / optional : -15Vdc supply
default: +24Vdc supply / optional : +15Vdc supply
0Vdc / common
page 14 9.17.034
BRONKHORST HIGH-TECH B.V.
Control
circuit
Rk
XC
14 Vdc 13 Vdc
C
cable
L
cable
C
k
L
k
R
k
L R
ratio
/
V
max
V
R
= =
13
65
==
0,2
1
I
V
1,6
5
Cable diameter
max. length
0,25 mm2
30 m
0,50 mm2
60 m
0,75 mm2
90 m
4 Cables
4.1 Introduction
An average two-wire cable has a capacity of 120 pF per meter and an inductivity of 0.67 µH/m.
For 100 m cable this results into:
= 12 nF
= 67 µH
4.2 The transmitter supply unit for flow sensors
If we take 100 m two-wire shielded 0,25 mm
= 12 nF
= 67 µH
= 15.8 Ω (loopresistance)
= 67/16 = 4,2 µH/Ω
For safety this is no problem.
At 20 mA the voltage loss over the cable is:

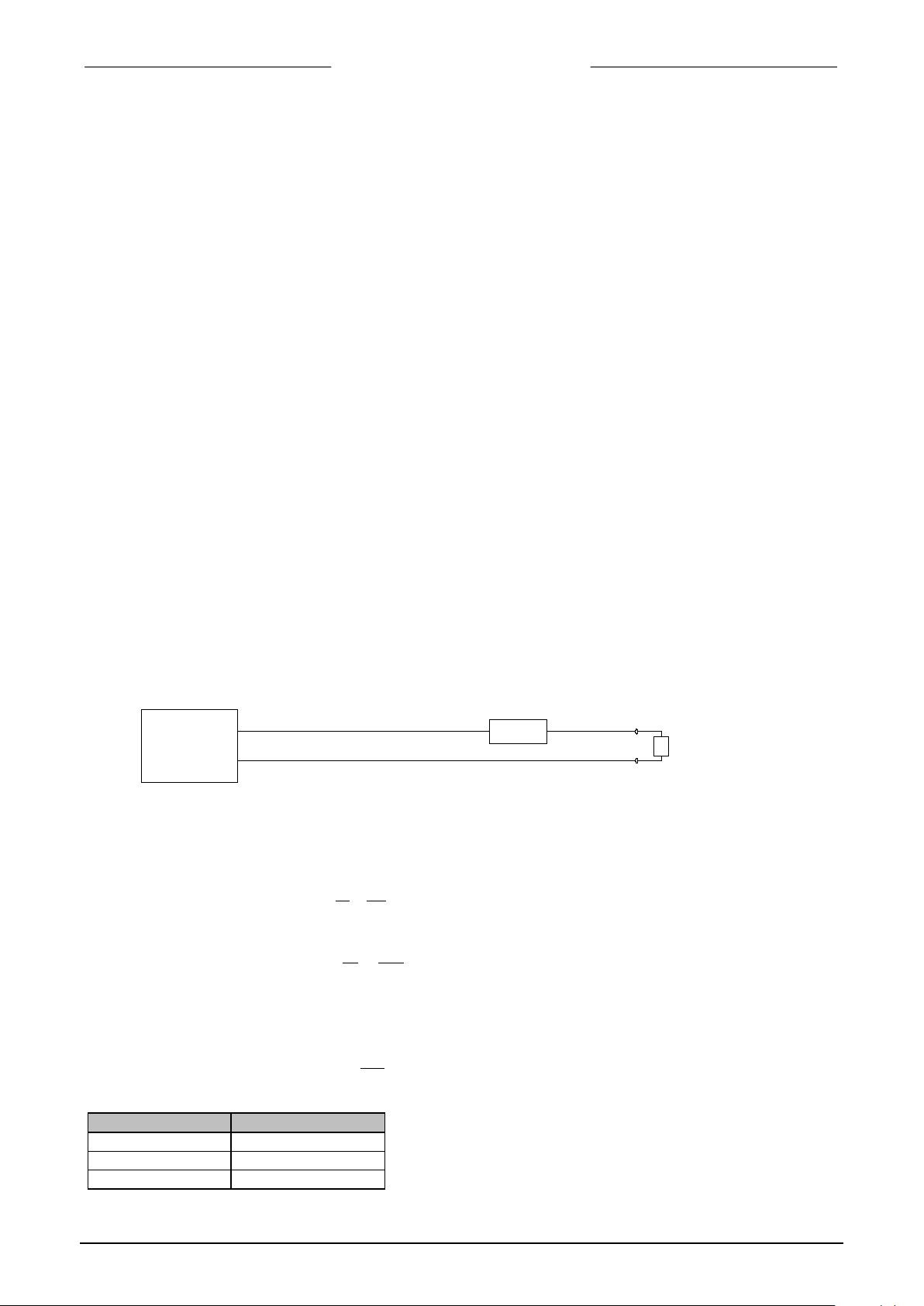

4.3 The control board with XC coil
For the XC coil the capacity and inductivity is not important, but the voltage loss is the limiting factor.
The maximum voltage output of the controller is 14 Vdc.
For a two-wire shielded cable we don't want to allow more than 1 Volt loss.
So, on the coil
will be 13 Volt.
2
than:
V = I x R = 0,02 x 15.8 = 0,3 V
for XC I =
The cable resistance may be R =
A 0,25 mm
In other words: the maximum length is:
9.17.034 page 15
200 mA
5 Ω
2
cable has a loop resistance of 1,6 Ω per 10 meter.
x 10 ≈ 30 m
BRONKHORST HIGH-TECH B.V.
11
300
R
V
I
cable
= = =
0,5
0,037
13,5 Ω
1,6
10
Cable length
≤ 10 m
≤ 20 m
≤ 60 m
≤ 100 m
Flow sensor
0,25 mm2
0,25 mm2
0,25 mm2
0,25 mm2
XB coil
0,25 mm2
0,25 mm2
0,25 mm2
XC coil
0,25 mm2
0,25 mm2
Rk
XB
25 Vdc
11 Vdc
Stahl 9167
Control
circuit

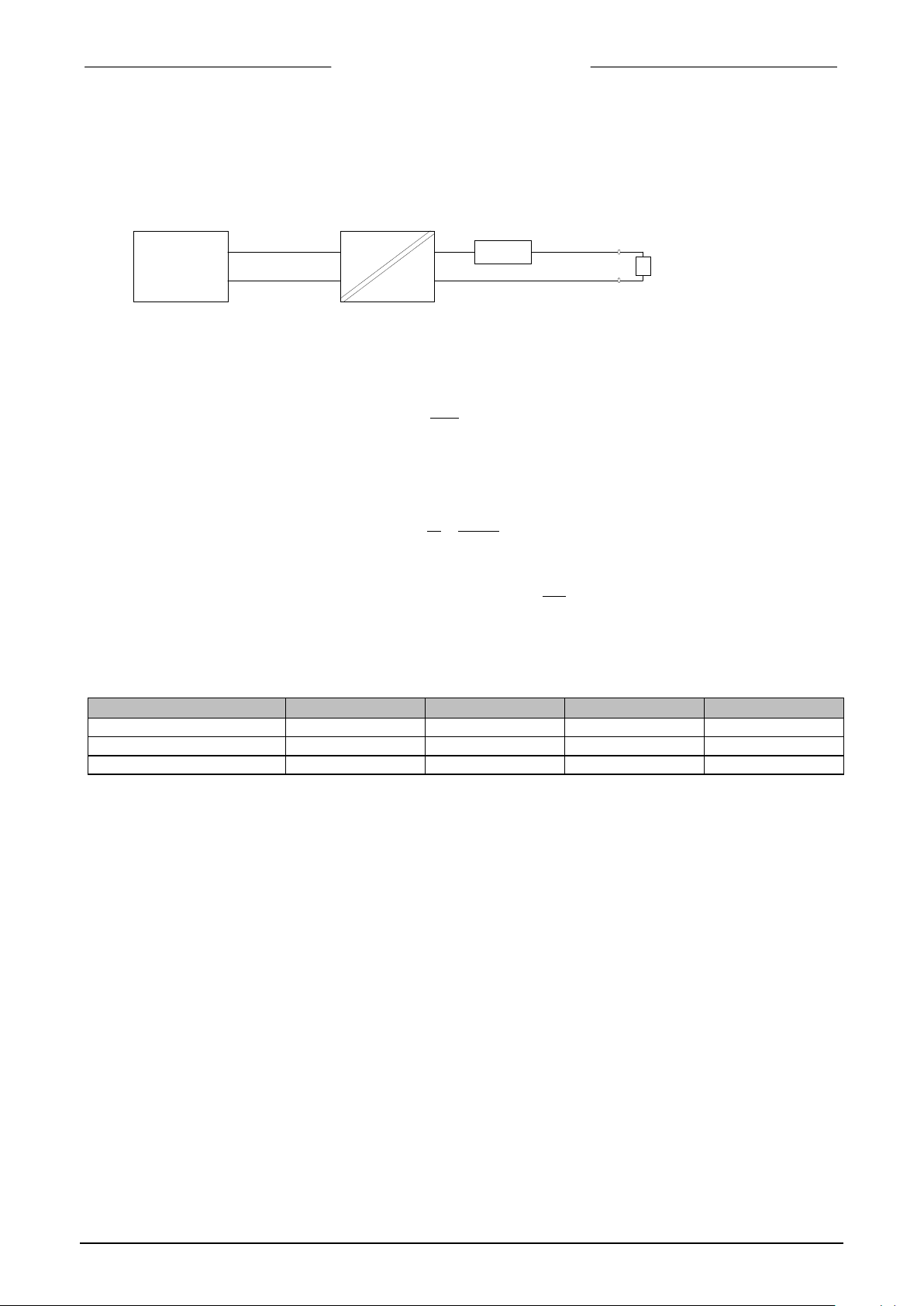

4.4 Control system with XB-coil
For the XB-coil the calculation is as follows:
Because the capacity and inductivity are negligible, these can be left out of the calculation.
Resistance of the XB-coil = 300 Ω
Max. control voltage from the control circuit: 25 Vdc
It has to be possible that the coil gets at least 11 Vdc, so:
I =
The maximum output of the isolating repeater is 11,5 Vdc (at 25 Vdc input).
For cable losses is left : 11,5 - 11 = 0,5 Vdc
0,25 mm
2
gives 1,6 Ω per 10 m, so the max. cable length is 13,5 x
= 37 mA
= 84 m.
4.5 Standard cables for Bronkhorst HI-TEC equipment
NB: Cable capacity and inductivity are negligible.
4.6 EMC and Intrinsic safe circuits
Screens in cables used for intrinsic safe circuits should be earthed at one point only. For good EMC behaviour
however, it is essential that the point of earthing is chosen according to the setup at which the system was
tested.
Follow the guidelines for electrical hook-up of sensors (flow) and valves (XC, XB).
5 Operation
Consult manual 9.17.004 “Digital readout and control system E-7000 for analog and digital instruments”
page 16 9.17.034
Loading...
