Instruction manual

General instructions digital

Mass Flow / Pressure instruments

laboratory style / IN-FLOW

Doc. no.: 9.17.022U Date: 13-01- 2015

ATTENTION

Please read this instruction manual carefully before installing and operating the instrument.

Not following the guidelines could result in personal injury and/or damage to the equipment.

BRONKHORST HIGH-TECH B.V.

SCOPE OF THIS MANUAL

This manual covers the general part of digital massflow / pressure instruments for gases or liquids. It handles the general instructions needed for the instruments. More information can be found in other documents.

Multibus instruments have modular instruction manuals consisting of:

- General instructions digital Mass Flow / Pressure instruments laboratory style / IN-FLOW (document nr. 9.17.022)

- Operation instructions digital instruments (document nr. 9.17.023)

- Fieldbus/interface description:

- FLOW-BUS interface (document nr. 9.17.024)

- PROFIBUS–DP interface (document nr. 9.17.025)

- DeviceNet interface (document nr. 9.17.026)

- RS232 interface with FLOW-BUS protocol (document nr. 9.17.027)

- Modbus interface (document nr. 9.17.035)

- EtherCAT interface (document nr. 9.17.063)

BRONKHORST HIGH-TECH B.V.

Even though care has been taken in the preparation and publication of the contents of this manual, we do not assume legal or other liability for any inaccuracy, mistake, mis-statement or any other error of whatsoever nature contained herein. The material in this manual is for information purposes only, and is subject to change without notice.

Bronkhorst High-Tech B.V.

July 2011

Warranty

The products of Bronkhorst High-Tech B.V. are warranteed against defects in material and workmanship for a period of three years from the date of shipment, provided they are used in accordance with the ordering specifications and the instructions in this manual and that they are not subjected to abuse, physical damage or contamination. Products that do not operate properly during this period may be repaired or replaced at no charge. Repairs are normally warranteed for one year or the balance of the original warranty, whichever is the longer. See also paragraph 9 of the Conditions of sales.

The warranty includes all initial and latent defects, random failures, and undeterminable internal causes.

It excludes failures and damage caused by the customer, such as contamination, improper electrical hook-up, physical shock etc.

Re-conditioning of products primarily returned for warranty service that is partly or wholly judged nonwarranty may be charged for.

Bronkhorst High-Tech B.V. prepays outgoing freight charges when any party of the service is performed under warranty, unless otherwise agreed upon beforehand. However, if the product has been returned collect to Bronkhorst High-Tech B.V., these costs are added to the repair invoice. Import and/or export charges, foreign shipping methods/carriers are paid for by the customer.

BRONKHORST HIGH-TECH B.V.

Short-Form Operation Instruction

Before installing your Mass Flow or Pressure Meter/Controller it is important to read the attached label and check:

- flow/pressure rate

- fluid to be metered

- up- and downstream pressures

- input/output signal

Check the red-coloured sticker and make sure the testpressure is in agreement with normal safety factors for your application.

Check if the piping system is clean. For absolute cleanliness always install filters to assure a clean, moisture- and oil-free gas stream.

Install the Meter/Controller in the line and tighten the fittings according to the instructions of the supplier of the fittings. Choose the mounting position according to the directions given in this manual.

Check the system for leaks before applying fluid pressure

In systems with corrosive or reactive fluids, purging with an inert gas is absolute necessary before use. Complete purging after use with corrosive or reactive fluids is also required before exposing the system to air.

Electrical connections must be made with a standard cable or according to the hook-up diagram in the back of this manual.

Short form start-up

Install instrument in your process. Provide instrument with correct pressure(s)

Analog operation

Connect the instrument to the power supply/readout unit with the 9-pin cable at the DB-9 connector / 8 DIN connector

BRONKHORST HIGH-TECH B.V.

BUS/digital operation

For this procedure: See description for specific fieldbus

Send a setpoint to the instrument and check the measured value

Let the instrument warm-up for 30 minutes for best accuracy

Your Mass Flow/Pressure Meter/Controller is now ready for operation.

! Caution

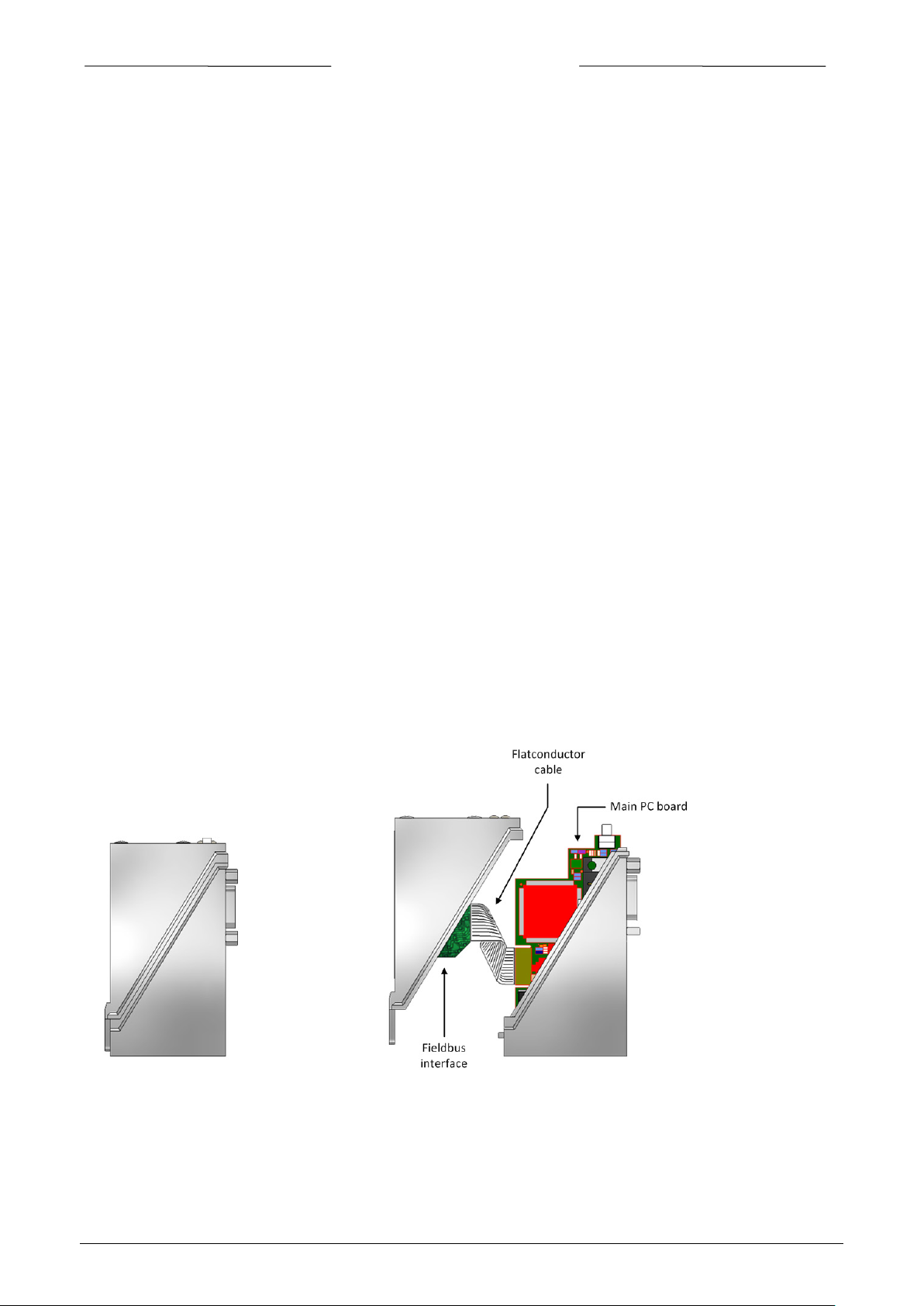

Operation via fieldbus is done by means of a flatconductor cable connected with the main PC board. Although all functionality is possible by means of RS232 and the switch on top of the instrument, it is important that care should be taken when removing the upper part of the housing.

BRONKHORST HIGH-TECH B.V.

TABLE OF CONTENTS

Introduction ................................................................................................................................................... 9

1.1 General description ................................................................................................................................ 9

1.1.1 Gas flow .......................................................................................................................................... 9

1.1.2 Liquid flow ....................................................................................................................................... 9

1.1.3 Pressure ......................................................................................................................................... 9

1.1.4 Housings ......................................................................................................................................... 9

1.1.5 Valves ........................................................................................................................................... 11

1.2 Sensor principles ................................................................................................................................. 12

1.2.1 Gas flow sensors (by-pass measurement) ................................................................................... 12

1.2.2 Gas flow sensors (direct mass flow measurement, CTA based) ................................................. 12

1.2.3 Liquid flow sensors ....................................................................................................................... 12

1) The µ-FLOW model for flowrates up to 2 g/h. ......................................................................................... 12

2) The CTA based LIQUI-FLOW model for flow rates up to approximately 1000 g/h. ................................ 13

1.2.4 Pressure sensor ........................................................................................................................... 13

1.3 Valve principles .................................................................................................................................... 13

1.3.1 Solenoid valve............................................................................................................................... 13

1.3.2 Vary-P valve .................................................................................................................................. 13

1.3.3 Pilot operated valve ...................................................................................................................... 14

1.3.4 Bellows valve ................................................................................................................................ 14

1.4 Kv-value calculation .............................................................................................................................. 14

1.4.1 For gases ...................................................................................................................................... 14

1.4.2 For liquids ..................................................................................................................................... 15

1.4.3 Maximum pressure drop ............................................................................................................... 16

1.5 Sensors and laminar flow devices ....................................................................................................... 16

1.6 Conversion factors ............................................................................................................................... 17

1.6.1 Gas conversion factors (by-pass measurement) .......................................................................... 17

1.6.2 Gas Conversion Factors (direct mass flow measurement, CTA-based) ...................................... 18

1.6.3 Liquid Conversion Factors ............................................................................................................ 19

1.6.4 Software for conversion factor calculation .................................................................................... 19

2 Installation ................................................................................................................................................... 20

2.1 Receipt of equipment ........................................................................................................................... 20

2.2 Return shipment ................................................................................................................................... 20

2.3 Service ................................................................................................................................................. 20

2.4 Mounting .............................................................................................................................................. 21

2.5 In-line filter ........................................................................................................................................... 21

2.6 Fluid connections ................................................................................................................................. 21

2.7 Piping ................................................................................................................................................... 22

2.8 Electrical connections .......................................................................................................................... 22

2.9 Caution ................................................................................................................................................. 22

2.10 Supply pressure ............................................................................................................................... 23

2.11 System purging ................................................................................................................................ 23

2.12 Seals ................................................................................................................................................ 23

2.13 Equipment storage ........................................................................................................................... 23

2.14 Electromagnetic compatibility ........................................................................................................... 23

2.14.1 Conditions for compliance with EMC requirements ...................................................................... 23

3 OPERATION ............................................................................................................................................... 25

3.1 General ................................................................................................................................................ 25

3.2 Power and warm-up ............................................................................................................................. 25

3.3 Zeroing ................................................................................................................................................. 25

3.4 Start-up ................................................................................................................................................ 26

3.5 Operating conditions ............................................................................................................................ 26

3.6 Instrument performance ....................................................................................................................... 26

3.6.1 Sensors ......................................................................................................................................... 26

3.6.2 Controllers .................................................................................................................................... 26

3.7 Manual operation ................................................................................................................................. 26

3.8 Analog operation .................................................................................................................................. 27

3.9 BUS / digital operation ......................................................................................................................... 27

4 Maintenance ................................................................................................................................................ 28

4.1 General ................................................................................................................................................ 28

4.2 Gas flow sensor ................................................................................................................................... 28

BRONKHORST HIGH-TECH B.V.

4.3 Liquid flow sensor ................................................................................................................................ 28

4.4 Pressure sensor ................................................................................................................................... 28

4.5 Controllers ............................................................................................................................................ 28

4.6 Control valves ...................................................................................................................................... 28

4.6.1 Solenoid valves ............................................................................................................................. 29

4.6.2 Vary-P valve .................................................................................................................................. 29

4.6.3 Pilot operated valve ...................................................................................................................... 29

4.6.4 Bellows valve ................................................................................................................................ 29

4.7 Calibration procedure ........................................................................................................................... 29

5 Digital instrument ........................................................................................................................................ 30

6 Interface description .................................................................................................................................... 30

7 TROUBLESHOOTING ................................................................................................................................ 30

7.1 General ................................................................................................................................................ 30

7.2 Troubleshooting summary general ...................................................................................................... 31

Appendices

1 Gasconversion table 2 Dimensions digital cases 3 Enclosures (if applicable)

BRONKHORST HIGH-TECH B.V.

9.17.022

page 9

1 Introduction

1.1 General description

1.1.1 Gas flow

The Bronkhorst High-Tech B.V. series mass flow meter for gases is an accurate device for measuring gas flows up to 700 bar depending on body rating, virtually independent of pressure and temperature changes. The system can be completed with a control valve and flexible readout to measure and control gas flows from

/min up to several thousand m

1 ml

For limited flow ranges a metal sealed model is available.

1.1.2 Liquid flow

The Bronkhorst High-Tech B.V. mass flow meter for liquids is an accurate device for measuring liquid flows up to 400 bar depending on body rating, virtually independent of pressure and temperature changes. The system can be completed with a control valve to measure and control liquid flows from 2g/h up to 1000g/h.

1.1.3 Pressure

The Bronkhorst High-Tech B.V. pressure meter measures pressures from 100 mbar up to 400 bar depending on body rating, either absolute pressure or gauge pressure and in the range 0 to 15 bar differential pressure too. The pressure controller controls pressure with a very high accuracy and repeatability. The controller is available in forward control (P-600 series) and backward control (P-700 series). The flow going through the pressure controller depends on up and downstream pressures, the orifice diameter of the valve and kind of fluid.

/h, depending on the specific type of instrument.

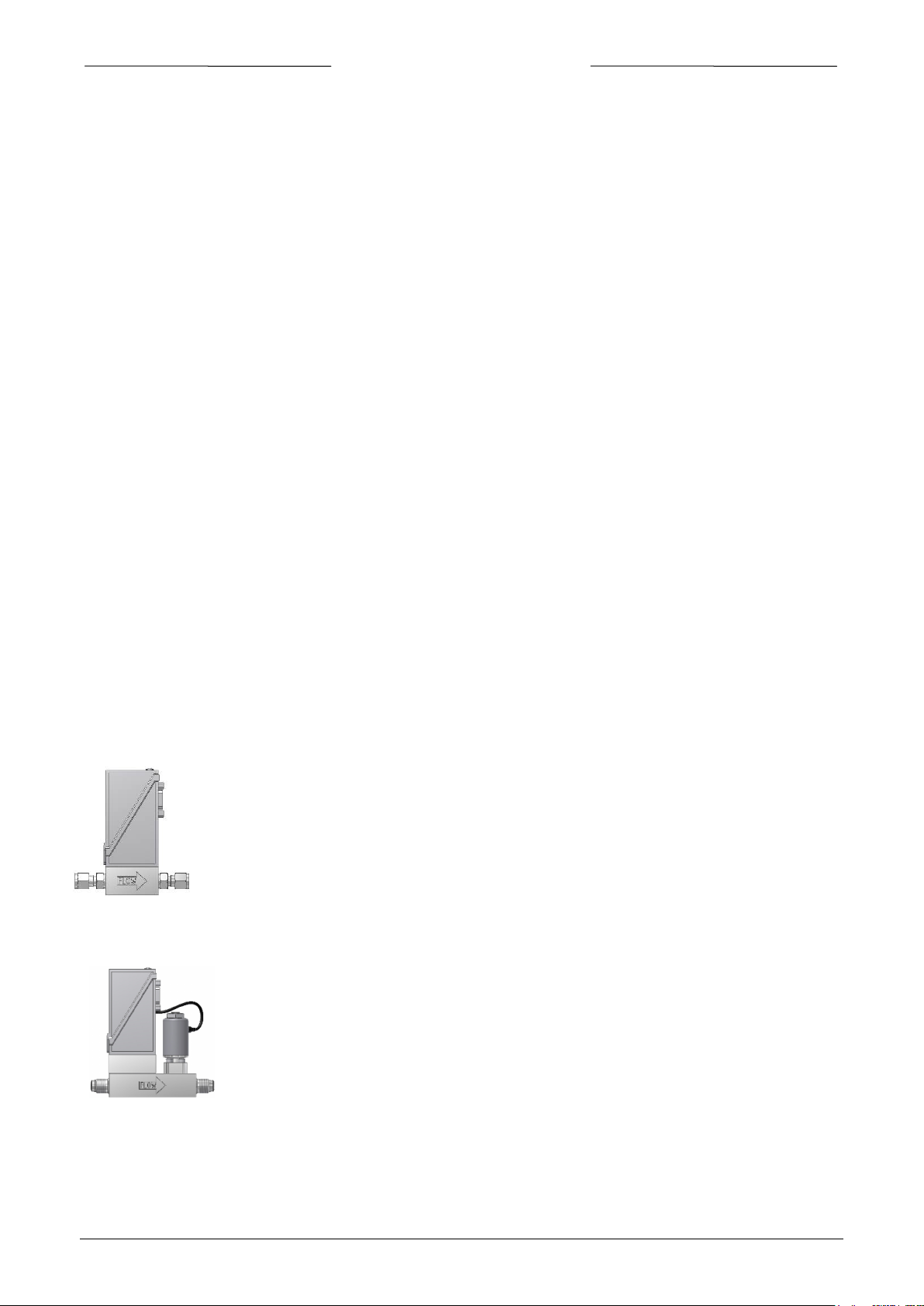

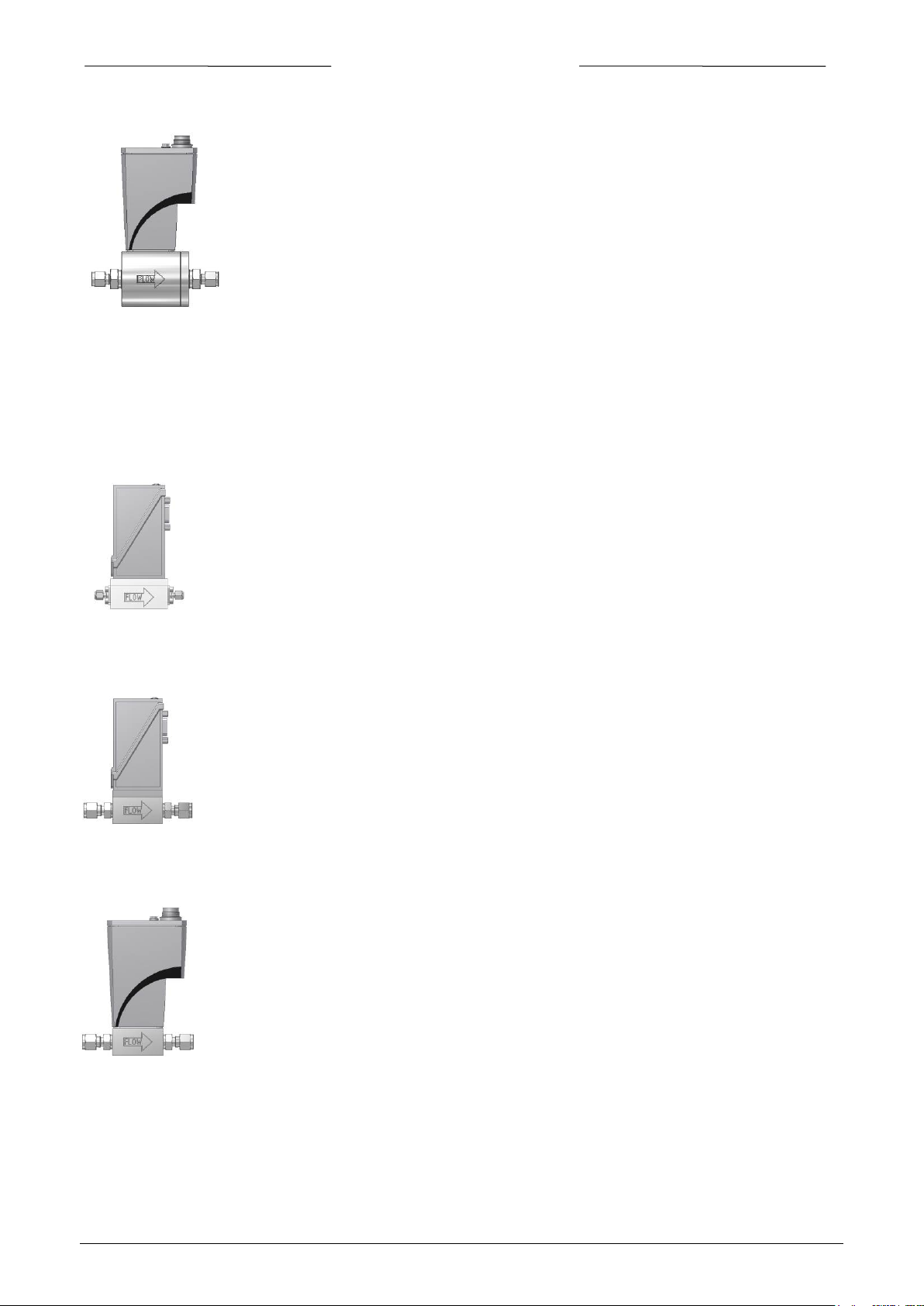

1.1.4 Housings

Each instrument housing style incorporates several provisions to comply with EMC requirements.

EL-FLOW

, EL-PRESS

The p.c.board is placed in a metalized plastic cover. For electrical connection the instrument has a male 9-pin miniature sub-D connector for analog/RS232 operation. For digital operation the instrument has various connectors on top. These instruments are suited for dry (indoor) applications, like laboratories and in well protected (OEM) housings.

EL-FLOW

, EL-PRESS metal seal

This series has the same housing as the standard EL-FLOW®, EL-PRESS series, but this series distinguish itself by metal-to-metal seals.

BRONKHORST HIGH-TECH B.V.

page 10

9.17.022

IN-FLOW , IN-PRESS

To comply with the IP65 ingress protection standard, the p.c. board is housed in a sealed casted metal housing. For electrical connections the instrument has a 8DIN male connector for analog/RS232 operation and for digital operation various connectors on top. These instruments are suited for light industrial (outdoor) use to IP65.

LIQUI-FLOW

Two different digital-liquid flow meters can be distinguished:

µ-FLOW model

The µ-FLOW model for up to 2 g/h, basically a straight capillary tube with a sensor. For electrical connection the instrument is equipped with a male 9-pin sub Dconnector. The instrument is suited for dry (indoor) applications like laboratories.



CTA based LIQUI-FLOW

The CTA based LIQUI-FLOW



model for flow rates up to approximately 1000 g/h. For electrical connection the instrument is equipped with a male 9-pin sub Dconnector. The instrument is suited for dry (indoor) applications like laboratories.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 11

1.1.5 Valves

Laboratory style

For gases: The solenoids of these valves have an IP50 ingress protection class.

This means that the valves are suited for dry (indoor) use.

For liquids:

The solenoids of these valves have an IP50 ingress protection class. This means that the valves are suited for dry (indoor) use.

This valve is equipped with a purge connector.

Industrial style

For gases: The solenoids of these valves have an IP65 ingress protection class. This means that they are suited for light industrial (outdoor) use.

For liquids: The solenoids of these valves have an IP65 ingress protection class. This means that they are suited for light industrial (outdoor) use. This valve is equipped with a purge connector.

BRONKHORST HIGH-TECH B.V.

page 12

9.17.022

K c

signal

p m

= ⋅

⋅

n msignal

KSS Φ⋅+≅

V K c

signal p m

= ⋅ ⋅ Φ

1.2 Sensor principles

1.2.1 Gas flow sensors (by-pass measurement)

The majority of gas flow sensors operate according to the by-pass measurement principle. These types of instruments operate on a principle of heat transfer by sensing the delta-T along a heated section of a capillary tube. Part of the total flow is forced through the capillary by means of a laminar flow device in the main stream generating a delta-p. The design of the laminar flow device is such that flow conditions in both the capillary and laminar flow device are comparable, thereby resulting in proportional flow rates through the meter. The delta-T sensed by the upstream and downstream temperature sensors on the capillary depends on the amount of heat absorbed by the gas flow. The transfer function between gas mass flow and signal can be described by the equation:

= output signal

signal

= specific heat

K = constant factor

= mass flow

The temperature sensors are part of a bridge circuit and the inbalance is linearised and amplified to the desired signal level.

1.2.2 Gas flow sensors (direct mass flow measurement, CTA based)

The IN-FLOW CTA models operate on the principle of direct thermal mass flow measurement. The thru-flow design sensor consists of a heater resistor and a temperature sensing resistor. Both resistors are made of temperature sensitive resistive material that is covered with a stainless steel tube. The heating power required to keep the temperature difference between the heater resistor and the sensing resistor at a constant level is proportional to the mass flow. A different and unique heater current is produced for each value of the flow. The measurement principle described is called Constant Temperature Anemometry (CTA).

The transfer function between mass flow and output signal can be described by the equation:

= output signal

signal

= offset (zero flow) signal

K = constant factor (includes λ – heat conductivity, C

– specific heat, μ – dynamic viscosity and ρ –

density of the gas)

= mass flow

n = dimensionless constant (typically of order 0.5)

1.2.3 Liquid flow sensors

Two digital-liquid flow measurements and two sensor arrangements can be distinguished. They have in common that there is no bypass system involved, which means that they are of the type: “thru flow”. The following sensor arrangements can be distinguished:

1) The µ-FLOW model for flowrates up to 2 g/h.

Basically this is a small capillary tube with two sensing elements placed on the tube. The two elements both serve as heater as well as temperature sensing elements. The delta-T sensed by the upstream and downstream temperature sensors on the capillary depends on the amount of heat absorbed by the mass of the liquid. The temperature sensors are part of a bridge circuit and the unbalance is amplified to the desired signal level. The transfer function between liquid mass flow and signal can be described by the equation:

= output signal

signal

= specific heat

K = constant factor

= mass flow

BRONKHORST HIGH-TECH B.V.

9.17.022

page 13

mpsignal

cKV Φ

⋅

⋅⋅≅

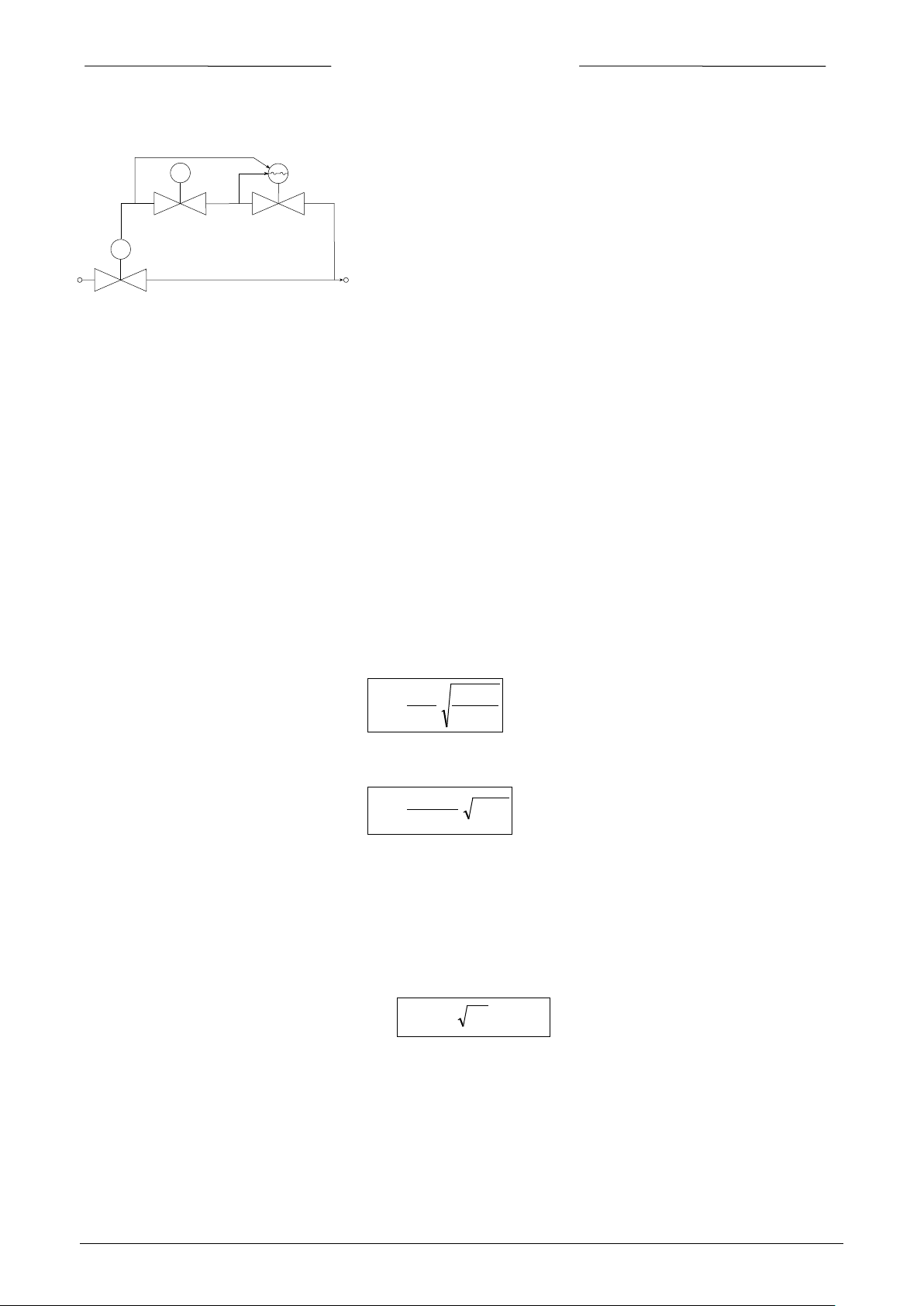

flowcontrol

valve

pressure

compensating

valve

flowcontrol

valve

2) The CTA based LIQUI-FLOW model for flow rates up to approximately 1000 g/h.

The CTA based LIQUI-FLOW model basically consists of a small capillary tube with two sensing elements placed around it. The upstream sensing element is a temperature sensor that is used to measure the temperature of the liquid flowing through the tube. The downstream sensing element is a heater, which is heated up to a certain temperature ∆T over the medium temperature. A patent application on the flow sensor design has been submitted. The heater power necessary to keep ∆T at a constant level is dependent on the mass flow. In the case of no flow, a constant and negligibly small heating power is necessary. When a certain mass flow occurs, the heater is cooled down. Therefore, the heating power has to be increased to maintain the adjusted temperature difference. Thus, a different and unique heater power is produced for each value of the flow. The measurement principle described is called Constant Temperature Anemometry (CTA). The heater and temperature sensing element are electrically connected via a Wheatstone bridge configuration that performs two features: first, it provides the heater with the necessary heater power and second, it takes care of the temperature compensation. Finally, a signal conditioning circuit provides a linear output signal. The transfer function between the liquid mass flow and the linear output signal can roughly be described with the equation:

= output signal

signal

K = calibration constant

= specific heat

l = heat conduction coefficient

= mass flow

1.2.4 Pressure sensor

The EL-PRESS pressure sensor is formed by a piezoresistive bridge on the surface of a silicon crystal. The sensor is mounted in a stainless steel construction and separated from the fluid by a thin metal membrane. The chamber around the sensor is filled with oil to couple the pressure from the fluid to the sensor.

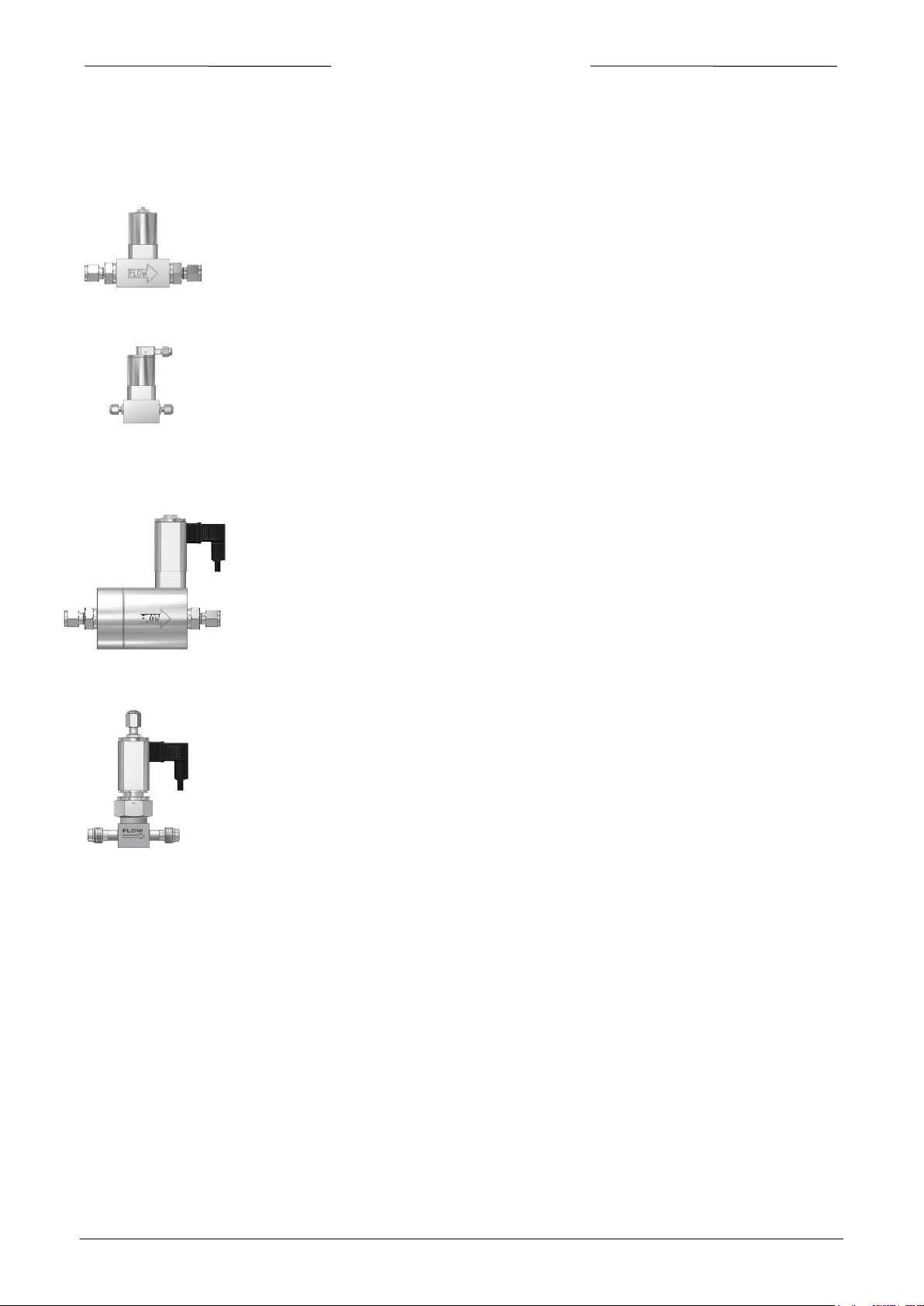

1.3 Valve principles

Control valves are not designed to provide positive shut-off, although some models have excellent capabilities for this purpose. It is recommended to install a separate shut-off valve in the line if so required. Also pressure surges, as may occur during system pressurisation must be avoided. The following models can be distinguished:

1.3.1 Solenoid valve

This is considered to be the standard (direct operated) control valve. In general it is a normally closed solenoid valve. The plunger is lifted by the force of the magnetic field of the coil. The orifice under the plunger is removable for optimising the orifice diameter. Also a normally opened solenoid valve is available.

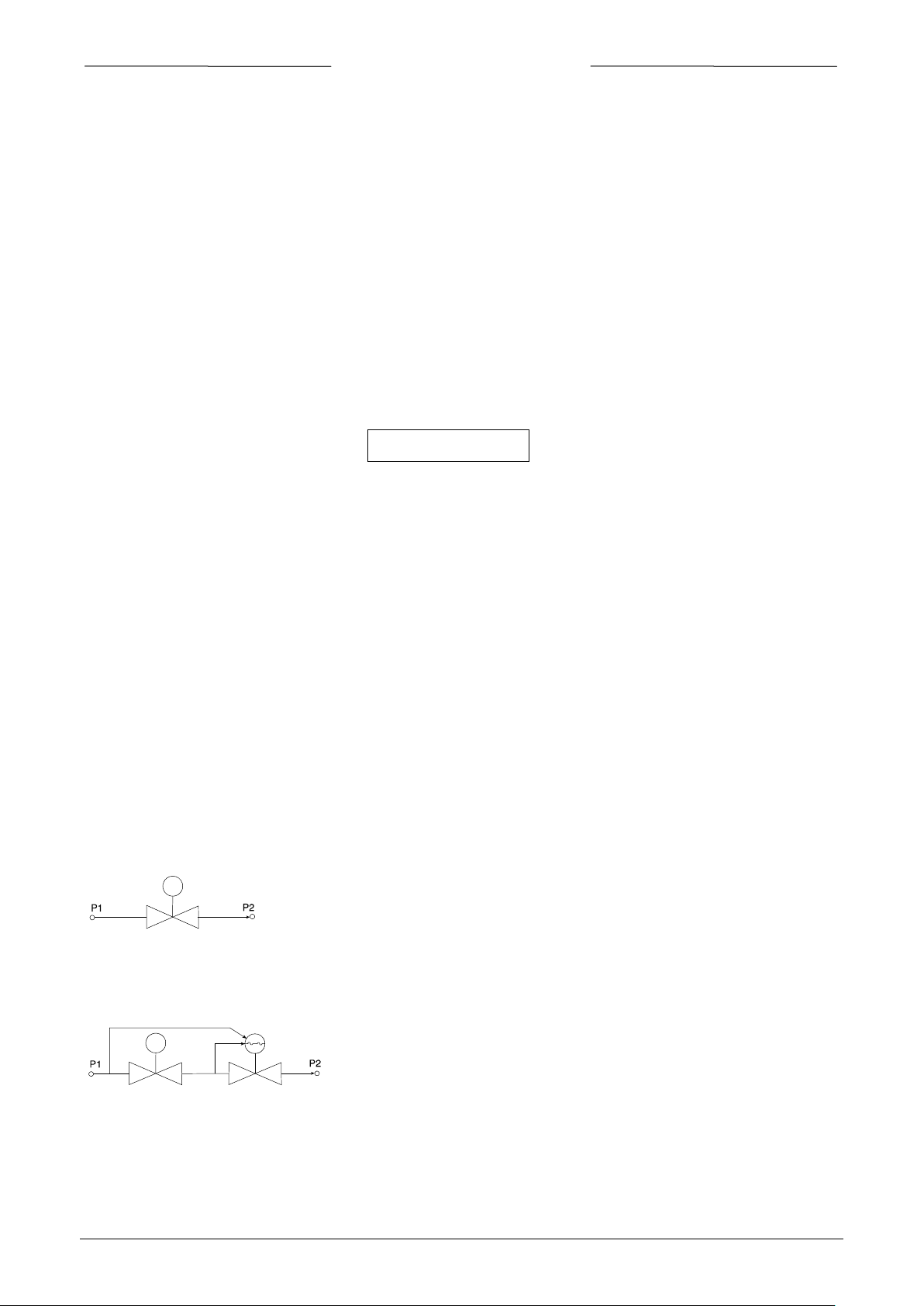

1.3.2 Vary-P valve

For process conditions where up- and downstream pressure vary much, a special type of valve, VARY-P has been designed. This valve consists of two valves, a solenoid operated control valve and a fixed adjusted pressure compensation valve.

BRONKHORST HIGH-TECH B.V.

page 14

9.17.022

p p

vn n

⋅

⋅Φ∆514

⋅

257

pilot valve pressure

compensating

valve

flowcontrol valve

1.3.3 Pilot operated valve

For high flow rates the pilot operated valve has been designed. A solenoid driven control valve controls the pressure difference across a piston, which lifts the main plunger.

1.3.4 Bellows valve

This valve type is a direct driven, low power, solenoid operated control valve. A special design, incorporating a metal bellows allows for a relatively large orifice opening to be controlled. The design is suited for low pressure or vacuum applications.

1.4 Kv-value calculation

This calculation method can be used to determine the K

-value of the main orifice of a control valve.

1.4.1 For gases

Determine desired ∆p across valve. ∆p must be at least 20% of supply pressure, or in closed loop systems, of total pressure difference in loop. If ∆p is 20-50% of supply pressure, use formula:

undercritical

If ∆P is 50-100% of supply pressure, use formula:

overcritical

Units:

= flow [m

= supply pressure [bara]

= downstream pressure [bara]

∆p = pressure difference (p T = temperature [K]

= density [kg/m

The orifice diameter can be determined by: d= 7.6

/h]

- p2) [bara]

]

[mm]

BRONKHORST HIGH-TECH B.V.

9.17.022

page 15

v v

=⋅Φ

∆ρ1000

[mm]7.6vKd =

Diameter [mm]

Normally closed

∆p max. [bard]

0,10

1,00

1,73 x 10-4

1,73 x 10-2

v v

⋅⋅Φ∆

1000

1.4.2 For liquids

This calculation method can be used to determine the K

Units:

= volume flow [m3/h]

ρ = density at 20°C and 1 atm [kg/m

]

∆p = delta p [bard]

The orifice bore diameter can be determined by:

On LFC's only one type of normally closed valve is available. Diameter of orifice can be calculated or looked up in the table.

-value of the main orifice of a control valve.

0,14 0,20 0,30 0,37 0,50 0,70

3,39 x 10-4 6,93 x 10 1,56 x 10 2,37 x 10 4,33 x 10 8,48 x 10

-4

-3

* For liquids having a dynamic viscosity: 15 cP <

Units:

= volume flow [m3/h]

ρ = density at 20°C and 1 atm. [kg/m

]

∆p = delta p [bard] µ = dynamic viscosity [c

]

For maximum possible viscosity apply to factory

10 10 10 10 10 10

< 100 cP the Kv value should be calculated according to:

BRONKHORST HIGH-TECH B.V.

page 16

9.17.022

Diameter [mm]

Normally closed

∆p max. [bard]

Normally opened

∆p max. [bard]

0,05

2,00

4,33 x 10-5

6,63 x 10-2

3,6

n.a.

1.4.3 Maximum pressure drop

For (pilot) solenoid operated control valves with small orifices the maximum allowable pressure drop for gases is according to the table.

0,07 0,10 0,14 0,20 0,30 0,37 0,50 0,70 1,00 1,30 1,50 1,70

8,48 x 10-5 1,73 x 10 3,39 x 10 6,93 x 10 1,56 x 10 2,37 x 10 4,33 x 10 8,48 x 10 1,73 x 10 2,93 x 10 3,90 x 10 5,00 x 10

-4

-3

-2

30 30 30 30 30 30 30 24 12

8 6 5

20 20 20 20 20 20 20 15

5 n.a. n.a.

For pilot operated valves the maximum pressure drop is limited to 20 bard. If the the pressure drop during start-up is higher, it is prefered to install a bypass valve. During start-up this valve should be opened. Also the minimum pressure drop is limited. For exact figures consult factory or proceed according to the technical data and/or additional instructions given by the sales office or department.

1.5 Sensors and laminar flow devices

Flow devices are used to determine the total flow rate of a gas flow meter or controller. Mind that liquid flow sensors, CTA-based sensors and pressure sensors do not require a flow device. Depending on the application the flow sensors have different removable capillaries, requiring a different laminar flow device. Furthermore for flow rates higher than 1250 l capillary / flow device arrangement in order to compensate for the non ideal transfer function of the main flow device. In general 3 types of capillary tubes are available:

- Small bore (C-type) The following notes apply to this type of sensor:

- These sensors have a pressure drop of approx. 35 mbar

- The laminar flow device consists of a stack of discs with precision etched flow channels. Each flow channel represents approx. 10 ml

- In all instruments with a pressure rating above 100 bar (M-type) the sensor is fitted with metal seals.

- In general instruments with these sensors may be mounted horizontal, as well as in a vertical position, at low operating pressures. At high pressures (>10 bar) the instruments should be mounted in a horizontal position.

- The EL-Flow, EL-press metal seal series are fitted with a metal sealed sensor.

- Large bore (D-type) To this type of sensor the following remarks apply:

- These sensors are preferably used for reactive gases and at low pressure applications.

- The pressure drop is less than 0.5 mbar.

- The laminar flow device forms together with the main channel an annular channel. The dimensions of this annular channel determine the flow capacity of the instrument.

- The instrument must always be mounted in a horizontal position.

- Medium bore (E-type) This sensor is used in the “EL-FLOW series” and is used for increasing the flowrange of the “low deltaP series”. The same remarks as the D-type apply to this sensor, only:

-The pressure drop is approx. 2.5 mbar.

/min the main laminar flow device is used in combination with a

/min airflow at 35 mbar delta-P.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 17

V K c K c

signal p m p v

= ⋅ ⋅ = ⋅ ⋅ ⋅Φ Φρ

⋅

0.74

1.00

59 2

100

⋅

1.6 Conversion factors

1.6.1 Gas conversion factors (by-pass measurement)

The general formula for determining the relationship between signal and mass flow is:

in which:

V K = constant ρ = density c Φ Φ

As soon as the c conversion factor C is:

= output signal

signal

= specific heat

= mass flow

= volume flow

value and density of the gas to be metered change, the signal must be corrected. The

in which: c ρ

= specific heat

= density at normal conditions

(1) gas calibrated (2) gas to be measured

Note:

The c

value used for the calculation of the conversion factor must be taken at a temperature approx. 50°C.

higher than the required temperature. This factor is called c

cal. The conversion factors for commonly used gases related to N Conversion Table in the appendix 1.

Example:

Meter calibrated on N Gas flow passing the meter is CO

(200 mln/min).

Output signal reads 80.0%.

Actual CO

flow = 80.0

= 59.2%

200 = 118.4 mln/min

at normal conditions are stated in the Gas

* n means normal conditions

At normal conditions volumes are converted to a temperature of 0°C and pressure of 1 atm or 1013,25 mbar. (760 Torr)

Note:

Best accuracy is always achieved by performing calibration under operating conditions. Should this not be possible or practical, then the use of a theoretical conversion factor is a means to determine the flow rate of the instrument on the gas to be metered, however, it will introduce inaccuracies.

BRONKHORST HIGH-TECH B.V.

page 18

9.17.022

mix

+ +

V C

1 010

100

0 30 140

0 50 0 76

010

141

1043

mix

= + + + =

, ,

00,

959

⋅

40,1

959,0

⋅

n msignal

KSS

Φ⋅+≅

The approximate accuracy of the conversion factors listed is:

typical for conversion factors; > 1 2% x factor < 1 2% / factor

However, as the accuracy of the factor also depends on viscosity, pressure and temperature, special attention should be taken for gases in the gas/liquid state where specific heat, density and viscosity can vary tremendously. Apply to factory for more detailed information.

For gas mixtures a good approach is the following simplified equation:

= Conversion factor for gas mixture

mix

= Conversion factor for gas n

= Volumetric part of gas n in the mixture

Example Gas mixture contains:

(1) 10% N2 C1 = 1,00 (2) 30% Ar C2 = 1,40 (3) 50% CH

C3 = 0,76

(4) 10% He C4 = 1,41

= 0,959

mix

When the original meter has been calibrated on 500 ml

500

= 480 mln/min mixture.

/min N2, 100% means:

When the original meter has been calibrated on 500 mln/min Argon, then 100% means:

500

= 343 mln/min gas mixture.

1.6.2 Gas Conversion Factors (direct mass flow measurement, CTA-based)

For CTA-based gas flow sensors the general relationship between signal and mass flow is:

In which:

S K = constant factor (includes λ – heat conductivity, C

Φ n = dimensionless constant (typically of order 0.5)

Due to the offset signal (which is also dependent on fluid properties) and the non-linear relationship between signal and mass flow, a single conversion factor for a custom fluid that covers the entire flow range of an instrument can not be obtained. However, a complex and partially empirical conversion model is available for most common gases, which is accurate at both lower and higher flow ranges. Consult Bronkhorst High-Tech B.V. for applications.

= output signal

signal

= offset (zero flow) signal

and ρ – density of the gas)

= mass flow

– specific heat, μ – dynamic viscosity

BRONKHORST HIGH-TECH B.V.

9.17.022

page 19

signal

V k c

signal p

= ⋅ ⋅ Φ

Cf Φ⋅=Φ

c c

mpsignal

cKV Φ⋅l⋅⋅≅

( )

FLUIDCUSTOM

FLUIDREFERENCE

≅

At nominal flow ranges for each instrument, a good approximation is the use of the so-called “CFDirect” conversion method, which comes with the FLUIDAT software.

Consult FLUIDAT for the most optimal conversion factor.

1.6.3 Liquid Conversion Factors

1) µ-FLOW models

The general formula for determining the relationship between signal and mass flow reads:

in which:

= output signal

k = calibration constant

= heat capacity at constant pressure of the fluid

= mass flow

A conversion factor must be used if the liquid flow meter is not used on the calibrated liquid. This conversion factor reads:

in which:

= heat capacity of the calibration liquid

= heat capacity of the new liquid

For application of this formula consult Bronkhorst High-Tech B.V.

2) CTA based LIQUI-FLOW

For the CTA based LIQUI-FLOW liquid mass flow sensor, the transfer function between the liquid mass flow and the linear output signal can roughly be described with the equation:

= output signal

signal

K = calibration constant

= specific heat

l = heat conduction coefficient

= mass flow

A conversion factor must be used if the liquid flow meter is not used on the calibrated liquid (reference liquid) but on another liquid (custom liquid). The conversion factor CF can roughly be calculated with the equation:

For application of this equation, please consult Bronkhorst High-Tech B.V.

1.6.4 Software for conversion factor calculation

Bronkhorst High-Tech B.V. gathered the physical properties of over 600 fluids in a database called FLUIDAT Application software, such as FLUIDAT conversion factors, not only at 20°C/1 atm (as shown in the conversion table, App.1) but at any temperature/pressure combination. Apply to your distributor for more details of this software.



on the Net (FOTN), enable the user to calculate accurate

BRONKHORST HIGH-TECH B.V.

page 20

9.17.022

2 Installation

2.1 Receipt of equipment

Check the outside packing box for damage incurred during shipment. Should the packing box be damaged, then the local carrier must be notified at once regarding his liability, if so required. At the same time a report should be submitted to:

BRONKHORST HIGH-TECH B.V.

If applicable, otherwise contact your distributor. Remove the envelope containing the packing list; carefully remove the equipment from the packing box. Do not discard spare or replacement parts with the packing material and inspect the contents for damaged or missing parts.

2.2 Return shipment

When returning material, always describe the problem and if possible the work to be done, in a covering letter.

It is absolutely required to notify the factory if toxic or dangerous fluids have been metered with the instrument!

This to enable the factory to take sufficient precautionary measures to safe-guard the staff in their repair department. Take proper care of packing, if possible use the original packing box; seal instrument in plastic etc.

Contaminated instruments must be dispatched with a completely filled in 'declaration on contamination form'. Contaminated instruments without this declaration will not be accepted.

Note:

If the instruments have been used with toxic or dangerous fluids the customer should pre-clean the instrument.

Important:

Clearly note, on top of the package, the customer clearance number of Bronkhorst High-Tech B.V., namely:

If applicable, otherwise contact your distributor for local arrangements.

2.3 Service

If the equipment is not properly serviced, serious personal injury and/or damage to the equipment could be the result. It is therefore important that servicing is performed by trained and qualified service personnel. Bronkhorst High-Tech B.V. has a trained staff of servicemen available.

RUURLO HOLLAND

NL801989978B01

BRONKHORST HIGH-TECH B.V.

9.17.022

page 21

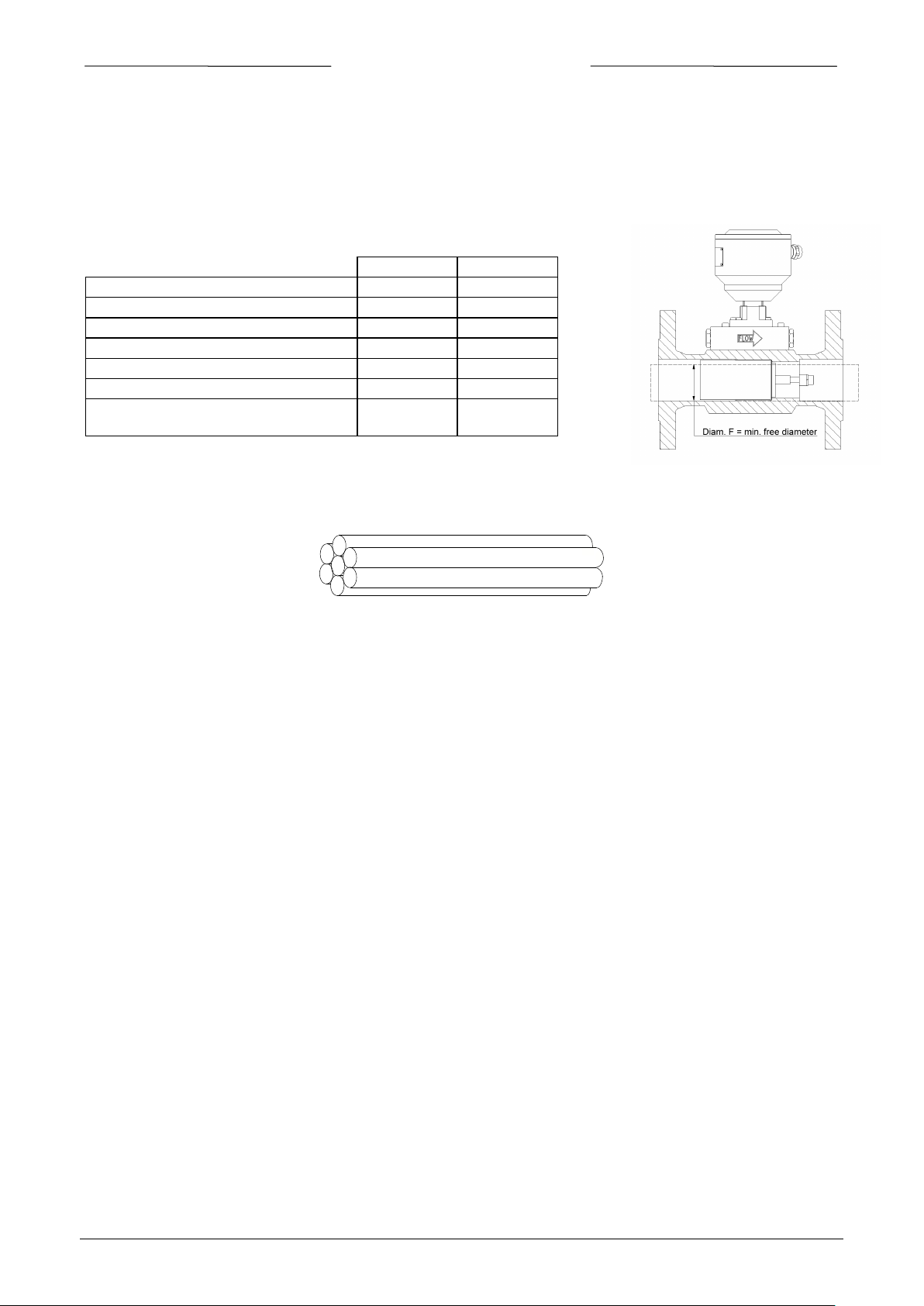

STRAIGHT PIPE LENGTH REQUIREMENTS (in number of diameters F)

Upstream

Downstream

one 90° bend before meter

two 90° bend before meter

two 90° bend in two planes

three 90° bend in three planes

reduction before meter

expansion before meter

pressure reducing valve / control valve /

2.4 Mounting

The mounting position depends on the type of instrument. For flowmeters the preferred position is horizontal, and at high pressures all meters should be mounted in this position. Avoid installation in close proximity of mechanic vibration and/or heat sources.

For mounting the F-106/F-107 series handle the following rules:

partially closed valve before meter

For further information see dimensional drawing.

In general flow straighteners have a suspicious influence on the free length of the meter. A flow straightener can be imagined as a bundle of parallel tubes which is placed in the tube.

In general, these flow straighteners must be placed at least 6 à 8 D upstream of the meter. In general, use a flow straightener in case of control valves and curves in unequal levels.

Next to these prescriptions for free length, the flow has to be steady, shock and pulsation free.

2.5 In-line filter

Although fluids to be measured should be absolutely free of dirt, oil ,moisture and other particles, it is recommended to install an in-line filter upstream of the flowmeter / controller, and if backflow can occur, a downstream filter is recommended too. Be aware of the pressure drop caused by the filter. On the inlet of some instruments a screen is placed to prevent foreign matter from entering the instrument and to maintain a good flowpattern. This device cannot be seen as a filter element. Contact your distributor for further information.

2.6 Fluid connections

Bronkhorst High-Tech B.V. meters / controllers are equipped with compressiontype or face-seal-fittings.For most of the instruments these fittings are BSP parallel threads types which have to be used in combination with elastomeric O-rings to seal to the instrument. For some instruments these fittings are orbitally welded to the body. For leak tight installation of compression type fittings be sure that the tube is inserted to the shoulder in the fitting body and that no dirt or dust is present on tube, ferrules or fittings. Tighten the nut fingertight; while holding the instrument, then tighten the nut 1 turn. If applicable follow the guidelines of the supplier of the fittings. Special types of fittings are available on request. The flanges also must fit good to each other and there may not stick seals into the tube.

* Note: Always check your system for leaks, before applying fluid pressure. Especially if toxic, explosive or

other dangerous fluids are used.

BRONKHORST HIGH-TECH B.V.

page 22

9.17.022

Vd≥

0152,

V ≥ ⋅ =

015 4 129 2

, : , ,

2.7 Piping

BE SURE THAT PIPING IS ABSOLUTELY CLEAN! DO NOT install small diameter piping on high flowrates, because the inlet jetflow will affect the accuracy. DO NOT mount abrupt angles direct on in- and outlet, especially not on high flowrates. We recommend at

least 10 pipe diameters distance between the angle and the instrument. DO NOT mount pressure regulators direct on the inlet of gas flow meters/controllers, but allow some meters of piping (at least 25 D). Special attention should be taken at high flow rates with flow controllers. An up- and downstream buffer is needed with a volume calculated according to the following formula:

in which:

V = Volume in litres d = orifice diameter in mm ρ = density at normal conditions

d = 7,6

Example:

Flow controller at 500 l

/min Air and orifice diameter d = 4 mm, needs for stable control a buffer volume of:

litres

Also the capacity of the pressure regulator should be at least 2 times the flow controller, so in this case 2 ⋅ 500 = 1,000 l

/min.

2.8 Electrical connections

Bronkhorst High-Tech B.V. recommends to use their standard cables. These cables have the right connectors and if loose ends are used, these will be marked to prevent wrong connection. Hook-up diagrams are enclosed in the back of this manual. To comply with the IP classification it is necessary to follow the assemble guidelines of the connector manufacturer.

2.9 Caution

Each meter/controller is pressure tested to at least 1.5 times the working pressure of the process conditions stipulated by the customer, with a minimum of 8 bar.

For pressure meter/controllers. The test pressure depends on the range of the pressure transducer. In general 2 x F.S. value for ranges 1 and 2 bar

1.5 x F.S. value for ranges up to 200 bar

1.25 x F.S. value for ranges up to 400 bar

The tested pressure is stated on the flow meter/controller with a RED COLOURED sticker. Check test pressure before installing in the line. If the sticker is not available or the test pressure is incorrect, the instrument should not be mounted in the process line and be returned to the factory. Each instrument is helium leak tested to at least 2⋅10

-9

mbar l/s Helium.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 23

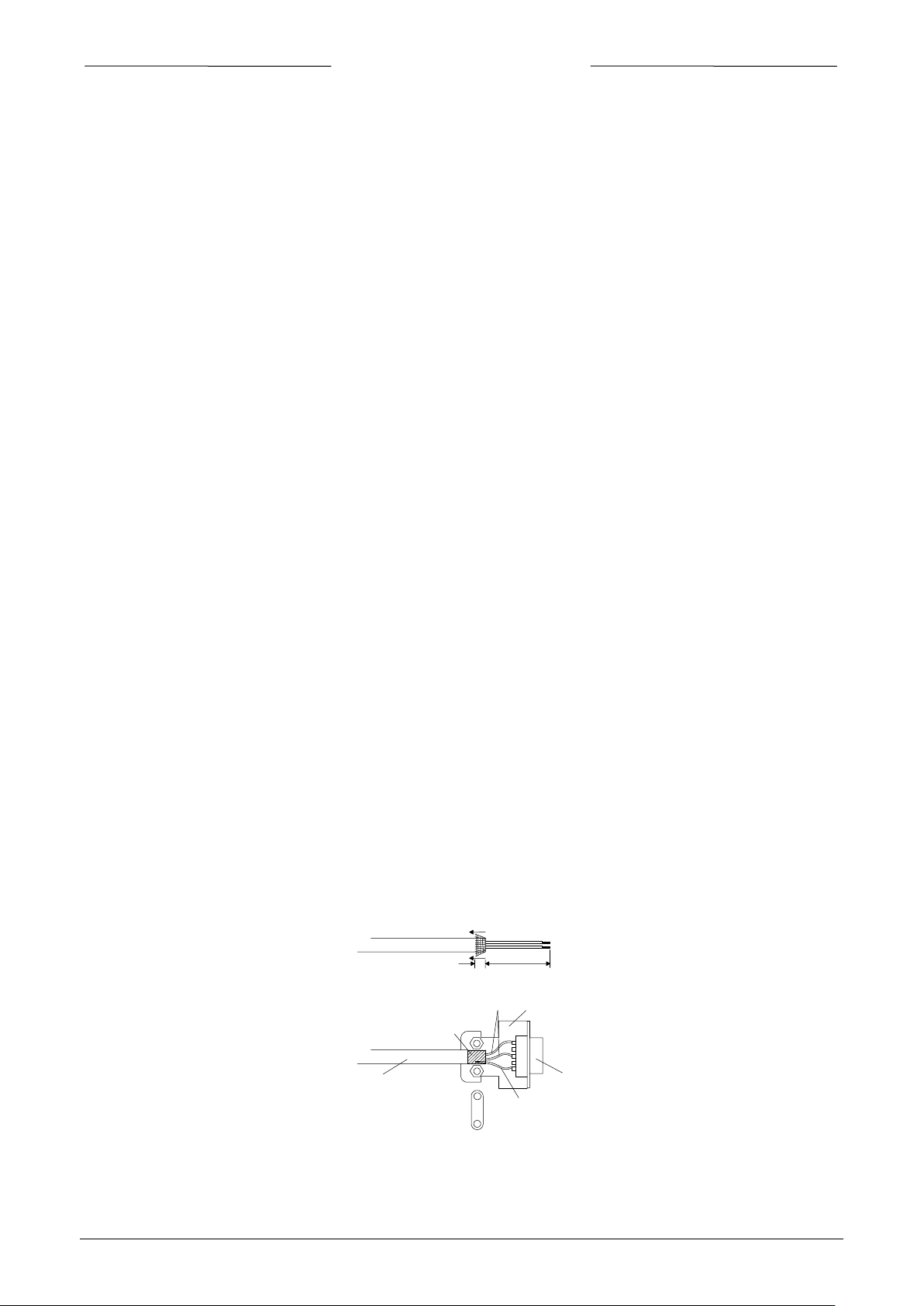

Fold the shield of the cable back over the cable (the shield must be around the cable). Wind a copper tape around the shield

Solder a black wire on the tape and connect to pin 9 of the connector.

copper tape

shielded cable e.g. LAPP LiYCY other wires

D-connector housing metalized.

connector

8 mm 20 mm

Black wire (shield)

2.10 Supply pressure

Do not apply pressure until electrical connections are made. W hen applying pressure to the system, take care to avoid pressure shocks in the system and increase pressure gradually, especially on high pressure units incorporating a piston operated control valve.

2.11 System purging

If explosive gases are to be used, purge the process with inert dry gas like Nitrogen, Argon etc. for at least 30 minutes. In systems with corrosive or reactive fluids, purging with an inert gas is absolutely necessary, because if the tubing has been exposed to air, introducing these fluids will tend to clog up or corrode the system due to a chemical reaction with oxygen or moist air. Complete purging is also required to remove such fluids from the system before exposing the system to air. It is preferred not to expose the system to air, when working with these corrosive fluids.

2.12 Seals

Bronkhorst High-Tech B.V. has gathered a material compatibility chart from a number of sources believed to be reliable. However, it is a general guide only. Operating conditions may substantially change the accuracy of this guide. Therefore there is no liability for damages accruing from the use of this guide. The customers application will demand its own specific design or test evaluation for optimum reliability. So check if the seals like O-rings, plunger and packing gland of capillary are correct for the process.

2.13 Equipment storage

The equipment should be stored in its original packing in a cupboard warehouse or similar. Care should be taken not to subject the equipment to excessive temperatures or humidity.

2.14 Electromagnetic compatibility

2.14.1 Conditions for compliance with EMC requirements

All instruments described in this manual carry the CE-mark. Therefore they have to comply with the EMC requirements as are valid for these instruments. However compliance with the EMC requirements is not possible without the use of proper cables and connector/gland assemblies. For good results Bronkhorst High-Tech B.V. can provide standard cables. Otherwise follow the guidelines as stated below.

D-Connector assembly

page 24

9.17.022

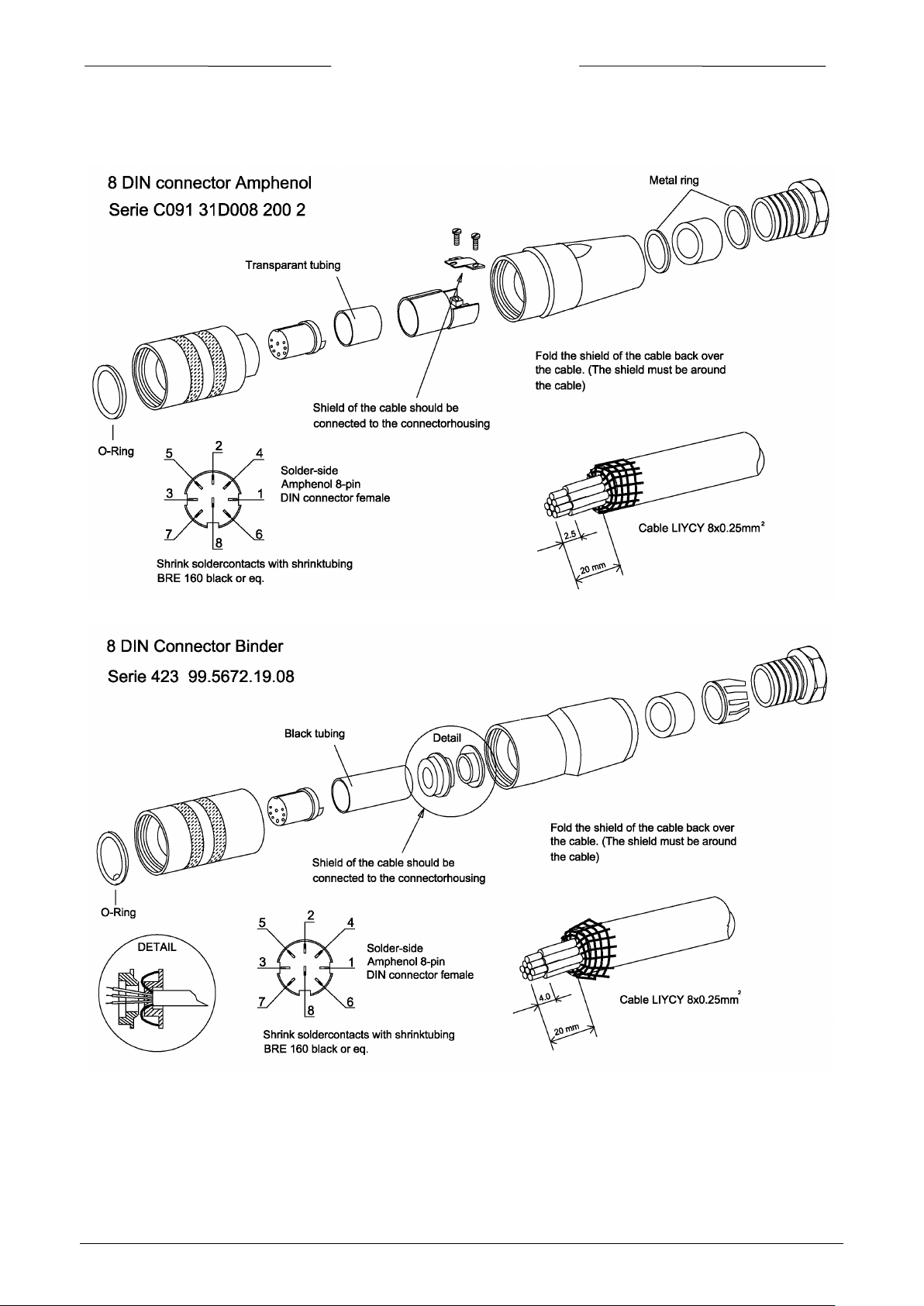

8DIN connector assembly

BRONKHORST HIGH-TECH B.V.

Notes:

1. When connecting the system to other devices (e.g. to PLC), be sure that the integrity of the shielding is

not affected. Do not use unshielded wire terminals.

2. For FLOW-BUS S(F)TP data (patch) cable connection to RJ45 connectors follow the instructions of the

supplier. It is important to use shielded twisted pair cables and shielded RJ45 modular jack connectors.

3. For PROFIBUS-DP or DeviceNet data cable connections follow the instructions of the cable suppliers for

the specific field-bus system.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 25

3 OPERATION

3.1 General

The Bronkhorst High-Tech B.V. instruments are designed in such a way that they will meet user process requirements in the best possible way.

Basically all digital meters/controllers are powered with +15 Vdc to +24 Vdc. When providing your own power supply be sure that voltage and current rating are according to the specifications of the instrument(s) and furthermore that the source is capable of delivering enough energy to the instrument(s). Cable wire diameters should be sufficient to carry the supply current and voltage losses must be kept as low as possible. When in doubt: consult factory.

Digital instruments can be operated by means of:

1. Analog interface (0...5Vdc/0...10Vdc/0...20mA/4...20mA)

2. RS232 interface (connected to COM-port by means of special cable)

3. FLOW-BUS

4. PROFIBUS-DP

5. DeviceNet

6. Modbus

7. EtherCAT

Option 1 and 2 are always present on multibus instruments. An interface to any available fieldbus is optional. Operation via analog interface, RS232 interface and an optional fieldbus can be performed at the same time. A special parameter called “control mode” indicates to which setpoint the controller should listen: analog or digital (via fieldbus or RS232). The RS232 interface behaves like a FLOW-BUS interface. When using more interfaces at the same time, reading can be done simultaneously without problems. When changing a parameter value, the last value send by an interface will be valid.

Also the micro push-button switch and the LED’s on top of the instrument can be used for manual operation of some options. The green LED will indicate in what mode the instrument is active. The red LED will indicate error/warning situations.

3.2 Power and warm-up

Before switching on power check if all connections have been made according to the hook-up diagram which belongs to the instrument. It is recommended to turn on power before applying pressure on the instrument and to switch off power after removing pressure. Check fluid connections and make sure there is no leakage. If needed purge the system with a proper fluid. For a gas instrument only purging with gases is allowed. Liquid instruments may be purged with either a gas or a liquid, whatever is needed for the purpose. Turn on power and allow at least 30 minutes to warm up and stabilize. In cases where no electronics are involved (valves only) warming up is not needed. During warm-up period, fluid pressure may either be on or off.

3.3 Zeroing

In general the zero point of each instrument is factory adjusted. If so required the zero point of the instrument may be re-adjusted.

After warm-up, with no gas flow, use the micro push-button switch on top of the instrument to start the automatic zero adjustment procedure, if required. For flow controllers setpoint must be zero. Be sure there is no gasflow. For information how to start the automatic zero procedure by means of the micro push-button switch, see manual operation, document number 9.17.023.

It is also possible to start the automatic zero adjustment procedure through the FLOW-BUS, using a E-7000 readout/control unit or a software program on a PC, connected to a FLOW-BUS interface module. See the appropriate documentation for more detailed information.

BRONKHORST HIGH-TECH B.V.

page 26

9.17.022

3.4 Start-up

Turn on fluid supply gently. Avoid pressure shocks, and bring the instrument gradually up to the level of the actual operating conditions. Also switch off fluid supply gently. In case of liquid control be sure to remove all trapped gas bubbles from the system. The purge connection on top of the control valve can be used for this purpose.

3.5 Operating conditions

Each instrument has been calibrated and adjusted for customer process conditions. Controllers or valves may not operate correctly, if process conditions vary too much, because of the restriction of the orifice in the valve. For flowmeters performance and accuracy may be affected tremendously if physical fluid properties such as heat capacity and viscosity change due to changing process conditions.

3.6 Instrument performance

3.6.1 Sensors

Assuming that the transfer function of a system is an exponential shaped curve, the time constant is defined as follows: time constant = time for the signal to reach 63.2 % of its final output value. Approx. five time constants is the time to reach the final value.

The time constant of flowsensors depends on the type of instrument and settings. Pressure sensors have a time constant of some milliseconds. However the actual response is determined by the pneumatic response of the system which the pressure meter is part of.

3.6.2 Controllers

The dynamic response of a controller is factory set. Standard settling time is defined as the time to reach the setpoint (and stay) within ± 2% of the initial setpoint. The control mode is factory set in such a way that after a step change, there will be little overshoot.

Note:

In pressure control systems the system widely determines the response behaviour of the control loop. During testing the customer system is simulated as closely as possible. In some cases however readjustment is needed for optimum performance under actual conditions.

3.7 Manual operation

By means of manual operation of the micro push-button switch some important actions for the instrument can be selected/started. These options are available in both analog or BUS/digital operation mode. (see also manual operation in document number 9.17.023)

These functions are:

- reset (instrument firmware-program reset)

- auto-zeroing (remove zero-drift offset in sensor bridge)

- restore factory settings (in case of unaccidently changing of the settings)

for FLOW-BUS only:

- automatic installation to FLOW-BUS (installs instrument to free address)

- remote installation to FLOW-BUS (instruments will be installed by E-7000 or PC-software)

9.17.022

page 27

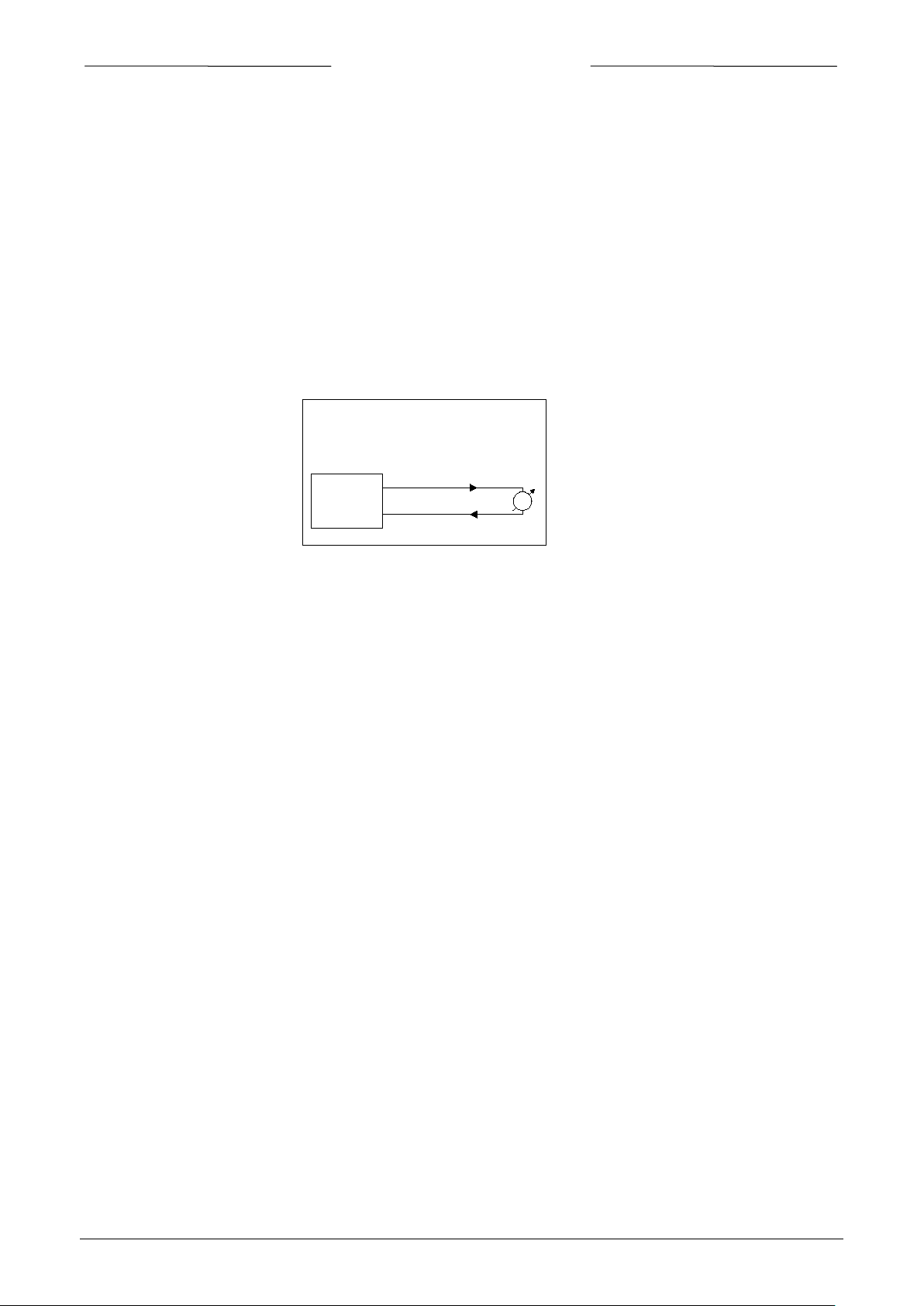

0V common

Current output signals

Sourcing

instrument

output I

3.8 Analog operation

Digital instruments can be operated with analog signals through the 9-pin sub-D connector or 8DIN connector. The instruments are compatible in use with analog instruments on this point. Analog operated instruments can be hooked-up using an 8-wire shielded cable with 9-pin D-connectors or 8DIN connectors, connected according to the Bronkhorst High-Tech standard.

Each electronic p.c.board is set for one of the following output (and corresponding input) signals:

Signal output (sensor) input (setpoint) code signal signal

A 0…5 Vdc 0…5 Vdc B 0…10 Vdc 0…10 Vdc F 0…20 mA (sourcing) 0…20 mA (sinking) G 4…20 mA (sourcing) 4…20 mA (sinking)

For meters only the output signal is available.

At analog operation following parameters are available:

Note:

When operating the instrument through the analog interface it is possible to connect the instrument to any supported fieldbus system (or RS232-interface with special cable) for reading/changing parameters (e.g. controller response or other fluid selection).

For FLOW-BUS versions of the instruments a readout/control module for digital instruments can be temporarily connected to the RJ45 modular jack plug.

3.9 BUS / digital operation

Operation via fieldbus reduces the amount of cables to build a system of several instruments and offers more parameter values to be monitored/changed by the user.

See instruction manual: operating digital mass flow / pressure instruments for more details (document nr.

9.17.023).

Operation by means of a fieldbus adds a lot of extra features (compared to analog operation) to the instruments. Such as:

BRONKHORST HIGH-TECH B.V.

- measured value

- setpoint (controllers only)

- valve voltage (controllers only)

- setpoint slope (ramp function on setpoint for smooth control)

- 8 selectable fluids (calibration settings for high accuracy)

- direct reading at readout/control module or host computer

- testing and self diagnosis

- response alarm (|setpoint-measure| too high for too long time)

- several control/setpoint modes (e.g. purge/close valve)

- master/slave modes for ratio control (FLOW -BUS only)

- identification (serialnumber, modelnumber, device type, user tag)

- adjustable minimal and maximal alarm limits

- (batch) counter

- adjustable response time for controller when opening from zero

- adjustable response time for normal control

- adjustable response time for stable control (|setpoint-measure| < 2%)

BRONKHORST HIGH-TECH B.V.

page 28

9.17.022

Note: Special RS232 cable consists of a T-part with 1 male and 1 female sub-D 9 connector / 8DIN connector on one instrument-side and a normal female sub-D 9 connector on the side of the computer. See hook-up diagram for the correct RS232 cable which should be used. By means of this cable it is possible to offer RS232 communication and still be able to connect power-supply and analog interface through the (analog) sub-D 9 connector / 8DIN connector. RS232 communication is only possible with a baudrate of 38.4 KBaud and can be used for either:

• Uploading new firmware by means of a special program (for trained BHT-service personnel only)

• Servicing your instrument using BHT-service programs (for trained BHT-service personnel only)

• Operating your instrument using FLOWDDE, FLOWB32.DLL or RS232-ASCII protocol (end user)

4 Maintenance

4.1 General

At normal use, no routine maintenance is required to be performed on the meters or controllers. Units may be flushed with clean, dry inert gas. For further information contact supplier or factory.

4.2 Gas flow sensor

The gasflow sensor is constructed in such a way that for a change in range, the laminar flow element can be removed. It is not recommended for the user to disassemble the instrument other than for removing the laminar flow element for inspection, or range changing only. After replacing the laminar flow element it becomes necessary to recalibrate the flow meter. When doing so proceed according to a suitable calibration procedure. Depending on the model number laminar flow elements can be ordered separately.

4.3 Liquid flow sensor

The user cannot change the flow range of a liquid flow sensor. The sensor is an integral part of the instrument and cannot be removed from it. For occasional cleaning the instrument may be flushed with a cleaning fluid.

4.4 Pressure sensor

It is not recommended for the user to disassemble the pressure sensor, because the thin metal membrane is very delicate.

4.5 Controllers

All sensor types can be combined with a control valve to be operated together as a control loop. Controller systems are either available as separate units; a sensor and a control valve, or as an integrated unit. If applicable maintenance procedures are described under “control valves”

4.6 Control valves

Control valves cannot be used for shut-off and/or on-off applications. Pressure surges, as may occur during system pressurisation or deflation must be avoided.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 29

4.6.1 Solenoid valves

These are considered to be the direct operated control and pilot valves. They may be disassembled in the field by the user for cleaning and servicing. The parts can be cleaned with a cleaning liquid, or in an ultrasonic bath. To disassemble the valve proceed as follows: a) disconnect the instrument connector (not necessary with separate valve) b) remove the hex nut on top of the valve assembly c) lift the cover (coil) assembly d) unscrew the flange e) lift valve assembly carefully from the base f) unscrew set screw for the orifice and subsequently loosen the orifice and the orifice holder g) remove the plunger assembly

Clean parts and carefully re-assemble in reverse order. It is recommended to replace the O-rings prior to reassembly. After having re-assembled the control valve, it is recommended to check the control characteristics of the valve. This can best be done by using a separate variable 15 Vdc power supply source.

Proceed as follows:

- disconnect the valve leads and connect to supply source

- apply gas pressure as per working conditions

- apply power by gradually increasing voltage

- the valve should open at 7 Vdc ± 3 Vdc

- the fully opened position is reached at approx. 9 Vdc ± 1.5 Vdc.

In case the valve does not operate within the voltage levels stated, then it must be disassembled, and the orifice must be adjusted to the proper position. Re-assemble valve and repeat procedure if required.

4.6.2 Vary-P valve

The vary-P valve is designed to cope with extremely varying process conditions on either upstream or downstream side of the valve or a combination of these. ∆p can vary over a wide range. The basic control valve is a direct operated solenoid control valve. The design has been patented. For orifice selection and maintenance other than the pilot valve consult the factory.

4.6.3 Pilot operated valve

This control valve is an indirect control valve, consisting of a spring loaded membrane/orifice system which is positioned by a solenoid operated direct control (pilot valve). The two devices are integrated in one block. Basically follow the same procedures for dis-assembly as stipulated under “Solenoid valves” For cleaning purposes it may be required to dis-assemble further, i.e. also remove the membrane assembly.

Note:

When pressure testing a system incorporating a pilot operated control valve, a special procedure must be followed in order to prevent damage to the valve. In such cases it is necessary to contact the factory prior to do this.

4.6.4 Bellows valve

These valves are suited for low pressure or vacuum applications. Preferably this model should not be disassembled by the user. Bronkhorst High-Tech strongly advises to mount the bellows valves in an upright position.

4.7 Calibration procedure

All instruments are factory calibrated. For re-calibration or re-ranging contact supplier or factory.

BRONKHORST HIGH-TECH B.V.

page 30

9.17.022

5 Digital instrument

See document number 9.17.023 for detailed description.

This document is available as PDF on the Multibus documentation/software tool CD.

6 Interface description

For a description of the available interfaces see document numbers:

9.17.024 for FLOW-BUS

9.17.025 for PROFIBUS-DP

9.17.026 for DeviceNet

9.17.027 for RS232

9.17.035 for Modbus

9.17.063 for EtherCAT

These documents are available as PDF on the Multibus documentation/software tool CD.

7 TROUBLESHOOTING

7.1 General

For a correct analysis of the proper operation of a flow/pressure meter or controller it is recommended to remove the unit from the process line and check it without applying fluid supply pressure. In case the unit is dirty, this can be ascertained immediately by loosening the compression type couplings and, if applicable the flange on the inlet side. Bronkhorst High-Tech B.V. does not recommend to open the housing, but in case that the housing has to be opened, it should be done with great care, because the connection of the fieldbus and main p.c.board is accomplished by a small flatconductor cable.

Energizing or de-energizing of the instrument of the instrument indicates whether there is an electronic failure. After that, fluid pressure is to be applied in order to check behaviour. If there should be suspicion of leakage, do not check for bubbles with a leak detection liquid as this may lead to a short-circuit in the sensor or p.c.board.

BRONKHORST HIGH-TECH B.V.

9.17.022

page 31

Symptom

Possible cause

Action

No output signal

No power supply

1a) check power supply

1b) check cable connection

Output stage blown-up due to long

peaks

1c) return to factory Supply pressure too high, or differential pressure across meter too high

1d) lower supply pressure

Valve blocked/contaminated

1e) connect 0 .. 15 Vdc to valve and

personnel only)

Screen in inlet fitting blocked

1f) clean screen

Sensor/capillary failure

1g) return to factory

Maximum output signal

Output stage blown-up

2a) return to factory

Sensor/capillary failure

2b) return to factory

Output signal much lower than setpoint signal or desired flow

Screen blocked/contamined

3a) clean screen

LFD blocked/contaminated and/or liquid

3b) remove LFD and clean; dry meter with air or

Valve blocked/contaminated

3c) clean valve

Valve internals damage (swollen seat in plunger)

3d) replace plunger assembly and adjust valve or return

Incorrect type of gas is used and/or pressure/diff. pressure

3e) try instrument on conditions for which it was designed

Flow is gradually decreasing

C H , C H

3 8 4 10

4a) decrease supply pressure and/or

Valve adjustment has changed

4b) see ‘1e’

Oscillation

Supply pressure/diff. pressure too high

5a) lower pressure

Pipeline too short between pressure regulator and MFC

5b) increase length or diameter of piping upstream

Pressure regulator is oscillating

5c) replace pressure regulator or try ‘5b’

Valve sleeve or internals damaged

5d) replace damaged parts and adjust valve, see ‘1e’ or return to factory

Controller adjustment wrong

5e) adjust controller

Small flow at zero setpoint

Valve leaks due to damaged plunger or dirt in orifice

6a) clean orifice and/or, when replacing plunger assembly, see ‘1e’

Pressure too high or much too low

6b) apply correct pressure

7.2 Troubleshooting summary general

lasting shortage and/or high-voltage

in meter

slowly increase voltage while supply pressure is ‘on’. The valve should open at 7V ± 3V; if not open, then cleaning parts and adjust valve (qualified

Condensation, occurs with hydrocarbons such as

etc.

heat gas to be measured

Note: For other (more specific) problems see also troubleshooting parts in other documents.

APPENDIX 1

GAS CONVERSION TABLE

Doc. no.: 9.02.071

GAS CONVERSION FACTOR

Nr.:

Name:

Symbol

Density

ρng l[ / ]

0°C, 1 atm.

Heat capacity*

c cal cal g K

− [ / . ]

20°C, 1 atm.

Conversion

Acetylene (Ethyne)

Argon

C2H

1.172

1.784

0.438

0.125

0.61

1.40

Arsine

Butadiene (1,3-)

AsH3

C4H6

3.524

2.504

0.133

0.405

0.66

0.31

Butane

Carbonylfluoride

C4H

COF2

2.705

2.983

0.457

0.194

0.25

0.54

Carbonylsulfide

COS

2.724

0.175

0.65

Chlorine trifluoride

Deuterium

ClF3

4.125

0.1798

0.188

1.73

0.40

1.00

Diborane

Dimethylpropane (2,2-)

B2H6

C5H12

1.248

3.219

0.577

0.462

0.43

0.21

Dimethylether

Ethylene oxide

C2H6O

C2H4O

2.105

1.965

0.378

0.303

0.39

0.52

Ethylacetylene (1-Butyne)

Freon-113

C4H6

C2Cl3F3

2.413

8.36

0.401

0.174

0.32

0.21

Freon-1132A

Freon-12

C2H2F2

CCl2F2

2.889

5.547

0.244

0.153

0.44

0.37

Freon-13

Freon-22

CClF3

CHClF2

4.72

3.936

0.165

0.168

0.40

0.47

Freon-23

Germane

CHF3

GeH4

3.156

3.45

0.191

0.16

0.52

0.56

2 3 4

7 8 9

12 13 14

17 18 19 20

22 23 24

Air Allene (Propadiene) Ammonia

Boron trichloride Boron trifluoride Bromine pentafluoride

Butene (1-) Butene (2-) (Cis) Butene (2-) (Trans)

Carbon dioxide Carbon disulfide Carbon monoxide Chlorine

Cyanogen Cyanogen chloride Cyclopropane

Air C

3H4

BCl3 BF

BrF

C4H8 C

4H8

CO2 CS

CO Cl

C2N2 ClCN C

3H6

factor 20°C, 1 atm.

1.293

1.832

0.7693

5.227

3.044

7.803

2.581

2.503

1.977

3.397

1.25

3.218

2.376

2.743

1.919

0.241

0.392

0.524

0.136

0.188

0.156

0.415

0.387

0.421

0.213

0.152

0.249

0.118

0.275

0.185

0.374

1.00

0.43

0.77

0.44

0.54

0.26

0.29

0.32

0.30

0.74

0.60

1.00

0.82

0.48

0.61

0.43

27 28 29

32 33 34

37 38 39

42 43 44

47 48 49

Dibromo difluoromethane Dichlorosilane Dimethylamine

Disilane Ethane Ethylene (Ethene)

Ethylchloride Fluorine Freon-11

Freon-114 Freon-115 Freon-116

Freon-13B1 Freon-14 Freon-21

Freon-C318

Br2CF2 SiH

2Cl2

2H6

Si2H6 C

2H6

2H4

C2H5Cl F

CCl

C2Cl2F4 C

ClF5

2F6

CBrF3 CF

CHCl

C4F8

9.361

4.506

2.011

2.857

1.355

1.261

2.878

1.696

6.129

7.626

7.092

6.251

6.768

3.946

4.592

9.372

0.17

0.417

0.352

0.468

0.414

0.263

0.201

0.145

0.177

0.182

0.2

0.12

0.18

0.154

0.222

0.20

0.41

0.37

0.31

0.49

0.60

0.41

0.91

0.35

0.23

0.24

0.25

0.38

0.44

0.15

- cal (T,p) =

(T + 50°C, p)

GAS CONVERSION FACTOR

Nr.:

Name:

Symbol

Density

ρng l[ / ]

0°C, 1 atm.

Heat capacity*

c cal cal g K

− [ / . ]

Conversion

Helium

Hydrogen chloride

HCl

0.1785

1.639

1.24

0.192

1.41

0.99

Hydrogen cyanide

HCN

1.206

1.536

0.345

0.75

Isobutane

Methylacetylene

C4H10

C3H4

2.693

1.83

0.457

0.399

0.25

0.43

Methylbromide

Molybdenum hexafluoride

CH3Br

MoF6

4.35

9.366

0.118

0.156

0.61

0.21

Mono-ethylamine

Nitrogen

C2H5NH2

2.011

1.250

0.436

0.249

0.36

1.00

Nitrogen dioxide

NO2

2.053

0.204

0.74

Oxygen difluoride

Perfluoropropane

OF2

C3F

2.417

8.662

0.201

0.22

0.64

0.16

Performa- ethylene

Propane

C2F4

C3H8

4.523

2.012

0.206

0.456

0.33

0.34

Propylene (Propene)

Sulfur dioxide

C3H6

SO2

1.915

2.922

0.408

0.157

0.40

0.68

103

Sulfur hexafluoride

Tungsten hexafluoride

SF6

WF6

6.626

13.29

0.175

0.092

0.27

0.25

104

107

Vinylbromide

Xenon

C2H3Br

4.772

5.899

0.141

0.0382

0.46

1.38

55 56 57

60 61 62 63

65 66 67

70 71 72

75 76 77

Helium (3-) Hydrogen Hydrogen bromide

Hydrogen fluoride Hydrogen iodide Hydrogen selenide Hydrogen sulfide

Isobutylene (Isobutene) Krypton Methane

Methylchloride Methylfluoride Methylmercaptan

Monomethylamine Neon Nitric oxide

3He H

HBr

HF HI H

C4H8 Kr CH

CH3Cl CH

CH3NH2 Ne NO

0.1346

0.08991

3.646

0.8926

5.799

3.663

2.60

3.749

0.7175

2.3

1.534

2.146

1.419

0.9002

1.34

20°C, 1atm.

1.606

3.44

0.0869

0.362

0.0553

0.109

0.246

0.429

0.058

0.568

0.212

0.29

0.272

0.424

0.246

0.239

factor 20°C, 1atm.

1.44

1.01

0.98

0.96

0.97

0.78

0.82

0.28

1.43

0.76

0.64

0.70

0.53

0.52

1.41

0.97

80 81 82 83

85 86 87

90 91 92

95 96 97

100 101 102

105 106

Nitrogen trifluoride Nitrosyl chloride Nitrous oxide Oxygen

Ozone Pentane Perchlorylfluoride

Phosgene Phosphine Phosphorous pentafluoride

Silane Silicon tetrafluoride Sulfurylfluoride

Sulfur tetrafluoride Trichlorosilane Trimethylamine

Vinylchloride Vinylfluoride

NF3 NOCl N

O3 C

5H12

ClO

COCl2 PH

SiH4 SiF

2F2

SF4 SiHCl

3H9

C2H3Cl C

2H3

3.182

2.984

1.978

1.429

2.154

3.219

4.653

4.413

1.53

5.694

1.443

4.683

4.631

4.821

6.044

2.637

2.865

2.08

0.194

0.17

0.221

0.222

0.207

0.455

0.165

0.149

0.277

0.183

0.349

0.18

0.175

0.192

0.157

0.424

0.229

0.305

0.50

0.61

0.71

0.98

0.70

0.21

0.41

0.47

0.73

0.30

0.62

0.37

0.38

0.34

0.33

0.28

0.47

0.49

- cal (T,p) =

(T + 50°C, p)

APPENDIX 2

dimensions

digital cases

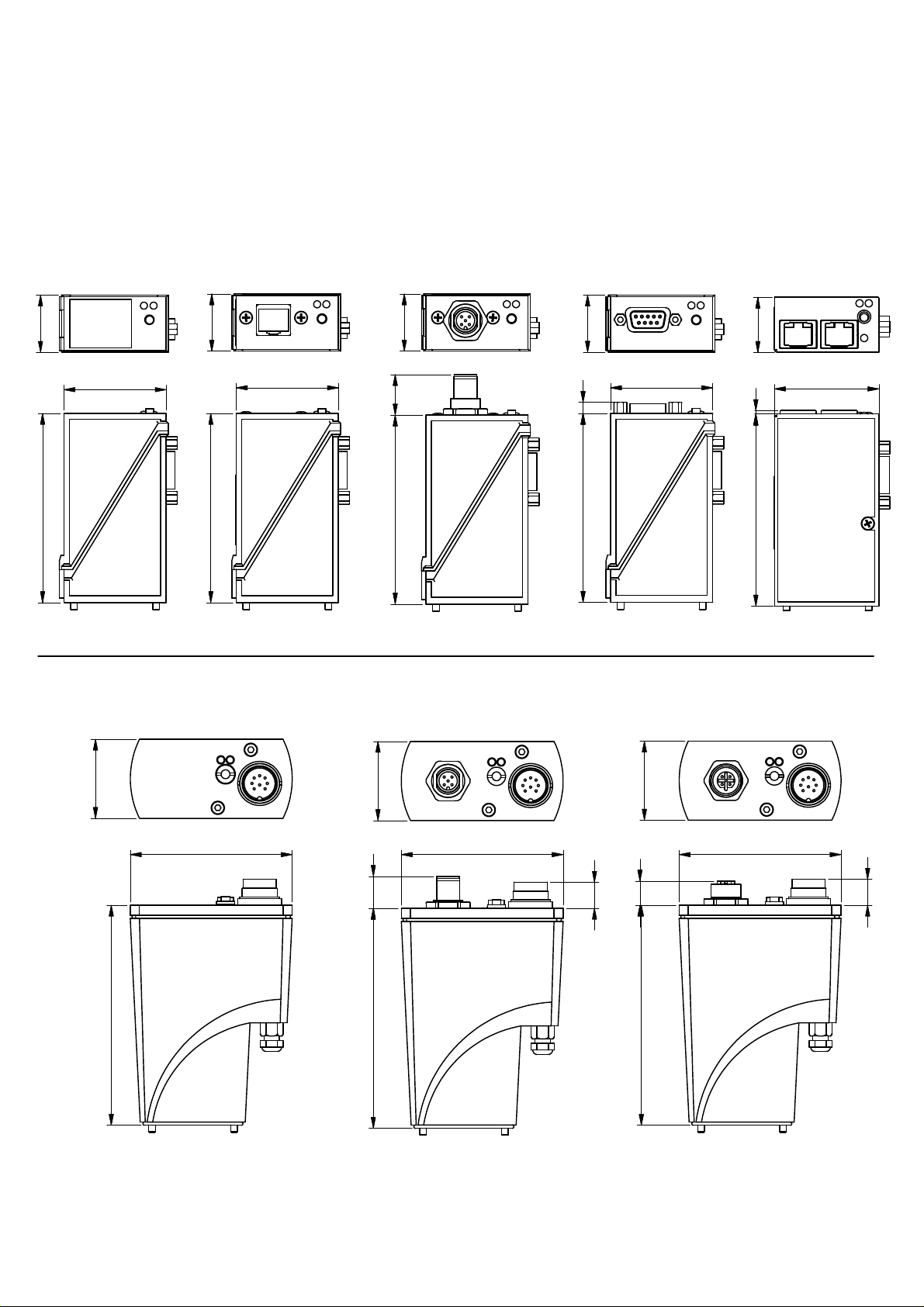

Dimensions digital cases

Doc. Nr.: 7.05.445G Date: 09-12-2011

One of these digital case assemblies replaces the case assembly as drawn in the dimensional drawing. Please note that the height increases when a contra connector is used.

analog / RS232

6 2

6 8

FLOW-BUS / Modbus

6 2

6 8

analog / RS232

DeviceNet

6 2

8 1

6 8

FLOW-BUS / DeviceNet / Modbus

6 2

6 8

PROFIBUS

5 2

. 1

. 7 8

PROFIBUS

EtherCAT

47.5

6 3

73.5 73.5

0 0 1

6 3

5 1

0 0 1

2 1

6 3

73.5

2 1

0 0 1

2 1

Dimensions are in millimeters unless otherwise mentioned. Dimensions subject to change without notice.

Tolerances ±0.5 unless otherwise mentioned

Bronkhorst IN-FLOW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
