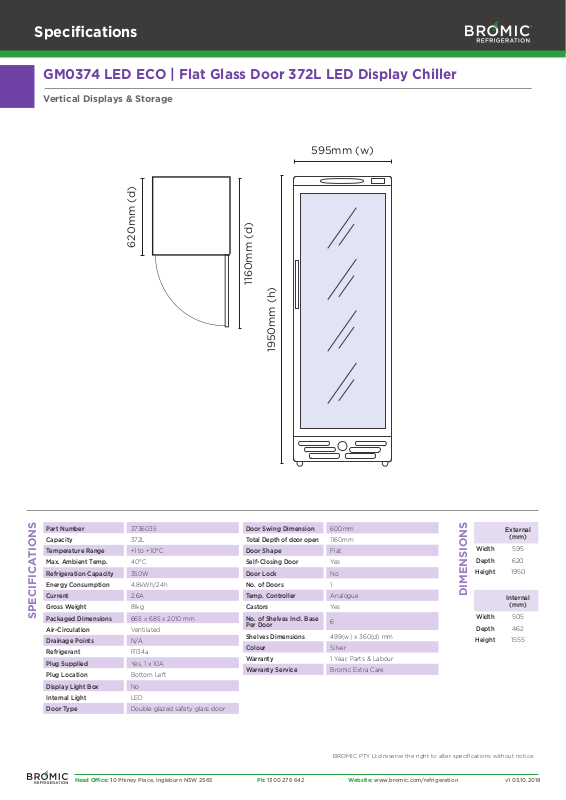

Specifications
SPECIFICATIONS
DIMENSIONS
GM0374 LED ECO | Flat Glass Door 372L LED Display Chiller
Vertical Displays & Storage
595mm (w)
620mm (d)
1160mm (d)
Part Number 3736035
Capacity 372L
Temperature Range +1 to +10°C
Max. Ambient Temp. 40°C
Refrigeration Capacity 350W
Energy Consumption 4.8kWh/24h
Current 2.6A
Gross Weight 81kg
Packaged Dimensions 665 x 685 x 2010 mm
Air-Circulation Ventilated
Drainage Points N/A
Refrigerant R134a
Plug Supplied Yes, 1 x 10A
Plug Location Bottom Left
Display Light Box No
Internal Light LED
Door Type Double glazed safety glass door
1950mm (h)
Door Swing Dimension 600mm
Total Depth of door open 1160mm
Door Shape Flat
Self-Closing Door Yes
Door Lock No
No. of Doors 1
Temp. Controller Analogue
Castors Yes
No. of Shelves Incl. Base
Per Door
Shelves Dimensions 499(w) x 360(d) mm
Colour Silver
Warranty 1 Year, Parts & Labour
Warranty Service Bromic Extra Care
6
Width
Depth
Height
Width
Depth
Height
External
(mm)
595
620
1950
Internal
(mm)
505
462
1555
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642 v1 03.10.2018
BROMIC PTY Ltd reserve the right to alter specifications without notice.
Website: www.bromic.com/refrigeration
Specifications
GM0374 LED ECO | Flat Glass Door 372L LED Display Chiller
Vertical Displays & Storage
Powerful fan for
even circulation
of cold air
Metal door frame
for durability and
reliability (display
units only)
Self-closing
doors minimise
temperature loss
Adjustable thermostat
for accurate temperature
maintenance
High-impact internal
lighting for perfect
product presentation
Double-glazed safety
glass doors increase
energy efficiency
Adjustable shelving
for flexibility in
display configuration
polyurethane insulation
High-density
keeps temperature and
energy consumption low
Lockable castors
make movement and
placement easy
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642 v1 03.10.2018
Website: www.bromic.com/refrigeration
