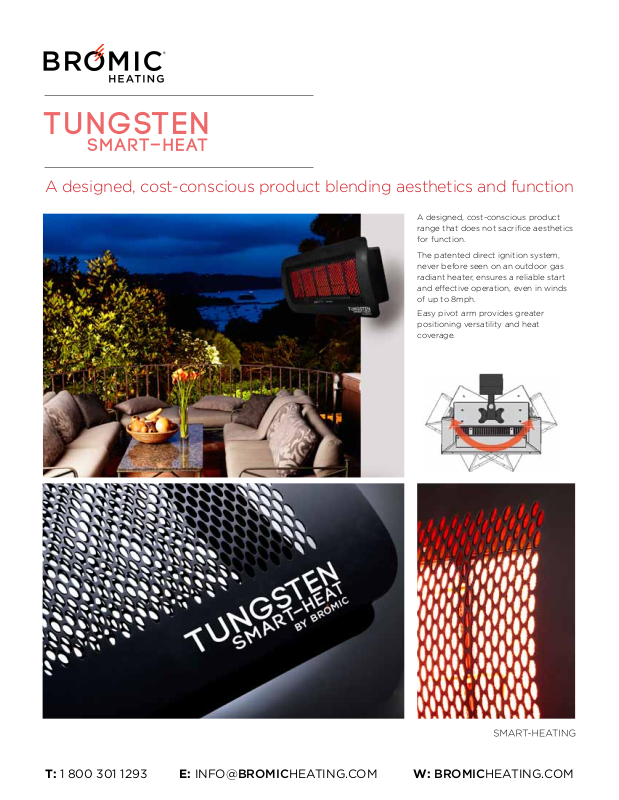

Page 1
A designed, cost-conscious product blending aesthetics and function
A designed, cost-conscious product
range that does not sacrifice aesthetics
for function.
The patented direct ignition system,
never before seen on an outdoor gas
radiant heater, ensures a reliable start
and eective operation, even in winds
of up to 8mph.
Easy pivot arm provides greater
positioning versatility and heat
coverage.
T: 1 800 301 1293 E: INFO@BROMICHEATING.COM w: BROMICHEATING.COM
Page 2
FEATURES:
▪ Attractive black finish
▪ Universal bracket — easy upgrade from 300 to 500 model.
No additional plumbing or wiring required.
▪ Bi-directional easy-pivot arm — 25° rotation each side.
▪ Electronic ignition — one or multiple units can be switched on
and o simultaneously from a single remote-located switch.
▪ Automatic re-ignition — should the heater not re-ignite for
any reason, the integrated “Flame Failure Safety Shut-o
Control” turns the heater o immediately.
▪ Stainless steel casing — components are protected from
tampering. Assists in preventing dirt and dust from
accumulating on the wiring and components.
ACCESSOrIES*
▪ Dual-directional ceiling pole
▪ Dual-layer heat deflector
(See part numbers in table below)
Dual-layer heat deflector for
*all accessories sold separately
low-clearance installations.
300 500
SPECIFICATIONS
Model
1
Part no.
Heat Deflector part no.
Ceiling Pole
Heat Output (on LPG and NG) 26,000BTU 43,000BTU
Approximate area heated (feet
Gas connection 1/2” NPT Female 1/2” NPT Female
Electrical connection 110 Volt, 3-pin insulated plug
Dimension (WxDxH) 19.29” x 14.09” x 14.25” 25.43” x 14.09”x 14.25”
Min. distance to combustible materials
(without heat deflector)
(with heat deflector)
Mounting height requirement to ground
Weight (lb) 33lb 40lb
1
Must only be installed by a licensed technician. Must complete “Pre-Installation Checklist” before installing. 2 The temperature will not exceed 65°C/149°F
above the ambient temperature. Please consult material manufacturer for temperature ratings 3 8’ / 2438mm or maybe lower depending on local regulations
LPG
Natural Gas
2
) up to 120ft
2
1
5 pole lengths to suit ceiling heights of 10.5’, 11.2’, 11.8’, 12.5’ and 13’
3
300 500
BH0210002 BH0210004
BH0210001 BH0210003
BH3030001 BH3030002
(contact Bromic Heating for more information)
2
Sides: 3.6’ / 1100mm
Above (to ceiling): 3’6’ / 1100mm
Above (to ceiling): 1’2” / 1100mm
8’ / 2438mm 8’ / 2438mm
up to 200ft
2
MINIMUM INSTALLATION CLEArANCES
