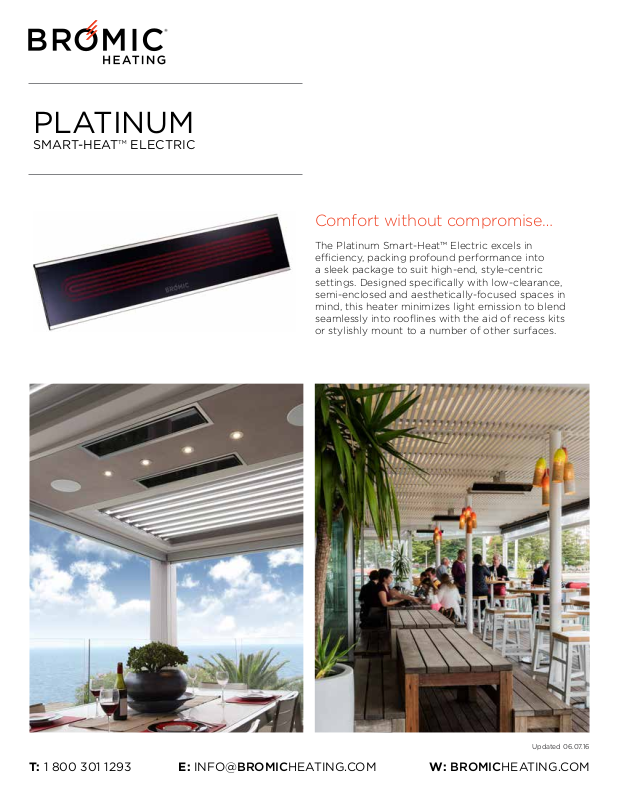

PLATINUM
SMART-HEAT™ ELECTRIC
Comfort without compromise…
The Platinum Smart-Heat™ Electric excels in
eciency, packing profound performance into
a sleek package to suit high-end, style-centric
settings. Designed specifically with low-clearance,
semi-enclosed and aesthetically-focused spaces in
mind, this heater minimizes light emission to blend
seamlessly into rooflines with the aid of recess kits
or stylishly mount to a number of other surfaces.
T: 1 800 301 1293
E: INFO@BROMICHEATING.COM
Updated 06.07.16
W: BROMICHEATING.COM
Page 2
PLATINUM
7’2”
180mm / 7”
50mm/
150mm/8”
2”
50mm/
150mm/8”
2”
SMART-HEAT™ ELECTRIC
FEATURES
Tinted Glass-Ceramic Screen
The Platinum’s signature
screen spreads comfort
evenly across an area while
minimizing light emission
Wafer-Thin Design
Wall, ceiling and flushmounting options allow
subtle placement of this
compact heater practically
anywhere!
Subtle Aesthetics
Elegantly understated to
create comfort while blending
into the environment
Precise Directional Heating
Accurately alter coverage
through simple bracket
adjustment
DIMENSIONS
Ultra-Durable Design
Stainless steel construction
ensures reliable heating for
years to come
Tight Space Specialist
Minimal vertical clearance
requirements and a multitude
of mounting options oers
versatility to a variety of
enclosed outdoor areas
Ease Of Use
Single switch activation and
smart control compatibility
creates set-and-forget
simplicity
Wireless Control Capabilities
Genuine wireless control
accessories allow seamless
integration of remote heating
output adjustment
BRACKET TYPES
Straight Bracket
HEAT AREA
2m / 6’
Angled Bracket
838mm/33”
SPECIFICATIONS
Part No. BH0320003
Heat Output (Watts) 2300W
Finish Brushed Stainless Steel
Power connection (Volts/Amps) 220-240V / 9.3 Amps
Mounting Options Ceiling Pole Mounting / Wall Mounting / Recessed
Minimum Mounting Height
Minimum distance to combustible materials Side: 9”
Dimensions excluding bracket W x H x D (Inches) 33” x 7” x 2”
Approx. Weight (lb) 16.5lb
*Must only be installed by a licensed technician
Ceiling Mounting - 2400mm / Wall Mounting - 1800mm
Ceiling Mounting - 7’10”/ Wall Mounting - 5’10”
3m / 8’
Heats approx 6m² / 64.4 ft²
2300W heating power
*Heat area dependent on ambient temperature and wind.
Optimum conditions experienced at approx 15.5°C/ 60°F & in
a low wind covered environment. Table layout indicative only.
Height Clearance of 2.4m / 7" 2'
MINIMUM INSTALLATION CLEARANCES
WALL MOUNTED CEILING MOUNT-
CEILING
9”
6”
5’10”
FLOOR
8’5”
ED
9”
7’10”
CEILING
8”
FLOOR
