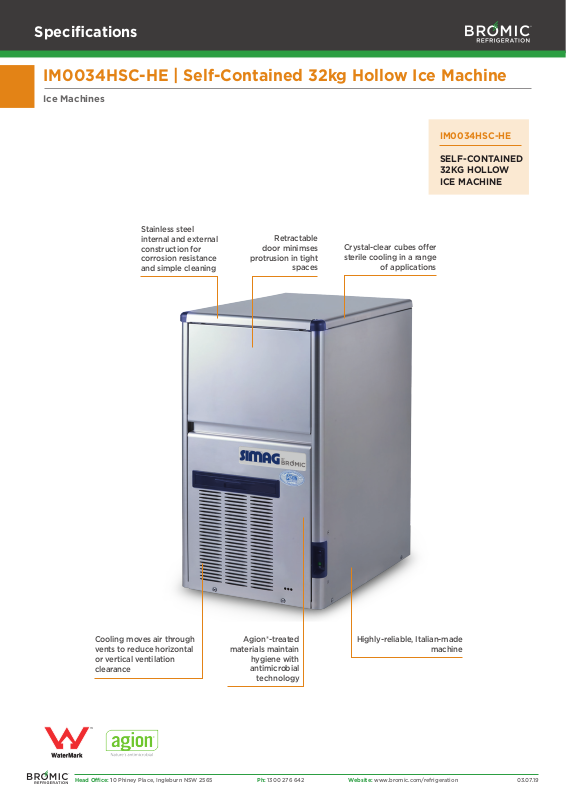

Page 1
Specifications
IM0034HSC-HE | Self-Contained 32kg Hollow Ice Machine
Ice Machines
IM0034HSC-HE
SELF-CONTAINED
32KG HOLLOW
ICE MACHINE
Stainless steel
internal and external
construction for
corrosion resistance
and simple cleaning
Retractable
door minimses
protrusion in tight
spaces
Crystal-clear cubes offer
sterile cooling in a range
of applications
Cooling moves air through
vents to reduce horizontal
or vertical ventilation
clearance
TM
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Agion®-treated
materials maintain
hygiene with
antimicrobial
technology
Highly-reliable, Italian-made
machine
Website: www.bromic.com/refrigeration
03.07.19
Page 2
Specifications
SPECIFICATIONS
DIMENSIONS
IM0034HSC-HE | Self-Contained 32kg Hollow Ice Machine
Ice Machines
637mm
377mm
FRONT VIEW
Ice Dimensions
*2mm
from floor
637mm
555mm
SIDE VIEW
BACK
150mm
FRONT
150mm150mm
150mm
35mm
HOLLOW
ICE
36mm
Hollow Ice
Model IM0034HSC-HE
Part Number 3935356
Legs (mm) 2
Maximum Daily Production 32kg
Storage Bin Capacity
Power Input
Energy Consumption
Water Consumption
Net Weight
Packaged Dimensions 450 x 620 x 740 mm
Refrigerant
Plug Supplied
Self-Contained Machine Yes
Storage Bin Compatibility
Maximum Ambient Temp.
Type of Ice Produced Hollow
Weight of Ice
Colour
Warranty
Warranty Service
36mm
10kg
360W
7.5Kwh/24h
4.6L/h
40kg
R134a
Yes, 1 x 10A
N/A
40°C
21g
Stainless Steel
3 Years Parts, 1 Year Labour
Bromic Extra Care
Width
Depth
Height
External
(mm)
377
555
637
*
External height excludes feet
*
Production is based on kg/24hr at 10°C air & 10°C water
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
BROMIC PTY Ltd reserve the right to alter specifications without notice.
Website: www.bromic.com/refrigeration
03.07.19
