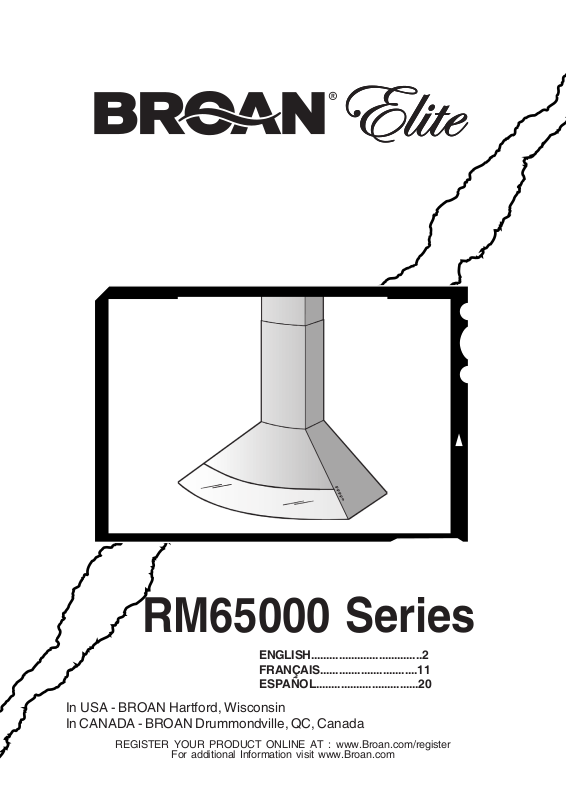

Broan RM659004 Installation Manual

RM65000 Series

ENGLISH....................................2

FRANÇAIS...............................11

ESPAÑOL.................................20

In USA - BROAN Hartford, Wisconsin In CANADA - BROAN Drummondville, QC, Canada

For additional Information visit www.Broan.com

READ AND SAVE THESE INSTRUCTIONS

INTENDED FOR DOMESTIC COOKING ONLY

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any separate solid-state speed control device.

8. To reduce the risk of fire, use only steel ductwork.

9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes

Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or

filter.

D. Use proper pan size. Always use cookware appropriate for the size of the surface

element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate

it. B. The fire is small and contained in the area where it started. C. The fire department is being called. D. You can fight the fire with your back to an exit. * Based on “Kitchen Fire Safety Tips” published by NFPA.

- 2 -

CAUTION

1. For indoor use only.

1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

2. Take care when using cleaning agents or detergents.

3. Avoid using food products that produce flames under the Range Hood.

4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.

7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a maximum of 30" above the cooking surface. See page 8 for mounting restrictions.

8. Two installers are recommended because of the large size and weight of this hood.

9. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

10. Please read specification label on product for further information and requirements.

- 3 -

PREPARE THE HOOD

Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag (B080810616) containing:

2 - Mounting Brackets 1 - Flue Mounting Bracket 8 - Mounting Screws (4,8 x 38mm Pan Head) 2 - Mounting Screws (3,9 x 9,5mm Pan Head) 8 - Drywall Anchors 2 - Mounting Screws (3.9 x 6mm Flat Head) 2 - Serrated Washers

1 - Installation Instructions

DECORATIVE FLUE

MOUNTING BRACKETS

FLUE MOUNTING BRACKET

2 MOUNTING SCREWS (3.9x6mm

Flat Head)

8 MOUNTING SCREWS

(4,8 x 38mm Pan Head)

- 4 -

2 MOUNTING SCREWS (3,9 x

9,5mm Pan Head)

2 SERRATED WASHERS

8 DRYWALL ANCHORS

INSTALL THE DUCTWORK

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Decide where the ductwork will run

between the hood and the outside.

2. A straight, short duct run will allow the hood

to perform most efficiently.

3. Long duct runs, elbows, and transitions will

reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

4. Install a roof or wall cap. Connect round

metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

ROOF CAP

DECORATIVE

FLUE

HOOD

24” TO 30” ABOVE

COOKING SURFACE

ROUND

DUCT

ROUND ELBOW

ADAPTER

WALL

CAP

6”

INSTALL MOUNTING BRACKETS

1. Construct wood wall framing that is flush

with interior surface of wall studs.Make sure:

a) the framing is centered over installation

location.

b) the height of the framing will allow the

mounting brackets to be secured to the framing within the dimensions shown.

2. After wall surface is finished, secure mount-

ing brackets to framing using dimensions shown.

NOTE:

- On 8’ ceilings, the hood distance above cook

top is : minimum 24”, maximum 27”.

- On 9’ ceilings, the hood distance above cook

top is : - minimum 24”, maximum 30”.

INSTALL WIRING BOX

Install the wiring box with the (2) mounting screws (3.9x6mm) and (2) serrated washers.

FRAMING BEHIND DRYWALL

10-13/16”

29-9/16” to 35-9/16”

above cooktop

29-9/16" = bottom of hood 24"above cooktop 35-9/16"= bottom of hood 30" above cooktop

SERRATED

WASHERS

- 5 -

MOUNTING

SCREWS

(3.9x6mm)

INSTALL THE HOOD

1. Hang the hood from the brackets through

the rectangular cut-outs on the back of the hood. Cut-outs are larger than the brackets to allow for horizontal adjustment.

The bottom of the hood should be 24" to 30" above the cooking surface.

2. Height adjustment screws provide vertical

adjustment.

3. Depth adjustment screws provide hori-

zontal adjustment.

4. Secure the hood with mounting screws

(4.8x38mm). Use drywall anchors, provided, if wall studs or framing are not available.

WIRING

MOUNTING

SCREWS

(4.8x38mm)

DEPTH

ADJUSTMENT

SCREWS

HEIGHT ADJUSTMENT

RECTANGULAR

CUTOUTS

MOUNTING BRACKETS

WALL

FRAMING

MOUNTING SCREWS

(4.8x38mm)

SCREWS

Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes.

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING - Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

Set the electrical power supply within the space covered by the decorative flues. Position the power socket at a maximum distance of 33-7/16” (85 cm) from where

the lead exits from the hood (see illustration alongside). Make sure this does not interfere with the decorative flues (where the flue touches the wall).

Fit the plug into the power socket.

- 6 -

CONNECT DUCTWORK

1. Use (2) screws (4.8x38mm) and drywall

anchors (supplied) to secure flue mounting bracket to the ceiling or wall as shown.

2. Use 6" round metal duct to connect the

discharge collar on the hood to the ductwork above.

3. Use duct tape to make all joints secure

and air tight.

4. Carefully place the lower decorative flue into

the recessed area of the range hood top.

5. Push the lower flue downwards making it

fit properly.

6. Extend the upper flue to the ceiling and

secure with two mounting screws (3.9x9.5mm).

FIXING TO THE WALL

MOUNTING

SCREWS

(4,8x38mm)

FIXING TO THE CEILING

MOUNTING

SCREWS

(4,8x38mm)

FLUE MOUNTING

BRACKET

FLUE MOUNTING

BRACKET

DECORATIVE

FLUE

FASTEN FLUE TO

BRACKET WITH MOUNTING

SCREWS

(3.9x9.5mm)

- 7 -

DUCT TAPE

6" ROUND

METAL DUCT

MAINTENANCE

Proper maintenance of the Range Hood will assure proper performance of the unit.

Grease Filters

The grease filters should be cleaned after every 30 hours of operation. This range hood has an operation timer which will alert you after every 30 hours of use by lighting a red LED above the “blower speed 0-1 button”. Use a warm detergent solution. Grease filters are dishwasher safe.

To remove the grease filters: push the filters toward the back of the hood and pull the filters downwards.

Hood Cleaning

Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance.

Cleaning tips:

O Hot water with soap or detergent is all that is usually needed. O Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth

to avoid water marks.

O For discolorations or deposits that persist, use a non-scratching household

cleanser or stainless steel polishing powder with a little water and a soft cloth.

O For stubborn cases, use a plastic scouring pad or soft bristle brush together

with cleaser and water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too much pressure which may mar the surface.

O DO NOT allow deposits to remain for long periods of time. O DO NOT use ordinary steel wool or steel brushes. Small bits of steel may

adhere to the surface causing rust.

O DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds

to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.

Painted surfaces should be cleaned with warm water and mild detergent only.

GREASE FILTERS

- 8 -

OPERATION

BLOWER

SPEED 4

Controls

The hood is operated using the (5) push-buttons located on the right side of the hood.

The light switch turns the halogen lights on and off. Push the light switch once to turn the lights ON - push a second time to turn the lights ON to a brighter level - push a third time to turn the lights OFF.

LED

BLOWER SPEED 3

BLOWER

SPEED 2

BLOWER ON-OFF / SPEED 1

The blower on-off / speed 1 switch turns the blower on to its lowest running speed. To turn OFF the blower, push in and hold this blower switch for approximately 2 seconds.

LIGHT

SWITCH

The blower speed 2 switch turns the blower on to medium-low running speed. Pressing this switch a second time sets a timer which keeps the blower operating at this speed for 10 minutes. The LED will blink during this time and the blower will shut off automatically.

The blower speed 3 and blower speed 4 switches operate the same as blower speed 2 switch except: Blower speed 3 is medium-high and blower speed 4 is high.

After every 30 hours of operation, the LED above the “blower speed 1 switch” will be illuminated (RED) and blink for 30 seconds after turning off the blower. This is a reminder to clean the grease filters. Once the grease filters are cleaned and installed, press in and hold the “light switch” button for approximately 2 seconds during the blink of the LED.

HEAT SENTRY™

Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed. When the temperature level drops to normal, the blower will return to its original setting.

WARNING The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the blower, do it from the main electrical panel.

- 9 -

HALOGEN BULBS

This range hood requires two halogen bulbs (max 20W, 12V, TYPE MR16 bulb shielded, GU 5.3 Base).

ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE.

To change bulbs:

1. Loosen the ring nut by turning it counterclockwise.

2. Pull the bulb downwards to remove - DO NOT ROTATE. CAUTION: BULB MAY BE

HOT!

3. Replace with max 20W, 12V, TYPE MR16 bulb shielded, GU 5.3 Base halogen bulb.

FUSE REPLACEMENT

SWITCH OFF THE ELECTRICITY SUPPLY.

Remove the grease filters. Open the electrical box. Replace with the same type of fuse (5x20mm,

4A, 125V).

FUSE

BULB

RING

NUT

ELECTRICAL BOX

WARRANTY

Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Broan products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

In USA - Broan®, 926 W. State Street, Hartford, WI 53027 (800-558-1711) In Canada - Broan®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770) www.Broan.com

ONE YEAR LIMITED WARRANTY FOR BROAN PRODUCTS

- 10 -
