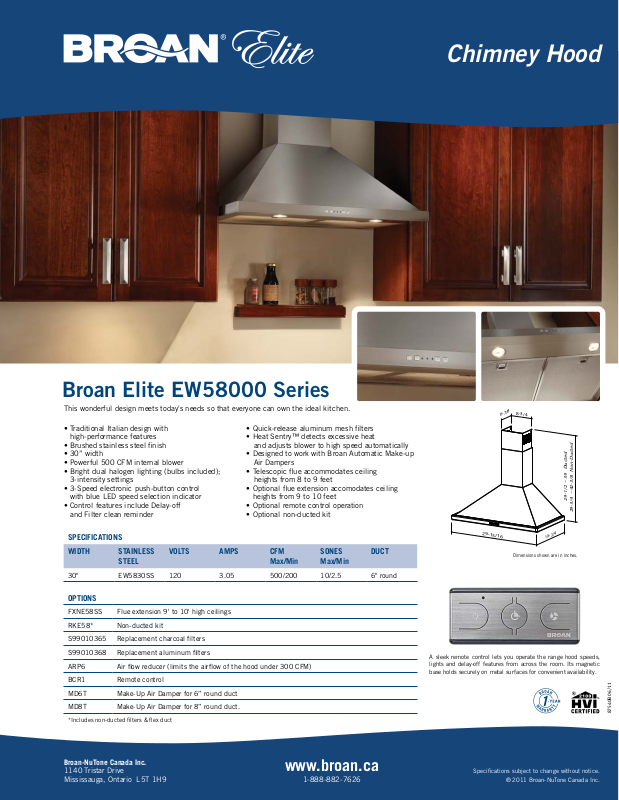

Broan EW58000 SPECIFICATION SHEET
Chimney Hood
Broan Elite EW58000 Series
This wonderful design meets today's needs so that everyone can own the ideal kitchen.
•Traditional Italian design with high-performance features
•Brushed stainless steel finish
•30” width
•Powerful 500 CFM internal blower
•Bright dual halogen lighting (bulbs included); 3-intensity settings
•3-Speed electronic push-button control with blue LED speed selection indicator
•Control features include Delay-off and Filter clean reminder
SPECIFICATIONS
•Quick-release aluminum mesh filters
•Heat Sentry™ detects excessive heat
and adjusts blower to high speed automatically
•Designed to work with Broan Automatic Make-up Air Dampers
•Telescopic flue accommodates ceiling heights from 8 to 9 feet
•Optional flue extension accomodates ceiling heights from 9 to 10 feet
•Optional remote control operation
•Optional non-ducted kit
WIDTH |
STAINLESS |
VOLTS |
AMPS |
CFM |
SONES |
DUCT |
|
STEEL |
|
|
Max/Min |
Max/Min |
|
30" |
EW5830SS |
120 |
3.05 |
500/200 |
10/2.5 |
6" round |
|
|
|
|
|
|
|
OPTIONS |
|
|
|
|
|
|
|
|
|
|
|
||
FXNE58SS |
Flue extension 9' to 10' high ceilings |
|
|
|
||
|
|
|
|
|
|
|
RKE58* |
Non-ducted kit |
|
|
|
|
|
|
|
|
|
|
|
|
S99010365 |
Replacement charcoal filters |
|
|
|
|
|
|
|
|
|
|
|
|
S99010368 |
Replacement aluminum filters |
|
|
|
|
|
|
|
|
|
|||
ARP6 |
Air flow reducer (limits the airflow of the hood under 300 CFM) |
|
|
|||
|
|
|
|
|
|
|
BCR1 |
Remote control |
|
|
|
|
|
|
|
|
|
|
||
MD6T |
Make-Up Air Damper for 6” round duct |
|
|
|
||
|
|
|
|
|
||
MD8T |
Make-Up Air Damper for 8” round duct. |
|
|
|
||
|
|
|
|
|
||
*Includes non-ducted filters & flex duct |
|
|
|
|
||
1140 Tristar Drive |
www.broan.ca |
Broan-NuTone Canada Inc. |
|
Mississauga, Ontario L5T 1H9 |
1-888-882-7626 |
|
8 |
7/ |
|
6- |
|
29-15/16
8-3/4
| <![if ! IE]> <![endif]>Ducted |
<![if ! IE]> <![endif]>Non-Ducted |
| <![if ! IE]> <![endif]>– 39 |
<![if ! IE]> <![endif]>3/8 |
| <![if ! IE]> <![endif]>-1/2 |
<![if ! IE]> <![endif]>– 42- |
| <![if ! IE]> <![endif]>29 |
<![if ! IE]> <![endif]>3/4 |
|
<![if ! IE]> <![endif]>29- |
-3/4 |
|
19 |
|
Dimensions shown are in inches.
A sleek remote control lets you operate the range hood speeds, lights and delay-off features from across the room. Its magnetic base holds securely on metal surfaces for convenient availability.
<![if ! IE]><![endif]>87540B 06/11
Specifications subject to change without notice. ® 2011 Broan-NuTone Canada Inc.
