Broan EW5430BLS Installation

INSTALLATION INSTRUCTIONS

HB0198

EW54 SERIES

! !

INTENDED FOR DOMESTIC COOKING ONLY

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGE 13.

Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 1-800-558-1711
REGISTER YOUR PRODUCT ONLINE AT: www.broan.com

23136 rev. 03

!

WARNING

!

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by

qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented outdoors.

7. Do not use this unit with any solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

10. When applicable, local regulations comprise more

restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers

cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.

b) Always turn power hood ON when cooking at high heat or

when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed

to accumulate on fan, filters or in exhaust ducts.

d) Use proper pan size. Always use cookware appropriate for the

size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or

metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels —

This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to

operate it.

B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power
unit.

4. Your hood motor has a thermal overload which will automatically

shut off the motor if it overheats. The motor will restart when it
cools down. If the motor continues to shut off and restart, have
the hood serviced.

5. The minimum hood distance above cooktop is 24” (30” over a

gas range). A maximum of 30” above cooktop is recommended
for best capture of cooking impurities.

6. Two installers are recommended because of the large size and

weight of this unit.

7. To reduce the risk of fire and to properly exhaust air, be sure to

duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.

8. Because of the high exhausting capacity of this hood, you

should make sure enough air is entering the house. Open a
window close to or in the kitchen.

9. To reduce the risk of fire and electrical shock, the Bron Elite

EW54 Series models should only be installed with their own
built-in blower.

10. When used in recirculation mode, to reduce the risk of fire and

shock, use only conversion kit model HRKMBLS.

11. Please read specification label on product for further

information and requirements.

2

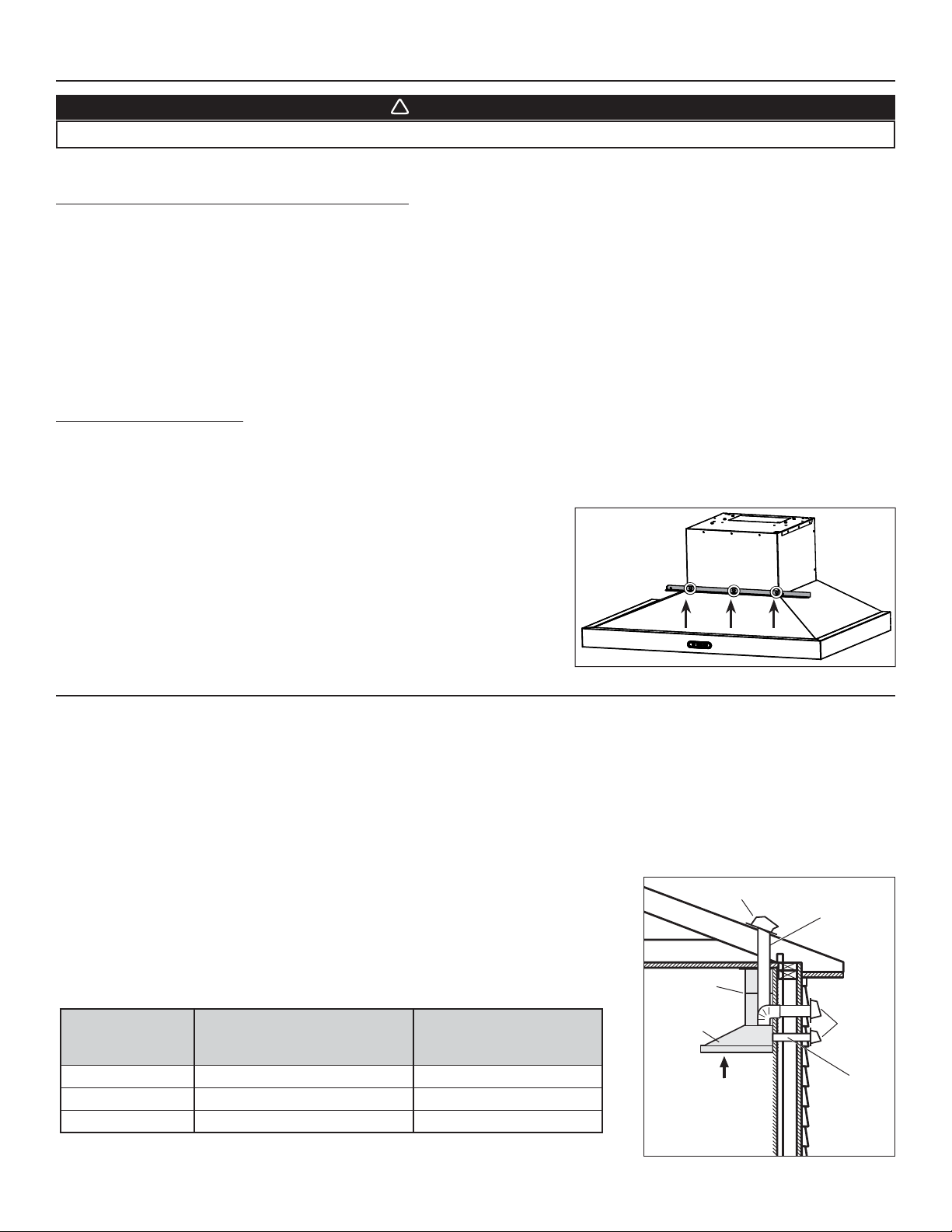

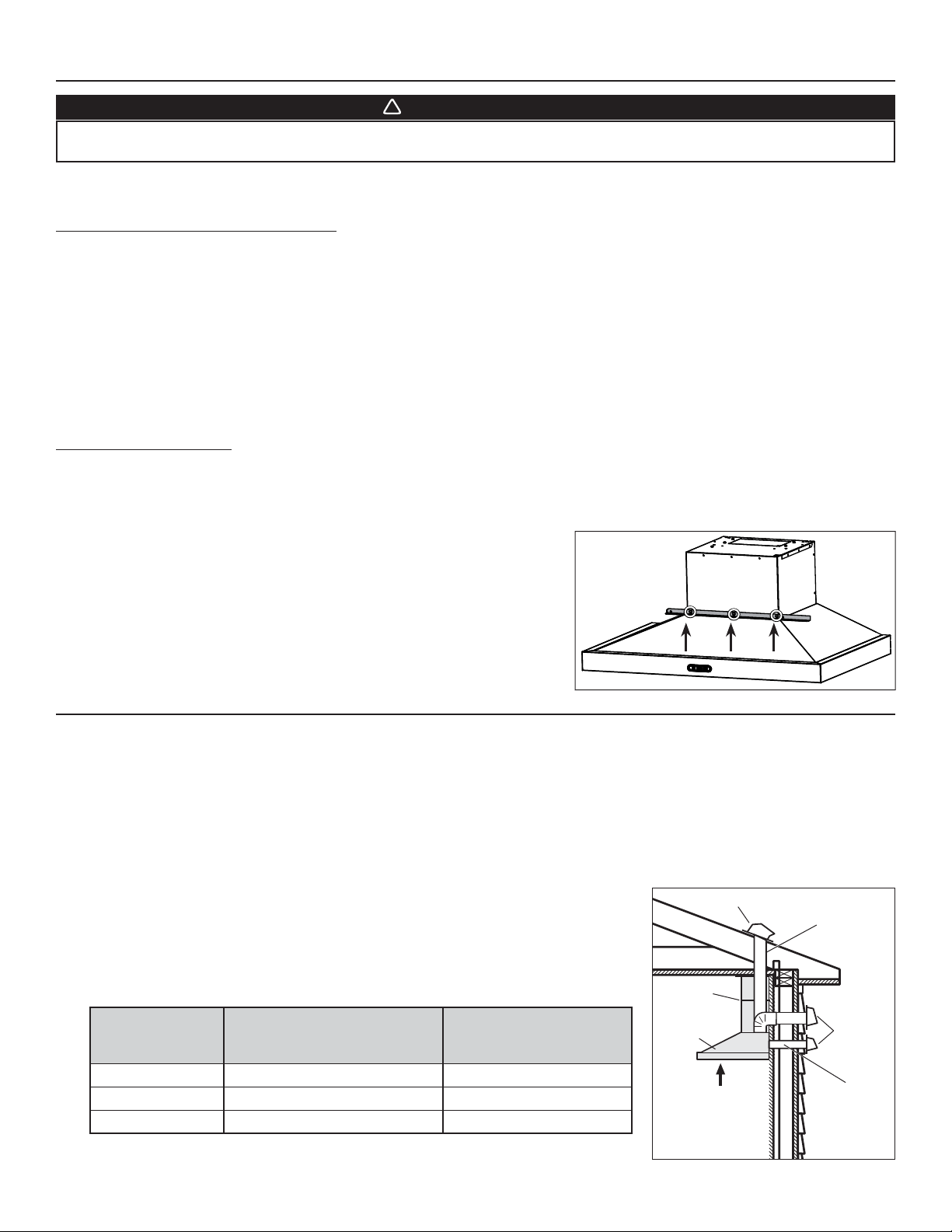

1. PREPARE THE INSTALLATION

!

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:

- Hood

- Accessories • Decorative flue assembly (lower and upper flues)

• Hood mounting bracket

• Upper flue mounting bracket

• 2 micromesh filters

• 6” round adapter/damper (for vertical discharge), in a bag

• 3¼” x 10” adapter/damper (for horizontal or vertical discharge)

• Suction cup (taped to one of the GU10 halogen bulbs)

• Bag of parts including: 5 no. 8 x 1½” countersunk screws, 8 no. 8 x 3/4” screws, 6 no. 8 x 3/8” screws,6 drywall anchors,

3 washers, 2 no. 8 x 1/2” screws, 2 neoprene pieces. If need be, discard extra hardware.

Parts sold separately:

- Duct, elbows, wall or roof caps.

- Optional flue extension for 10-ft. ceilings model FXE54BLS.

- Non-duct kit model HRKMBLS, mandatory for non-ducted installation.

NOTE: The maximum ceiling height must not exceed 9 ft. when using a non-duct kit.

Before installation, remove and discard the shipping bracket (in grey) and its retaining

SCREW LOCATIONS

screws. See illustration on the right.

HD0937

2. SELECT INSTALLATION TYPE

NOTE: During the installation, protect countertop and/or cooktop.

2.1 NON-DUCTED INSTALLATION

The HRKMBLS non-duct kit is required for a non-ducted installation.

2.2 DUCTED INSTALLATION

Plan where and how the ductwork will be installed.
Install proper-sized ductwork, elbows and roof or wall cap depending on the type of

installation. For vertical discharge, use 6” round or 3¼” x 10” ductwork and for
horizontal discharge use 3¼” x 10” ductwork only. Use metal foil duct tape to seal
duct joints.

2.3 ALL INSTALLATIONS

The minimum hood distance above cooktop is 24” (30” over a gas range).
A maximum of 30” above cooktop is recommended for best capture of cooking
impurities.

Distances over 30” are at the installer and users discretion providing that ceiling

height and decorative flue length allow it.

CEILING HEIGHT

MINIMUM HOOD DISTANCE ABOVE

ELECTRIC RANGE COOKTOP

8 FT. 24 IN. 30 IN.

FT. 28½ IN. 30 IN.

9

FT.* 28½ IN. 30 IN.

10

MINIMUM HOOD DISTANCE

ABOVE GAS RANGE COOKTOP

DECORATIVE

FLUE

HOOD

REFER TO CHART

FOR

DISTANCE ABOVE

COOKING

HH0246A

ROOF CAP

SURFACE

3¼” X 10” DUCT

OR

6 ” ROUND DUCT

WALL

AP

C

3¼” X 10” DUCT

* 10-ft. ceilings require flue extension model FXE54BLS (sold separately).

3

2. SELECT INSTALLATION TYPE (CONT'D)

6” DIA.

1415/16”
17

15

/16”

30”

WIDTH HOOD

36” WIDTH HOOD

C

L

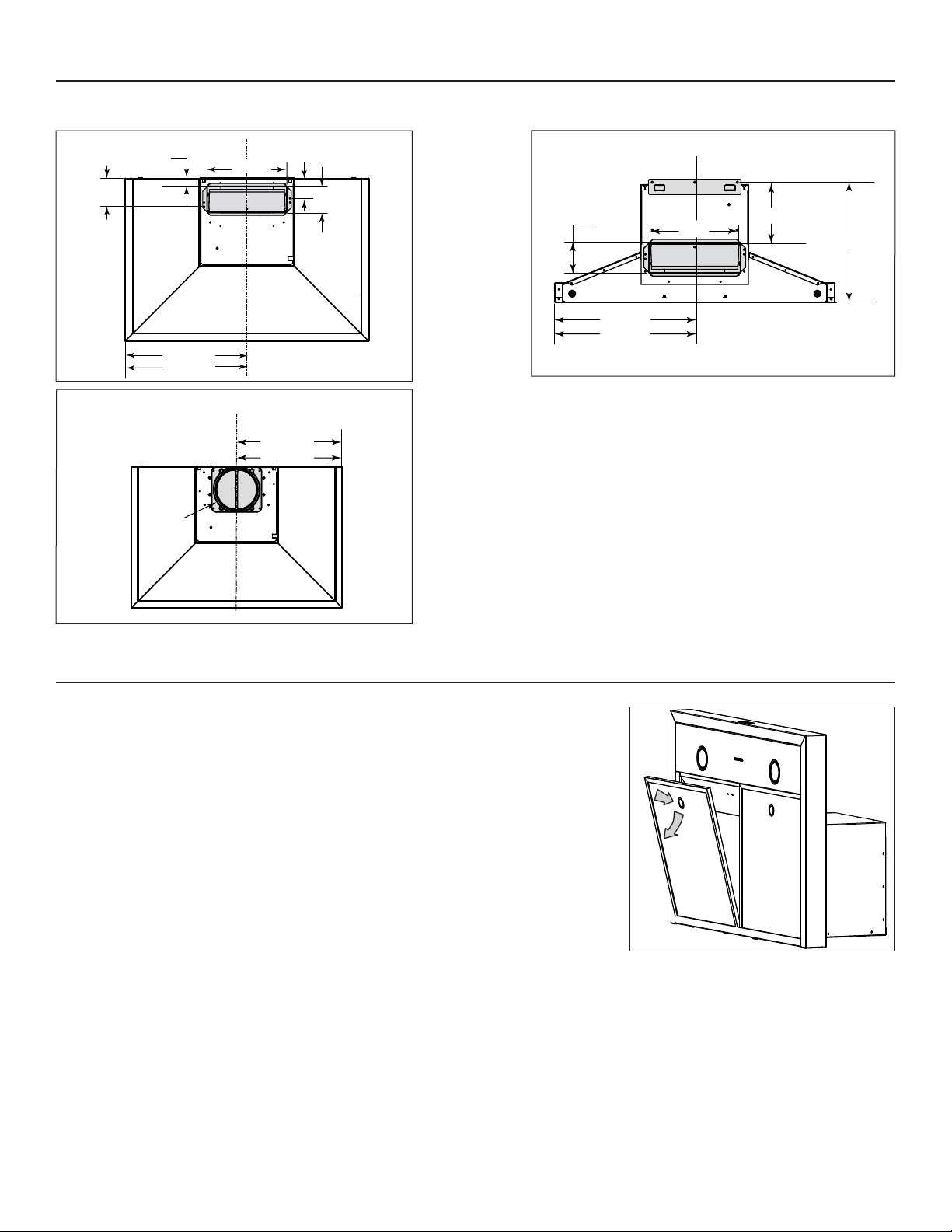

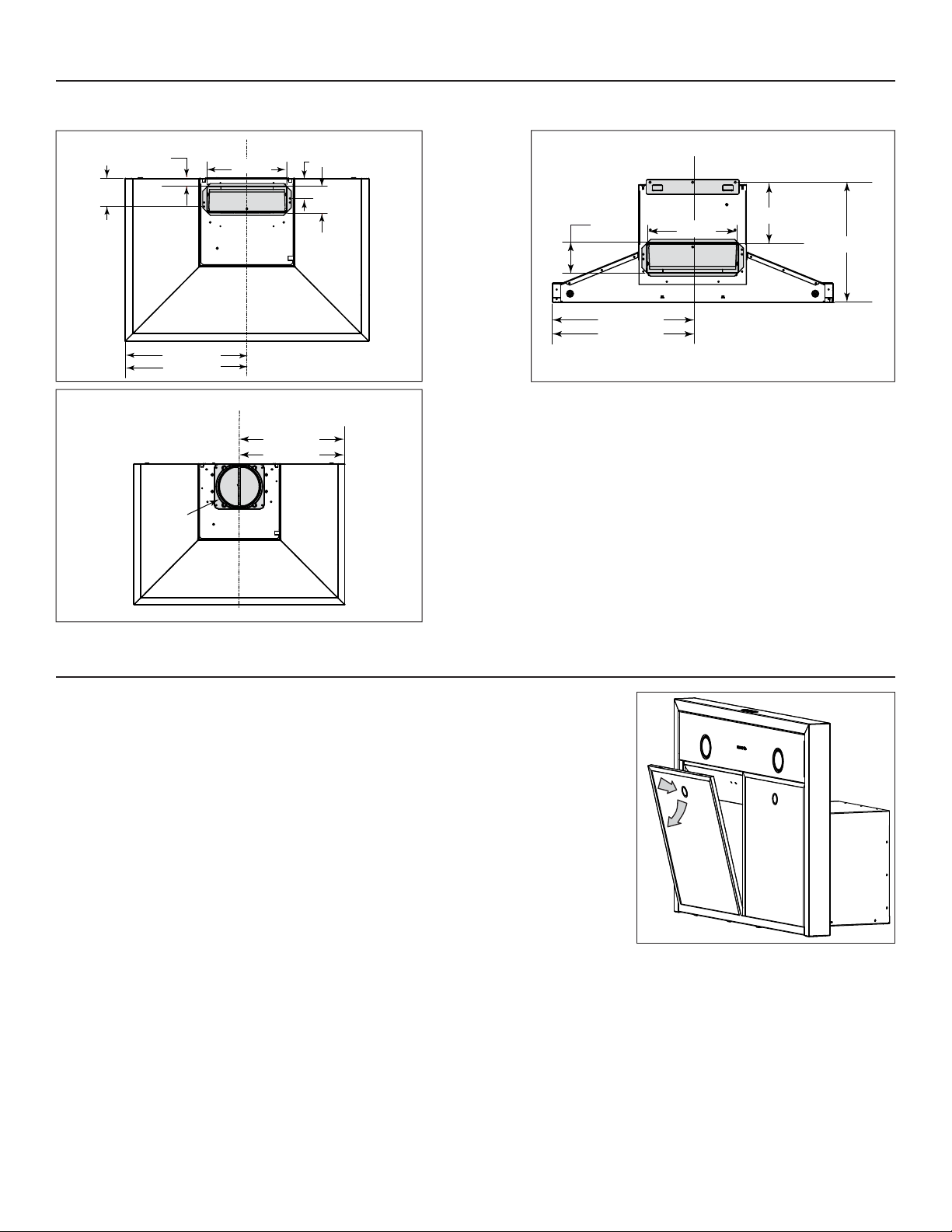

Refer to illustrations below to locate duct opening according to discharge type chosen (grey parts to be installed later).

VERTICAL DISCHARGE

15/16”

3”

C

9¾”

L

2

3¼”

7

/8”

HORIZONTAL DISCHARGE

C

3¼”

9¾”

L

67/16”

127/8”

30”

WIDTH HOOD

36” WIDTH HOOD

HK0258A

1415/16”
1715/16”

VERTICAL DISCHARGE OR NON-DUCTED INSTALLATION

3. REMOVE GREASE FILTERS

HK0273A

15

14

/16”

1715/16”

30”

WIDTH HOOD

36” WIDTH HOOD

Rest the range hood on a table. Remove tapes on filters. Remove filters from the range hood
by pushing them down (1) and tilting them (2). Set aside the filters.

Remove both styrofoam pieces and tape from under the blower and discard.

4

1

2

HD0938

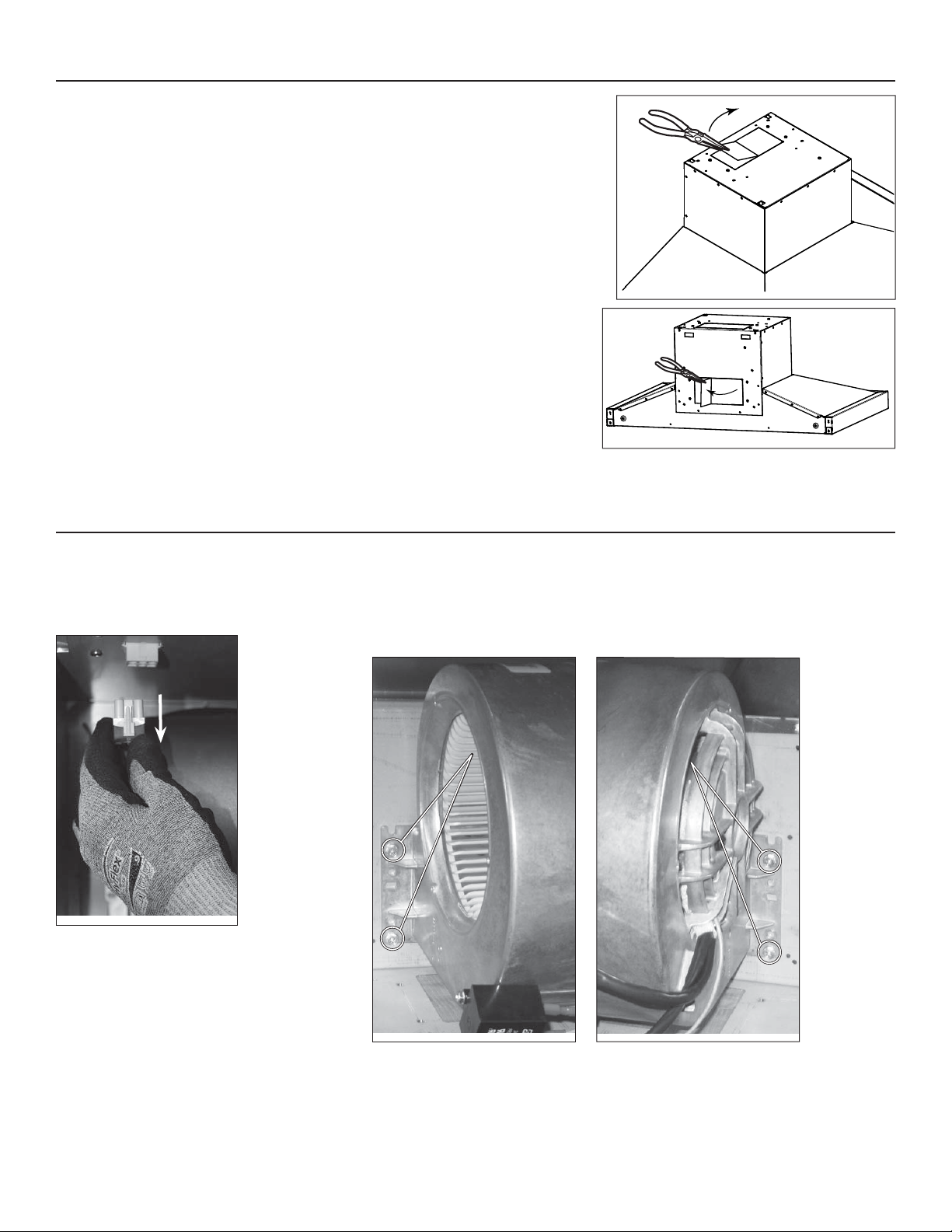

4. CHOOSE THE OPENING

FOR VERTICAL DISCHARGE OR NON-DUCTED INSTALLATION:

From outside the unit, remove the knockout in order to clear vertical discharge opening
(see illustration beside).

FOR HORIZONTAL DISCHARGE:

From outside the unit, remove the knockout from back of hood (see illustration beside).

HR0122

HR0123

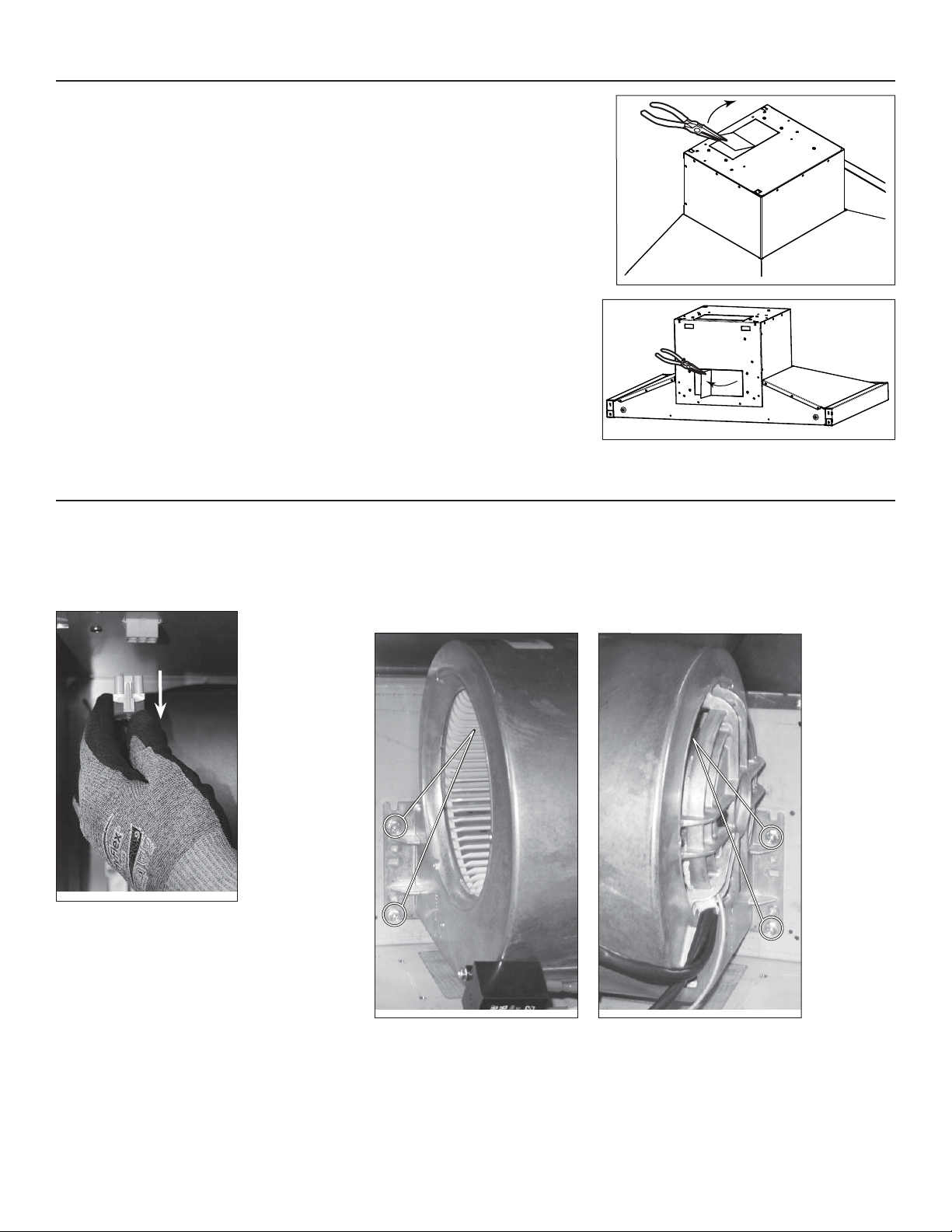

5. BLOWER REMOVAL (HORIZONTAL DISCHARGE ONLY)

The EW54 Series range hoods are factory shipped with the blower mounted for a vertical discharge configuration. For a horizontal discharge
configuration, disassemble the blower from the inner top of the hood (see procedure below). It will be assembled to the inner back of the hood
once the hood is mounted on the wall.

1) Unplug the blower.

HD0817

2) Using a 5/16” socket, or a Robertson or a Phillips no.2 screwdriver, remove the 4 blower mounting
screws (2 on each side) from the inner top of the hood (see pictures below). Set the blower and screws
aside.

LEFT SIDE MOUNTING

SCREW LOCATIONS

RIGHT SIDE MOUNTING

SCREW LOCATIONS

HD0385

HD0386

5

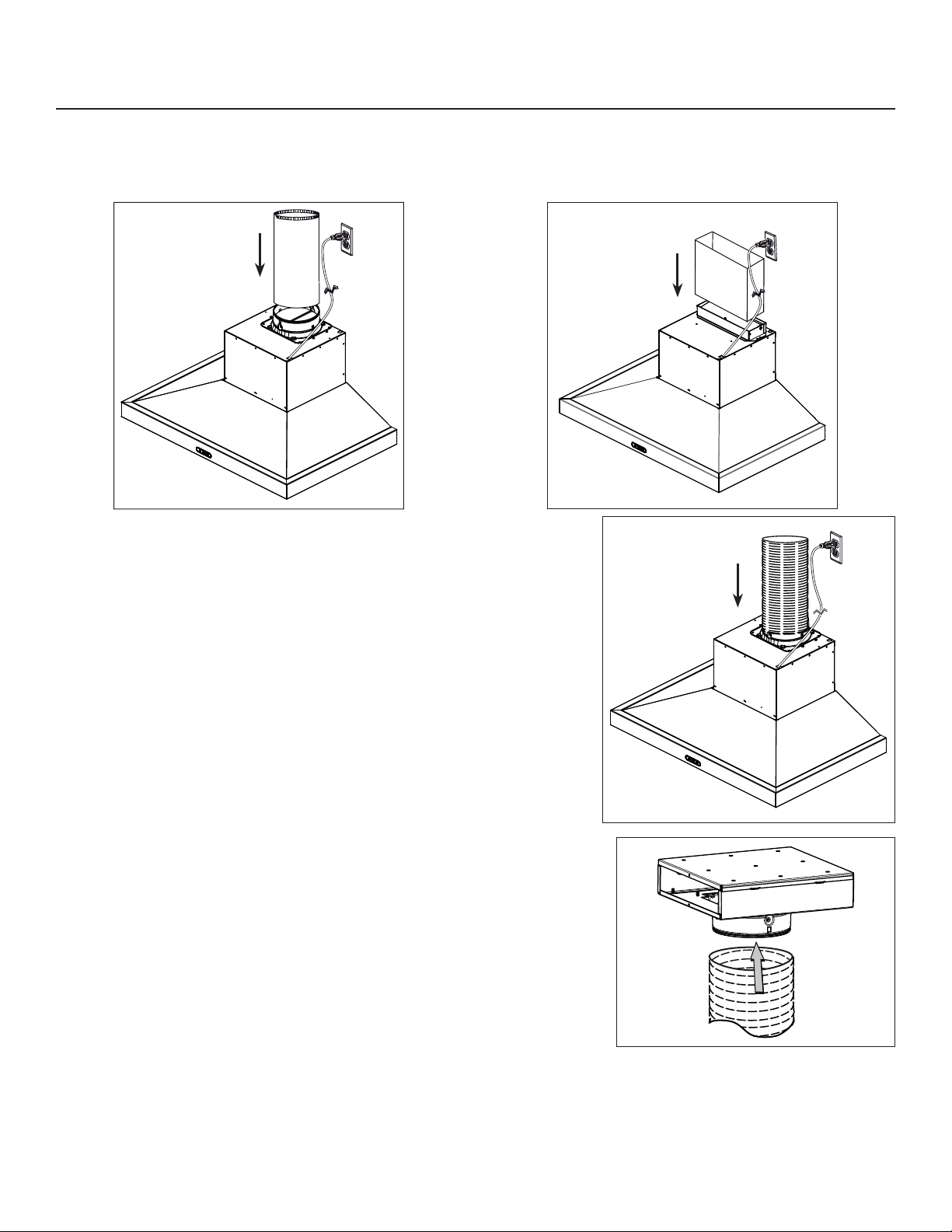

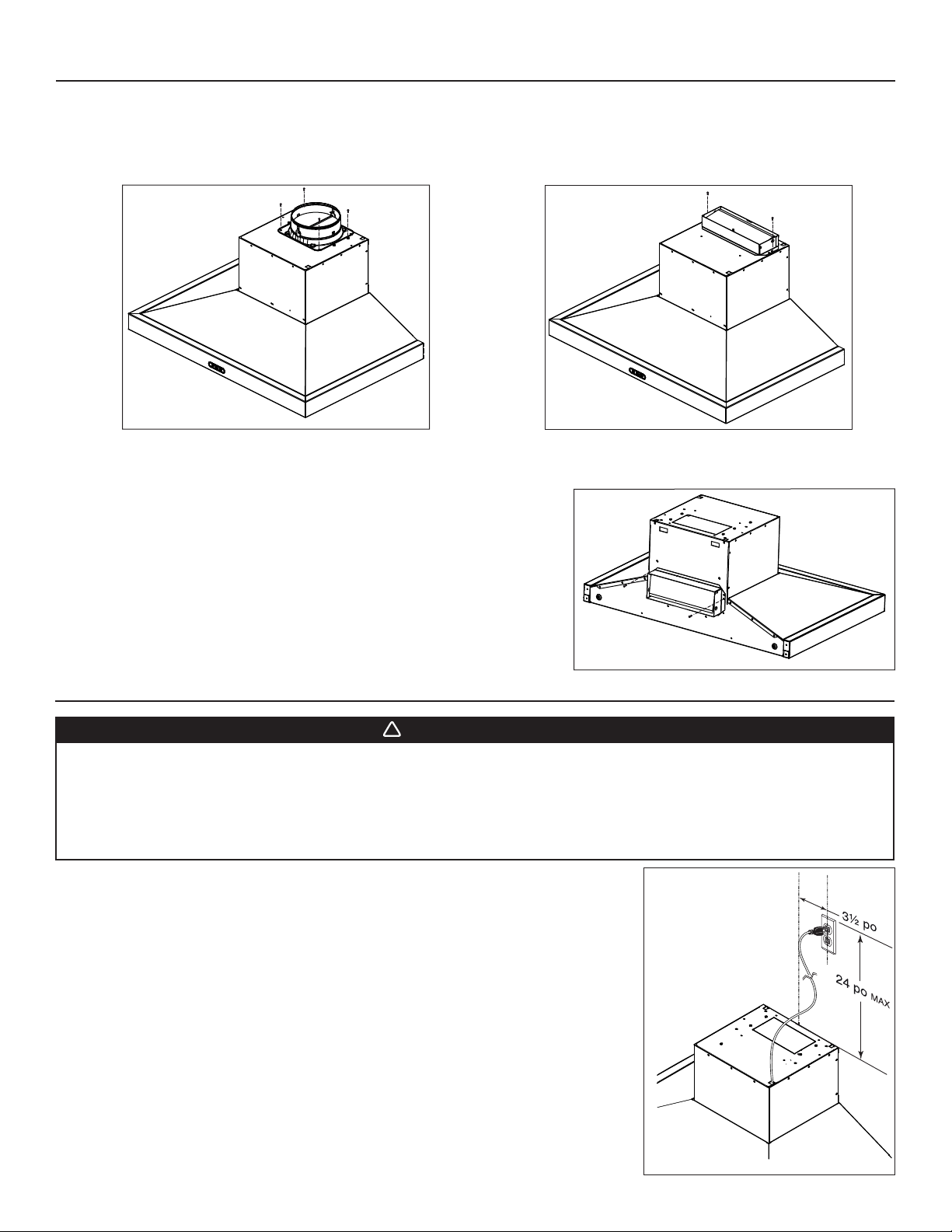

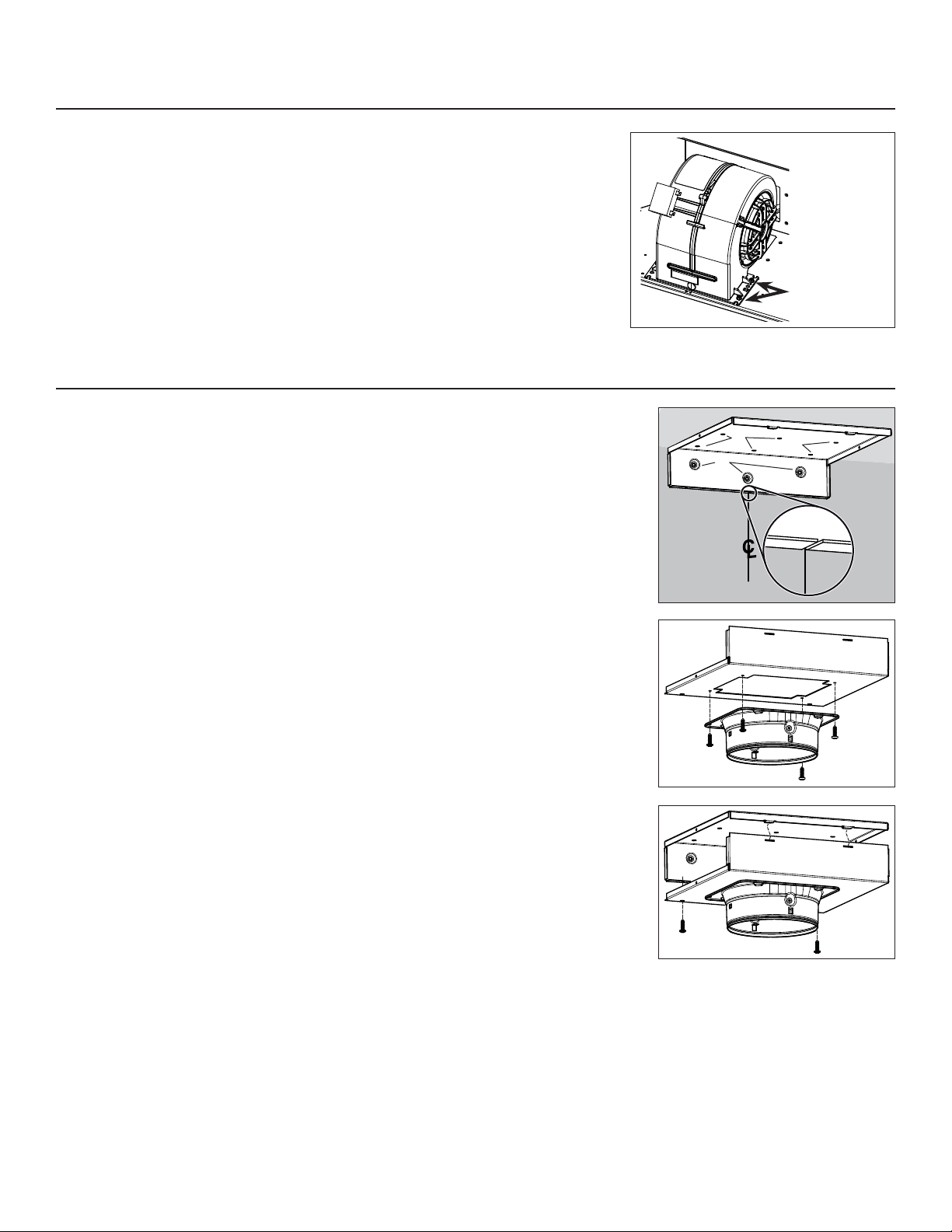

6. INSTALL ADAPTER/DAMPER (6” ROUND OR 3¼” X 10”)

!

Mount the 6” round adapter/damper (included in bag) using 4 no. 8 x 3/8” screws (included) or the 3¼” x 10” adapter/damper to the hood
using 2 no. 8 x 3/8” screws (included). Seal the adapter/damper to the hood using metal foil duct tape.

VERTICAL DISCHARGE 6” ROUND AND

NON-DUCTED INSTALLATION ONLY

HJ0139

Secure the adapter/damper to the back of the hood using 2 no. 8 x 3/8” screws
(included). Seal the adapter/damper to the hood using metal foil duct tape.

NOTE: The wall ducting must be properly prepared to receive the adapter. Before
performing the installation, make sure the adapter fits easily in the duct.

HJ0140

VERTICAL DISCHARGE 3¼” X 10”

HORIZONTAL DISCHARGE 3¼” X 10” ONLY

HJ0129

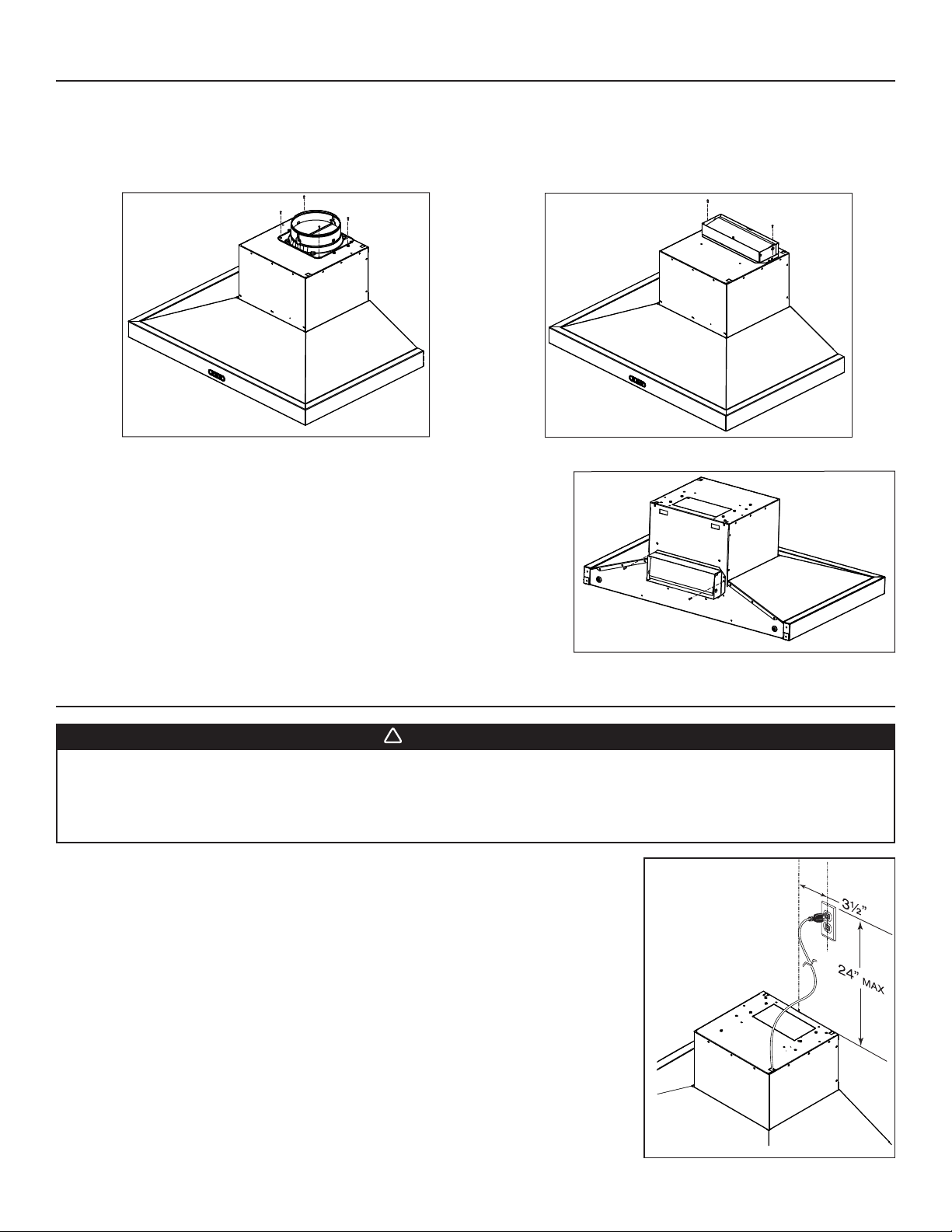

7. WIRING INSTALLATION

WARNING

Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions
are not completely understood, or if there is any doubt as to whether the appliance is properly grounded. Do not
use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the
appliance, in accordance with all applicable codes and standards. Turn off electrical power at service entrance
before wiring.

C

C

L

L

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.

Position the outlet within the space covered by the decorative flue. Place the outlet at a maximum
distance of 24” (from where the cord exits from the hood). The center of the outlet must be
positioned at 3½” from the center of the future hood location (as illustrated beside). Make sure
this does not interfere with a mounting bracket fastening area or with the decorative flue (where
the flue touches the wall).

HE0233A

6

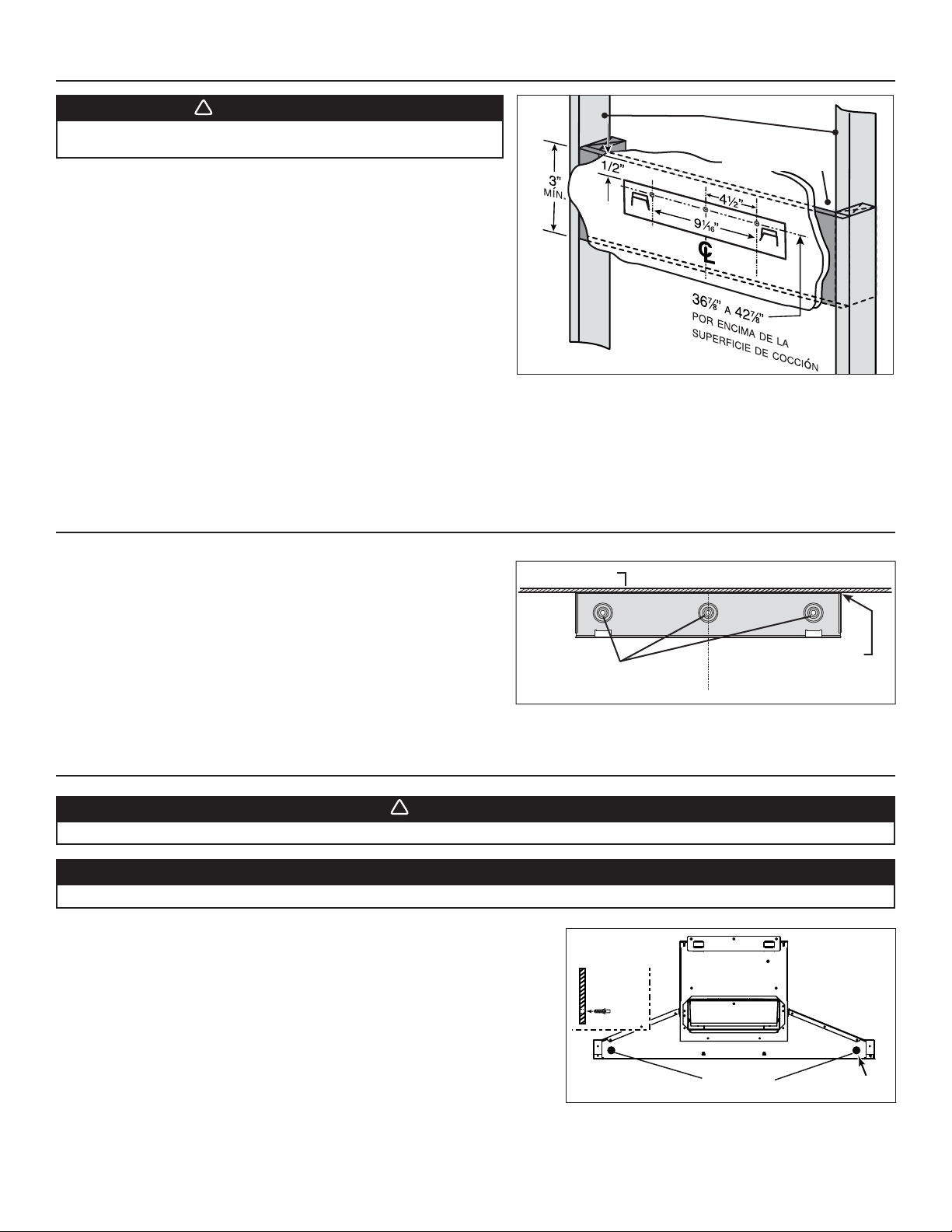

8. INSTALL HOOD MOUNTING BRACKET

!

HD0813A

HD0377

C

L

!

WARNING

WALL STUDS

When cutting or drilling into wall, do not damage electrical
wiring and other hidden utilities.

Construct wood wall framing that is even with the surface of wall studs.
Wood wall framing must be at least 1/2” thick and 3” high. Fasten wood wall
framing to wall studs for a solid installation.
Make sure that the height of the framing will allow the mounting bracket to
be secured to the framing within the dimensions shown.
After wall surface is finished, carefully center and level the hood
mounting bracket over installation location. Secure it to wall framing using
3 no. 8 x 1½” screws.
Using a level, draw a vertical line up to the ceiling starting from the
mounting bracket center.

FRAMING BEHIND DRYWALL

367/8” = BOTTOM OF HOOD 24” ABOVE COOKTOP
427/8” = BOTTOM OF HOOD 30” ABOVE COOKTOP

9. INSTALL UPPER FLUE MOUNTING BRACKET (DUCTED INSTALLATION ONLY)

Center the upper flue mounting bracket with the center line previously
drawn in step 8 and place it flush with the ceiling.
Use the upper flue mounting bracket as a template to mark the position of
its screws.
Drill the 3 screw holes using a 3/16” drill bit.
Insert the included drywall anchors into the drilled holes (1 per hole).
Secure the upper flue bracket to the wall using 3 no. 8 x 3/4” screws.
Ensure that the bracket is tight against the wall.

CEILING

SCREW LOCATIONS

MOUNTING BRACKET

FLUSH WITH CEILING

10. INSTALL THE HOOD

WARNING

BE CAREFUL when installing the decorative flue and hood, they may have sharp edges.

CAUTION

DO NOT REMOVE the protective plastic film covering the decorative flue (upper & lower) yet.

1. Align the hood and center it above the hood mounting bracket. Gently lower the
hood until it securely engages the bracket.

2. Level the hood.

3. With the hood hanging in place, mark both hole locations on wall (2 embossed
holes on back of hood; see illustration at right).

4. Remove the hood.

5. Drill through both marked holes on wall using a 3/16” drill bit. Insert the included
drywall anchors into the drilled holes (one for each hole).

6. Hang the hood to the wall bracket.

7. Secure the hood to the wall using 2 no. 8 x 3/4” screws and 2 washers.

7

SIDE VIEW

HD0810A

NOTE: ILLUSTRATION ABOVE REPRESENTS HORIZONTAL

EXHAUST CONFIGURATION, BUT IT ALSO APPLIES TO
ALL CONFIGURATIONS.

HOLE LOCATIONS

Ø 3/16” TYP.

11. REINSTALL BLOWER (HORIZONTAL DISCHARGE ONLY)

1. Position the blower on the inner back of the hood, as shown on the right.

2. Using a 5/16” socket, or a Robertson or a Phillips no. 2 screwdriver and the 4 screws
previously removed, secure the blower to the hood.

NOTE: In order to ease installation, before mounting the blower, prepare the screw holes by
screwing all 4 screws without the blower, then remove and mount the blower.

3. Plug the blower connector back in and plug hood power cord into the outlet.

HD0829

12. PLENUM INSTALLATION (NON-DUCTED INSTALLATION ONLY)

RIGHT SIDE

MOUNTING

SCREW

LOCATIONS

Remove the shipping tape retaining the lower and upper plenum plates with the 6” round adapter
together. Carefully align the upper plenum plate central notch with the line traced in step 8 (see
inset at right) and place it flush to the ceiling. Use the plate as a template to mark the position (A)
of its screws.

NOTE: To ease installation, there are many screw configurations: 6 in ceiling and 2 in wall, on each
side. Only 4 screws are needed to hold the top plenum plate.

Insert the included drywall anchors in the marked holes, then secure the upper plate using
4 no. 8 x 3/4” screws and washers (included with non-duct kit). Make sure the plate is tight against
the wall and ceiling.

Using 4 no. 8 x 3/8” provided screws, assemble the 6” round adapter to the lower plenum plate.

Assemble the lower plenum plate and 6” round adapter assembly to the upper plate by inserting
both tabs of the top plenum plate to their corresponding slots in lower plenum plate. Secure the
plenum assemby using 2 no. 8-18 x 3/8” screws (included).

HD1024

HA0135

A

A

A

HD1025

8

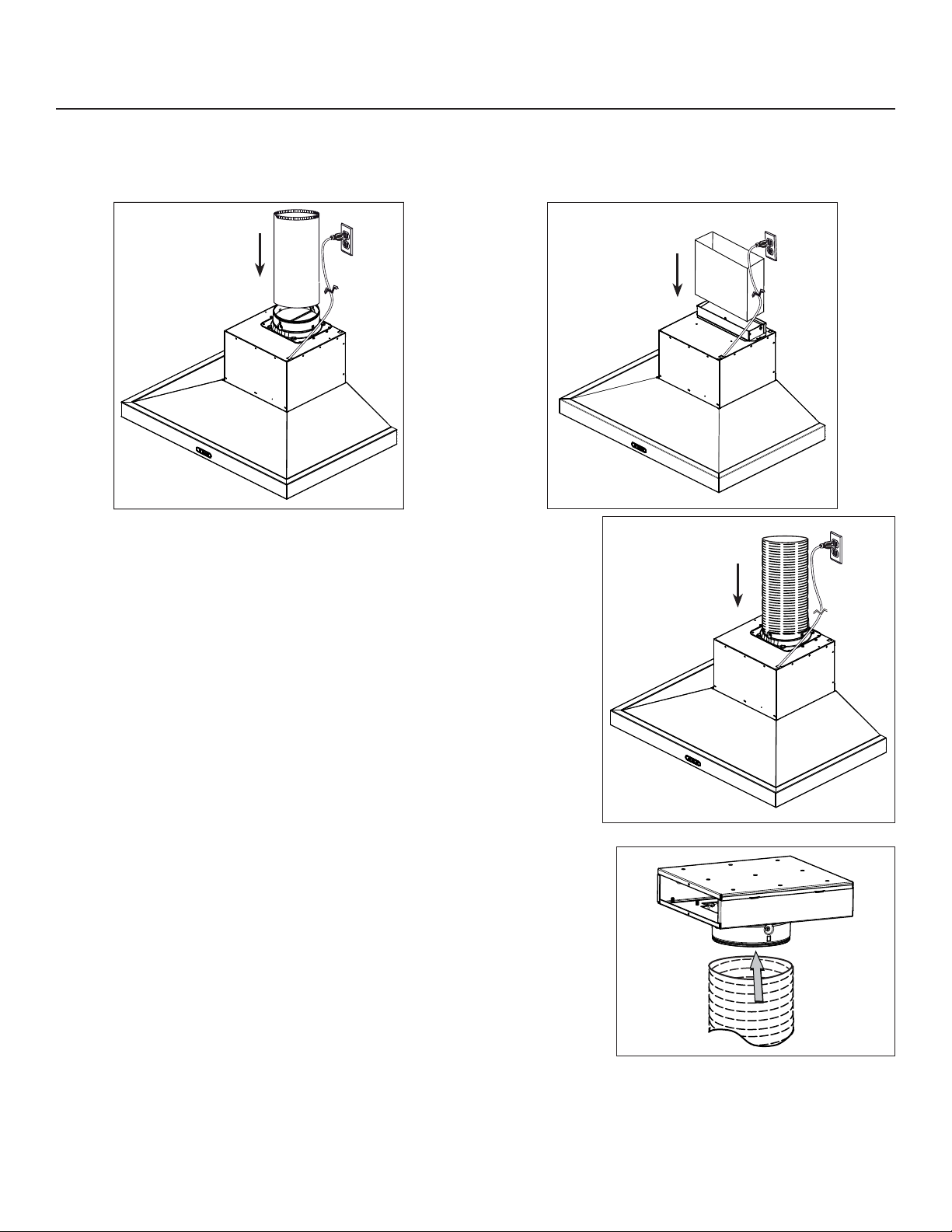

13. DUCT CONNECTION (VERTICAL DISCHARGE AND NON-DUCTED INSTALLATION ONLY)

VERTICAL DISCHARGE:

Plug hood power cord into the outlet. Slide a 6” round or a 3¼” x 10” metal duct over the adapter/damper on the hood. Use metal foil duct
tape to seal the joint.

HJ0141

HJ0142

NON-DUCTED INSTALLATION:

Plug hood power cord into the outlet.
Slide a 6” round flexible metal duct (included) over the adapter/damper on the hood. Use
metal foil duct tape to seal the joint.

HJ0153

Stretch the flexible metal duct up to the plenum, over the adapter. Use metal foil duct tape
to seal the joint.

9

HJ0155

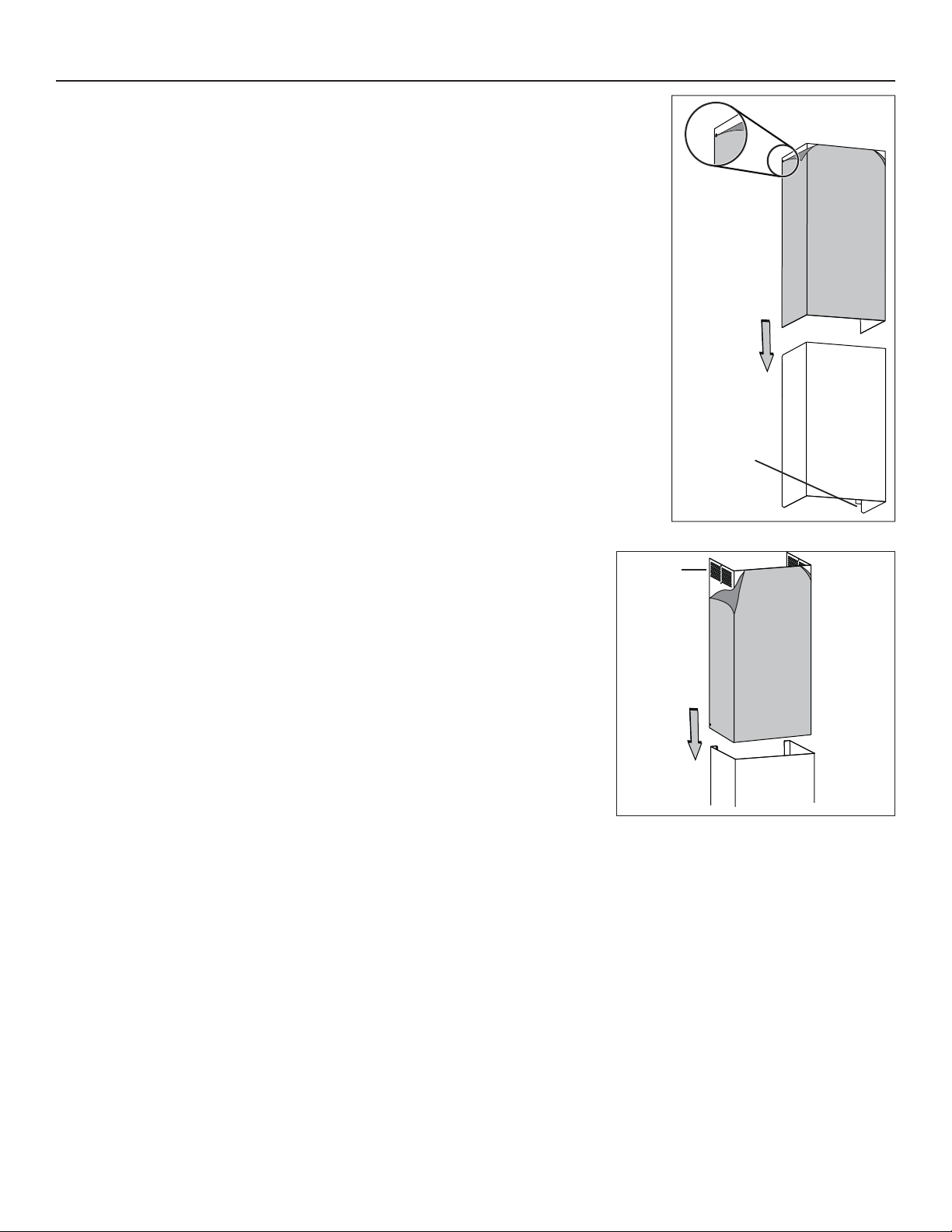

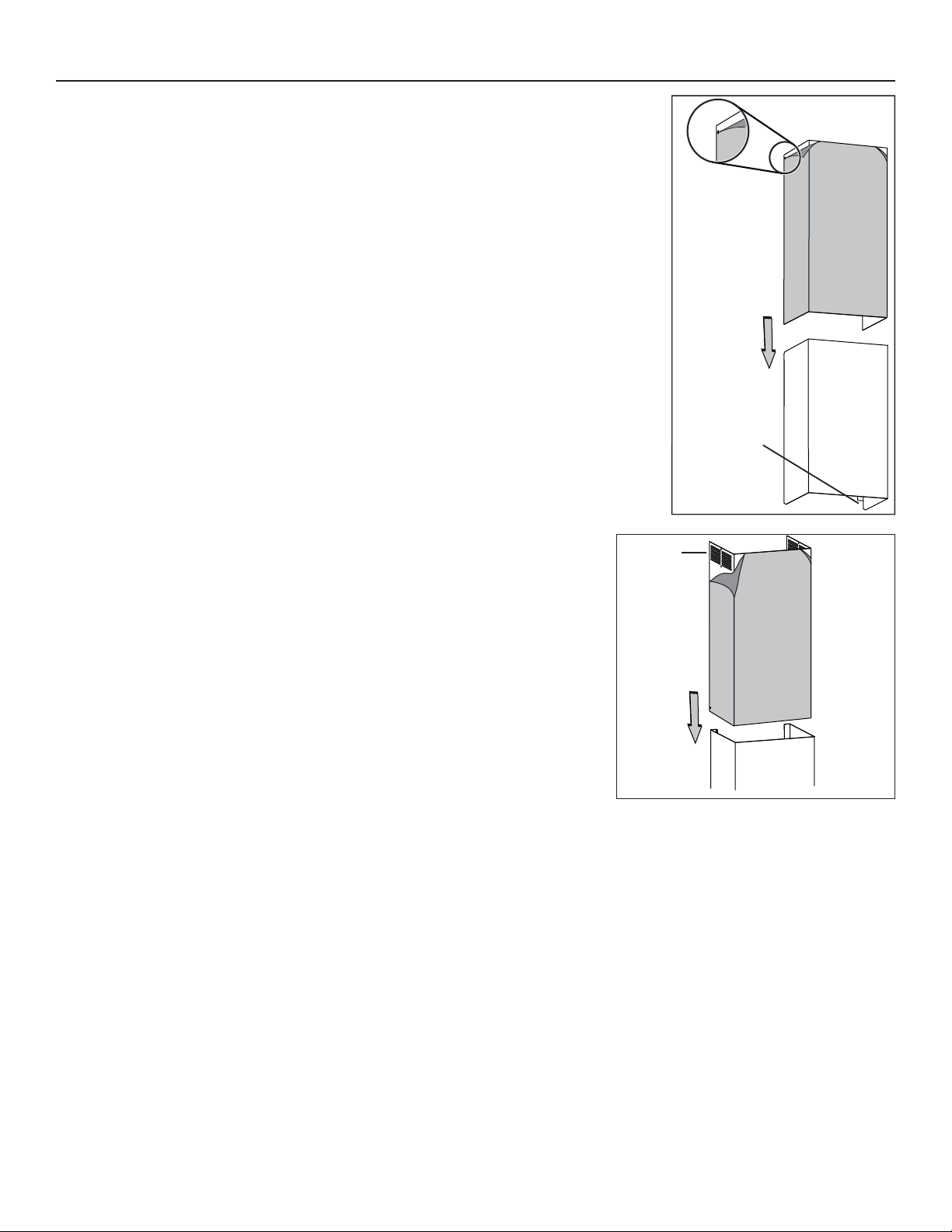

14. PREPARE THE DECORATIVE FLUE

DUCTED INSTALLATION:

Remove protective plastic film covering the lower flue only.
Peel off both corners at the top of the upper flue (note that upper part has one hole on left and right

sides; see image on the right).
Position the lower flue rear notches down.
Gently slide upper flue inside lower flue.

Both lower and upper flues are included with the hood, but for a 10-foot ceiling, discard the provided
upper flue and use the optional flue extension, part no. FXE54BLS (sold separately).

LOWER FLUE

REAR NOTCH

HO0271

NON-DUCTED INSTALLATION:

Remove protective plastic film covering the lower flue only.
NOTE: Do not use the upper decorative flue included with the hood.
Peel off the plastic film covering both top corners of the upper decorative flue (included with

the non-duct kit).
Position the lower flue rear notches down (the ones with the 45° angle).
Gently slide upper flue inside lower flue, louvers end up.

LOUVERS

HA0078

10

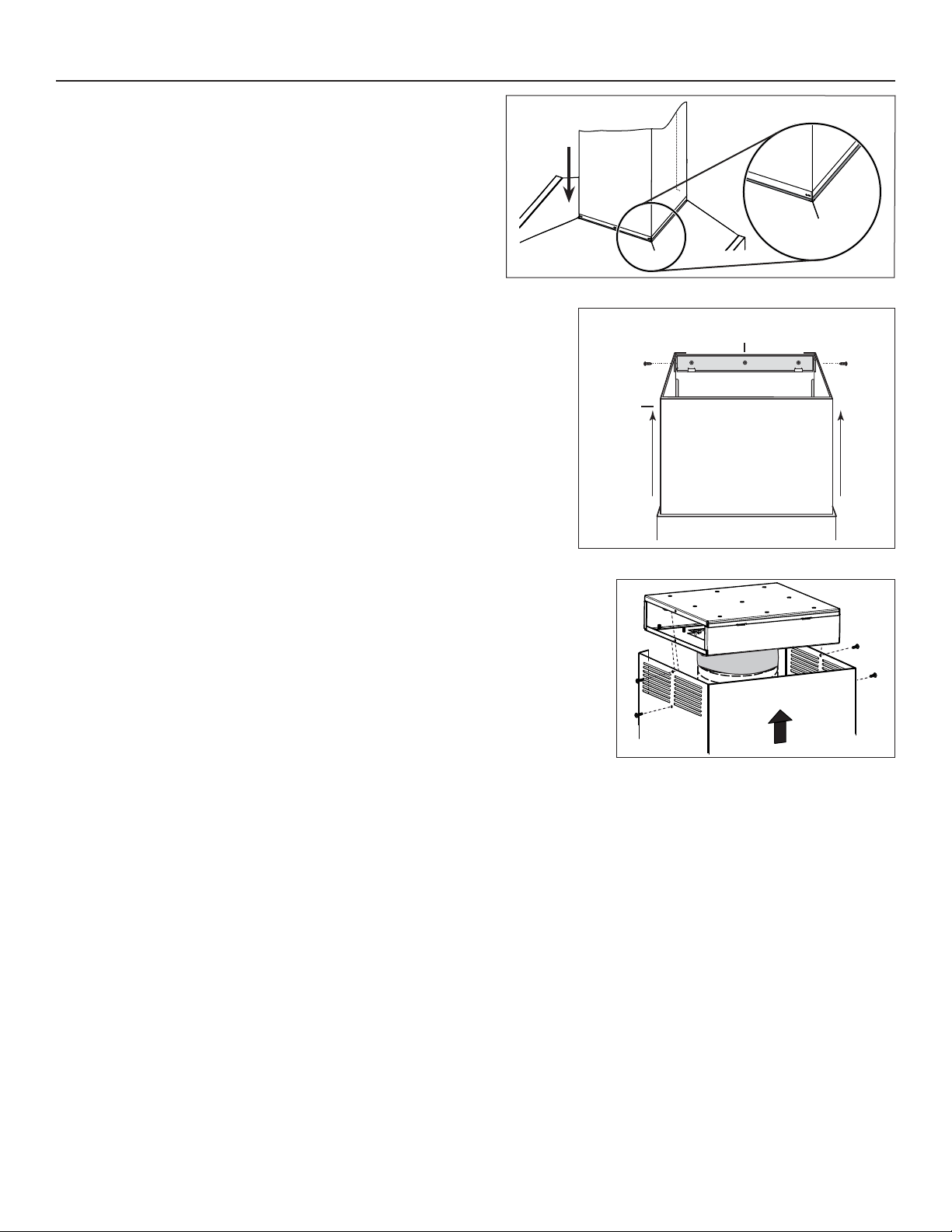

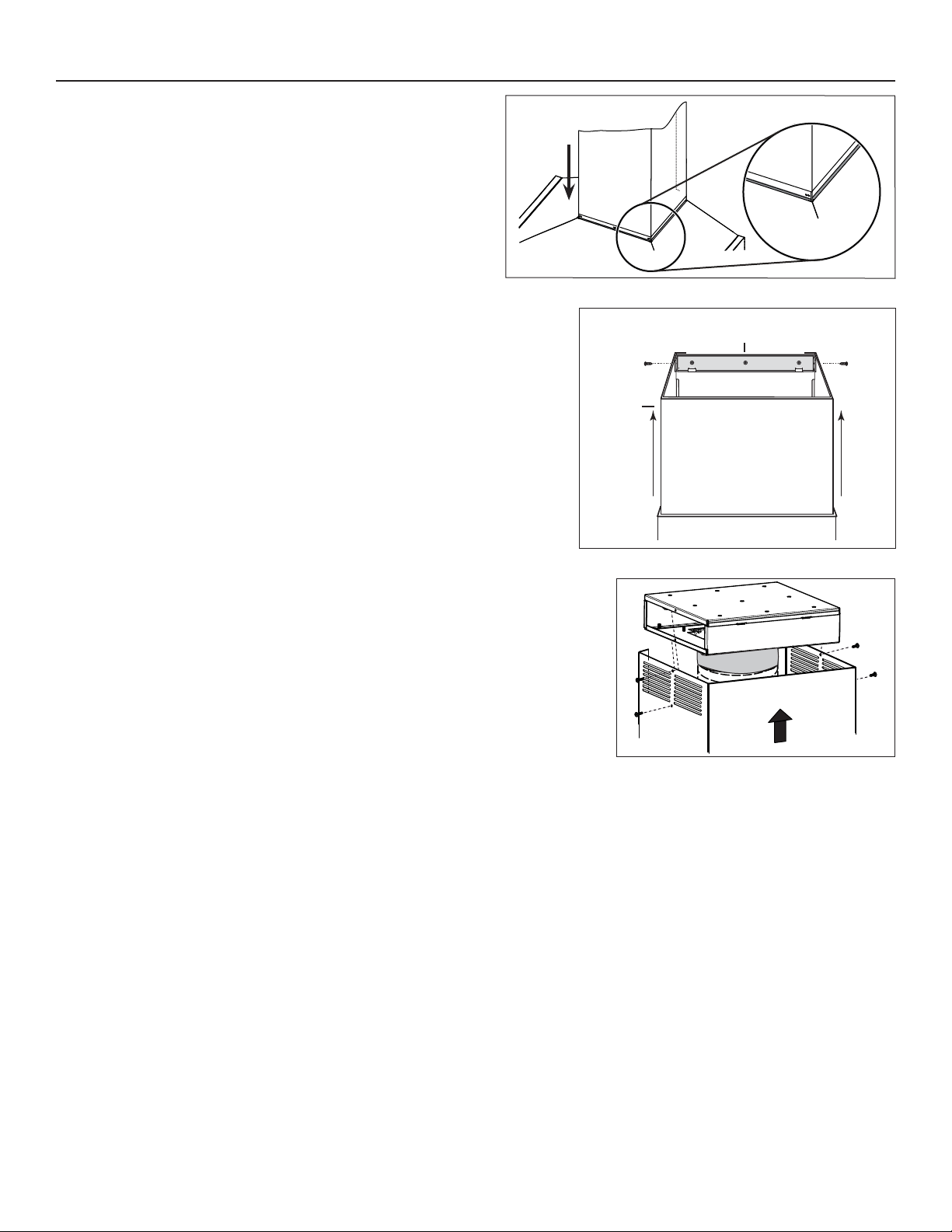

15. INSTALL DECORATIVE FLUE

ALL INSTALLATIONS:

Carefully slide in place decorative flue base (notches end first) in the groove
(shaded part in inset at right) behind the exterior wall of the top of the hood.

HO0272

UPPER FLUE MOUNTING BRACKET

FRONT VIEW

DUCTED INSTALLATION:

Slide up the upper flue until it is aligned with its mounting bracket. The bracket must be
inside the flue. Secure the upper flue to its bracket using 2 no. 8 x 3/8” screws (included).
See illustration beside.

NOTE: Duct not shown in illustration to ease understanding.

NON-DUCTED INSTALLATION:

Slide the upper flue up to the ceiling. The plenum must be inside the flue. Secure the upper
flue to the plenum sides using 4 no. 8 x 1/2” black screws (2 per side, included).

NOTE: Ceiling not shown in illustration to ease understanding.

ALL INSTALLATIONS:

Remove protective plastic film covering the upper flue.

UPPER

FLUE

HO0140

HA0136

11

16. REINSTALL FILTERS

!

Rest filters springs in range hood inside rear groove. Using finger cup, tilt up the filters
into position. Make sure both screws located in the front panel edge of the hood are
securely engaged in both filters oval holes (A) after installation.

HD0939

A

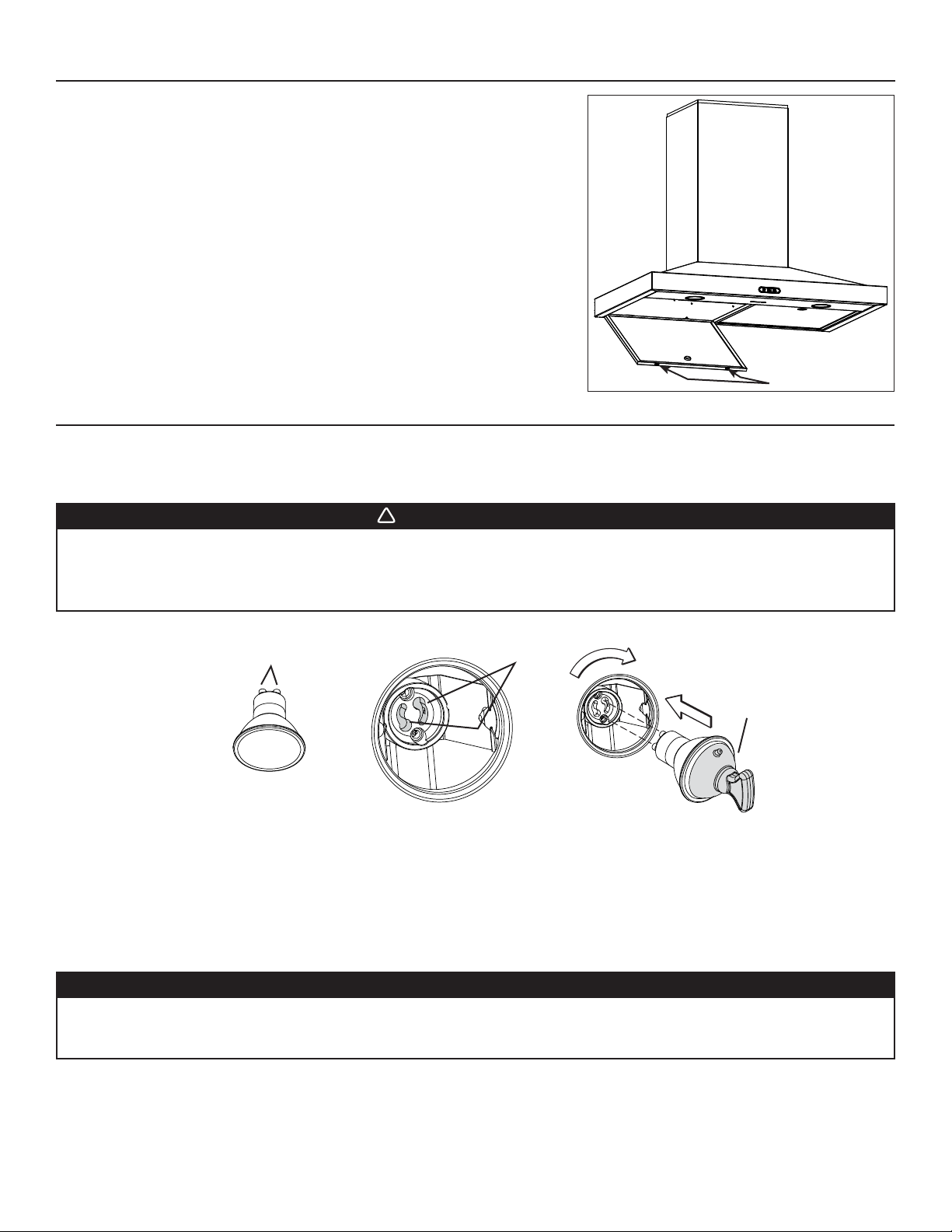

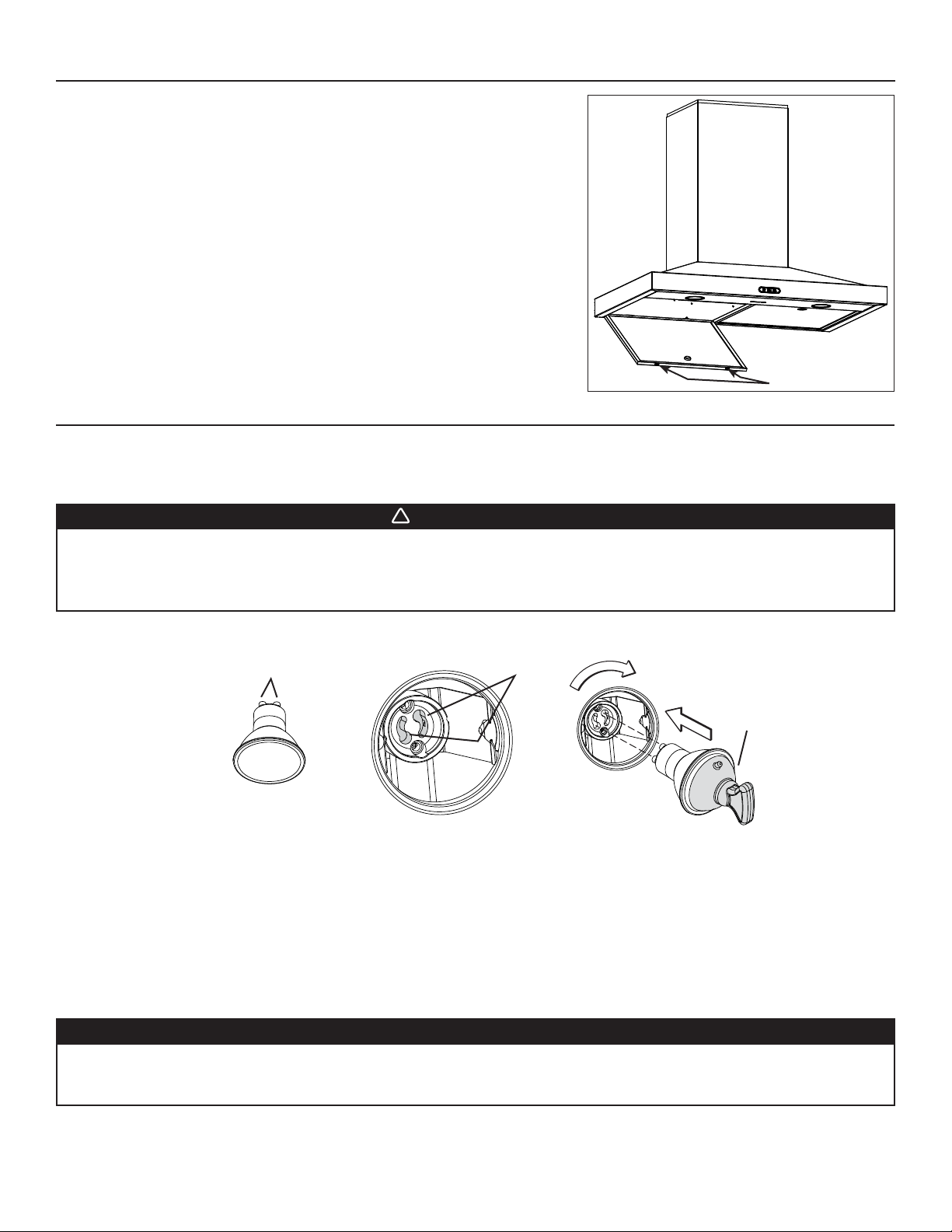

17. LIGHTING

The Broan Elite EW54 Series range hoods require two shielded Halogen Bulbs (120 V, 50 W max., MR16 or PAR16 with GU10 base),
included. See service parts list for replacement bulbs.

WARNING

Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury,
only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a lamp not suitable for use in
recessed luminaires or identified for use in enclosed fixtures.

BULB LEAD GROOVES

BULB LEADS

(IN SOCKET)

SUCTION CUP

TOOL

HR0124

1. Align the bulb leads with the small indentations located on the border of the lamp location on hood (see inset above), then install the

bulbs by placing the bulb leads into their grooves in the socket.

2. Gently push upwards and turn clockwise until secure.

NOTE: The suction cup tool (included with hood) can be used to install and remove light bulbs. Press suction cup tool on bulb and rotate
counterclockwise to remove bulb or clockwise to install bulbs.

CAUTION

Most GU10 LED replacement bulbs commonly found on the market are not designed for use in a cooking
environment and might not perform as advertised. Their usage with this product is not recommended.

12

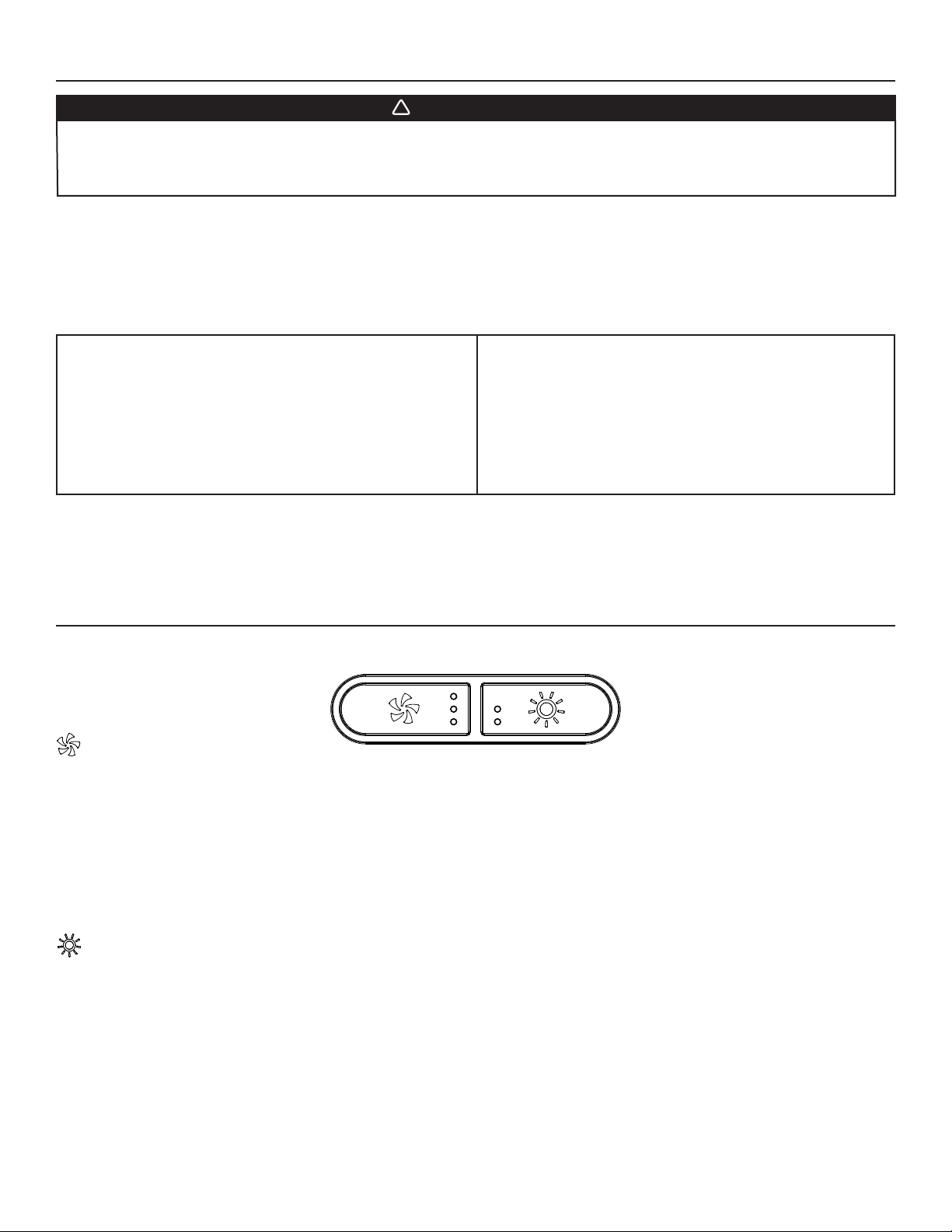

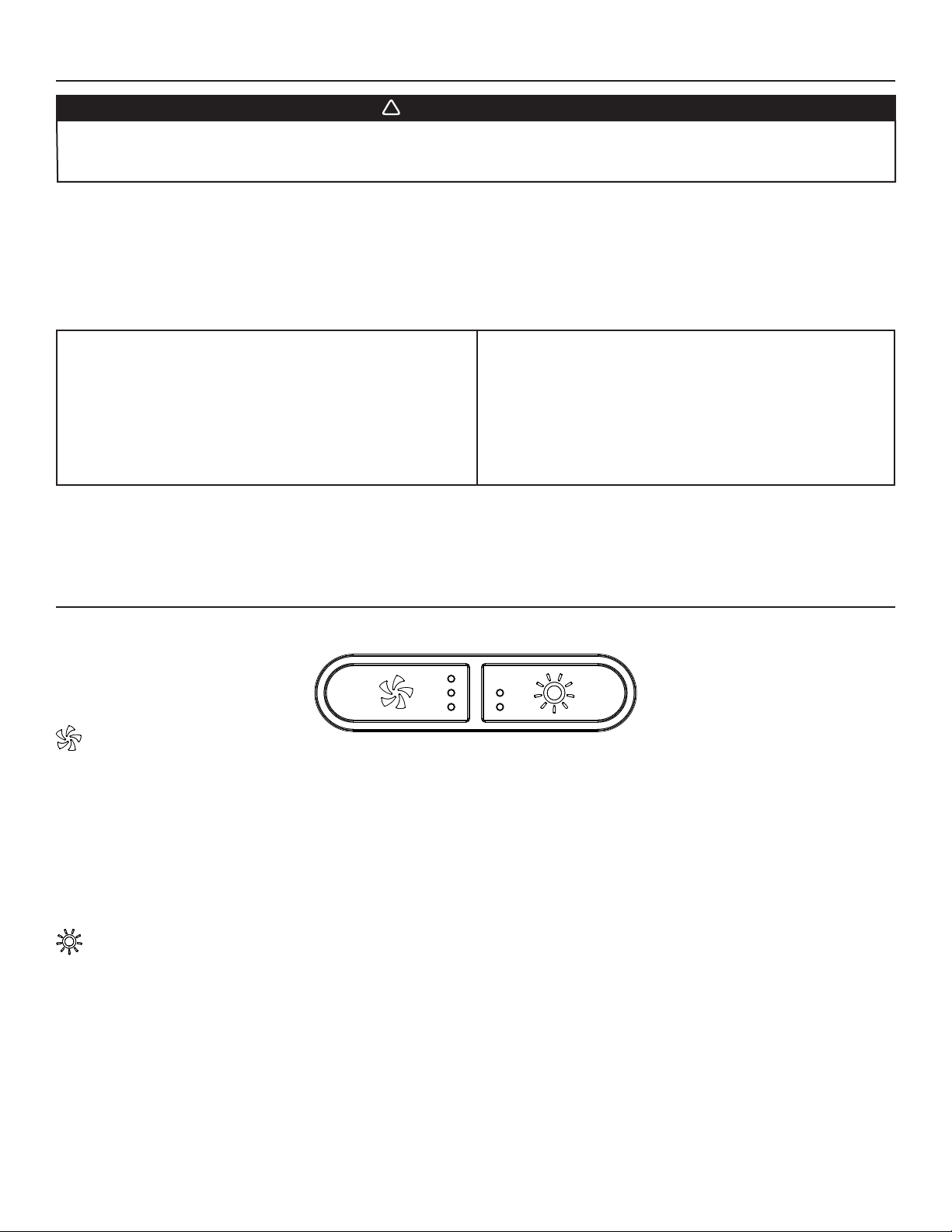

18. CARE

!

WARNING

Before servicing or cleaning the unit, switch power off at service panel and lock service panel to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.

Grease Filters

The grease filters should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filters are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate
detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the
warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

Hood cleaning

Do:

• Regularly wash with clean cloth or rag soaked with warm water
and mild phosphate-free soap or liquid dish detergent.

• Always clean in the direction of original polish lines.

• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.

• You may also use a specialized household stainless steel
cleaner

Avoid when choosing a detergent:

- Any cleaners that contain bleach will attack stainless steel.

- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.

- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be

used close to a range.

Don’t:

• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.

• Use any harsh or abrasive cleansers.

• Allow dirt to accumulate.

• Let plaster dust or any other construction residues reach the
hood. During construction/renovation, cover the hood to make
sure no dust sticks to stainless steel surface.

19. OPERATION

Always turn ON your hood before you begin cooking in order to establish an air flow in the kitchen. Let the blower run for a few minutes to
clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher.

BLOWER BUTTON

When blower is OFF, press this button to turn ON the blower at the last saved speed. If there was no speed saved, the blower will be set
on LOW speed.

NOTE: When LOW speed is activated from OFF, the blower starts on MEDIUM speed for a very short lapse of time, and then resume to
LOW speed.
To change the blower speed, press on this button again until the desired speed is reached (from LOW to MEDIUM to HIGH speed to OFF).
Each time a blower speed is activated, a beep is heard and LED indicators light up to show the corresponding speed chosen (lower LED
for LOW speed, lower and center LEDs for MEDIUM speed and all LEDs for HIGH speed).
When blower is on (no matter the speed level), press and hold this button until the beep sound ends; this will turn off the blower and save
this blower speed to memory.

LIGHT BUTTON

When lights are OFF, press once on this button to turn ON the lights at the last saved setting. If there was no light setting saved, the lights
will be set on LOW intensity. Press another time to set the lights on HIGH intensity. Pressing another time after the HIGH setting will turn
OFF the lights. Each time the lights are turned ON, a beep is heard and LED indicators light up to show the corresponding intensity chosen
(lower LED for LOW and both LEDs for HIGH).

When lights are on (no matter the lighting level), press and hold this button until the beep sound ends; this will turn off the lights and save
the chosen light intensity.

FILTER CLEANING REMINDER

When it is time to clean the hood and filters, the 3 blower button LED indicators will flash slowly for 30 seconds after turning the blower
OFF. This will happen every time the blower is turned OFF until the filter cleaning reminder has been reset. Once the cleaning is done,
reset the filter cleaning reminder indicators by pressing on blower button for 3 seconds during the 30 seconds the 3 blower button LED
indicators flash slowly.

13

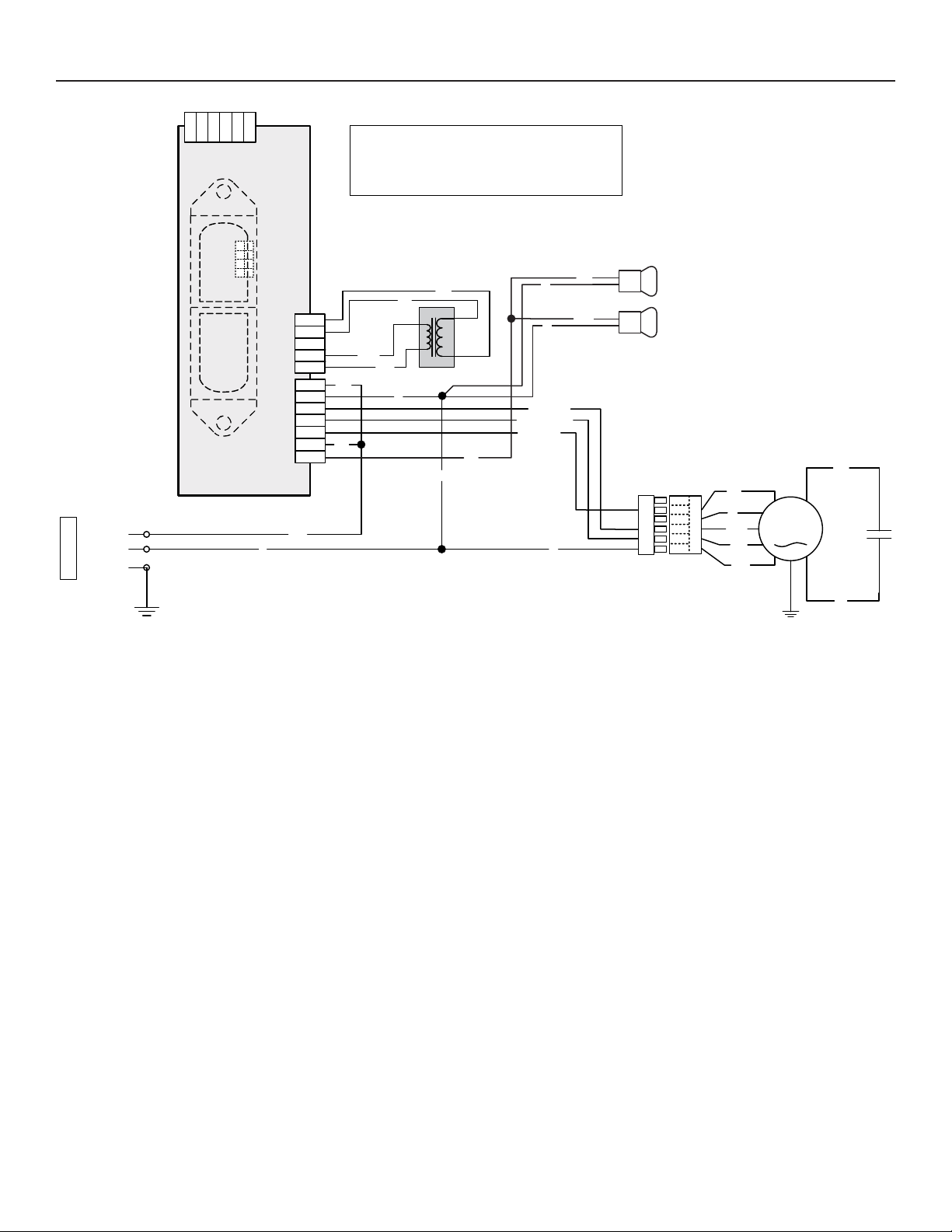

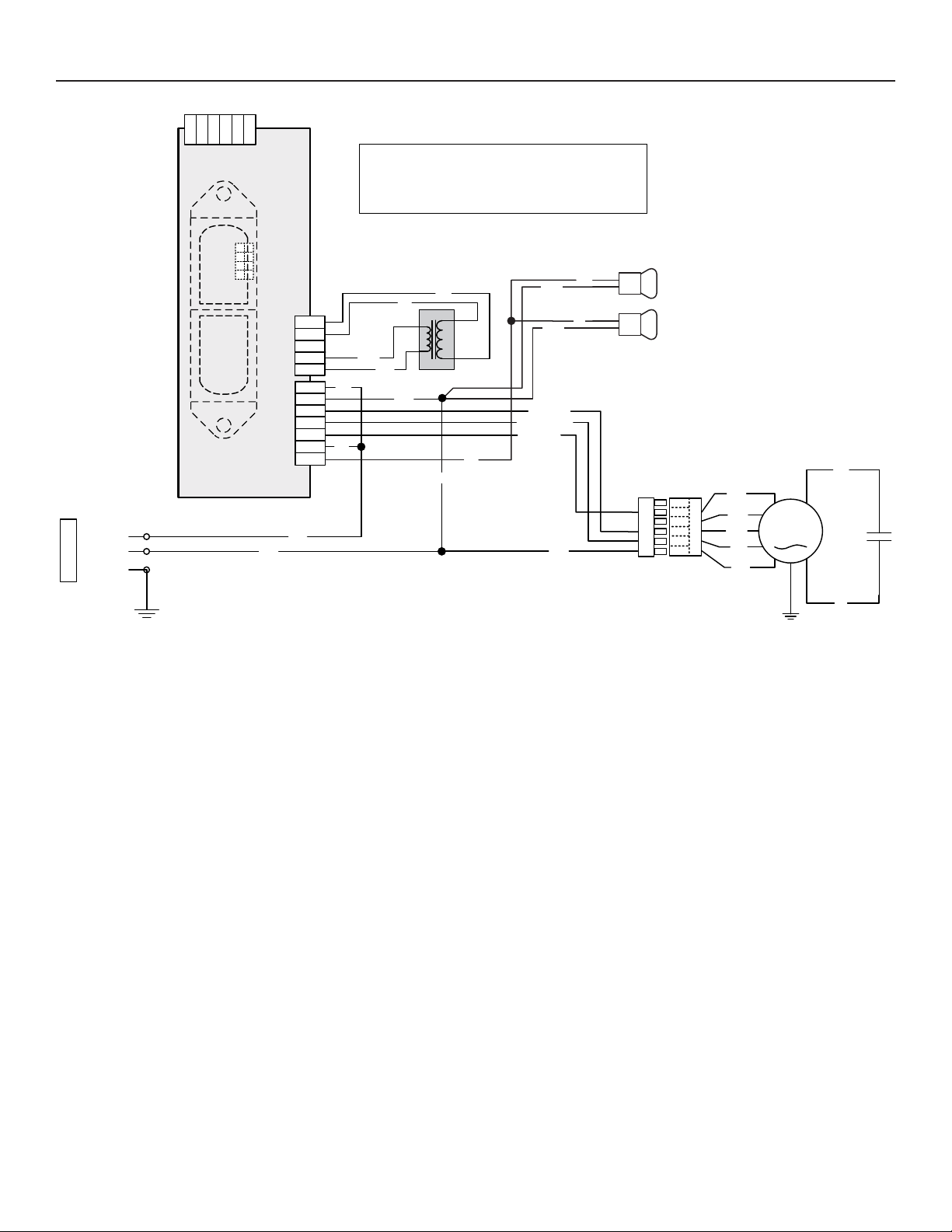

20. WIRING DIAGRAM

User interface mounted

to J10 on back of

control board.

Line

Neutral

Ground

120 V AC

12 34 56

J6

Override

4

8

3

7

2

6

J10

1

5

Interface

Control Board

BK

COLOR CODE

BLACK

BL

BLUE

BN

BROWN

GRY

GREY

R

R

5
4
3

J1

2

Transformer

1

7
6
5
4

J2

3

Power, Mo tor

2
1

BK

W

BL

BL

BK

BK

W

W

O
R
W
Y

Y

W

W

BK (High)

O (Medium)

R (Low)

W

ORANGE
RED
WHITE
YELLOW

BK

BK

FAN MOTOR

6
5
4
3
2
1

BN

BL

W

BK

O

R

HE0269A

GRY

14

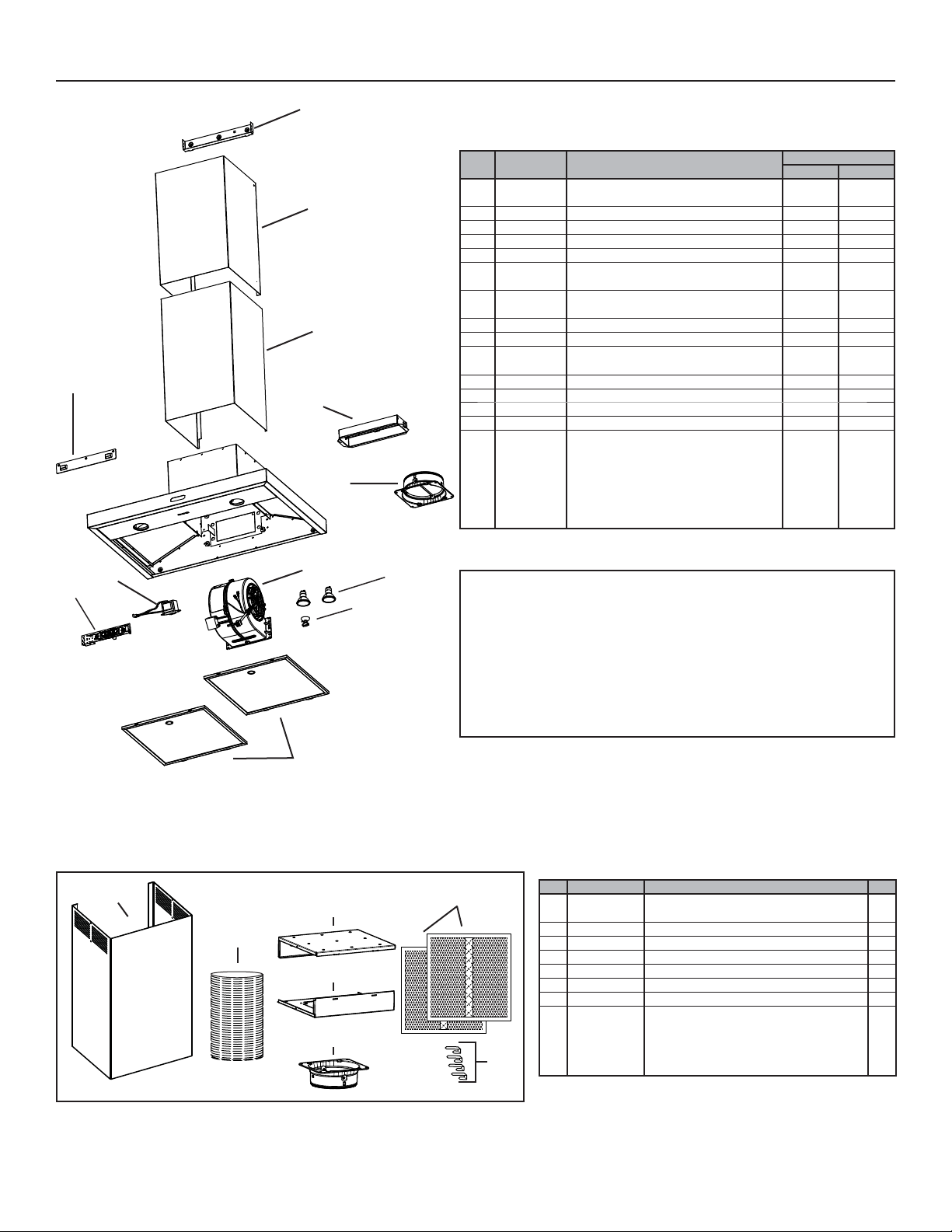

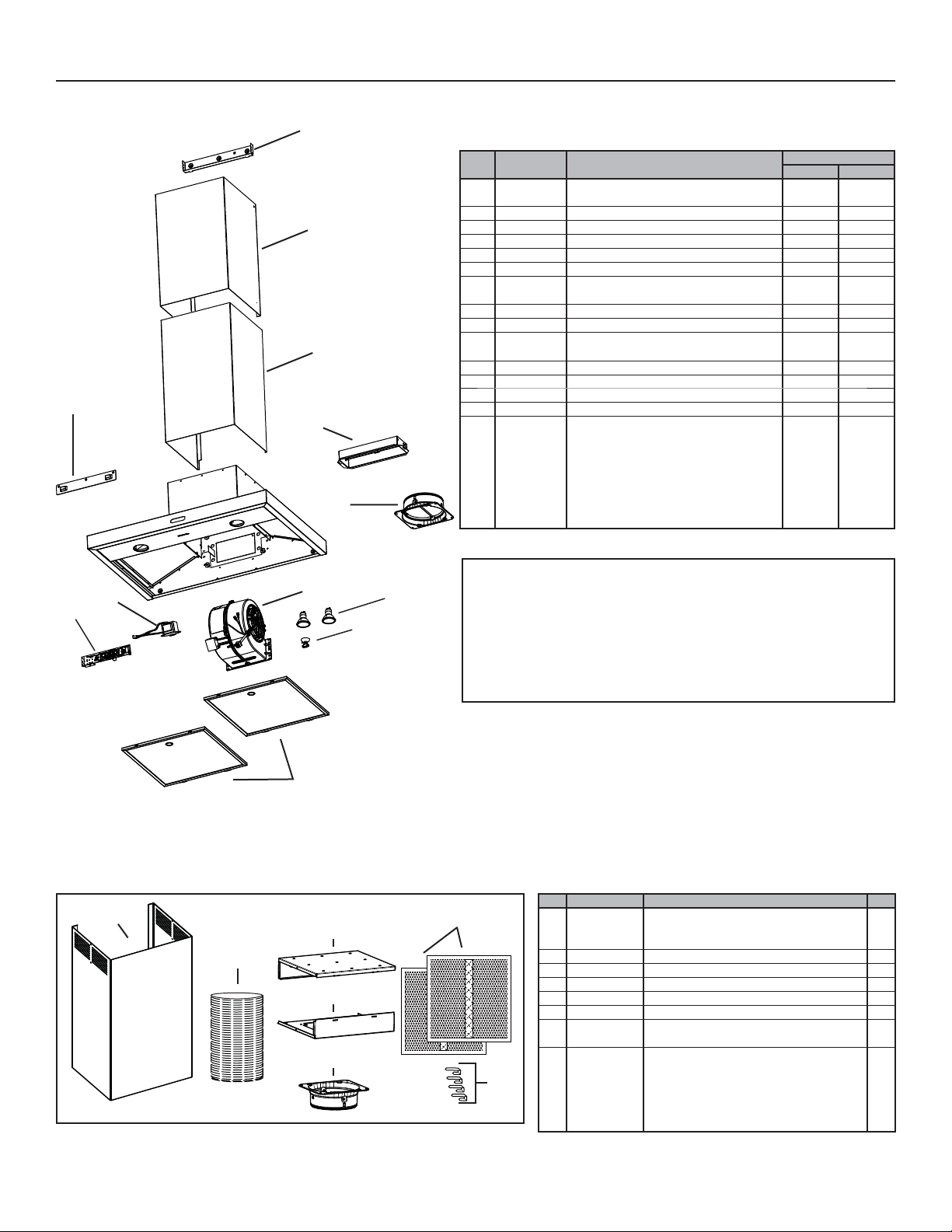

21. SERVICE PARTS

M

B

C

E

D

F

ITEM

PART NO.DESCRIPTION

NO.

1 SV63673 U
2 SV63665 UPPER DECORATIVE FLUE 11
3 SV63664 LOWER DECORATIVE FLUE 11
4 SV13296 3¼” X 10” ADAPTER/DAMPER 11
5 SV08487 6”
6 SV08582 INTERNAL BLOWER (INCLUDING CAPACITOR)11

7 SV05921
8 SV09983 SUCTION CUP 11

9 99010355 M
10 S97020436
11 S97020445 T

12 SV09014 HOOD MOUNTING BRACKET 11

* SV23136 INSTALLATION GUIDE 11

* SV23135 WIRE HARNESS 11

* SV09027

* NOT SHOWN

PPER FLUE MOUNTING BRACKET 11

ROUND ADAPTER/DAMPER 11

SHIELDED HALOGEN BULBS
120 V, 50 W, GU10 TYPE

ICROMESH FILTER (1) 2 2

CAPTOUCH CONTROL LED, BLACK

WITH SCREWS)

(

RANSFORMER 11

P

ARTS BAG:

5 NO. 8 X 1½” COUNTERSUNK SCREWS,
8 NO. 8 X 3/4” SCREWS
6 NO. 8 X 3/8” SCREWS
6 DRYWALL ANCHORS, 3 WASHERS,
2 NO. 8 X 1/2” SCREWS
2 NEOPRENE PIECES

QUANTITY

30” 36”

22

11

11

K

HL0318

HL0384

L

N

G

I

J

NON-DUCT KIT MODEL HRKMBLS

P

O

Q

R

H

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must
use Broan-NuTone LLC genuine replacement parts only. Broan-NuTone
LLC genuine replacement parts are specially designed for each unit and are
manufactured to comply with all the applicable certification standards and
maintain a high standard of safety. Any third party replacement part used may
cause serious damage and drastically reduce the performance level of your
unit, which will result in premature failing. Broan-NuTone LLC recommends to
contact a certified service depot for all replacement parts and repairs.

KEY

S

T

PART NO.DESCRIPTION QTY.

NO.

13 SV63629
14 SV22756 6” ROUND METAL FLEXIBLE DUCT 1

15 SV63626 UPPER PLENUM PLATE 1
16 SV63627 L
17 SV08487WD 6”
18 SV22758 CHARCOAL FILTER (PAIR) (INCLUDING ITEM 18) 1
19 S99527587 CHARCOAL FILTER CLIP (SET OF 4) 1

* SV05803

* NOT SHOWN.

ON-DUCT KIT UPPER DECORATIVE FLUE CHIMNEY,

N

BLACK STAINLESS STEEL

OWER PLENUM PLATE 1

ROUND ADAPTER 1

PARTS BAG:
10 NO. 8-18 X 3/8” SCREWS,
4 NO. 8 X 1/2” BLACK SCREWS,
9 NO. 8-18 X 3/4” SCREWS, 4 WASHERS,
9 DRYWALL ANCHORS, 6 NO. 6 X 1/2” SCREWS.

1

1

15
