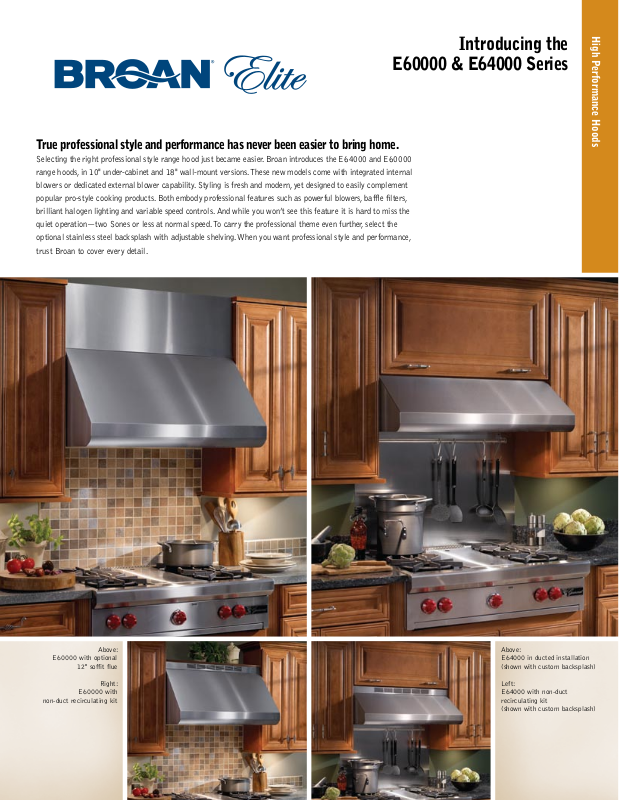

E60000 & E64000 Series
True professional style and performance has never been easier to bring home.
Selecting the right professional style range hood just became easier. Broan introduces the E64000 and E60000
range hoods, in 10" under-cabinet and 18" wall-mount versions. These new models come with integrated internal
blowers or dedicated external blower capability. Styling is fresh and modern, yet designed to easily complement
popular pro-style cooking products. Both embody professional features such as powerful blowers, baffle filters,
brilliant halogen lighting and variable speed controls. And while you won’t see this feature it is hard to miss the
quiet operation—two Sones or less at normal speed. To carry the professional theme even further, select the
optional stainless steel backsplash with adjustable shelving. When you want professional style and performance,
trust Broan to cover every detail.
High Performance Hoods
Introducing the
E60000 with optional
Above:
12" soffit flue
Right:
E60000 with
non-duct recirculating kit
Above:
E64000 in ducted installation
(shown with custom backsplash)
Left:
E64000 with non-duct
recirculating kit
(shown with custom backsplash)
High Performance Hoods
E60000 Series. Take professional style to new heights.
18" wall-mount design•
Brushed stainless steel finish•
30", 36", 42" and 48" widths, 24" depth •
600 CFM internal blower is standard on 30" and 36" models•
1200 CFM internal blower is standard on 42" and 48" models•
Dedicated models in all widths for use with external blower •
options—choice of eight, from 280–1500 CFM
Non-duct kit option available for all widths•
Bright halogen lighting; Two 50-watt bulbs in 30" and 36" widths, •
Three 50-watt bulbs in 42" and 48" widths (purchase bulbs separately)
Pro-style, dishwasher-safe baffle filters with removable grease drip rail•
Variable speed control remembers •
last setting—blue LED power-on
indicator light
Heat Sentry•
™
detects excessive heat
and adjusts blower speed automatically
Optional pro-style backsplash and •
decorative 12" soffit flue
Designed to duct out of the hood shell in either •
horizontal or vertical direction with any blower configuration
E64000 Series. Professional style that fits under any cabinet.
10" under-cabinet design•
Brushed stainless steel finish•
30", 36", 42" and 48" widths, 22" depth•
600 CFM internal blower is standard on all models•
1200 CFM blower also available in 48" model•
Dedicated models in all widths for use with external blower •
options—choice of eight, from 280–1500 CFM
Non-duct kit option available for all widths•
Bright halogen lighting; Two 50-watt bulbs in 30" and 36" widths, •
Three 50-watt bulbs in 42" and 48" widths (purchase bulbs separately)
Pro-style, dishwasher-safe baffle filters •
with removable grease drip rail
Variable speed control remembers •
last setting—blue LED power-on
indicator light
Heat Sentry•
™
detects excessive heat
and adjusts blower speed automatically
Optional pro-style backsplash•
Designed to duct out of the hood shell in either horizontal •
or vertical direction with internal blowers. External blowers
duct vertically
Features Optional Accessories
Dishwasher-safe baffle filters feature
handles for convenient removal.
Internal
Blower**
Series Width
30" E6430SS E64E30SS 2 – 50W GU10 5.5 1.5 max ANKE60302SS RMP3004
36" E6436SS E64E36SS 2 – 50W GU10 5.5 1.5 max ANKE60362SS RMP3604
E64
42" E6442SS E64E42SS 3 – 50W GU10 6.0 1.5 max ANKE60422SS RMP4204
48" E6448SS E6448TSS E64E48SS 3 – 50W GU10 9.0 2.0 max ANKE60482SS RMP4804
30" E6030SS E60E30SS 2 – 50W GU10 5.5 1.5 max ANKE60302SS AEE60302SS RMP3004
36" E6036SS E60E36SS 2 – 50W GU10 5.5 1.5 max ANKE60362SS AEE60362SS RMP3604
E60
42" E6042TSS E60E42SS 3 – 50W GU10 9.0 2.0 max ANKE60422SS AEE60422SS RMP4204
48" E6048TSS E60E48SS 3 – 50W GU10 9.0 2.0 max ANKE60482SS AEE60482SS RMP4804
* Sones at high speed for Internal 600 – 13.5 max; Internal 1200 – 14.5 max
** Duct adapter & damper is included with the Internal blowers: External blower capable models include the 332KR rough-in kit
◆
120V 60Hz
©2008 Broan-NuTone, LLC • Printed in USA • 09/08 99850847A
600 CFM
Duct 3-1/4"x10"
Internal
Blower**
1200 CFM
Duct 4-1/2" x 18"
Rotary controls for two-level lighting and
variable blower speeds enable the user to
choose operating preferences.
External
Blower**
Capable
Duct 10" Rd
Lamps
(Purchase Seperately)
Max
Amps
◆
Sones at
Normal
Speed*
A non-duct kit may be used to recirculate
filtered air back into the kitchen if ducting is
not practical.
Optional
Non-duct Kit
Optional
12" Soffit
Flue Cover
Optional
Backsplash
A stainless steel backsplash with integral
shelving completes the professional look.
www.Broan.com
Broan-NuTone, LLC
926 W. State Street,
Hartford, WI 53027
800-558-1711
Canada 877-896-1119
