Broan AE50110DCF, AE50110DC Specifications

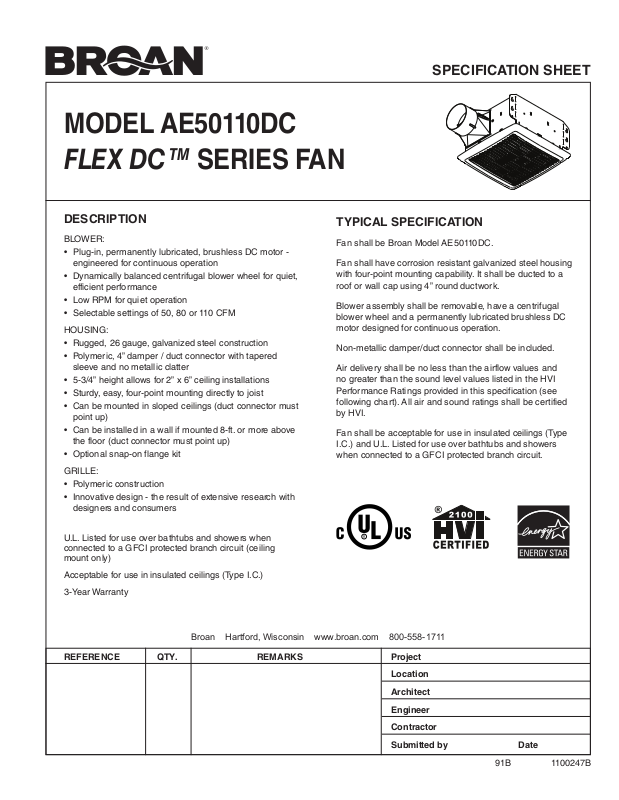

MODEL AE50110DC

SPECIFICATION SHEET

FLEX DC

DESCRIPTION

BLOWER:

• Plug-in, permanently lubricated, brushless DC motor engineered for continuous operation

• Dynamically balanced centrifugal blower wheel for quiet, efficient performance

• Low RPM for quiet operation

• Selectable settings of 50, 80 or 110 CFM

HOUSING:

• Rugged, 26 gauge, galvanized steel construction

• Polymeric, 4” damper / duct connector with tapered sleeve and no metallic clatter

• 5-3/4” height allows for 2” x 6” ceiling installations

• Sturdy, easy, four-point mounting directly to joist

• Can be mounted in sloped ceilings (duct connector must point up)

• Can be installed in a wall if mounted 8-ft. or more above the floor (duct connector must point up)

• Optional snap-on flange kit

GRILLE:

• Polymeric construction

• Innovative design - the result of extensive research with designers and consumers

SERIES FAN

TYPICAL SPECIFICATION

Fan shall be Broan Model AE50110DC.

Fan shall have corrosion resistant galvanized steel housing with four-point mounting capability. It shall be ducted to a roof or wall cap using 4” round ductwork.

Blower assembly shall be removable, have a centrifugal blower wheel and a permanently lubricated brushless DC motor designed for continuous operation.

Non-metallic damper/duct connector shall be included.

Air delivery shall be no less than the airflow values and no greater than the sound level values listed in the HVI Performance Ratings provided in this specification (see following chart). All air and sound ratings shall be certified by HVI.

Fan shall be acceptable for use in insulated ceilings (Type I.C.) and U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit.

U.L. Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)

Acceptable for use in insulated ceilings (Type I.C.)

3-Year Warranty

Broan Hartford, Wisconsin www.broan.com 800-558-1711

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

91B 1100247B

PERFORMANCE RATINGS - MODEL AE50110DC FLEX DC

SERIES FAN

HVI PERFORMANCE

Speed

Setting

110

Static Pressure (In. H2O)

Airow

(CFM)

Sound

(Sones)

0.1 50 < 0.3 3.4 14.7

0.25 36 0.5 5.3 6.7

0.1 80 0.4 6.5 12.6

0.25 71 0.9 9.4 7.6

0.1 110 0.9 10.6 10.4

0.25 105 1.4 14.9 7.0

HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 in. static pressure, based on tests conducted in a state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.

ELECTRICAL & WEIGHT

Volts Hz Amps

120 60 0.3 8.5 lb.

Shipping

Weight

Power

(Watts)

Efcacy

(CFM/W)

AIR FLOW PERFORMANCE

50 CFM Setting

0.6

0.5

0.4

0.3

Static Pressure

0.2

O - Inches of Water Gauge)

0.1

(In. H

0.0 0 10 20 30 40 50 60

Airflow (CFM - Cubic Feet per Minute)

80 CFM Setting

0.7

0.6

0.5

0.4

0.3

Static Pressure

O - Inches of Water Gauge)

0.2

(In. H

0.1

0.0 0 10 20 30 40 50 60 70 80 90

Airflow (CFM - Cubic Feet per Minute)

110 CFM Setting

0.8

0.7

0.6

0.5

0.4

0.3

Static Pressure

O - Inches of Water Gauge)

0.2

(In. H

0.1

0.0 0 10 20 30 40 50 60 70 80 90 100 110 120

Airflow (CFM - Cubic Feet per Minute)
