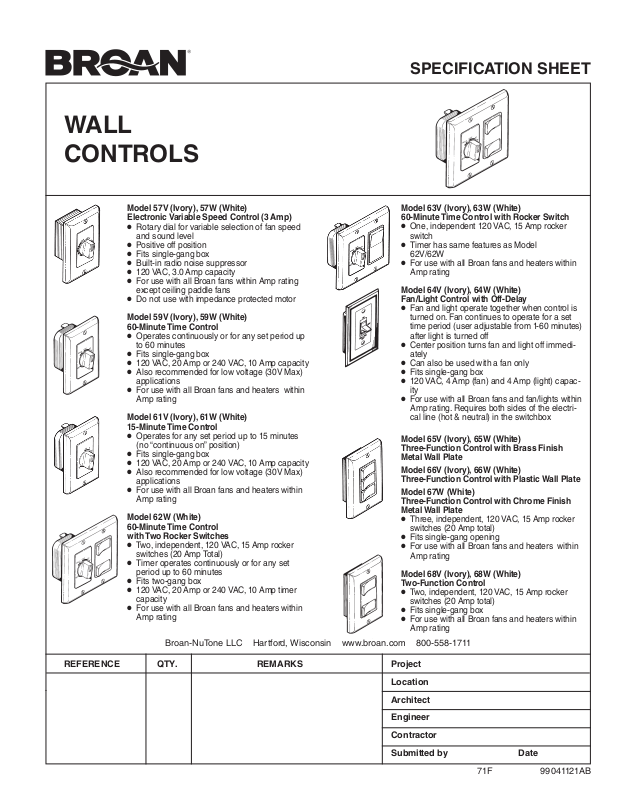

SPECIFICATION SHEET
Model 57V (Ivory), 57W (White)
Electronic Variable Speed Control (3 Amp)
Rotary dial for variable selection of fan speed
•
and sound level
Positive off position
•
Fits single-gang box
•
Built-in radio noise suppressor
•
120 VAC, 3.0 Amp capacity
•
For use with all Broan fans within Amp rating
•
except ceiling paddle fans
Do not use with impedance protected motor
•
Model 59V (Ivory), 59W (White)
60-Minute Time Control
Operates continuously or for any set period up
•
to 60 minutes
Fits single-gang box
•
120 VAC, 20 Amp or 240 VAC, 10 Amp capacity
•
Also recommended for low voltage (30V Max)
•
applications
For use with all Broan fans and heaters within
•
Amp rating
Model 61V (Ivory), 61W (White)
15-Minute Time Control
Operates for any set period up to 15 minutes
•
(no “continuous on” position)
Fits single-gang box
•
120 VAC, 20 Amp or 240 VAC, 10 Amp capacity
•
Also recommended for low voltage (30V Max)
•
applications
For use with all Broan fans and heaters within
•
Amp rating
Model 62W (White)
60-Minute Time Control
with Two Rocker Switches
Two, independent, 120 VAC, 15 Amp rocker
•
switches (20 Amp Total)
Timer operates continuously or for any set
•
period up to 60 minutes
Fits two-gang box
•
120 VAC, 20 Amp or 240 VAC, 10 Amp timer
•
capacity
For use with all Broan fans and heaters within
•
Amp rating
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Model 63V (Ivory), 63W (White)
60-Minute Time Control with Rocker Switch
One, independent 120 VAC, 15 Amp rocker
•
switch
Timer has same features as Model
•
62V/62W
For use with all Broan fans and heaters within
•
Amp rating
Model 64V (Ivory), 64W (White)
Fan/Light Control with Off-Delay
Fan and light operate together when control is
•
turned on. Fan continues to operate for a set
time period (user adjustable from 1-60 minutes)
after light is turned off
Center position turns fan and light off immedi-
•
ately
Can also be used with a fan only
•
Fits single-gang box
•
120 VAC, 4 Amp (fan) and 4 Amp (light) capac-
•
ity
For use with all Broan fans and fan/lights within
•
Amp rating. Requires both sides of the electrical line (hot & neutral) in the switchbox
Model 65V (Ivory), 65W (White)
Three-Function Control with Brass Finish
Metal Wall Plate
Model 66V (Ivory), 66W (White)
Three-Function Control with Plastic Wall Plate
Model 67W (White)
Three-Function Control with Chrome Finish
Metal Wall Plate
Three, independent, 120 VAC, 15 Amp rocker
•
switches (20 Amp total)
Fits single-gang opening
•
For use with all Broan fans and heaters within
•
Amp rating
Model 68V (Ivory), 68W (White)
Two-Function Control
Two, independent, 120 VAC, 15 Amp rocker
•
switches (20 Amp total)
Fits single-gang box
•
For use with all Broan fans and heaters within
•
Amp rating
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
71F 99041121AB
Model 69V (Ivory), 69W (White)
OFF
MAX
HI
MED
OFF
MAX
HI
MED
Single-Function Control
Fits single-gang box
•
120 VAC, 15 Amp
•
For use with all Broan fans within
•
Amp rating
Model 78V (Ivory), 78W (White)
Ceiling Paddle Fan Speed Control
Four-position speed selection
•
Fits single-gang box
•
120 VAC, 1.5 Amp
•
For use with all Broan ceiling paddle fans
•
Model 69WL (White)
Single-Function Control with Indicator
Red light indicates power is on
•
Specially designed for use with Broan
•
Solitaire® Ultra Silent™ fans
Fits single-gang box
•
120 VAC, 20 Amp
•
Model 70TW (White)
Wall Thermostat for Fans
Line voltage thermostat automatically
•
activates the ventilator if house temperature rises above the preset comfort
setting
Fits single-gang box
•
125, 250, 277 VAC; 22 Amp capacity
•
For use with all Broan fans
•
Model 71V (Ivory)
12-Hour Timer
Operates continuously or for any set
•
period up to 12 hours
Fits single-gang box
•
120 VAC, 20 Amp or 240 VAC, 10
•
Amp capacity
For use with all Broan fans and heat-
•
ers within Amp rating
Model 72V (Ivory), 72W (White)
Electronic Variable Speed Control (6
Amp)
Rotary dial for variable selection of
•
fan speed and sound level
Positive on/off action
•
Fits single-gang box
•
Built-in radio noise suppressor
•
Switched wire included for additional
•
use if desired (120 VAC, 6 Amp)
For use with all Broan fans within
•
Amp rating except ceiling paddle fans
Do not use with impedance protected
•
motor
Model 75V (Ivory)
Electronic Variable Speed Control (6
Amp)
240 VAC, 6 Amp capacity
•
For use with Broan Model L3500EXL
•
LoSone® Select™ Cabinet Ventilator
Other features same as Model 72V
•
Model 77DV (Ivory), 77DW (White)
Four-Function Control
Specially designed for use with Broan
•
SensAire® and Designer Series fan/
lights
Separate switches control fan (on/off/
•
auto), light (on/off), and night-light (on/
off)
120 VAC, Amps each rocker =
•
15, 15, 5 (20 Amp total)
Fits single-gang opening
•
Includes switch function labels
•
Model 79V (Ivory), 79W (White)
Ceiling Paddle Fan Speed
and Light Control
Four-position speed selection
•
Hi-Off-Low light control
•
Fits single-gang box
•
120 VAC, 1.5 Amp fan control; 300 watt maximum light
•
For use with all Broan ceiling paddle fans
•
and light kits
Model 80L
Electronic Speed Control (Internal)
Specially designed for use with Broan LoSone Select®
•
ventilators rated at 3 Amps or less
Metal housing
•
3 A, 120 VAC, 60 Hz
•
Model 82W (White)
Premium Humidity Sensing Wall Control
SensaireTM technology detects rising humidity to react to
•
showers and clear mirrors quickly
Variable setting from 20% to 80% relative humidity
•
Can be used to comply with California Title 24 and
•
CALGreen
Precise sensitivity adjustment
•
Continuous ventilation mode operates fan set minutes
•
per hour to meet ASHRAE 62.2
User-adjustable automatic shutoff timer
•
LED indicator and manual operation mode
•
Fits single-gang box
•
120 VAC, 60 Hz
•
Requires neutral wire for operation.
•
Model 269VL (Ivory), 269WL (White)
Two-Function Control with Indicator
Red light indicates power is on
•
Specially designed for use with Broan Solitaire® Ultra
•
Silent™ fans and an auxiliary light source
Fits two-gang box
•
120 VAC, 20 Amp lighted switch;
•
120/240/277 VAC, 15 Amp unlighted switch
Model 685VL (Ivory), 685WL (White)
Three-Function Control with Indicator
Red light indicates power is on
•
Specially designed for use with Broan Solitaire® Ultra
•
Silent™ fans /lights
Fits two-gang box
•
120 VAC, 20 Amp lighted switch; 120 VAC, 15 Amp each
•
unlighted switch (20 Amp total)
Model DH100W
Dehumidistat
Fits single-gang box
•
Variable setting from 20% to 80% relative humidity
•
Dual voltage (24V/120V)
•
Usage guide included
•
