Brite View BV-254 User's Manual

BV-210/BV-254

S

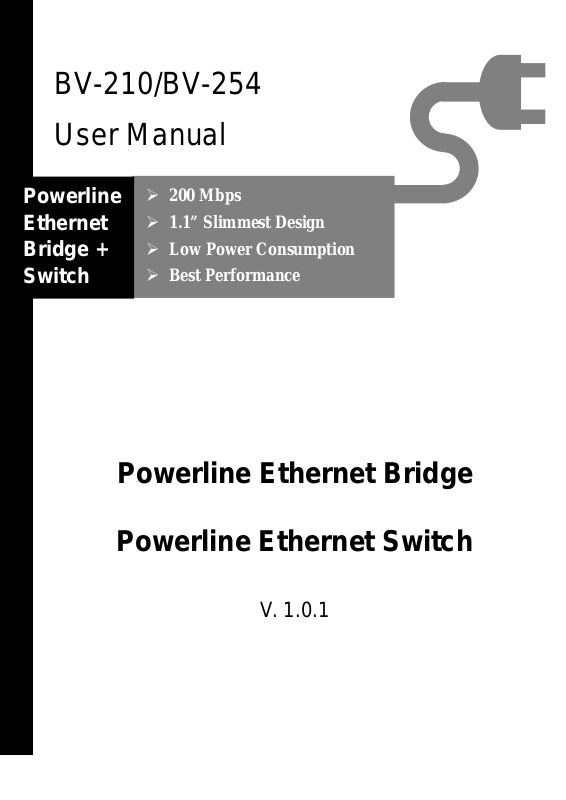

User Manual

Powerline
Ethernet
Bridge +

witch

¾ 200 Mbps
¾ 1.1” Slimmest Design
¾ Low Power Consumption
¾ Best Performance

Powerline Ethernet Bridge

Powerline Ethernet Switch

V. 1.0.1

TABLE OF CONTENT

ORDERING INFORMATION.....................................................................................................2

INCLUDED ITEMS.................................................................................................................4

IMPORTANT SAFETY INSTRUCTIONS......................................................................................5

THE FIRST THING YOUT NEED TO KNOW BEFORE INSTALLATION...............................................6

AC outlets connection...........................................................................................................6

Connecting the Powerline Adapter to an Extention Cord............................................8

Electrical Interference............................................................................................................8

Electrical Wiring......................................................................................................................8

RODUCT OUTLOOK ........................................................................................................... 9

P
P

RODUCT OVERVIEW ........................................................................................................11

Standby Mode........................................................................................................................11

PRODUCT INSTALLATION ...................................................................................................12

Setting Logical Network Group.........................................................................................12

Remove a Device from a Logical Network Group........................................................13

Setting Up a Different Network Group.............................................................................13

Application 1 – Local Powerline Network Among Computers..................................13

Application 2 – Computer to DSL/Cable Router Connection....................................15

Application 3 – Wireless Access Point Range Extensions........................................17

Business Installation............................................................................................................18

SPECIFICATIONS...............................................................................................................19

FAQ (FREQUENTLY ASKED QUESTIONS)............................................................................20

ROUBLE SHOOTING .........................................................................................................23

T

1

ORDERING INFORMATION

This BV-210/BV-254 User Manual describes how the powerline connects to the
Ethernet Bridge (BV-210) and to the Ethernet Switch (BV-254).

The BV-210 is a one-port Powerline Ethernet Bridge. The BV-254 is a four-port
Powerline Ethernet Switch.

Powerline technology lets you use your home's electrical system to transmit data signals,
and it uses the electrical system as a network, with each electrical outlet serving as a node.
Any Ethernet-equipped device (PCs, TiVos, and set-top boxes, among others) that's
connected to a power line adapter can be part of the power line network.

After successful installation, the BV-210 and BV-254 Powerline network behaves like a
traditional LAN for computers. These brite-View Powerline Adapters support up to 200Mbp s
network speed.

See the following table for a summary.

Categories Description
Powerline Ethernet Bridge

(BV-210)

The BV-210 is a HomePlug device used to extend
a LAN into a separate room using the existing
electrical system in the building. An Ethernet cable
from the network router is plugged into a bridge,
which plugs into an AC wall outlet.

2

Powerline Ethernet Switch

(BV-254)

The BV-254 Powerline 4-Port 200Mbps Ethernet
Adapter turns any power outlet into a 4-port home
network connection. The BV-254 adapter extends
your network to provide 200Mpbs connections
without the cost or hassle of running new wiring.
Just plug the BV-254 Powerline 4-Port Ethernet
Adapter directly into the wall outlet, and you are
ready.

*You will need at least a pair of brite-View powerline Ethernet Adapters in order to enable powerline
communication.

3

INCLUDED ITEMS

DEVICE

ETHERNET CABLE

POWERLINE
ETHERNET
SWITCH

DUAL PACKAGE

Two devices

X 2

POWERLINE ETHERNET SWITCH
+ POWERLINE ETHERNET BRIDGE

COMBO PACKAGE

Combinational devices

2

4

NOTICE: This product complies with IC: ICES-006; en conformité avec IC: NMB-006

MPORTANT SAFETY INSTRUCTIONS

I

This product is intended for connection to the AC power line. For installation instructions,
refer to the Installation section. The following precautions should be taken when using this
product.

z Please read all instructions before installing and operating this product.
z Please keep all instructions for later reference.
z Please follow all warnings and instructions marked on the product.
z For safety reasons, when the device is powered on, the venting holes should

remain uncovered.

z Unplug the Powerline device from the wall outlet before cleaning. Use a dry cloth

for cleaning. DO NOT use liquid cleaners or aerosol cleaners.

z DO NOT operate this product near any liquid.
z This product should never be placed near or over a radiator and heat register.

This product relies on the building’s electrical installation for short-circuit (over-current)
protection.

z It is recommended that the adapter is plugged directly into an electrical outlet, rather

than into an uninterruptable power supply or extension cord with surge protection.

brite-View Powerline adapters have their own power filter for surge protection.

z Only a qualified technician should service this product. Opening or removing covers

may expose you to dangerous voltage or other hazards.

Unplug the product from the wall outlet and refer the product to qualified service personnel
for the following conditions:

¾ If liquid has been spilled into the product.

¾ If the product has been exposed to rain or water.

¾ If the product does not operate normally when the operating instructions are

followed.

¾ If the product exhibits a distinct change in performance.

5

The FIRST THING YOUT NEED TO KNOW BEFORE INSTALLATION

These powerline adapters sends data to and from each other over the existing electrical
wiring in your home, and the network performance may be affected by electrical noises or
the length of the electrical wiring in your house. Keep the following in mind when placing
this powerline device at home.

AC outlets connection

Avoid connecting these adapters to an uninterruptible power supply (UPS) or backup power
supply device. For best results, we recommend connecting the adaptors directly to a wall
outlet. Avoid connecting high power-consumption appliances to the same wall outlet. Plug
these power consuming devices onto a noise filtering extension cord to prevent
interference on the powerline network. See the following illustration for details:

For best performance, isolating the powerline adapter from other appliances is
recommended.

6

The following connections are NOT recommended, although current powerline

communication technology can overcome most noise interference from other AC adapters

or chargers.

7
