Parts Manual fo
r
21" VARIABLE SPEED
REAR DISCHARGE MOWERS
MODEL
NSPV21675 (7800231)
NSPV21675E (7800232)
SPV21675 (7800179)
SPV21675E (7800195)
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Manual No. 7102346
Revision C, TP 400-5362-C-WB-N4/23/2008
s
PAGE GROUP
4
6
10
12
14
16
18
Handles and Controls (SPV21)
Deck Assembly (SPV21)
Engine and Blade Assembly (SPV21)
Front and Rear Wheels (SPV21)
Transmission (21")
Decals (21")
Wiring Schematic
Table Of Content
21" VARIABLE SPEED
Manual No. 7102346
3
TP 400-5362-C-WB-N
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
4
Handles and Controls (SPV21)
p
y
Part No Descri
1 7100225 4 SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
2 7300670A 1 PLATE, Control Panel- Plastic Handle
3 2860694 2 NUT, 1/4-20, Hex Flange Nyloc
4 7101410 1 ROPE GUIDE (1/4-20 thread)
5 7101312 1 HANDLE, Plastic Upper, WBM
6 7101321BH 1 BAIL, Plastic Handle, WBM
7 7101416 1 ASSY, Control Head, 21” WBM, RD, Snapper (includes cable &
lever)
8 7090015 1 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2
9 7011138 1 KEY, Ignition (Pair)
10 7100330 1 CAP, Electric Start
11 7100329 1 NUT, 5/8”-32 Electric Start
12 7028765 1 SWITCH, E/S (Start/Run)
13 7100328 1 HOUSING, Snap-On E-Start
14 7300649BH 2 HANDLE, Connecting 21”/22” WBM
16 7300639BH 1 HANDLE, Lower, 21” WBM, RD
17 7101198 2 PIN, Handle Adjust
18 7101200 2 SPRING, Compression
19 7101199 2 BUSHING, Handle Pin
20 7101202 2 KNOB, Quick Release
21 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2
22 7090391 2 WASHER, 5/16” Internal Tooth Lock
23 7035744 2 KNOB, 5/16-18 Wing (Black)
24 7101504 1 WIRE HARNESS, Snapper, RD 21”
25 7101399 1 CABLE, Bail, 21” WBM, RD, Snapper 44.20” length
25 7101400 1 CABLE, Bail, 21” WBM, RD, Snapper, E/S 40.50” length
26 7024649 3 WIRE TIE,11 Inch Standard Black Nylon
27 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR5 YZ
28 7300567BH 1 BRACKET, Lower Handle, LH 21” WBM
29 7300566BH 1 BRACKET, Lower Handle RH 21” WBM
30 7090951 2 NUT, 5/16-18 Large Head Center Lock, Black
31 7091601 4 NUT, 5/16-18 Flange Lock, YZ
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
5
TP 400-5362-C-WB-N
Deck Assembly (SPV21)
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
6
Deck Assembly (SPV21)
p
y
Part No Descri
1 7101490 1 CHUTE, 21” Side Discharge
2 7091020 4 PUSHNUT, 1/4”
3 7101471 1 ROD, Pivot, Mulch Cover
4 722507 1 SPRING, Torsion, Chute
5 722848 17 SCREW, 1/4-20 x 11/16” Pan Head Torx, Self-Tap
6 7101437 1 COVER, 21” Mulching
7 7300590D 1 BRACKET, Chute Deflector
8 7091286 5 SCREW, #10-24 x 1/2” Hex Washer Self-Tap, SEMS
9 722503 1 SPRING, Torsion
10 720735 1 SPACER, Rear Door, 21”
11 7101314 1 ROD, Pivot, Rear Door, 21” RD
12 727785 1 DOOR, 21” Black
13 2860694 2 NUT, 1/4-20 Hex Flange, Nyloc,YZ
14 7101523 1 BOTTOM, Battery Box- 21” JD WBM
15 7090803 2 BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5
16 7101320 1 BATTERY KIT, 12V, 4.0AH (Includes harness 7015488)
17 7015488 1 HARNESS, Battery
18 7101522 1 TOP, Battery Box - 21” WBM
19 7101304 1 GRASSBAG, 21” Rear Discharge
20 7101303A 1 BAG FRAME- 21” RD WBM
21 7026421 1 GRIP, Rectangular (Black)
22 7300723D 1 TRANSMISSION COVER, Rear 21”
23 7101434 1 SPRING, Extension, Height-of-Cut Assist
24 7101553 1 DEFLECTOR, Rear, 21” WBM, RD
25 720723 1 PLUG, Mulching
26 7101418 1 BEARING HOLDER, 21” WBM,RD
27 7078243 1 BALL BEARING, Axle
28 7091318 4 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 YZ
29 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
30 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ
31 7300587D 1 INDEX PLATE, Height-of-Cut, 21” WBM, RD
32 7300591D 1 BAFFLE, Right Rear, 21” WBM, RD
33 7300584D 1 DECK, 21” Rear Discharge
34 7091290 3 NUT, #10-24 Hex Nyloc
35 7300589D 1 BAFFLE, Left Rear, 21” RD, WBM
36 7091711 3 BOLT, #10-24 x 5/8” Flat Head Square Neck, YZ
37 7101502 1 BAFFLE, Extension, 21” RD WBM
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
7
TP 400-5362-C-WB-N
Deck Assembly (SPV21)
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
8
Deck Assembly (SPV21)
p
y
Part No Descri
38 7300585D 1 BAFFLE, Front 21” WBM, RD
39 724970 1 LEVER, Spring Height-of-Cut
40 724887 1 GRIP, Height-of-Cut
41 7400203D 1 WELDMENT, Rear Crossbar 21” WBM, RD
42 7023590 1 COTTER, 1/4” Self-Lock
43 7400247 1 WELDMENT, Lifter Link, 21” WBM, RD
44 7101241 4 BUSHING, Front, 21”
45 7091892 1 PUSHNUT, 1/4 Black
46 7400204D 1 WELDMENT, Front Crossbar 21” WBM, RD
47 206838YP 1 CHARGER, Battery 120V/12V was 7018834
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
9
TP 400-5362-C-WB-N

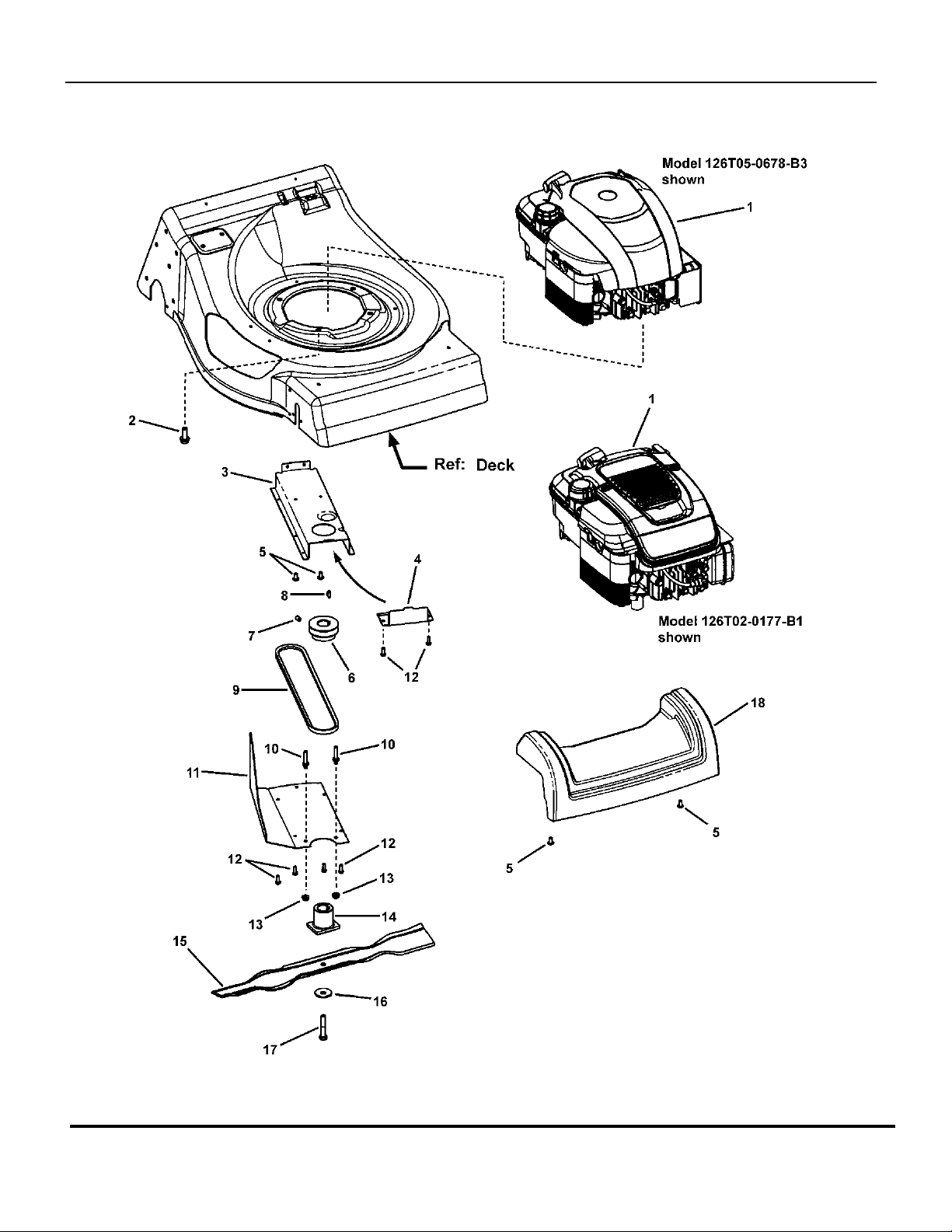

Engine and Blade Assembly (SPV21)
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
10
Engine and Blade Assembly (SPV21)
p
y
Part No Descri
1 1 * ENGINE, B&S, X-Spec Mod. 126T02-0675-B3
1 1 * ENGINE, B&S, ES Mod. 126T05-0678-B3
1 1 * ENGINE, B&S, X-Spec Mod 126T02-0177-B1 used on SPV21675FC &
2 7090324 3 SCREW, 3/8-16 x 1” Hex Washer Self-Tap
3 7300725D 1 BELT GUARD
4 7300724D 1 COVER, Belt
5 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap, Torx
6 7100437 1 PULLEY, Engine
7 7092086 1 SET SCREW 5/16-18 x 1/2” Hex Recess
8 7091214 1 KEY, #HP-506 Hi-Pro
9 7100883 1 BELT, 3L, Traction Drive, 21” Pivot Handle 3L Sect., 32.86” Effective Length
10 7101313 2 BELT GUIDE, Engine, 21” RD
11 7300596D 1 COVER, Belt Guard
12 722864 6 SCREW ,#10 x 1/2”, AB, w/Washer
13 7091584 2 NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
14 7101414 1 HUB, Blade, 21” WBM, RD, 2 Position
15 7100242 1 BLADE, Wave, 21” Steel Deck
16 7012063 1 WASHER, Cone
17 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
18 7101271 1 COVER, Front, 21” WBM, RD
tionItem Qt
Note
SPV21675EFC
Footnotes:
NOTE: * Purchase engine parts from engine manufacturer dealer.
Manual No. 710234621" VARIABLE SPEED
11
TP 400-5362-C-WB-N
Front and Rear Wheels (SPV21)
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
12
Front and Rear Wheels (SPV21)
p
y
Part No Descri
1 7100861 2 PIN, Axle
2 727782 1 SHIELD, Axle
3 7400203D 1 WELDMENT, Rear Crossbar 21” WBM, RD also shown on Deck Assembly
4 7101367 2 DUST SHIELD, 21” WBM, RD
5 7100820 2 GEAR, Pinion
6 7014341 2 RETAINING RING Waldes #5133-50 or equiv.
8 7500647 1 ASSY, Wheel, 9” Snapper Tread w/Bearing Charcoal Gray incl 2 ball bearings, p/n 7101380
9 7100914 1 GEAR, External Wheel
10 7091196 6 SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap
11 722604 4 WASHER, 1” OD x .387 ID, FLAT
12 7091585 4 NUT, 3/8-16 Hex Center Lock, YZ
13 7101350 4 HUBCAP, 8” & 9” Wheel Spoked- Snapper Cool Gray
14 7400204D 1 WELDMENT, Front Crossbar, 21” WBM, RD
15 7500540 2 ASSY, Wheel, 8 x 2 Idle, Snapper Tread, Charcoal Gray
tionItem Qt
Note
page
Footnotes:
Manual No. 710234621" VARIABLE SPEED
13
TP 400-5362-C-WB-N

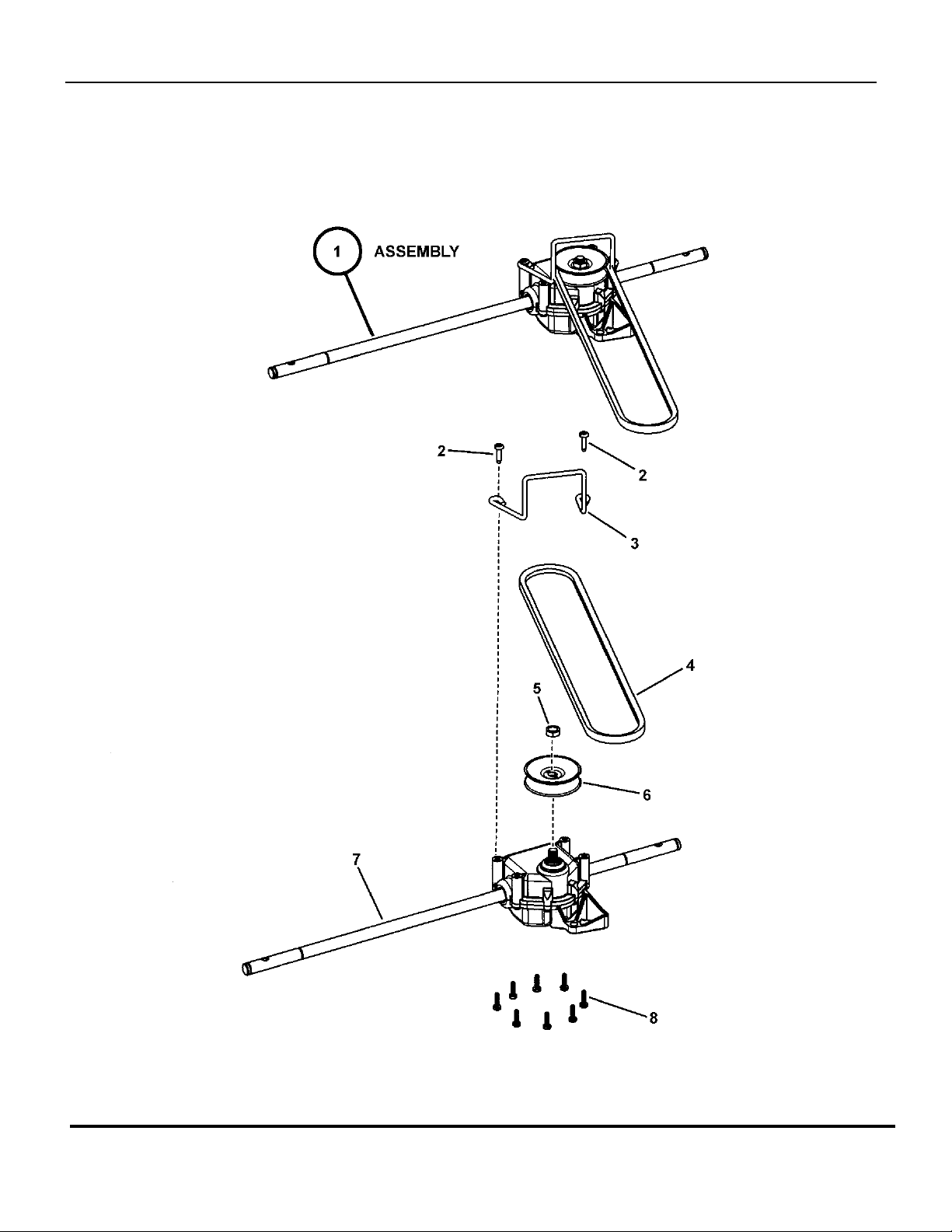

Transmission (21")
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
14
Transmission (21")
p
y
Part No Descri
1 -- 1 ASSY, TRANSMISSION, 21 (not sold as an assembly)
2 7091195 2 SCREW, #10-16 x 3/4” Pan Head Self-Tap, Combo
3 7100863 1 BELT GUIDE, Transmission
4 7100883 1 BELT, Traction Drive, 21” Pivot Handle Section 3L, 32.86 effective length
5 1960251 1 NUT, 3/8-16 Hex Center Lock Jam, Black
6 7100240 1 PULLEY, Trans Var Speed, LC WBM
7 7101245 1 TRANSMISSION, 21” WBM, RD, Snapper
8 7900032 8 SCREW, 7mm x 1 x .550 AB Point
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
15
TP 400-5362-C-WB-N

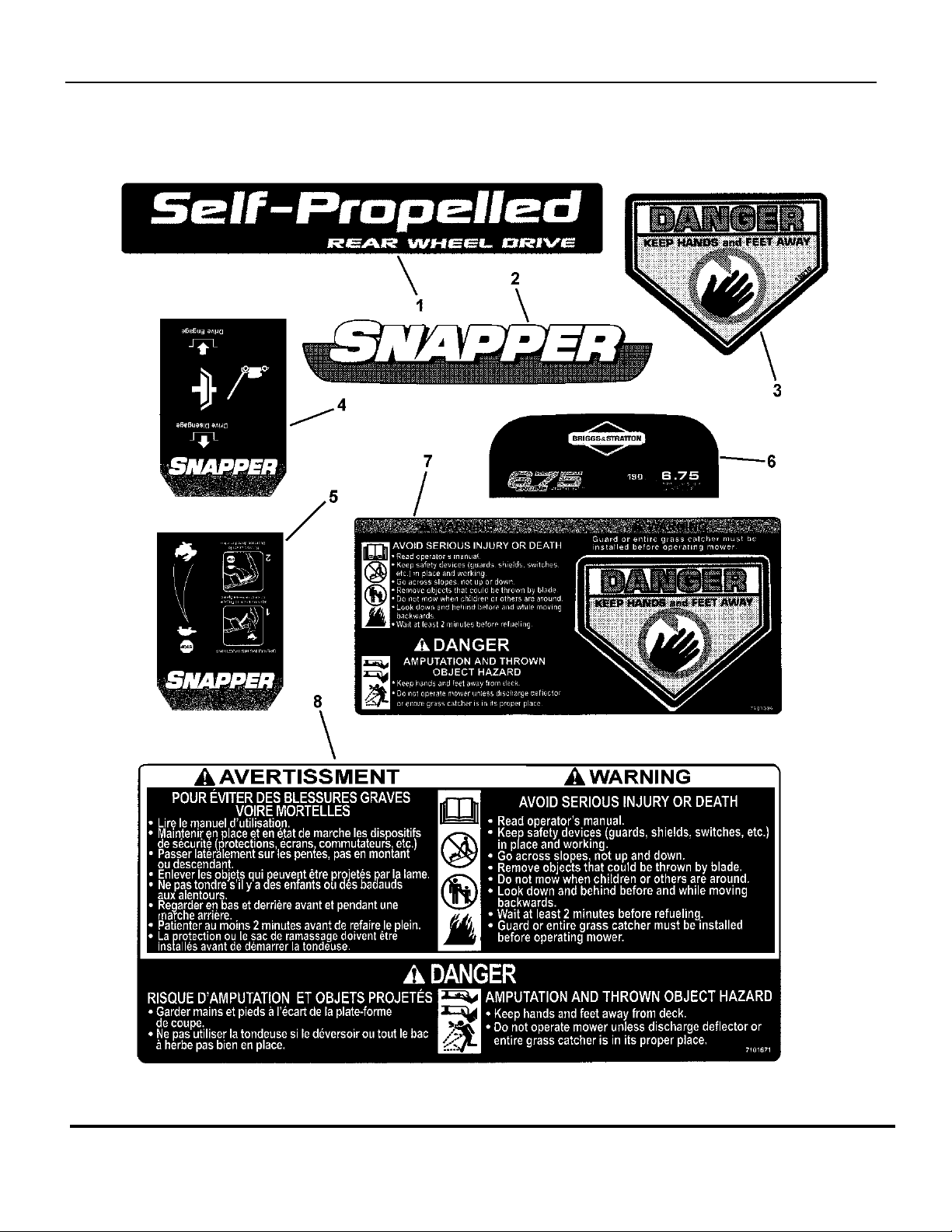

Decals (21")
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
16
Decals (21")
p
y
Part No Descri
1 7101540 1 DECAL, Front Cover, 21” RD, Snapper
2 7102153 1 DECAL, Briggs Engine, Snapper
3 7013010 1 DECAL, Danger, Cut Finger
4 7101429 1 DECAL, Control Head, VS, Snapper, FC
5 7101536 1 DECAL, Control Head, VS, Snapper
6 7102172 1 DECAL, Engine, TP, 675, Snapper, FC
7 7101394 1 DECAL, Warning, Rear Discharge Door
8 7101671 1 DECAL, WB Safety, French/English
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
17
TP 400-5362-C-WB-N

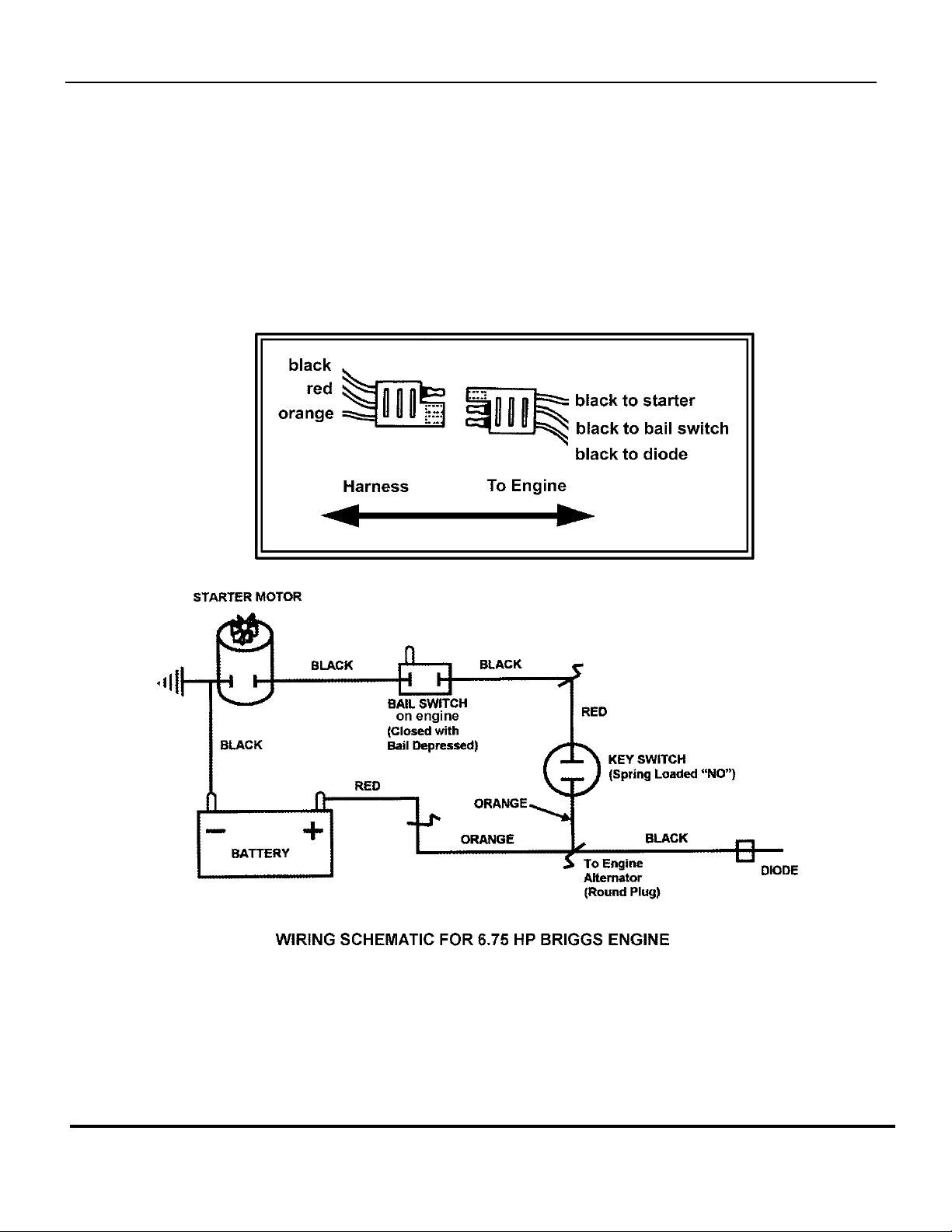

Wiring Schematic
Manual No. 7102346 21" VARIABLE SPEED
TP 400-5362-C-WB-N
18
Wiring Schematic
p
y
Part No Descri
7101504 1 WIRE HARNESS, Snapper, RD 21”
tionItem Qt
Note
Footnotes:
Manual No. 710234621" VARIABLE SPEED
19
TP 400-5362-C-WB-N
Parts Manual fo
r
21" VARIABLE SPEED
REAR DISCHARGE MOWERS
IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS
PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.
WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
www.snapper.com
Copyright © 2008
Milwaukee, WI USA. All Rights Reserved
Briggs & Stratton Corporation
Manual No. 7102346
Revision C,
TP 400-5362-C-WB-N
4/23/2008
