Brickcom VD-202Np Specsheet

Terminal Block
(For Audio in/out, DIDO)

TV Out Connector
Terminal Block (For DC12V)
Focus Control Bar
View Angel Control Bar

SD Card Slot

Terminal Block
(For Audio in/out, DIDO)

TV Out Connector
Terminal Block (For DC12V/AC24V)
Focus Control Bar
View Angel Control Bar

SD Card Slot

N-Series Superior Night Vision
2 Megapixel Vandal Dome Network Camera

▪ N-Series Sony Exmor

TM

2M Vandal Dome Camera

▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)

*The feature is for VD-202NpV5 *

▪ Support HDTV Video Quality (Full HD 1080p @ 30fps Streaming)
▪ Brickcom WDR Enhancement® technology inside
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ 3 Axis design
▪ Two-way Audio/Built-in SD/SDHC Memory Card Slot for Local Storage
▪ IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
▪ Power over Ethernet/DC12V/AC 24V support

▪Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

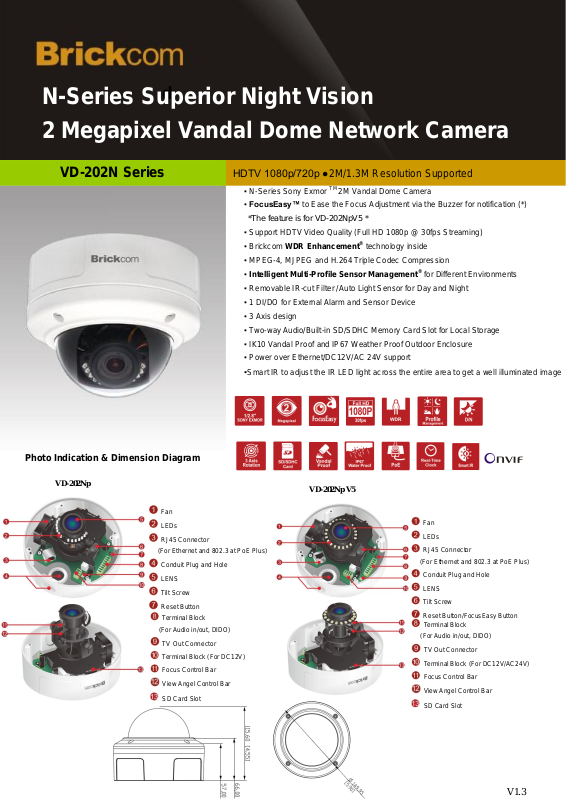

Photo Indication & Dimension Diagram

VD-202N Series

HDTV 1080p/720p ●2M/1.3M Resolution Supported

VD-202Np

VD-202Np V5

Fan
LEDs
RJ45 Connector

(For Ethernet and 802.3 at PoE Plus)

Conduit Plug and Hole
LENS
Tilt Screw
Reset Button

Fan
LEDs
RJ45 Connector

(For Ethernet and 802.3 at PoE Plus)

Conduit Plug and Hole
LENS
Tilt Screw
Reset Button/FocusEasy Button

d

V1.3

Models

VD-202Np 2M, Vari-Focal Lens
VD-202Np V5 2M, Vari-Focal Lens, FocusEasy

Hardware System

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Image Sensor

Sensor Type : 1/2.8” Sony Exmor

TM

CMOS
Sensor
Sensor Resolution :1920 x 1080 pixel

Minimum
Illumination

VD-202Np V5

0 lux (IR ON, B/W)

0.008 lux (IR OFF, B/W)

0.01 lux (F1.4, Color)

VD-202Np

0 lux (IR ON, B/W)

0.02 lux (IR OFF, B/W)

0.01 lux (F1.4, Color)

IR Illuminators

VD-202Np

Built -in IR Illuminators, effective up to 15 meters
IR LED: 12pcs
IR wavelength: 850nm

VD-202Np V5

Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm

Lens

Lens Type: Board Lens
F No.: 1.4
Focal Length:

VD-202Np V5

f= 3mm(W)~10.5mm(T)

VD-202Np

f= 3.3mm(W)~10.5mm(T)
View Angle:

VD-202Np V5

(H): 90°~30°/ (V): 49°~17°/ (D):103°~34°

VD-202Np

(H): 72°~28°/ (V): 40°~16°/ (D):83°~32°

Day & Night ICR

Triggered by Light sensor, Scheduling,
Digital Input

Local Storage

Built-in SD/SDHC/SDXC Max.64G Memory
Card Slot

Compression
Streaming

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Video Setting

Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K

S/N Ratio

>50 dB

Image Resolution

2M (Full HD): 1920x1080 @ 30fps

1.3M:1280x1024@25fps

Events

Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm(*)

*VD-202Np V5 only
*

Alarm

Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output

Audio Streaming

2-way Audio Support

Audio Compression

G.711, AMR (8 kHz, Mono, PCM)

Audio
Input/ Output

Line In/ Out

Communication

Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6

Power Input/
Operating
Temperature

VD-202Np

802.3 af POE/ DC12V 1A

-20°C ~ 60°C (-4°F ~140°F)

802.3at PoE Plus(build in fan and heater):

-40°C ~ 60°C (-40°F ~140°F)

VD-202Np V5

802.3 af POE/ DC12V 1A /AC 24V:

-20°C ~ 60°C (-4°F ~140°F)

802.3at PoE Plus(build in fan and heater):

-40°C ~ 60°C (-40°F ~140°F)

Max. Power
Consumption

DC12V 1A

VD-202Np: 8 Watts

DC12V 1A/AC 24V

VD-202Np V5:10.5 Watts

802.3 af POE

VD-202Np: 10 Watts/ VD-202Np V5:12.5 Watts

802.3at PoE Plus

VD-202Np:23 Watts/ VD-202Np V5:25 Watts

Environment

Water Proof: IP67
Operating Humidity : 10% ~ 80%

Dimension

113.75 (D) mm X 144.25(H) mm

Weight

860g/1.90lb

Housing

Weather-proof (IP67)
Vandal-proof (IK10)

Certification

FCC, CE, IK10

Viewing System
Requirements

OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Warranty

Limited 2-year warranty

Camera

General

Audio

Video

Events and Alarm Management
