Brickcom VD-202Ap-V5 Specsheet

Terminal Block

(For Audio in/out, DIDO)
TV Out Connector
Terminal Block (For

DC12V/AC24V)

Focus Control Bar
View Angel Control Bar
SD Card Slot

2 Megapixel Day & Night
Vandal Dome Network Camera

▪ 2 Megapixel High Resolution Outdoor Vandal Dome Camera
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ 3 Axis design
▪ Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
▪ IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
▪ Power over Ethernet/DC 12V/AC 24V support
▪Smart IR to adjust the IR LED light across the entire area to get a well illuminated

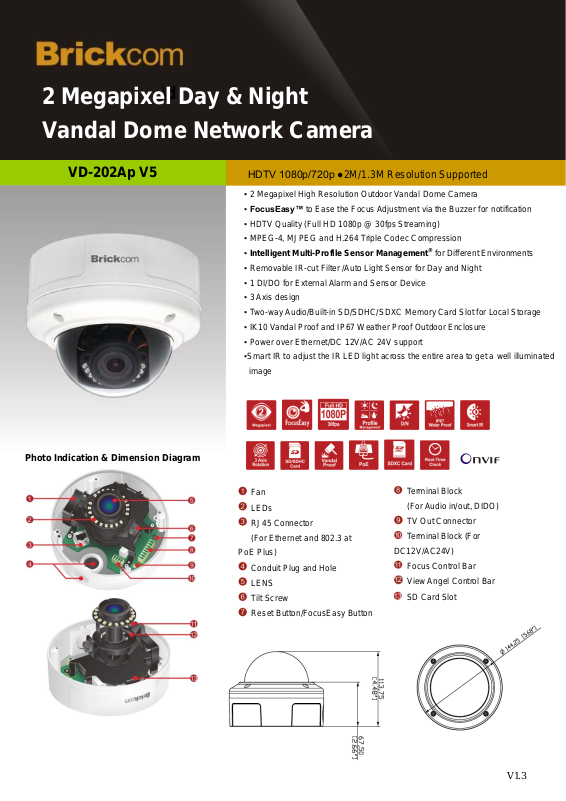

Photo Indication & Dimension Diagram

VD-202Ap V5

HDTV 1080p/720p ●2M/1.3M Resolution Supported

Fan
LEDs
RJ45 Connector

(For Ethernet and 802.3 at
PoE Plus)

Conduit Plug and Hole
LENS
Tilt Screw
Reset Button/FocusEasy Button

\d

V1.3

Models

2M, Vari-Focal Lens, FocusEasy™

Hardware System

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Image Sensor

Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1920x1080 pixel

Minimum
Illumination

0 lux (IR ON, B/W)

0.01lux (IR OFF, B/W)

0.02 lux (F1.4, Color)

IR Illuminators

Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm

Lens

Lens Type: Board Lens
F No.: 1.4
Focal Length: f= 3.3mm(W)~10.5mm(T)
View Angle(Normal Mode):
(H): 64°~24°/ (V): 36°~14°/ (D):74°~28°
View Angle(Ultra Wide Mode):
(H): 106°~33°/ (V): 77°~22°/ (D):114°~41°

Day & Night ICR

Triggered by Light sensor, Scheduling,
Digital Input

Local Storage

Built-in SD/SDHC/SDXC Max.64G Memory Card
Slot

Compression
Streaming

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Video Setting

Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K

S/N Ratio

38.1 dB

Image Resolution

2M (Full HD): 1920x1080 @30fps
1M : 1280x720 @ 30fps

Events

Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm

Alarm

Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output

Audio Streaming

2-way Audio Support

Audio
Compression

G.711, AMR (8 kHz, Mono, PCM)

Audio
Input/ Output

Line In/ Out

Communication

Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6

Power Input/
Operating
Temperature

802.3 af POE/ DC12V 1A /AC 24V:

-20°C ~ 60°C (-4°F ~140°F)

802.3at PoE Plus(build in fan and heater):

-40°C ~ 60°C (-40°F ~140°F)

Max. Power
Consumption

DC12V 1A/AC 24V: 10.5 Watts

802.3 af POE:12.5 Watts

802.3 at POE Plus:25.5 Watts

Environment

Water Proof: IP67
Operating Humidity : 10% ~ 80%

Dimension

113.75 (D) mm X 144.25(H) mm

Weight

860g/1.90lb

Housing

Weather-proof (IP67)
Vandal-proof (IK10)

Certification

FCC, CE, IK10

Viewing System
Requirements

OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Warranty

Limited 2-year warranty
