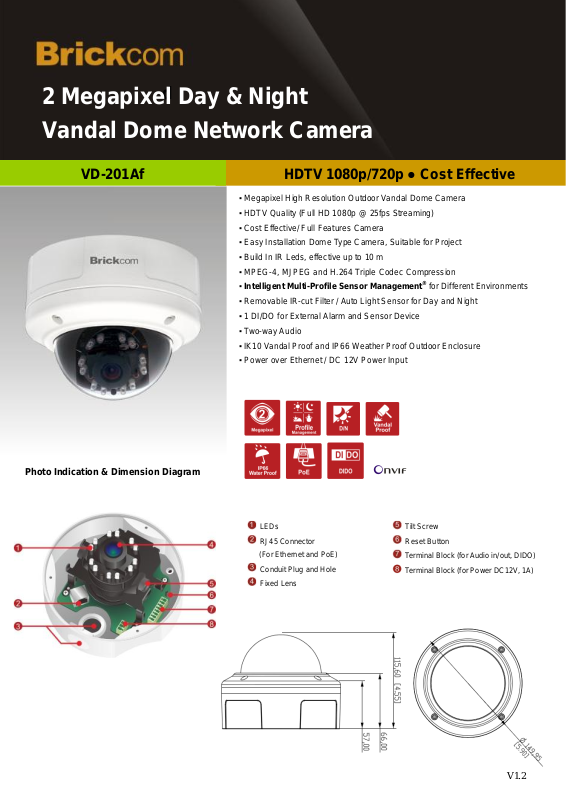

Brickcom VD-201Af Specsheet
2 Megapixel Day & Night
Vandal Dome Network Camera
▪ Megapixel High Resolution Outdoor Vandal Dome Camera
▪ HDTV Quality (Full HD 1080p @ 25fps Streaming)
▪ Cost Effective/ Full Features Camera
▪ Easy Installation Dome Type Camera, Suitable for Project
▪ Build In IR Leds, effective up to 10 m
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter / Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ Two-way Audio
▪ IK10 Vandal Proof and IP66 Weather Proof Outdoor Enclosure
▪ Power over Ethernet / DC 12V Power Input
Photo Indication & Dimension Diagram
VD-201Af
HDTV 1080p/720p ● Cost Effective
LEDs
RJ45 Connector
(For Ethernet and PoE)
Conduit Plug and Hole
Fixed Lens
Tilt Screw
Reset Button
Terminal Block (for Audio in/out, DIDO)
Terminal Block (for Power DC12V, 1A)
d
V1.2
L-WM-01
Camera Bracket
POE16U
High Power PoE Injector
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1920 x 1080 pixel
Minimum
Illumination
0 lux (IR ON, B/W)
0.1 lux (IR OFF, B/W)
0.2 lux (F1.6, Color)
S/N ratio: 38.1dB
IR Illuminators
Built -in IR Illuminators, effective up to 10 meters
IR LED: 12pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
Focal Length: f= 4mm
F No.: 1.6
View Angle:
(H): 62°/ (V): 34°/ (D): 71°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
Image Resolution
2M (Full HD): 1920x1080 @ 25fps
1M (HDTV): 1280x720 @ 25fps
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
PoE 802.3 af/ DC12V 1A :
-20°C ~ 50°C (-4°F ~122°F)
Max. Power
Consumption
PoE 802.3 af: 8 watts
DC 12V 1A: 6 watts
Environment
Water Proof: IP66
Operating Humidity : 10% ~ 80%
Dimension
113.75 (D) mm X 144.25(H) mm
Weight
900g/ 1.99 lb
Housing
Weather-proof (IP66)
Vandal-proof (IK10)
Certification
FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited one-year warranty
Events
Motion Detection/ Schedule/
Audio Detection/ Digital Input
Alarm
Stream/Snapshot to FTP/Email/
Samba/SD-Card/HTTP/Email Notification/
Digital Output
Camera
General
Audio
Events and Alarm Management
Network Equipment Options
Work Best With
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
