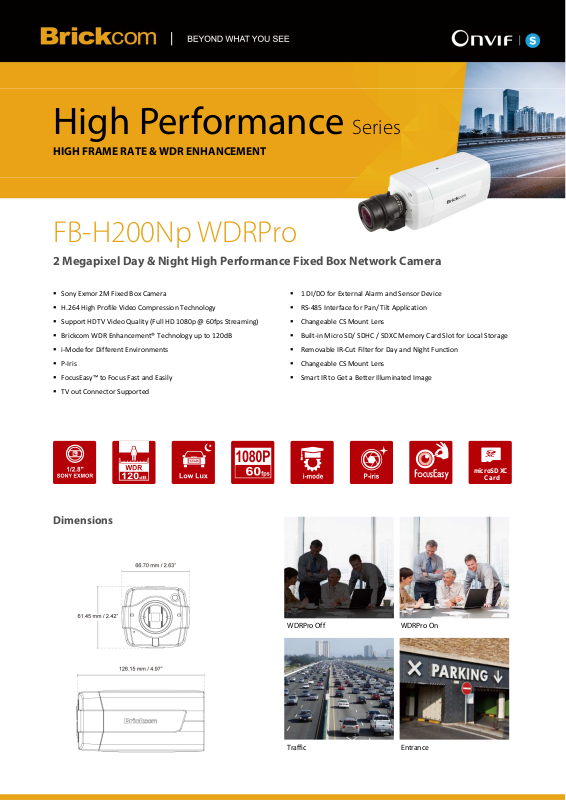

Brickcom FB-H200Np-WDRPro Specsheet

HIGH FRAME RATE & WDR ENHANCEMENT

2 Megapixel Day & Night High Performance Fixed Box Network Camera

Sony Exmor 2M Fixed Box Camera

1 DI/DO for External Alarm and Sensor Device

Dimensions

High Performance

FB-H200Np WDRPro

Series




 H.264 High Profile Video Compression Technology
 Support HDTV Video Quality (Full HD 1080p @ 60fps Streaming)
 Brickcom WDR Enhancement® Technology up to 120dB
 i-Mode for Different Environments
 P-Iris
 FocusEasy™ to Focus Fast and Easily
 TV out Connector Supported


 RS-485 Interface for Pan/ Tilt Application
 Changeable CS Mount Lens
 Built-in Micro SD/ SDHC / SDXC Memory Card Slot for Local Storage
 Removable IR-Cut Filter for Day and Night Function
 Changeable CS Mount Lens
 Smart IR to Get a Better Illuminated Image

microSDXC

Card

WDRPro Off WDRPro On

Traffic Entrance

V1.0

Brickcom

Audio

Audio Streaming

2-

way Audio Support

Audio Compression

G.711/AMR

Audio

Line input (Unbalanced, 1.4 Vp

-

p, 1 Vrms)

General

Communication

Ethernet : one 10/100Mbps RJ

-45

Power Input

DC12V 1A

Temperature/

Operating Temperature:

Max. Power

6 Watts

Dimension

126.2 (L) X66.7 (W) X 61.5 (H) mm

Weight

Net: 380g (Without Lens)/0.83lb

Certification

FCC/CE

Viewing System

Onvif Support

Warranty

Limited 3 years warranty

Camera

Models

FB-

H200Np WDRPro

Hardware System

CPU: 800 MHz

Image Sensor

Sensor Type : 1/2.8” Sony Exmor

CMOS Sensor

Local Storage

Built-in Micro SD/SDHC/SDXC Max.64G Memory Card

Day & Night ICR

Triggered by Light sensor, Scheduling,

Minimum

0.0008 lux

(F1.4, B/W)

Video

Compression

H.264 / MPEG4 / MJPEG

Video Setting

i-

Mode Image Management:

S/N Ratio

Above 50dB

Image Resolution

2M (1920 x 1080) ● (60fps)

WDR 120dB

Events and Alarm Management

Events

Motion

Detection/ Schedule/ Audio Detection/ Digital

Alarm Stream/Snapshot to FTP/Email/Samba/SD

-

Card

Flash: 32M
RAM: 512M DDR

Sensor Resolution : 1920x1080 pixel

Slot

Illumination

Streaming

Digital Input

0.001 lux (F1.4, Color)

Simultaneous multiple streams

Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/120000~1s
Manual Gain Control: 1 ~ 48
Privacy Mask

| BEYOND WHAT YOU SEE

TM

Input/ Output

Environment

Consumption

/ Line output

Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP,
RTCP, IPv6

802.3af PoE

-20°C ~ 50°C
(-4°F ~ 122°F)

Operating Humidity: 10% ~ 80%

Gross : 893G/1.97lb

Input/ Temperature Alarm

HTTP/Email Notification/ Digital Output

Camera Accessories Options

Requirements

Network Equipment Options

Brickcom Software: PC-NVR, Easy config
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 9 or above,
Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Software Development Kit (SDK)

AG4Z2812KCS-MPIR

© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.

4x Vari-focal with P-Iris

PS-588I V2

9 port 10/100M PoE Fast Ethernet Switch

PS-7242IL-AT

24-port 10/ 100M High Power PoE+ Web Smart Ethernet
Switch

V4.0
