CB-500Ap
Megapixel Cube Network Camera
CB-100A/CB-500A Series
User’s Manual
Quality Service Group
Product name:
Network Camera (CB-100A/CB-500A series)
Release Date:
2013/1
Manual Revision:
V2.2
Web site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2012 Brickcom Corporation. All Rights Reserved
- -
Table of Contents
Before You Use This Product .......................................................................................... 0
FCC Warning .................................................................................................................. 0
Regulatory Information .................................................................................................... 1
Product Comparison ....................................................................................................... 0
Package Contents ........................................................................................................... 0
Cube Network Camera Overview .................................................................................... 2
Device Appearance Description ...................................................................................... 4
LED Behavior .................................................................................................................. 5
Installation ....................................................................................................................... 7
System Requirements .............................................................................................. 7
Camera Connection ................................................................................................. 8
Basic Connection ............................................................................................... 8
Software Installation ............................................................................................... 10

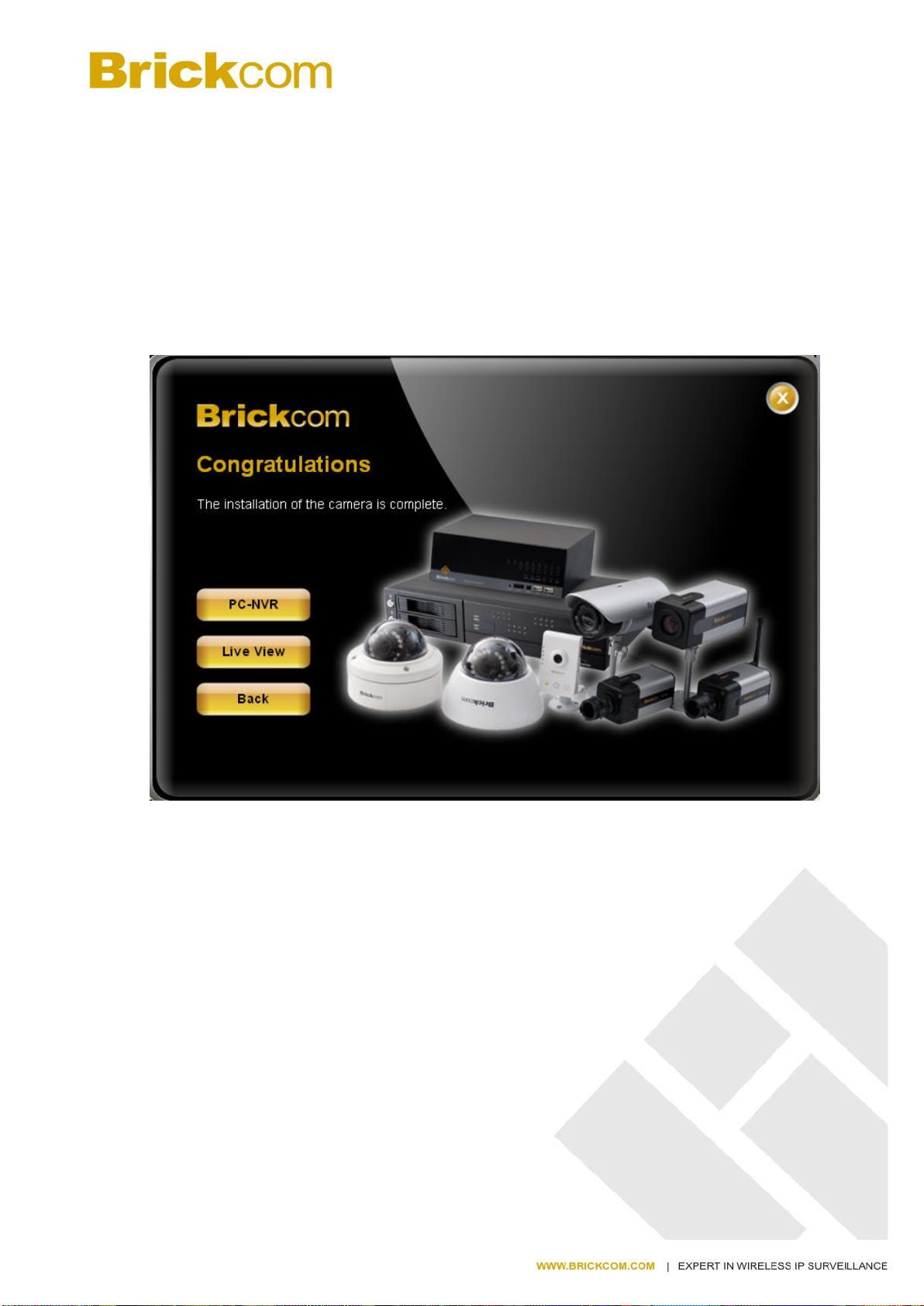

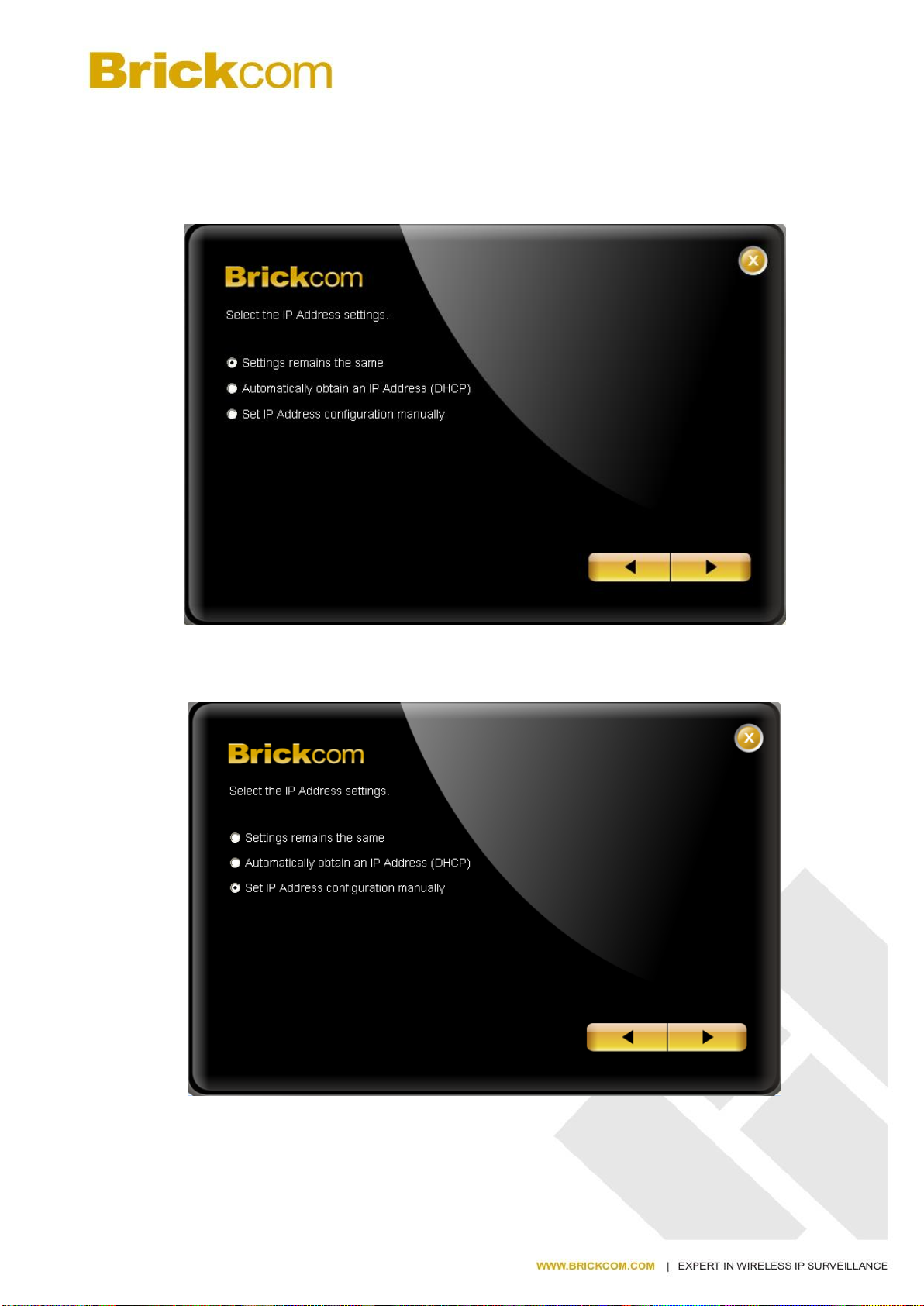

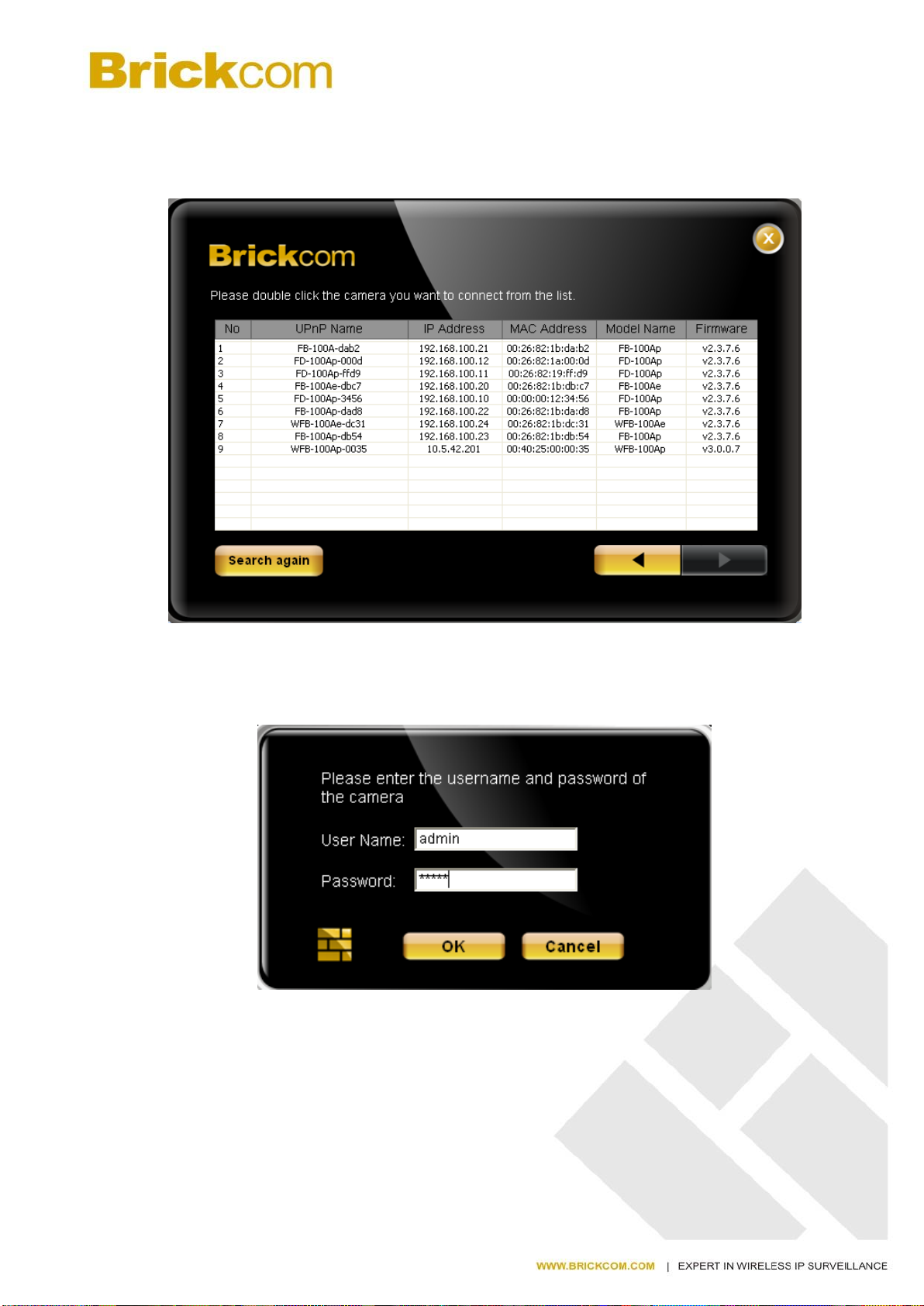

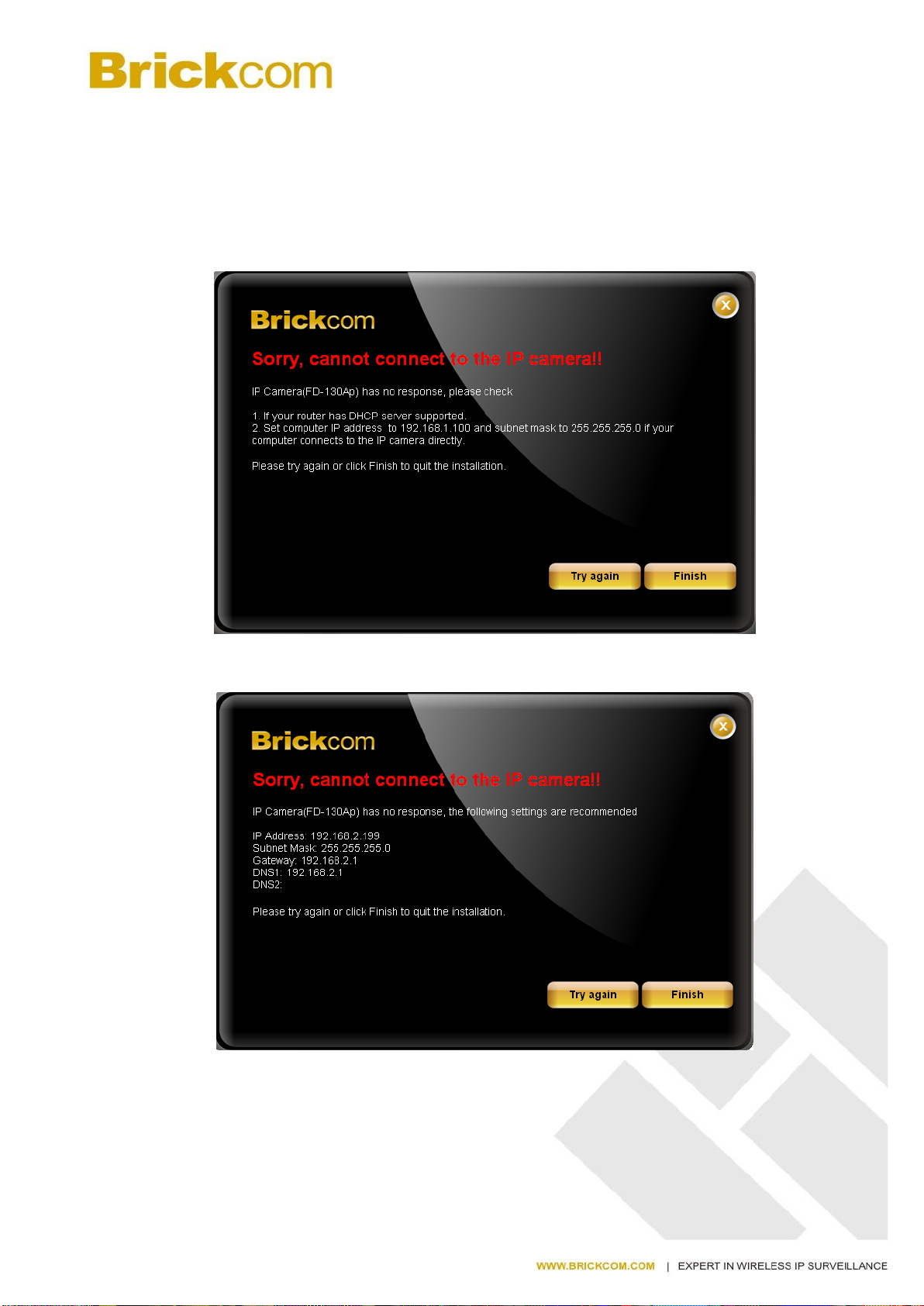

EasyConfig ...................................................................................................... 17

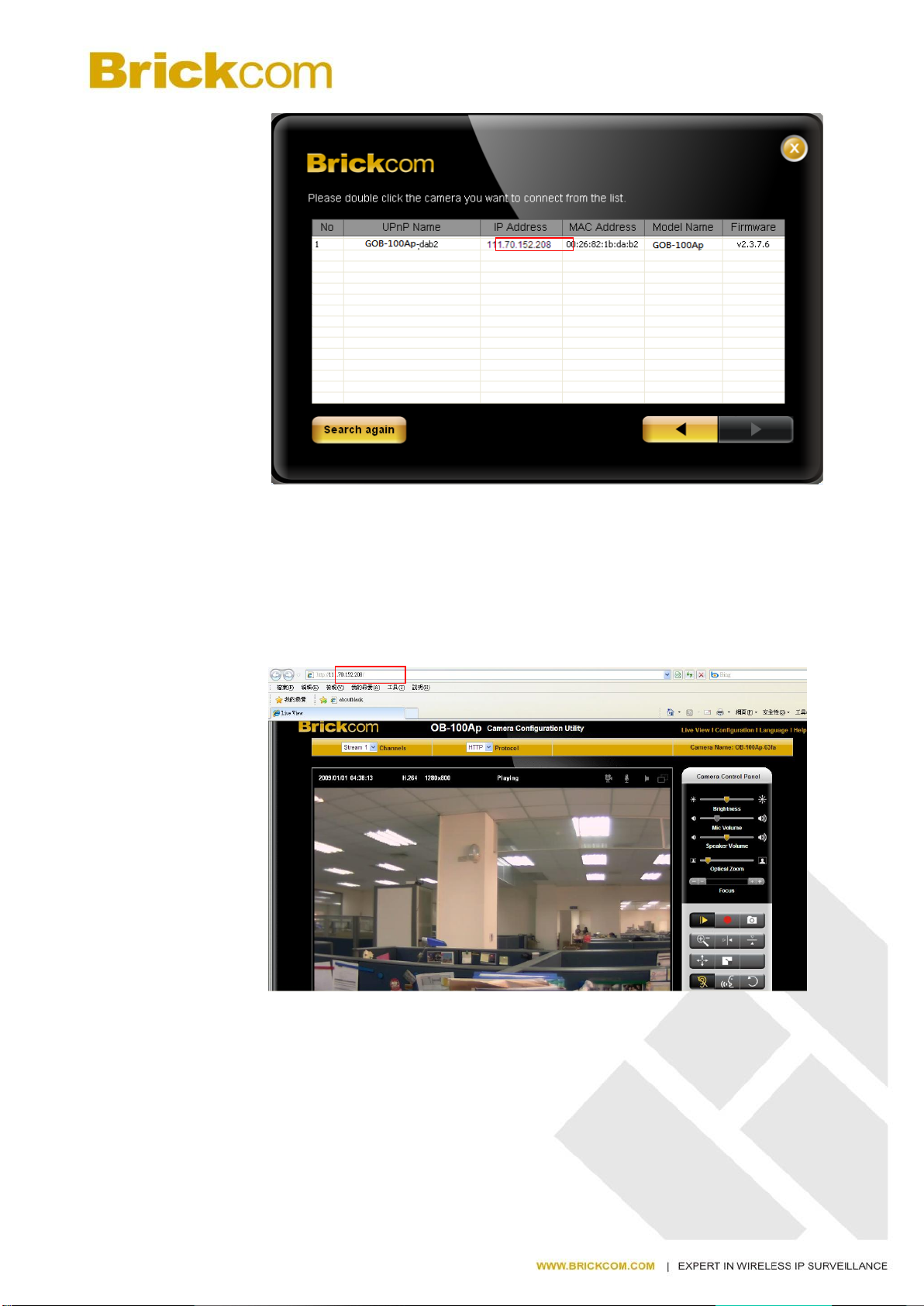

Accessing the Network Camera .................................................................................... 26
Check Network Settings ......................................................................................... 26
Add Password to Prevent Unauthorized Access .................................................... 26

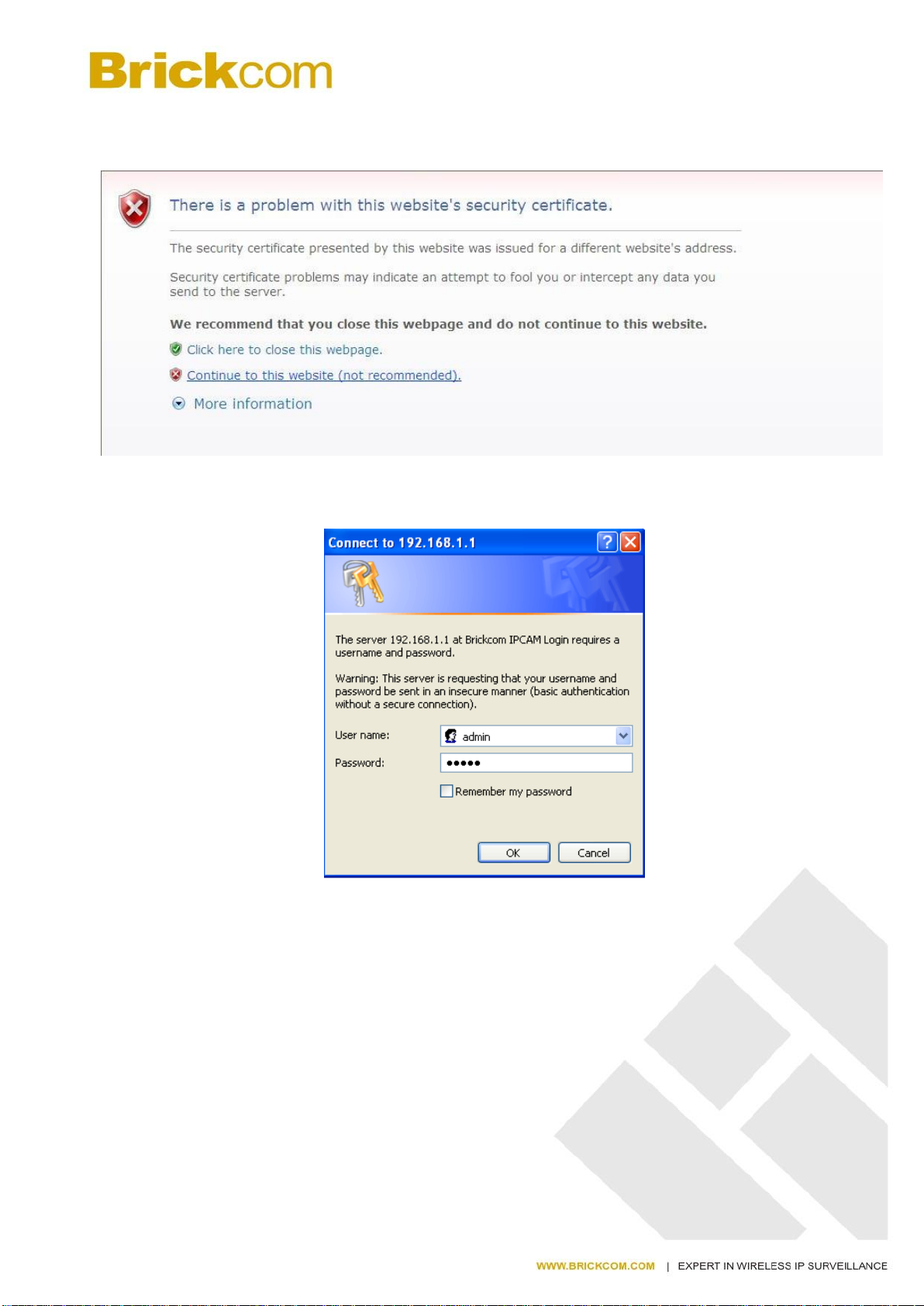

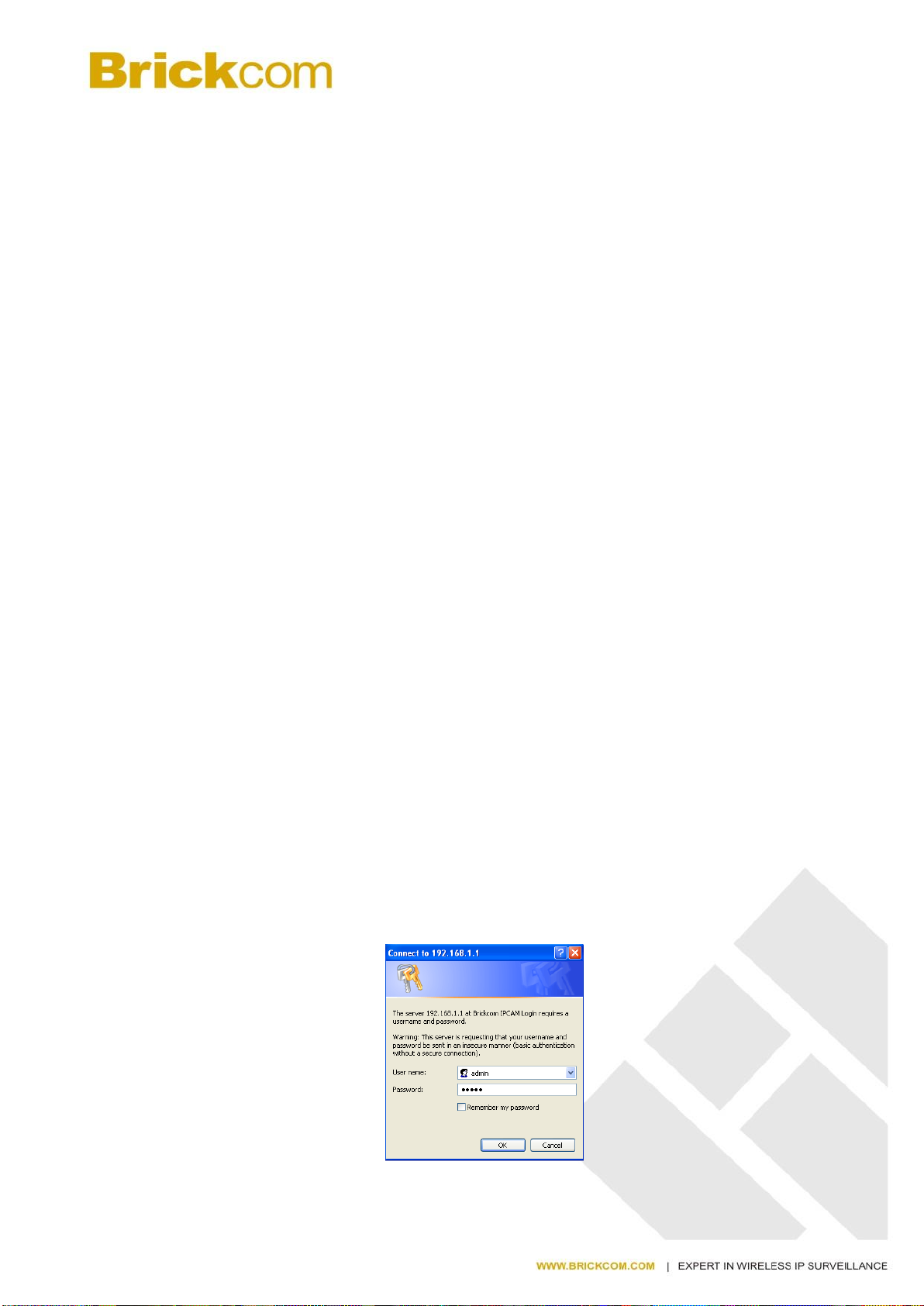

Authentication ......................................................................................................... 26

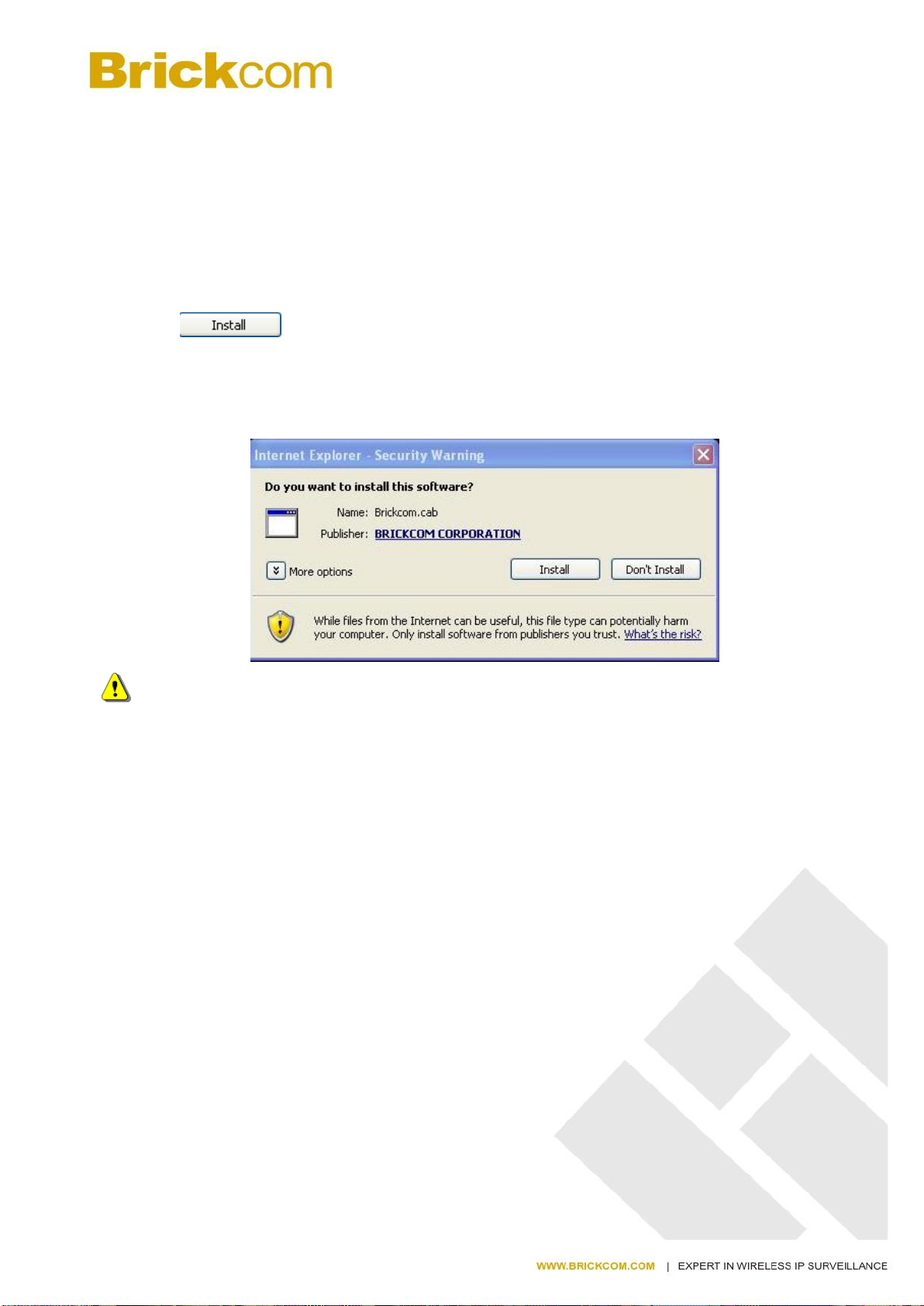

Installing the Plug-In ............................................................................................... 27

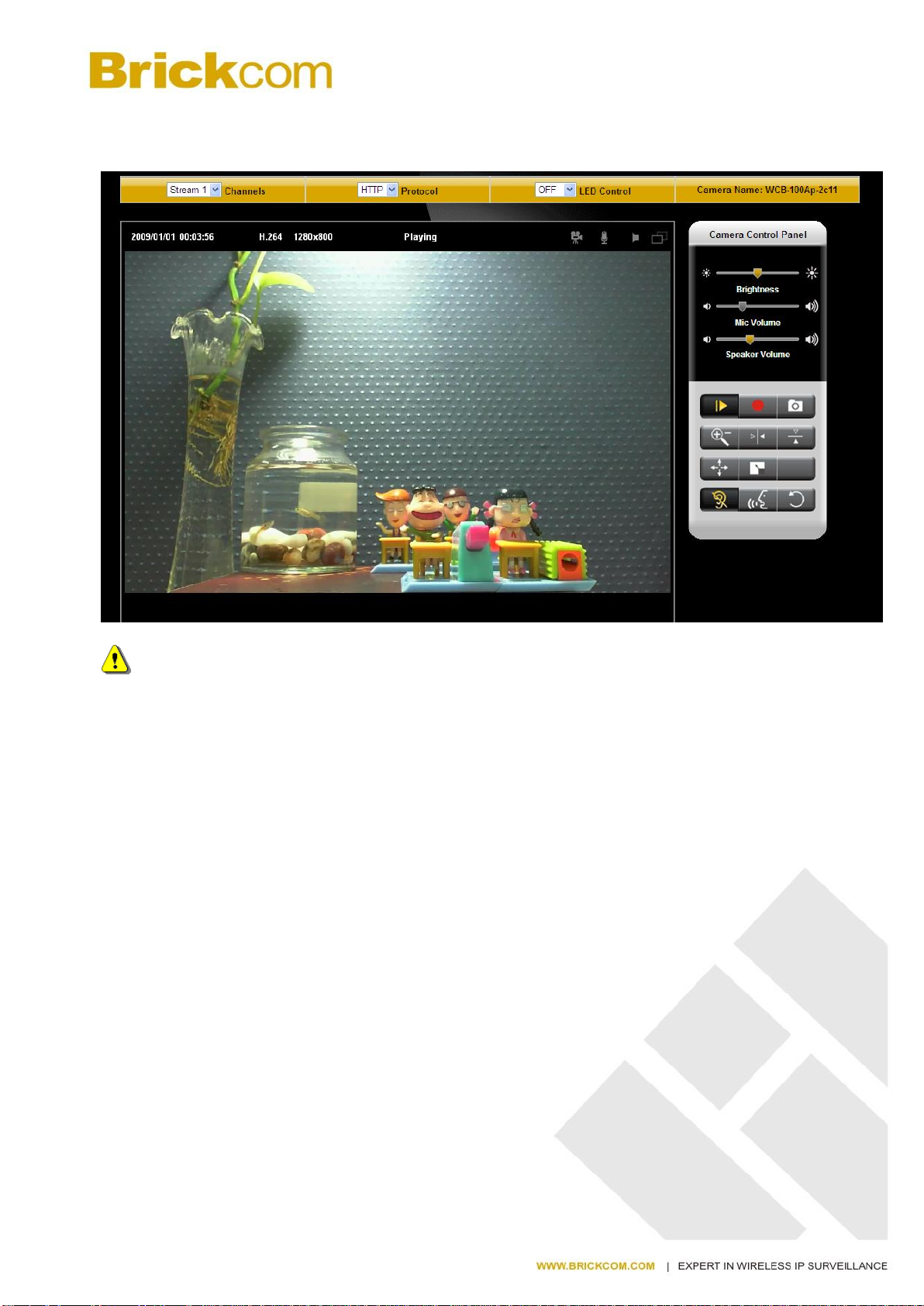

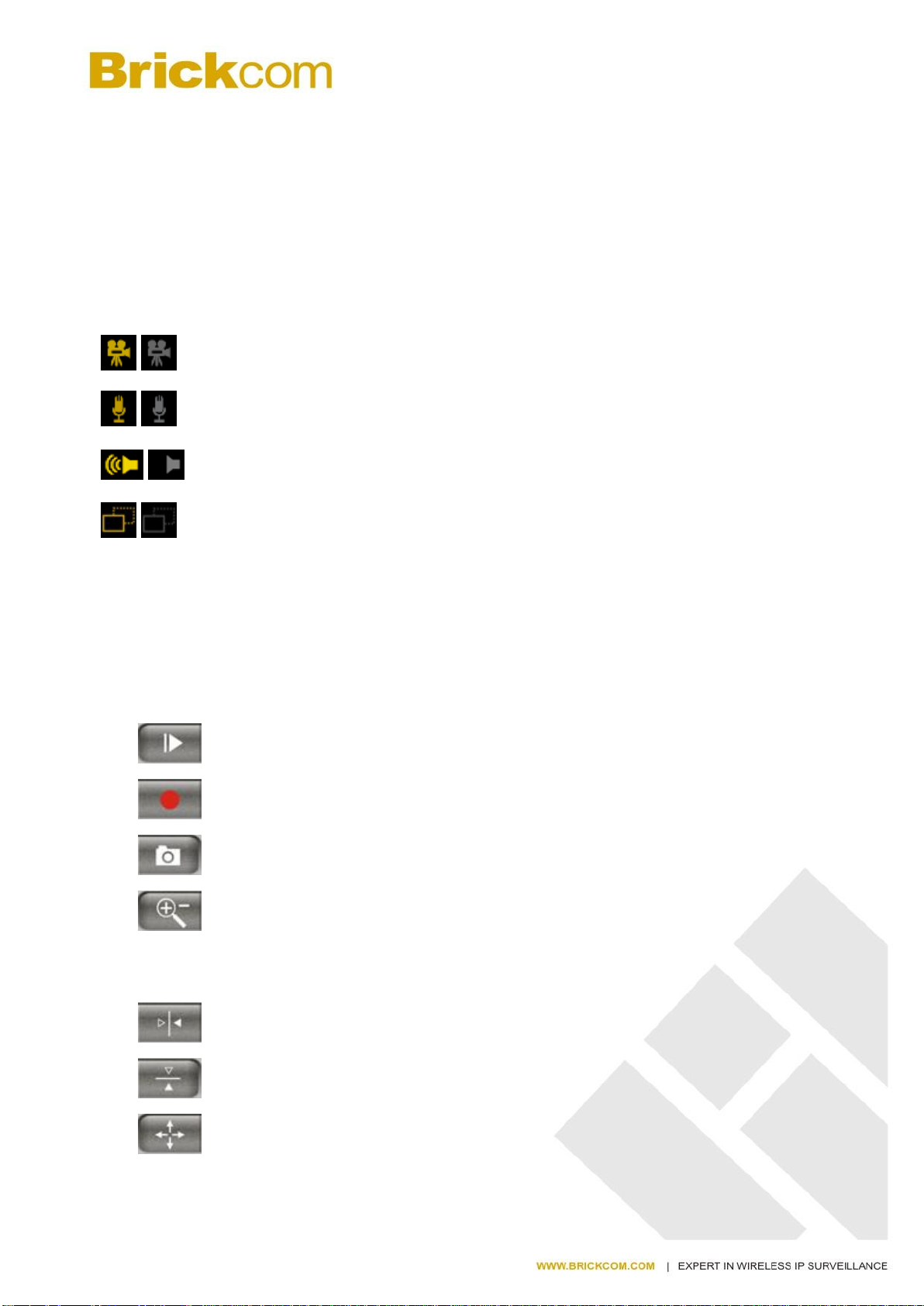

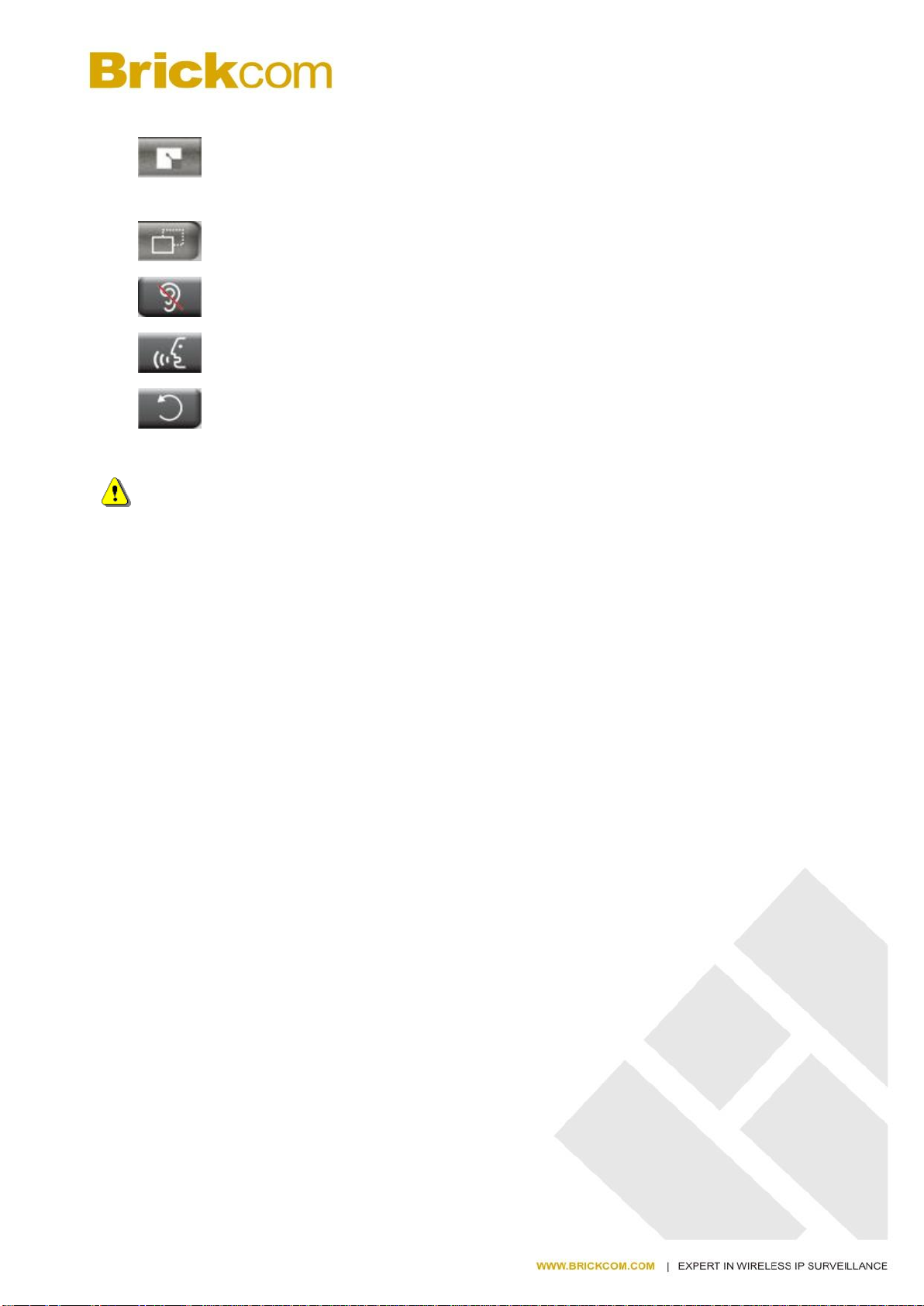

Live View ....................................................................................................................... 28
Configuration................................................................................................................. 31
Camera/Video/Audio .............................................................................................. 31

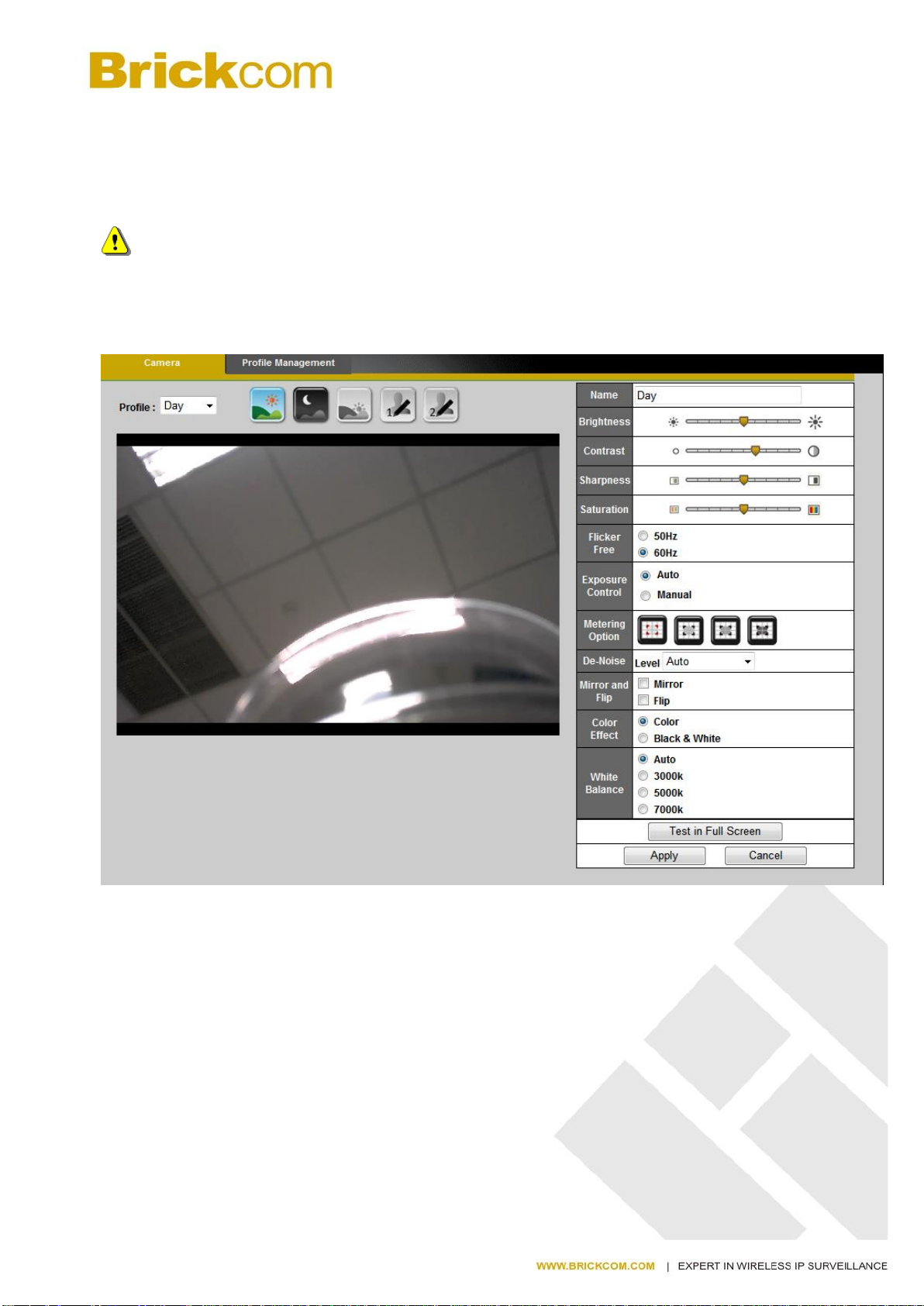

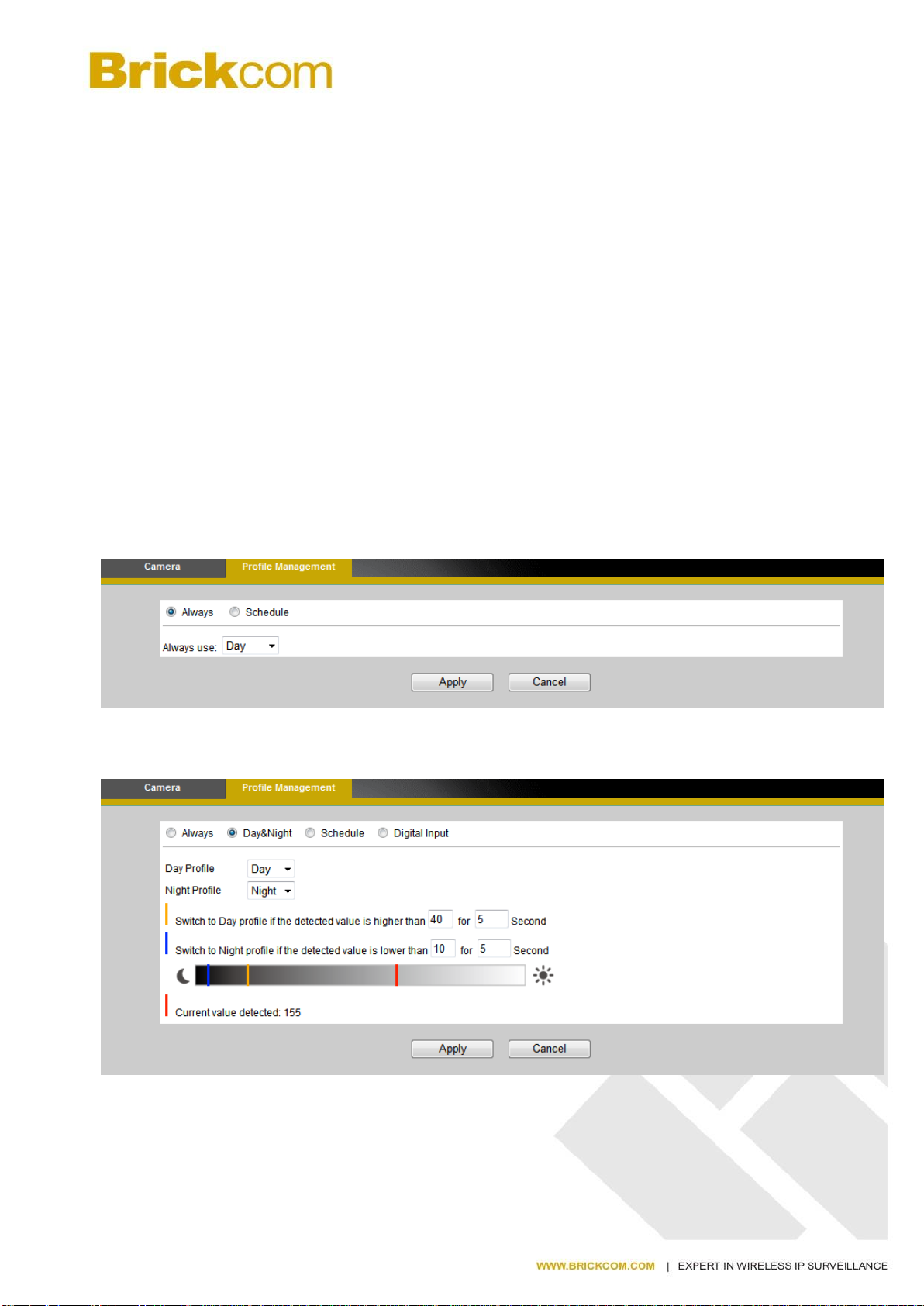

Camera ............................................................................................................ 31

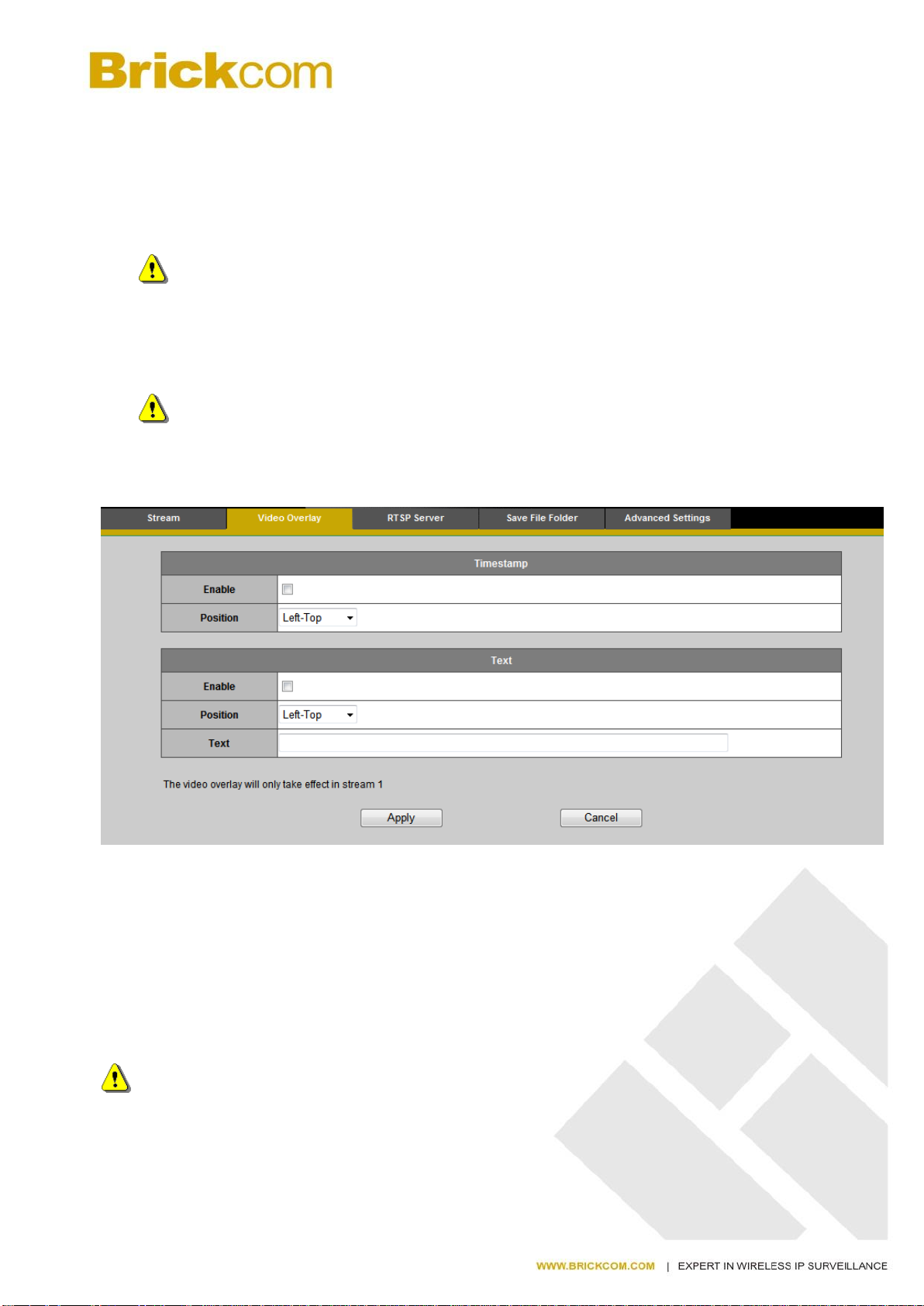

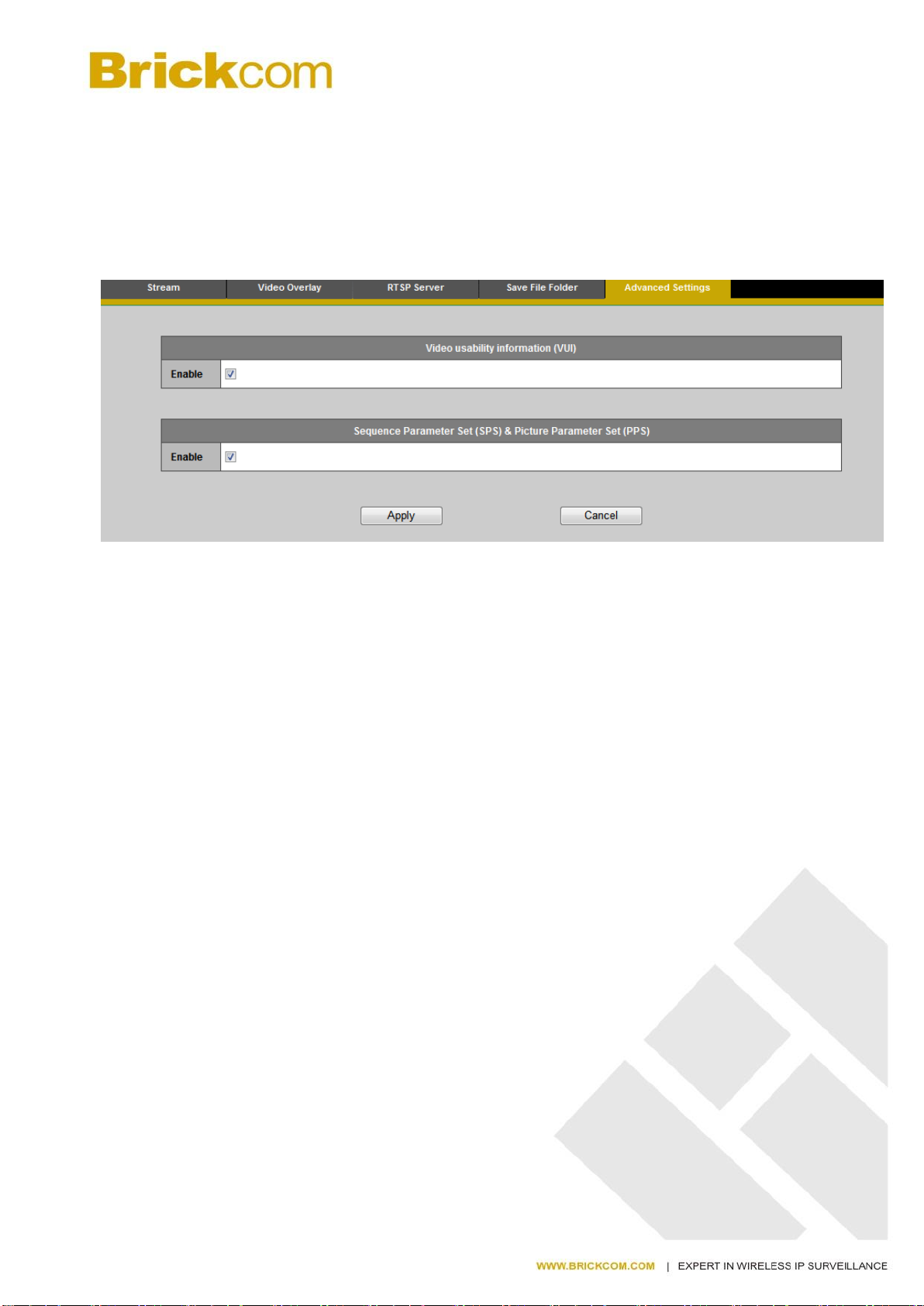

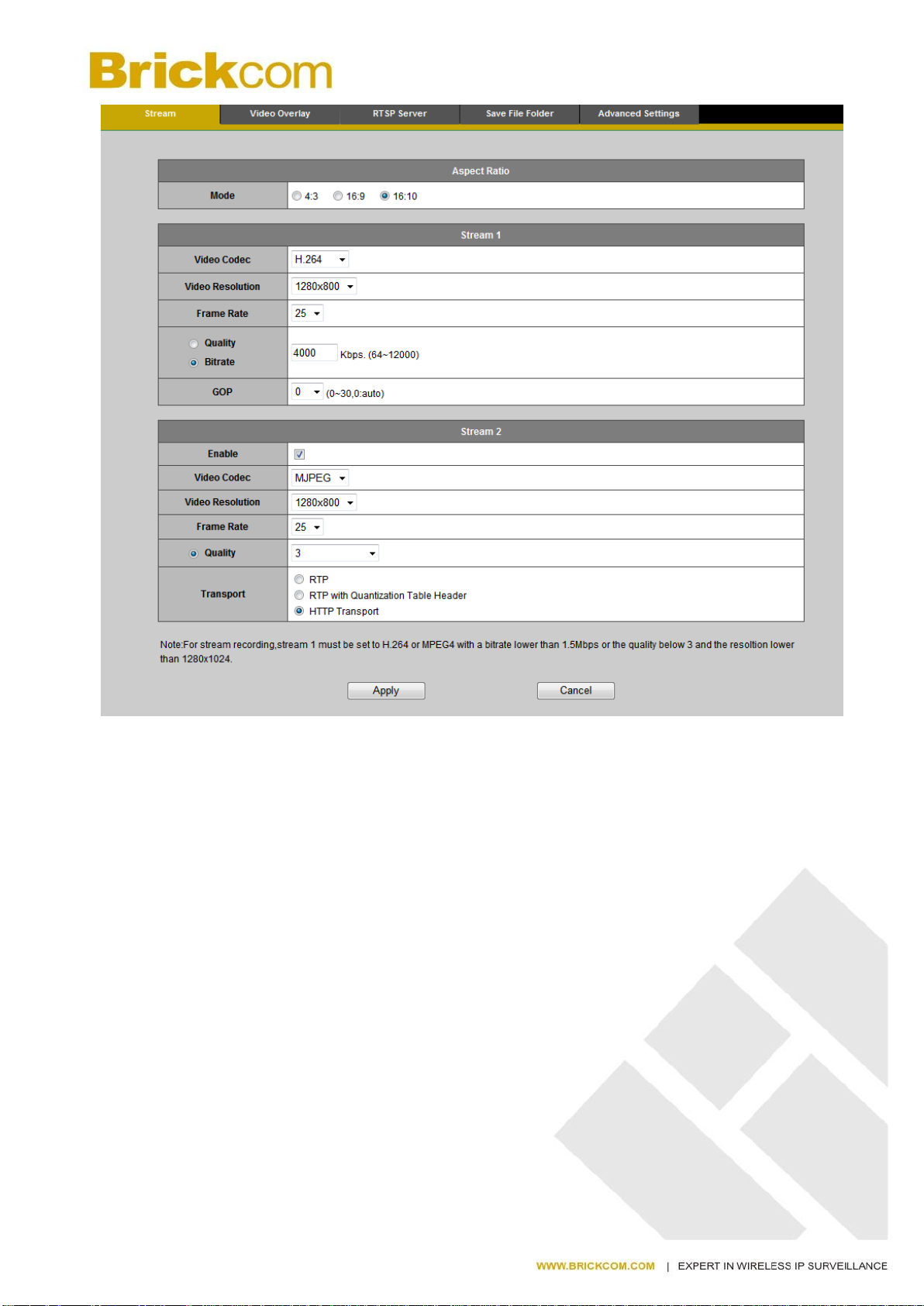

Video................................................................................................................ 33
Audio................................................................................................................ 37
Multicast ........................................................................................................... 38

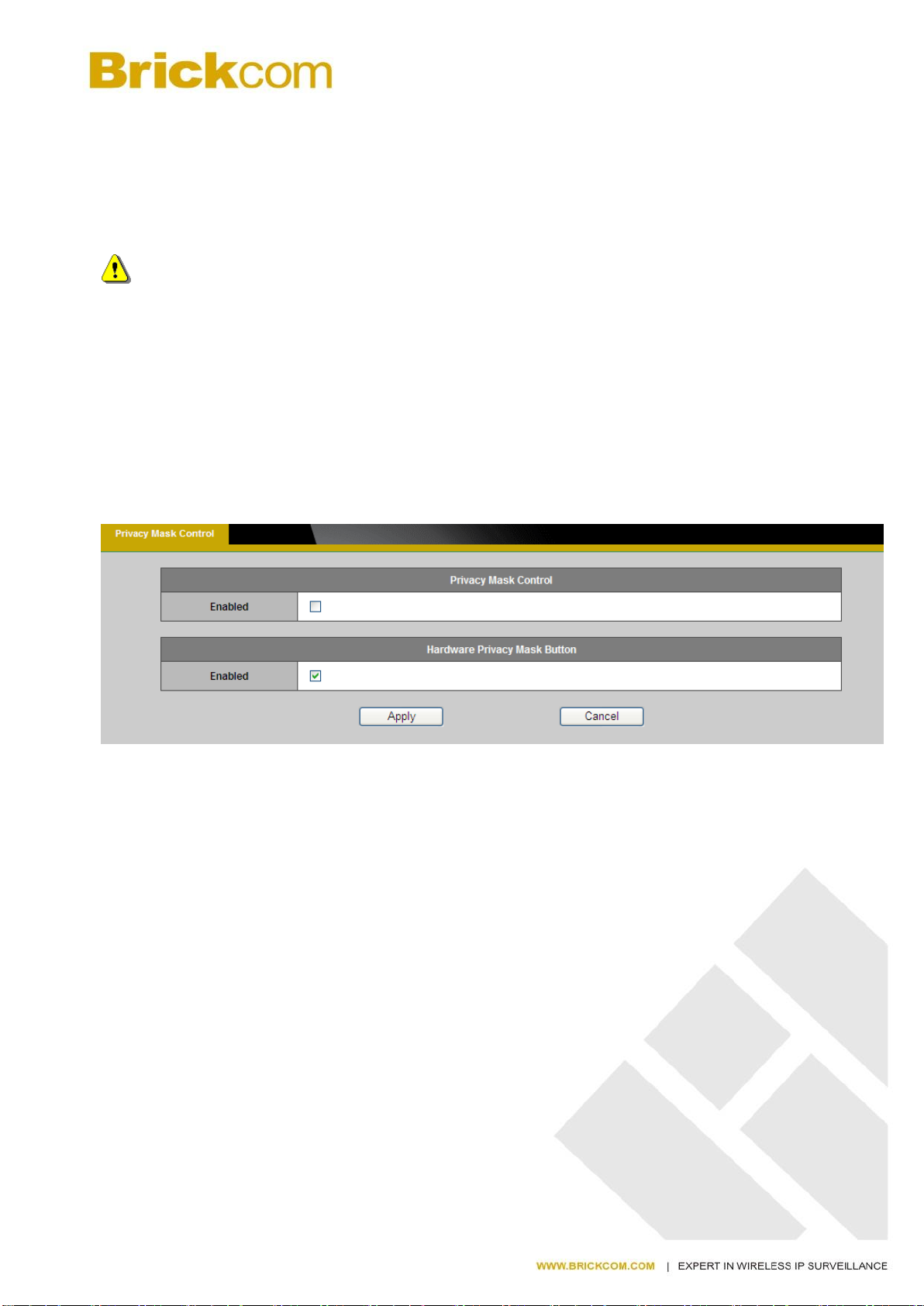

Privacy Mask Control ....................................................................................... 39
Network .................................................................................................................. 40

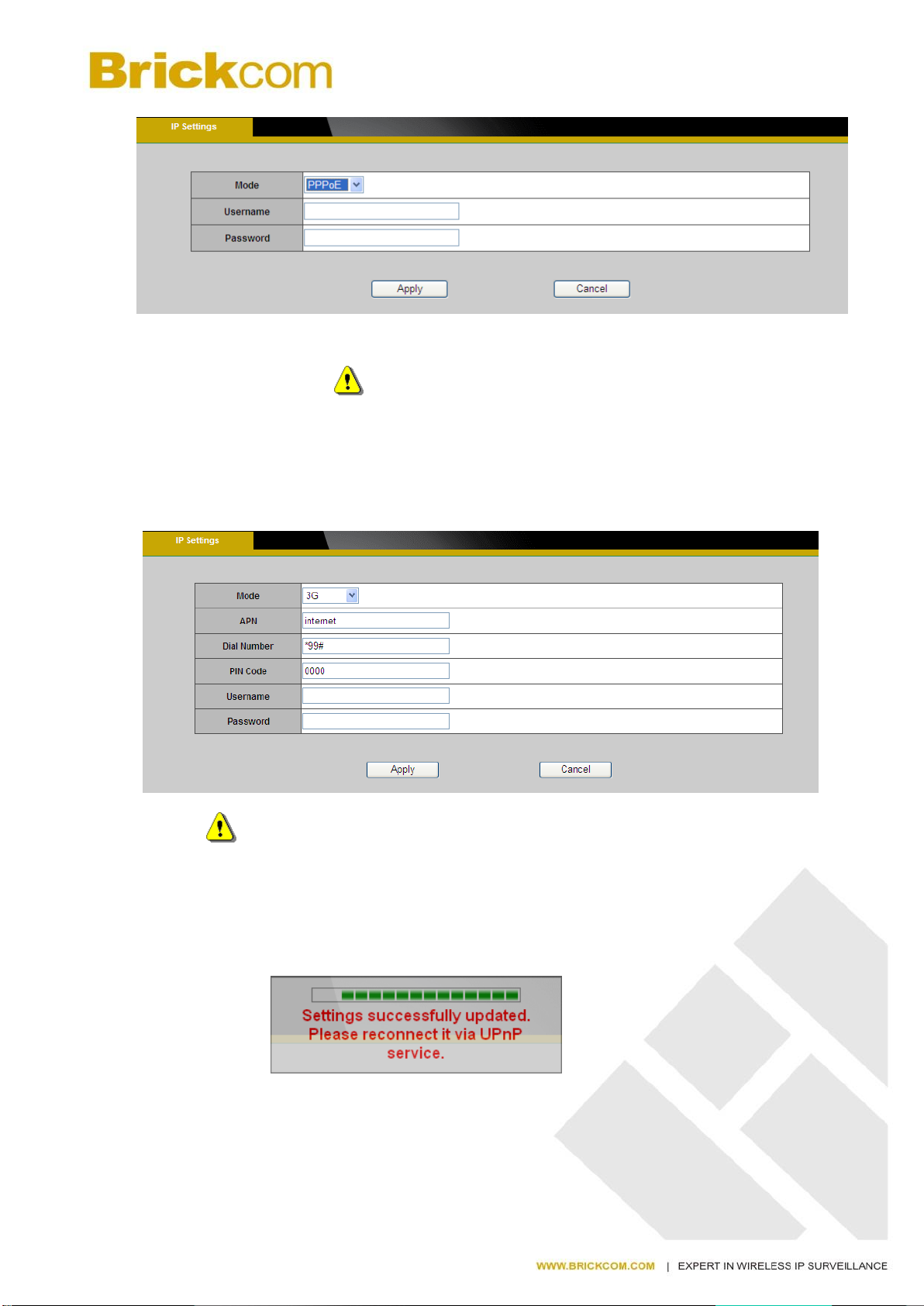

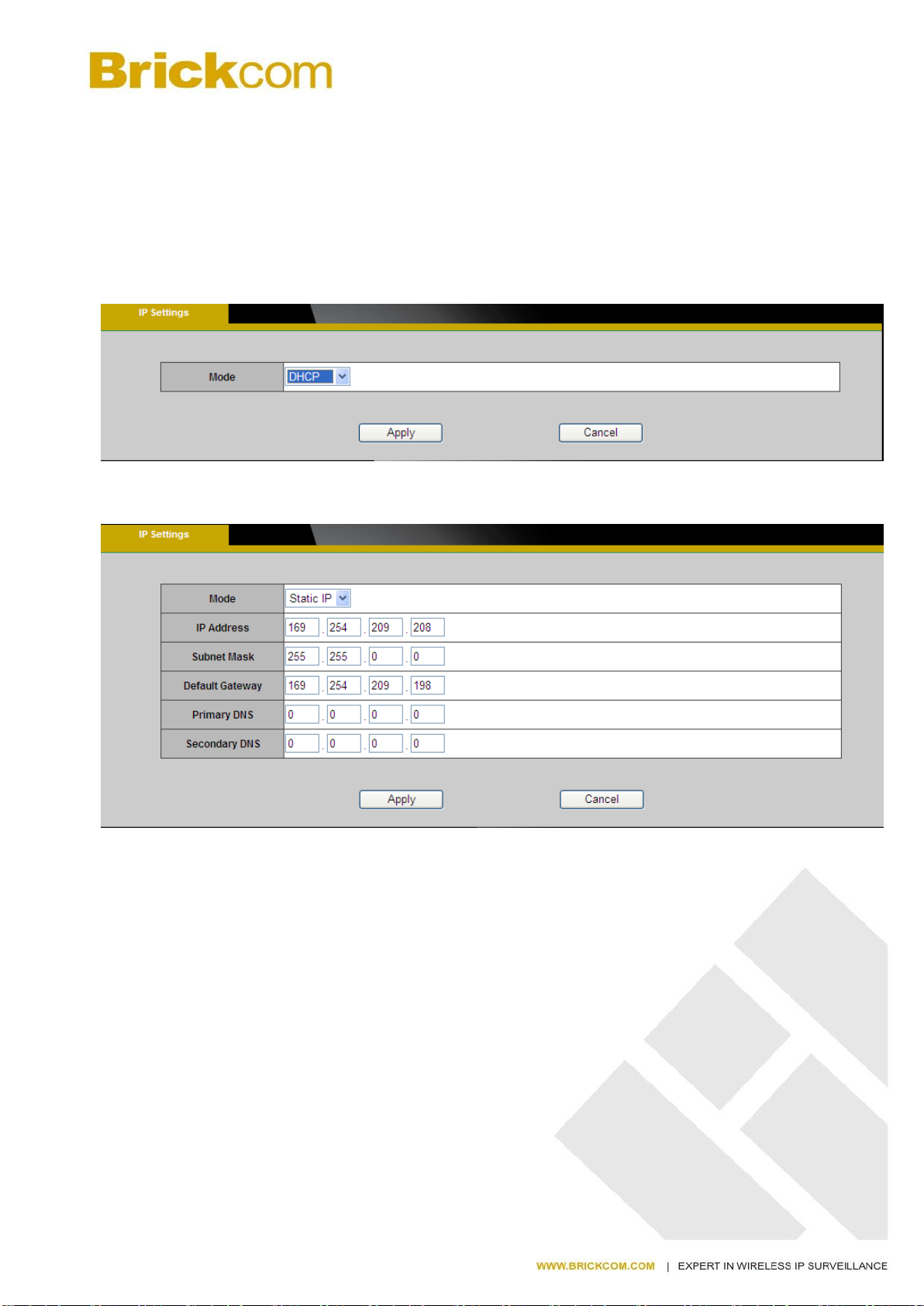

IP Settings ....................................................................................................... 40
UPnP ............................................................................................................... 42
DDNS (dynamic domain name service) ........................................................... 43

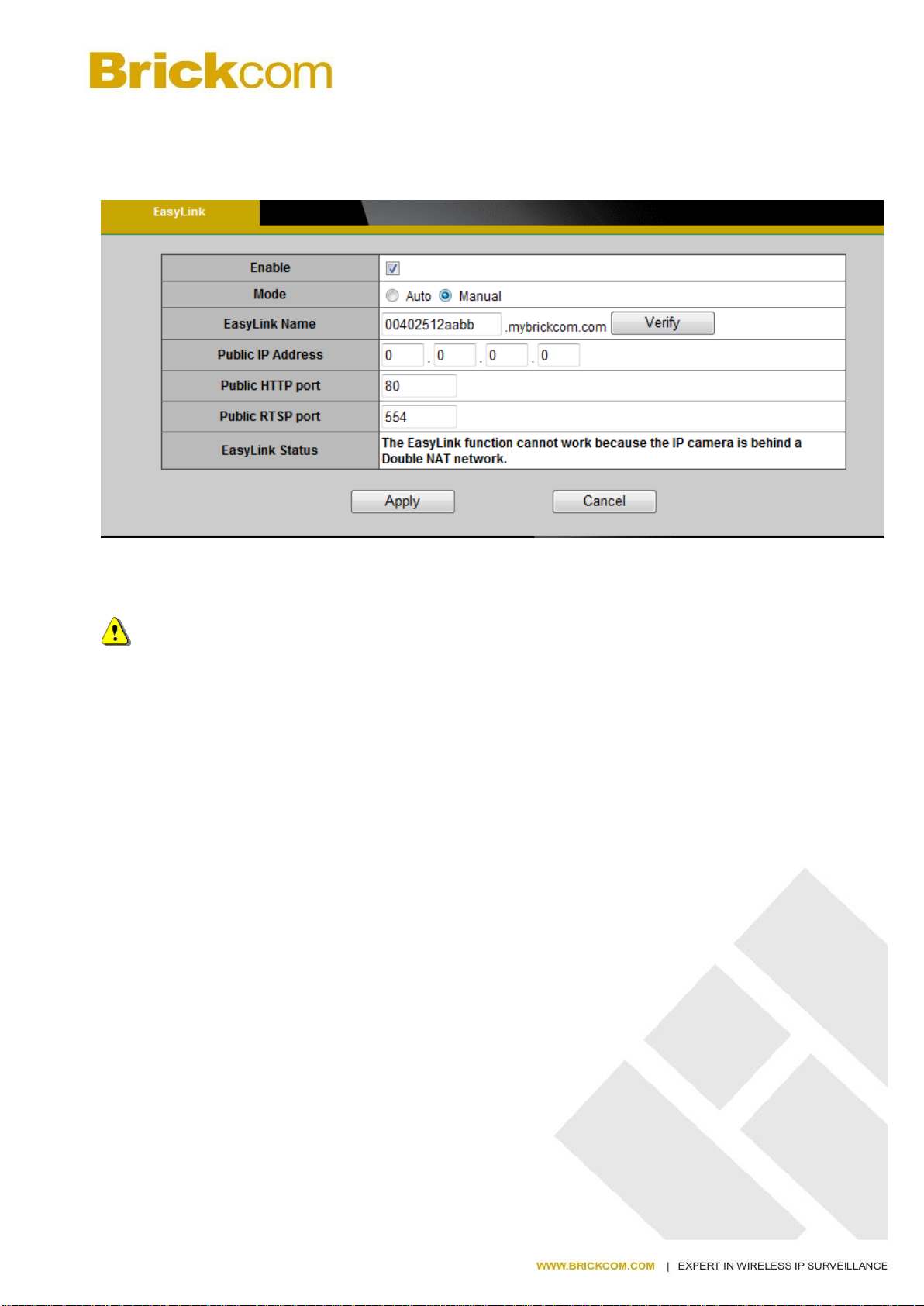

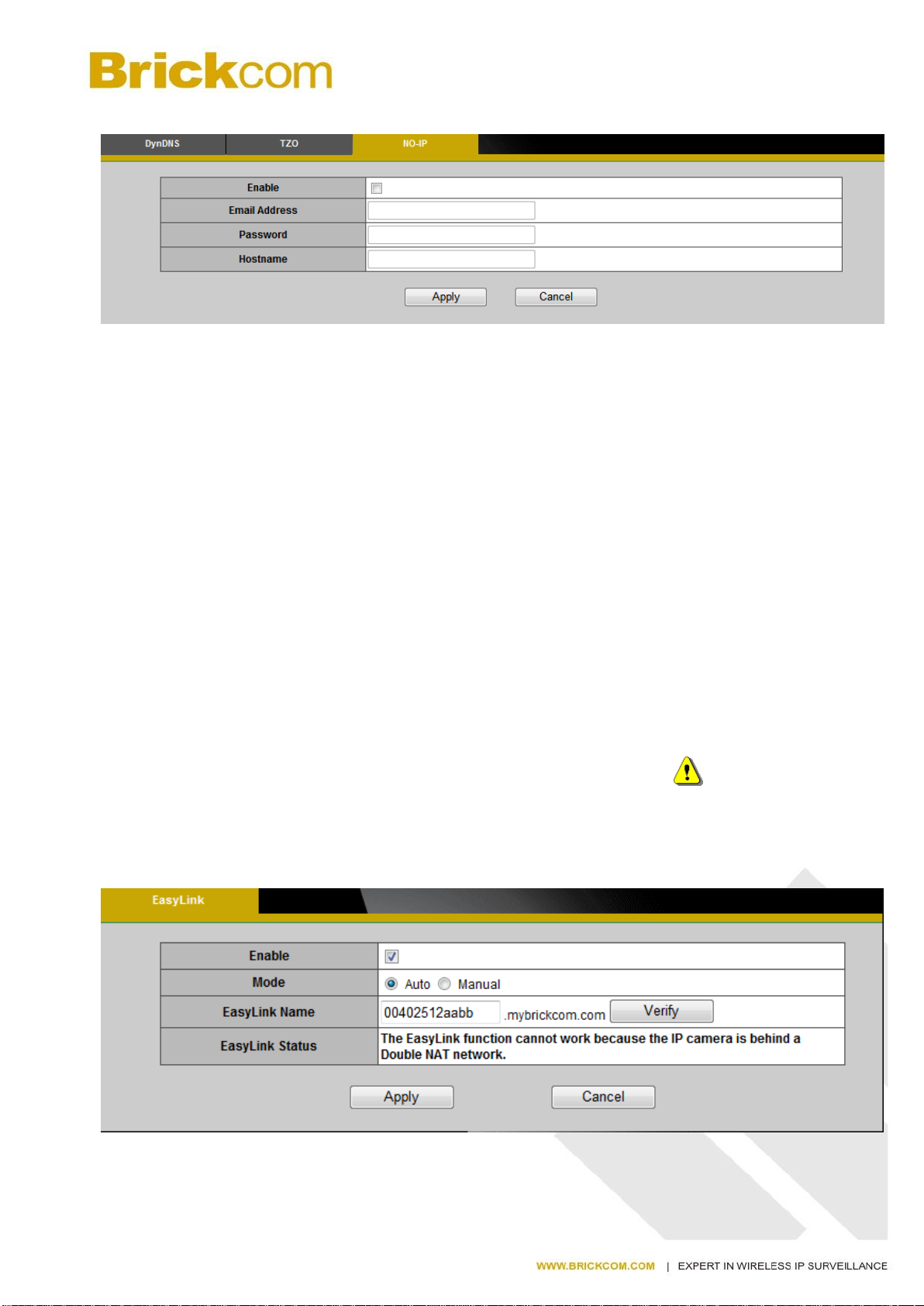

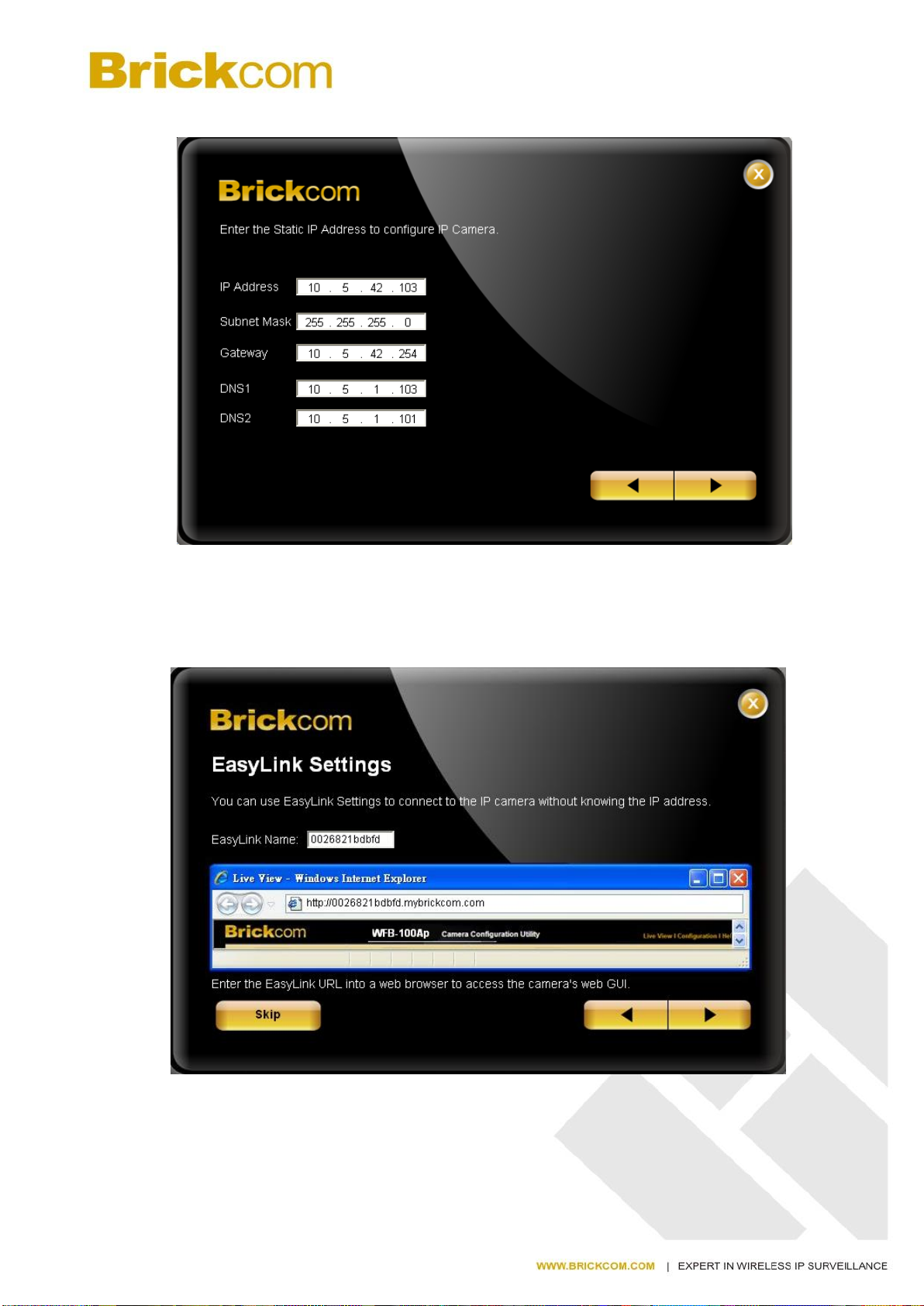

EasyLinkTM ....................................................................................................... 44

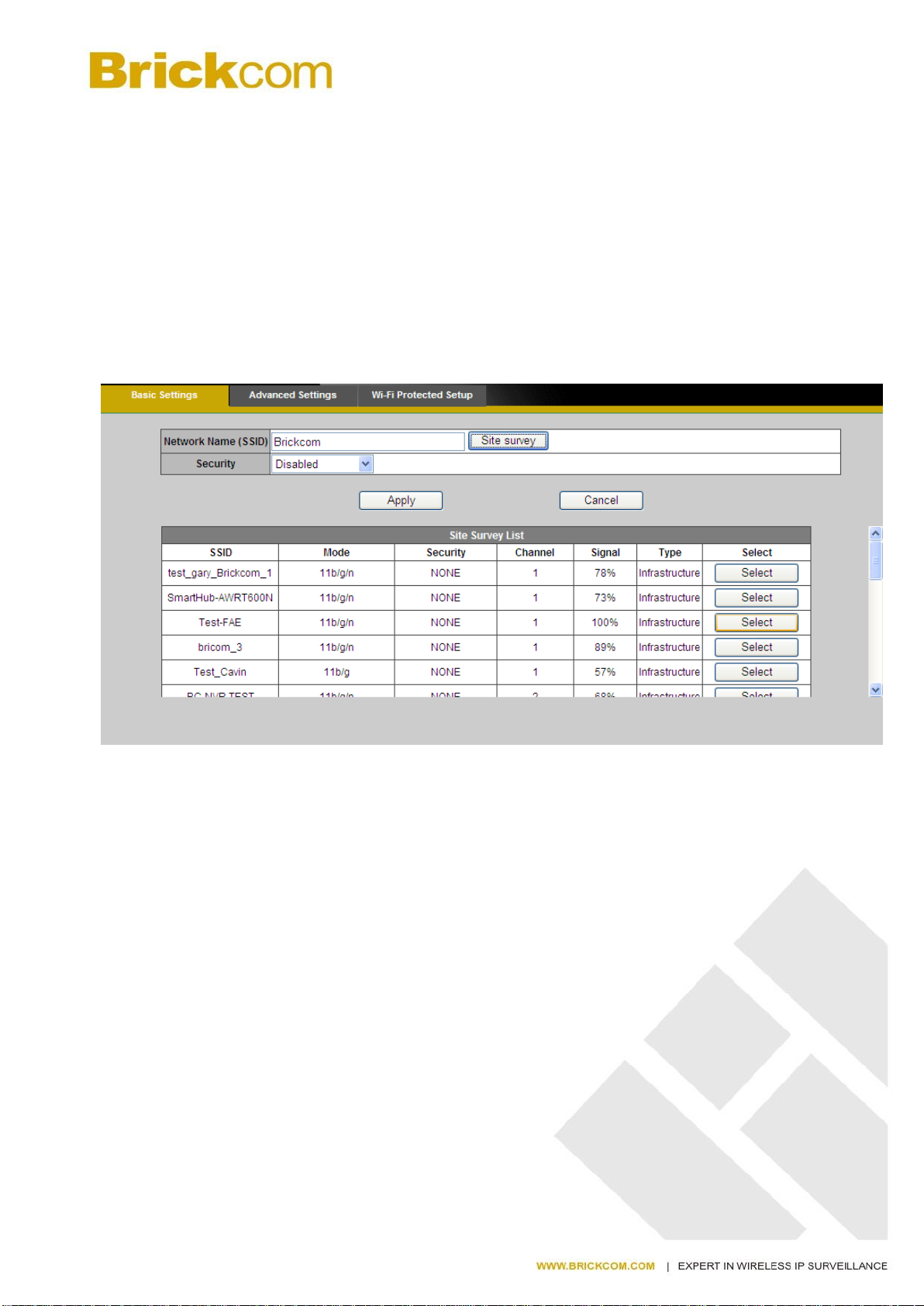

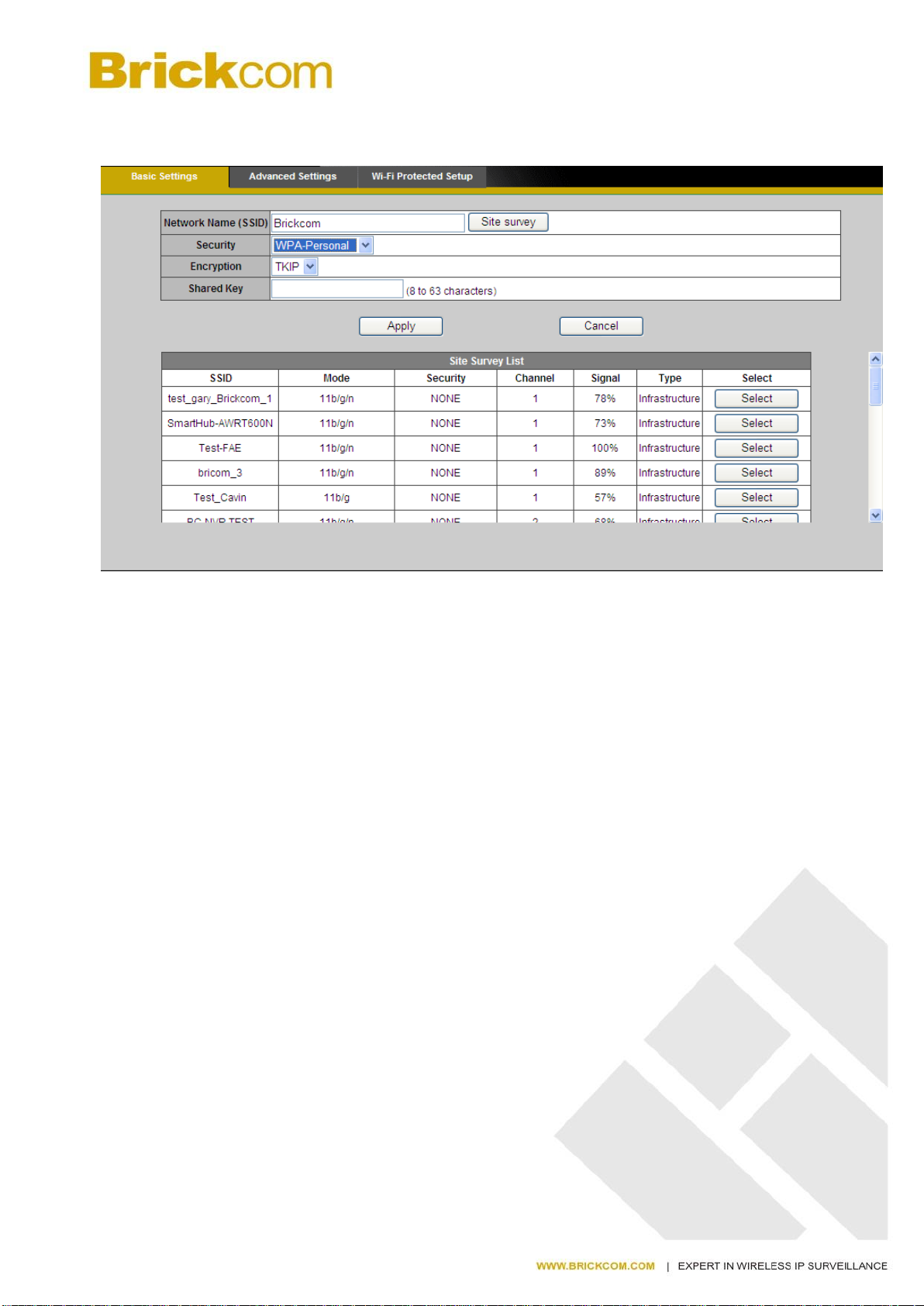

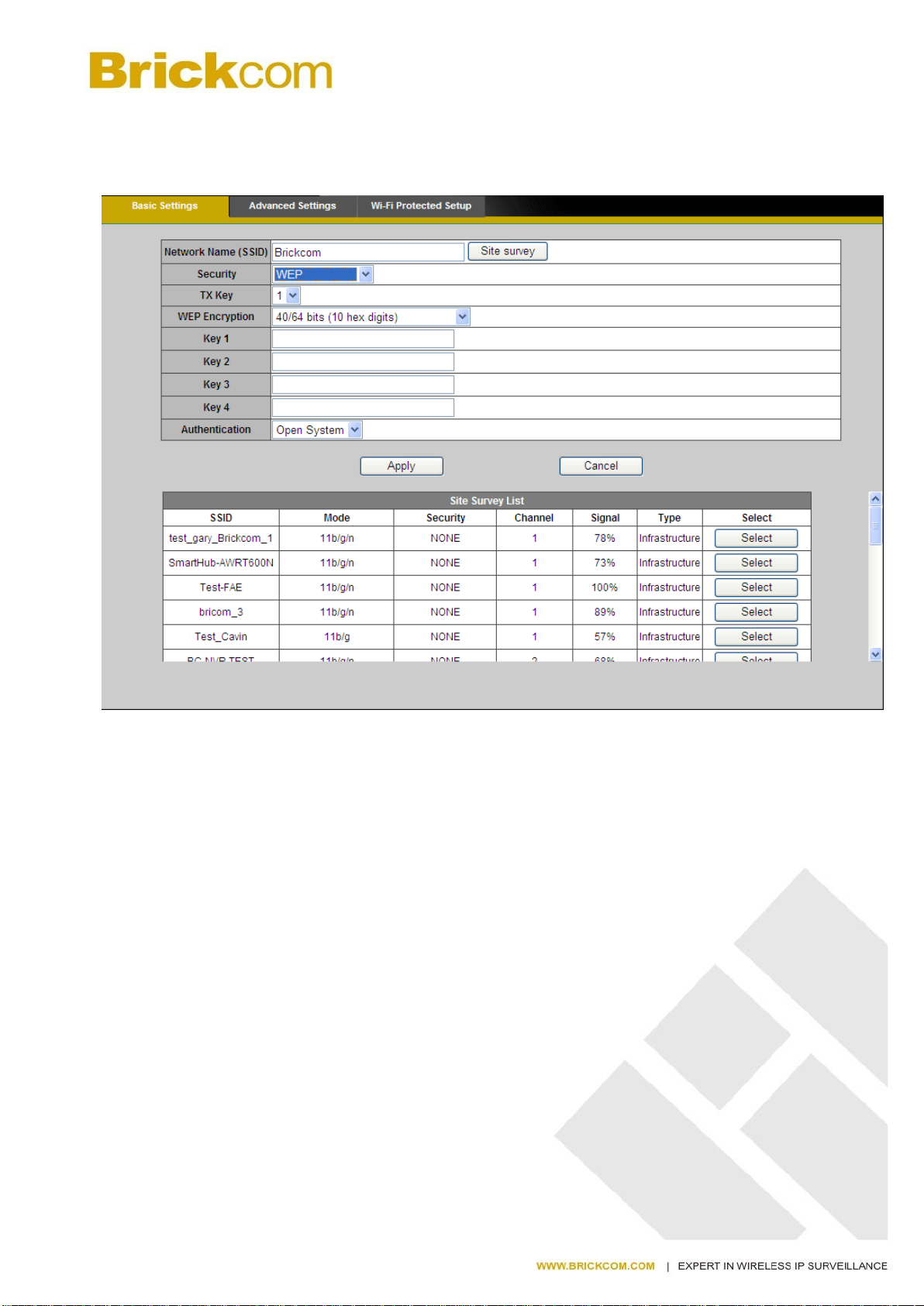

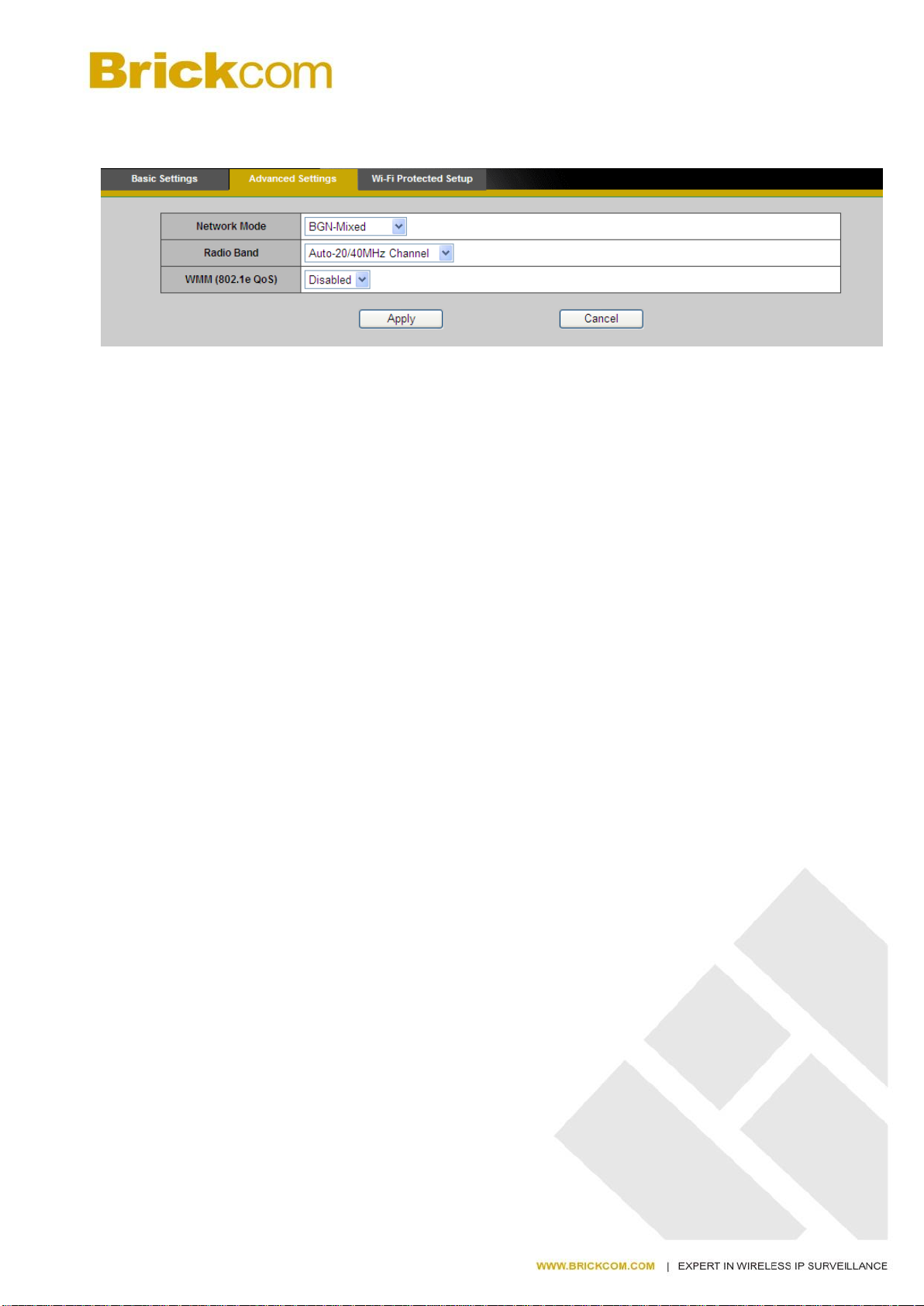

Wireless ........................................................................................................... 46

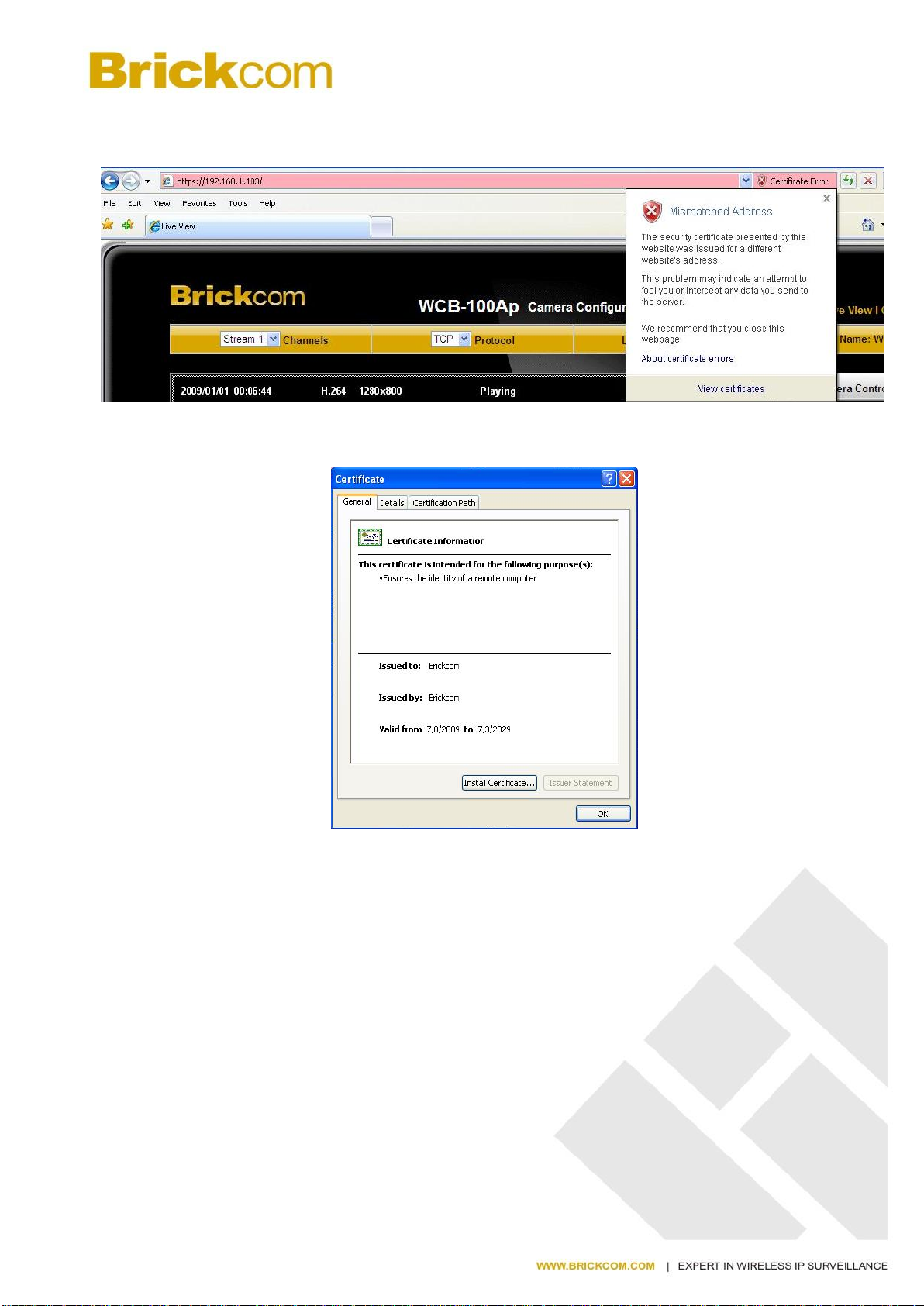

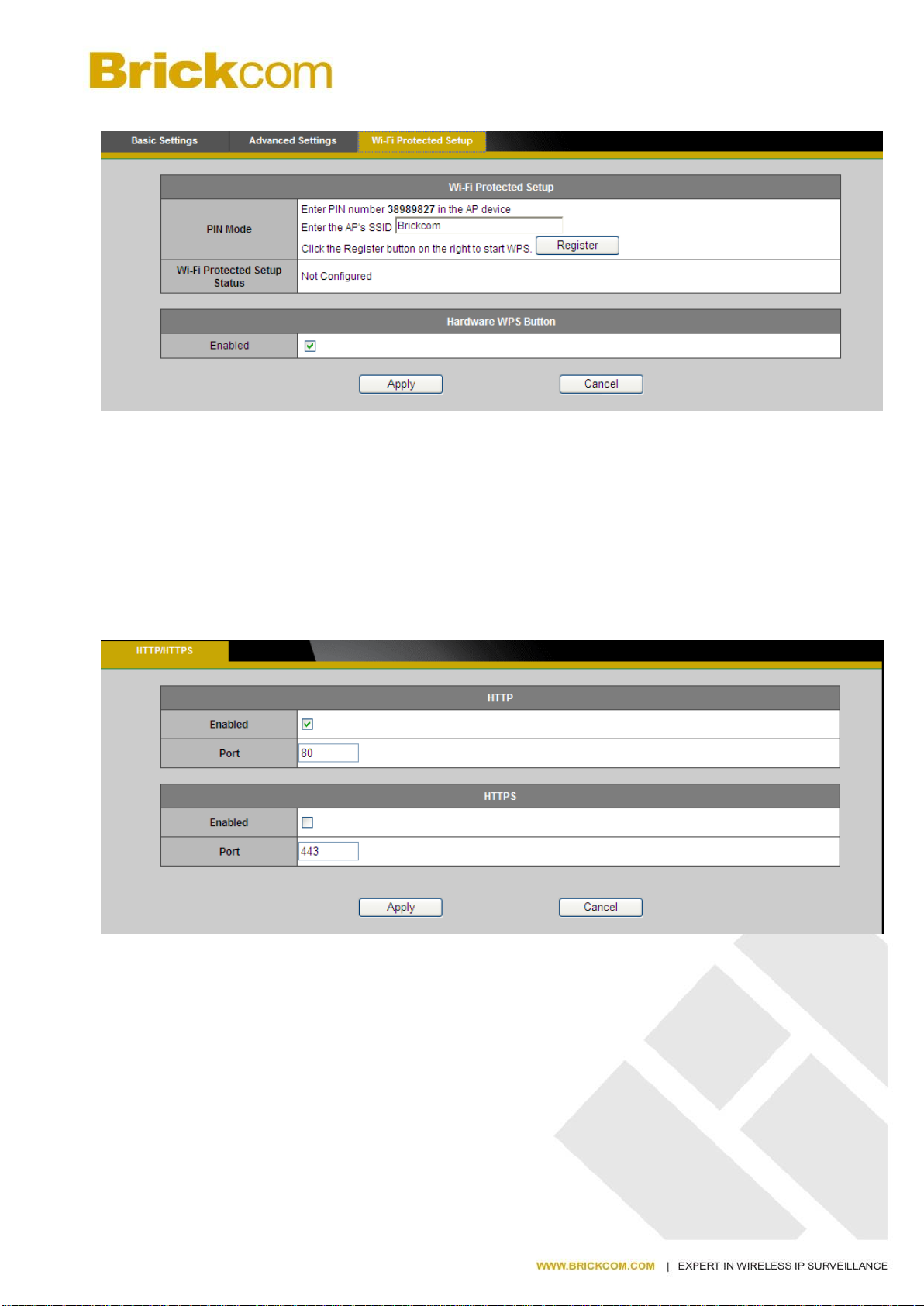

HTTP/HTTPS ................................................................................................... 52
Event ...................................................................................................................... 55

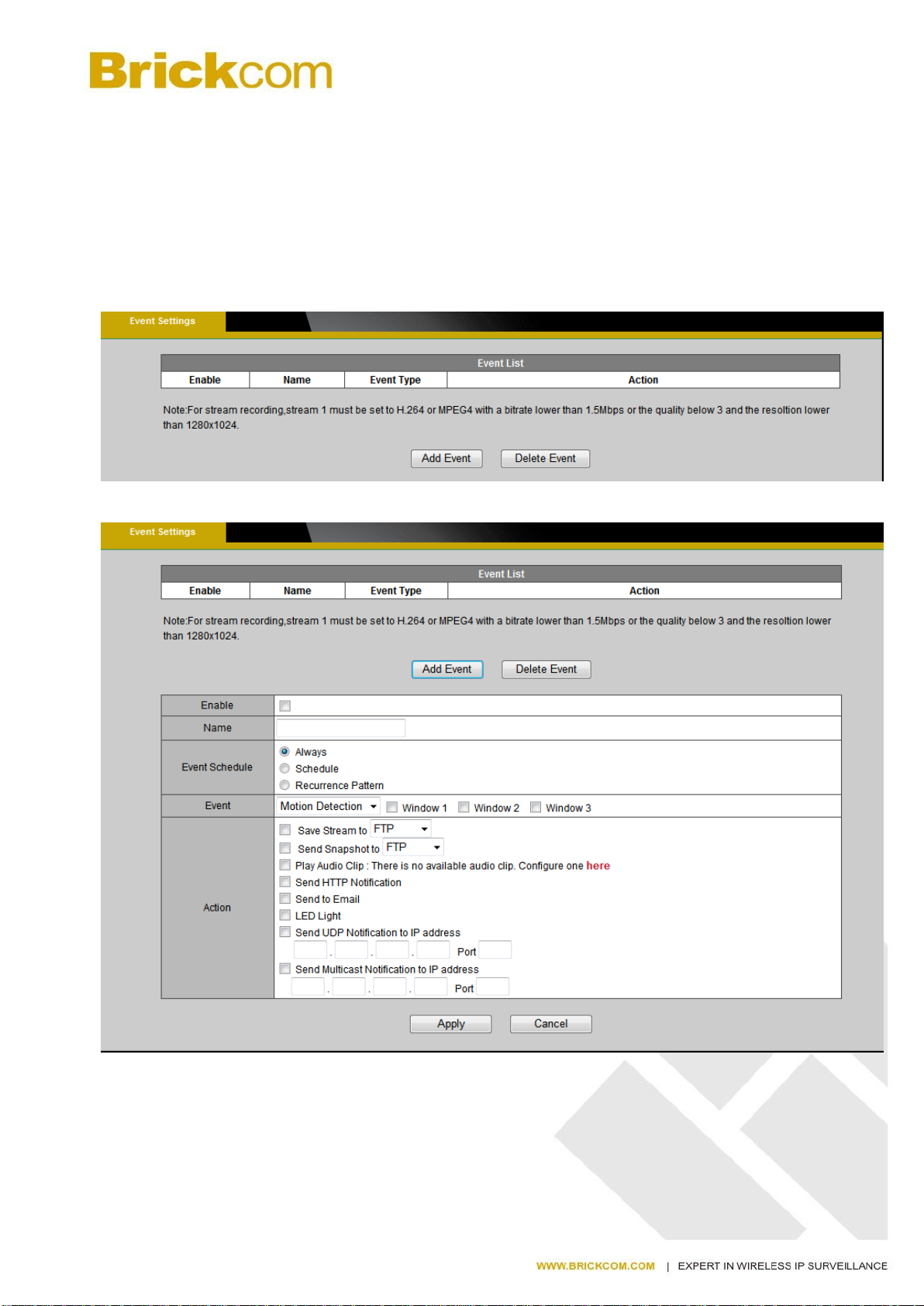

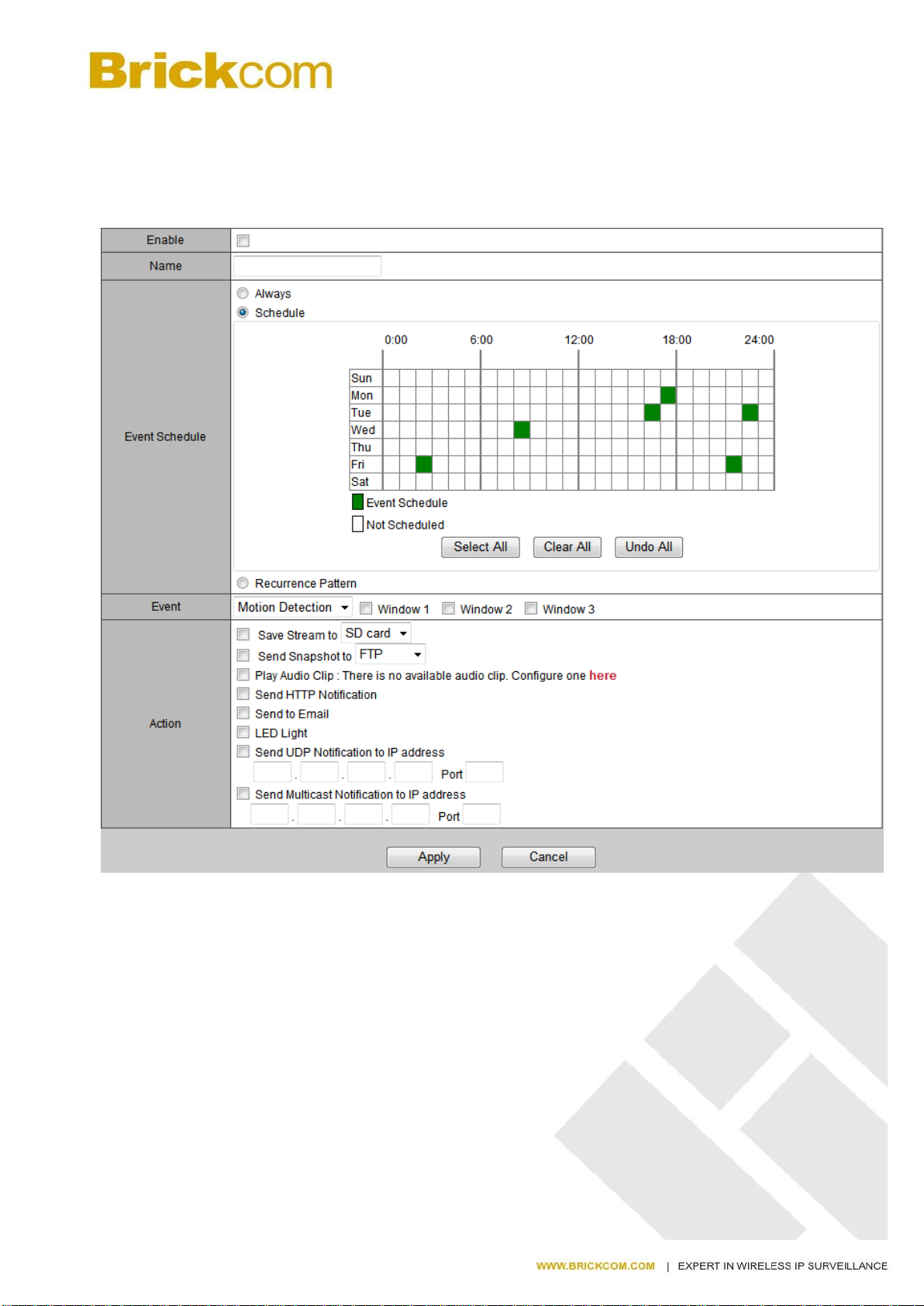

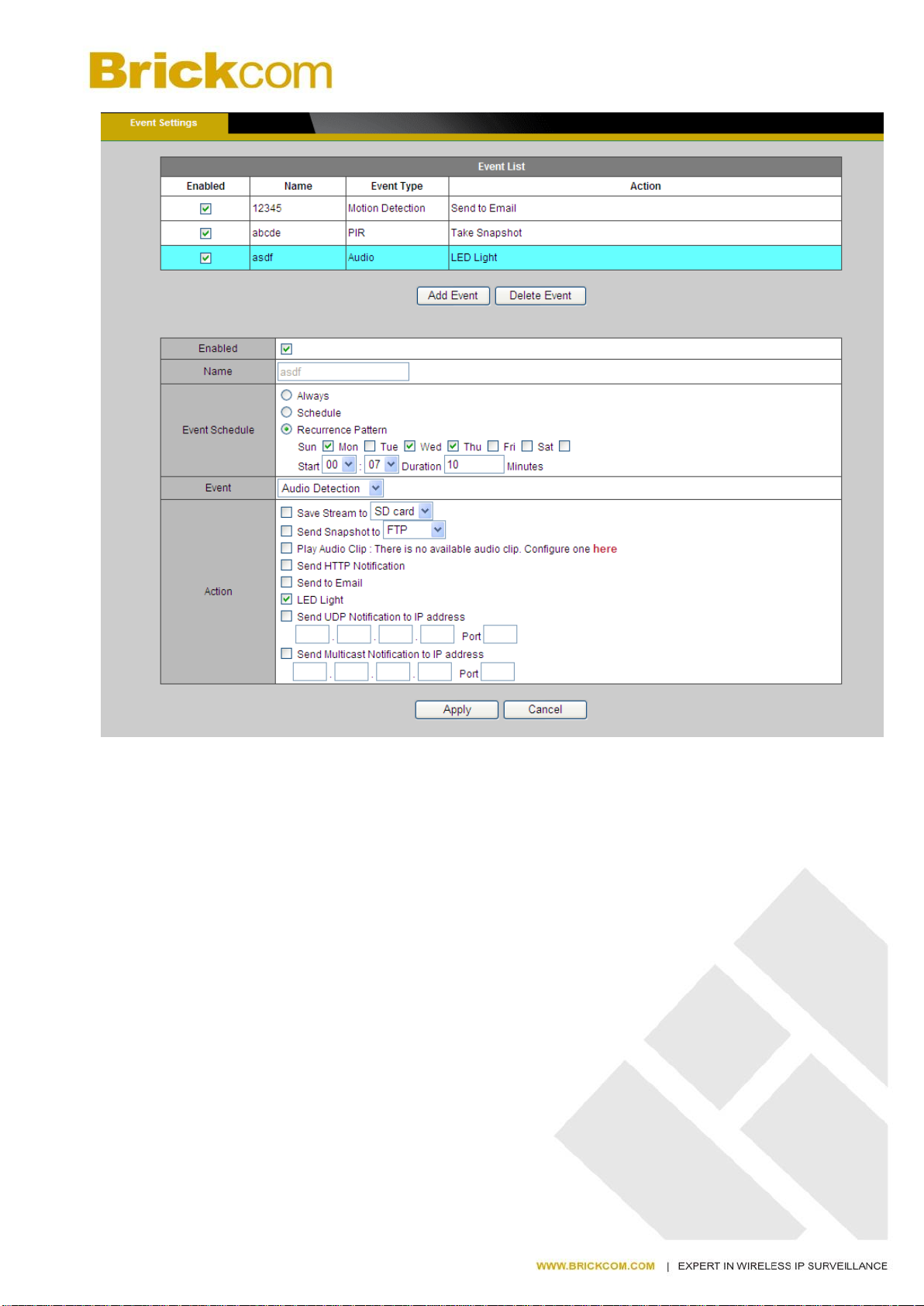

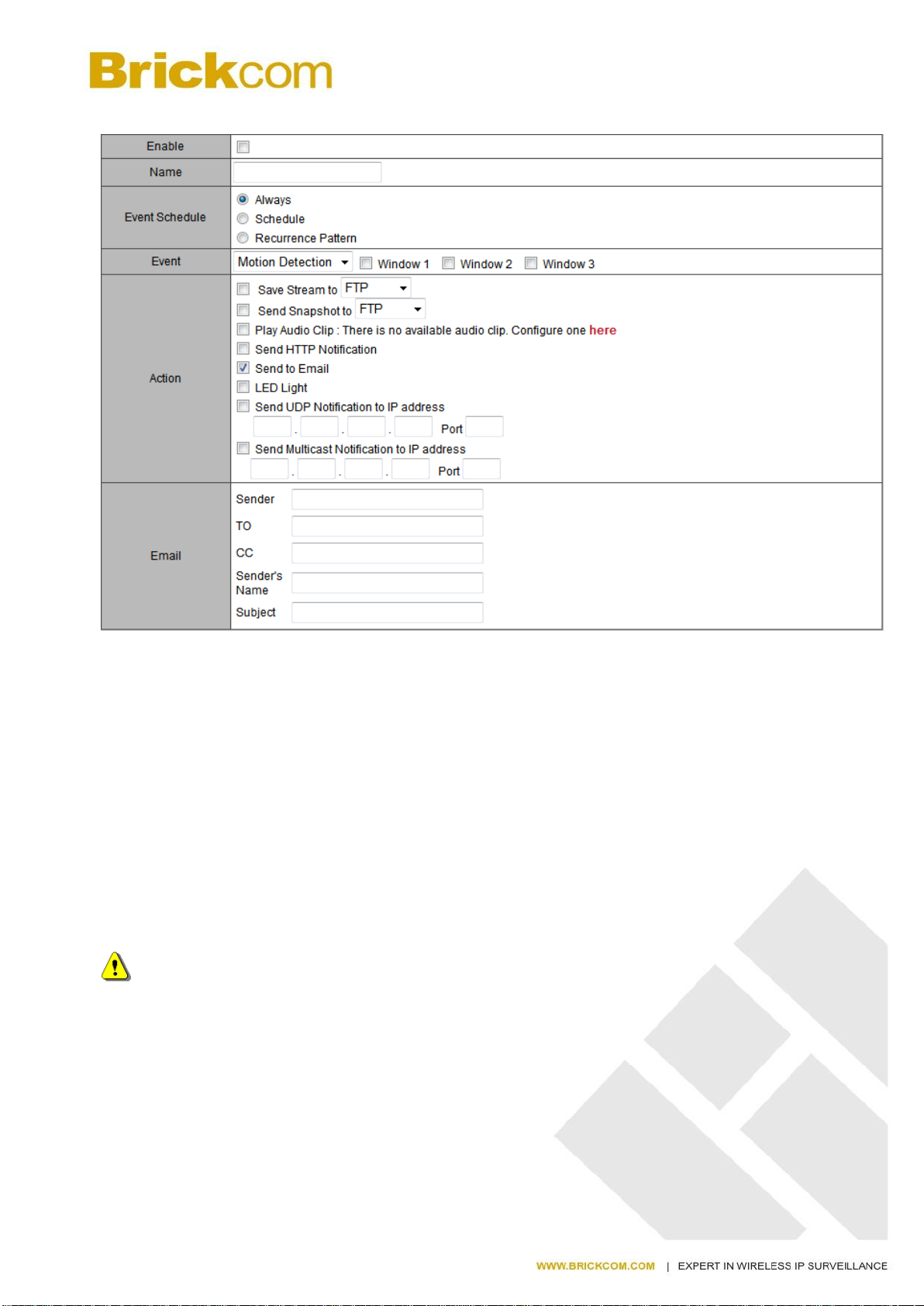

Event Settings .................................................................................................. 55
- -

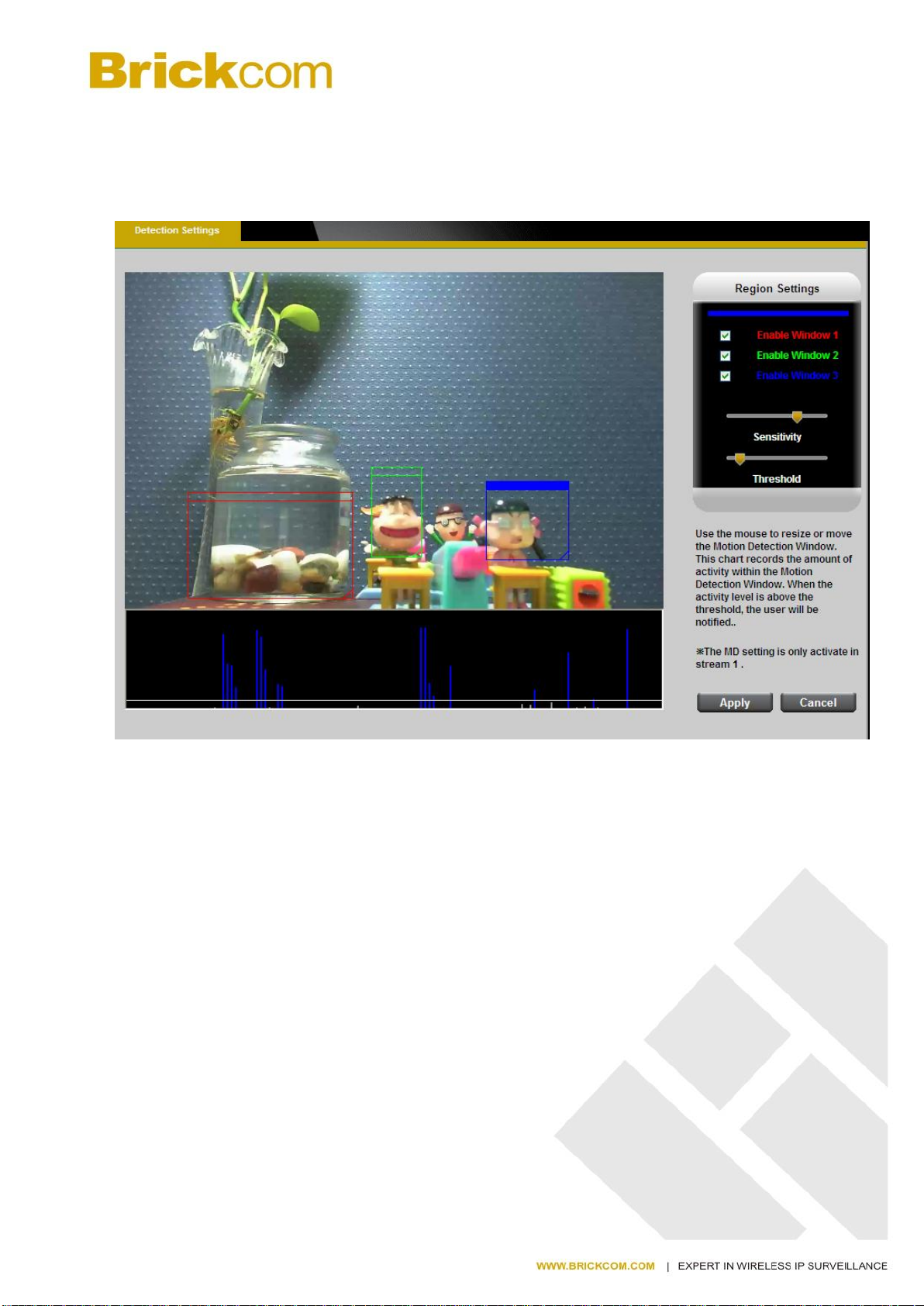

Motion Detection .............................................................................................. 59

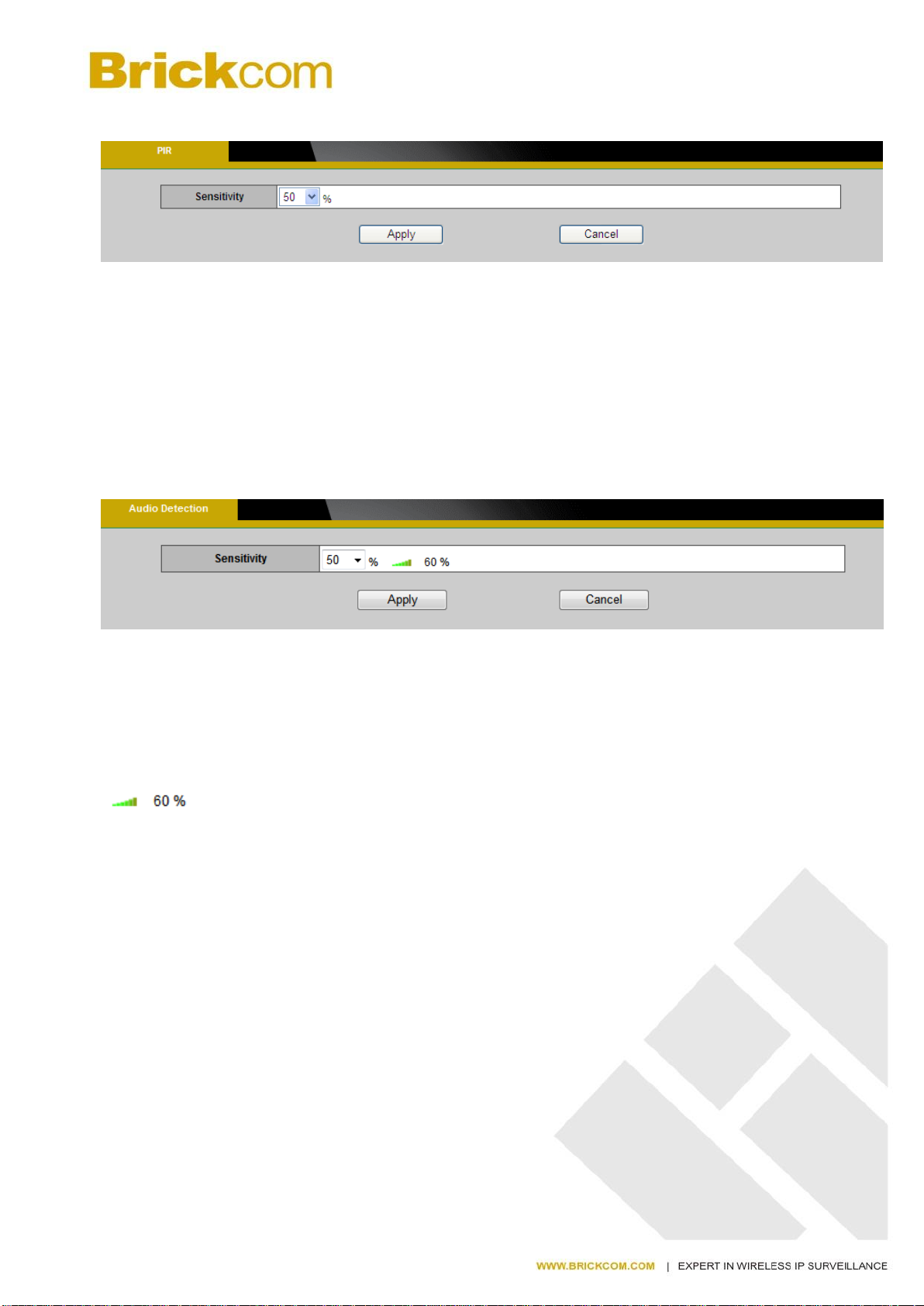

PIR(*) ............................................................................................................... 60
Audio Detection ............................................................................................... 60
Notifications ............................................................................................................ 61

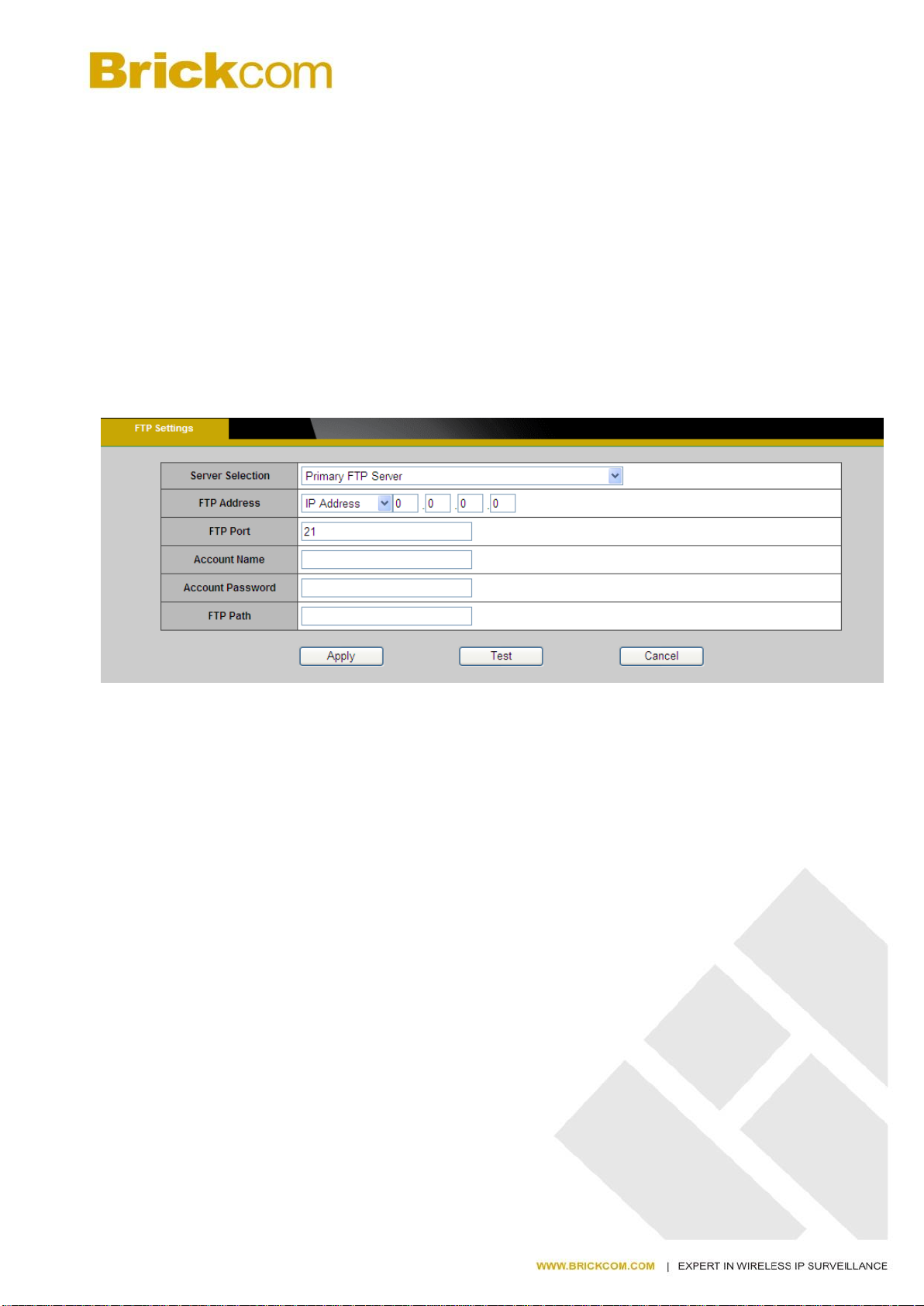

FTP Settings .................................................................................................... 61

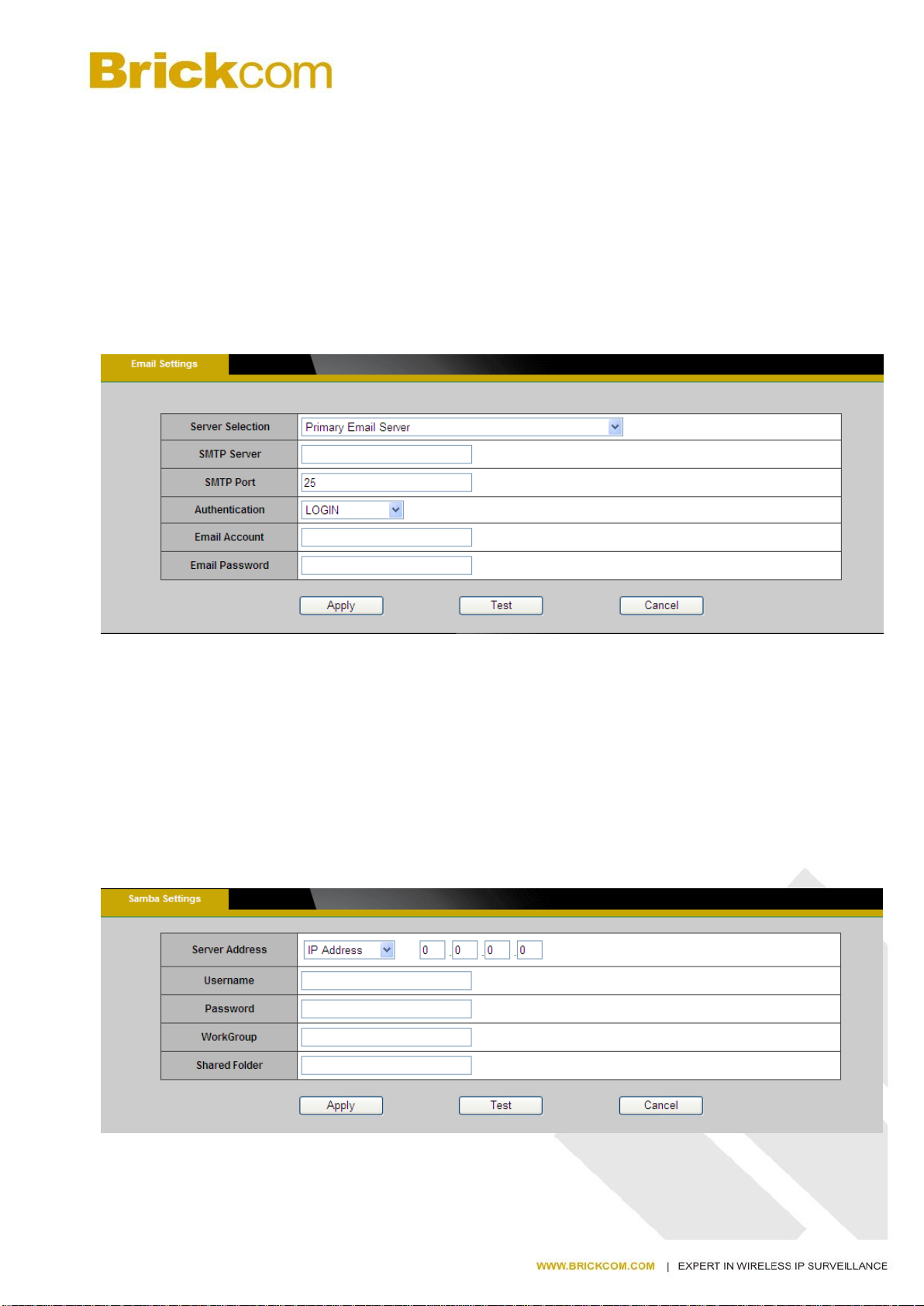

E-mail Settings ................................................................................................. 62
Samba Settings ............................................................................................... 62

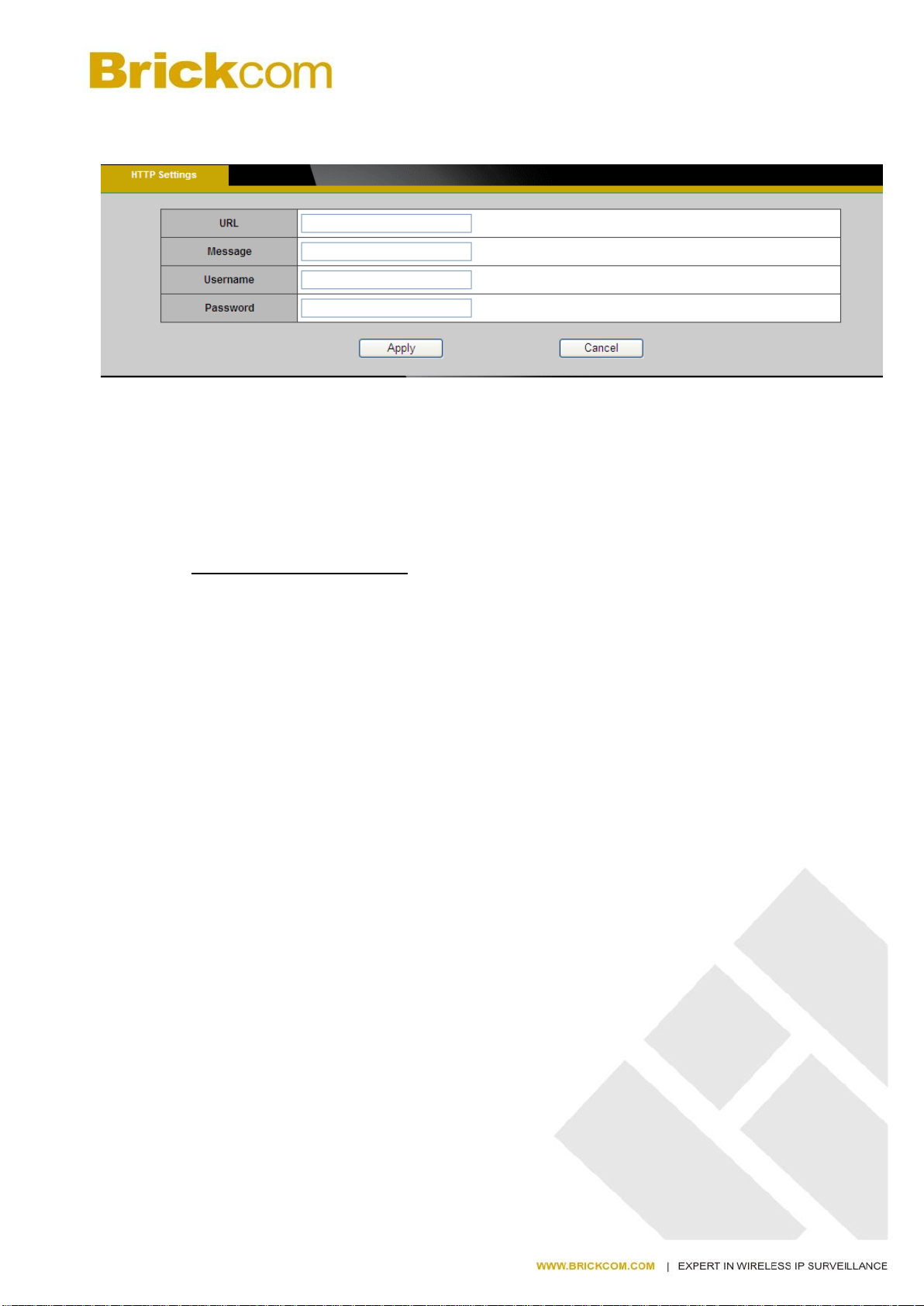

HTTP Settings ................................................................................................. 63
Video Clip ........................................................................................................ 64

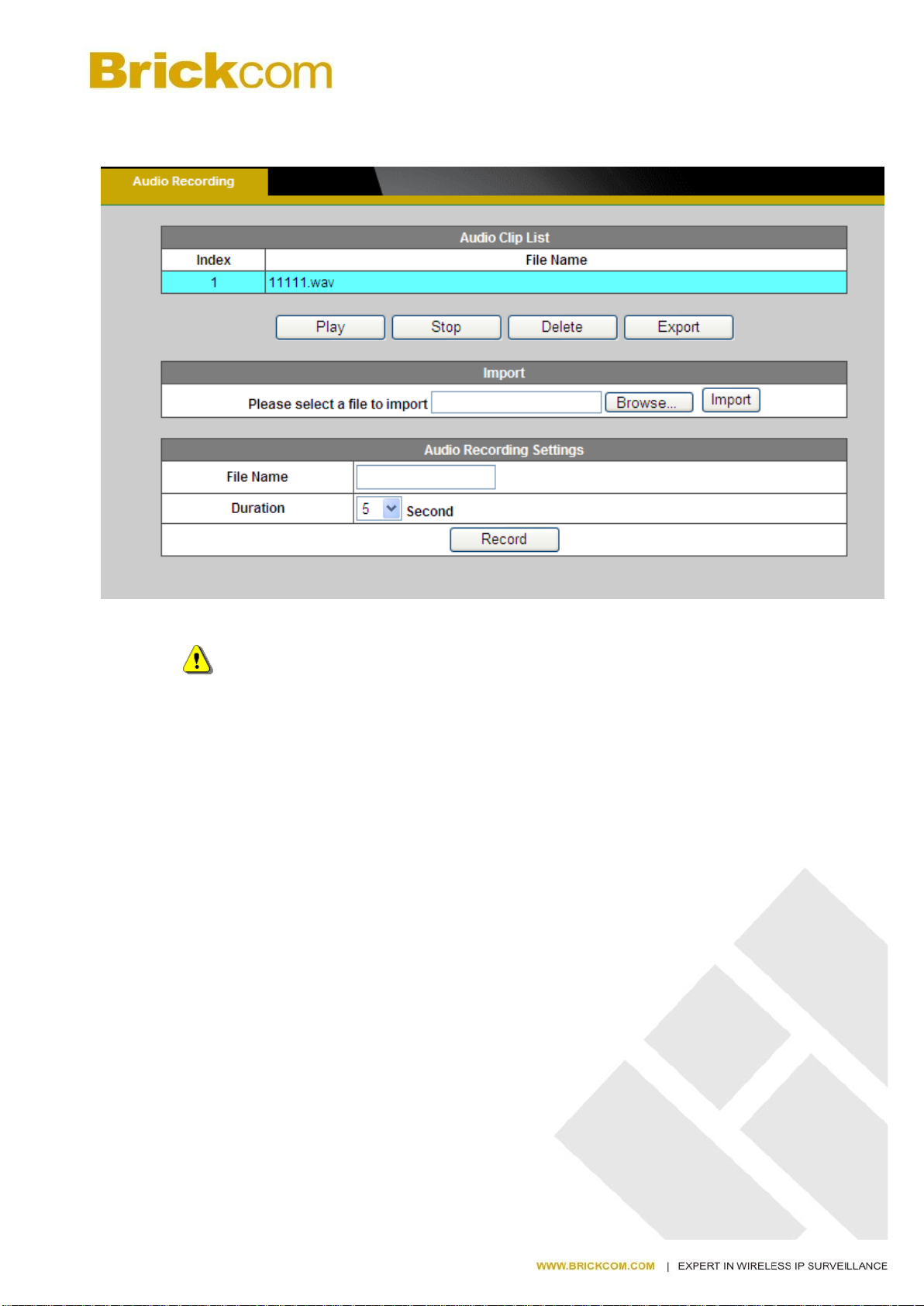

Audio Clip(*) ..................................................................................................... 65

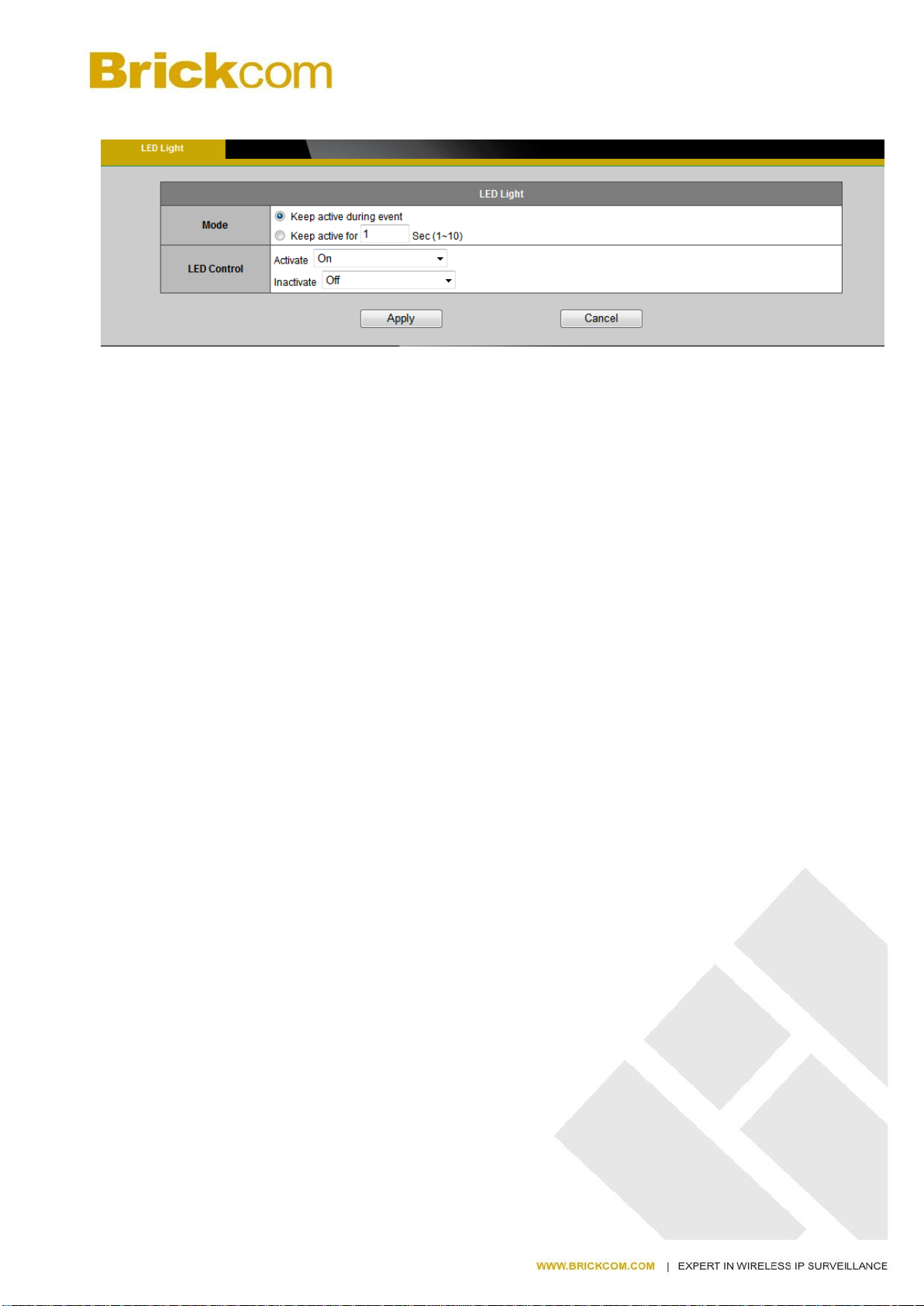

LED Light(*) ................................................................ ................................ ..... 66
System ................................................................................................................... 67

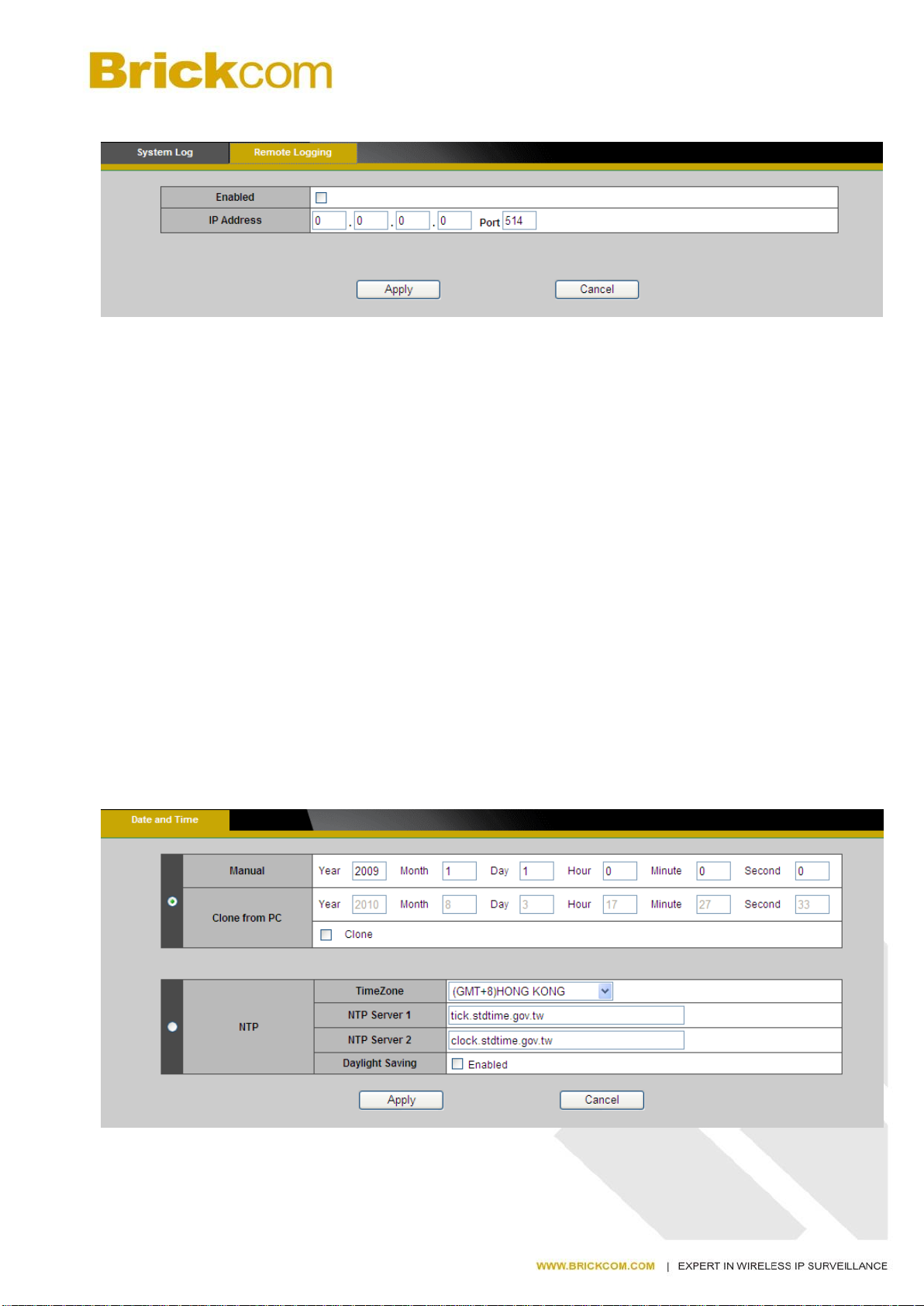

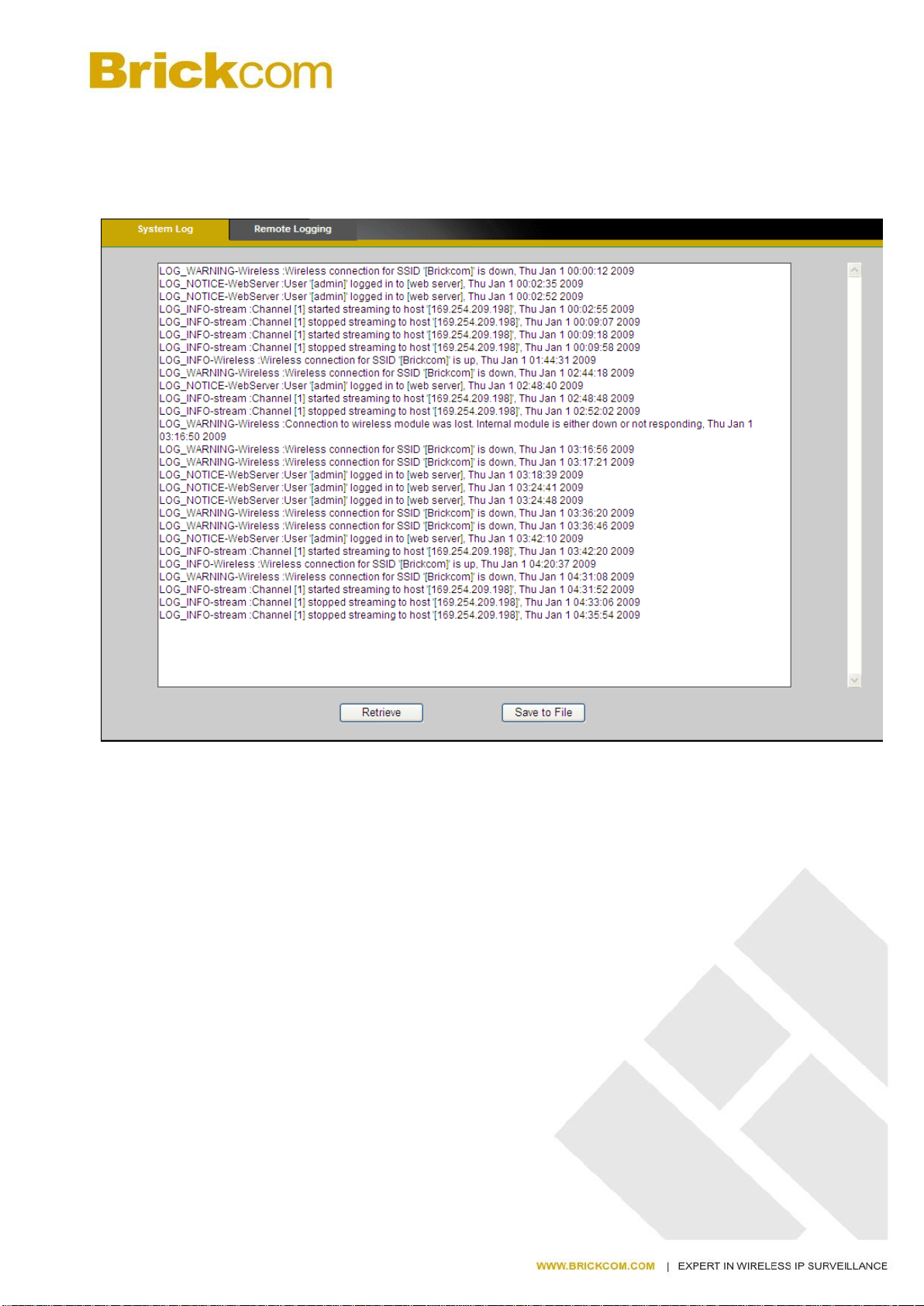

System Log ...................................................................................................... 67
Date and Time ................................................................................................. 68

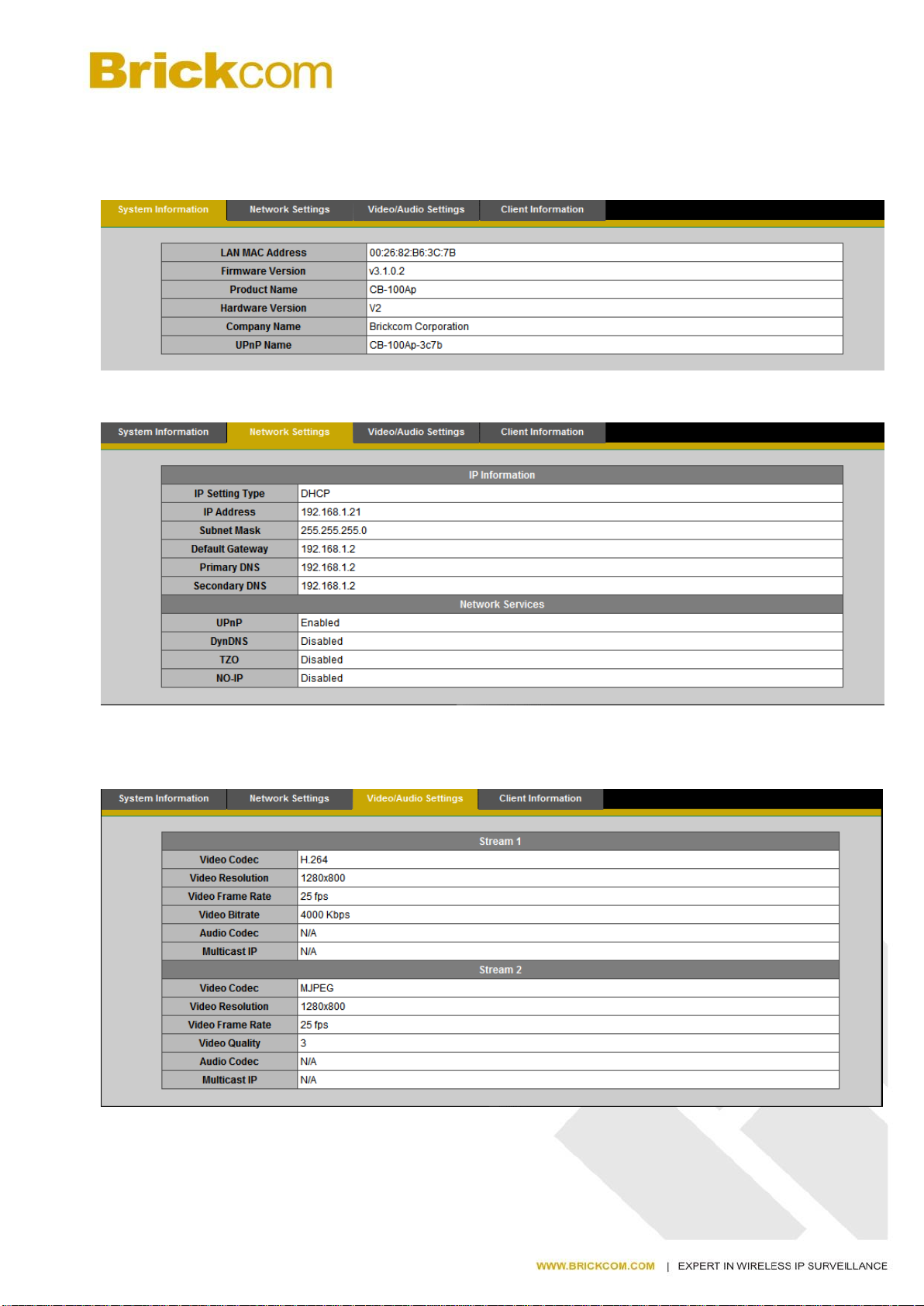

Device Information ........................................................................................... 69

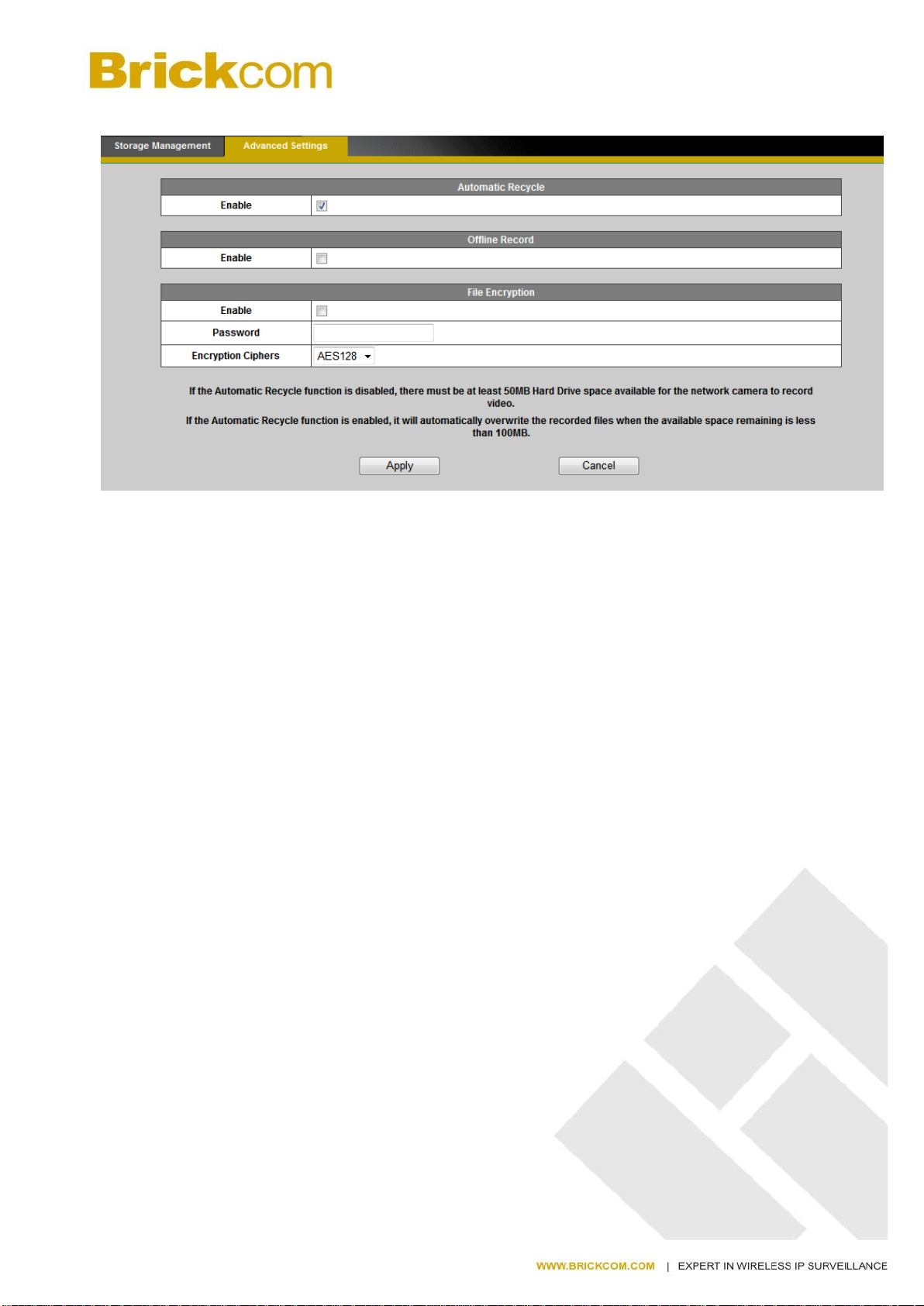

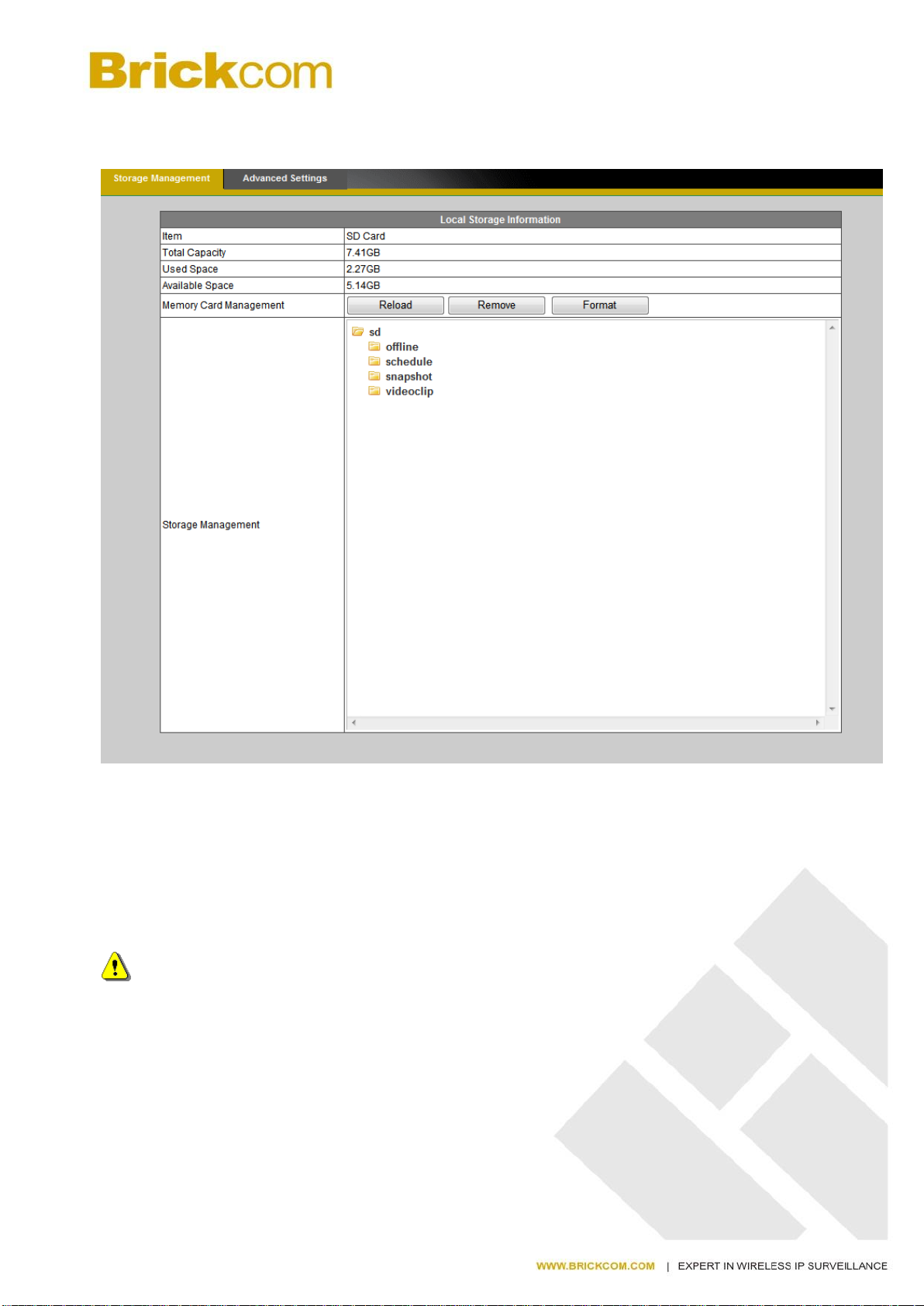

Storage Management(*) ................................................................................... 71

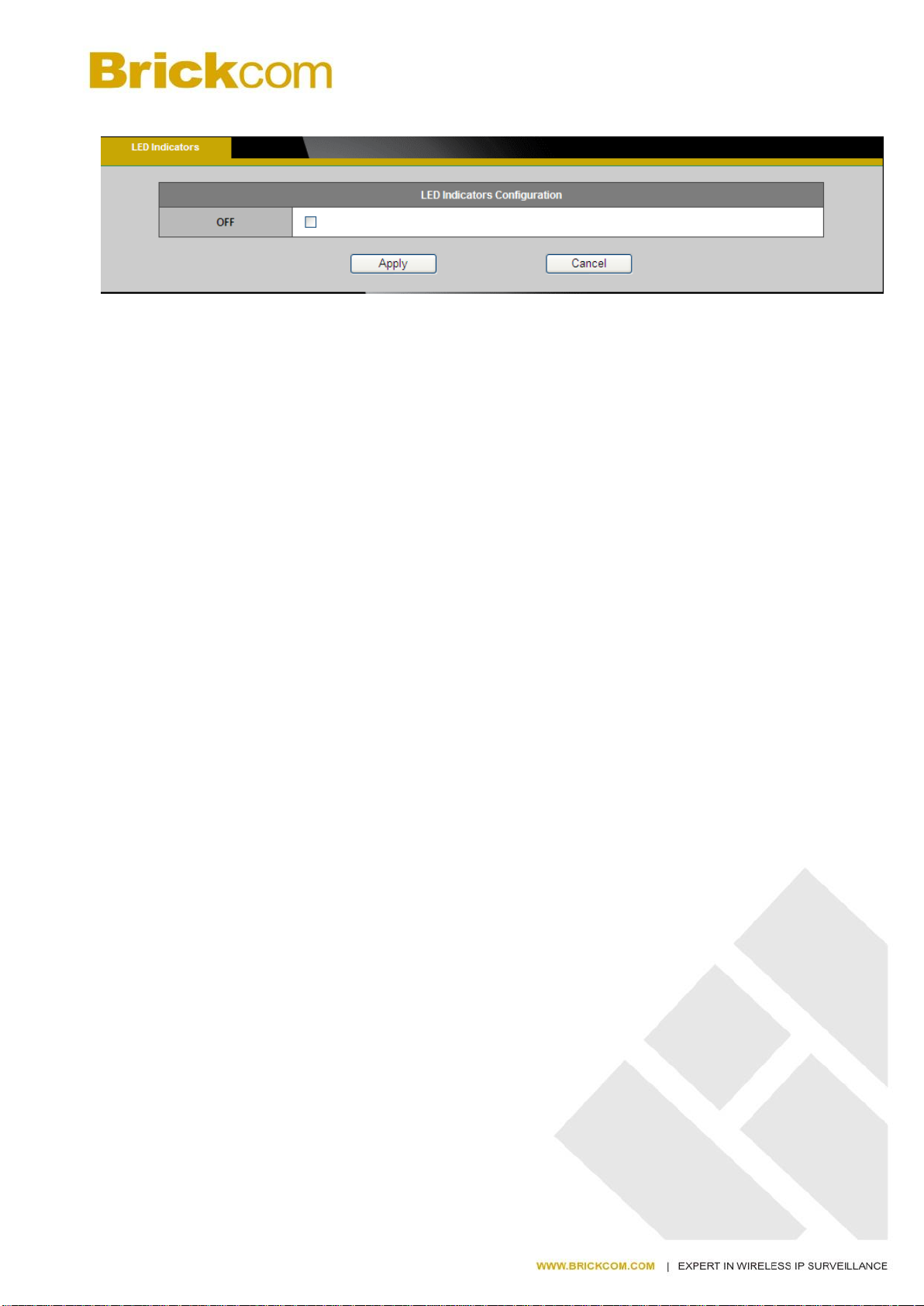

LED Indicators ................................................................................................. 72
Maintenance ........................................................................................................... 74

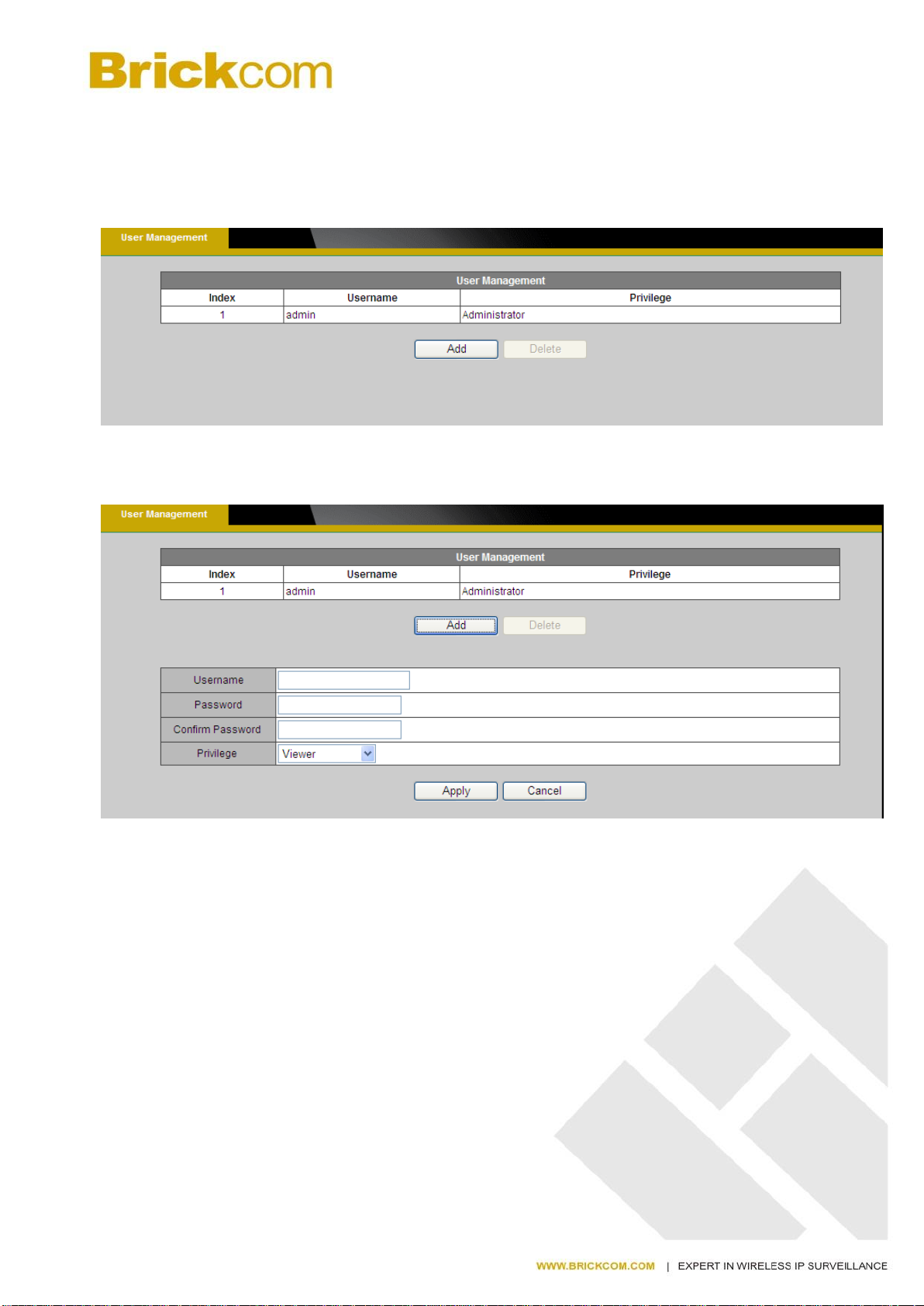

User Management ........................................................................................... 74

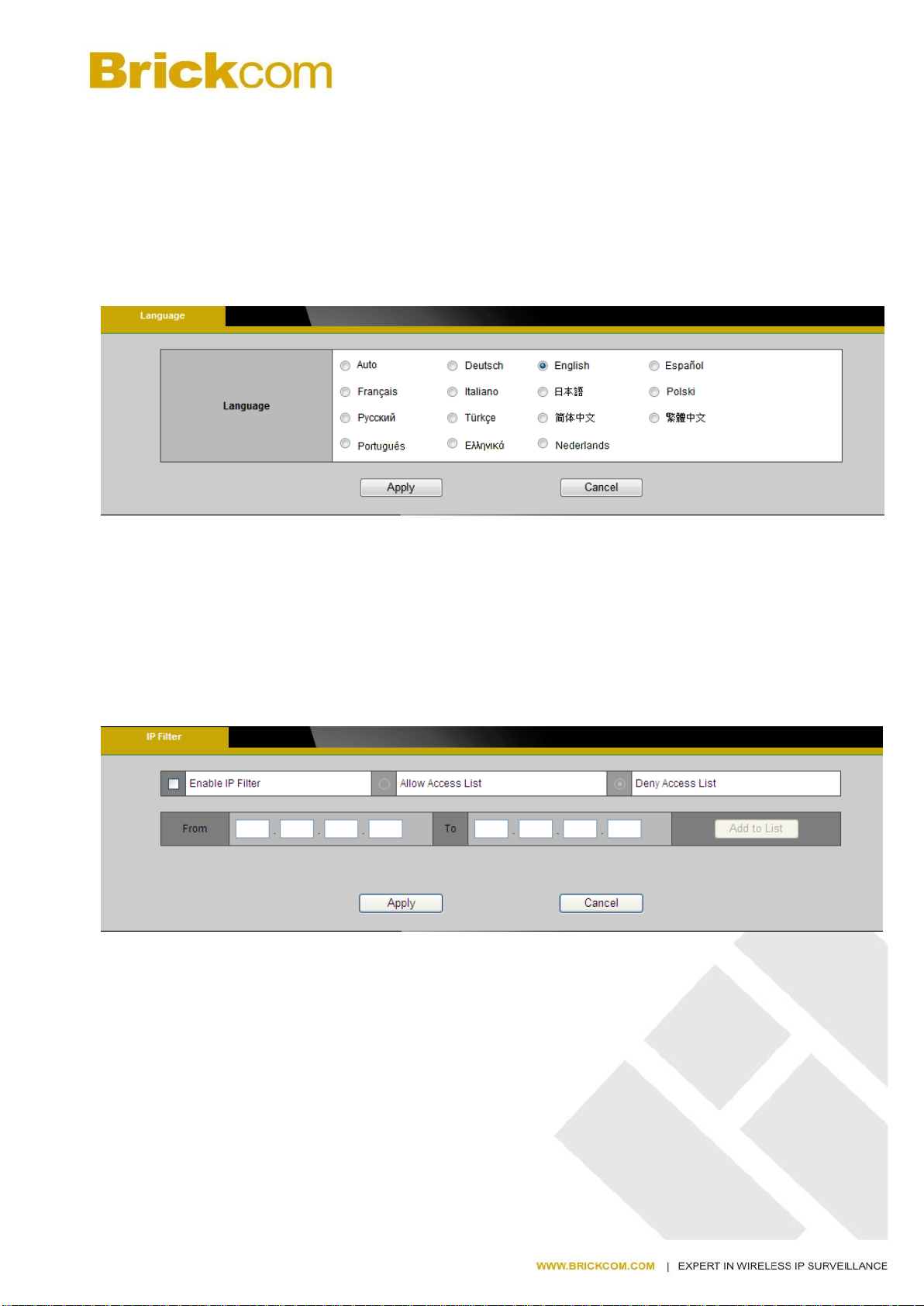

Language ......................................................................................................... 75
IP Filter ............................................................................................................ 75

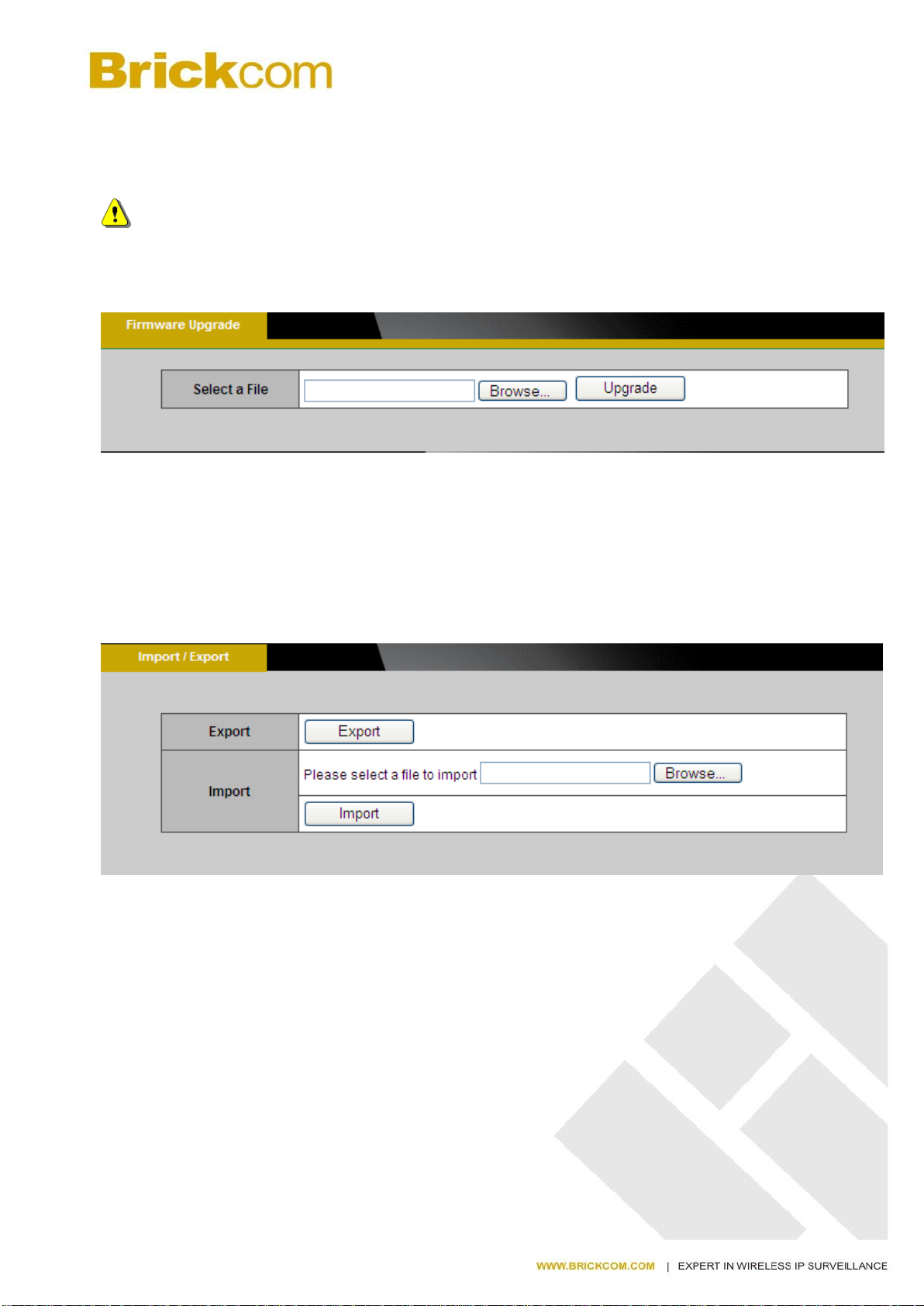

Firmware Upgrade ........................................................................................... 76
Configuration ................................................................................................... 76

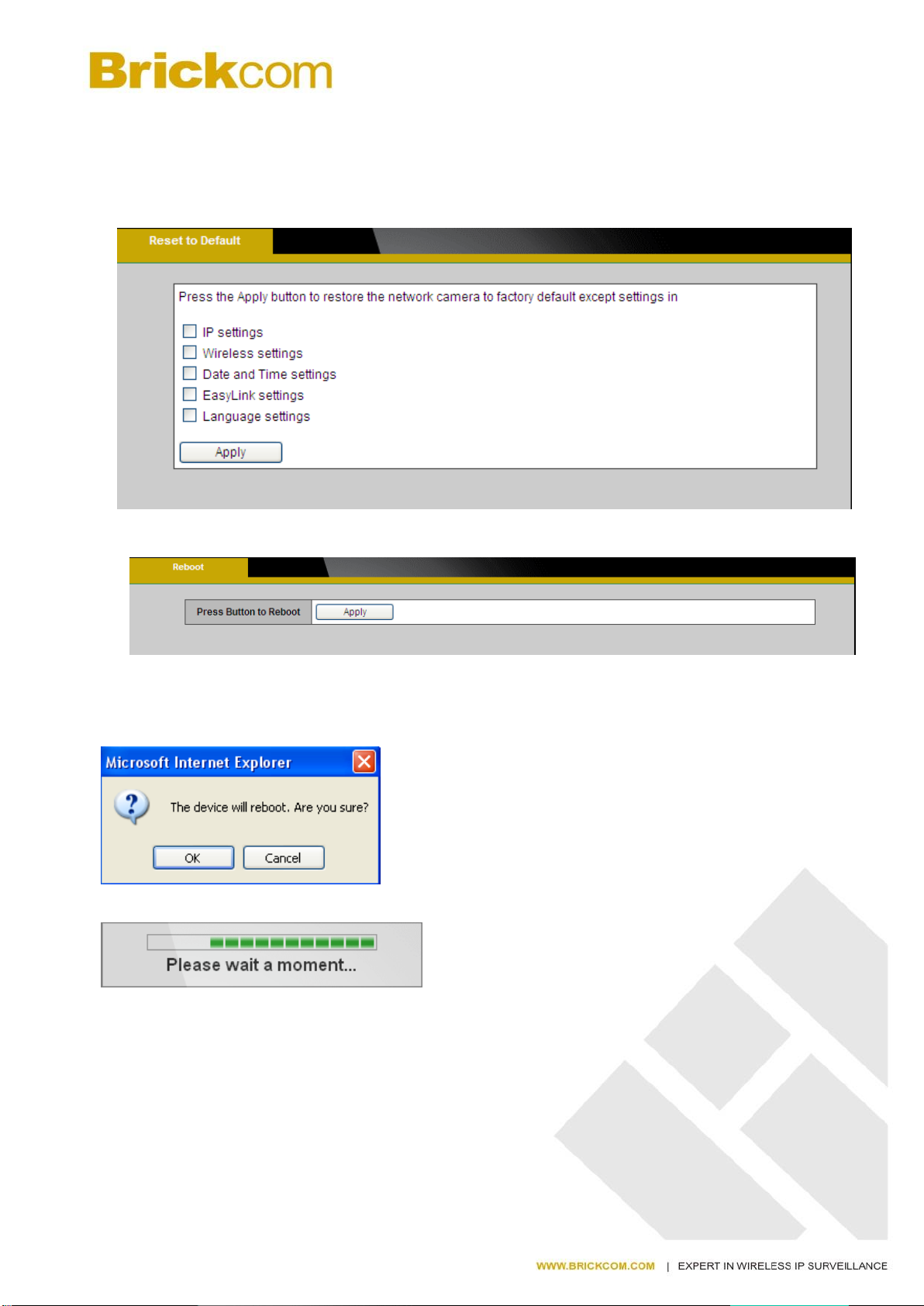

Reset to Default ............................................................................................... 77
Reboot ............................................................................................................. 77
- -
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the
Network Camera, carefully read and follow the instructions in the “Installation” chapters
to avoid damages due to faulty assembly or installation.
FCC Warning
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operations.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
- -
Model Name
Lesns
Resolution
DI/DO
WiFi
PoE
USB port for
3G/ 4G
CB-100A
Series
CB-100Ap
Board
Lens
1280x800
-
- - -
WCB-100Ap
Board
Lens
-
-
CB-101Ap
V2.1
Board
Lens
(1/1)
-
CB-102Ap
V2.1
CS
Mount
-
CB-500A
Series
CB-500Ap
Board
Lens
2592 x 1944 pixel
(1/1)
-
WCB-500Ap
Board
Lens
-
-
CB-502Ap
CS
Mount
-
WCB-502Ap
CS
Mount
-
-
a. Network Camera
b. Product CD
Product Comparison
Package Contents
Please check to make sure the product package contains all the accessories listed
below.
c. Camera Stand
d. Warranty Card
e. Terminal I/O Connector Block (*)
f. Easy Installation Guide
g. 1.5m White Flat RJ-45 cable
(For CB-100Ae/ CB-100Ap only)
h. Power Adapter (*)
NOTE - (*) These are optional features. Please refer to the Product List
for the full list of optional features that are available for this product.
- -
Cube Network Camera Overview
The compact Brickcom CB-100A/CB-500A series Cube network series offers a high quality,
video surveillance solution for residences and small businesses. Unlike a general webcam,
this camera series is a standalone surveillance system that does not need to be connected to
a computer. EasyLinkTM is a feature of the CB-100A/CB-500A series camera which allows for
users to simply plug in the camera to any home or small business network and play the video.
This camera series offers a user-friendly and unique design which allows anyone without a
technical background to use it. It features live video feed and two-way audio which can be
used over a local area network (LAN), through any internet browser, or via any 3G mobile
device. The wireless capability makes it easy to mount on any surface. The
CB-100A/CB-500A series features many cutting edge functions and its fashionable,
streamline design make it the perfect additional for any home or office.
Because of its many advanced features, the CB-100A/CB-500A series has many versatile
applications. Users can easily monitor the safety of their family members, pets, office,
valuables, and property.
Small Office Surveillance –
Security systems for small offices can be expensive and difficult to install and maintain. With
the EasyConfig software, the CB-100A/CB-500A series can easily be installed and configured
by anyone without extensive technical knowledge. The video can be reviewed remotely so
business owners can monitor office safety and employee productivity at all times.
Residence monitor –
Home owners worry about their house and property when they are away. The
CB-100A/CB-500A series has a built-in PIR sensor which can detect unauthorized movement
in a residence. Once movement is detected, the illumination LED will be triggered and an
alert with a snapshot can be emailed or sent through an MMS to the user’s portable device.
Elderly and Child Care –
A high concern for many people is the safety of elderly relatives and small children. Users can
use the CB-100A/CB-500A series camera to ensure the safety of their loved ones by use of
the live view and intercom functions.
- 2 -
Pet Monitor –
The motion detection feature can be used to create forbidden areas in the home which the pet
should not enter when the owner is away. If the camera records the pet entering the region,
a recorded message can be programmed to play and the owner will be notified via email or
MMS.
- 3 -
Adjustable focal Lens (*)
Built-in Microphone
PIR (*)
Illumination LED
Speaker (*)
Power Connector
Ethernet RJ45 Socket
Reset Button
DIDO Terminal I/O Connector (*)
Micro SD/SDHC slot (*)
WPS button (*)
Privacy button
Power LED
Status LED
Internet LED
WPS LED (*)
Privacy LED
USB Port for 3G/4G (*)
Device Appearance Description
< Front & Rear view >
1. NOTE - The WPS and Privacy buttons must first be enabled through the web GUI in
order to work. See page 37 for details on how to enable the Privacy button and see page
50 for details on how to enable the WPS Button.
2. (*) These are optional features. Please refer to the Product List for the full list of optional
features available for the product.
- 4 -
Function
LED Behavior
Description
Remark
Power
Continuous Illumination
Normal Operation
Top
(Blue)
Power
Unlit
Powered off
Top
(Blue)
Status
Continuous Illumination
1. Connected to switch by
Ethernet or WiFi.
Second (Blue)
Status
Unlit
1. Powered off
2. No connection
Second (Blue)
Status
Blinking
1. Data Transmission via
WiFi or Ethernet
Second (Blue)
Internet
Continuous Illumination
Connected to Internet
Third (Blue)
Internet
Unlit
1. Powered off
2. No connection
Third (Blue)
WPS
Blinking
WPS in progress
WCB-100A/C
B-500A
SERIES
Fourth (Blue)
WPS
Continuous Illumination
WPS success
WCB-100A/C
B-500A
SERIES
Fourth (Blue)
Firmware
Upgrade
Blinking
Under FW upgrade
Process
WCB-100A/C
B-500A
SERIES
Fourth (Blue)
Firmware
Upgrade
Continuous Illumination
Firmware successfully
upgraded
CB-100A/CB-5
00A SERIES
Fourth (Blue)
Privacy
Continuous Illumination
Privacy mask active
Bottom(Red)
Privacy
Unlit
Privacy mask inactive
Bottom(Red)
LED Behavior
- 5 -
Reset Button
Hardware Reset
CB-100A Series CB-500A Series
The Reset Button can be used to reboot the camera or restore it to factory default settings. If
the camera experiences a problem, rebooting the camera may correct the problem. If the
problem remains, please restore the camera to factory default settings and reinstall the
software.
To Reboot - Press and hold the Reset Button for one second using a paper clip or thin object.
Wait for the camera to reboot.
To Restore – Press and hold the Reset Button for ten seconds until the LED light turns off.
When successful restored, the LED will be blue during normal operation.
NOTE - By restoring the camera, all settings will be restored to the factory default settings.
Micro-SD/SDHC Card Capacity
The network camera is compatible with Micro-SD/SDHC (Maximum 32GB) cards.
- 6 -
Installation
System Requirements
Operating System:
Microsoft Windows XP Home Edition SP2
Microsoft Windows XP Professional SP2
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio may be
interrupted depending on network traffic.
- 7 -
Camera Connection
Warning Hot – Please attach the bracket before using CB-500A Series.
Terminal I/O Connector Block Connection
Attach the supplied connector block to the terminal connector on the camera. Refer to the diagram
below to attach external devices to the connector block.
Basic Connection
1. Connect the supplied power cable from the camera to a power outlet.
2. Connect the camera to a switch using an Ethernet cable.
CB-100A Series
- 8 -
CB-500A Series
When powering up, the power LED will light up and the camera will boot up. The status
LED will turn amber when the camera is obtaining the IP address. After obtaining the IP
address, the link LED will flash orange while the network connection is processing.
- 9 -
Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the camera and grant user access to
the camera.
After checking the hardware connection, run the Installation Wizard program included on the
product’s CDROM to automatically search the intranet for the camera. There may be many
cameras on the local network. Differentiate the cameras using the serial number which is
printed on the labels on the carton and the bottom of the camera.
1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from
the CD-ROM to start the installation. When installing the Brickcom software kit for the
first time, select a desired language for the interface. The available languages are
listed in the scroll box. Click <Install> and follow the steps to install the EasyConfig
wizard on the desired computer.
- 10 -
2. In the Install Shield Wizard dialog box, click <Next> to continue.
3. Read the End-User License Agreement and check the option “I accept the terms of the
license agreement”. Click <Next> to continue.
- 11 -
4. Select either “Complete” setup or “Custom” setup to install the system.
a. If COMPLETE SETUP is selected:
i. All program features will be installed into the default directory. Check the
option “Complete” and then click <Next>.
ii. Select to create shortcuts. Click <Next> to continue.
- 12 -
iii. The installation information will be displayed. Click <Next> to continue.
b. If CUSTOM SETUP is selected:
i. This option is recommended for advanced users. It can be used to install the
system to a preferred directory or to select specific program feature(s).
ii. Check the option “Custom”, and then click <Next>.
- 13 -
iii. Select the features to install. Click <Next> to continue.
iv. Click <Change> to change the appointed folder where installation and
program files will be stored. Click <Next> to continue.
- 14 -
v. Select programs to create shortcuts. Click <Next> to continue.
vi. The installation information will be displayed. Click <Next> to continue.
- 15 -
5. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>.
When launching the PC-NVR program, please refer to the PC-NVR user manual.
- 16 -
EasyConfig
To launch EasyConfig, select EasyConfig from the start menu. If Complete Setup type was
used in the software installation, an EasyConfig icon was installed on the desktop. Double
click to open the icon.
If Custom Setup type was used in the software installation and an EasyConfig icon was not
installed on the desktop, the program will be installed under C:\Program
Files\Brickcom\EasyConfig unless the program was saved to a preferred directory.
1. Click <Start> to continue. The program will automatically search for the camera
in the intranet.
NOTE - Check “Skip the hardware installation guide” to skip checking the hardware
connection. To check the hardware installation settings, do not check the option box.
- 17 -
- 18 -
2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP
settings. If “Simple Mode” is selected, EasyConfig will set up the connection
automatically. If “Professional Mode” is selected, the user will need to configure
the IP settings manually.
- 19 -
Loading...
