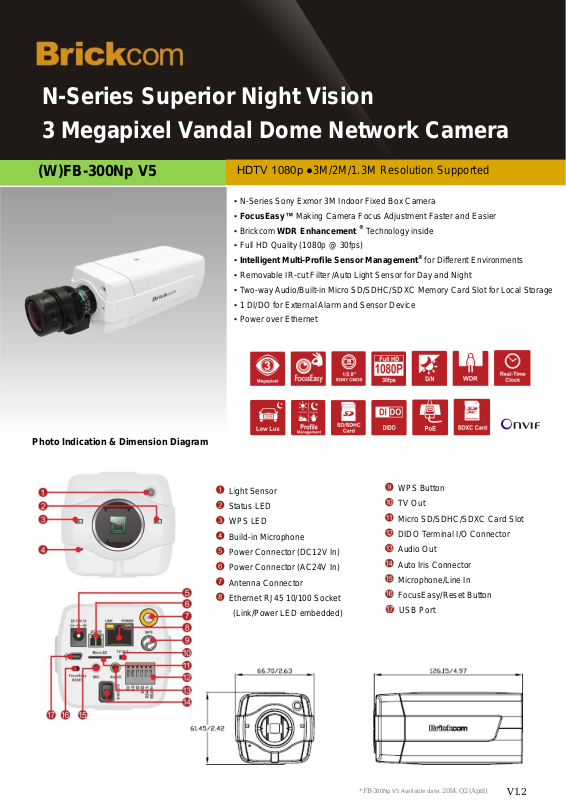

Brickcom FB-300Np-V5 Specsheet
N-Series Superior Night Vision
3 Megapixel Vandal Dome Network Camera
▪ N-Series Sony Exmor 3M Indoor Fixed Box Camera
▪ FocusEasy™ Making Camera Focus Adjustment Faster and Easier
▪ Brickcom WDR Enhancement ® Technology inside
▪ Full HD Quality (1080p @ 30fps)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ Two-way Audio/Built-in Micro SD/SDHC/SDXC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device
▪ Power over Ethernet
Photo Indication & Dimension Diagram
(W)FB-300Np V5
HDTV 1080p ●3M/2M/1.3M Resolution Supported
Light Sensor
Status LED
WPS LED
Build-in Microphone
Power Connector (DC12V In)
Power Connector (AC24V In)
Antenna Connector
Ethernet RJ45 10/100 Socket
(Link/Power LED embedded)
WPS Button
TV Out
Micro SD/SDHC/SDXC Card Slot
DIDO Terminal I/O Connector
Audio Out
Auto Iris Connector
Microphone/Line In
FocusEasy/Reset Button
USB Port
*FB-300Np V5 Available date: 2014. Q2 (April)
V1.2
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor
TM
CMOS
Sensor
Sensor Resolution : 2048 x 1536 pixel
Minimum
Illumination
0.001 lux (F1.3, B/W)
0.002 lux (F1.3, Color)
Day & Night
Support
Mechanical ICR , Triggered by Light sensor,
Scheduling, Digital Input
Audio Streaming
2-way audio support
Audio
Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in microphone
line in (Unbalanced, 1.4 Vp-p, 1 Vrms)/Line
Output
Video Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
FocusEasy™ Feature
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Gain/ White Balance Control
Auto Exposure Control:
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 32X
3D Privacy Mask
S/N Ratio
Above 50dB
Image Resolution
3M : 2048x1536 @ 20fps
2M (Full HD): 1920x1080 @30fps
1M (720p HDTV): 1280x720@ 30fps
Events
Motion Detection
Schedule
Audio Detection
Digital Input
Temperature Alarm
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
M13VG288IR
2.2x Manual zoom/focus, DC Iris
M13VM288IR
2.2x Manual zoom/focus, Manual Iris
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power input
DC12V/ 1A(Power Supply)
AC 24V
PoE:802.3af Compliant
Max. Power
Consumption
FB-300Np v5：6 Watts
WFB-300Np v5：8 Watts
Environment
Operating Temperature :
0°C ~ 50°C (32°F ~122°F)
Operating Humidity : 10% ~ 80%
Dimension
126.2 (L) X66.7 (W) X 61.5 (H) mm
Weight
Net: 380g (Without Lens)/0.83lb
Gross : 893G/1.97lb
Certification
FCC, CE
Viewing System
Requirements
Onvif Support
Brickcom Software: PC-NVR, Easy config
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Software Development Kit (SDK)
Warranty
Limited 2-year warranty
PS-588I
8-port 10M/100M Desktop PoE Fast
Ethernet Switch
PS-7242IL-AF
24-port 10M/100M PoE Web Smart
Ethernet Switch
Camera
Video
Events and Alarm Management
Audio
General
info@brickcom.com
Work Best With
Camera Accessories Options
Network Equipment Options
Copyright 2013 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
