Brickcom FB-100Ae User Manual
Hardware User’s Manual
Megapixel Day & Night
Fixed Box Network Camera
Quality Service Group
Fixed Box Series
0
Review History:
Product name:
Network Camera (Fixed Box series)
Release Date:
2011/12
Manual Revision:
V3.0
Web site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2011 Brickcom Corporation. All Rights Reserved
1. Separate User Manual into HW and SW.
2. Merge FB-100Ap/FB-100Ae/FB-130Np Series into this User Manual.
1
Table of Contents
Before You Use This Product ..................................................................... 3
Regulatory Information ............................................................................ 4
Chapter 1- Package Contents .................................................................... 5
Chapter 2- Fixed Box Network Camera Overview ........................................... 6
Chapter 3-LED Behavior ........................................................................... 7
Chapter 5- Installation ............................................................................ 11

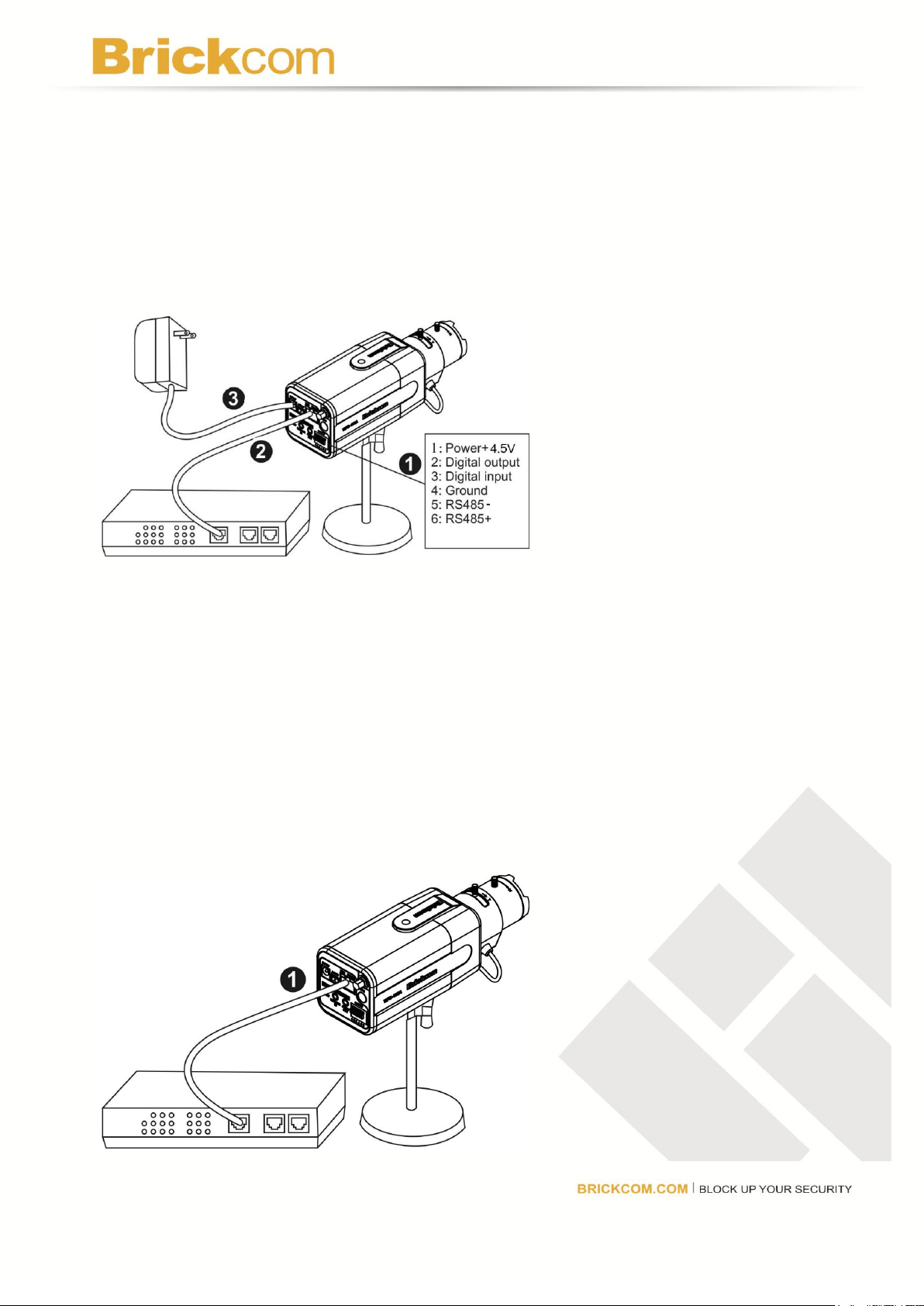

5.1 Hardware Installation............................................................................................ 11
5.2 System Requirements .......................................................................................... 13

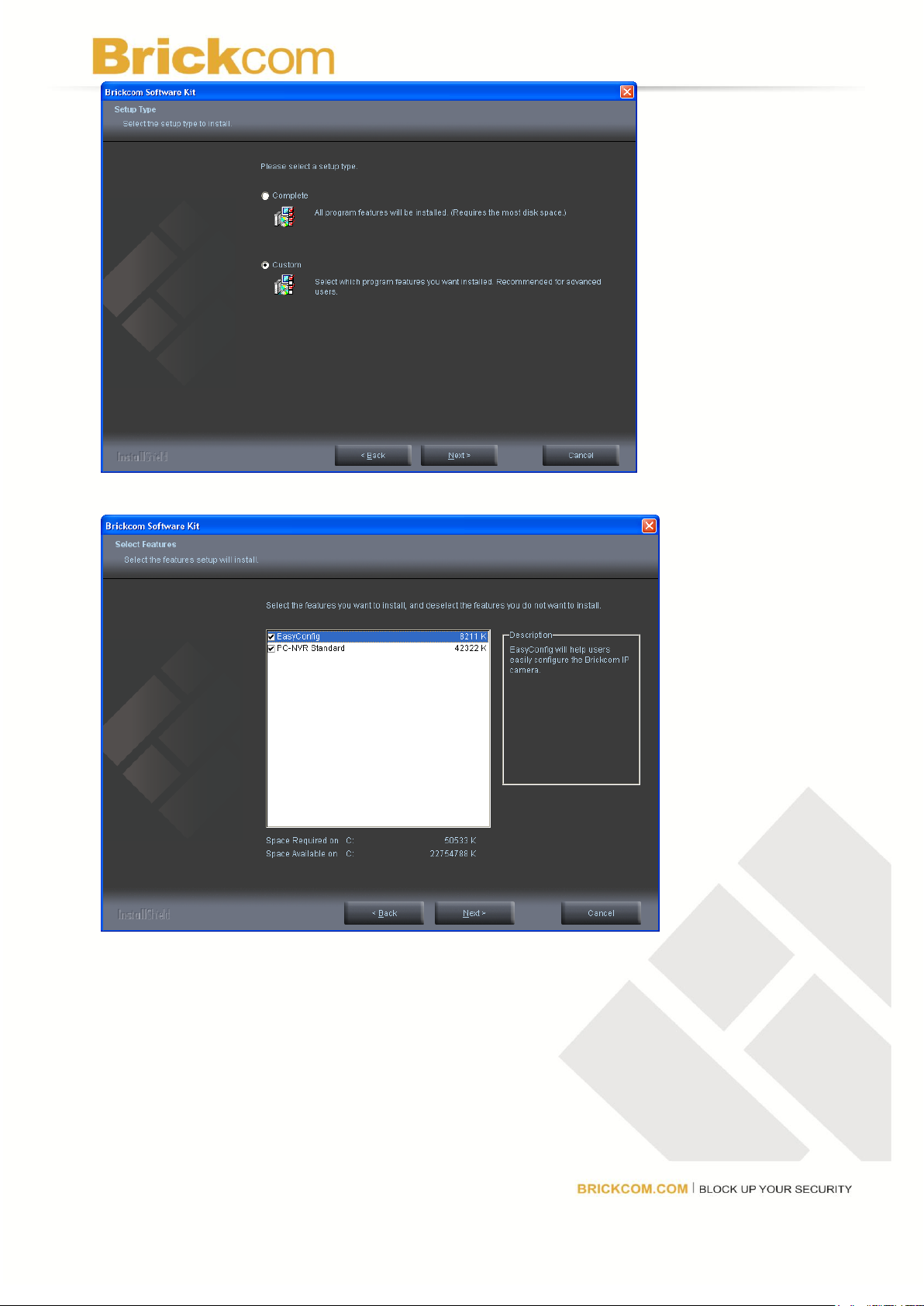

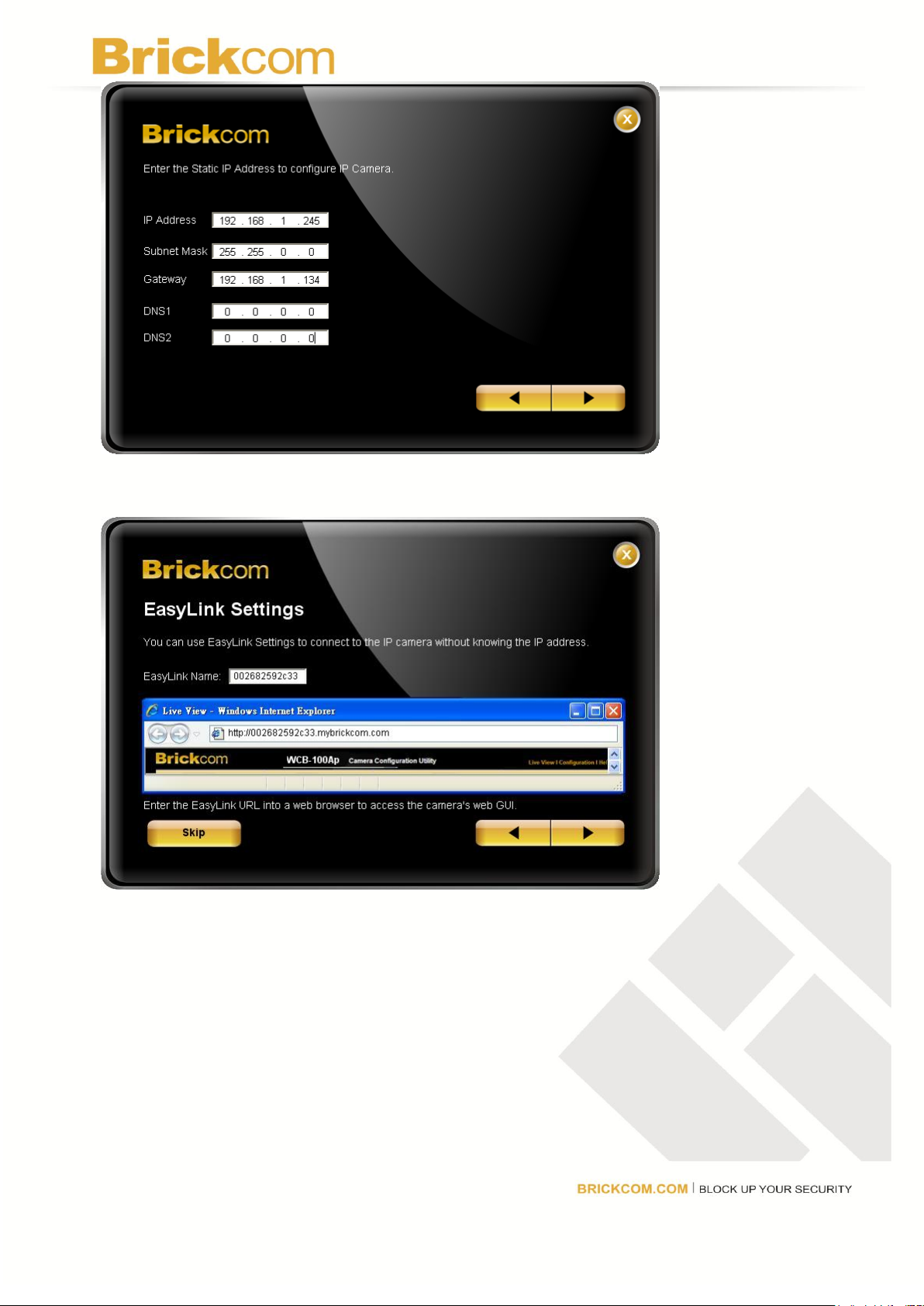

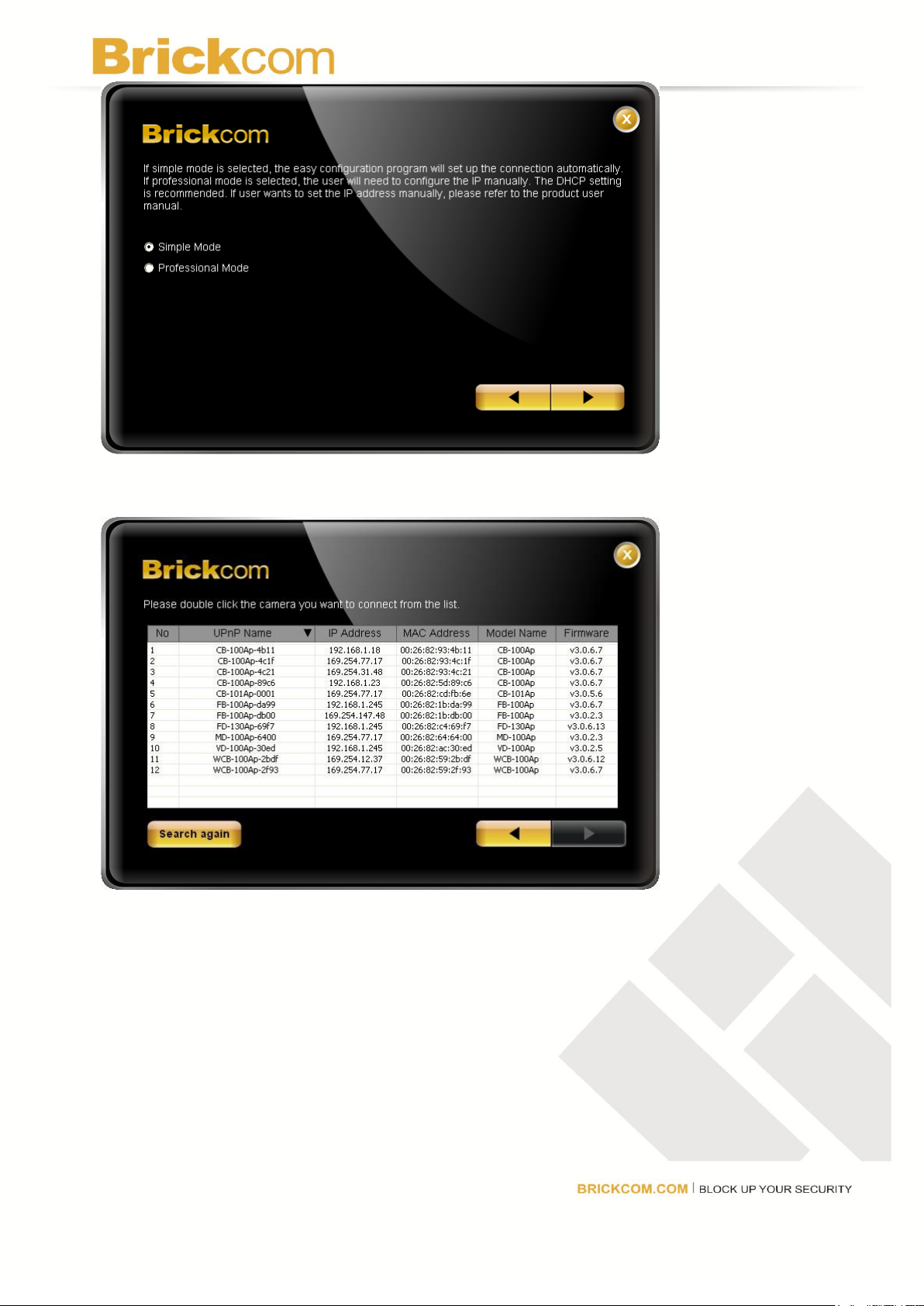

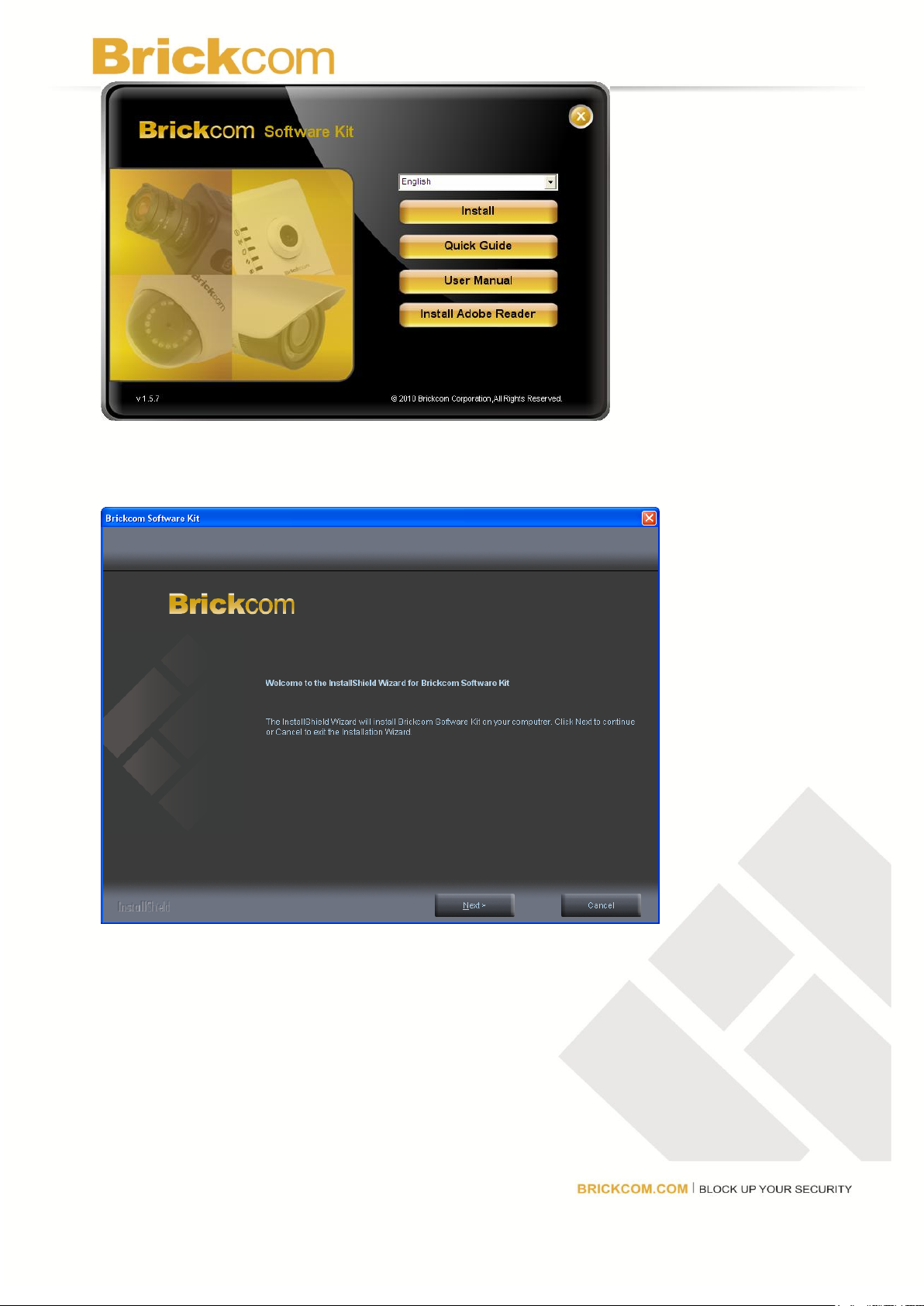

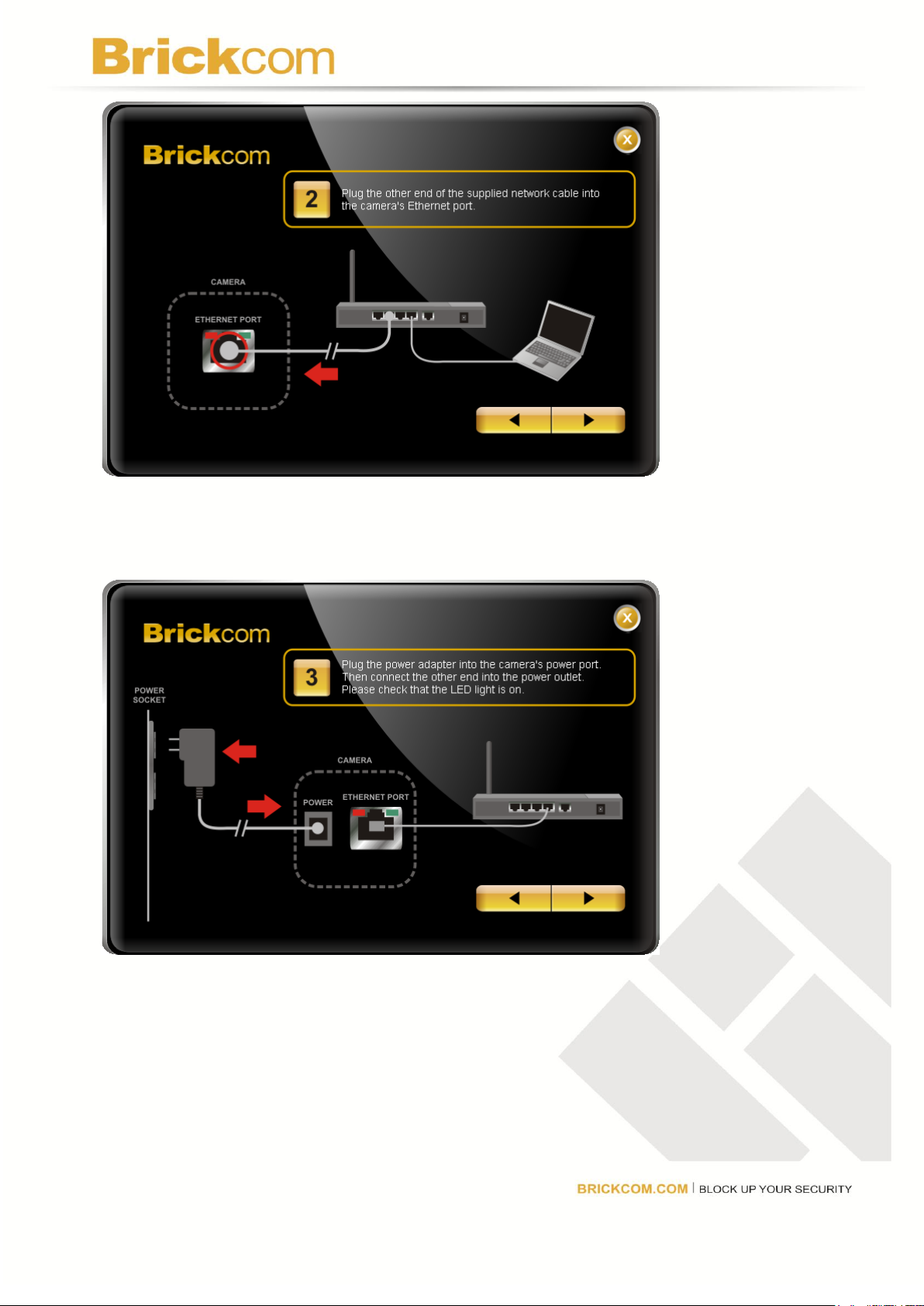

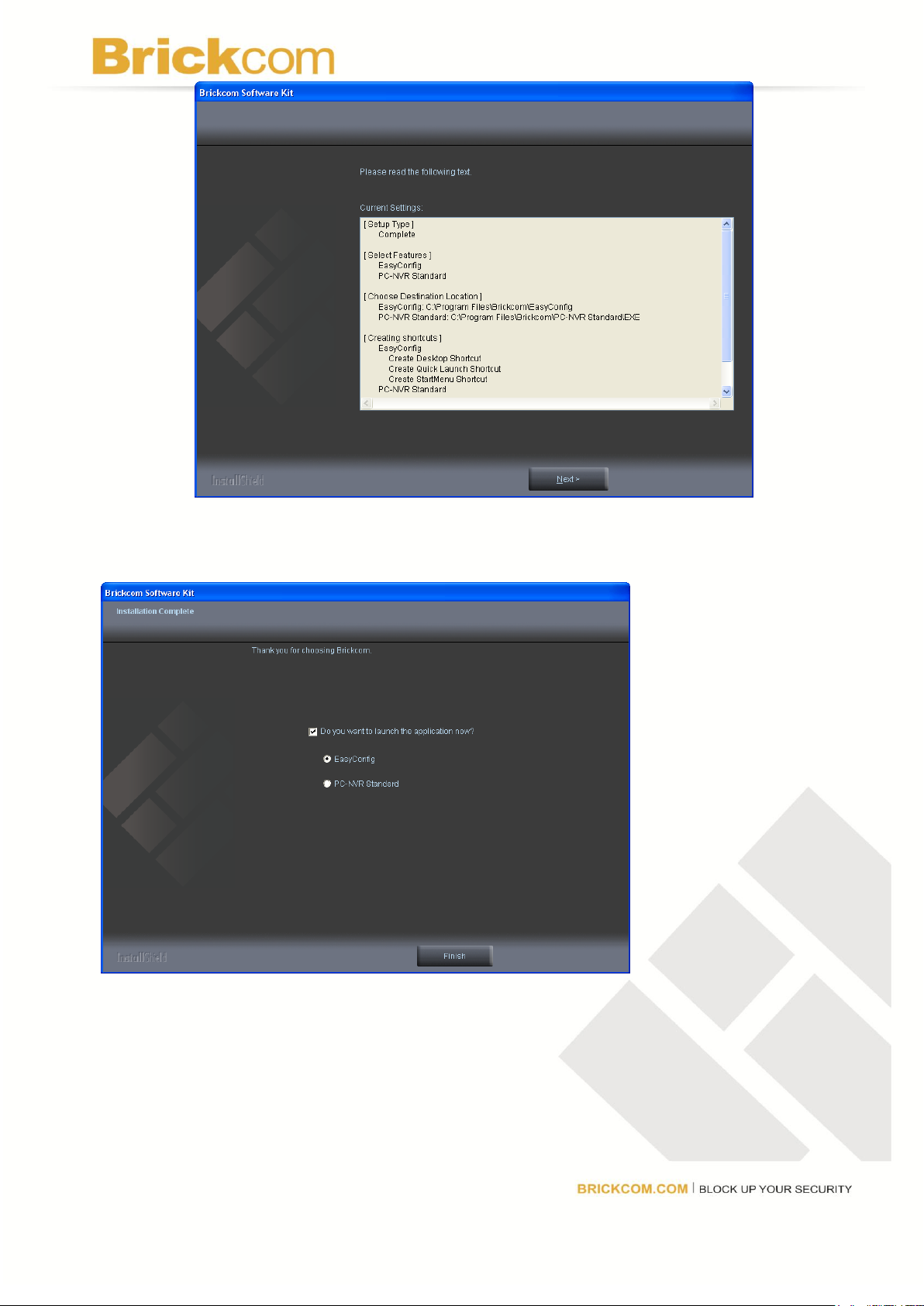

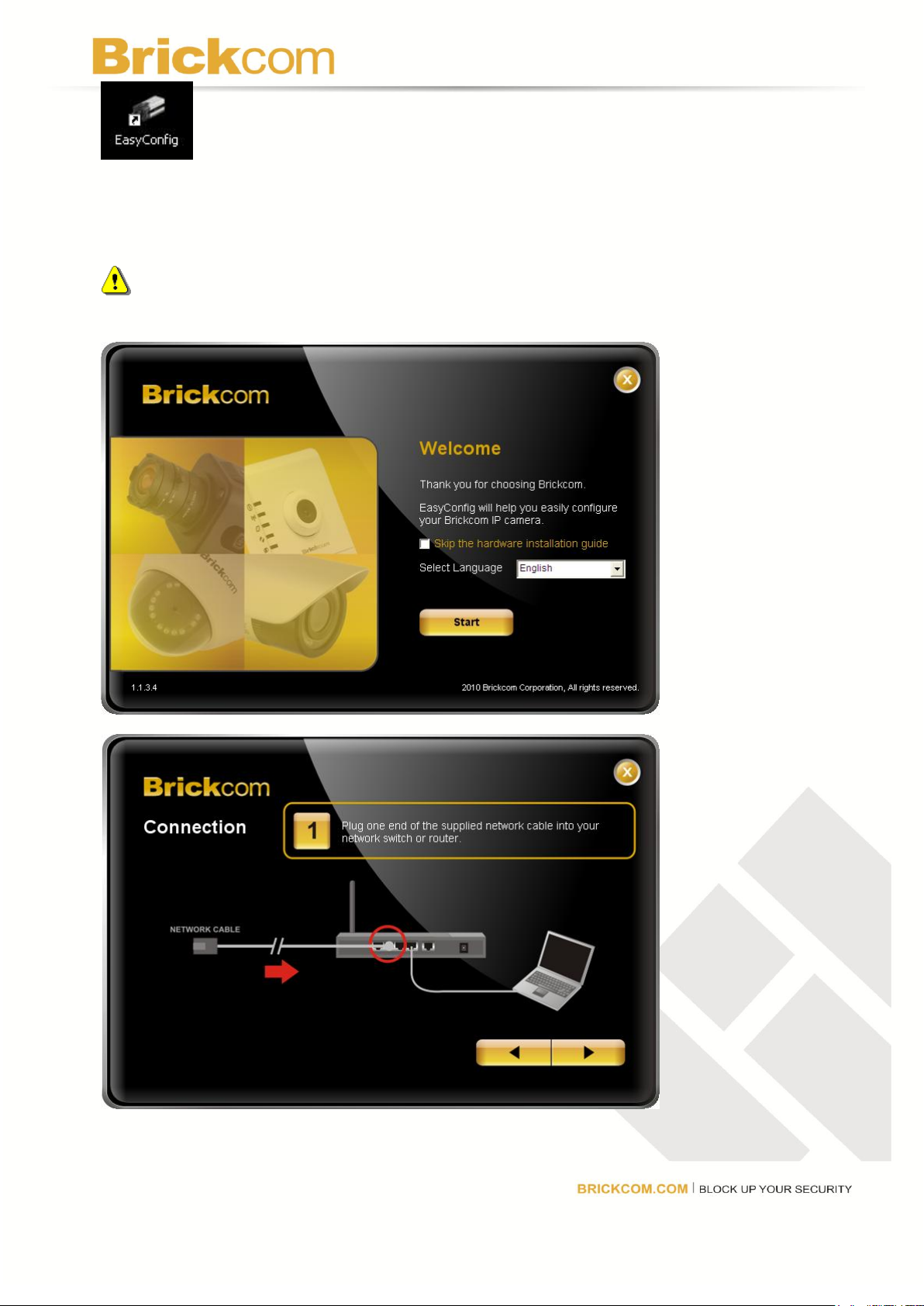

5.3 Camera Connection .............................................................................................. 14
2
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance devices.
This Network Camera is a high-performance, web-ready camera which can be part of a
flexible surveillance system. It is the user’s responsibility to ensure that the operation of
this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the “Package
Contents” are included. Before installing the Network Camera, read the warnings in the
“Quick Installation Guide” to avoid misuse. When installing the Network Camera,
carefully read and follow the instructions in the “Installation” chapters to avoid damages
due to faulty assembly or installation.
3
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE :
FCC Radiation Exposure Statement :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The
firmware setting is not accessible by the end user.
4
a. Network Camera
b. CS mount Lens (Optional)
c. Product CD
d. Camera Stand
e. Warranty Card
f. Allen Key
g. Power Adapter (Optional)
h. Easy Installation Guide
i. Detachable Antenna (Optional)
Chapter 1- Package Contents
Please check to make sure that the product package contains all the accessories listed
below.
5
Chapter 2- Fixed Box Network Camera
Overview
The Brickcom Fixed Box series offers a reliable and efficient solution for 24-hour video
surveillance. The Fixed Box series offers highly efficient H.264 video compression, which
reduces bandwidth and storage requirements without compromising image quality.
M-JPEG and MPEG-4 are also supported for flexibility.
With the megapixel progressive sensor and removable IR-cut Filter, this series delivers
extremely clear and detailed images that CCTV cameras cannot offer. The internal
SD/SDHC memory card slot allows for local storage, which prevents data loss if the data
connection is lost. Users can view live feed anywhere by internet browser or 3G mobile
phone. Also, the Fixed Box series can transmit the video to portable devices through other
technology, such as WiMax, NAS, Digital Frame and power line.
The Fixed Box series receives power through the same cable as for data transmission.
This makes installation easy because there is no external power supply needed.
For easy setup, the Fixed Box series offers a step-by-step installation package. “Easy
Config” makes the configuration simple even for users without an IT background.
With IEEE 802.11 a/b/g/n wireless compliance, network installation is not restricted by
location or landforms. The Wireless Fixed Box series can be installed in any location with
wireless coverage. It can easily be used to cover remote districts and historic spots.
In addition to the motion detection function, the Fixed Box advanced Series can also
support Intelligent Video Analysis which can be used for applications such as object
tracking, people counting, and forbidden region alarm.
6
7
Function
LED Behavior
Description
Remark
WPS
WPS in
progress
Wireless
Fixed Box
Front Right
(Blue)
WPS
WPS
Connection
Error
Wireless
Fixed Box
Front Right
(Blue)
WPS
Session
overlap
detected
Wireless
Fixed Box
Front Right
(Blue)
WPS
Steady on
WPS
Successfully
Connected
Wireless
Fixed Box
Front Right
(Blue)
Status
Hardware
failure
Front Left
(Green)
Status
Continuous Illumination
1. Restoring
settings
2. Normal
Operation
Front Left
(Green)
Status
Unlit
1. Power Off
2. Power On
until
System
setup
The LED
can be
configured
to be unlit
during
normal
operation
(Green)
Status
While F/W
upgrading
Front Left
(Green)
Link
Blinking
Blinking while
connecting to
the network
Rear Left
(Orange)
Link
Unlit
No connection
Rear Left
(Orange)
Power
Continuous Illumination
Normal
Operation
Rear Right
(Green)
Power
Unlit
Power off
Rear Right
(Green)
Chapter 3-LED Behavior
8

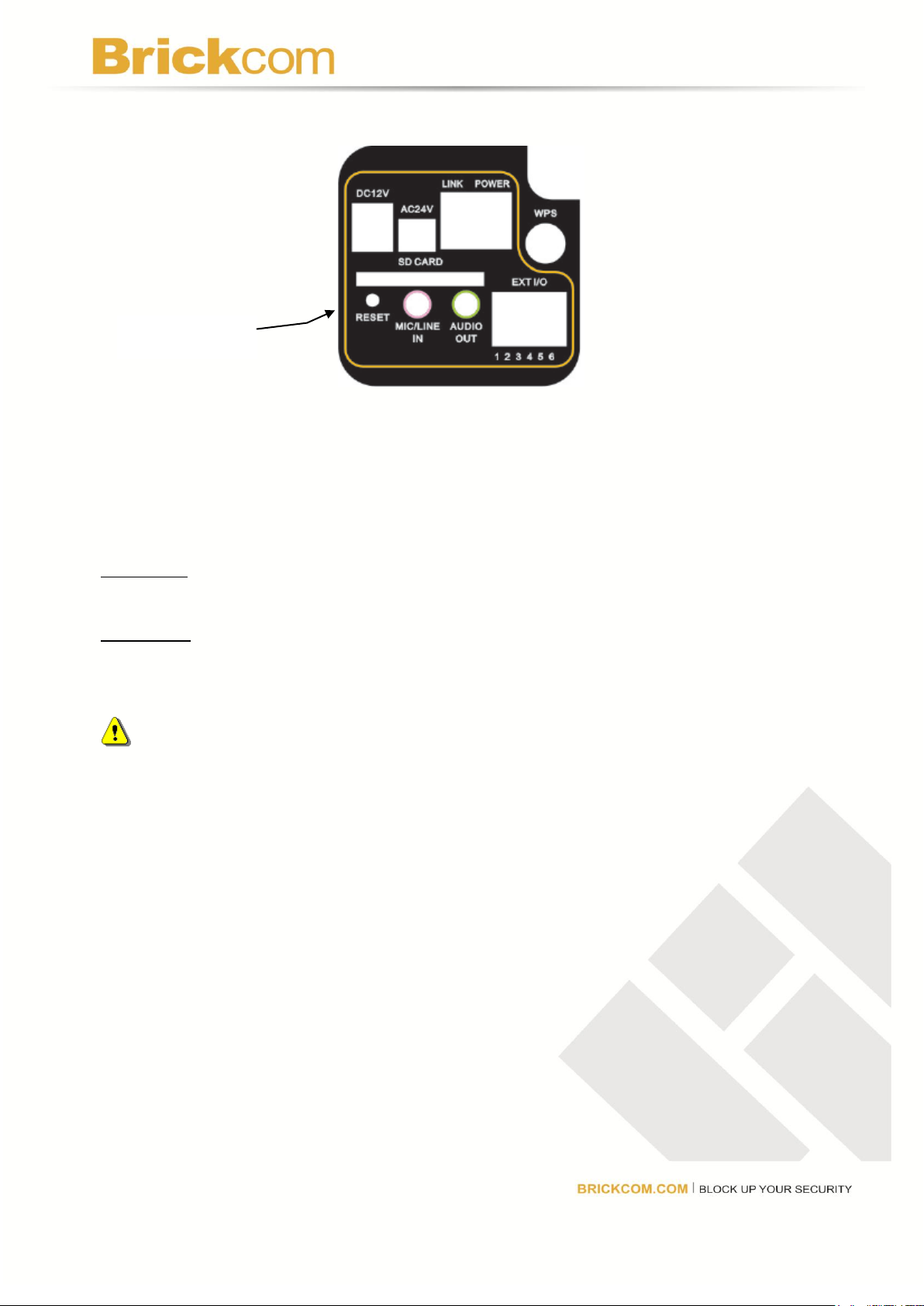

Zoom Controller (*)
Focus Controller
Iris Controller (*)
Photo Indication & Dimension Diagram
Status LED
Power Connector (AC24V In)
Power Connector (DC24V In)
Light Sensor
WPS LED
SD/SDHC Card Slot
Reset Button
Build-in Microphone
Microphone/Line In
Ethernet RJ45 10/100 Socket
(Link/Power LED embedded)
Detachable Antenna
WPS Button
Extension I/O Terminal Block
Audio Out
Auto Iris Connector
Chapter 4- Device Appearance Description
NOTE
1. The WPS buttons must first be enabled through the web GUI in order to work. See WPS
page for details on how to enable the WPS Button.
2. (*) These are optional features. Please refer to the Product List for the full list of optional
features available for the product.

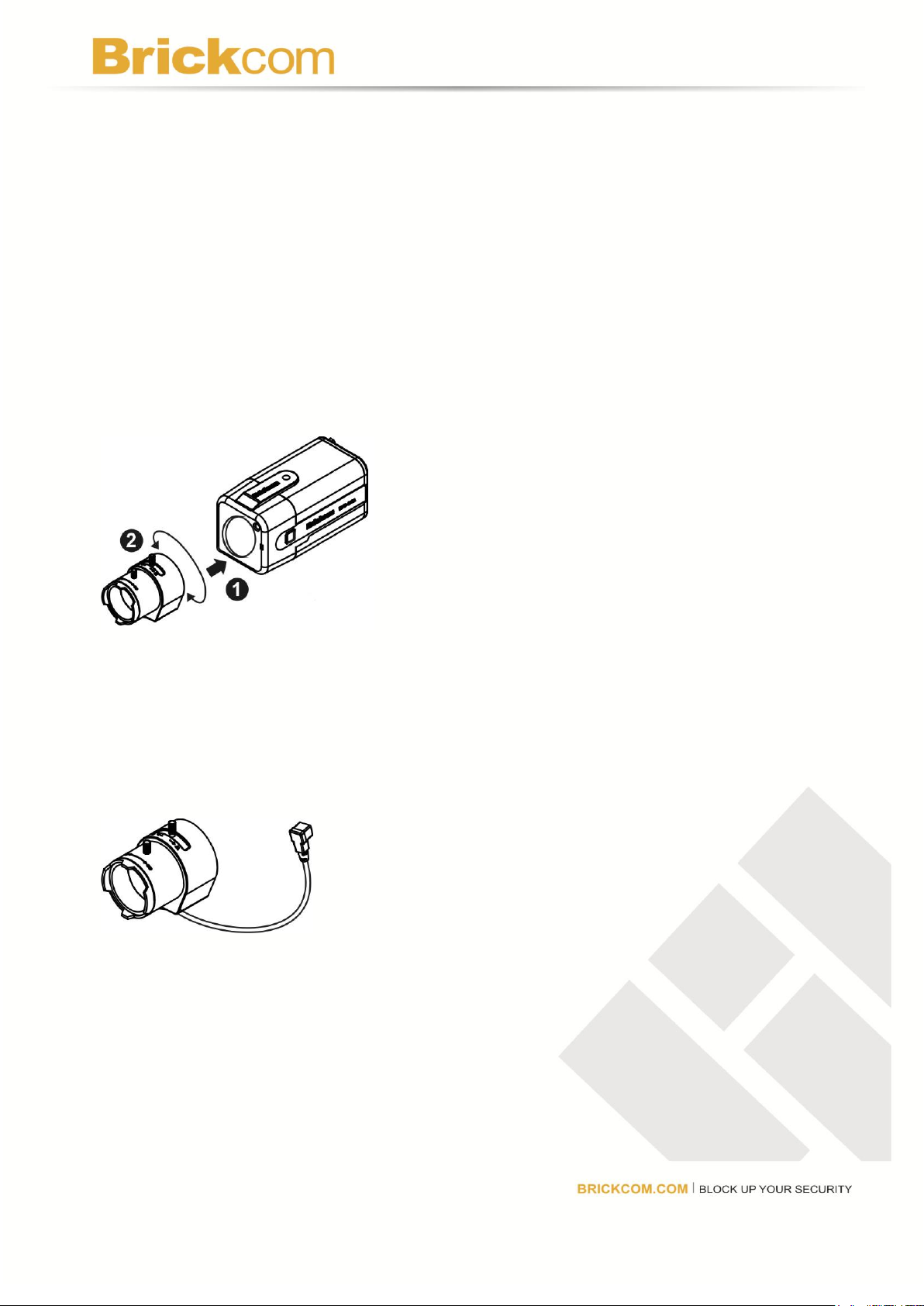

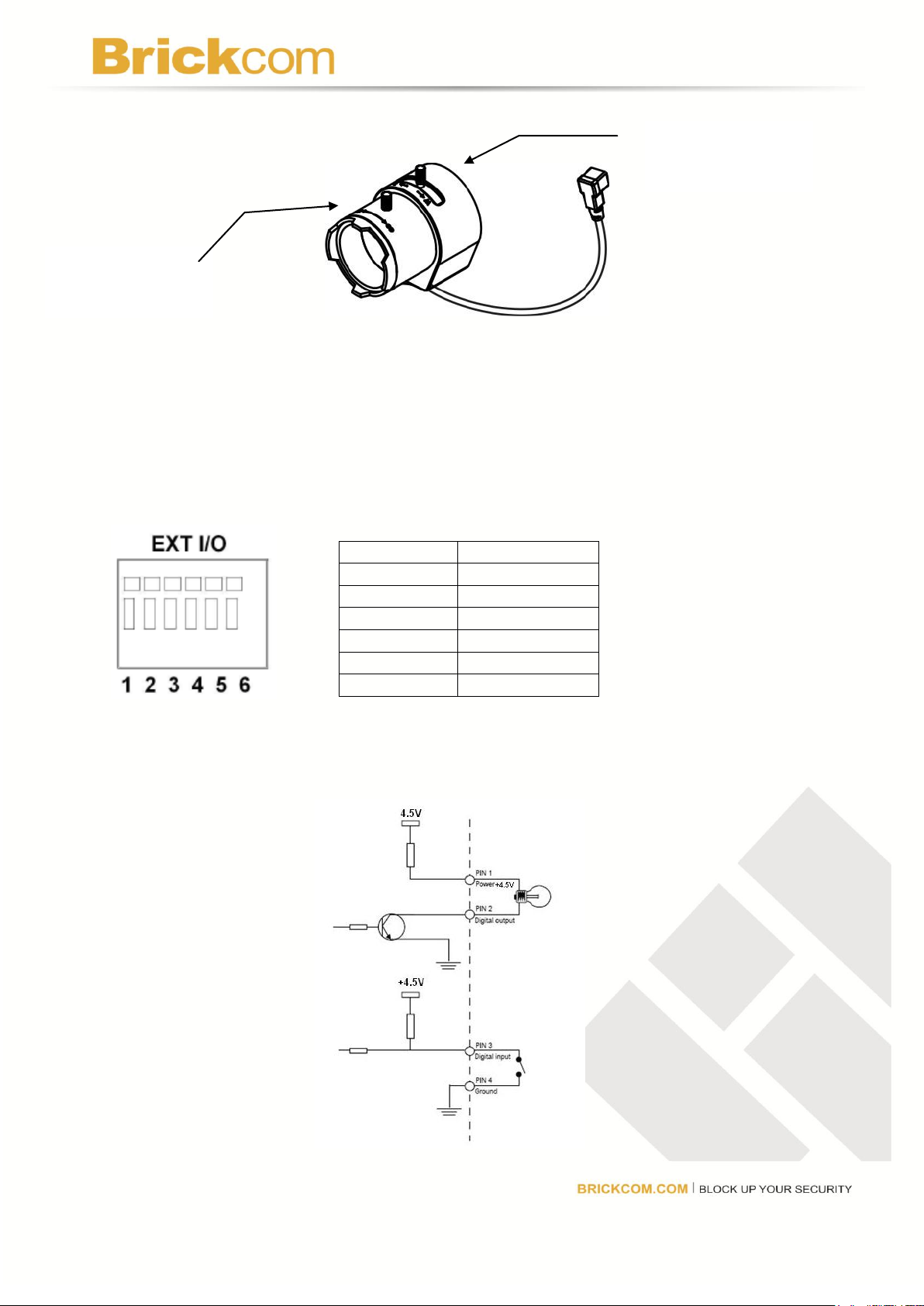

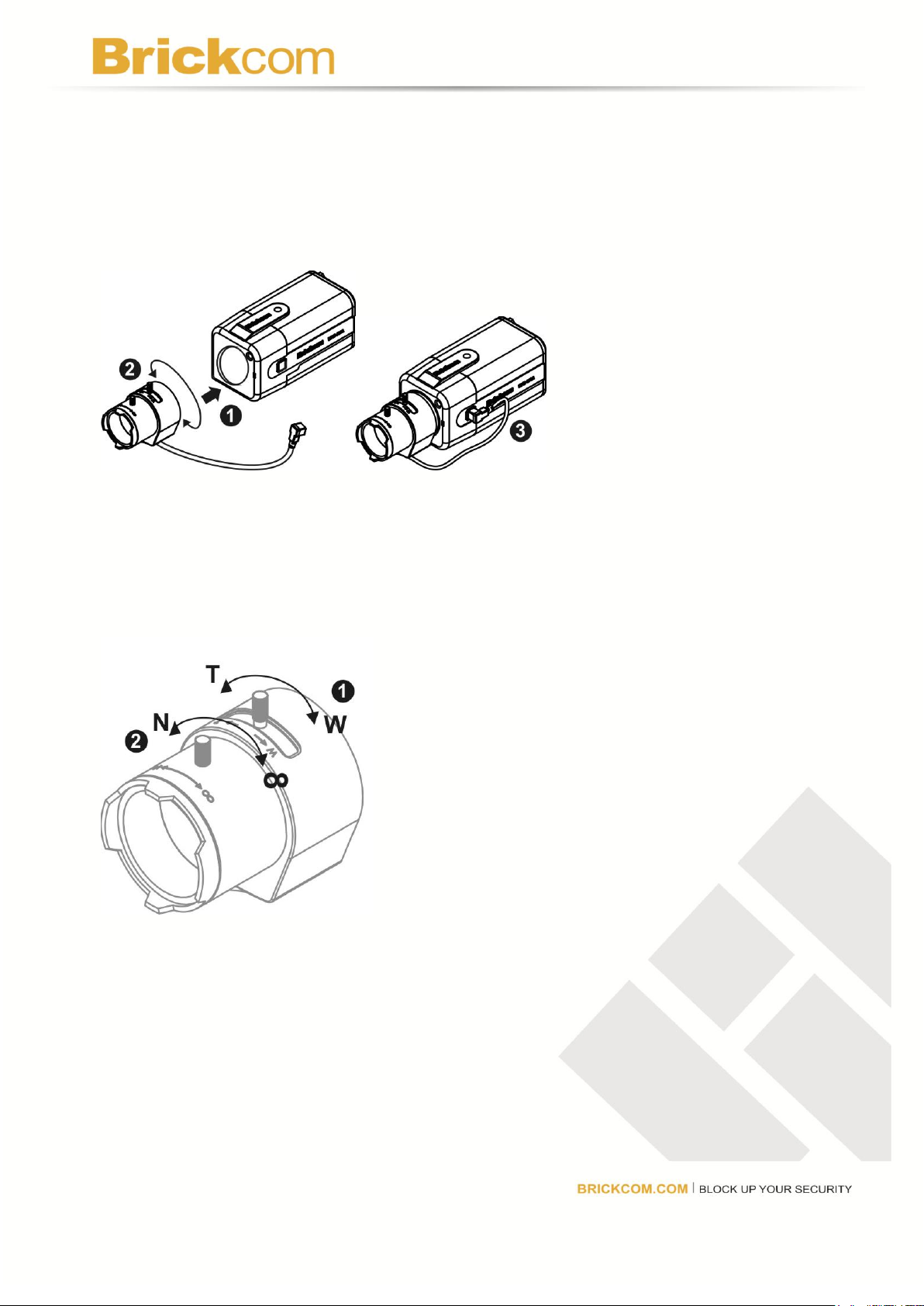

CS Mount Lens -Optional
<Vari-focal Lens with Manual Iris> --- CS Mount
<Optional Lens>
