Brickcom FB User Manual

Hardware User’s Manual
Megapixel Day & Night
Fixed Box Network Camera
Fixed Box Series
0
Review History:
Product name:
Network Camera (Fixed Box series)
Release Date:
2013/07
Manual Revision:
V4.0 Web site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2013 Brickcom Corporation. All Rights Reserved
1. Separate User Manual into HW and SW.
2. Merge FB-100Ap/FB-100Ae/FB-130Np Series into this User Manual.
3. Merge FocusEasy™ version
1
Table of Contents
Before You Use This Product ..................................................................... 3
Regulatory Information ............................................................................ 4
Chapter 1- Package Contents .................................................................... 5
Chapter 2- Fixed Box Network Camera Overview ........................................... 6
Chapter 3-LED Behavior ........................................................................... 7
Chapter 5- Installation ............................................................................ 11
5.1 Hardware Installation............................................................................................ 11
5.2 System Requirements .......................................................................................... 13
5.3 Camera Connection .............................................................................................. 14
2
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the “Package
Contents” are included. Before installing the Network Camera, read the warnings in the Easy Installation Guide” to avoid misuse. When installing the Network Camera, carefully
read and follow the instructions in the “Installation” chapters to avoid damages due to
faulty assembly or installation.
3
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE : FCC Radiation Exposure Statement :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
4
a. Network Camera
b. CS mount Lens (Optional)
c. Product CD
d. Camera Stand e. Warranty Card
f. Allen Key
g. Power Adapter (Optional)
h. Easy Installation Guide
i. Detachable Antenna (Optional)
Chapter 1- Package Contents
Please check to make sure that the product package contains all the accessories listed below.
5
Chapter 2- Fixed Box Network Camera Overview
The Brickcom Fixed Box series offers a reliable and efficient solution for 24-hour video surveillance. The Fixed Box series offers highly efficient H.264 video compression, which reduces bandwidth and storage requirements without compromising image quality. M-JPEG and MPEG-4 are also supported for flexibility.
With the megapixel progressive sensor and removable IR-cut Filter, this series delivers extremely clear and detailed images that CCTV cameras cannot offer. The internal SD/SDHC memory card slot allows for local storage, which prevents data loss if the data connection is lost. Users can view live feed anywhere by internet browser or 3G mobile phone. Also, the Fixed Box series can transmit the video to portable devices through other technology, such as WiMax, NAS, Digital Frame and power line.
The Fixed Box series receives power through the same cable as for data transmission. This makes installation easy because there is no external power supply needed.

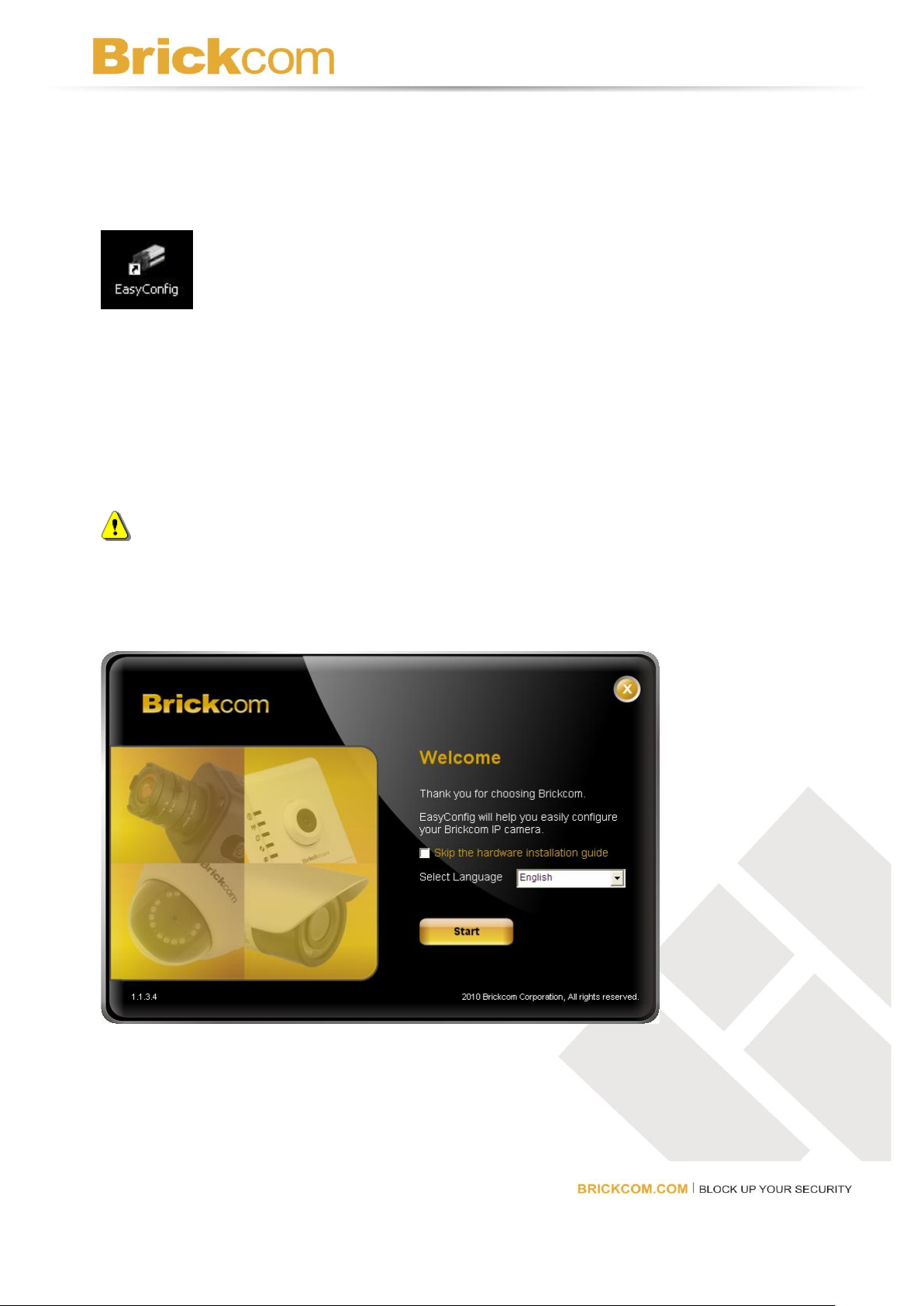

For easy setup, the Fixed Box series offers a step-by-step installation package. “Easy Config” makes the configuration simple even for users without an IT background.
With IEEE 802.11 a/b/g/n wireless compliance, network installation is not restricted by location or landforms. The Wireless Fixed Box series can be installed in any location with wireless coverage. It can easily be used to cover remote districts and historic spots.
In addition to the motion detection function, the Fixed Box advanced Series can also support Intelligent Video Analysis which can be used for applications such as object tracking, people counting, and forbidden region alarm.
6
7
Function
Front LED Behavior
Description
Remark
WPS
WPS in process
Right
(Blue)
Steady
WPS Successfully Connected
FocusEasy
(V2 Series only)
Steady
Lens focusing in process
Right
(red)
Status
Hardware failure
Left
(Green)
Steady
Normal Operation
Unlit
Power Off While F/W
upgrading
Function
Rear LED Behavior
Description
Remark
Link
Flashes
Blinking while connecting to the network
Left
(Amber)
Unlit
No connection
Power
Steady
Normal Operation
Right
(Green)
Unlit
Power off
Chapter 3-LED Indicators
8
Zoom Controller (*)
Focus Controller
Iris Controller (*)

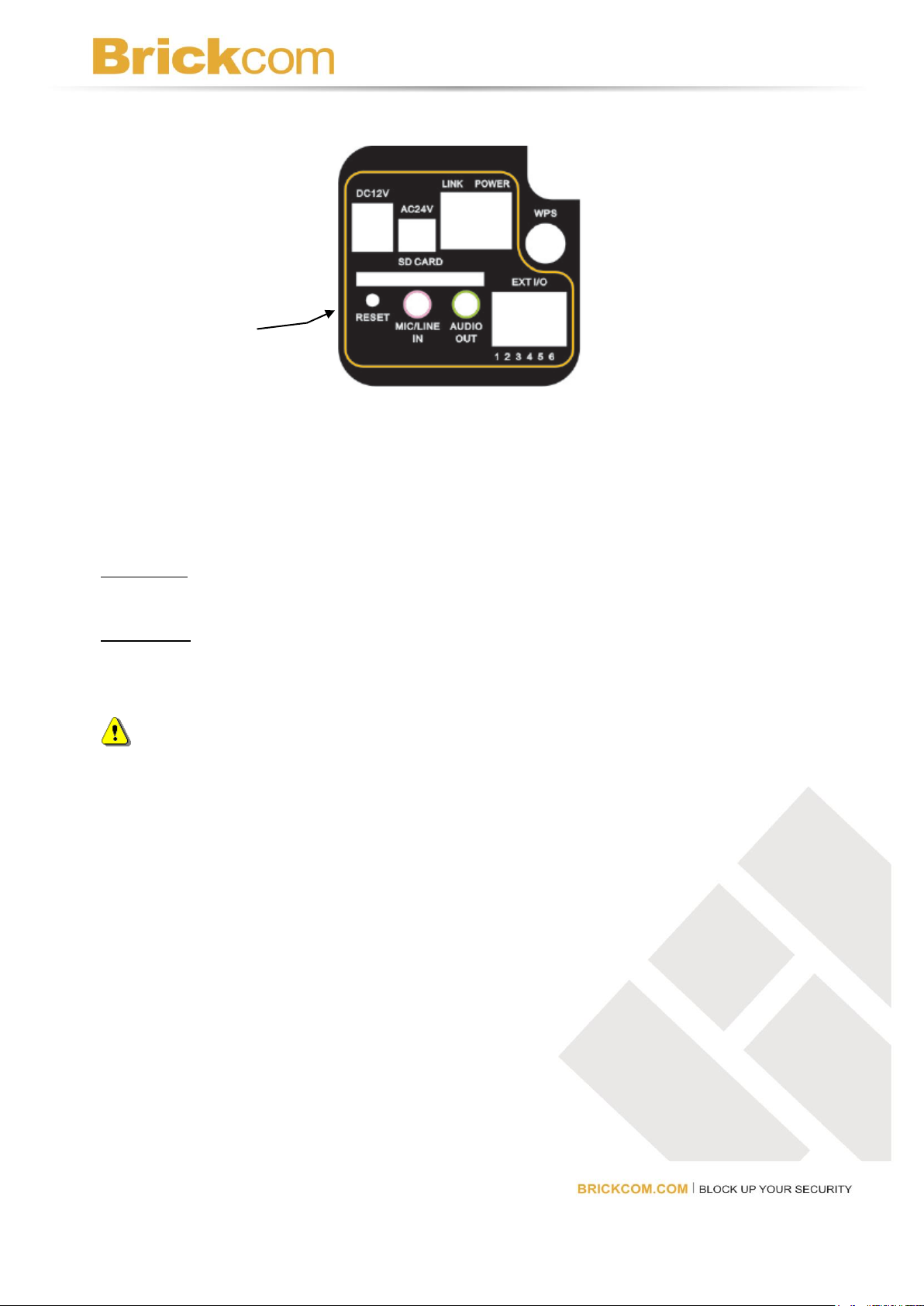

Photo Indication & Dimension Diagram
Status LED Power Connector (AC24V In) Power Connector (DC12V In) Light Sensor WPS/FocusEasy™ LED
(WIFI series/FocusEasy™ series) SD/SDHC Card Slot Reset Button
Microphone/Line In Ethernet RJ45 10/100 Socket
(Link/Power LED embedded) Detachable Antenna (WIFI series) WPS Button (WIFI Series) Extension I/O Terminal Block Audio Out Auto Iris Connector
Chapter 4- Device Appearance Description
NOTE
1. The WPS buttons must first be enabled through the web GUI in order to work. See WPS
page for details on how to enable the WPS Button.
2. (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product.

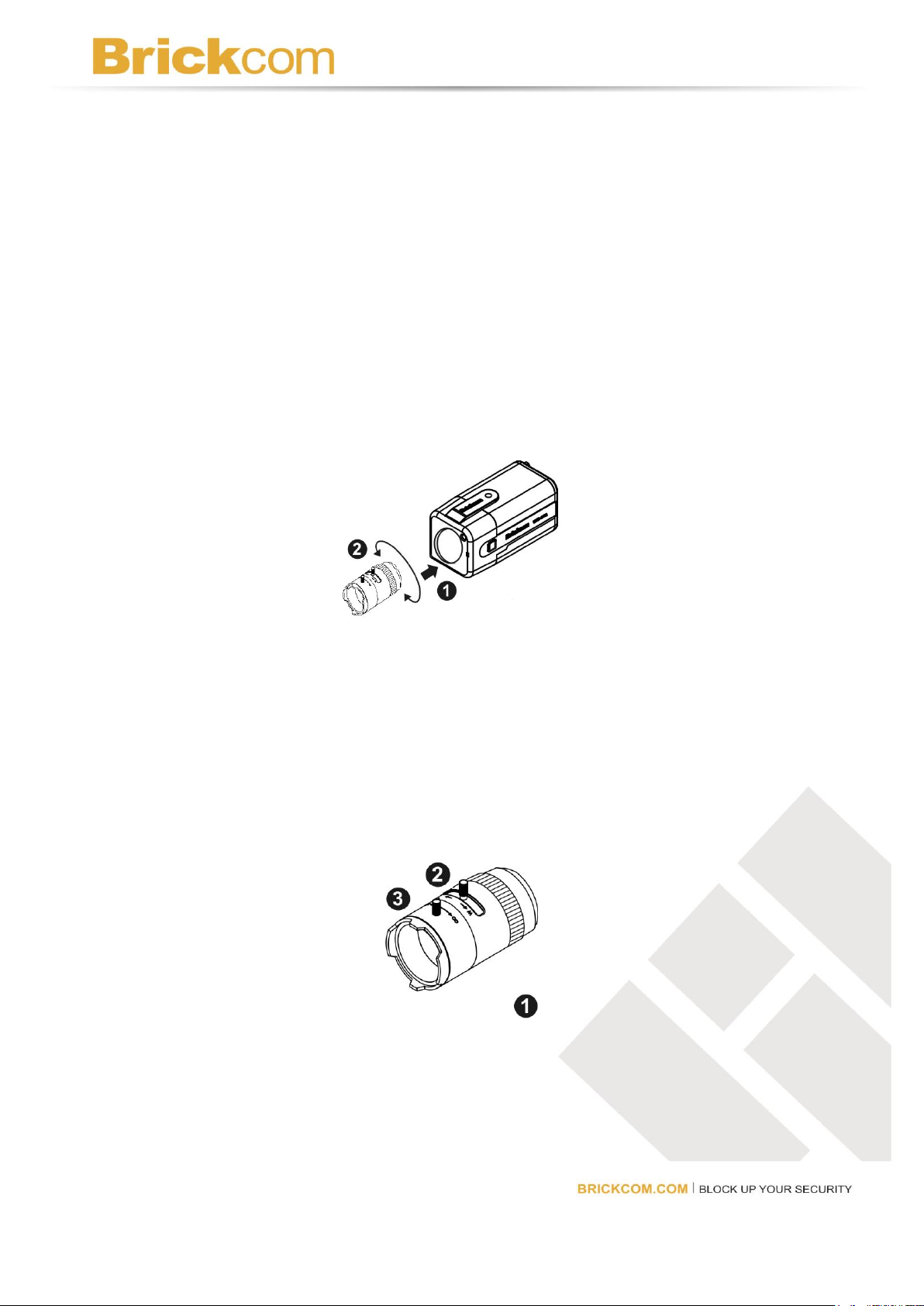

CS Mount Lens -Optional <Vari-focal Lens with Manual Iris> --- CS Mount
<Optional Lens>
9
Pin
Function
1
Power +5V
2
Digital Output
3
Digital Input
4
Ground
5
RS-485 -
6
RS-485 +
Zoom Controller
Focus Controller

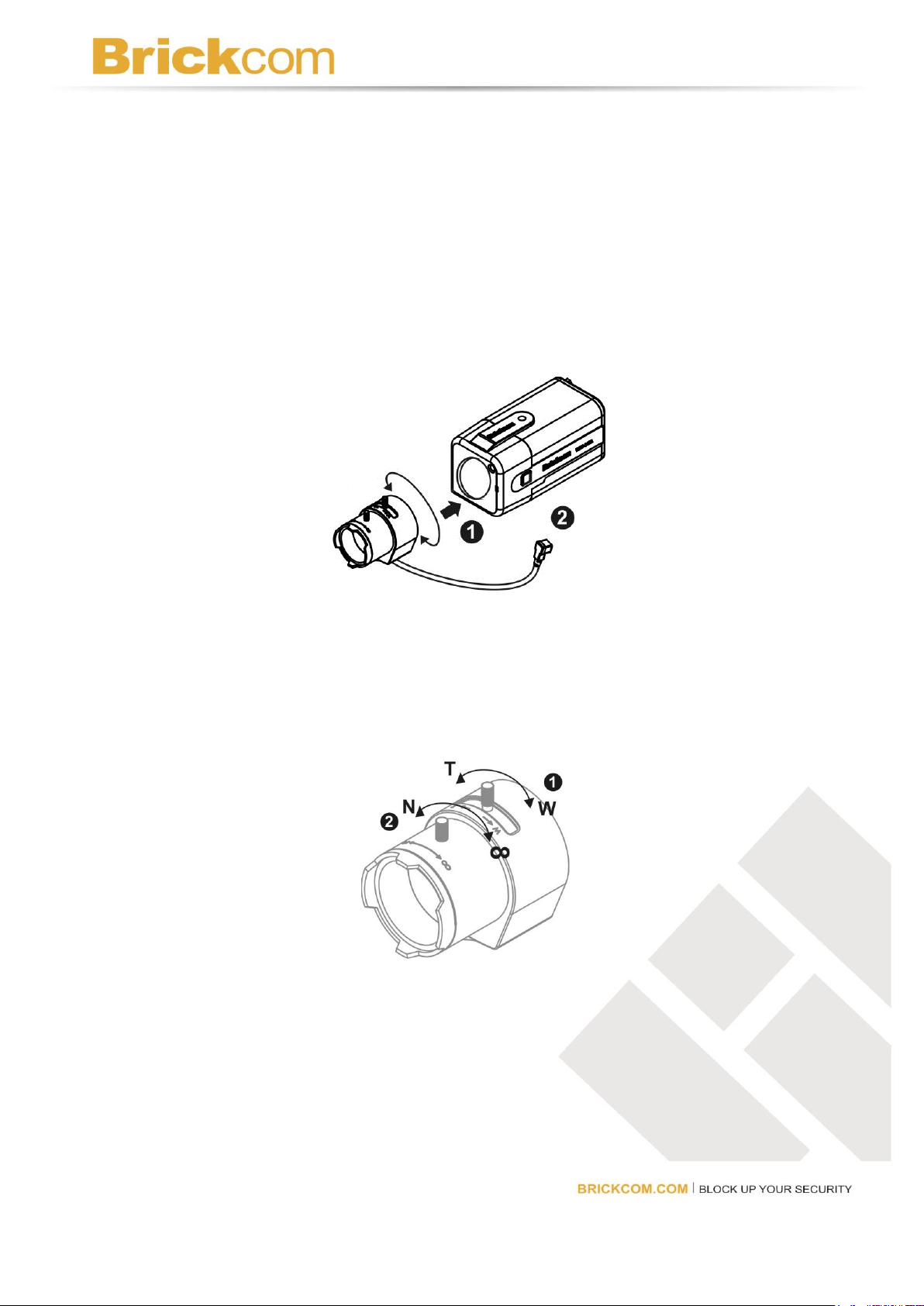

<Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount
Extension I/O Terminal Block
The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. The pin definitions are listed as below.
DI/DO Diagram
