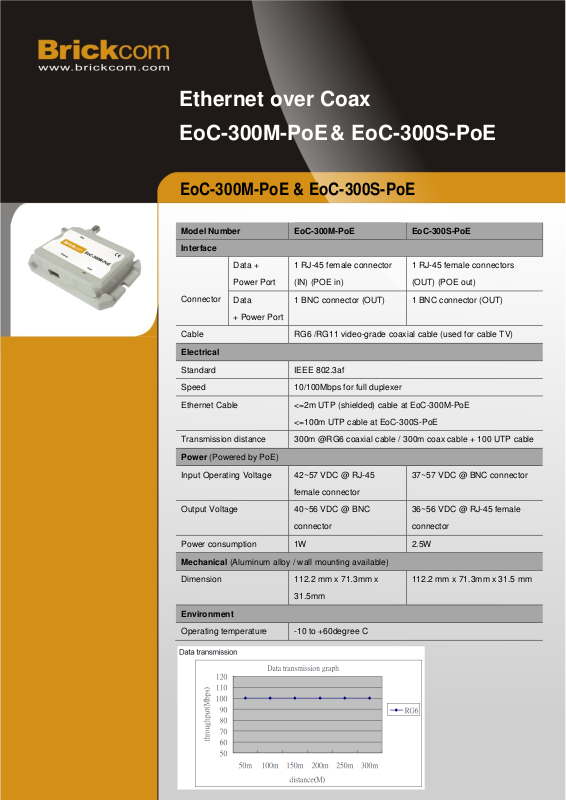

Brickcom EoC-300M-PoE, EoC-300S-PoE Specsheet

Ethernet over Coax

EoC-300M-PoE & EoC-300S-PoE

EoC-300M-PoE & EoC-300S-PoE

Model Number

Interface

Connector

Cable RG6 /RG11 video-grade coaxial cable (used for cable TV)

Electrical

Standard IEEE 802.3af

Speed 10/100Mbps for full duplexer

Ethernet Cable <=2m UTP (shielded) cable at EoC-300M-PoE

Data +

Power Port

Data

+ Power Port

EoC-300M-PoE

1 RJ-45 female connector

(IN) (POE in)

1 BNC connector (OUT) 1 BNC connector (OUT)

EoC-300S-PoE

1 RJ-45 female connectors

(OUT) (POE out)

<=100m UTP cable at EoC-300S-PoE

Transmission distance 300m @RG6 coaxial cable / 300m coax cable + 100 UTP cable

Power (Powered by PoE)

Input Operating Voltage 42~57 VDC @ RJ-45

female connector

Output Voltage 40~56 VDC @ BNC

connector

Power consumption 1W 2.5W

Mechanical (Aluminum alloy / wall mounting available)

Dimension 112.2 mm x 71.3mm x

31.5mm

Environment

Operating temperature -10 to +60degree C

37~57 VDC @ BNC connector

36~56 VDC @ RJ-45 female

connector

112.2 mm x 71.3mm x 31.5 mm
