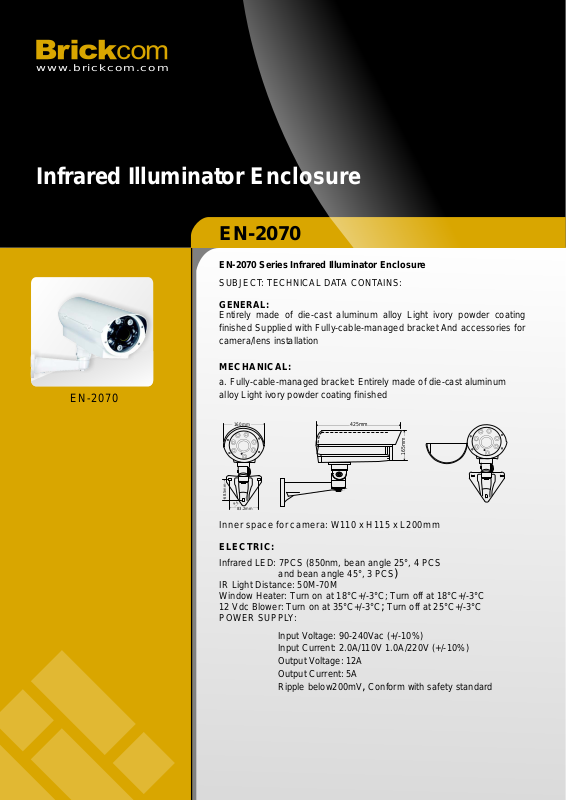

Infrared Illuminator Enclosure
EN-2070
EN-2070 Series Infrared Illuminator Enclosure
SUBJECT: TECHNICAL DATA CONTAINS:
GENERAL:
Entirely made of die-cast aluminum alloy Light ivory powder coating
finished Supplied with Fully-cable-managed bracket And accessories for
camera/lens installation
EN-2070
MECHANICAL:
a. Fully-cable-managed bracket: Entirely made of die-cast aluminum
alloy Light ivory powder coating finished
68.5mm
160mm
6
Φ
83.2mm
425mm
165mm
Inner space for camera: W110 x H115 x L200mm
ELECTRIC:
Infrared LED: 7PCS (850nm, bean angle 25°, 4 PCS
and bean angle )
45°, 3 PCS
IR Light Distance: 50M-70M
Window Heater: Turn on at 18 Turn off at
12 Vdc Blower: Turn on at ; Turn off at
°C+/-3°C; 18°C+/-3°C
35°C+/-3°C 25°C+/-3°C
POWER SUPPLY:
Input Voltage: 90-240Vac (+/-10%)
Input Current: 2.0A/110V 1.0A/220V (+/-10%)
Output Voltage: 12A
Output Current: 5A
Ripple below200mV, Conform with safety standard
Infrared Illuminator Enclosure
NR-2070 Series Infrared Illuminator Enclosure
ACCESSSORIES:
a. Fully-cable-managed bracket:
Entirely made of die-cast aluminum alloy Light ivory powder coating finished
105.00mm
227.0mm
b. Kit Pack
Anchor
Hexagonal Stainless Steel Screw
Stainless Steel Washers
Nylon Washers
L Type Hexagonal Wrench
For camera
Plastic Pad
Plastic Washer
Hexagonal Stainless Steel Screw
Hexagonal Stainless Steel Screw
3 pcs
3 pcs
4 pcs
4 pcs
1 pcs
1 pcs
2 pcs
1 pcs
1 pcs
www.brickcom.com
changes to specifications and descriptions at any time, without notice.
or warranties relating to products of Brickcom Technology. Brickcom may make
purposes only, and is not intended to modify or supplement any specifications
© Brickcom Technology Inc., All Rights Reserved. This document is for planning
STANDRD SPECIFICATIONS:
CE in compliance with EN 55022: 1988 EN 50130-4:1995
FCC in compliance with ANSI C 63.4
IP66 in compliance with IEC 60529
RoHS & SVCH compliance
LED in compliance with IEC 60825-1: 1993+A1: 1997+A2: 2001
/ EN 60825-1: 1994+A1: 2002 + A2: 2001
Mail: info@brickcom.com http://www.brickcom.com
Tel: + 886-3-5982022 Fax: + 886-3-5982023
Address: No.1 Jen Ai Rd, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 303
Brickcom Corporation Headquarters
0904 / 2009A
