Brickcom CB-200Ap Specsheet
2 Megapixel
Compact Cube Network Camera
▪ Most Intelligent, Compact and Affordable 2M Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Unique Design for Low Lux Application (1/2.5” Sensor)
▪ Intelligent Multi-Profile Sensor Management for Different Environment
▪ Support 802.11a/b/g/n Dual Band Wireless Connectivity*
▪ WPS Supported for Easy Wireless Network Setup*
▪ Support 3G Wireless Connectivity*
▪ Interchangeable CS Mount Lens
▪ Edge Recording/ Micro SD slot
▪ PoE/ Two-way Audio/ PIR/ Illumination LED/ DIDO/ Privacy button
Adjustable focal Lens (*)
Built-in Microphone
PIR
Illumination LED
Speaker
Power Connector
Ethernet RJ45 Socket
Reset Button
DIDO Terminal I/O Connector
Micro SD/SDHC slot
WPS button (*)
Privacy button
Power LED
Status LED
Internet LED
WPS LED (*)
Privacy LED
USB Port for 3G (*)
* These are optional features *

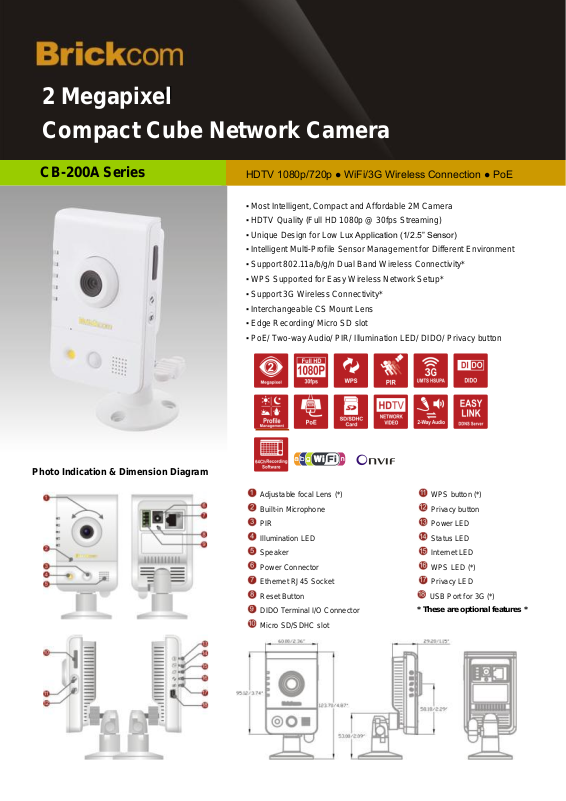

Photo Indication & Dimension Diagram
CB-200A Series
HDTV 1080p/720p ● WiFi/3G Wireless Connection ● PoE
d
CB-200A Series
CB-200Ap
WCB-200Ap
CB-202Ap
WCB-202Ap
Interchangeable CS-Mount Lens
Wireless (11a/b/g/n dual band WiFi)
Wired (802.3af PoE)
USB port for 3G
DIDO I/O Port
Models
CB-200Ap Board Lens, USB for 3G, PoE
WCB-200Ap Board Lens, WiFi
CB-202Ap CS Mount Lens, USB for 3G, PoE
WCB-202Ap CS Mount Lens, WiFi
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1920x1080 pixel
Minimum
Illumination
CB-200Ap/WCB-200Ap
1.5 lux (F2.2, B/W) / 3.5 lux (F2.2, Color)
CB-202Ap/ WCB-202Ap
1 lux (F1.5, B/W) / 2 lux (F1.5, Color)
Lens
CB-200Ap/WCB-200Ap
Lens Type: Board Lens
Focal Length: f= 2.8 mm
Iris: F2.8
View Angle: (H): 90°/ (V): 48°/ (D): 106°
CB-202Ap/ WCB-202Ap
Lens Type: CS Mount Lens
Focal Length: f= 4.05 mm
Iris: F1.5
View Angle: (H): 60°/ (V): 34°/ (D): 68°
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in MIC & Speaker
Video Image
Compression
H.264 / MPEG4 / MJPEG
Video Setting
Audio Exposure Control:
Sport/ Normal/ Night Vision/ User Defined
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1 dB
Image Resolution
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
DC12V/ 1A(Power Supply)
Max. Power
Consumption
CB-200Ap/CB-202Ap: 4.2 watts
WCB-200Ap/WCB-202Ap: 4.6 watts
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
34.8 (L) X60 (W) X 95 (H) mm
Weight
CB-200Ap: 99g
CB-202Ap: 122g
WCB-200Ap:106g
WCB-202Ap: 129g
Certification
FCC, CE
Warranty
Limited 2-year warranty
M13VM288IR
2.2x Vari-focal Lens with Manual Iris
CI-803A/CI-803C
Camera Bracket
GL-222
Camera Bracket
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
BP-1000
UPS power pack (Edge Recording)
Camera
Audio
Network Equipment Options
Camera Accessories Options
Copyright 2013 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
