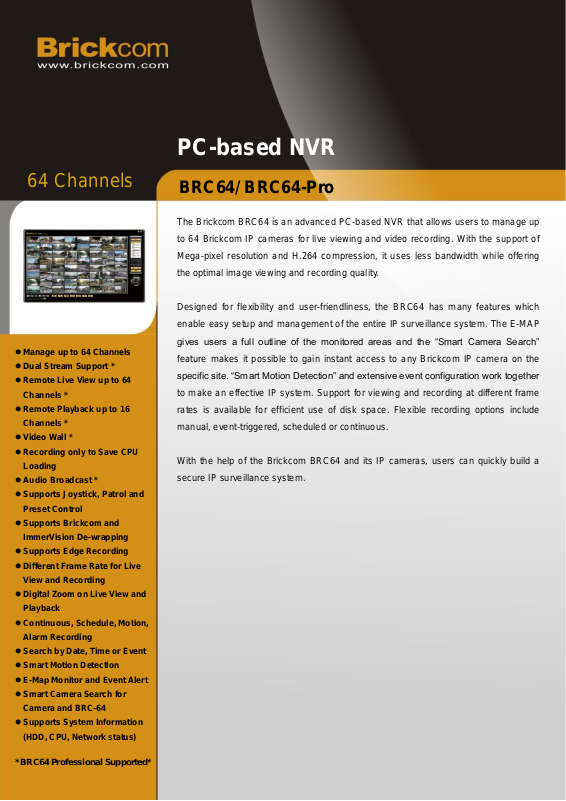

64 Channels
PC-based NVR
The Brickcom BRC64 is an advanced PC-based NVR that allows users to manage up
to 64 Brickcom IP cameras for live viewing and video recording. With the support of
Mega-pixel resolution and H.264 compression, it uses less bandwidth while offering
the optimal image viewing and recording quality.
Designed for flexibility and user-friendliness, the BRC64 has many features which
enable easy setup and management of the entire IP surveillance system. The E-MAP
gives users a full outline of the monitored areas and the “Smart Camera Search”
feature makes it possible to gain instant access to any Brickcom IP camera on the
specific site. “Smart Motion Detection” and extensive event configuration work together
to make an effective IP system. Support for viewing and recording at different frame
rates is available for efficient use of disk space. Flexible recording options include
manual, event-triggered, scheduled or continuous.
With the help of the Brickcom BRC64 and its IP cameras, users can quickly build a
secure IP surveillance system.
Manage up to 64 Channels
Dual Stream Support *
Remote Live View up to 64
Channels *
Remote Playback up to 16
Channels *
Video Wall *
Recording only to Save CPU
Loading
Audio Broadcast *
Supports Joystick, Patrol and
Preset Control
Supports Brickcom and
ImmerVision De-wrapping
Supports Edge Recording
Different Frame Rate for Live
View and Recording
Digital Zoom on Live View and
Playback
Continuous, Schedule, Motion,
Alarm Recording
Search by Date, Time or Event
Smart Motion Detection
E-Map Monitor and Event Alert
Smart Camera Search for
Camera and BRC-64
Supports System Information
(HDD, CPU, Network status)
* BRC64 Professional Supported*
BRC64/ BRC64-Pro
Product Name
PC-based NVR
Model Number
BRC64 Standard
BRC64 Professional *
Cameras
Add Camera : Manual / Smart Camera Search
Max. Channels : 64
E-Map
E-Map configuration and management
Video & Audio
Video Compression : MJPEG / MPEG-4 Part 2 / H.264
Resolution : QCIF / CIF / FD1 / Megapixel / Up to 5Mega
Max. Frame Rate : 360fps @ Mega Pixel
Audio Compression : G.711, G.726, ADPCM, AAC
Max Bandwidth: 80mbps
*Audio Broadcast
Live View
Matrix Screen : 1/4/8/9/10/13/16/25/36/49/64
*Video Wall : Live Matrix, Event Display, Playback, E-Map
Digital Zoom : supported
Drag and drop operation : supported
Sequence Mode : Sequence All, Manually Selected
*Remote Live View : for IE Browser, up to 64 channels
PTZ control : Supports joystick, preset and patrol features
Panorama : Supports Brickcom / ImmerVision De-wrapping
*Dual Stream Support
Events
Event Actions: Sound Alarm, Email, Blinking, send the
snapshot to FTP site.
Event Recording : Post Event Settings
Auto reboot system : per cycle
Operating System:
Microsoft Windows XP
Microsoft Windows VISTA
Microsoft Windows 7
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
HDD:
500GB
*The audio function will not work if a sound card is not
installed in the PC. Audio may be interrupted depending on
network traffic.
Logs
Log Types : Event / Alarm Access
User Management
Management : group privilege control (Max. Groups: 5)
Multilingual
English (United States)、Deutsch ( German )、Dutch、
Japanese、Portuguese、Russian、Chinese ( Simplified )、
Spanish、Chinese ( Traditional ), Thai
Playback
Playback Controls : Play / Pause / Stop / Forward / Reverse
/ Speed Adjust / Frame by Frame
Playback : up to 16 channels
Digital Zoom : supported
Video Clip Search : Search video clips by date, time, or
channel
Snapshot format : BMP, JPG
*Remote payback : for IE Browser, up to 16 channels
Export Video : Export Playback Videos to Local Computer
in AVI Format
Recording
Recording Mode : Manual / Continuous / Scheduling / Event
Schedule Recording : Manual Select / Weekly Mode /
Holiday mode
Event Recording : by motion detection / digital input
Edge Recording : supported
Post-Event Recording : 10 ~ 600 seconds
Retain recorded video (days) : depend on the size of HDD
Networks
Protocols : HTTP / DHCP / ARP / NTP / DNS / UPnP
Streaming Protocols : RTSP over UDP, RTSP over TCP
Graphic Card:
ATI Radeon 1950, nVidia GeForce 9500GT (1024 MB) with
DirectX9.0 or higher
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
Gigabit Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
System Requirements
