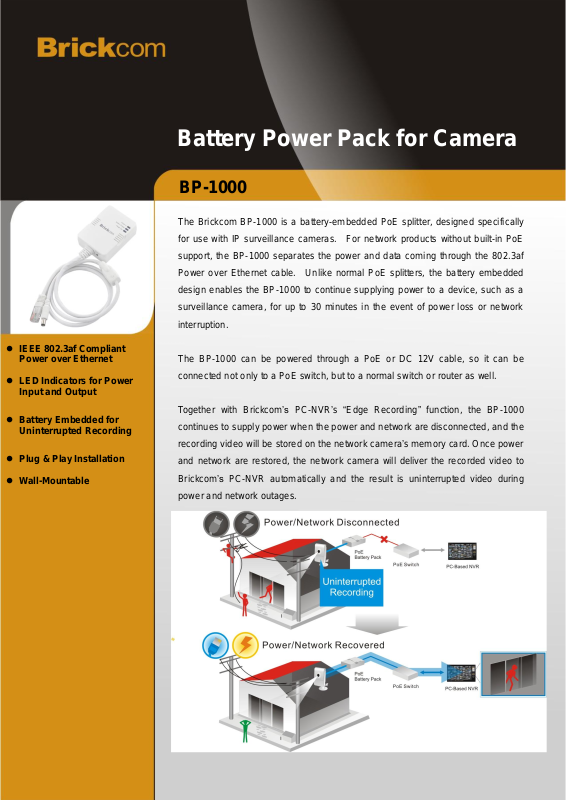

The Brickcom BP-1000 is a battery-embedded PoE splitter, designed specifically
for use with IP surveillance cameras. For network products without built-in PoE
support, the BP-1000 separates the power and data coming through the 802.3af
Power over Ethernet cable. Unlike normal PoE splitters, the battery embedded
design enables the BP-1000 to continue supplying power to a device, such as a
surveillance camera, for up to 30 minutes in the event of power loss or network
interruption.
The BP-1000 can be powered through a PoE or DC 12V cable, so it can be
connected not only to a PoE switch, but to a normal switch or router as well.
Together with Brickcom’s PC-NVR’s “Edge Recording” function, the BP-1000
continues to supply power when the power and network are disconnected, and the
recording video will be stored on the network camera’s memory card. Once power
and network are restored, the network camera will deliver the recorded video to
Brickcom’s PC-NVR automatically and the result is uninterrupted video during
power and network outages.
IEEE 802.3af Compliant
Power over Ethernet
LED Indicators for Power
Input and Output
Battery Embedded for
Uninterrupted Recording
Plug & Play Installation
Wall-Mountable
Battery Power Pack for Camera
BP-1000
LEDs
Power Input
Battery Charge
Power Output
Operating
Temperature: 41°F ~ 105.8°F (0°C~40°C)
Relative Humidity: 10~80% non-condensing
Dimensions
2.87 × 2.13 × 0.94 inches
(73 × 54 × 24 mm)
Ethernet and Power Cable Length:
35.43 inches
(900 mm)
Net Weight
.30 lbs. (135 g)
Certifications
FCC, CE,
Product Name
Battery Power Pack for Camera
Standard
IEEE 802.3af Power over Ethernet
IEEE 802.3 10Base-T
IEEE 802.3u, 10/100Base-TX
Power
Input:
802.3af PoE
DC 12V 1A
Output:
DC 12V
Interface
Ethernet Cable Connector
DC Power Connector
Ethernet Cable Plug
DC Power Plug
Power Out on/off Switch
Battery Capacity
3 Wh/1050 mAh
*Example:
WCB-100Ap Max. Power Consumption: 4.5W.
3 Wh/4.5W= 0.67h= 40 mins
The battery can support a WCB-100Ap for up to 40 minutes.
