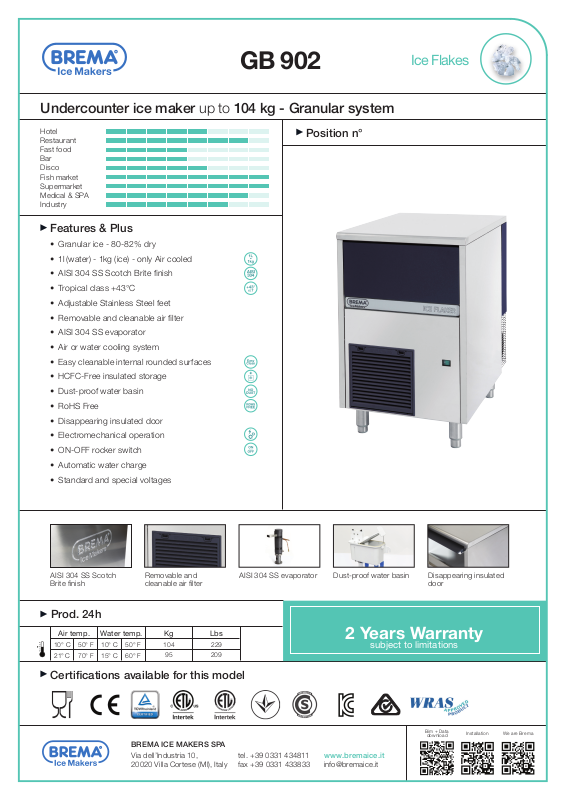

Brema GB 902 Datasheet
GB 902
Undercounter ice maker up to 104 kg - Granular system
Ice Flakes
Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry
Features & Plus
• Granular ice - 80-82% dry
• 1l (water) - 1kg (ice) - only Air cooled
• AISI 304 SS Scotch Brite finish
• Tropical class +43°C
• Adjustable Stainless Steel feet
• Removable and cleanable air filter
• AISI 304 SS evaporator
• Air or water cooling system
• Easy cleanable internal rounded surfaces
• HCFC-Free insulated storage
• Dust-proof water basin
• RoHS Free
• Disappearing insulated door
• Electromechanical operation
• ON-OFF rocker switch
• Automatic water charge
• Standard and special voltages
Position n°
AISI 304 SS Scotch
Brite finish
cleanable air filter
Prod. 24h
Air temp.
10° C
21° C
Water temp. Kg
10° C
50° F
15° C
70° F
50° F
60° F
104 229
95 209
Lbs
Certifications available for this model
BREMA ICE MAKERS SPA
Via dell’Industria 10,
20020 Villa Cortese (MI), Italy
AISI 304 SS evaporatorRemovable and
tel. +39 0331 434811
fax +39 0331 433833
Dust-proof water basin
Disappearing insulated
door
2 Years Warranty
subject to limitations
Bim + Data
download
www.bremaice.it
info@bremaice.it
Installation We are Brema
Ice Flakes
GB 902
Undercounter ice maker up to 104 kg - Granular system
Working conditions
•Location:Indoor
H
660 mm
26"
Ambient temperature
Water temperature
Voltage
Water inlet pressure
690 mm
27 3/16"
P
500 mm
19 11/16"
L
Performances
Min Max
+10° C / +50° F
+3° C / +37° F
-10%
1bar (14 psi)
+43° C / 110° F
+32° C / +90° F
+10 %
6bar (84 psi)
3
1
110-150 mm
4 5/16-5 14/16"
2
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1
Water in.: 99 mm / 3 14/16” - 158 mm / 6 4/16” - 3/4”
3
Electrical connections: 87 mm / 3 7/16” - 230 mm / 9 1/16”
Technical information
Production in 24h
Store capacity, up to
Cooling system
Refrigerant
Standard voltage
Electrical consumption
Fuse
Finish
AISI 304 stainless steel, scotch brite
95 kg / 209 lbs
20 kg / 44 lbs
A - W
R404A
220-240 V ~ 50 Hz
550 W
10 A
Water temperature
10° C
104 k g
10° C
50° F
21° C
70° F
32° C
Air temperature
90° F
2
Water out.: 48 mm / 1 14/16” - 151 mm / 5 15/16” - 24 mm / 15/16”
Water consumption
15° C 21° C50° F 60° F 70° F
229 lbs
95 kg
209 lbs
81 kg
179 lbs
A: 1 l/kg - 12,0 gal/100 lbs
W: 6,3 l/kg - 75,5 gal/100 lbs
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Net weight
Gross weight
500 - 660 - 690
19 11/16 - 26 - 27 3/16
550 - 720 - 880
21 10/16 - 28 6/16 - 34 10/16
59 kg / 130 lbs
67 kg / 148 lbs
All the technical information need to be considered at the following conditions:
Sizes without feet
Ambient temperature +21° C
Water temperature +15° C
Electrical consumption at +43° C (standard voltage)
Models and specifications are subject to change without notice
