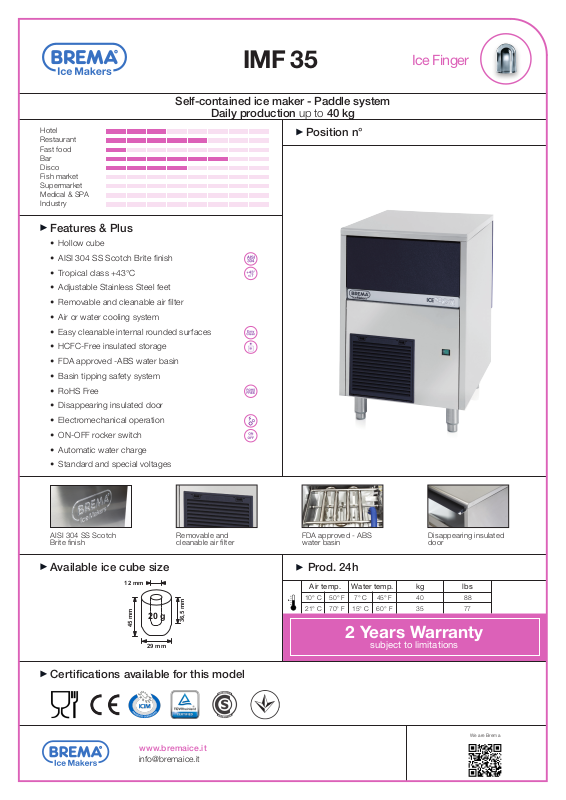

Page 1
IMF 35
Self-contained ice maker - Paddle system
Daily production up to 40 kg
Ice Finger
Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry
Features & Plus
• Hollow cube
• AISI 304 SS Scotch Brite nish
• Tropical class +43°C
• Adjustable Stainless Steel feet
• Removable and cleanable air lter
• Air or water cooling system
• Easy cleanable internal rounded surfaces
• HCFC-Free insulated storage
• FDA approved -ABS water basin
• Basin tipping safety system
• RoHS Free
• Disappearing insulated door
• Electromechanical operation
• ON-OFF rocker switch
• Automatic water charge
• Standard and special voltages
Position n°
AISI 304 SS Scotch
Brite nish
Removable and
cleanable air lter
Available ice cube size
12 mm
20 g
45 mm
29 mm
36,5 mm
Certications available for this model
www.bremaice.it
FDA approved - ABS
water basin
Prod. 24h
Air temp.
10° C
21° C
Water temp. kg
7° C
50° F
15° C
70° F
2 Years Warranty
Disappearing insulated
door
45° F
60° F
40 88
35 77
subject to limitations
lbs
We are Brema
Page 2
687 mm
27 1/16"
P
Ice Finger
495 mm
19 8/16"
IMF 35
Self-contained ice maker - Paddle system
Daily production up to 40 kg
Working conditions
• Location: Indoor
580 mm
22 13/16"
H
L
Ambient temperature
Water temperature
Voltage
Water inlet pressure
Performances
Min Max
+10° C / +50° F
+3° C / +37° F
-10%
1bar (14 psi)
+43° C / 110° F
+32° C / +90° F
+10 %
6bar (84 psi)
3
1
110-150 mm
4 5/16-5 14/16"
2
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1
Water in.: 111 mm / 4 6/16” - 196 mm / 7 11/16” - 3/4”
3
Electrical connections: 156 mm / 6 2/16” - 232 mm / 9 2/16”
Technical information
Production in 24h
Store capacity, up to
Cooling system
Kind of cube
Refrigerant
Standard voltage
Average power consumption
Fuse
Finish
AISI 304 stainless steel, scotch brite
35 kg / 77 lbs
15 kg / 33 lbs
A - W
A-20g
R452A
220-240 V ~ 50 Hz
310 W
10 A
Water temperature
7° C
40 kg
10° C
50° F
21° C
70° F
32° C
Air temperature
90° F
2
Water out.: 49 mm / 1 15/16” - 151 mm / 5 15/16” - 24 mm / 15/16”
Water consumption
15° C 21° C45° F 60° F 70° F
88 lbs
35 kg
77 lbs
24 kg
53 lbs
A: 4,4 l/kg - 52,7 gal/100 lbs
W: 13,3 l/kg - 159,4 gal/100 lbs
Sizes (L-P-H mm)
(L-P-H in)
Sizes with pack (L-P-H mm)
(L-P-H in)
Net weight
Gross weight
495 - 580 - 687
19 8/16 - 22 13/16 - 27 1/16
550 - 630 - 880
21 10/16 - 24 13/16 - 34 10/16
47 kg / 104 lbs
55 kg / 121 lbs
All the technical information must be considered at the following conditions:
Sizes without feet
Standard Cube (20 g)
Ambient temperature +21° C
Water temperature +15° C
Average power consumption at +43° C (standard voltage)
Models and specications are subject to change without notice
www.bremaice.it
Rev. 03 - Issued May 2018
