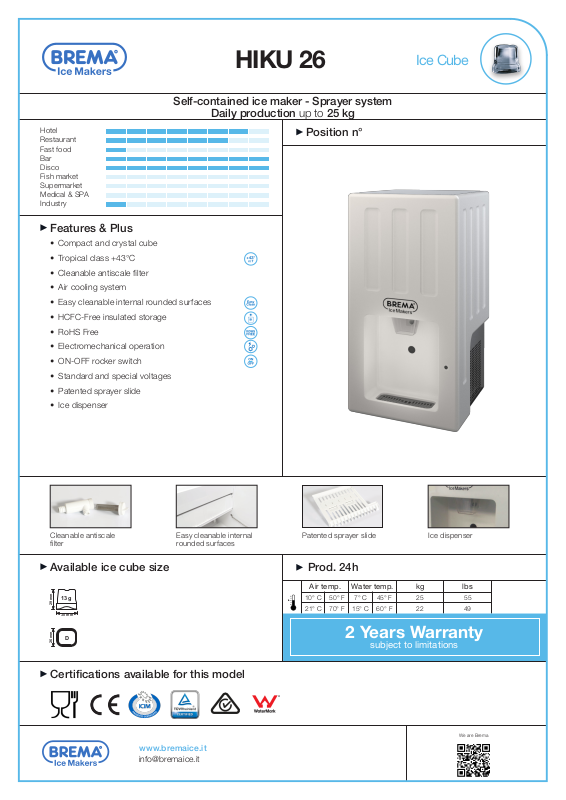

Page 1
29 mm
26 mm
31 mm
35 mm
31 mm
18 g
39 mm
40 mm
35 mm
33 g
43 mm
42 mm
39 mm
42 g
51 mm
42,5 mm
45 mm
63 g
A
C
E
B
HIKU 26
Self-contained ice maker - Sprayer system
Daily production up to 25 kg
Ice Cube
Hotel
Restaurant
Fast food
Bar
Disco
Fish market
Supermarket
Medical & SPA
Industry
Features & Plus
• Compact and crystal cube
• Tropical class +43°C
• Cleanable antiscale lter
• Air cooling system
• Easy cleanable internal rounded surfaces
• HCFC-Free insulated storage
• RoHS Free
• Electromechanical operation
• ON-OFF rocker switch
• Standard and special voltages
• Patented sprayer slide
• Ice dispenser
Position n°
Cleanable antiscale
lter
rounded surfaces
Available ice cube size
13 g
30 mm
D
Certications available for this model
www.bremaice.it
Patented sprayer slide Ice dispenserEasy cleanable internal
Prod. 24h
Air temp.
10° C
50° F
21° C
70° F
Water temp. kg
7° C
45° F
15° C
60° F
25 55
22 49
lbs
2 Years Warranty
subject to limitations
We are Brema
Page 2
790 mm
Ice Cube
HIKU 26
Self-contained ice maker - Sprayer system
Daily production up to 25 kg
Working conditions
• Location: Indoor
395 mm
15 9/16"
530 mm
20 14/16"
H
31 2/16"
P
3
Connections
All measures are referred to the rear bottom-left corner (L-H-Ø)
1
Water in.: 191 mm / 7 8/16” - 136 mm / 5 6/16” - 3/4”
3
Electrical connections: 175 mm / 6 14/16” - 211 mm / 8 5/16”
L
1
2
Min Max
Ambient temperature
Water temperature
Voltage
Water inlet pressure
+10° C / +50° F
+3° C / +37° F
-10%
1bar (14 psi)
+43° C / 110° F
+32° C / +90° F
+10 %
6bar (84 psi)
Performances
Water temperature
7° C
25 kg
10° C
50° F
21° C
70° F
32° C
Air temperature
90° F
2
Water out.: 197 mm / 7 12/16” - 36 mm / 1 7/16” - 24 mm / 15/16”
15° C 21° C45° F 60° F 70° F
55 lbs
22 kg
49 lbs
18 kg
40 lbs
Technical information
Production in 24h
Store capacity, up to
Cooling system
Kind of cube
Refrigerant
Standard voltage
Average power consumption
Fuse
Delivered ice
All the technical information must be considered at the following conditions:
Sizes without feet
Standard Cube (13 g)
Ambient temperature +21° C
Water temperature +15° C
Average power consumption at +43° C (standard voltage)
Refrigerant R404A
Models and specications are subject to change without notice
www.bremaice.it
22 kg / 49 lbs
7 kg / 15 lbs 395 - 530 - 790
A
D-13 g
R404A - R452A
220-240 V ~ 50 Hz
250 W
10 A
1,3 kg/min
Water consumption
Sizes (L-P-H mm)
(L-P-H ”)
Sizes with pack (L-P-H mm)
(L-P-H ”)
Net weight
Gross weight
Finish
A: 4,5 l/kg - 53,9 gal/100 lbs
15 9/16 - 20 14/16 - 31 2/16
430 - 580 - 970
16 15/16 - 22 13/16 - 38 3/16
41 kg / 90 lbs
48 kg / 106 lbs
Polyethylene
Rev. 03 - Issued May 2018
