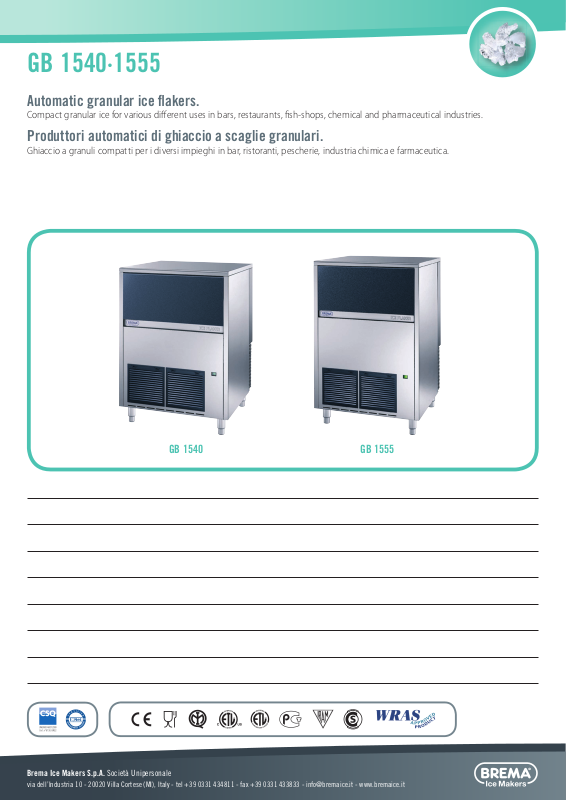

GB 1540·1555
Automatic granular ice flakers.
Compact granular ice for various di erent uses in bars, restaurants, fish-shops, chemical and pharmaceutical industries.
Produttori automatici di ghiaccio a scaglie granulari.
Ghiaccio a granuli compatti per i diversi impieghi in bar, ristoranti, pescherie, industria chimica e farmaceutica.
GB 1540 |
GB 1555 |
<![endif]>ver. 3.0
Brema Ice Makers S.p.A. Società Unipersonale
via dell’Industria 10 - 20020 Villa Cortese (MI), Italy - tel +39 0331 434811 - fax +39 0331 433833 - info@bremaice.it - www.bremaice.it
GB 1540·1555
738 |
mm |
|
<![endif]>920 mm
P
110 -150 mm
738 |
mm |
|
690 |
mm |
|
H
<![if ! IE]><![endif]>1020 mm
L P
|
3 |
|
2 |
1 |
|
110 -150 mm |
||
|
690 |
mm |
|
H
L
3
1
2
GB 1540 |
|
|
GB 1555 |
|
|
|
|
CONNECTIONS / CONNESSIONI |
GB 1540 |
|
|
|
GB 1555 |
|
|
|
|
|
|
||||
Water inlet / Ingresso acqua |
104 |
247 |
3/4” |
|
104 |
247 |
3/4” |
|
|
|
|
|
|
|
|
Water outlet / Scarico acqua |
53 |
240 |
24 mm |
|
53 |
240 |
24 mm |
|
|
|
|
|
|
|
|
Electrical connection / Connessione elettrica |
92 |
319 |
- |
|
92 |
319 |
- |
TECHNICAL INFORMATION / DATI TECNICI |
GB 1540 |
|
|
|
GB 1555 |
|
|
|
|
|
|
||||
Production in 24 h, till / Produzione in 24 h, sino a |
150 kg |
|
|
|
150 kg |
|
|
|
|
|
|
|
|
|
|
Storage capacity / Capacità contenitore |
40 kg |
|
|
|
55 kg |
|
|
|
|
|
|
|
|
|
|
Cooling system / Condensazione |
A - W |
|
|
|
A - W |
|
|
|
|
|
|
|
|
|
|
Refrigerant / Refrigerante |
R404A |
|
|
|
R404A |
|
|
|
|
|
|
|
|
|
|
Standard voltage / Voltaggio standard |
220-240 V ~ |
|
|
|
220-240 V ~ |
|
|
|
|
|
|
|
|
|
|
Electrical consumption / Consumo elettrico |
1200 W |
|
|
|
1200 W |
|
|
|
|
|
|
|
|
|
|
Fuse / Fusibile |
10 A |
|
|
|
10 A |
|
|
|
|
|
|
|
|
|
|
Water consumption (l/kg) / Consumo acqua (l/kg) |
A 1 |
W 6,4 |
|
|
|
A 1 W 6,4 |
|
|
|
|
|
|
|
|
|
Sizes (WxDxH) / Dimensioni [ LxPxH ] |
738x690x920 mm |
|
|
|
738x690x1020 mm |
|
|
|
|
|
|
|
|
|
|
Sizes with packing (WxDxH) / Dimensioni con imballo [ LxPxH ] |
780x735x1085 mm |
|
|
|
780x735x1185 mm |
|
|
|
|
|
|
|
|
|
|
Weight (net/gross) / Peso [ netto/lordo ] |
85/95 kg |
|
|
|
94/105 kg |
|
|
|
|
|
|
|
|
|
|
Finishing 18/8 stainless steel, scotch brite / Finitura acciaio inox 18/8, scotch brite
INSTALLATION CONDITIONS / CONDIZIONI D’INSTALLAZIONE |
Min / Max |
|
CONDITIONS / CONDIZIONI |
|
Installation / Installazione |
indoor / interna |
|
Ambient temperature / Temperatura ambiente |
+21°C |
|
|
|
|
|
Ambient temperature / Temperatura ambiente |
+10 / +43 °C |
|
Water temperature / Temperatura acqua |
+15°C |
|
|
|
|
|
Water temperature / Temperatura acqua |
+3 / +32 °C |
|
Electrical consumption at +43°C (standard voltage) / Consumo elettrico a +43°C (voltaggio standard) |
|
|
|
|
|
|
Voltage / Voltaggio |
± 10% |
|
|
|
|
|
|
|
|
Water inlet pressure / Pressione dell’acqua in ingresso |
1bar (14psi) / 6bar (84psi) |
|
|
|
