GB 1555
LIST OF THE EXPLODED VIEWS
SHELL ASSY
COOLING SYSTEM
EVAPORATOR
HYDRAULIC CIRCUIT
Rev. 15 - 22/01/2014
ELECTRIC PARTS
Page 1
GB 1555
10
1
2
3
4
5
6
7
8
9
11
12
SHELL ASSY
3
Rev. 15 - 22/01/2014
4
Ref. Spare Description Code
1 Foamed Cabinet Assy See T able 2 Cover for Ice Exhoust 22592
12
9
7
1
2
10
5
11
3 T op Assembly C22690
4 Rear Panel Assembly C21202
5 Rear Grid D12020
6 Adjustable St ainless S teel Foot 20613
7* Filtering Panel 18106
8 Frame + Grid & Filter C10205
9 Front Grid Panel C22510
1 0 Base Plate 21284
1 1 Bulbe-holder Pipe 20522
1 2 Door Assy C10275
Ref. 1 - Foamed Cabinet Assy
Condensation Code
Air C11098A
Water C11098W
8
6
Page 2
GB 1555
1
2
3
4
5
6
7
8
Common Parts
COOLING SYSTEM
Ref. Spare Description Code
2
1
3
8
See Exploded View
of the Evaporator
3* Molecular Drier 14009
8 Compressor See Table 5* Vacuum-Charge Valve Plug 14006
6* Vacuum-Charge Valve Device 14005
7 Vacuum-Charge Valve Body 14007
Parts for Air-Cooled Version Only
Ref. Spare Description Code
1 Suckingh Fan 20031
4 Air Condenser Current version 20558
4
Rev. 15 - 22/01/2014
4 Air Condenser Till s/n. 347947 20175
Parts for Water-Cooled Version Only
Ref. Spare Description Code
1 Sucking Fan 10213
2 Water Condenser 14014
7
5
6
Ref. 8 - Compressor
Voltage Code
T11 23832
T12 23578A
T13 23679
T19 23679
Page 3
11
1
2
3
4
5
6
7
9
11
12
13
14
15
8
10
18
16
17
18
GB 1555
18
Rev. 15 - 22/01/2014
18
C11140
KITNEVGB
17
1
2
3
4
5
7
8
6
9
10
11
12
11
13
14
15
16
For Complete Evaporator,
order C11140.
Till s/n. 223592 order
code KITNEVGB.
EVAPORATOR
Ref. Spare Description (from s/n. 211898) Code
1 Insulating Cap 18170
2 Closing Disk 22825
3 Seeger 20043
4 Stainless Steel Screw 20663
5 Shimming Disk 22826
6 Self-Lubricating Disk 20631
7 Stainless Steel Thrust Bearing 20686
8 OR Gasket 3087 20688
9 Ice Breaker 20626
10 Auger Current Version 20783
10 Auger with Screw Till s/n. 223592 C20 783
11 Ceramic Seal 20937
12 Insulated Evaporator C11107
13 OR Gasket 3162 NBR70 20429
14 Reduction Ring Current Version 20785
14 Reduction Ring Till s/n. 223592 20624
15 Stainless Steel Bearing Current Version 20782
15 Stainless Steel Bearing Till s/n. 223592 20045
16 Flange 20629
17 Joint Current Version D20 784
17 Joint Till s/n. 223592 D20 630
18 Evaporator Assy Current Versio C11140
18 Evaporator Assy Till s/n. 223592 KITNEVGB
Page 4
GB 1555
1
2
5
6
7
4
8
HYDRAULIC CIRCUIT
Rev. 15 - 22/01/2014
1
4
2
8
5
6
Common Parts
Ref. Spare Description Code
1 Water Outlet Nipple 10472
2 Silicone Gasket 13006
4* Double Switch Basin Assembly C10 707
5 Semirigid Polyethylene Gasket 13007
6 Bin Discharge Nut 10096
8 Microswitch 23055
Parts for Air-Cooled Version Only
Ref. Spare Description Code
7 Discharges Manifold C10235
Parts for Water-Cooled Version Only
Ref. Spare Description Code
7 Discharges Manifold C10240
7
Page 5
GB 1555
1
10
3
4
5
6
7
8
9
11
12
13
14
3
14

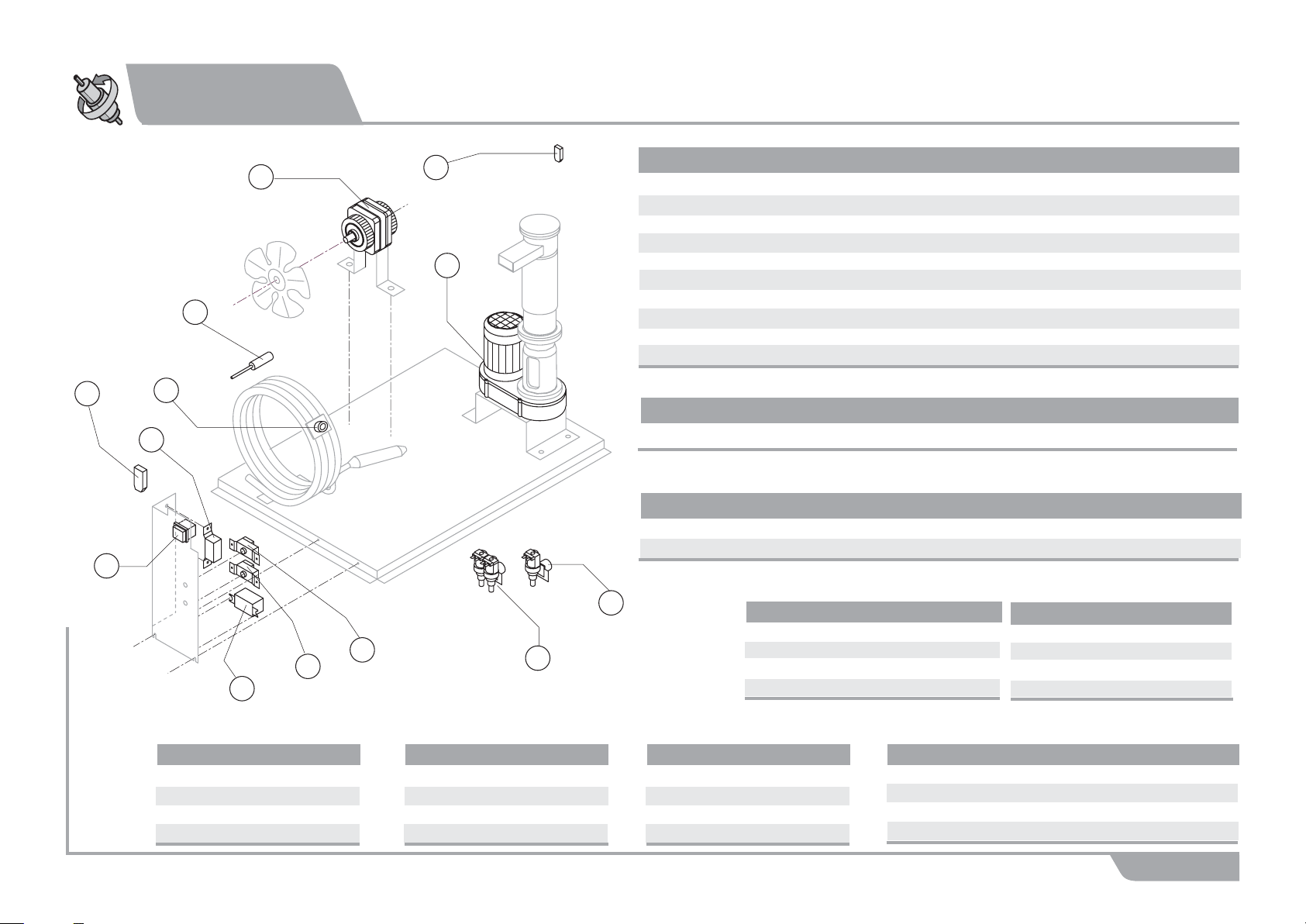

ELECTRIC PARTS
Common Parts
1
13
Ref. Spare Description Code
1 Anti Radio Interference Filter T11 C23 4 5 7
3* Fan Motor See Table 7* Bin Thermostat R23 005
8* Evaporator Thermostat Till s/n. 613004 R23 034
9* Relay See Table -
10* Green Light Switch (On-Off) 23327
11* Condenser Pressure Switch See Table -
12 Anti Radio Interference Filter T11 C23 4 5 9
13 Gearmotor See Table 14 Low pressure safety switch From s/n. 613005 23909
12
4
11
10
Rev. 15 - 22/01/2014
Ref. 6* - 2 Ways-Water Inlet Valve
8
9
Voltage Code
T11 23010
T12 23010
T13 23261
T19 23261
Parts for Air-Cooled Version Only
Ref. Spare Description Code
5* 1 Way- W ater Inlet V alve See Table -
Parts for Water-Cooled Version Only
Ref. Spare Description Code
4* Safety Thermostat C23114
6* 2 Ways- W ater Inlet Valve See Table -
5
7
Ref. 9* - Relay
Voltage Code
T11 23190
T12 23190
T13 23557
T19 23557
6
Ref. 11* - Cond. Pressure Switch
Voltage Code
Ref. 3* - Fan Motor
Voltage Air Water
Tensione
T11 23067 23029
T12 23681 23029
T13 23621 23683
T19 23621 23683
T11 23175
T12 23175
T13 23175
T19 23680
Ref. 13 - Gearmotor
Voltage Current Version Till s/n. 594455
T11 231030 R231030
T12 231030 R231030
T13 231056 R231056
T19 231056 R231056
Ref. 5* - 1 Way-Water Inlet Valve
Voltage Code
T11 23115
T12 23115
T13 23410
T19 23410
Page 6
