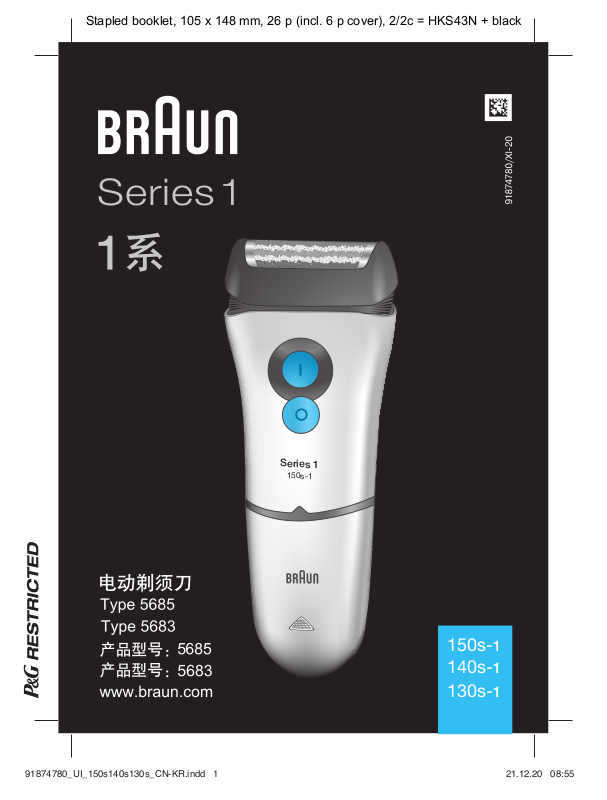

Braun 150s-1, 140s-1, 130s-1 User guide [zh, ko, en]

Series1

Series 1

150s-1

150s-1
140s-1
130s-1

12

15

4

90°

1

2

4

3

A

5

6

Seri

es 1

150s-

1

B

7

8

9

(150s, 140s only)

8h

456

Ni-MH

7

8910

Braun

/

/

/

/

201112 021-54475808; 021-64606449; 021-20916662

213001

226001

315040

325029

510600

518028

650051

430015

610017

350001

361003

330003

530001

0519-88836628

0513-96889688/ 85105088

0574-87774444 / 87771344

0577-88850706

020-87386165(6)

0755-83286255 83286261

0871-63645557

027-85730517/ 85790611

028-86944135 25

0591-87575455/ 87582122 /

87555110

0592-5170118

0791-86215790 /82175587

0771-3118895/3907787

11

121314

491

English

Read these instructions
completely, they contain
safety information. Keep
them for future reference.

Detach the shaver from
the power supply before
cleaning the shaver head
in water.

This appliance can be

WARNING

Your appliance is provid­ed with a special cord
set, which has an inte­grated Safety Extra Low
Voltage power supply.
Do not exchange or
tamper with any part of
it, otherwise there is risk
of electric shock. Only
use the special cord set
provided with the appliance.

If the appliance is marked

491

, you can use it with
any Braun power supply
coded 491-XXXX.

Never use the appliance
with a damaged foil or
cord.

The shaver head is
suitable for clean­ing under running tap
water.

used by children aged
from 8 years and above
and persons with
reduced physical, sen­sory or mental capabili­ties or lack of experience
and knowledge if they
have been given super­vision or instruction
concerning the safe use
of the appliance and
understand the hazards
involved. Children shall
not play with the appliance.

Cleaning and user main­tenance shall not be
made by children unless
they are supervised.

Oil bottle (not with all
models)

Keep out of reach of
children. Do not swallow.

15

Do not apply to eyes.
Dispose of properly when
empty.

Description

1 Foil protection cap
2 Shaver foil
3 Cutter block
4 Long hair trimmer

(150s, 130s only)
5 On switch
6 Off switch
7 Power LED

(150s, 140s only)
8 Shaver power socket
9 Special cord set

(design can differ)

Recommended ambient
temperature for shaving is
15 °C to 35 °C. Do not
expose the shaver to
temperatures higher
than 50 °C for extended
periods of time.

• Using the special cord
set (9) connect the
shaver to an electrical
outlet with the motor
switched off because the
battery won’t charge
unless the shaver is
switched off.

• To make sure that the
shaver is switched off,
press the
before you start charging.

switch (6)

Charging

(150s, 140s only)
Recommended ambient

temperature for charging is
5 °C to 35 °C. The battery
may not charge properly
or at all under extreme low
or high temperatures.

16

• When charging for the
first time, leave the
shaver to charge contin­uously for 16 hours.

• The power LED (7)
indicates that the shaver
is connected to an
electrical outlet.

• Subsequent charges will
take about 8 hours.

• A full charge provides up
to 20 minutes of cordless
shaving time. This may
vary according to your
beard growth.

• Maximum battery capa-
city will only be reached
after several charging/
discharging cycles.

Shaving

Press the on switch (5) to
operate the shaver.

To trim sideburns, mous­tache or beard, slide the
long hair trimmer (4)
upwards.

Tips for the perfect
dry shave

For best shaving results,
Braun recommends you
to follow 3 simple steps:

1. Always shave before
washing your face.

2. At all times, hold the
shaver at right angles
(90°) to your skin.

3. Stretch your skin and
shave against the
direction of your beard
growth.

Cleaning

Regular cleaning ensures
better shaving perfor­mance. Rinsing the shaver
head under running water
after each shave is an
easy and fast way to keep
it clean (A):

• Switch the shaver on

(models 150s/ 140s only)
cordless and rinse the

17

shaver head under hot
running water until all
residues have been
removed.

• You may use liquid soap
without abrasive sub­stances. Rinse off all
foam and let the shaver
run for a few more
seconds.

• Next, (model 150s, 140s:
switch off the shaver)
remove the shaver foil (2)
and cutter block (3).
Then leave the disassem­bled shaving parts to dry.

• If you regularly clean the
shaver under water, then
once a week apply a
drop of light machine oil
onto the long hair trim­mer (4) and shaver foil.

Alternatively, you may
clean the shaver with a
brush (B):

• Switch off the shaver.
Remove the shaver foil

18

and tap it out on a flat
surface.

• Using the brush, clean
the cutter block and the
inner area of the shaver
head. However, do not
clean the shaver foil with
the brush as this will
damage the foil.

Keeping your shaver
in top shape

Replacing the shaver
foil and cutter block

To maintain 100% shaving
performance, replace the
shaver foil (2) and cutter
block (3) at least every
18 months or when worn.
Change both parts at the
same time for a closer
shave with less skin
irritation. (Shaver foil and
cutter block: 11B)

Environmental notice

P

roduct contains
batteries and/or
recyclable electric
waste.
For environment protection
do not dispose of in house ­hold waste, but for recy­cling take to electric waste
collection points provided
in your country.

Subject to change without
notice.

Guarantee

We grant a 2-year guaran­tee on the product com­mencing on the date of
purchase. Within the
guarantee period we will
eliminate any defects in the
appliance resulting from
faults in materials or
workmanship, free of
charge either by repairing
or replacing the complete
appliance at our discretion.

Depending on availability
replacement might result
in a different color or an
equivalent model.
This guarantee extends to
every country where this
appliance is supplied by
Braun or its appointed
distributor.

This guarantee does not
cover: damage due to
improper use, normal
wear and tear (e.g. shaver
foil or cutter block) as well
as defects that have a
negligible effect on the
value or operation of the
appliance. The guarantee
becomes void if repairs
are undertaken by unau­thorised persons and if
original Braun parts are
not used.

To obtain service within
the guarantee period,
hand in or send the com­plete appliance with your

19

sales receipt to an author­ised Braun Customer
Service Centre
(address information
available online at
www.service.braun.com).

For UK only:

This guarantee in no way
affects your rights under
statutory law.

For Australia & New Zea­land only:
In Australia, our goods
come with guarantees
that cannot be excluded
under the Australian
Consumer Law. You are
entitled to a replacement
or refund for a major
failure and for compen­sation for any other
reasonably foreseeable
loss or damage. You are
also entitled to have the
goods repaired or re­placed if the goods fail

to be of acceptable
quality and the failure
does not amount to a
major failure.

The benefits given by
this warranty are in
addition to other rights
and remedies of the
consumer law.

For warranty claims
please contact:

Procter & Gamble
Australia Pty Ltd
Level 4, 1 Innovation Road
Macquarie Park, NSW 2113

Telephone (AU):
1 800 641 820
Telephone (NZ):
0 800 108 909
Email (AU and NZ):
Visit link
https://pgconsumersupport.
secure.force.com/Contact
Us/emailus

Our Warranty

This appliance is also
covered by a 24 Month

Replacement Warranty
commencing on the date
of purchase
(Our Warranty).

Our Warranty applies in
all States and Territories
of Australia and in New
Zealand and is in addi­tion to any mandatory
statutory obligations
imposed on Procter &
Gamble Australia Pty.
Ltd., its distributors and
its manufacturer. Our
Warranty does not pur­port to exclude, restrict
or modify any such
mandatory statutory
obligations.

Our Warranty only covers
defects in the appliance
resulting from faults in
workmanship or materials.
Therefore, if your appli­ance becomes faulty as a
result of faults in work­manship or materials, it
will be exchanged by your

retailer, on presentation of
proof of purchase.

Our Warranty only applies
to domestic or household
use of this appliance and
the warranty will only
apply if the correct operat­ing instructions included
with this product have
been followed. For any
appliance replaced under
this warranty, Our Warran­ty ends on the expiry of
the warranty period that
applied to the original
appliance.

Our Warranty does not
cover:

A. Damage arising from

B. Breakages to shaver

C. Normal wear due to

improper use or
operation on incorrect
voltages.

foils, glass jars, etc.

moving parts.

D. Repairs undertaken by

unauthorised service
personnel or use of
non genuine parts.

E. Appliances that are

outside the warranty
period or are not
faulty.

This appliance is not
intended for use by young
children or infirm persons
without supervision.
Young children should be
supervised to ensure that
they do not play with the
appliance.

If the appliance is powered
by a cord extension set or
electrical portable outlet
device these should be
positioned so they are not
subject to splashing or
ingress of moisture.
To the extent
permitted by the laws of
the Commonwealth of

22

Australia and New Zea­land and applicable laws
of a State or Territory of
Australia, and without
affecting any mandatory
statutory obligations
imposed by law, Our
Warranty is given in
exchange for any other
rights you may have
against Procter & Gamble
Australia Pty. Ltd. or its
distributors or manufac­turer, whether at law, in
tort (including negligence),
in equity or under statute.

Please retain proof of
purchase of this appli­ance. If you have any
questions in relation to
Our Warranty, please call
our Consumer Service line
(see below for numbers).

If you intend to make a
claim please telephone our
Customer Service line on
the numbers set out below

to obtain information about
your claim and any costs
associated with claiming
under Our Warranty. You
will bear the cost of retur­ning your product to us.

Repairs and service

If you are sending your
appliance for repair under
Our Warranty, please pack
the appliance adequately
and send it to your nearest
Service Agent, at your
expense. Should your
Braun product require
service, please call (free
call) for Australia 1800

641 820 or New Zealand
0800 108 909 to be

referred to the Authorized
Braun Service Center
closest to you or visit
www.service.braun.com.

23

Please note down the suggested
replacement date (in 18 months
from now) below replacement
part reference number.

11B

//
