Branson K62, K68, K72, K78 Operator's Manual

Branson K series

Operator’s Manual

PREFACE

THANK YOU FOR PURCHASING A BRANSON K SERIES TRACTOR.

►

BEFORE USE, READ AND UNDERSTAND THIS MANUAL COMPLETE.

1. After reading this manual, keep it close to the tractor for immediate reference

2. Any one operating this tractor should review this manual.

3. In case this manual is lost or damaged, please contact your nearest authorized dealer for a copy.

4. Some parts of this product may have been changed for the improvement of quality or for safety reason.

5. In this case, the photographs or drawings of such parts in this booklet may not be the same as the actual parts installed on this product.

6.Ifyoundanythinginthismanualunclearorinneedoffurtherexplanation,pleasecontactyourauthorized

dealer for inquiry.

BRANSON K SERIES 트랙터-영문판-00.indd1 1 2014-09-02 오후 6:36:59

BRANSON K SERIES 트랙터-영문판-00.indd2 2 2014-09-02 오후 6:36:59



GENERAL PRECAUTIONS

...................................................



ABOUT WARRANTY

............................................................



OVERVIEW OF THE TRACTOR

............................................



FUNCTIONS

...........................................................................



OPERATION & WORK

...........................................................



MAINTENANCE AFTER WORK

............................................



PERIODIC MAINTENANCE AND ADJUSTMENT

.................



TROUBLE SHOOTING

..........................................................



SPECIFICATIONS

..................................................................



INDEX

.....................................................................................

1

2

3

4

5

6

7

8

9

SECTION

TABLE OF CONTENTS

10

BRANSON K SERIES 트랙터-영문판-00.indd3 3 2014-09-02 오후 6:37:00

TABLE OF CONTENTS

GENERAL PRECAUTIONS .........................1-1

TO ENSURE SAFE OPERATION ....................1-2

ABOUT WARRANTY2-1

WARRANTY .....................................................2-2

TROUBLE SHOOTING ....................................2-2

OVERVIEW OF THE TRACTOR ................. 3-1

EXTERIOR VIEW .............................................3-2

FUNCTIONS ................................................. 4-1

SWITCHES AND LEVERS ............................... 4-3

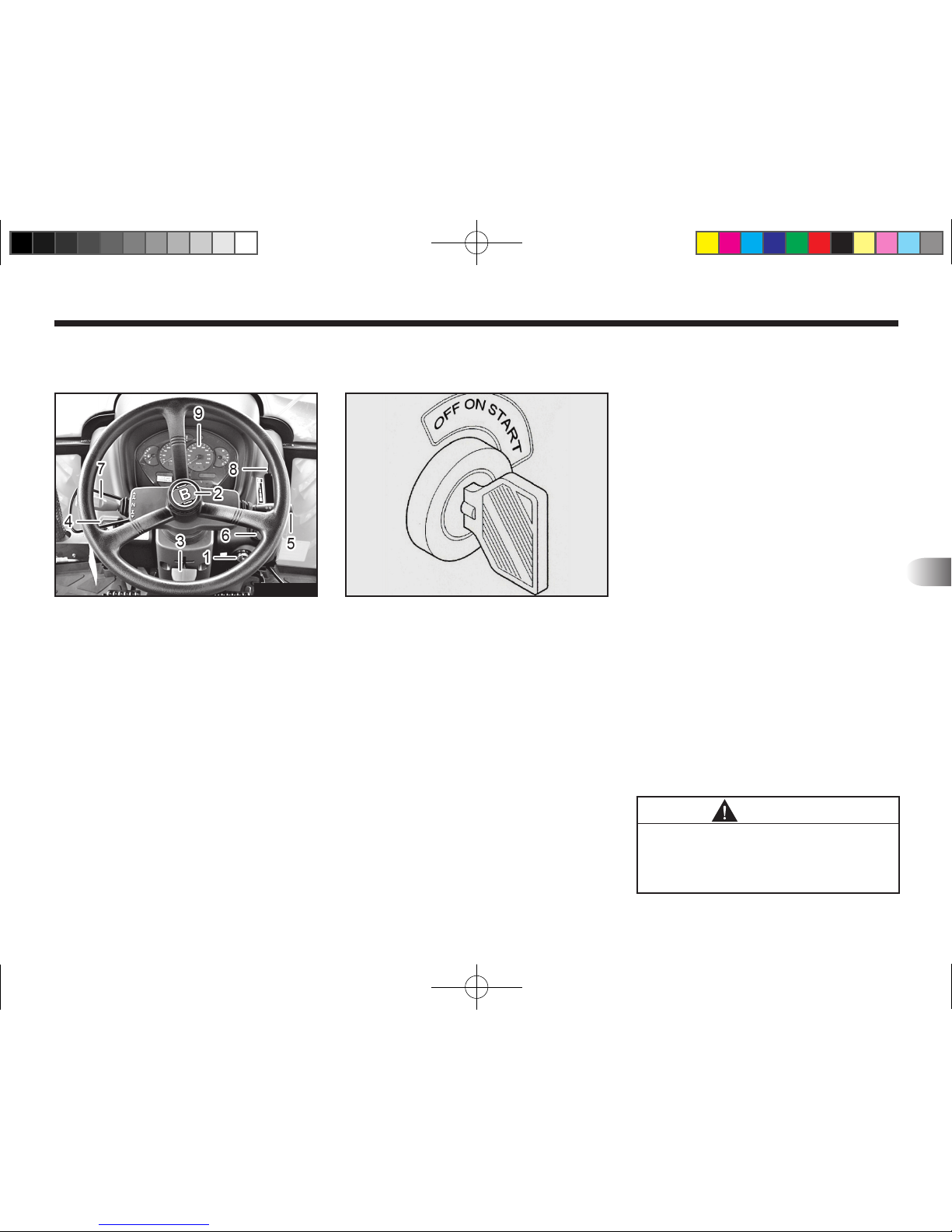

MAIN KEY SWITCH .............................................. 4-3

TELESCOPIC ADJUST CAP ................................. 4-4

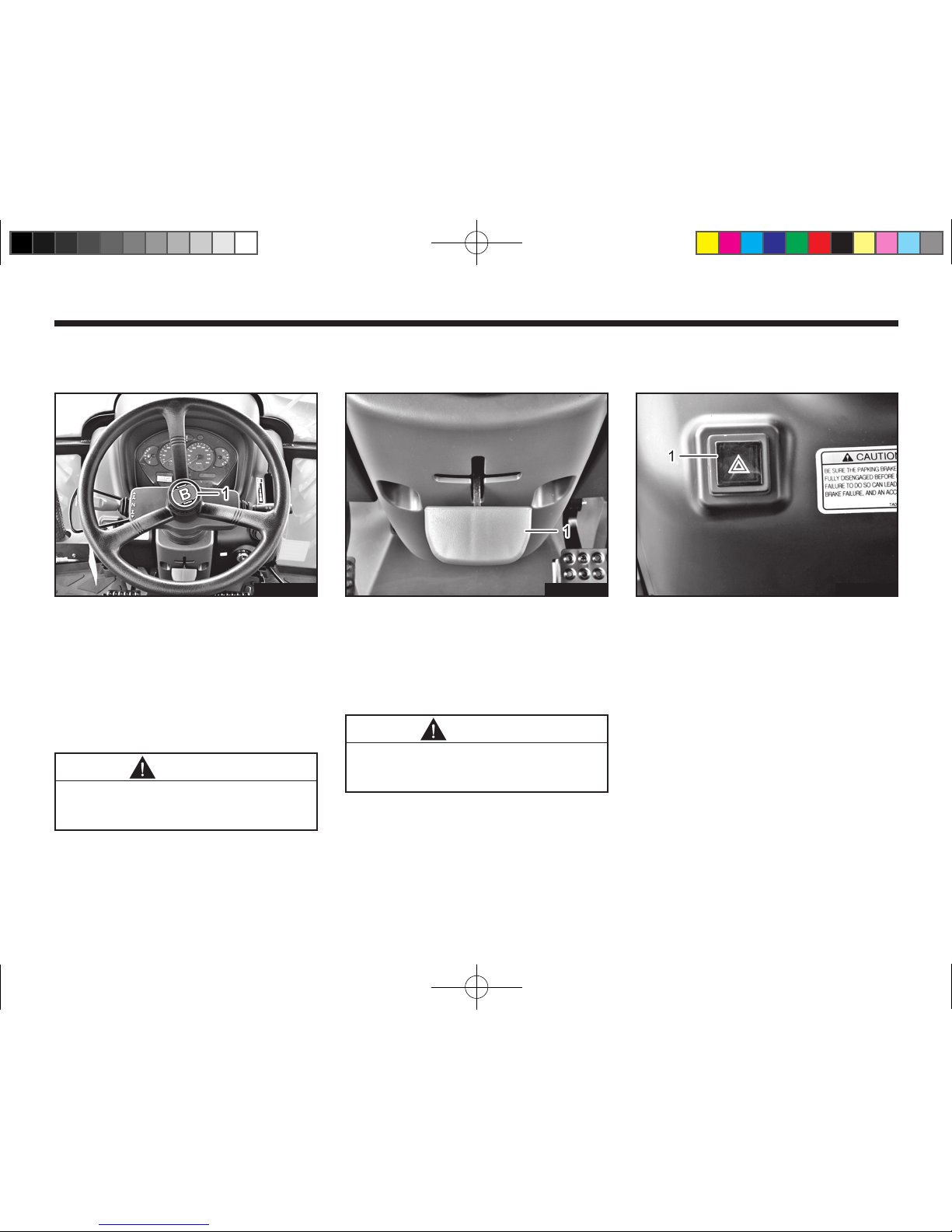

STEERING COLUMN TILT LEVER ....................... 4-4

EMERGENCY LAMP SWITCH ............................. 4-4

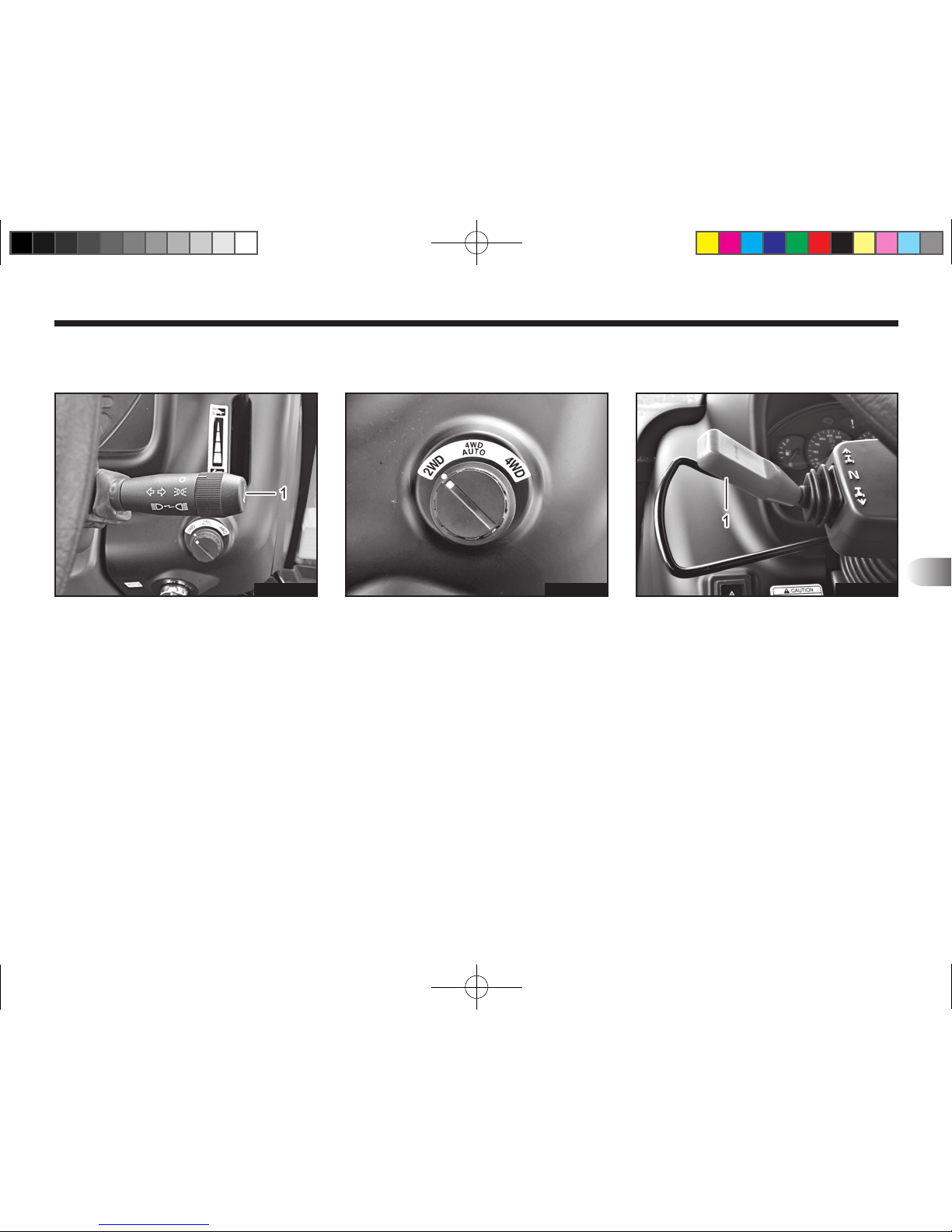

COMBINATION LAMP SWITCH ........................... 4-5

4WD SHIFT SWITCH ............................................ 4-5

F/R SHUTTLE LEVER .......................................... 4-5

HAND THROTTLE ................................................ 4-6

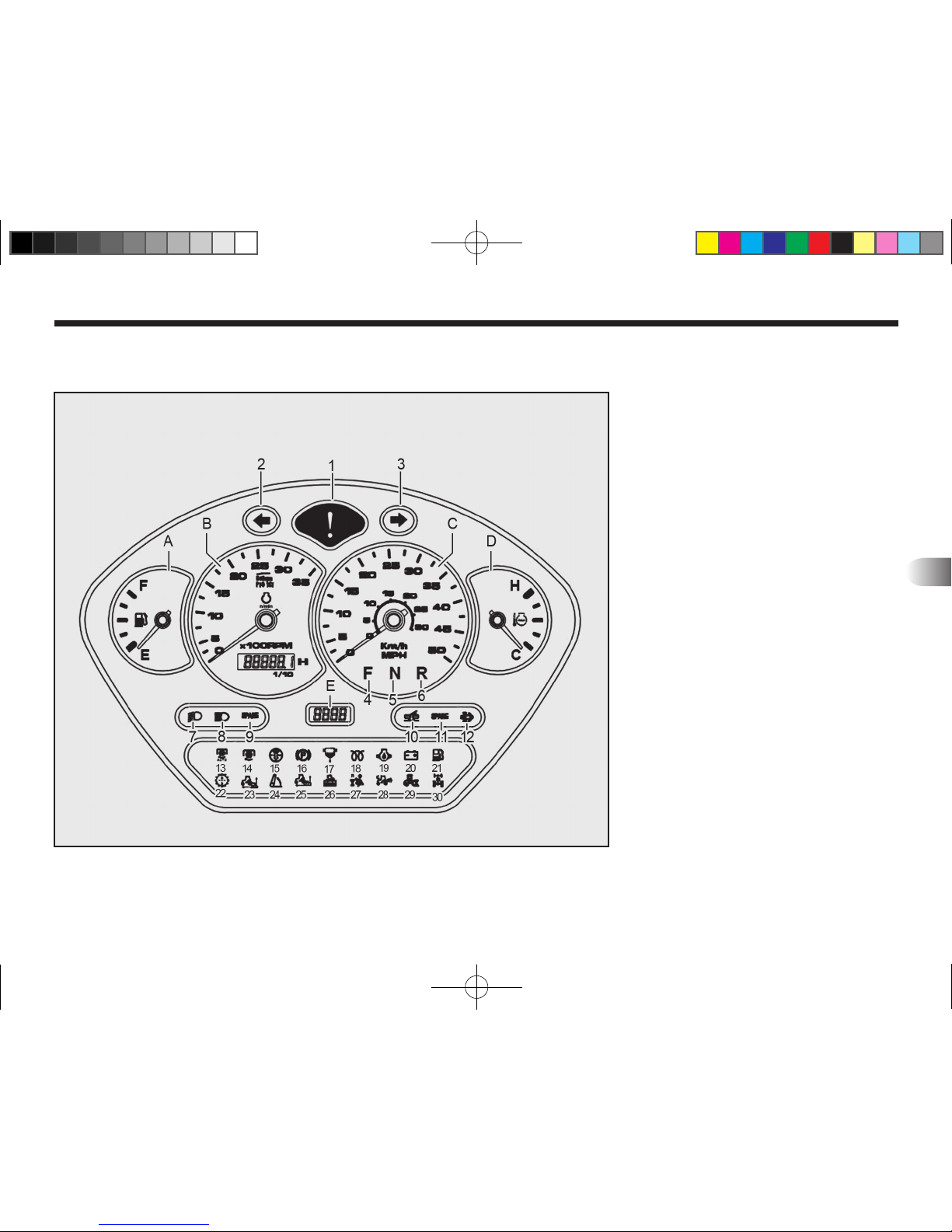

DASH METER ASSY .......................................4-7

WARNING LAMP .................................................. 4-8

DIRECTION INDICATOR LAMP ........................... 4-8

FORWARD/NEUTRAL/REVERSE INDICATOR .... 4-8

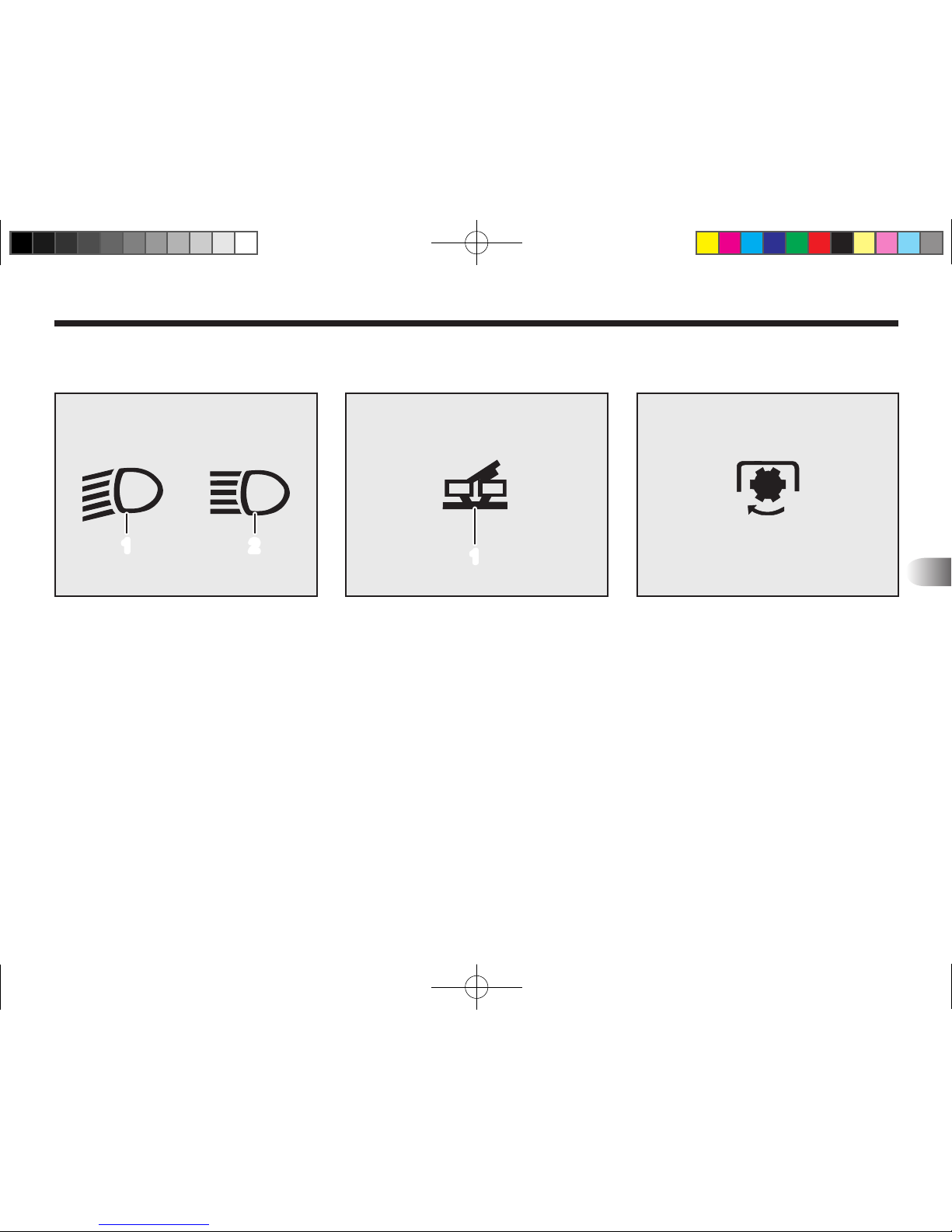

LOW BEAM/HIGH BEAM LAMP ........................... 4-9

BRAKE PEDAL CONNECTION ............................ 4-9

AUTO PTO LAMP ................................................. 4-9

PTO LAMP .......................................................... 4-10

PARKING BRAKE LAMP ..................................... 4-10

PRE-HEAT LAMP ................................................ 4-10

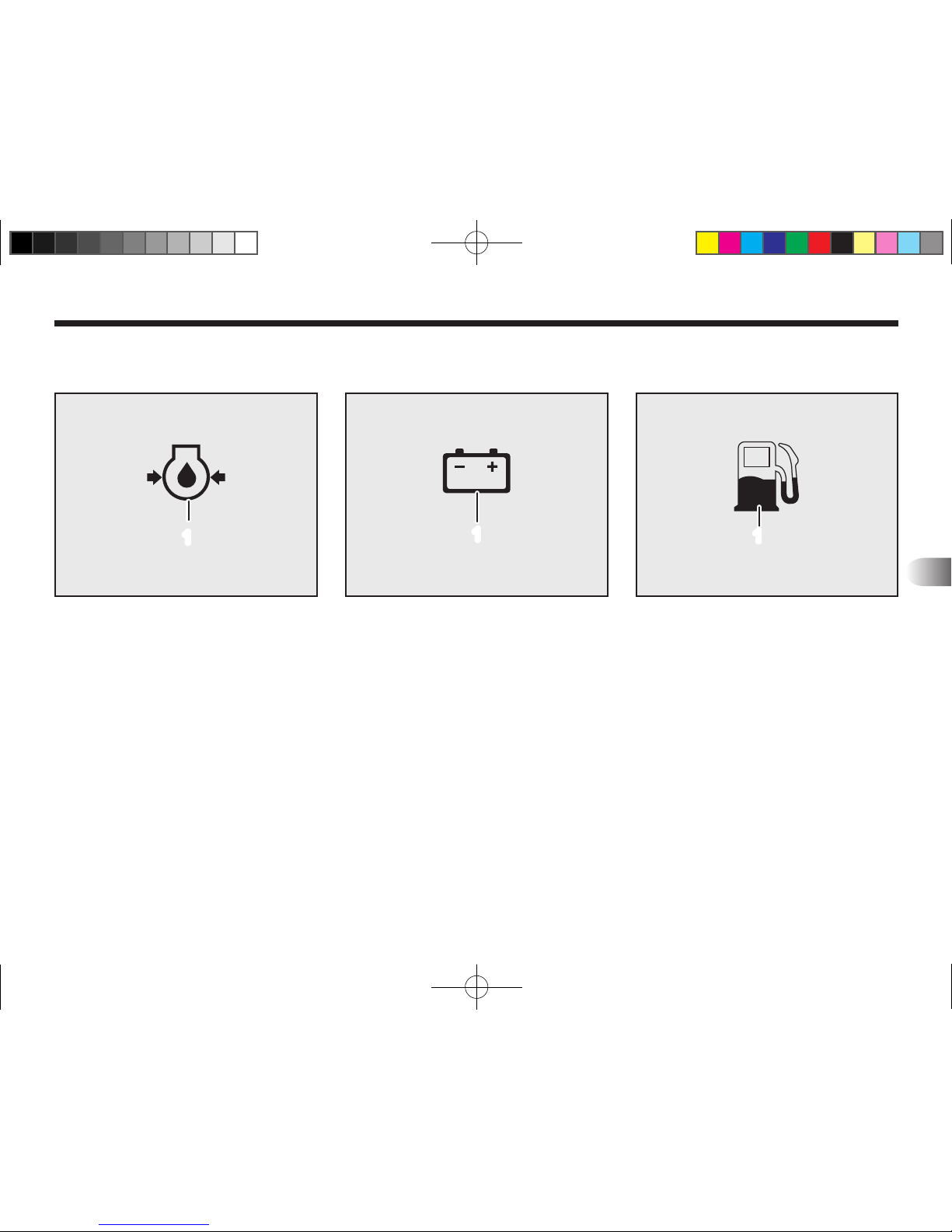

ENGINE OIL PRESSURE LAMP ........................ 4-11

BATTERY CHARGING LAMP ............................. 4-11

FUEL EMPTY LAMP ........................................... 4-11

TRANSMISSION WARNING LAMP .................... 4-12

LIFT UP LAMP .................................................... 4-12

TOWING POWER LAMP .................................... 4-12

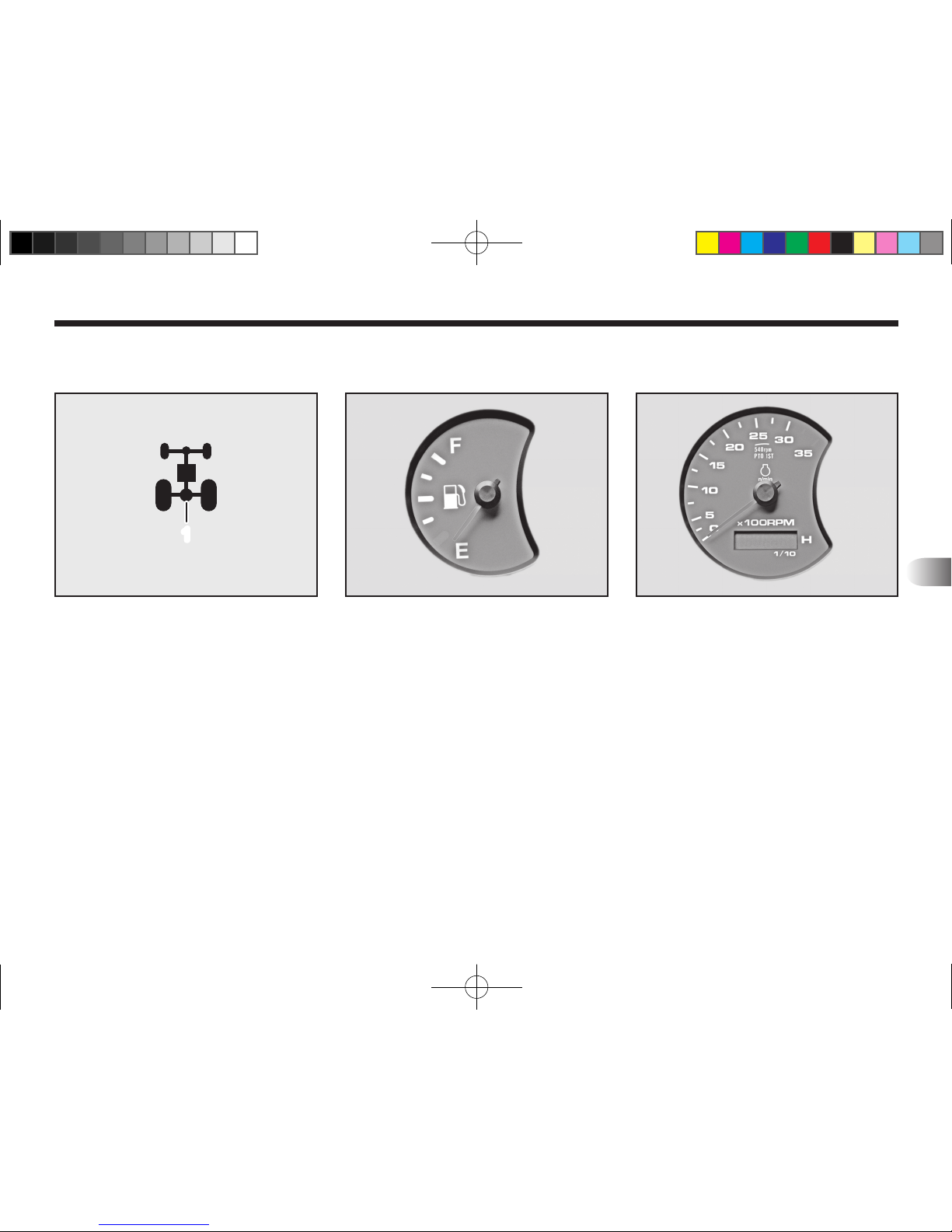

MFWD LAMP ...................................................... 4-13

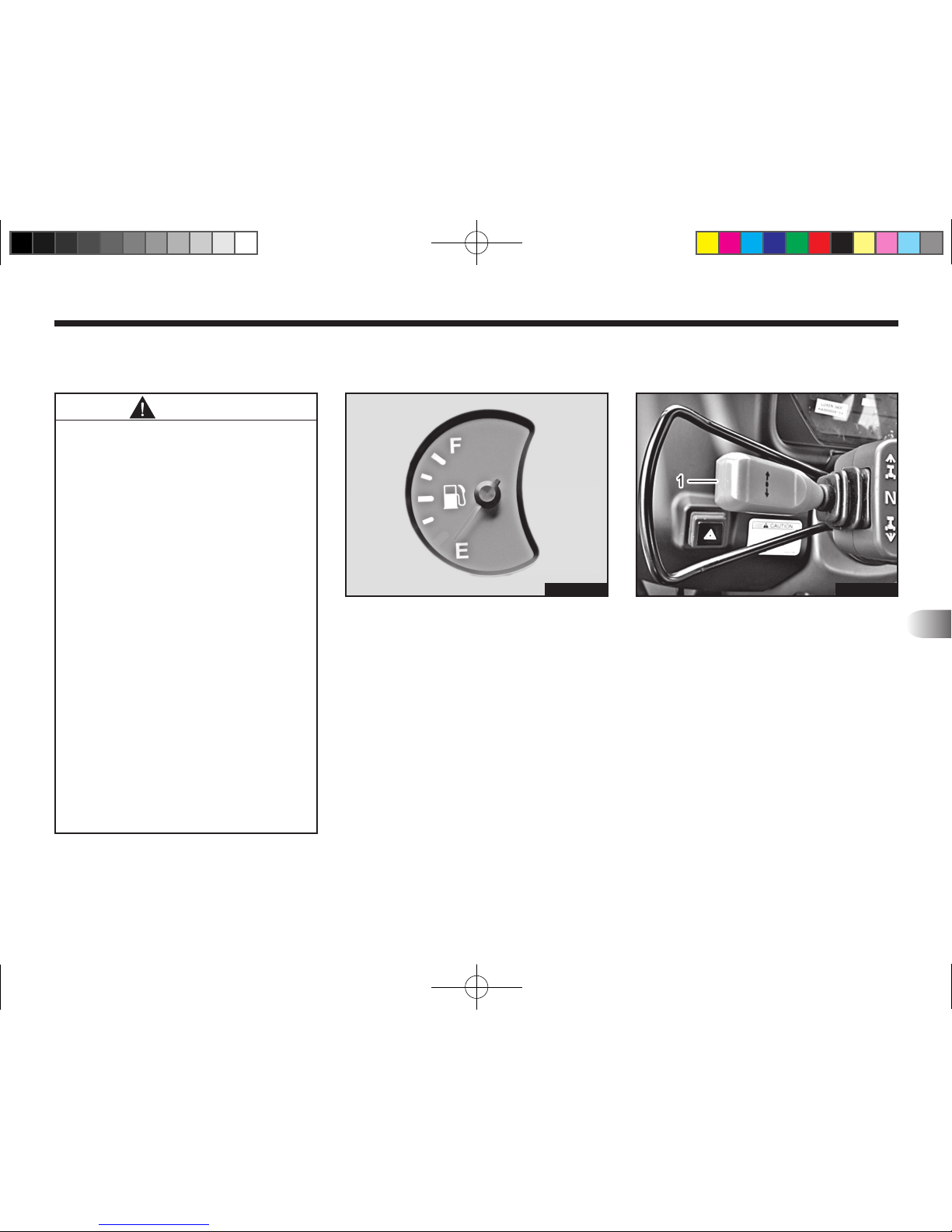

FUEL GAUGE ..................................................... 4-13

RPM GAUGE/ENGINE USING HOUR METER .. 4-13

BRANSON K SERIES 트랙터-영문판-00.indd4 4 2014-09-02 오후 6:37:00

TABLE OF CONTENTS

SPEEDOMETER ................................................. 4-14

WATER TEMP GAUGE ....................................... 4-14

ERROR CODE DISPLAY MONITOR .................. 4-14

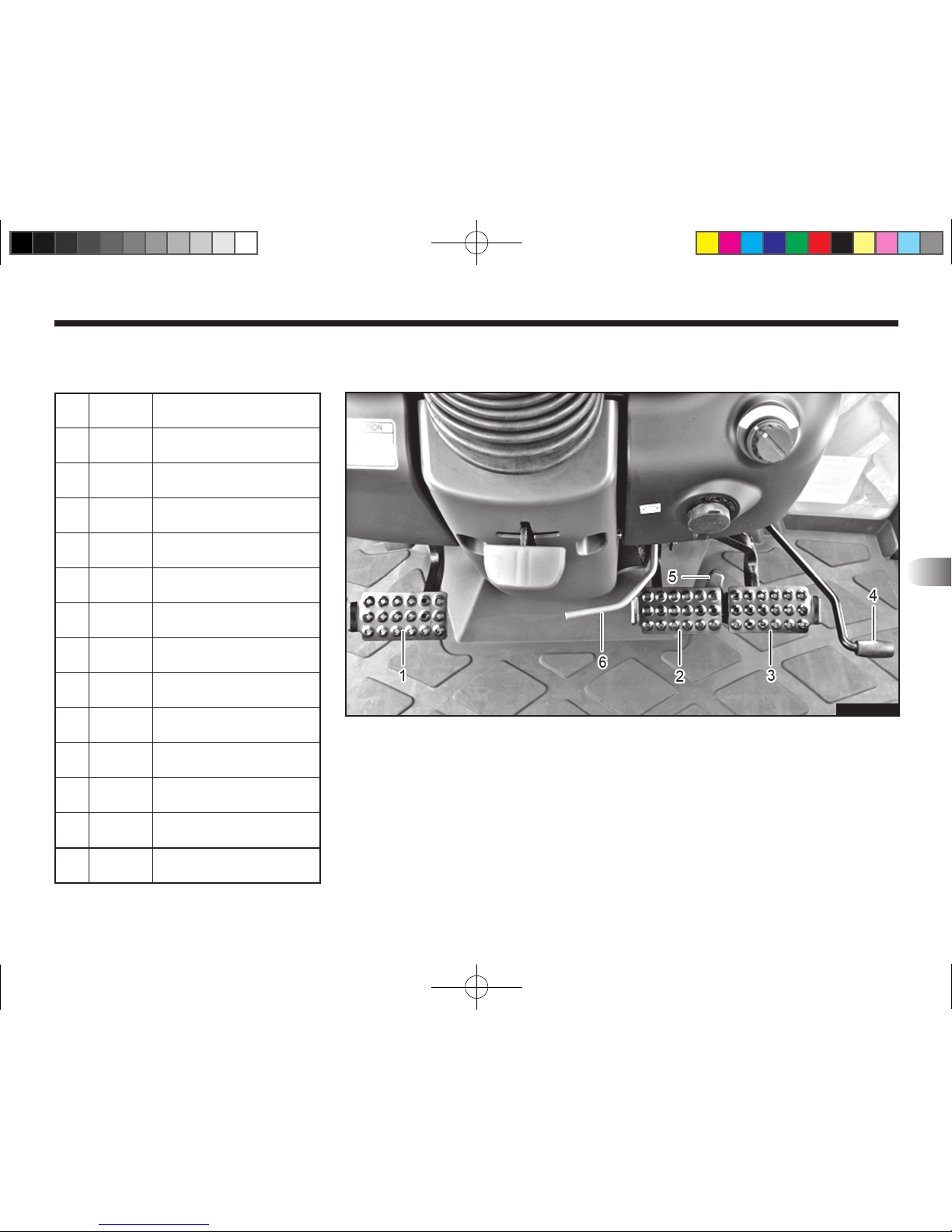

PEDALS .........................................................4-15

CLUTCH PEDAL ................................................. 4-16

BRAKE PEDALS AND COUPLER ...................... 4-16

ACCELERATOR PEDAL ..................................... 4-17

PARKING BRAKE LEVER .................................. 4-17

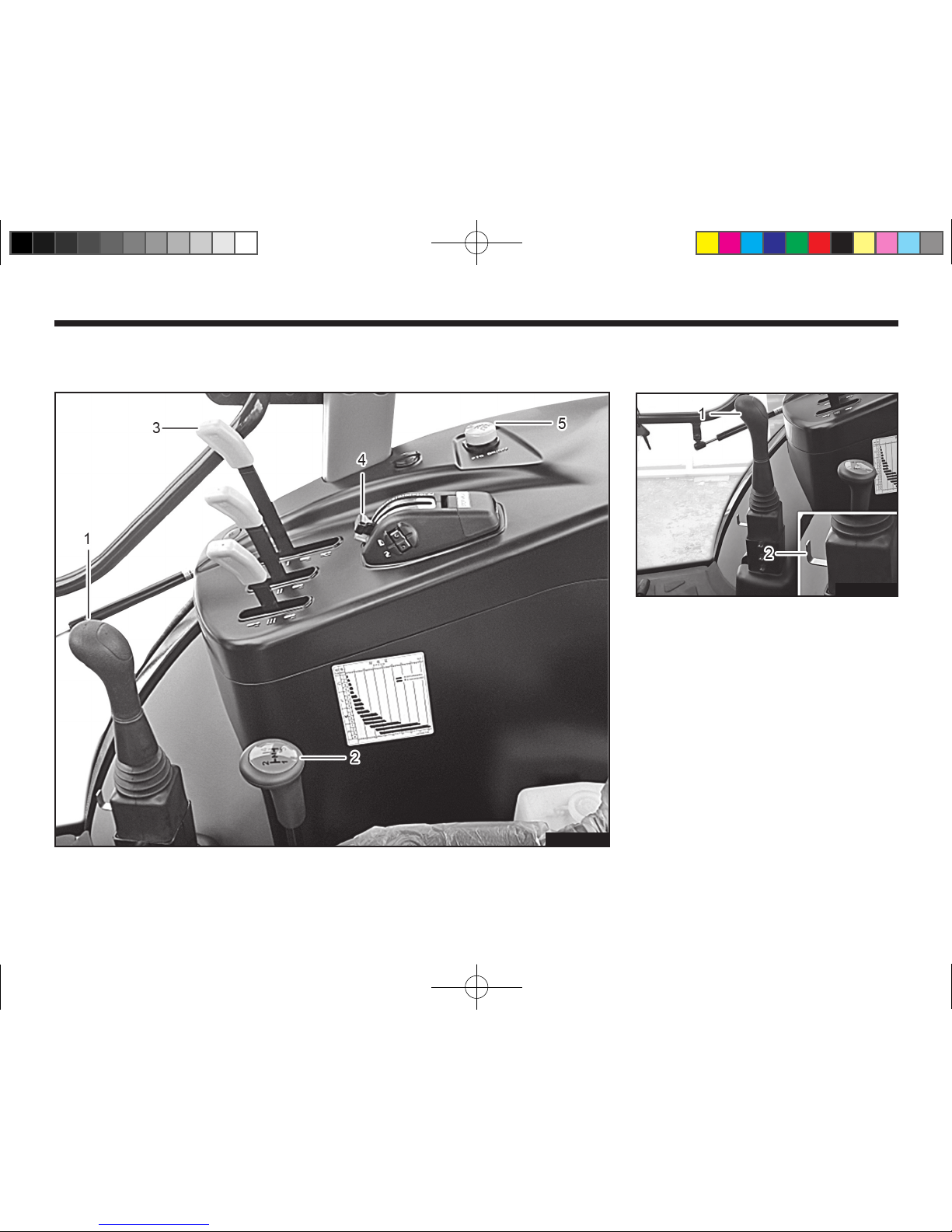

LEVER OPERATION (R) ................................4-18

MID REMOTE VALVE JOYSTICK ....................... 4-18

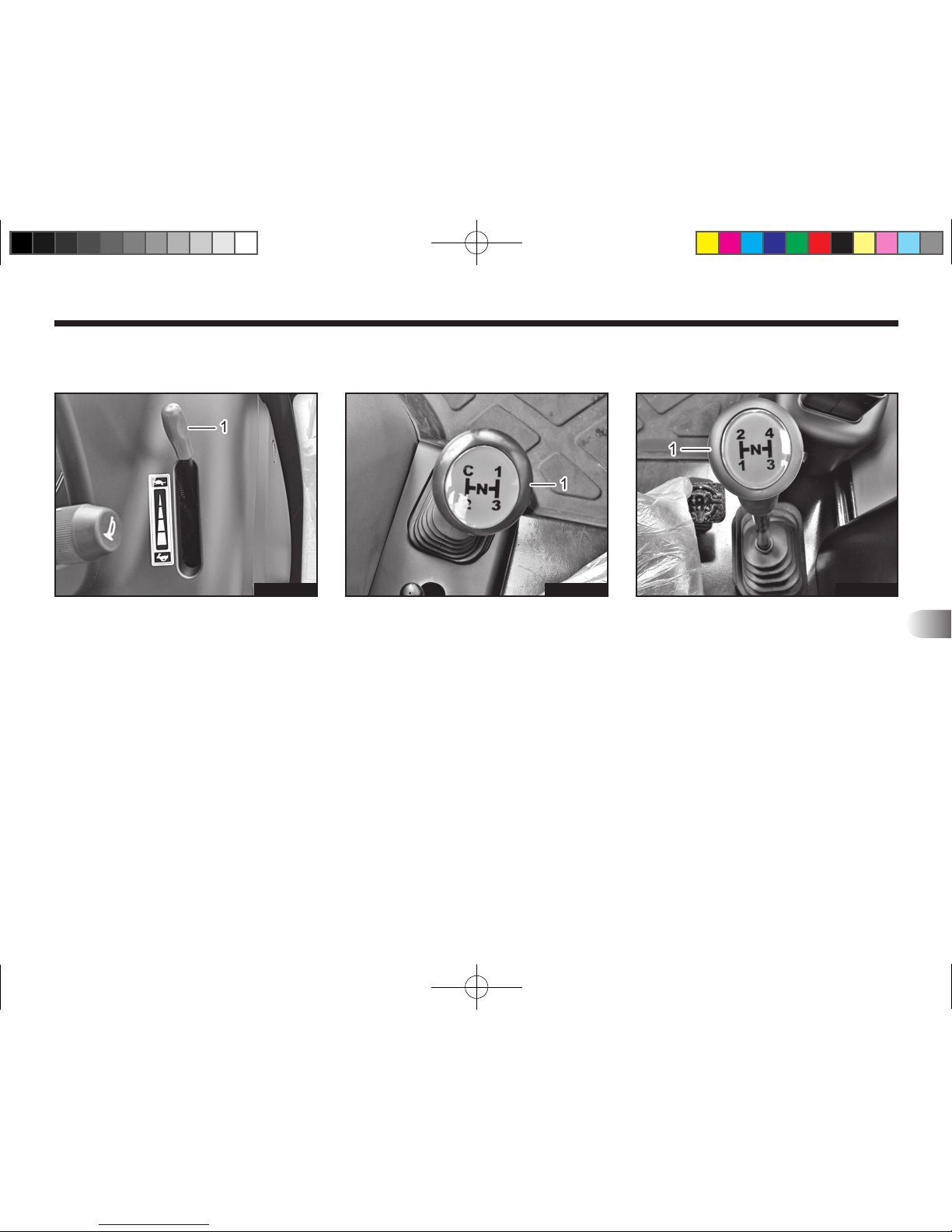

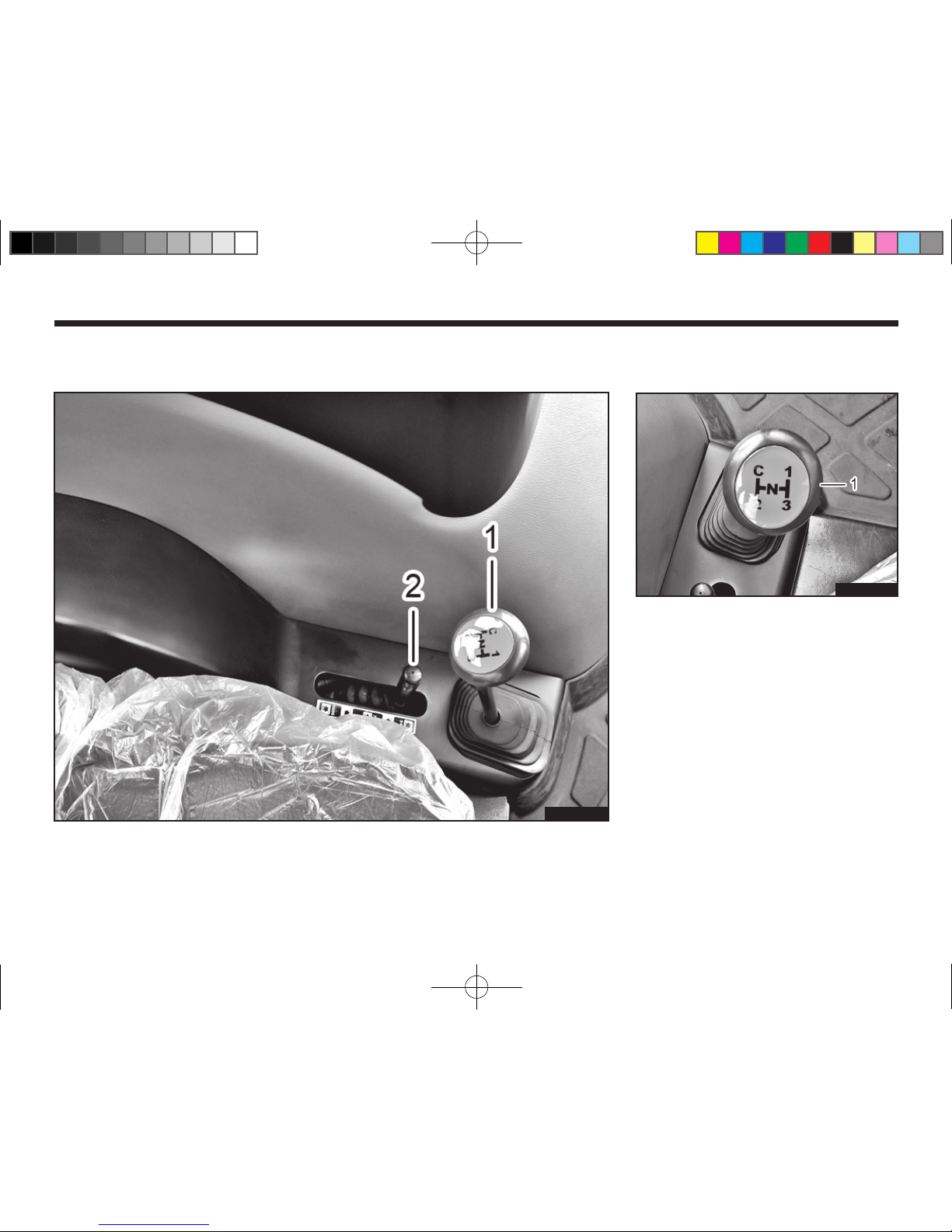

MAIN GEAR SHIFT LEVER ................................ 4-19

REAR REMOTE CONTROL LEVER ................... 4-19

HITCH CONTROL LEVER .................................. 4-19

DRAFT CONTROL DIAL ..................................... 4-20

STOP / SLOW RETURN DIAL ............................ 4-20

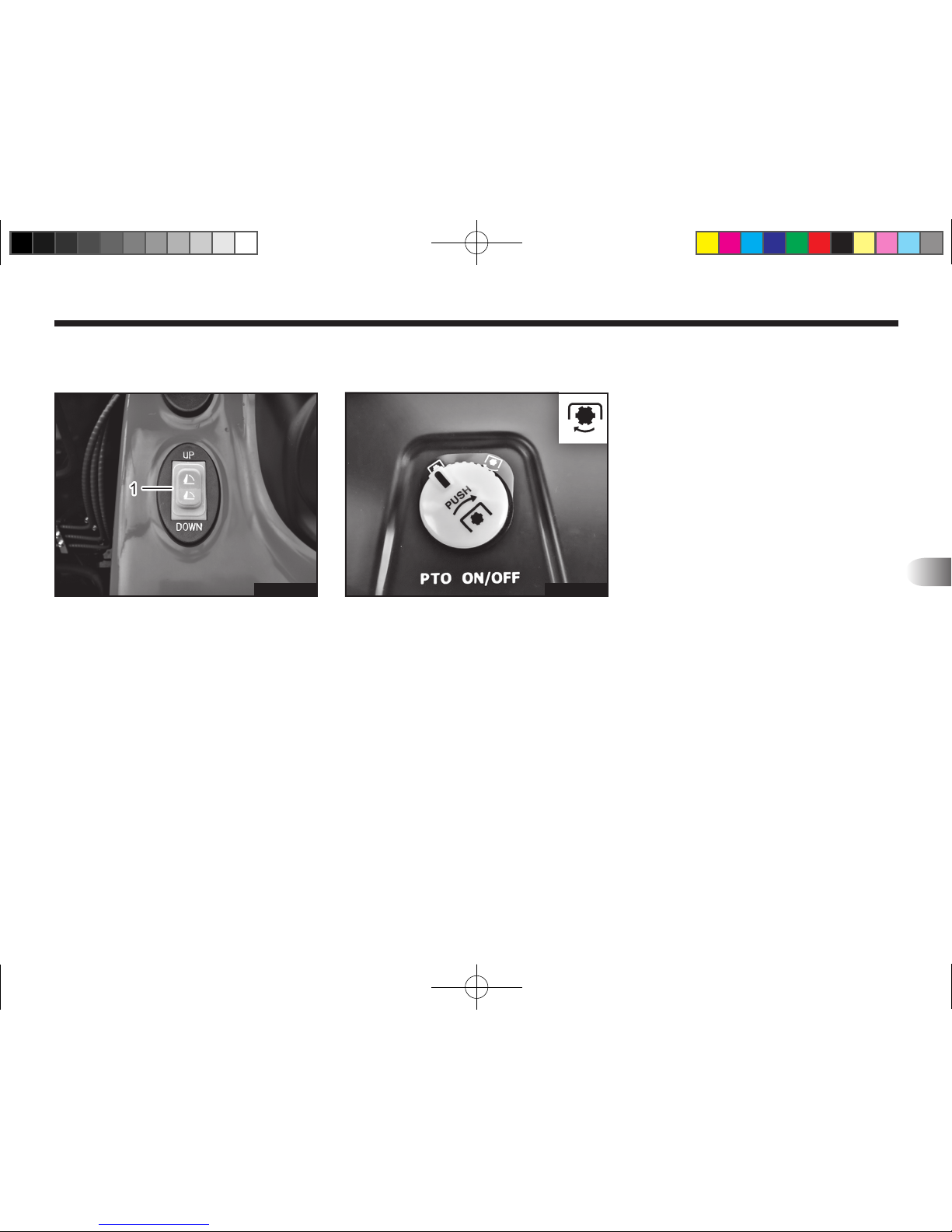

FENDER REMOTE SWITCH .............................. 4-21

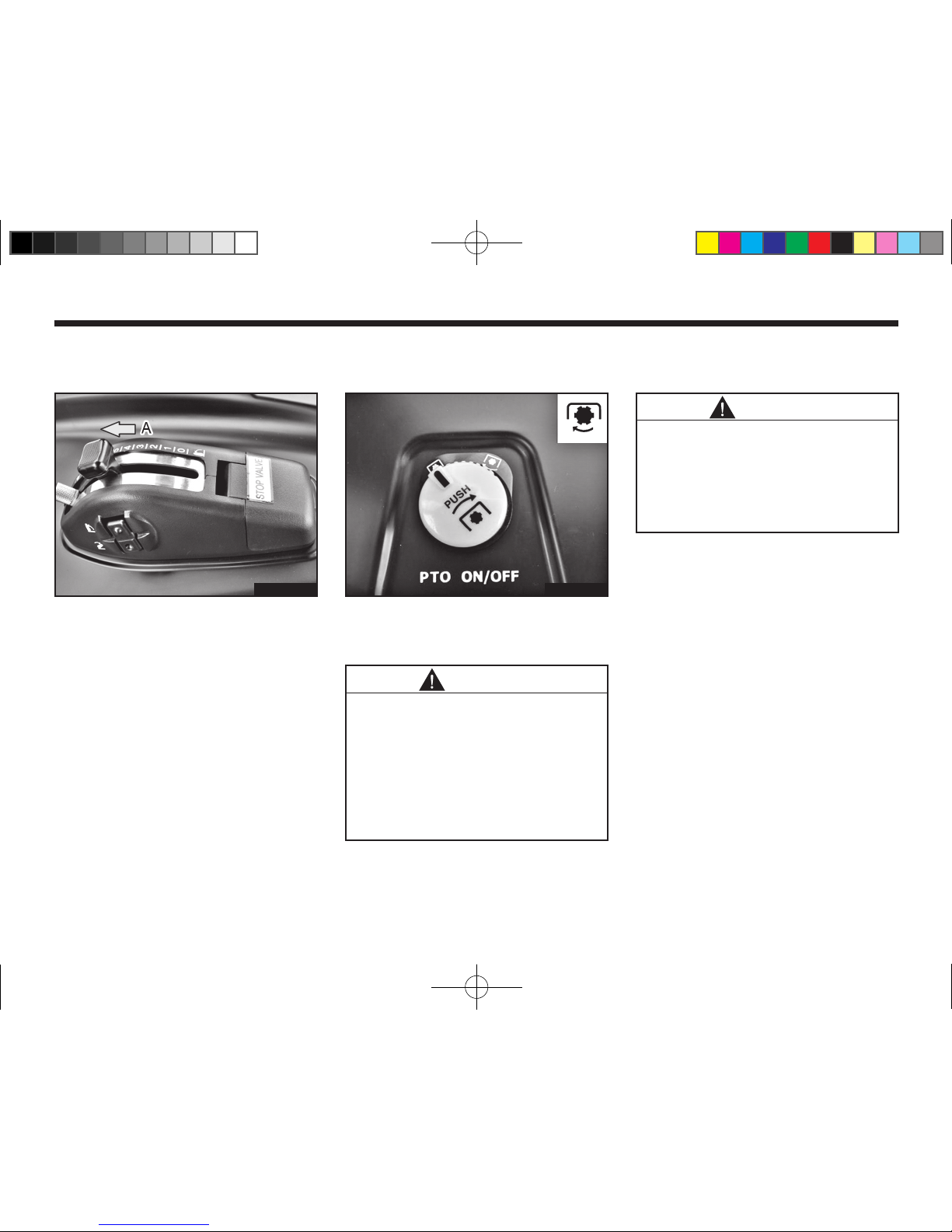

PTO ON/OFF SWITCH ....................................... 4-21

LEVER OPERATION (L) ................................4-22

RANGE GEAR SHIFT LEVER ............................ 4-22

PTO SHIFT LEVER ............................................. 4-23

OTHERS .........................................................4-24

DIFFERENTIAL LOCK PEDAL ........................... 4-24

WORK LAMP SWITCH ....................................... 4-23

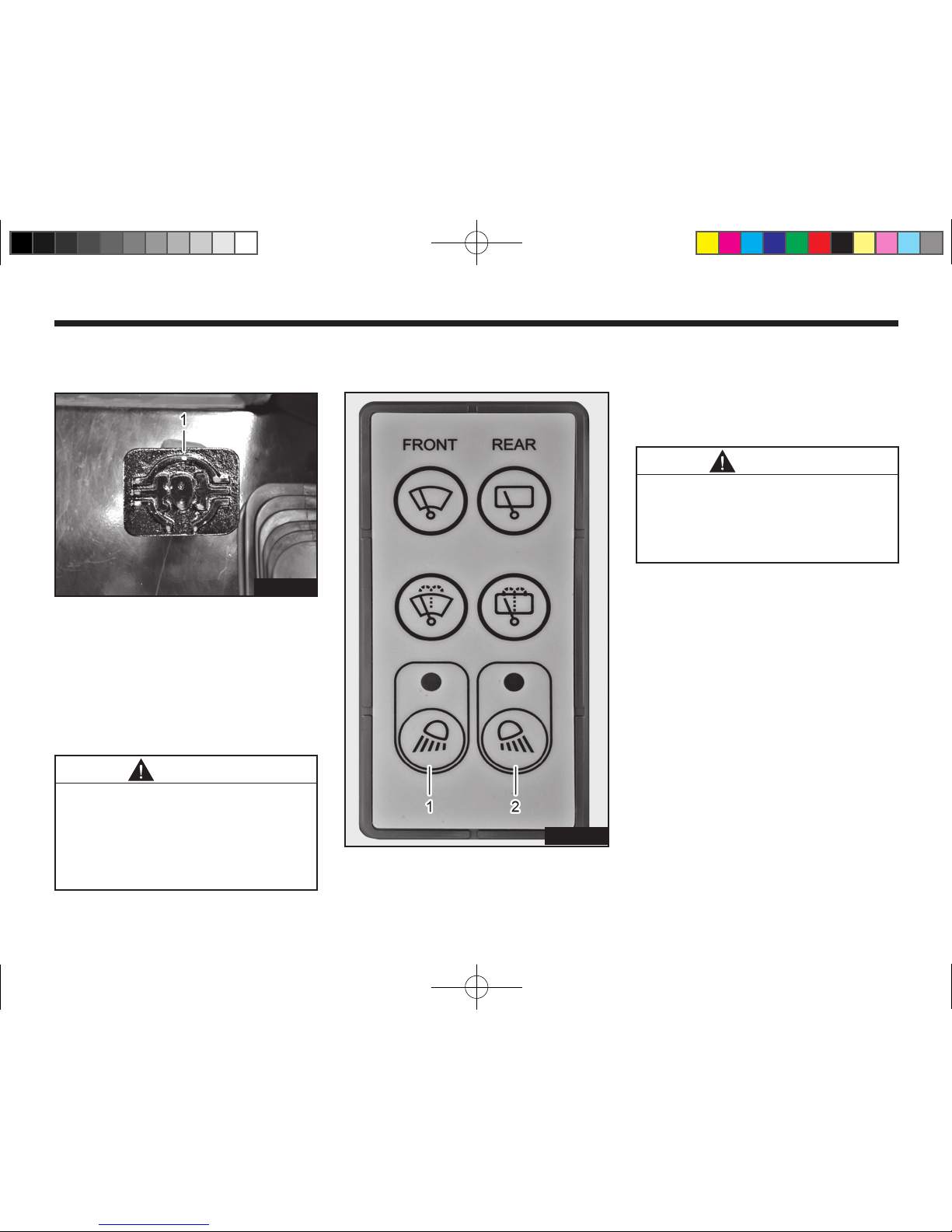

WIPER SWITCH ................................................. 4-25

SIDE WINDOW HANDLE .................................... 4-26

POWER OUTLET ................................................ 4-26

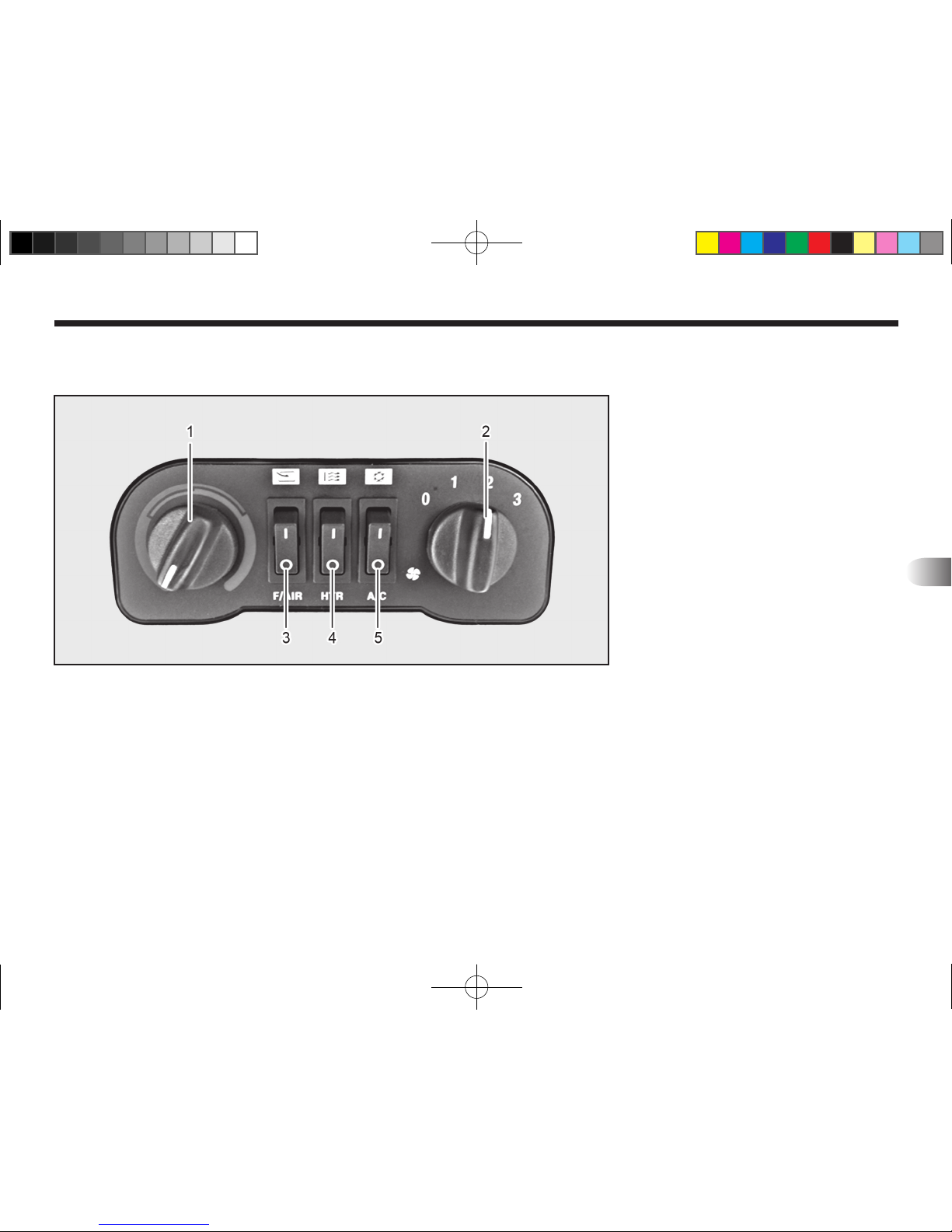

CLIMATE CONTROL ........................................... 4-27

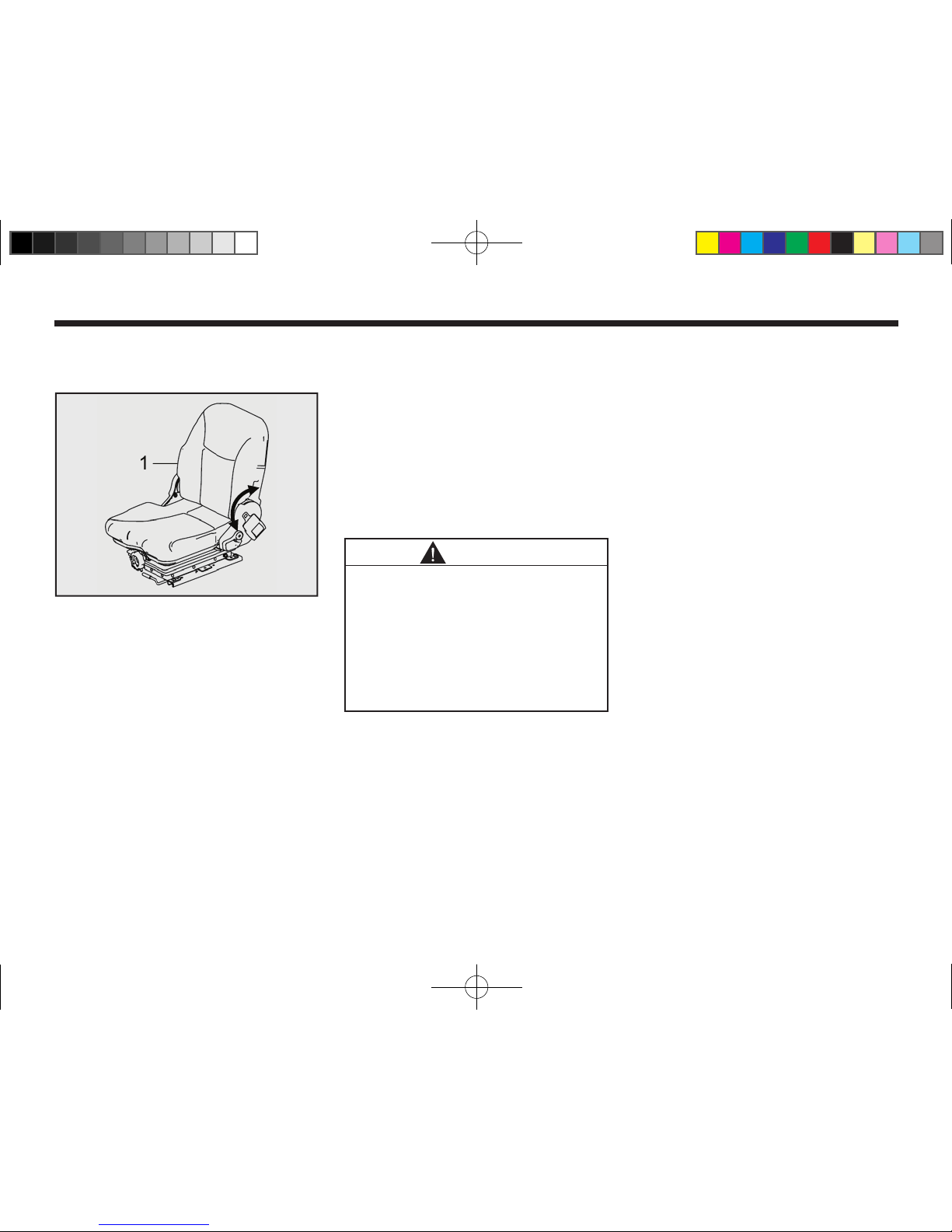

SEAT ................................................................... 4-28

CHECKING BEFORE OPERATION ................5-2

STARTING / STOPPING THE ENGINE ...........5-8

TO START THE ENGINE ...................................... 5-9

TO STOP THE ENGINE ...................................... 5-12

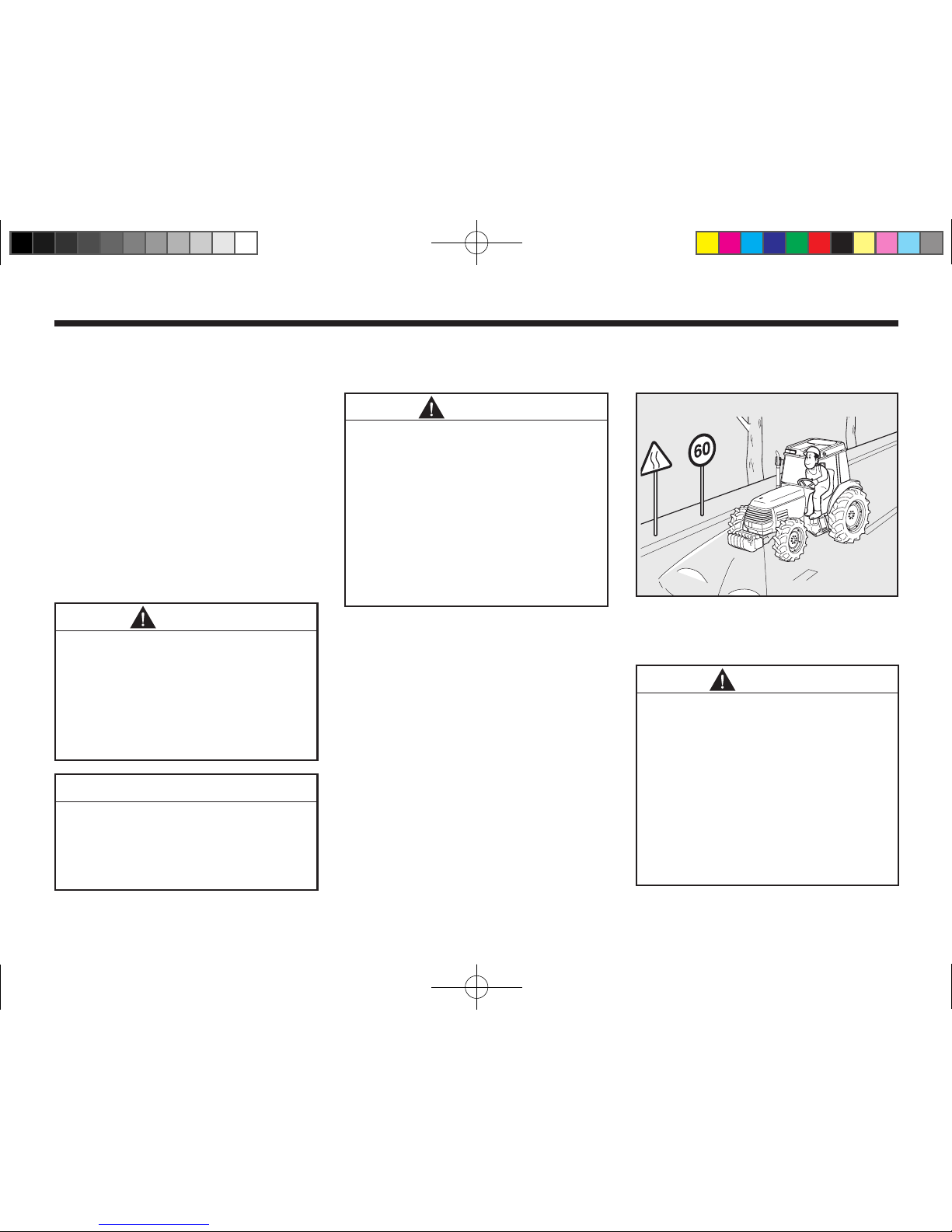

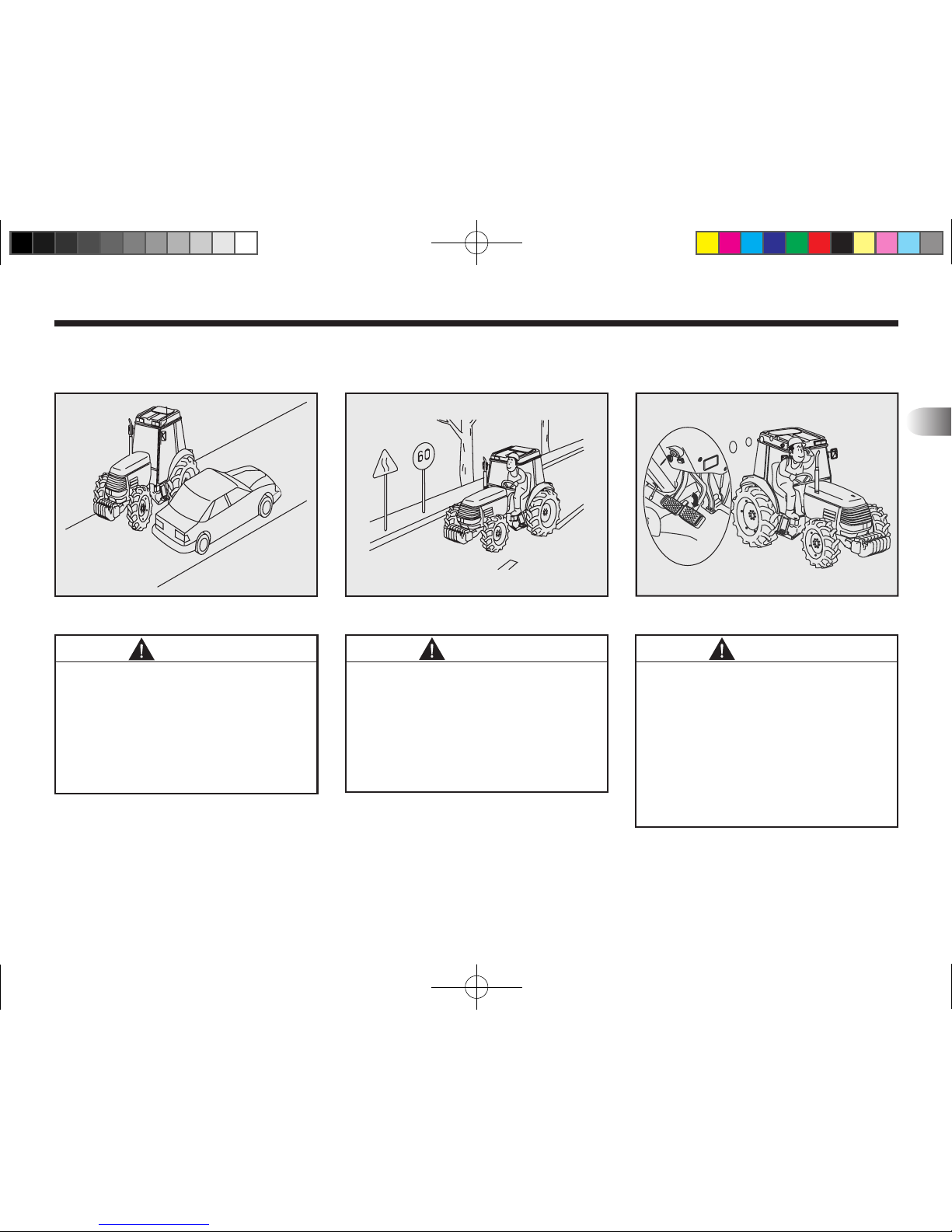

DRIVING ON THE ROAD ............................... 5-12

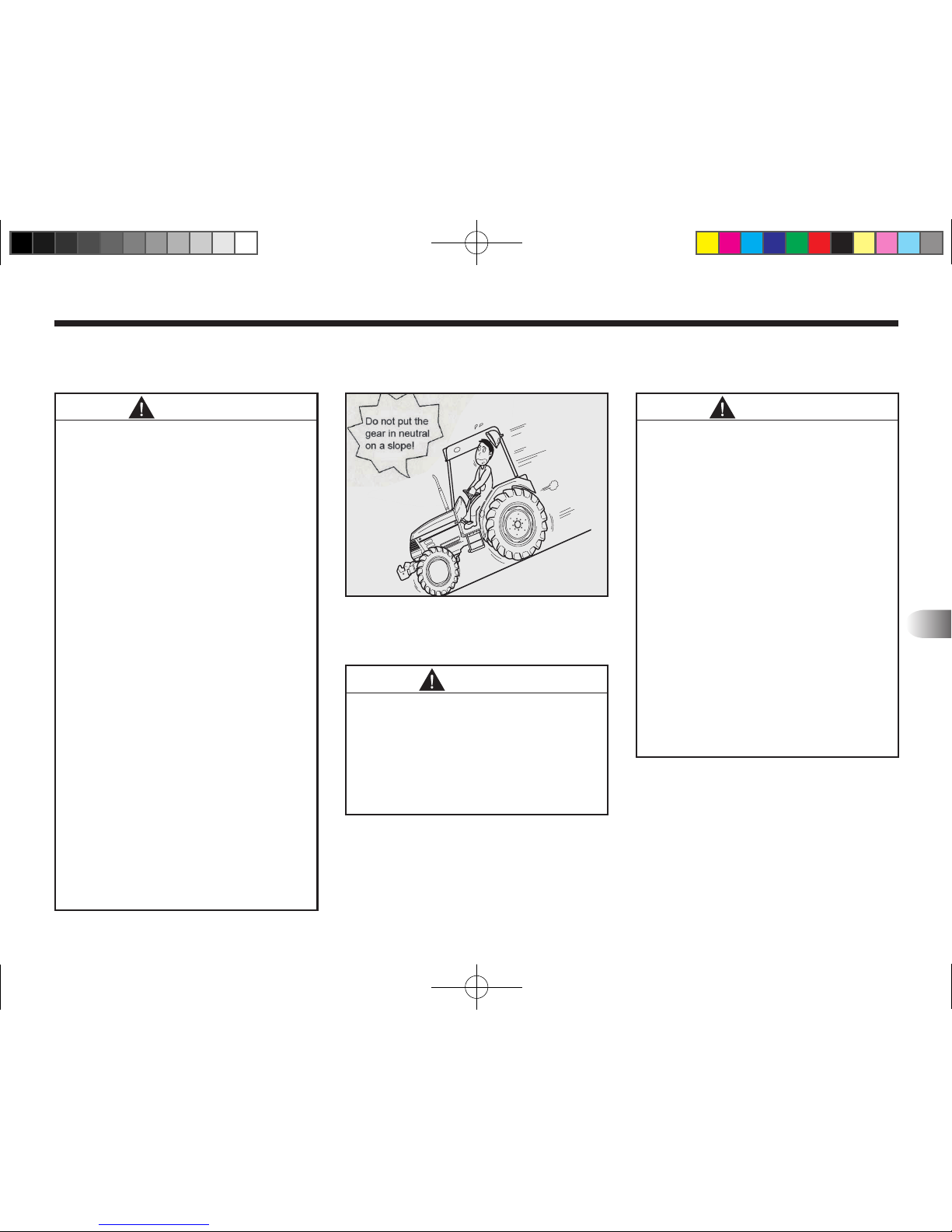

DRIVING ON THE SLOPE ............................. 5-13

BRANSON K SERIES 트랙터-영문판-00.indd5 5 2014-09-02 오후 6:37:00

TABLE OF CONTENTS

ENTERING AND LEAVING THE PAVEMENT .... 5-14

TURNING ON THE PAVEMENT ....................5-14

DIFFERENTIAL GEAR LOCK .......................5-15

TRACTOR LOADING / UNLOADING ............5-15

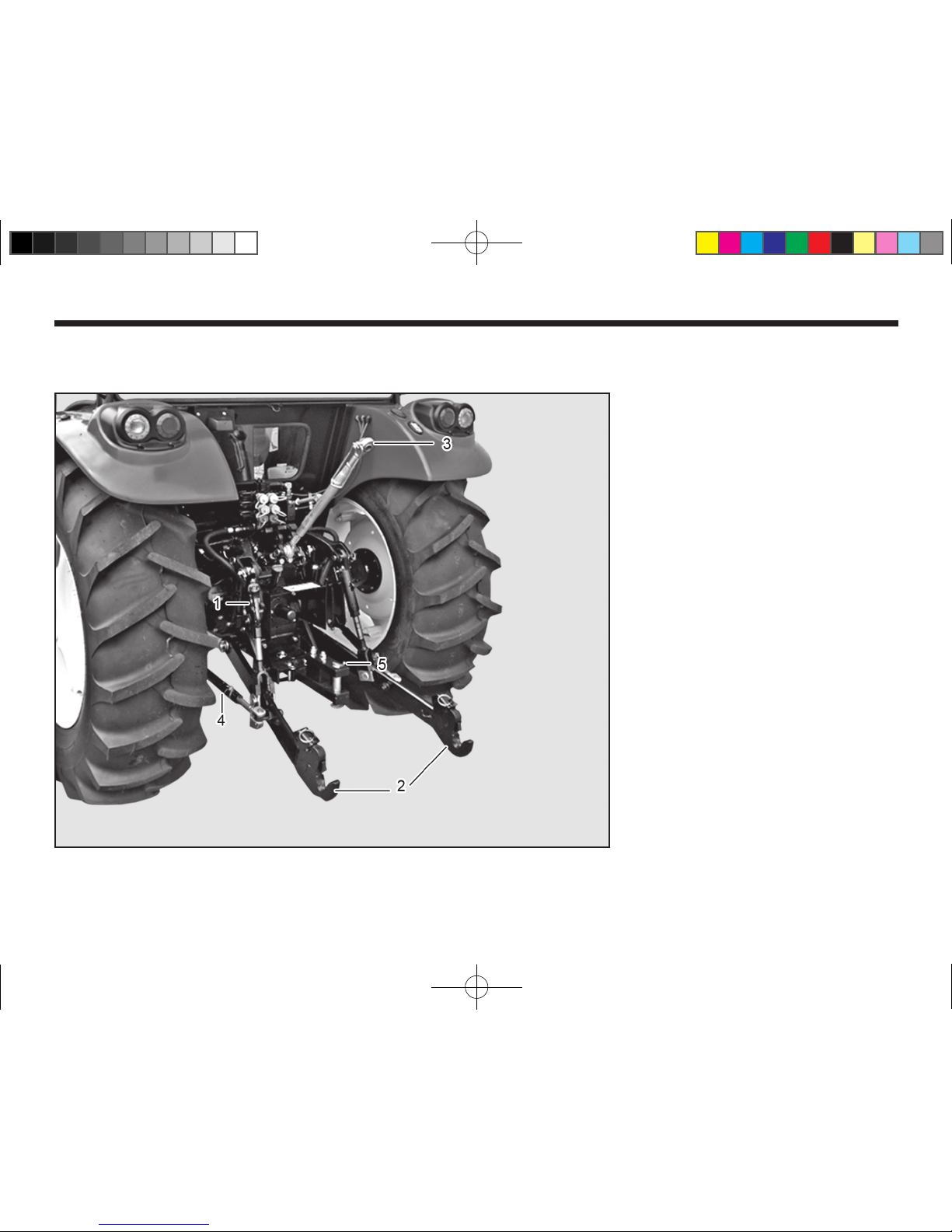

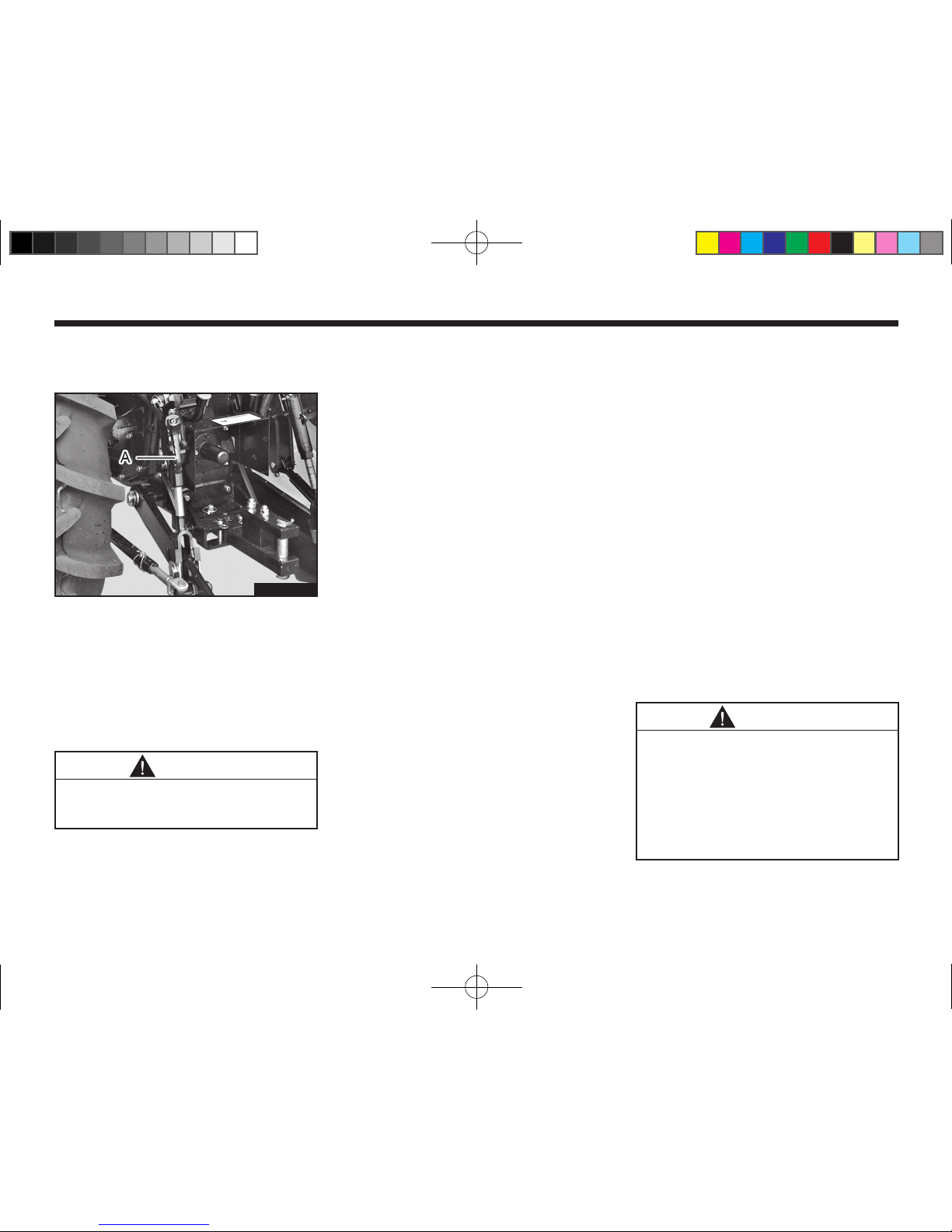

INSTALLING 3POINT LINK ...........................5-16

P R EC AU TI O N S F OR C O NN EC TI N G TH E

IMPLEMENT ................................................... 5-18

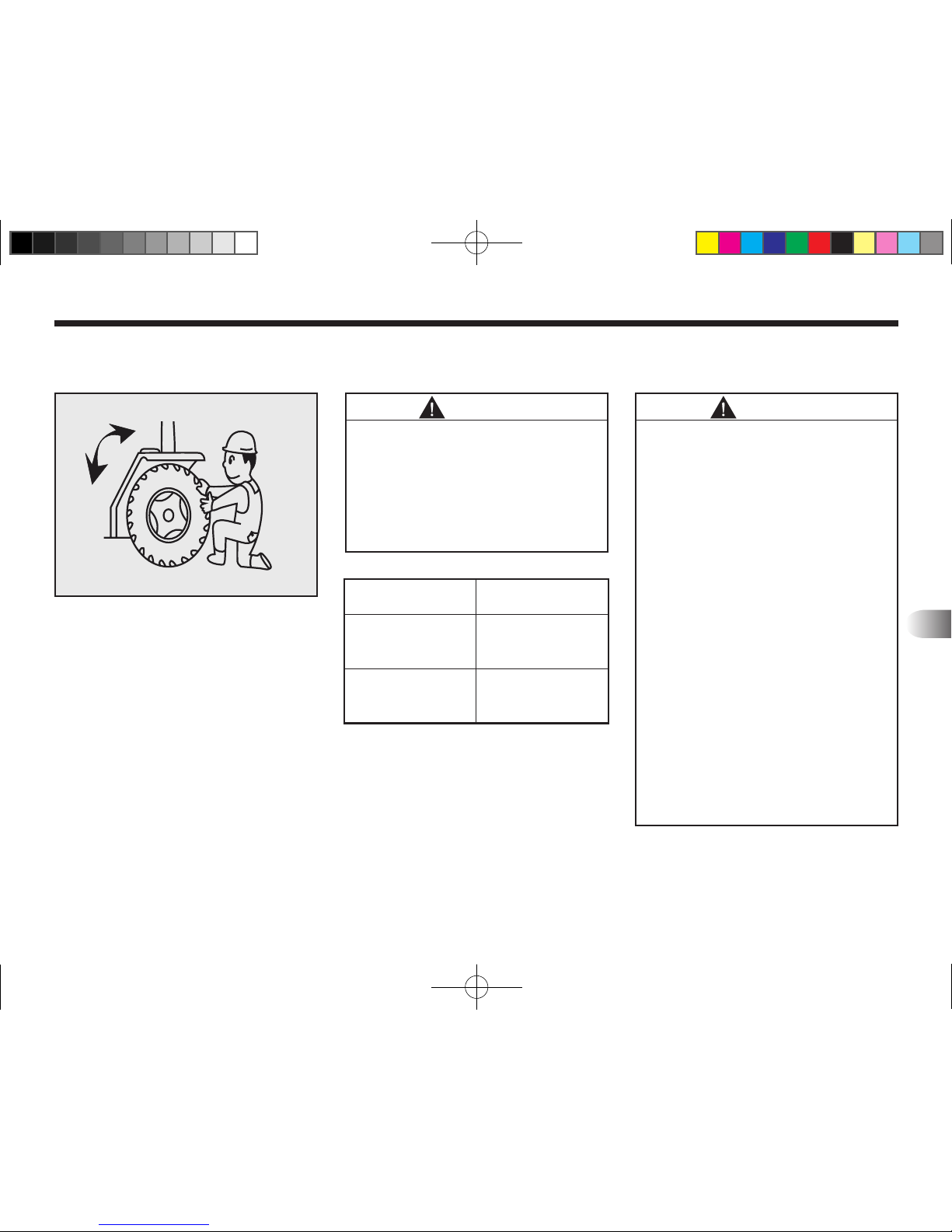

ADJUSTING WHEEL TREAD ........................ 5-19

POWER STEERING .......................................5-19

MAINTENANCE AFTER WORK .................. 6-1

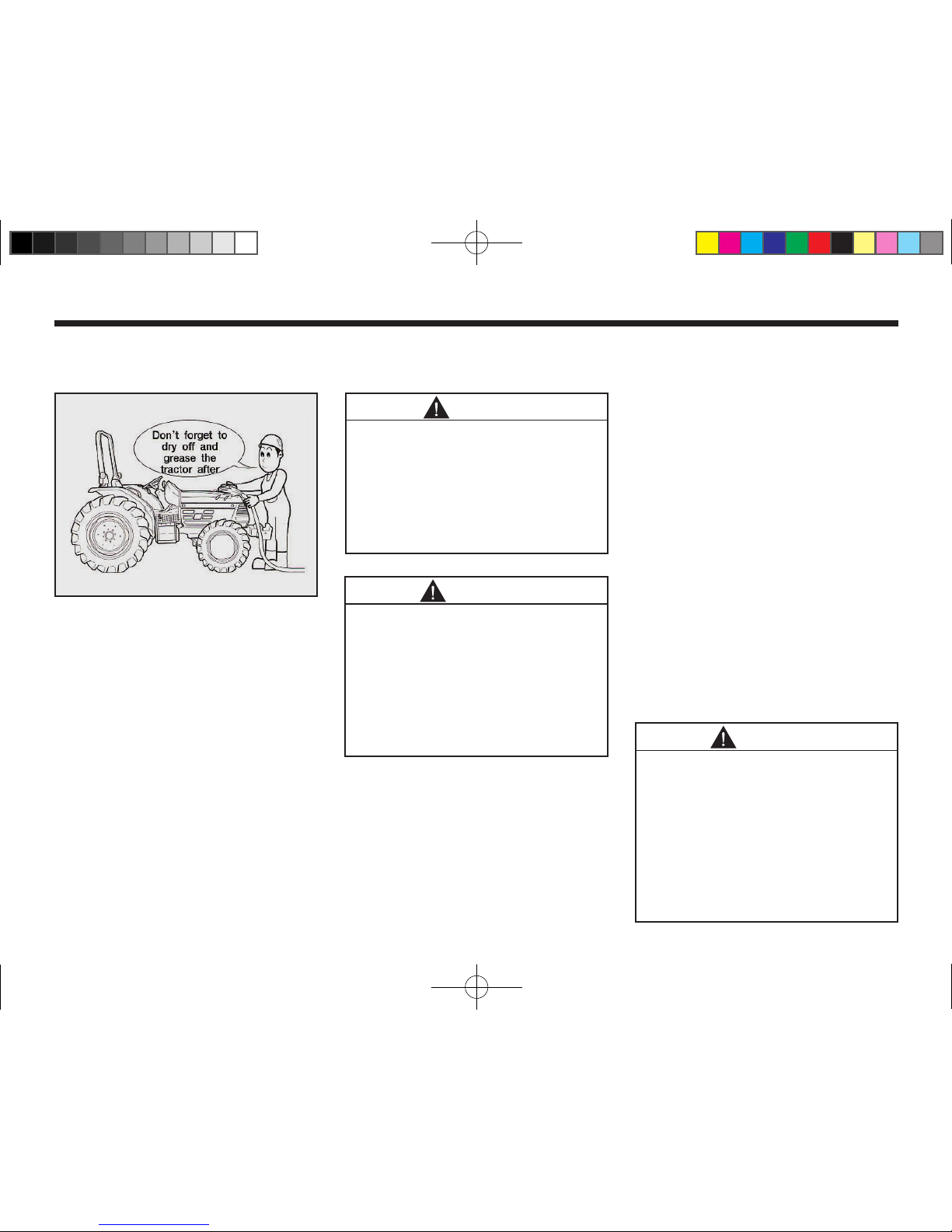

MAINTENANCE AFTER WORK ......................6-2

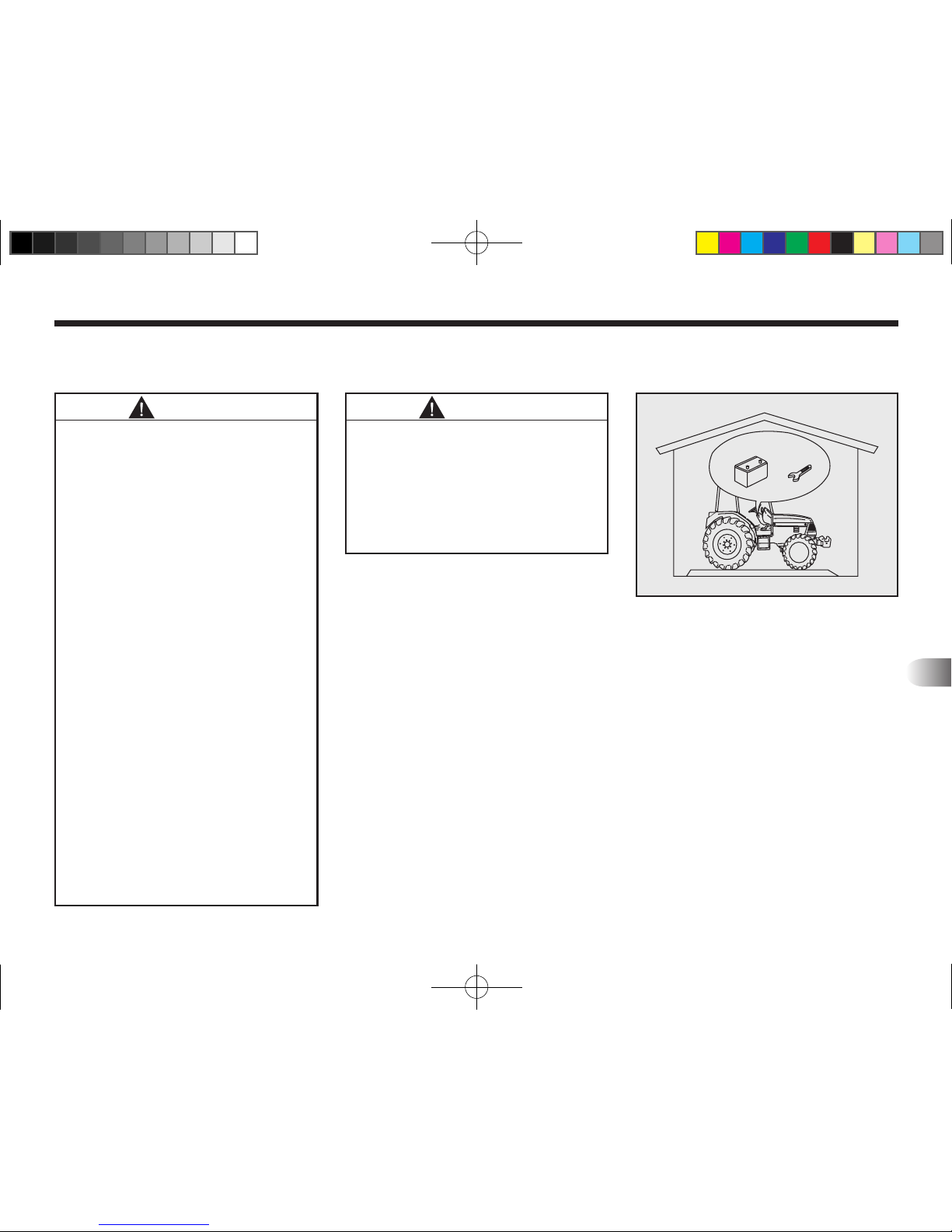

MAINTENANCE FOR PROLONGED STORAGE ..6-2

PERIODIC MAINTENANCE AND

ADJUSTMENT ............................................. 7-1

PERIODIC MAINTENANCE SCHEDULE ....... 7-2

OIL, GREASE, AND ANTI-FREEZE CHART ...7-4

FUEL, OIL, AND COOLANT CHART ..............7-5

CHECKING AND CHANGING OF OIL ............7-6

ENGINE OIL .......................................................... 7-6

TRANSMISSION / HYD OIL FLUID .....................

7-7

FRONT AXLE FLIUD .............................................

7-8

FILTERS / COOLANT REPLACEMENT .......... 7-8

ENGINE OIL FILTER ............................................. 7-8

TRANSMISSION / HYD FUILD FILTER ............... 7-9

FUEL FILTER ..................................................... 7-10

COOLANT ........................................................... 7-10

OTHERS .........................................................7-12

RADIATOR SCREEN / AIR CLEANER ............... 7-12

BATTERY ............................................................ 7-13

ADJUSTING PARKING BRAKE ..........................

7-13

BRANSON K SERIES 트랙터-영문판-00.indd6 6 2014-09-02 오후 6:37:00

TABLE OF CONTENTS

FUEL PIPES AND HOSES .................................. 7-14

ELECTRICAL CABLES ....................................... 7-14

GREASING ......................................................... 7-15

STEERING WHEEL ............................................ 7-16

BRAKE ................................................................ 7-16

FAN BELT ............................................................ 7-17

AIR COMPRESSOR BELT .................................. 7-18

TOE-IN ................................................................ 7-19

FRONT AXLE SWING ......................................... 7-19

FUSE & FUSEABLE LINKS ................................ 7-20

COLOR OF EXHAUST GAS ............................... 7-21

TROUBLE SHOOTING ................................ 8-1

TROUBLESHOOTING .....................................8-2

ENGINE ................................................................. 8-2

CLUTCH AND BRAKE .......................................... 8-5

HYDRAULIC SYSTEM .......................................... 8-6

ELECTRICAL SYSTEM ......................................... 8-7

SPECIFICATIONS ........................................ 9-1

INDEX......................................................... 10-1

BRANSON K SERIES 트랙터-영문판-00.indd7 7 2014-09-02 오후 6:37:00

SAFETY AND VEHICLE DAMAGE WARNING

Failure to observe the instruction given with this mark may result in death or injury.

DANGER

NOTE

This instruction is to give additional description to operator so that he/she can operate the machine more effectively.

Read this Manual for correct and safe use of the product. Failure to use the product properly may result in an accident. Keep this Manual close to the tractor after you have read it.

IMPORTANT

The instructions given with the following marks are very important for your safety.

WARNING

Failure to observe the instruction given with this mark may expose you to the risk of death

or injury.

Failure to observe the instruction given with this mark may expose you to injury.

• The section, “ To Ensure Safe Operation,” on the following pages details safety points to

be observed to ensure safe operation of your tractor.

• Please make sure you read it carefully before operating the tractor.

CAUTION

BRANSON K SERIES 트랙터-영문판-00.indd8 8 2014-09-02 오후 6:37:00

This manual includes symbol marks of controller to ease tractor’s maneuverability and maintenance. These meanings are as below, so carefully read it for a proper function.

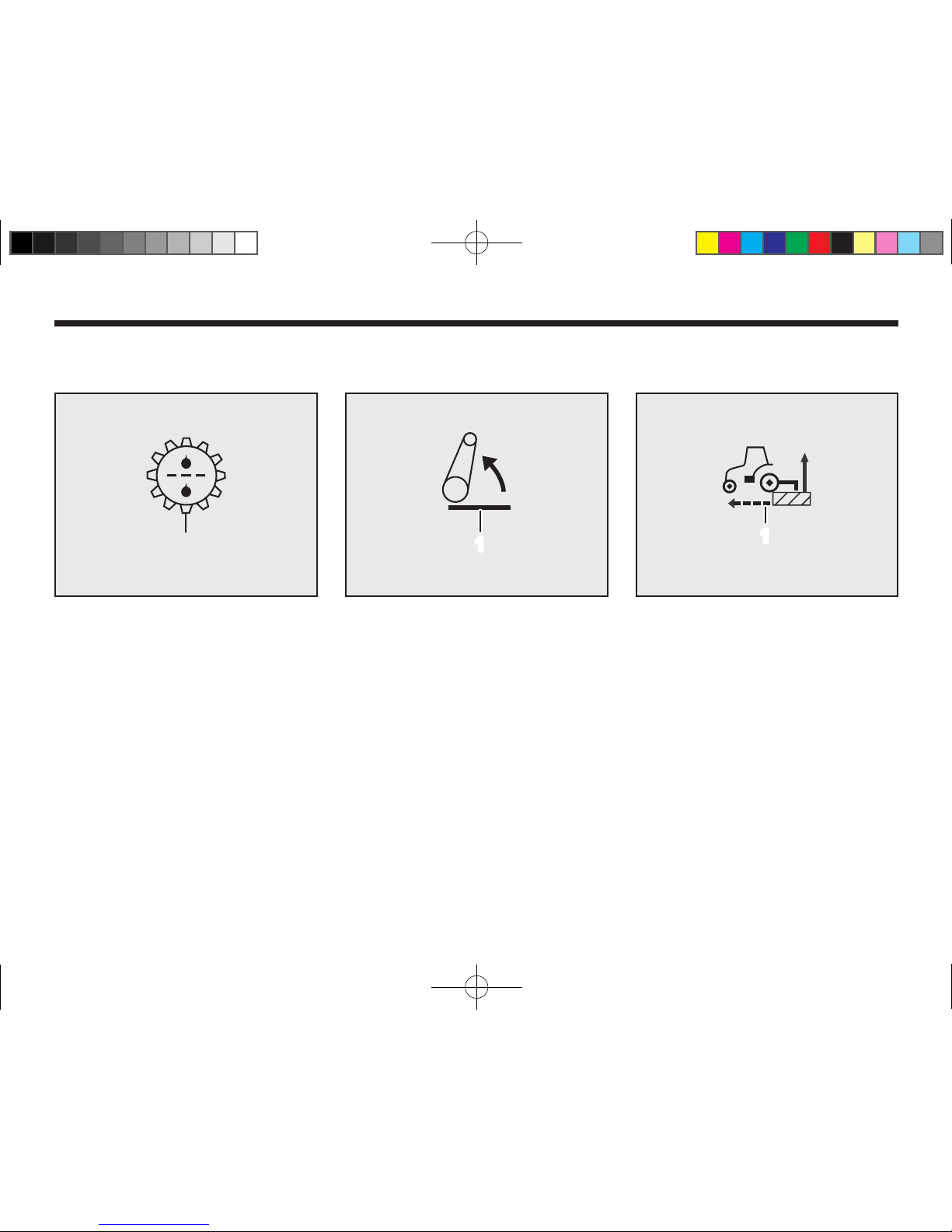

SYMBOL MARKS OF CONTROLLER

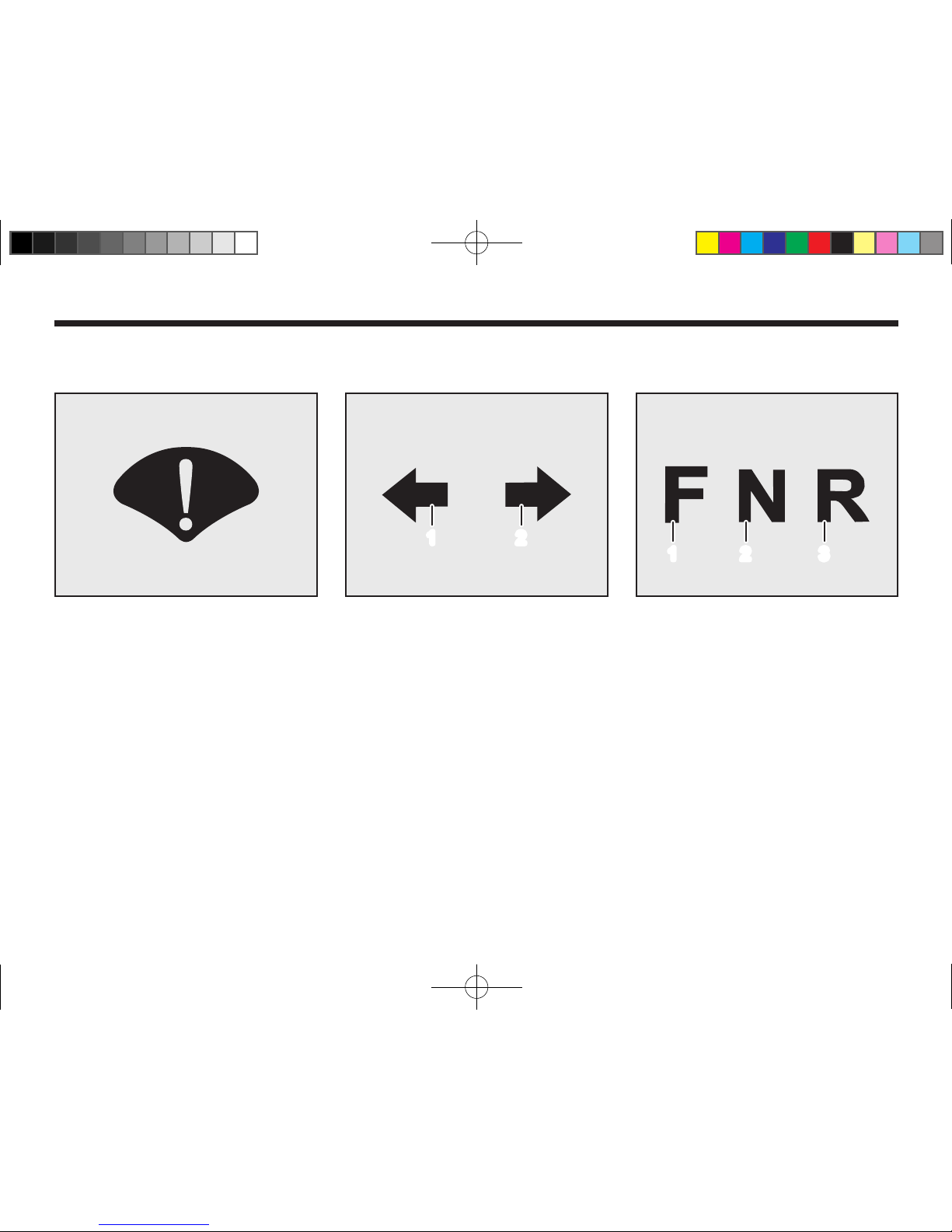

Warning Lamp DPF Fuel Empty

Direction Lamp(LH) Auto PTO T/M Warning Lamp

Direction Lamp(RH) PTO Lift Up Lamp

F

Forward Air Flow Sensor Towing Power

N

Neutral Parking Brake Auto TBS

R

Reverse Fuel Water Separator Vertical Up

Low Beam Preheat Turn Up

High Beam

Engine Oil Pressure Lamp

Quick Turn

Brake Pedal Connection

Battery Charging Lamp

4WD

BRANSON K SERIES 트랙터-영문판-00.indd9 9 2014-09-02 오후 6:37:07

"USE AND DISPOSAL" POLICY CONCERNED WITH ENVIRONMENT PRESERVATION

We try our best to preserve the environment, always concerned about our environmental impact at each step of planning, development, production, distribution, use and disposal of products, and for our overall op

-

erations through “environmentally friendly” management system. We comply with international environmen

-

tal regulations, environmental regulations designated by country and local authorities and other require

ments with which we are in agreement, and we work towards the prevention of environmental pollution and the conservation of resources. We provide environmental education and have an awareness campaign to raise environmental awareness among all our employees and members of the supporting companies.

Here we introduce “Use and Disposal” policy concerned with environment preservation as follows.

1. Please read the operator’s manual though for global environment protection and avoid overload job. Overload on the

machineshortenstheproductlifeandincreasestheharmfulexhaustgaswhichcauseairpollutionduetotheincomplete combustion.

2.When replacing various uids(forengine,transmission, hydraulics, etc.) byyourself,don’tdispose the used oilto

anywhere not recommended. It can pollute the ground and water seriously. Please contact our local dealer to dispose it legally.

3. Observe the operator’s manual and store or dispose the waste product properly. Rust, oil, etc leaked from waste

product improperly stored can pollute the ground and water. Accordingly for a waste product disposal, contact the necessarily “approved waste collection and recycling facility” to discard the used machinery legally.

BRANSON K SERIES 트랙터-영문판-00.indd10 10 2014-09-02 오후 6:37:07

BRANSON K SERIES 트랙터-영문판-00.indd11 11 2014-09-02 오후 6:37:07

1

1. GENERAL PRECAUTIONS

TO ENSURE SAFE OPERATION

........................................................ 1-2

BRANSON K SERIES 트랙터-영문판-01.indd1 1 2014-09-02 오후 6:37:36

1

-

2

BRANSON K SERIES

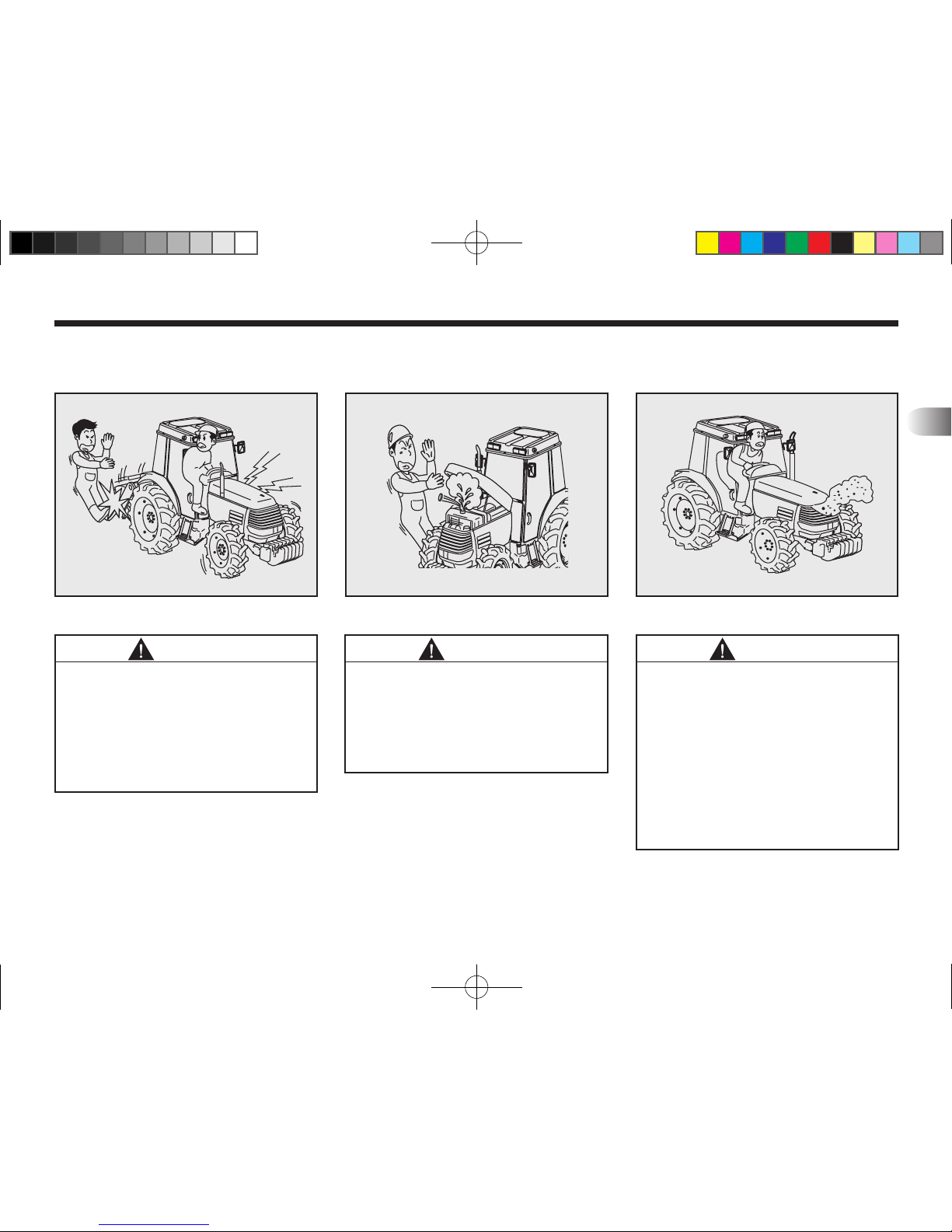

TO ENSURE SAFE OPERATION

Make sure to observe the instruction given in this section to avoid equipment failure or personal injury or death.

LXN5o103aLXN5o102a

LXN5o101a

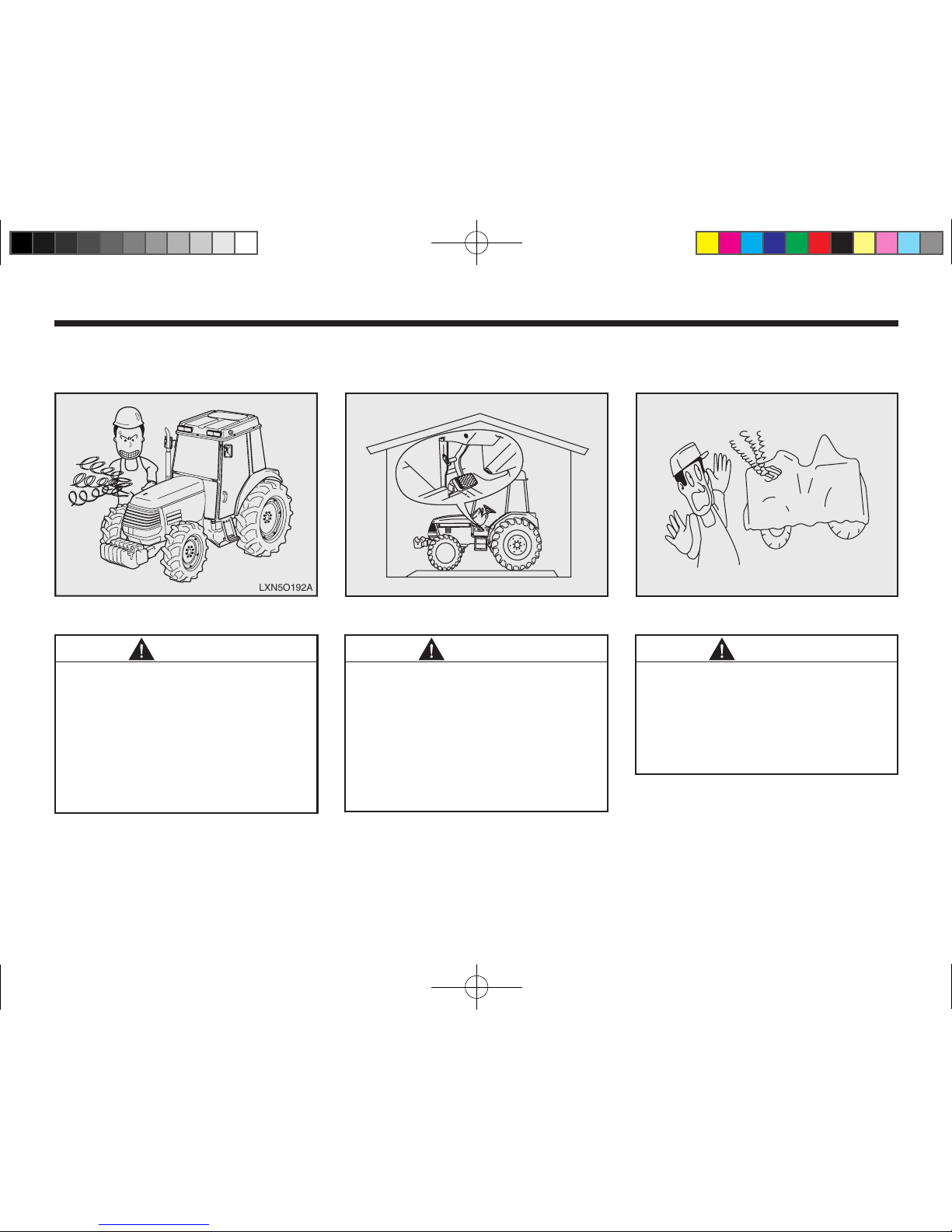

Beware of exhaust gas;

Start engine in a well ventlated area.

[Otherwise] The exhaust gas can cause in-

toxication and lead to fatal consequences.

•

WARNING

Select a at and safe location

to secure the tractor in place and wi ll n ot cause a risk to people passing by. Before carryi n g ou t th e mai n tenanc e. Block the front and rear tires to prevent moving while ser-

vicing tracks. [Otherwise] An unexpe cted ac cident may

occur, such as overturning of the tractor.

•

WARNING

Make sure work area is properly lighted.

Use safety wo rk l ight s with

protection covering. [Otherwise] An unexpe cted ac cident may

oc cur, po ssibly fir e or expl osion.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd2 2 2014-09-02 오후 6:37:38

1

-

3

GENERAL PRECAUTIONS

1

LXN5o104a

Keep a rst aid kit and re extinguisher handy at all times while operating equipment.

•

WARNING

LXN5o184a

Do not operate tractor or any implement attached to tractor while under the inuence of alcohol, medication, controlled substances or while fatigued.

•

WARNING

LXN5o106a

Ne v e r wea r loos e , tor n or

bulky clothing around tractor. [Otherwise] You will be exposed to a risk of

being entangled will equipment resulting in injury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd3 3 2014-09-02 오후 6:37:39

1

-

4

BRANSON K SERIES

LXN5o107a

Fas t en yo ur se at be lt at all times.

[Otherwise] You will be exposed to a risk of

death or serious injury if the tractor overturns.

•

WARNING

사용전에

잘 읽는다.

설명

서

LXN5o118a

Read manual

before drive

Operator

manual

Befo r e allo w i ng ot h e r peo ple to use your tractor, explain how to operate and have them read this manual.

[Otherwise] There is a danger of death, seri-

ous injury, or damage to the tractor.

•

WARNING

LXN5o166a

Be su r e to use on l y imple-

ments which are recommend-

ed by manufacturer. [Otherwise]

An un expected accident may occur or tractor may not perform properly.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd4 4 2014-09-02 오후 6:37:41

1

-

5

GENERAL PRECAUTIONS

1

LXN5o117a

Fully warn children and keep them away from the tractor at all times.

[Otherwise] There is a risk of injury.

•

WARNING

LXN5o121a

Absolutely no lit cigarettes, matches, or lighters anywhere near when fueling the tank.

[Otherwise] Fire or explosion may occur.

•

WARNING

LXN5o131a

Inspect electrical wiring con-

tact insulation to avoid short-

ing or spark. [Otherwise]

There is a risk of re due to short

circuit.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd5 5 2014-09-02 오후 6:37:42

1

-

6

BRANSON K SERIES

Whe n st a rt i ng the engin e , make sure that you are seated i n th e dri v er ’s s eat with yo ur seat be lt fastene d and the safety inspection has been performed.

[Otherwise] An unexpected accident may oc-

cur.

•

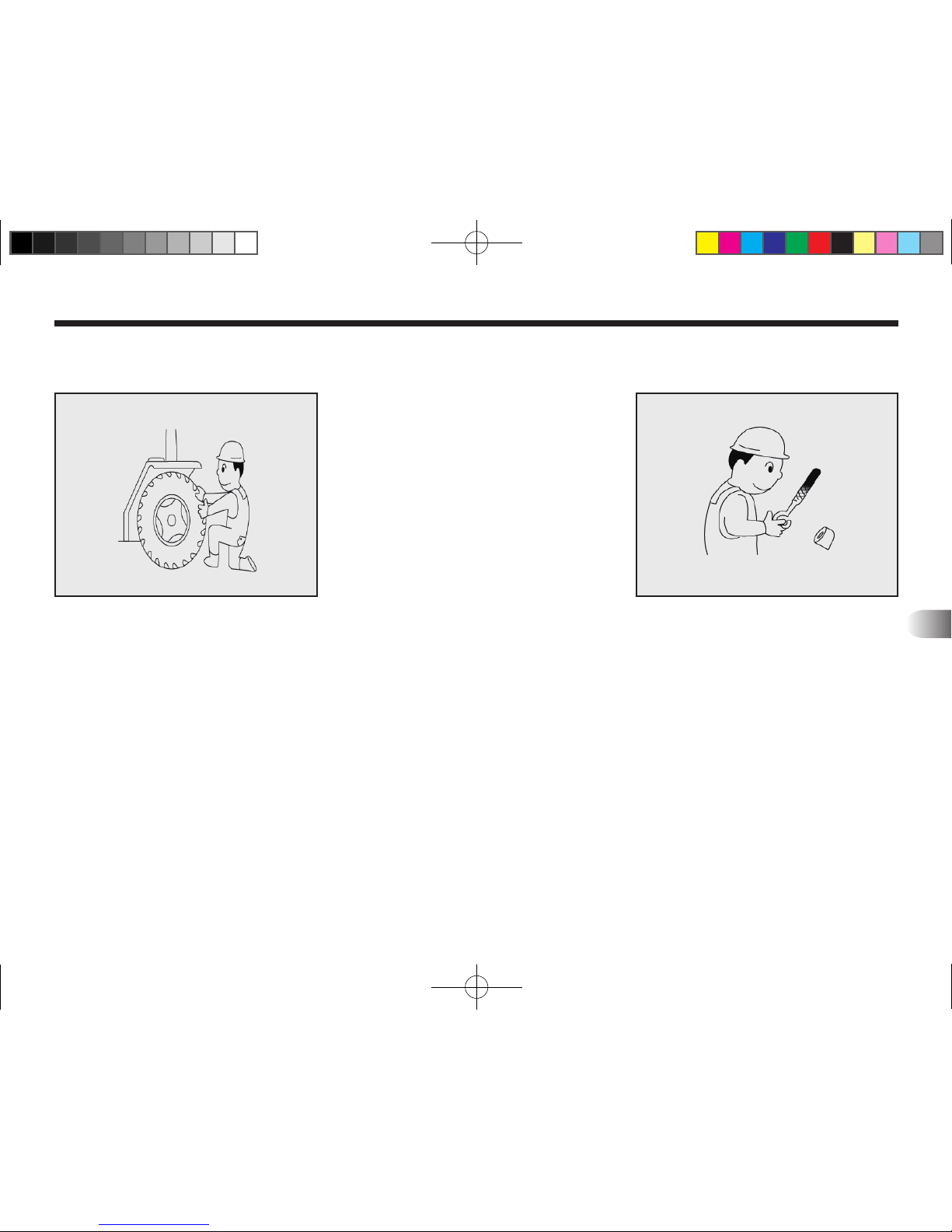

When filling tires with air, do not inate it beyond the maximum pressure stated in this booklet.

[Otherwise] The tire may blow out, causing

an injury.

•

WARNING

최대 공기압 이상 으로 공기를 넣지 마십시오.

LXN5o132a

Do not inate the

tire beyond the max air pressure

부 르 르

LXN5o150a

Brrr

WARNING

닿 으 면 안 돼

앗 뜨거!

공

구

함

LXN5o155a

It's HOT

Don't touch!

During operation and right af-

ter the engine is turned off,

the muffler is very hot. Avoid

to uching it, as you may get

burnt. [Otherwise] There is a risk of getting burnt.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-01.indd6 6 2014-09-02 오후 6:37:44

1

-

7

GENERAL PRECAUTIONS

1

개조금지

LXN5o162a

Don't modify!

확실한 점검을

LXN5o139a

Good Main-

tenance!

LXN5o186a

Use only the genuine parts or other approved parts. Do not

modify the tractor. [Otherwise] There is a danger of accident

or injury or equipment failure. Please remember that the failure

due to modication may not be

covered by warranty.

•

CAUTION

Perform periodic maintenance, keep each part of the tractor in normal condition.

Make sure to replace all hydraulic hoses and brake hoses once every two years.

[Otherwise] There is danger of accident or

equipment failure due to poor maintenance.

•

WARNING

Check carefully that the various safety lamps such as direction indication lamp works well before driving the tractor

[Otherwise] Because signal cannot be send

to nearby workers, agricultural equipment, automobiles, etc. It may result in a cause of accident.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd7 7 2014-09-02 오후 6:37:45

1

-

8

BRANSON K SERIES

연료가 새고 있어요

LXN5o122a

Fuel is leaking!

LXN5o148a

LXN5o187a

Never fill the fuel tank while

the engine is running or when

the engine is hot. [Otherwise]

The fuel may ignite and re may

break out.

•

DANGER

If fuel pipe is damaged, fuel will leak. Make sure that you check for any leakage.

[Otherwise]

There is a danger of re.

•

DANGER

After lling the fuel tank, close

the fuel filler cap completely and wipe off the excess fuel thoroughly.

[Otherwise]

It may result in a re accident or

environmental pollution.

•

DANGER

BRANSON K SERIES 트랙터-영문판-01.indd8 8 2014-09-02 오후 6:37:47

1

-

9

GENERAL PRECAUTIONS

1

LXN5o130a LXN5o110aLXN5o137a

Every day before operating the tractor, check for straws, dust, fuel, or other residue on and around the mufer and the engine and remove them.

[Otherwise]

It may result in a re.

•

WARNING

Except when you adjust the steering wheel, make sure that the tilt lever is placed in the <Lock> position.

[Otherwise] The tractor may not turn to the

direction you want an d m a y cause an accident.

•

WARNING

Check if the brakes work properly and evenly on both sides or if th e st ee ri ng wheel is loose.

[Otherwise] There is a risk of accident.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd9 9 2014-09-02 오후 6:37:48

1

-

10

BRANSON K SERIES

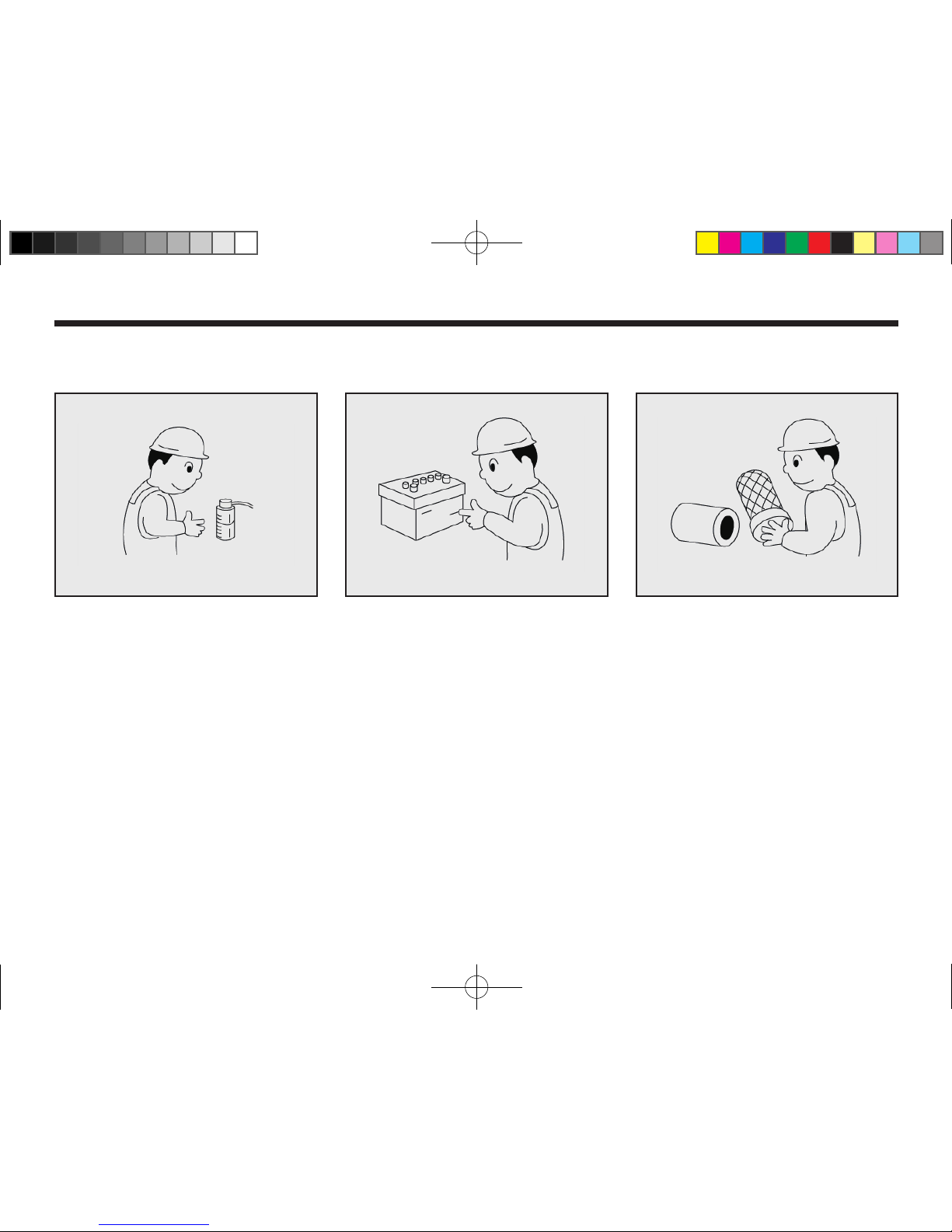

LXN5o182aLXN5o188a LXN5o189a

Engage the parking brake during warming of engine.

[Otherwise] The tractor may move and cause

an accident or injury.

•

WARNING

Engage or disengage the implement on a flat and sa fe pla c e. Su pply proper l ighting at all times and especially night.

[Otherwise] There is a danger of accident.

•

WARNING

Treatment of hazardous materials

Properly discard hazardous materials.

Hazardous materials from tractor are the following: Coolant, brake oil, oil, filter elements, battery and so on.

When draining fuel, oil or other liquids, use a container without holes. Do not dispose of chemicals on the ground or in rivers or waterways

•

BRANSON K SERIES 트랙터-영문판-01.indd10 10 2014-09-02 오후 6:37:50

1

-

11

GENERAL PRECAUTIONS

1

LXN5o135a LXN5o129a LXN5o135a

Be careful that your body or your clothes do not come in contact with the battery solution. If you come in contact with the battery solution, rinse it off with water immediately.

[Otherwise] Yo u may ge t bu rn t or you r

clothes may be damaged.

•

DANGER

Avoid fire when checking or charging the battery.

[Otherwise] You may get burnt due to igni-

tion or explosion of the battery.

•

WARNING

Connect the (+) terminal first wh en inst alli ng t he b atte ry, and disconnect the (-) terminal

rst when removing it.

[Otherwise]

There is a risk of burn or re due

to short circuit.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-01.indd11 11 2014-09-02 오후 6:37:51

1

-

12

BRANSON K SERIES

LXN5o149aLXN5o151a

LXN5o146a

When checking, re p a i r i n g ,

maintaining, or cleaning the

tractor, make sure to stop the

engine. [Otherwise]

There is a danger of injury.

•

CAUTION

Mak e sur e tha t th e hyd raulic coupling or the hose is not loose or damaged. Before separating the hydraulic coupling or the hose, eliminate the high pressure inside the hydraulic system.

[Otherwise] The oil under high pressure may

cause damage to the skin or injury.

•

CAUTION

When the PTO shaft is not in use, apply g r e ase to it a n d keep it covered.

[Otherwise] There is a risk that you may get

entangled or get injured.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-01.indd12 12 2014-09-02 오후 6:37:52

1

-

13

GENERAL PRECAUTIONS

1

공구는 올바르게!

LXN5o133a

Use a correct tools

앗!

LXN5o134a

Oops!

LXN5o170a

Manage the maintenance tools properly, and use the correct tools for the type of maintenance. Also, always keep the tools for repairs and minor adjustment available on the tractor.

[Otherwise] There is a danger of accident

due to poor maintenance.

•

CAUTION

Afte r openi n g the h o od fo r che c k i ng or main t e n an ce , make sure to put them in their place.

[Otherwise] There is a risk that you may get

entangled in the tractor or get injured.

•

CAUTION

Do not use a person on anything else in place of the balance weight. Use only recommen ded b alanc e weight for the work.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd13 13 2014-09-02 오후 6:37:54

1

-

14

BRANSON K SERIES

LXN5o116a

LXN5o169aLXN5o167a

When engaging or disengag-

ing t h e impl e m ent by m ov-

ing the tractor, make sure that

no one is allowed around the

tractor or between the imple-

ment or attachment and the

tractor. [Otherwise]

There is a danger of accident or injury.

•

WARNING

When engaging a heavy implement or attachment, load the weight on the front to keep the balance of the tractor.

[Otherwise] There is a danger of accident or

injury due to loss of balance.

•

WARNING

Do not get under implement or put your feet under it.

[Otherwise] The implement unit may fall down

and there is a risk of injury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd14 14 2014-09-02 오후 6:37:55

1

-

15

GENERAL PRECAUTIONS

1

LXN5o163aLXN5o164a

블레이크를 연결시켜요.

LXN5o165a

Con-

nect

brakes!

Increase the wheel tread (width between left and right tires) on a slope or when towing.

[Otherwise] There is a danger of turning over.

•

WARNING

Depending on implements, the ove rall l ength may becom e very long. Pay particular attention to people or objects nearby when making a turn.

[Otherwise] There is a danger of person in-

jury or a collision of the implement.

•

WARNING

Link the brake o f the trailer with the brake of the tractor. Do not shift gear when driving on a hill.

[Otherwise] There is a risk of accident or in-

jury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd15 15 2014-09-02 오후 6:37:58

1

-

16

BRANSON K SERIES

LXN5o166a LXN5o168a LXN5o181a

When engaging an implement

to the tractor, follow the in-

struction manual for the im-

plement. [Otherwise]

There is a risk of personal injury or damage to the tractor.

•

WARNING

During loader operation, apply we ights or a i mplem ent to avoid loosing balance between the front and the rear side tractor.

[Otherwise] There is a risk of overturning ac-

cident due to loss of balance.

•

WARNING

Do not use a low-revolution implement at high revolution. Be sure to the designated PTO re quirements for the implements.

[Otherwise] The performance of the imple-

ment may not properly work and there is a risk of accident or injury or damage to the tractor.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd16 16 2014-09-02 오후 6:37:59

1

-

17

GENERAL PRECAUTIONS

1

드로바를

사용하세요.

LXN5o175a

Use drawbar

LXN5o190a

LXN5o142a

Check a nd perform m aint e-

nance to loader after lifting it.

And x the joystick safety le-

ver when dismantling . [Otherwise]

There is a danger of an unexpected death accident.

•

WARNING

Make sure to use the drawbar when towing. Never tow anything with the top link or the lower link.

[Otherwise] Tractor may turn over.

•

WARNING

When working with the rotary, put the rotary slowly on soft or rocky ground. The tractor may be pushed in an unexpected direction by the rotating force of the rotary.

[Otherwise] There is a risk of accident or in-

jury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd17 17 2014-09-02 오후 6:38:01

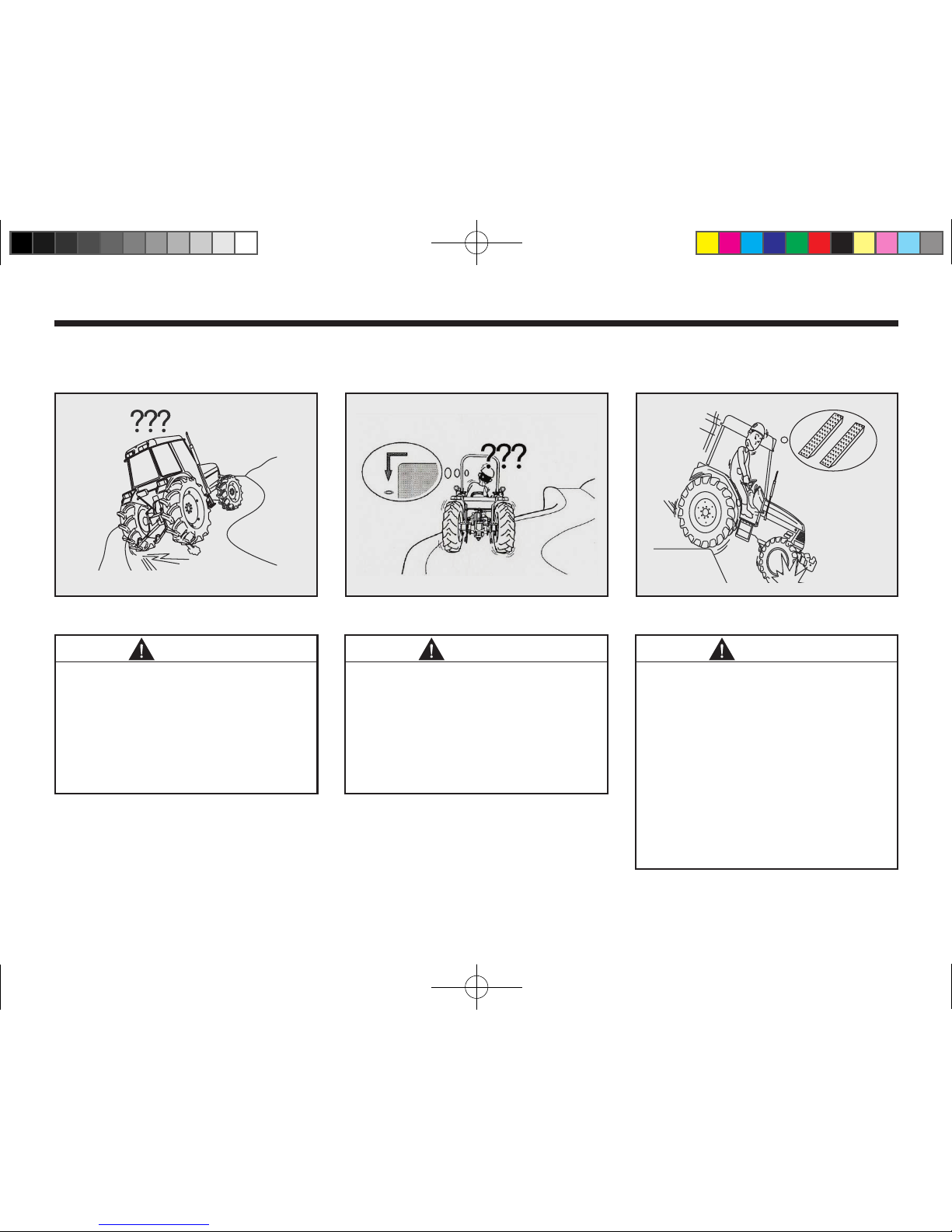

1

-

18

BRANSON K SERIES

LXN5o174a

3

1

:

폭, 길이 강도는 여유를...

LXN5o123a

Sufcient

Strength, length and width...!

실을때(후진)

내릴때(전진)

LXN5o124a

Loading (backward)

Loading (forward)

Make sure to release the dif-

ferential gear lock when mak-

ing a turn. [Otherwise]

The tractor may not turn to the direction you want and cause an accident and damage the tractor.

•

WARNING

Loading or unloading must be

done on a at and safe place,

the tractor engine switched off, and the parking brake engaged.

Th e loadi ng r amps mu st b e non-slip and have sufficient strength, length, and width for the tractor.

[Otherwise] The tractor may roll backward or

fall off causing accident or injury.

•

WARNING

Move t he tra c t or ba c k ward when loading it on the truck, and forward when unloading from the truck.

[Otherwise] The tractor may roll backward or

fall off causing accident or injury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd18 18 2014-09-02 오후 6:38:02

1

-

19

GENERAL PRECAUTIONS

1

LXN5o173a

Ma k e su r e to con n e ct th e

bra kes on bo th sides w hen

loading or unloading the trac-

tor. [Otherwise] The tractor may overturn due

to one-sided braking when the brake pedal is depressed in an emergency.

•

DANGER

LXN5o177a

LXN5o126a

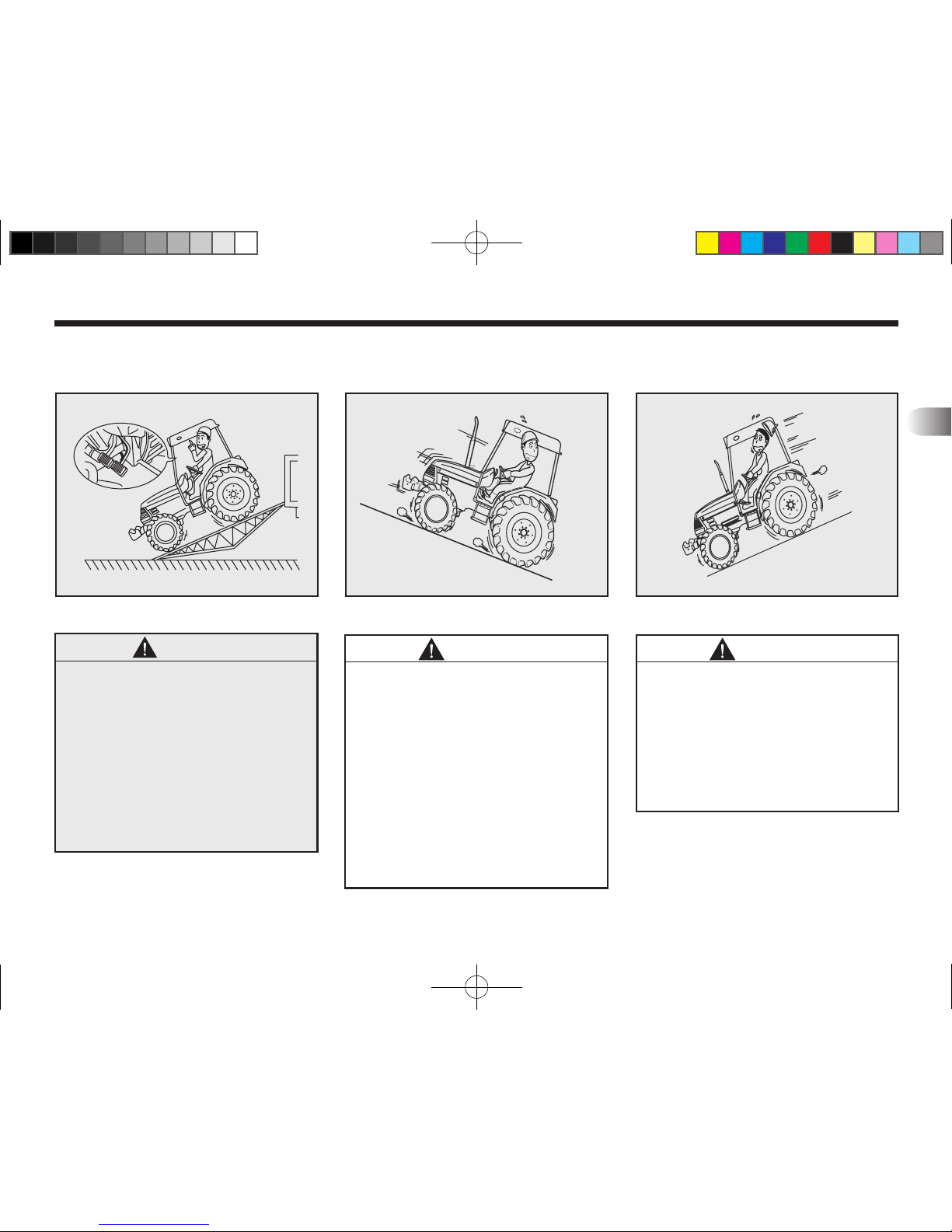

Pay pa r t i c u l a r attention to driving on the loading ramp. Do not operate the tractor as you do with normal use, such as stepping on the clutch, or putting the main gear or range gear or shuttle lever to “Neutral”.

[Otherwise] The tractor may roll backward or

fall off causing accident or injury.

•

WARNING

When driving on slopes or on the loading ramps, select the proper gear and then do not shift the gear.

[Otherwise] There is a risk of slipping, rolling,

or overturning.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd19 19 2014-09-02 오후 6:38:04

1

-

20

BRANSON K SERIES

LXN5o172a

LXN5o108a LXN5o115a

When transporting the tractor,

apply the parking brake with

gear engaged and fasten the

tractor to the truck securely

sufcient strength.

[Otherwise] There is a risk of accident that

the tractor may fall off the truck.

•

WARNING

Only operate tr ac t o r w h i l e people or animals are at safe distance away.

Check around the tractor, start the engine, and move slowly.

[Otherwise] There is a risk of injury.

•

WARNING

Do no t allow passengers to ride on any part of the tractor at any time.

The operator must remain in the seat at all time(Especially, children).

[Otherwise] An un expected accident may

occur.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd20 20 2014-09-02 오후 6:38:06

1

-

21

GENERAL PRECAUTIONS

1

LXN5o112aLXN5o109a LXN5o110a

When moving along the un-

pav e d roa d wit h ditc h es or

slanted sides, pay attention to

the shoulders. [Otherwise]

There is a risk of falling over.

•

WARNING

When driving on the road, observe the traffic regulations and wear a helmet.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

Ma k e su r e to con n e ct th e brake pedals when driving on a road.

[Otherwise] There is a danger of abrupt turn-

ing or overturning due to onesided braking when the brake pedal is depressed.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd21 21 2014-09-02 오후 6:38:07

1

-

22

BRANSON K SERIES

LXN5o111a

LXN5o140aLXN5o191a

Reduce throttle speed when

mak i ng a t urn, a p ply br ake

whe n d riving on a hilly or

curved roads. [Otherwise]

There is a risk of overturning.

•

WARNING

Check if the brakes work properly and evenly on both sides or if th e st ee ri ng wheel is loose.

[Otherwise] There is a risk of overturning.

•

WARNING

Be su r e to us e the lo a d i ng ramps when crossing a ditch o r d i ke , or wh e n pa s sin g through soft land. The loading ramps must be suitable for the tractor in width, length and strength.

[Otherwise] There is a risk of accident that

the tractor may slip or turn over.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd22 22 2014-09-02 오후 6:38:08

1

-

23

GENERAL PRECAUTIONS

1

LXN5o178a

LXN5o141a LXN5o142a

When leaving the tractor, park the tractor on a flat and safe area, turn off the engine, and apply the parking brake. Also, let the implement rest on the ground.

[Otherwise] The tractor may move and cause

an accident.

•

WARNING

Ventilate the area to let out the exhaust gas.

[Otherwise] The exhaust gas can cause in-

toxication and lead to fatal consequences.

•

WARNING

Pay attention and keep hands on the steering wheel while driving.

[Otherwise] There is a risk of accident to in-

jury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd23 23 2014-09-02 오후 6:38:10

1

-

24

BRANSON K SERIES

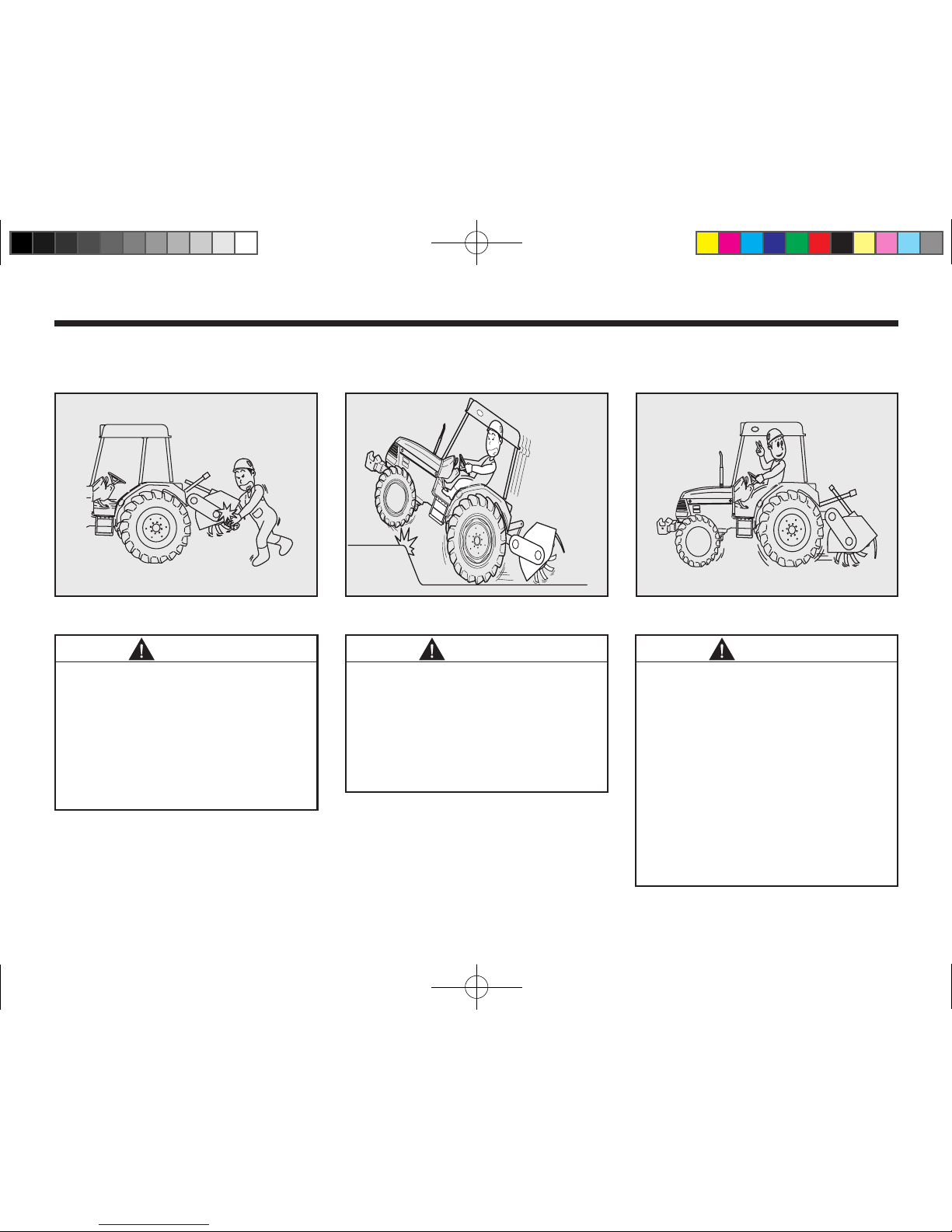

LXN5o144a LXN5o142a

Stop the engine when remov-

ing grass, etc. from the blades

of the cultivator. [Otherwise]

There is a danger that you will get entangled in the cultivator or sustain a serious injury.

•

WARNING

LXN5o193a

D o no t l o ok aw a y o r ta k e hands off the steering wheel while driving.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

Wh e n en t eri n g or lea v ing th e fa rming fi el d, or mo v ing across a dike or a raised ground, use the loading ramp and low er the implement as much as possible and so that it does not touch the ground.

[Otherwise] There is a danger that the tractor

may turn over due to loss of balance.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd24 24 2014-09-02 오후 6:38:11

1

-

25

GENERAL PRECAUTIONS

1

LXN5o153aLXN5o160a LXN5o154a

Whe n st a rt i ng the engin e ,

conrm that the implement is

down on ground.

[Otherwise] The implement may come down

suddenly and cause an injury.

•

WARNING

Never open the radiator cap when the radiator is heated.

[Otherwise] Hot water may splash, causing

burns or damage.

•

WARNING

Every d ay b efore op erat ing the tractor, check if the electrical wiring is contact with other parts, or if the insulation is peeling off, or the contact points are loose.

[Otherwise]

There is a danger of re due to

short circuit.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd25 25 2014-09-02 오후 6:38:12

1

-

26

BRANSON K SERIES

LXN5o192a

LXN5o152aLXN5o157a

Every day before operating the

tractor, check for straw, dust

fuel, or other residue on and

around the mufer and the en-

gine and remove them. [Otherwise]

There is a danger of re.

•

WARNING

When storing the tractor for a long period of time, make sure to put the clutch pedal in the “Disconnect” position.

[Otherwise] The tractor may move and cause

injury or an accident.

•

WARNING

Put tractor cover on only after parts such as the engine and

mufer cooled down.

[Otherwise]

There is a risk of re.

•

WARNING

BRANSON K SERIES 트랙터-영문판-01.indd26 26 2014-09-02 오후 6:38:14

1

-

27

GENERAL PRECAUTIONS

1

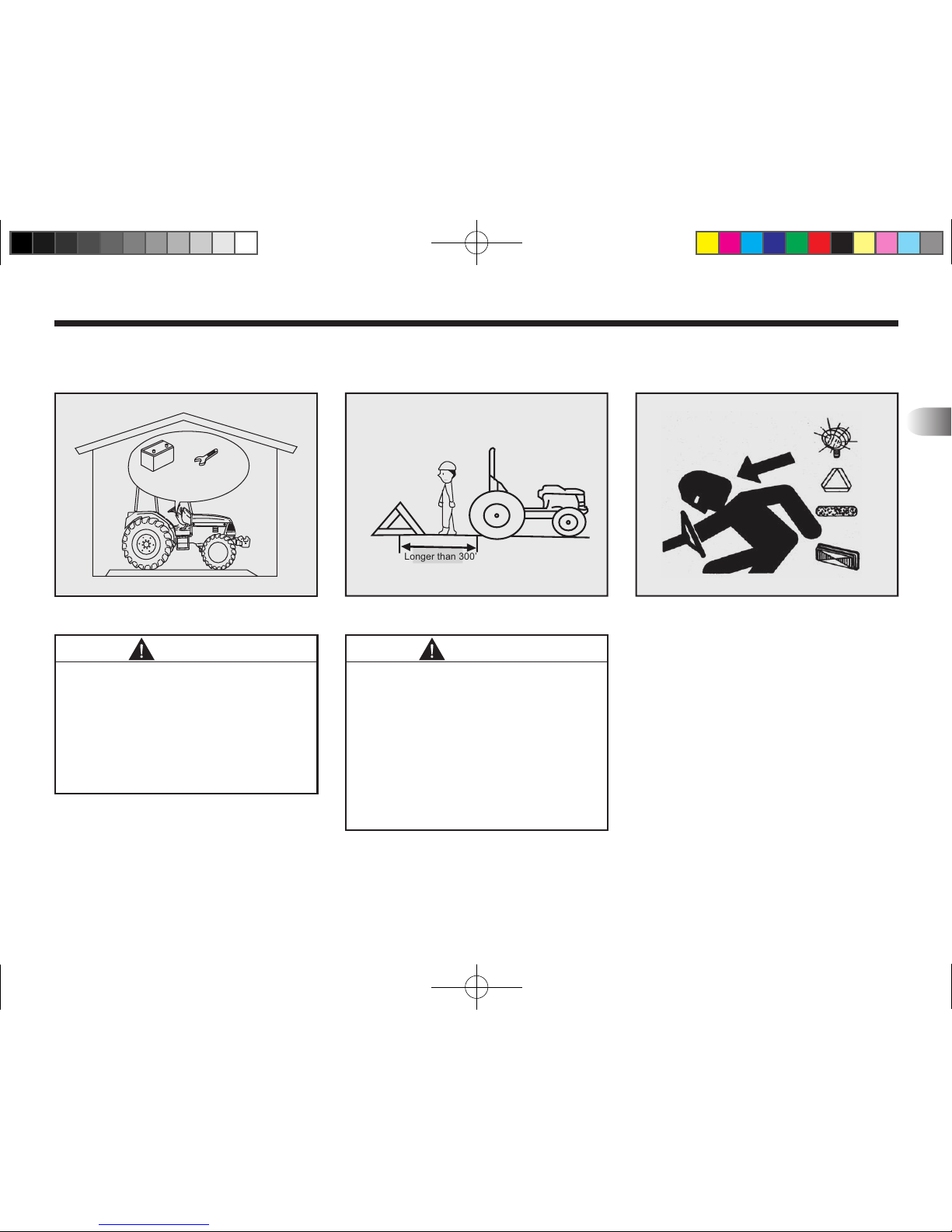

LXN5o194a

N῏ᤜ

Longer than 300’

When storing the tractor with-

out use for a long period of

time, remove the battery and

keep the key in a safe place. [Otherwise]

There is a risk of an accident.

•

WARNING

Install the indication of disable car in accordance with the local regulation at the rear of the tractor when a failure occurs during travelling.

[Otherwise] It may cause a danger of rear-

end accident.

•

WARNING

LXN5o195a

1. When the tractor has an implement attached or is moving slowly, you must often watch the rear side trafc status to avoid a collision accident when travelling on the road. In particular, be careful when you change directions. If necessary, the signal must be given by hand or direction indication lamp must be used.

2. Alwa y s tu rn on th e he ad light, and/or emergency lamp at night and day as requested by the local

trafc regulation.

와

는

떼어내서 보관하세요.

LXN5o158a

Remove from

tractor

&

BRANSON K SERIES 트랙터-영문판-01.indd27 27 2014-09-02 오후 6:38:15

1

-

28

BRANSON K SERIES

3. Maintain the light and indication plate so it can be visible always. Immediately repair or attach the broken or missed light and indicating plates.

Item regarding lighting devices. (alarm lamp and safety device)

•

CAUTION

The following items, maintenance and adjustment should not be attempted, but contact the nearest authorized dealer, if necessary.

1. Adjustme nt o f en gine in jection pump

Adjustment of injection pump with-

out preapproval may cause to deteriorate the durability and performance of the engine and may cause a fatal malfunction.

2. Adjustment of hydraulic pressure

Adjustment of hydraulic pressure

set at shipment may cause a fatal failure of related components and a subsequent accident.

3. If you intend to adjust the components that may deteriorate durability and performance, always contact your nearest authorized dealer or service department of the

head ofce.

[Otherwise]

Be careful it may cause a fatal error or may not be covered by the warranty.

Use agricultural chemicals in a safe manner.

1. Agricultural chemicals m ust be sprayed properly.

2. Spraying of agricultural chemicals must be noticed in advanced and damage to surroundings.

3. Do wear the protective clothing(mask, glove) for agricultural chemicals before spray work.

4. Clean the equipment and tractor just after spraying work.

[Otherwise]

You may be exposed to agricultural chemicals by wind.

BRANSON K SERIES 트랙터-영문판-01.indd28 28 2014-09-02 오후 6:38:15

2

2. ABOUT WARRANTY

WARRANTY

............................................................................................2-2

TROUBLE SHOOTING

..........................................................................2-2

BRANSON K SERIES 트랙터-영문판-02.indd1 1 2014-09-02 오후 6:38:59

2

-

2

BRANSON K SERIES

WARRANTY

Type of model and trac tor s/n number.

In case of engine, the engine s/n number.

Ci rcu mst anc es of brea kdo wn. (what kind of work, gear position, etc)

Amount of work done. (square footage or number of hours)

Other information in as much detail as possible surrounding the circumstanced of the breakdown.

•

You will need the “Warranty paper work” when your tractor r equires warranty service. Read it and keep in a safe place.

TROUBLE SHOOTING

In case of mechanical trouble, refer to “Trouble shooting” on end of this manual. If the problem cannot be corrected, please contact your nearest authorized dealer.

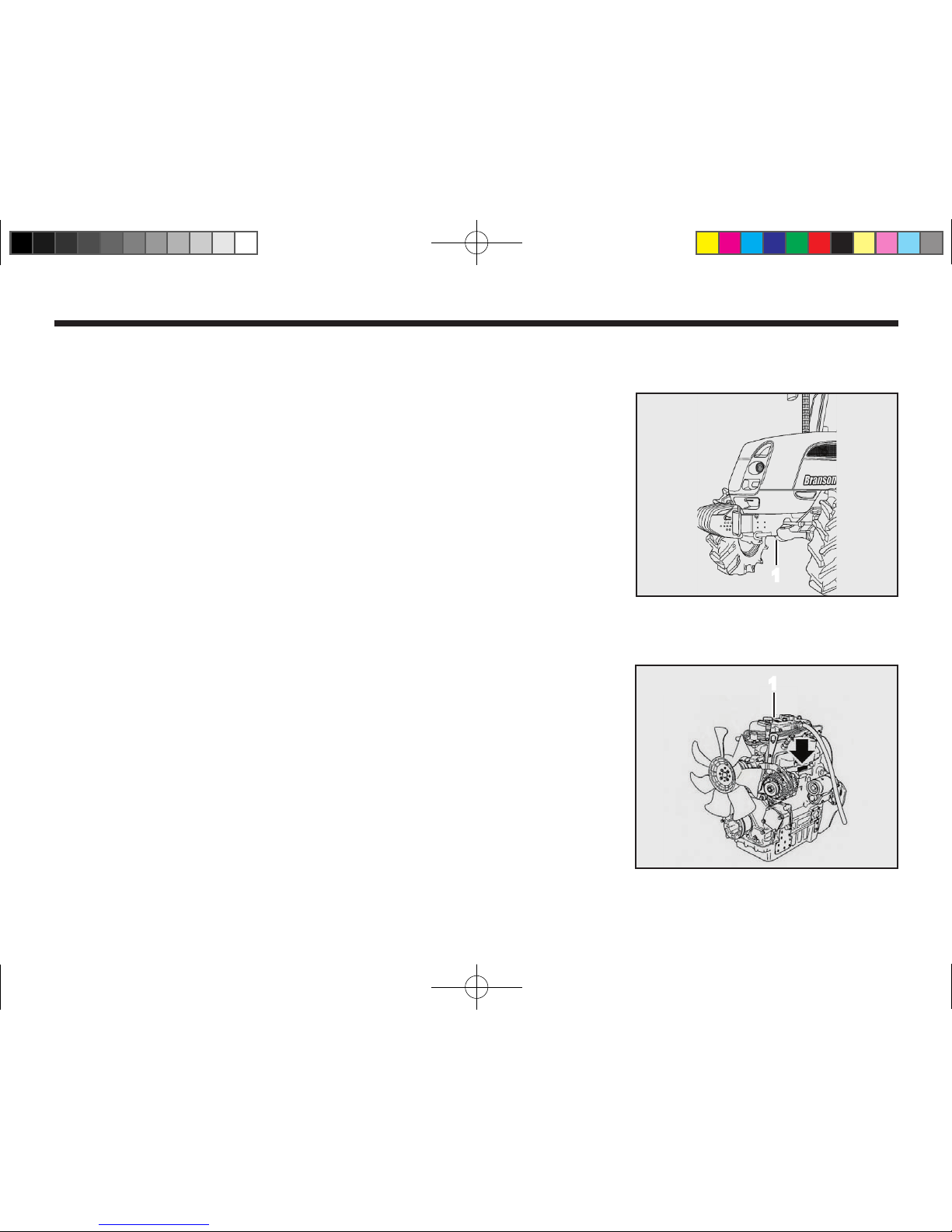

(1) Tractor Serial number.

LXN5o201a

1

(1) Engine Serial Number

LXN5o202a

1

BRANSON K SERIES 트랙터-영문판-02.indd2 2 2014-09-02 오후 6:39:00

3

3. OVERVIEW OF THE TRACTOR

EXTERIOR VIEW ............................................................................3-2

BRANSON K SERIES 트랙터-영문판-03.indd1 1 2014-09-02 오후 6:39:22

3

-

2

BRANSON K SERIES

EXTERIOR VIEW

(1) Work Lamp (2) Roof (3) Side Mirror (4) Hood (5) Rear Tire (6) Front Tire (7) Step

LXN5o301a

BRANSON K SERIES 트랙터-영문판-03.indd2 2 2014-09-02 오후 6:39:23

3

-

3

OVERVIEW OF THE TRACTOR

3

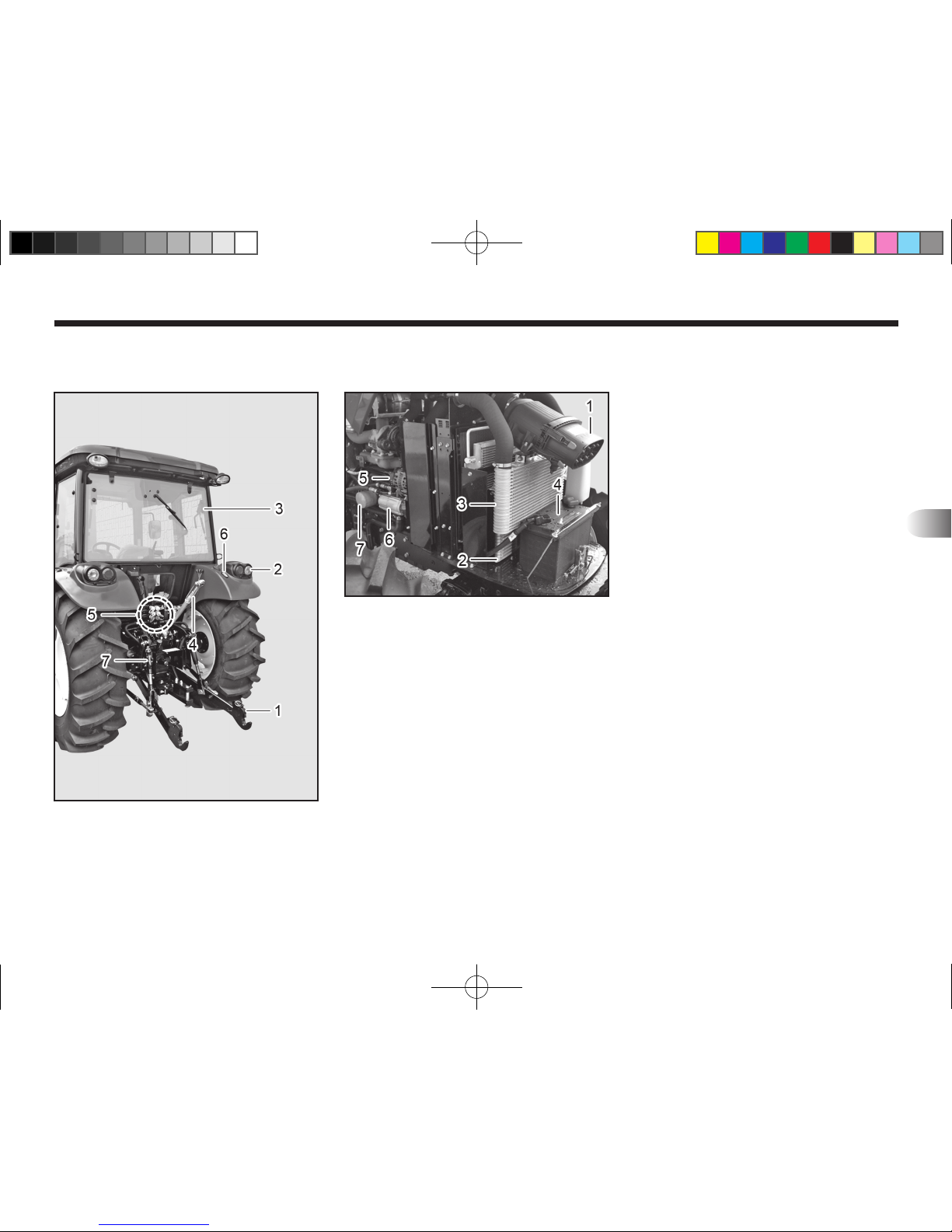

(1) Lower Link (2) Rear Combination Lamp (3) Rear Window (4) Center Link (5) Rear Remote Valve (6) 3pt Control Switch (7) Lift Link

LXN5o302a

(1) Air Cleaner (2) Oil Cooler (3) Inter Cooler (Except Tier 3) (4) Battery (5) Alternator (6) Hydraulic Pump (7) Engine Oil Filter

LXN5o303a

BRANSON K SERIES 트랙터-영문판-03.indd3 3 2014-09-02 오후 6:39:23

MEMO

............................................................................................................................................................................

Branson Machinery LLC

BRANSON K SERIES 트랙터-영문판-03.indd4 4 2014-09-02 오후 6:39:23

4

4. FUNCTIONS

SWITCHES AND LEVERS ..........................4-3

MAIN KEY SWITCH ...............................................4-3

TELESCOPIC ADJUST CAP ..................................4-4

STEERING COLUMN TILT LEVER ........................4-4

EMERGENCY LAMP SWITCH ...............................4-4

COMBINATION LAMP SWITCH .............................4-5

4WD SHIFT SWITCH .............................................4-5

F/R SHUTTLE LEVER ............................................4-5

HAND THROTTLE ..................................................4-6

DASH METER ASSY ................................... 4-7

WARNING LAMP ....................................................4-8

DIRECTION INDICATOR LAMP .............................4-8

FORWARD/NEUTRAL/REVERSE INDICATOR .....4-8

LOW BEAM/HIGH BEAM LAMP ............................4-9

BRAKE PEDAL CONNECTION ..............................4-9

AUTO PTO LAMP ...................................................4-9

PTO LAMP ............................................................4-10

PARKING BRAKE LAMP ......................................4-10

PRE-HEAT LAMP .................................................4-10

ENGINE OIL PRESSURE LAMP ..........................4-11

BATTERY CHARGING LAMP ..............................4-11

FUEL EMPTY LAMP ............................................. 4-11

TRANSMISSION WARNING LAMP .....................4-12

LIFT UP LAMP ......................................................4-12

TOWING POWER LAMP ......................................4-12

MFWD LAMP ........................................................4-13

FUEL GAUGE .......................................................4-13

RPM GAUGE/ENGINE USING HOUR METER ...4-13

SPEEDOMETER ..................................................4-14

WATER TEMP GAUGE ........................................4-14

ERROR CODE DISPLAY MONITOR ....................4-14

PEDALS ..................................................... 4-15

CLUTCH PEDAL ..................................................4-16

BRAKE PEDALS AND COUPLER........................4-16

ACCELERATOR PEDAL ......................................4-17

PARKING BRAKE LEVER ....................................4-17

LEVER OPERATION (R) ...........................4-18

MID REMOTE VALVE JOYSTICK ........................4-18

MAIN GEAR SHIFT LEVER .................................4-19

BRANSON K SERIES 트랙터-영문판-04.indd1 1 2014-09-02 오후 7:15:35

FUNCTIONS

REAR REMOTE CONTROL LEVER ....................4-18

HITCH CONTROL LEVER ...................................4-19

DRAFT CONTROL DIAL ......................................4-20

STOP / SLOW RETURN DIAL ..............................4-20

FENDER REMOTE SWITCH ...............................4-21

PTO ON/OFF SWITCH .........................................4-21

LEVER OPERATION (L) ............................ 4-22

RANGE GEAR SHIFT LEVER ..............................4-22

PTO SHIFT LEVER ..............................................4-23

OTHERS ..................................................... 4-24

DIFFERENTIAL LOCK PEDAL .............................4-24

WORK LAMP SWITCH .........................................4-24

WIPER SWITCH ...................................................4-25

SIDE WINDOW HANDLE .....................................4-26

POWER OUTLET .................................................4-26

CLIMATE CONTROL ............................................4-27

SEAT .....................................................................4-28

BRANSON K SERIES 트랙터-영문판-04.indd2 2 2014-09-02 오후 7:15:35

4

-

3

FUNCTIONS

4

MAIN KEY SWITCH



"OFF"

The engine is stopped, and current

does no ow. (The key can be taken

out)

LXN5O402A

(1) Main Key Switch (2) Telescopic Adjust Cap (3) Steering Column Tilt Lever (4) Emergency Lamp Switch (5) Combination Lamp Switch (6) 4wd Shift Switch (7) F/R Shuttle Lever (8) Hand Throttle (9) Dash Meter

It is used to start the engine.



"ON"

Electric current ows to the switched of all electrical parts. If the engine is stopped, the engine oil pressure pilot lamp and the battery charge pilot lamp are lit. Depending on the outside temperature, the thermostat pilot lamp may also be lit.



"START"

Starting motor turns and the engine

is started.

Once the engine is started, take your hand off the key.

The key will return to the “ON” position automatically and the engine will keep running.

Turn engine off before performing any maintenance on tractor

SWITCHES AND LEVERS

When the tractor is not in use, take out the key and keep it in a safe place.

•

CAUTION

LXN5O401a

BRANSON K SERIES 트랙터-영문판-04.indd3 3 2014-09-02 오후 7:15:35

4

-

4

BRANSON K SERIES

(1) Telescopic Adjust Cap

LXN5O403a

TELESCOPIC ADJUST CAP

Turn telescopic adjust cap CCW, then fix handle at a desirable position and turn telescopic adjust cap CW for adjustment.

Mus t no t be adj usted while driving.

•

CAUTION

STEERING COLUMN TILT LEVER

Confirm that the steering wheel is rmly xed.

(1) Steering Column Tilt Lever

EMERGENCY LAMP SWITCH

Used to prevent accident in an emergency by pressing switch as to warn other vehicles. Emergency lamp operates regardless of main switch and every direction lamp will cease at once. Press once again to cancel.

(1) Emergency Lamp Switch

LXN5O404a LXN5O405a

Mus t no t be adj usted while driving.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-04.indd4 4 2014-09-02 오후 7:15:37

4

-

5

FUNCTIONS

4

LXN5O406a

COMBINATION LAMP SWITCH

Tail lamp and dash meter will be lit when light switch is turned CCW

once. When turned once again, high

beam or lower beam will be lit. For direction light, bring the lever forward to light for right and backward to light for left.

To use horn, press on side of light switch.

LXN5O407a

4WD SHIFT SWITCH

2WD: Rear wheel drive high range – This is for driving on dry hard surfac-

es.

4WD AUTO: 4WD Auto range – This is automatically disengaged when either brake pedal is pressed or if speed exceeds 9.3mph(15km/h)

4WD: Four-wheel drive – This range provides full time four –wheel drive

F/R SHUTTLE LEVER

It is used for shifting between “forward” and “reverse” drive.

LXN5O408a

(1) Combination Lamp Switch (1) F/R Shuttle Lever

BRANSON K SERIES 트랙터-영문판-04.indd5 5 2014-09-02 오후 7:15:37

4

-

6

BRANSON K SERIES

For safety, when shifting from “forward” to “reverse” or from “reverse” t o “forw ard” , put the lever in the “neutral” position and wait for the tractor to stop moving before shifting the gear to the opposite direction. To ensure safety, the leve r must first be pulled upward for shifting to another position.

•

CAUTION

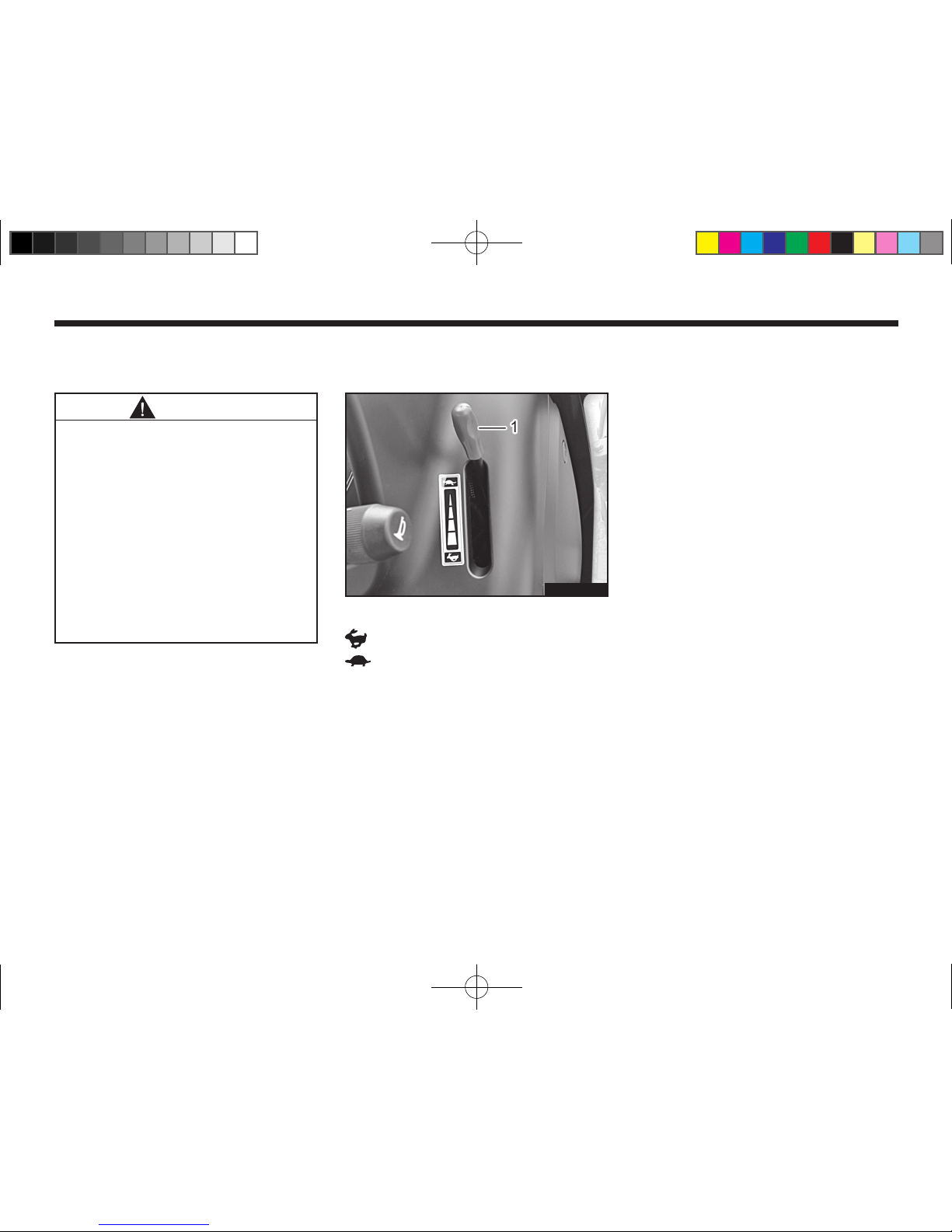

HAND THROTTLE

It is used to make the engine run faster or slower. It is also used when working at a constant speed.

LXN5O409a

(1) Hand Throttle Lever

: Faster Engine RPM

: Slower EnginE RPM

BRANSON K SERIES 트랙터-영문판-04.indd6 6 2014-09-02 오후 7:15:37

4

-

7

FUNCTIONS

4

DASH METER ASSY

(1) Warning Lamp (2) Direction Lamp(LH) (3) Direction Lamp(RH) (4) Forward (5) Neutral (6) Reverse (7) Low Beam (8) High Beam

(9) N/A (10) Brake Pedal Connection (11) N/A (12) DPF (13) Auto PTO (14) PTO (15) Air Flow Sensor (16) Parking Brake (17) Fuel Water Separator (18) Preheat (19) Engine Oil Pressure Lamp (20) Battery Charging Lamp (21) Fuel Empty (22) T/M Warning (23) N/A (24) Lift Up Lamp (25) Towing Power (26) Auto TBS (27) Vertical Up (28) Turn Up (29) Quick Turn (30) 4WD

LXN5O410a

(A) Fuel Gauge (B) RPM Gauge

(C) Speed Meter (D) Coolant Temp Gauge

(E) Error Code Display

BRANSON K SERIES 트랙터-영문판-04.indd7 7 2014-09-02 오후 7:15:38

4

-

8

BRANSON K SERIES

WARNING LAMP

Center warning indicator lamp will light up when trouble occurs with

tractor.



E rror code will be displayed at

same time.

FORWARD/NEUTRAL/REVERSE INDICATOR

Forward / Neutral / Reverse lamp will light up when shuttle lever is positioned in each: forward / neutral /reverse

(1) Forward Driving Indicator (2) Neutral Indicator (3) Reverse Driving Indicator

DIRECTION INDICATOR LAMP

The indicator lamp will light up when direction lever is pulled / pushed to

each direction.

(1) Left Turn Signal Lamp (2) Right Turn Signal Lamp

LXN5O411a

1 21 2

LXN5O412a

1 2 31 2 3

LXN5O413a

BRANSON K SERIES 트랙터-영문판-04.indd8 8 2014-09-02 오후 7:15:38

4

-

9

FUNCTIONS

4

LOW BEAM/HIGH BEAM LAMP

With the main switch in the “ON” position, turn the light switch one click to the right for low-beam and pull it up for high-beam.

(1) Low Beam Lamp (2) High Beam Lamp

BRAKE PEDAL CONNECTION

Brake pedals connection lamp will light up when left and right xed connection plate of brake is released.

(1) Brake Pedal Connection

AUTO PTO LAMP

AUTO PTO indicator lamp will light up when PTO auto switch on control panel is turned on.

(1) Auto PTO Lamp

1 21 2

LXN5O414a

11

LXN5O415a LXN5O416a

AUTO

BRANSON K SERIES 트랙터-영문판-04.indd9 9 2014-09-02 오후 7:15:38

4

-

10

BRANSON K SERIES

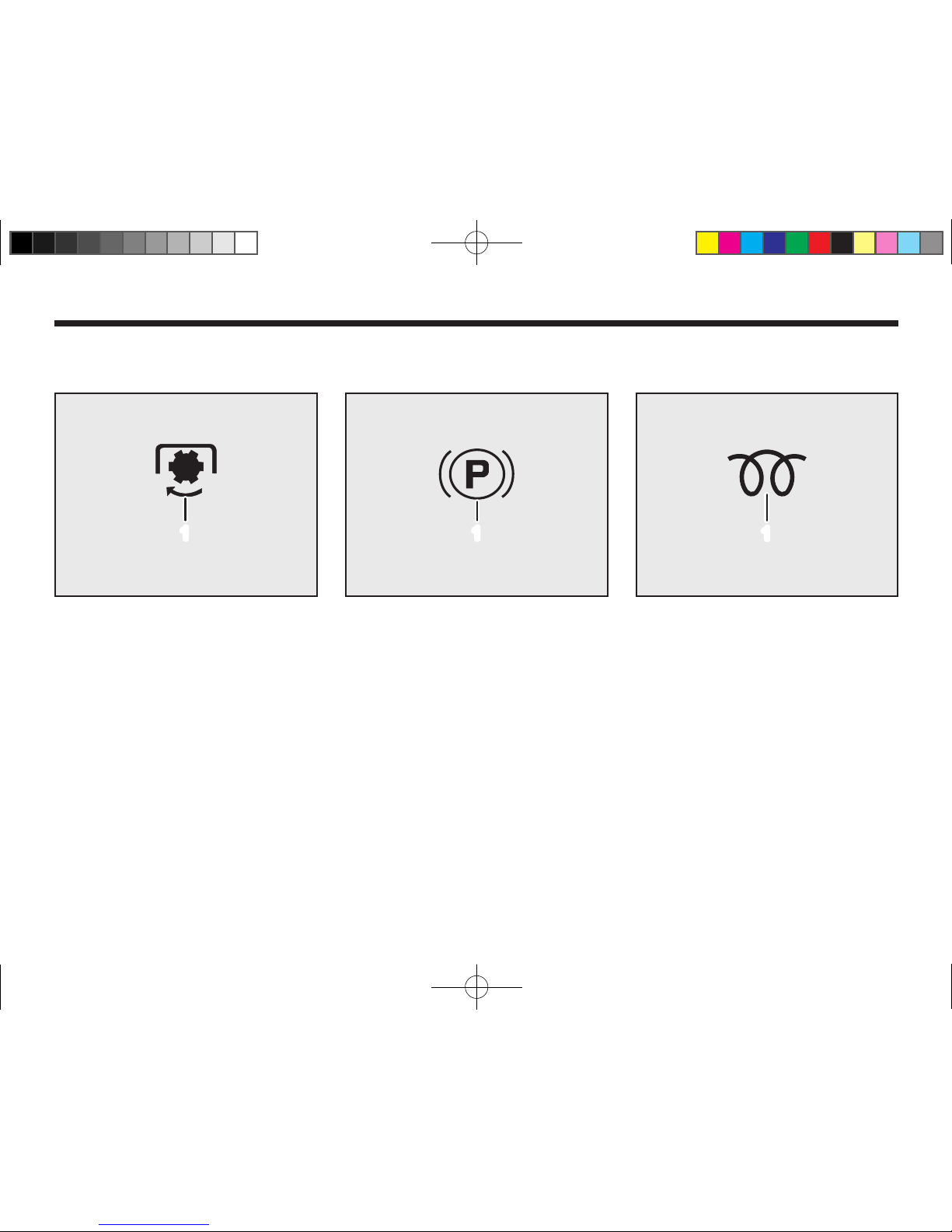

PARKING BRAKE LAMP

Lam p wi ll light up when par king brake is pulled up.

At this sta ge, drive is no t poss ible even when gear is changed with shuttle lever.

Release parking brake and change shuttle lever.

(1) Parking Brake Lamp

1 1

LXN5O418a

PTO LAMP

PTO indicator lamp will light up when PTO ON/OFF switch is turned on.

(1) PTO Lamp

11

LXN5O417a

PRE-HEAT LAMP

Lamp will light on/off depending on temperature of engine coolant when main key switch is turned on.

Lamp will be turned off when heater coil is heated. Start engine after this lamp is turned off.

It is difcult to start engine in winter when starting engine before warm up lamp is turned off. It also causes early discharge of battery.

(1) PRE-HEAT Lamp

1 1

LXN5O419a

BRANSON K SERIES 트랙터-영문판-04.indd10 10 2014-09-02 오후 7:15:38

4

-

11

FUNCTIONS

4

ENGINE OIL PRESSURE LAMP

Lamp will come on when the ignition switch is put into the “ON” position.It will turn off when the engine is started.

If this lamp comes on while the engine is running, it indicates a problem in the engine oil system. Stop the engine immediately and check for problems.

(1) Engine Oil Pressure Lamp

1

LXN5O420a

BATTERY CHARGING LAMP

It will be turned on when the key switch is put into the “ON” position, and will be turned off when the battery

starts being charged after engine is started and the engine revolution incre ases. Th e batter y wi ll not be charged with the engine below 1,000 rpm. (The rpm should be 1,500 rpm

or higher)

(1) Battery Charge Lamp

1 1

LXN5O421a

11

LXN5O422a

(1) Fuel Empty Lamp

FUEL EMPTY LAMP

It will light up when there is little fuel in fuel tank.

Refuel immediately as empty fuel tank may cause inhalation of air.

BRANSON K SERIES 트랙터-영문판-04.indd11 11 2014-09-02 오후 7:15:38

4

-

12

BRANSON K SERIES

LIFT UP LAMP

Lift up lamp will light up when lift arm is lifted up by onetouch moving up, or reverse moving up or turning increase to maximum position.

(1) Lift Up Lamp

TOWING POWER LAMP

Towing power lamp will light up when towing power setup dial is set at desired level.

(1) Towing Power Lamp

11

1 1

LXN5O424a LXN5O425a

TRANSMISSION WARNING LAMP

(1) Transmission Warning Lamp

1

LXN5O423a

Transmission warning lamp will light up when trouble occurs with shuttle or PTO or four-wheel driving part of transmission part.

BRANSON K SERIES 트랙터-영문판-04.indd12 12 2014-09-02 오후 7:15:38

4

-

13

FUNCTIONS

4

MFWD LAMP

MFWD la m p will light up wh e n MFWD lever is put at “ON”.

(1) Mfwd lamp

11

LXN5O426a

FUEL GAUGE

The needle indicates the quantity of fuel remaining in the tank. If the needle is in the red zone, refill immediately.

RPM GAUGE/ENGINE USING HOUR METER

The needle indicates the number of

engine RPM It indicates the tractor’

s running hours. By multiplying the digit in the far right position by 6, you will get the time in minute.

LXN5O427a LXN5O428a

BRANSON K SERIES 트랙터-영문판-04.indd13 13 2014-09-02 오후 7:15:39

4

-

14

BRANSON K SERIES

SPEEDOMETER

The needle indicates speed of tractor.

LXN5O429a

WATER TEMP GAUGE

The needle indicates the temperature of the engine coolant during running. If the needle is in the red zone, stop running the engine and check for problems.

LXN5O430a

ERROR CODE DISPLAY MONITOR

The error code display monitor indicates the relevant error code when the tractor is malfunctioned as below.

LXN5O431a

#

ERROR

CODE

DESCROPTION

1 1401

Trouble with 4wd solenoid circuit

2 1403

Trouble with forward solenoid valve

3 1404

Trouble with reverse solenoid valve

BRANSON K SERIES 트랙터-영문판-04.indd14 14 2014-09-02 오후 7:15:39

4

-

15

FUNCTIONS

4

#

ERROR

CODE

DESCROPTION

4 2301

Trouble with shuttle lever switch

5 2302

F/r shuttle shift with parking brake lever pulled

6 3101

Trouble with controller power

7 3102 Trouble with battery power

8 3202

Trouble with 3p control lever signal

9 3203 Signal error from lift sensor

10 3204

Signal error from towing

sensor

11 3301

Trouble with fender control switch (up)

12 3302

Trouble with fender control switch (down)

13 3401

Trouble with 3p hitch raising power

14 3402

Trouble with 3p hitch lowering power

15 3403 Trouble with 3p lift solenoid

16 5101 Can communication error

PEDALS

(1) Clutch Pedal (2) Brake Pedal (Left) (3) Brake Pedal (Right)

(4) Accelerator Pedal (5) Brake Pedal Coupler (6) Parking Brake

LXN5O426a

BRANSON K SERIES 트랙터-영문판-04.indd15 15 2014-09-02 오후 7:15:40

4

-

16

BRANSON K SERIES

CLUTCH PEDAL

It is used to transmit the engine power.

(1) Clutch pedal

LXN5O433a

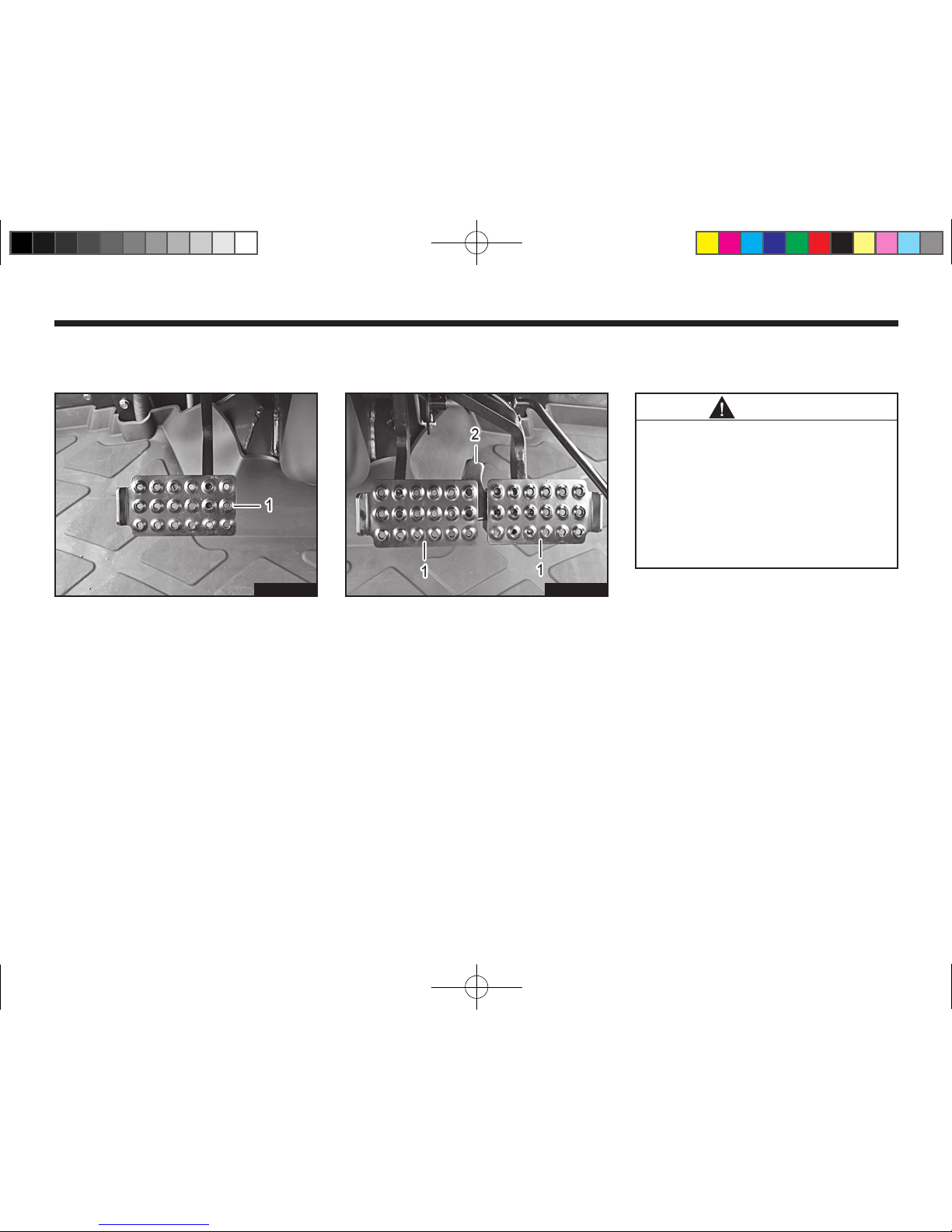

BRAKE PEDALS AND COUPLER

(1) Brake Pedal (2) Coupler

LXN5O434a

Ma k e su r e to con n e ct th e brake pedals with the coupler when driving on a road.

[Otherwise] There is a risk of abrupt turning

or overturning due to one-sided braking.

•

WARNING

Brake pedals are independent of each other and can be used for making a small turn on the pavement.

Depressing the brake pedal on the side to which to make a turn, the rear wheel on that side is stopped and the tractor can make a small turn.

BRANSON K SERIES 트랙터-영문판-04.indd16 16 2014-09-02 오후 7:15:40

4

-

17

FUNCTIONS

4

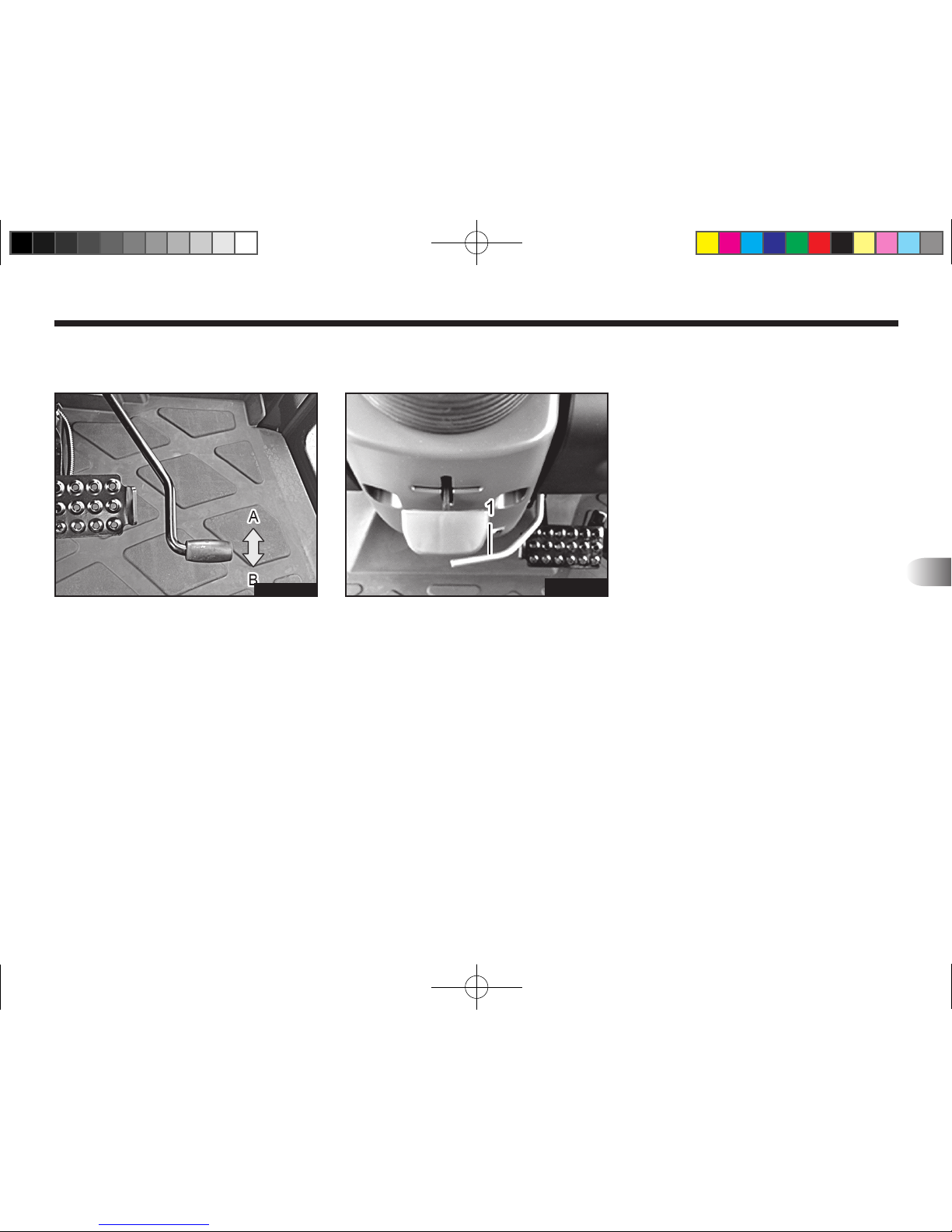

ACCELERATOR PEDAL

It is used to make the engine run faster or slower. It is usually used when driving on a road.

(A) RPM decreases (B) RPM increase

LXN5O435a

PARKING BRAKE LEVER

Pull the lever up while depressing the brake pedal fully to engage the parking brake. To release the parking brake, step on the brake pedal and push the lever down.

• Coupler both brake pedals with the

connector.

(1) Parking Brake Lever

LXN5O449a

BRANSON K SERIES 트랙터-영문판-04.indd17 17 2014-09-02 오후 7:15:41

4

-

18

BRANSON K SERIES

MID REMOTE VALVE JOYSTICK

Front-loader exclusive valve is attached and joystic is attached on right-front side of driver’s seat.

Loader will move up when pushed forward and move down when pulled backward. Bucket will move up when pushed to the left and move down when pushed to the right. Joystick must be locked when driving while loader is lifted. Otherwise it may

cause accident.

(1) Mid Remote Valve Joystick (2) Bucket

LXN5O437a

LEVER OPERATION (R)

(1) Mid Remote Valve Joystick (2) Main Gear Shift Lever (3) Rear Remote Control Lever(I,II,III)

(4) Hitch Control Lever (5) PTO ON/OFF Switch

LXN5O436a

BRANSON K SERIES 트랙터-영문판-04.indd18 18 2014-09-02 오후 7:15:41

4

-

19

FUNCTIONS

4

The gear is shifted in four levels. When shifting the gears depress the clutch fully.

(1) Main Gear Shift Lever

LXN5O438a

REAR REMOTE CONTROL LEVER

It is used to for the rear implement hyd-function.

▶LOCATION OF DETENT FUNCTION

(1) Rear Remote ControL Lever I (2) Rear Remote ControL Lever II (3) Rear Remote ControL Lever III

LXN5O440a

Lever # 1 2 3

Detent

Front /

Rear

N/A N/A

(1) Hitch Control Lever (2) One-touch Switch

HITCH CONTROL LEVER

LXN5O441a

BRANSON K SERIES 트랙터-영문판-04.indd19 19 2014-09-02 오후 7:15:42

4

-

20

BRANSON K SERIES

LXN5O442a

DRAFT CONTROL DIAL

Draft control dial allows the implement to be automatically lifted up depending on the load on the rear implement.

It will operate with larger weight as dial is turned CW.

It will operate manually when dial is completely turned CCW and towing power lamp is turned off in gauge.

(1) Draft Control Dial

Hitch control lever can freely lift up or move down the rear implement. It will lift up when lever is pulled back and move down when lever is pushed forward.

One-touch lifting up/down switch can make lifting up to the point set by upper limit control dial and moving down to position of control lever.

To avoid personal injury, do not use onetouch switch when engaging or disengaging the implement.

•

WARNING

LXN5O443a

STOP / SLOW RETURN DIAL

(1) Stop / Slow Return Dial

The rate at w h ich the hi tch and mounted implement will drop is controlled by turning the dial. The rate of down varies with the setting of control and the weight of the mounted implement. The heavier the implement, the faster the rate of down. The lighter the implement, the slower the rate of down.

BRANSON K SERIES 트랙터-영문판-04.indd20 20 2014-09-02 오후 7:15:42

4

-

21

FUNCTIONS

4

LXN5O444a

FENDER REMOTE SWITCH

(1) Fender Remote Switch

It is used to control hitch height.

PTO ON/OFF SWITCH

It is used for turning on or off PTO.

※

The en g i n e d o e s not start up ,

when the PTO ON/OFF switch is in “ON”. Put to “OFF” position for

starting up the engine.

LXN5O445a

BRANSON K SERIES 트랙터-영문판-04.indd21 21 2014-09-02 오후 7:15:42

4

-

22

BRANSON K SERIES

RANGE GEAR SHIFT LEVER

The range gear is shifte d in four levels(C-1-2-3). The combination with the main gear provides 16 level of gear shifting.

When shifting the range gear, depress clutch fully

(1) Range Gear Shift Lever

LXN5O447a

LEVER OPERATION (L)

(1) Range Gear Shift Lever (2) PTO Shift Lever (3) Parking Brake Lever

LXN5O446a

BRANSON K SERIES 트랙터-영문판-04.indd22 22 2014-09-02 오후 7:15:43

4

-

23

FUNCTIONS

4

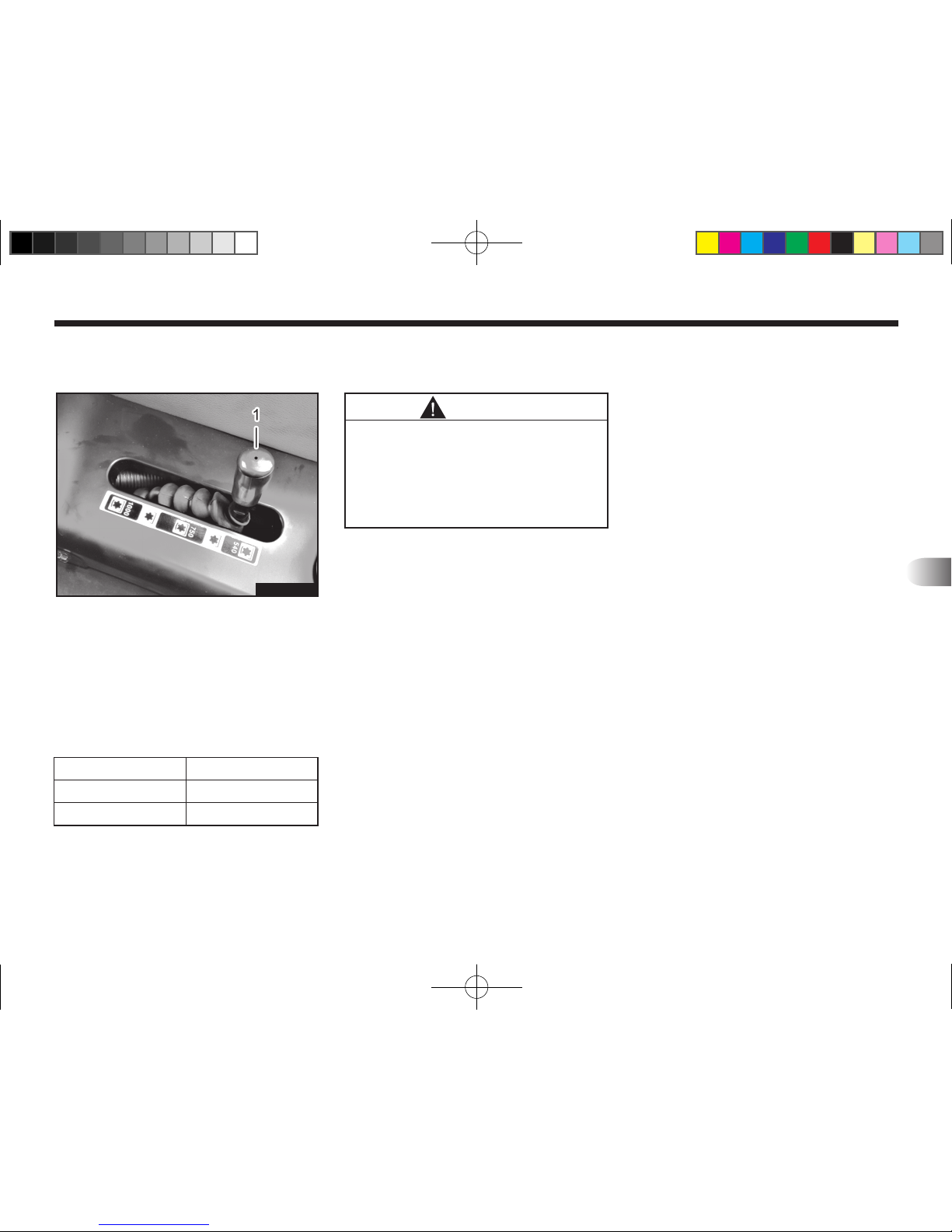

PTO SHIFT LEVER

(1) PTO Shift Lever

The revolution of the PTO shaft can be shifted in three levels. When shifting lever, Put PTO ON/OFF switch to

‘OFF’ position

1st 529 rpm

2nd 714 rpm

3

rd

1,000 rpm

LXN5O448a

Observe the PTO speed designated on the implement. Otherwise, the implement may be damaged and cause an accident.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-04.indd23 23 2014-09-02 오후 7:15:43

4

-

24

BRANSON K SERIES

OTHERS

DIFFERENTIAL LOCK PEDAL

It is used to transmit the same power to both rear wheels and serves to prevent slipping when one of the rear wheels is idling.

(1) Differential Lock Pedal

Release the differential gear lock when making a turn. Otherw ise, the t ractor ma y no t turn in the direction you want and cause an accident.

•

WARNING

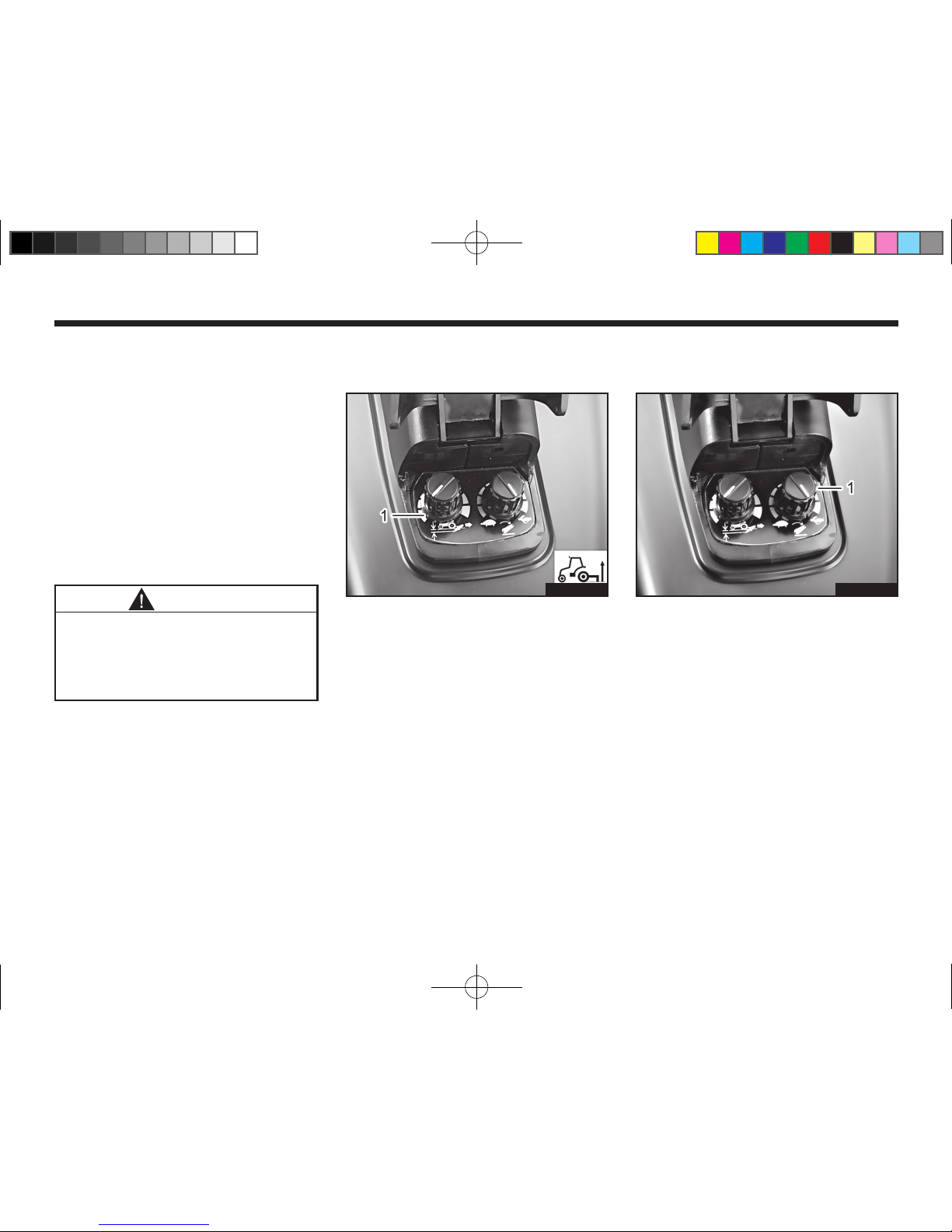

WORK LAMP SWITCH

W o r k i n g l a m p m u s t b e TUR N ED OF F whi l e dr i ving at night, or any sudden accidents may occur.

•

WARNING

It is used to turn on front & rear working lamps on top roof

(1) Front Working Lamp Switch

(2) Rear Working Lamp Switch

LXN5O450a

LXN5O451a

BRANSON K SERIES 트랙터-영문판-04.indd24 24 2014-09-02 오후 7:15:43

4

-

25

FUNCTIONS

4

WIPER SWITCH

Wiper blades will operate when upper b u t t o ns of w i p e r switc h are

pressed.

Washer fluid is sprayed on to windshield and the wipers are operated when lower buttons of wiper switch

are pressed.

Wash liquid tank for cleaning is located on rear right side of cabin interior.

(1) Front Wiper Switch (2) Rear Wiper Switch

LXN5O452a

(1) Washer Fluid Reservoir Tank

Do not use the washers when the was h e r fl u id re s er vo i r is empty, otherwise you will damage the washer pump.

Do no t use th e wa shers if there is any danger that the fluid will freeze on the windshield. If you do, your vision could be obscured. For this reason, use antifreeze

•

CAUTION

LXN5O453a

BRANSON K SERIES 트랙터-영문판-04.indd25 25 2014-09-02 오후 7:15:44

4

-

26

BRANSON K SERIES

POWER OUTLET

Accessory 12-volt electrical outlet is used when connecting auxiliary equipment.

(1) Power Outlet

LXN5O456a

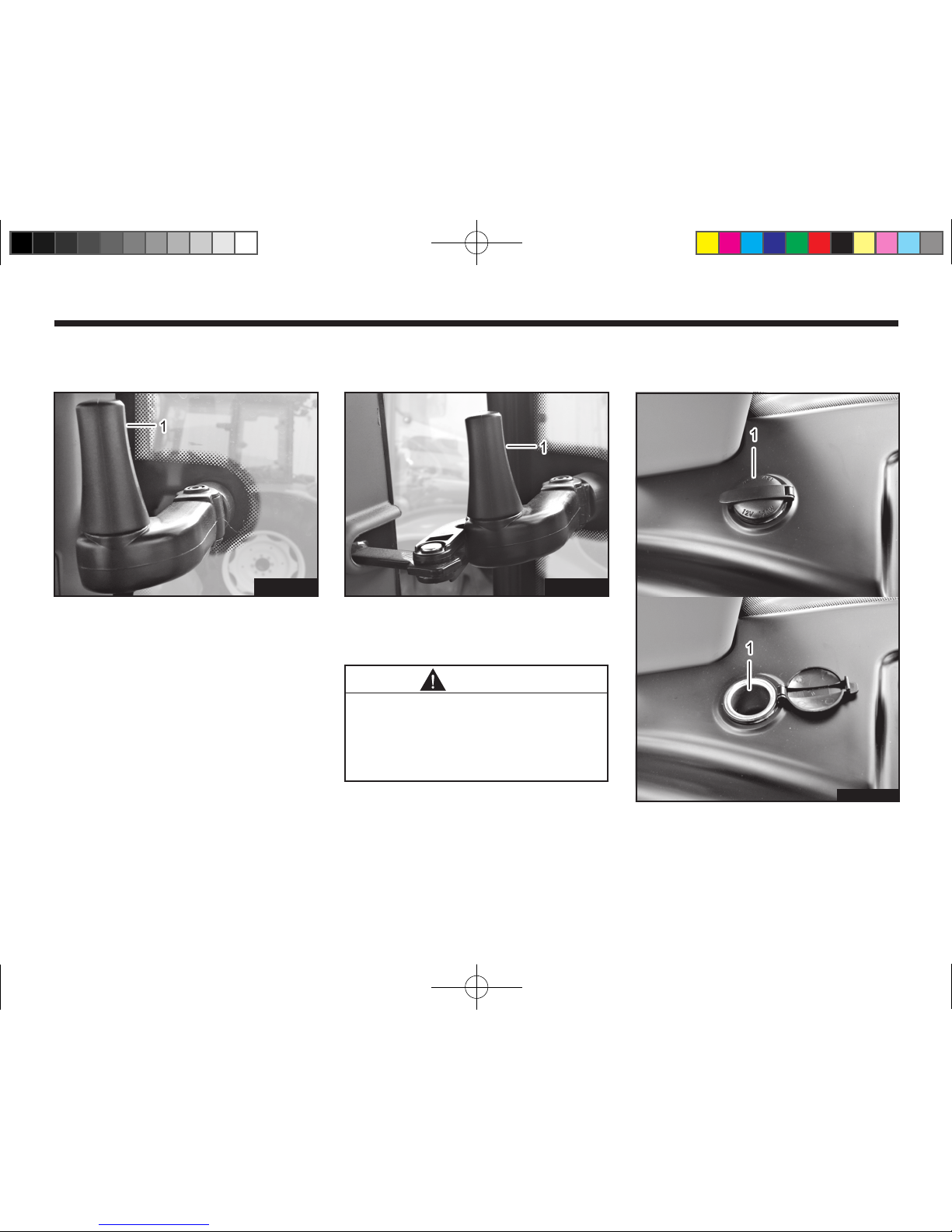

SIDE WINDOW HANDLE

It is used to open side window.

(1) Side Window Handle (1) Side Window Handle

Be aware of possible hand injury in hinge part and glass windows while opening and closing.

•

CAUTION

LXN5O454a LXN5O455a

BRANSON K SERIES 트랙터-영문판-04.indd26 26 2014-09-02 오후 7:15:45

4

-

27

FUNCTIONS

4

LXN5O457a

(1) Temperature (2) Fan Speeds (3) Air Circulate Control

(4) Heater Control (5) Cooling Function

1. TEMPERATURE

Red, to increase the temperature.

Blue, to decrease the temperature.

2. FAN SPEEDS

Adjust the fan speeds. The higher the rate, the more effective the heating or cooling will be.

3. AIR CIRCULATE CONTROL

Used to shift the supply of outside air and recirculates the inside air.

4. HEATER CONTROL

5. COOLING FUNCTION

When the cooling function is on, the air compressor is worked then reheated according to the temperature

setting.

CLIMATE CONTROL

BRANSON K SERIES 트랙터-영문판-04.indd27 27 2014-09-02 오후 7:15:45

4

-

28

BRANSON K SERIES

SEAT

Fore and Aft positioning : Lift handle and move the seat forward or rearward. Release the handle at one of several positions.

Back cushion angle adjustment : Lift the handle and let the back cushion spring forward, or lean backward into the cushion. Release the handle at

desired position.

(1) Seat



LXN5O458a

Never attempt to adjust your seat while the tractor is moving. The seat could respond with unexpected movement, and the ensuring loss of tractor control could lead to an accident.

•

CAUTION

Weight adjustment : With seat in midposition, extend the crank lever from knob and rotate minus(-) direction for less support or Plus(+) for more support. Use the indicator for approximate weight setting. Release crank lever

BRANSON K SERIES 트랙터-영문판-04.indd28 28 2014-09-02 오후 7:15:45

5

5. OPERATION & WORK

CHECKING BEFORE OPERATION ......................................................... 5-2

STARTING / STOPPING THE ENGINE .................................................... 5-8

TO START THE ENGINE ..............................................................................................5-9

TO STOP THE ENGINE ..............................................................................................5-12

DRIVING ON THE ROAD .......................................................................5-12

DRIVING ON THE SLOPE ......................................................................5-13

ENTERING AND LEAVING THE PAVEMENT ........................................5-14

TURNING ON THE PAVEMENT ............................................................. 5-14

DIFFERENTIAL GEAR LOCK ................................................................ 5-15

TRACTOR LOADING / UNLOADING ..................................................... 5-15

INSTALLING 3POINT LINK ....................................................................5-16

PRECAUTIONS FOR CONNECTING THE IMPLEMENT ......................5-18

ADJUSTING WHEEL TREAD ................................................................5-19

POWER STEERING ................................................................................5-19

BRANSON K SERIES 트랙터-영문판-05.indd1 1 2014-09-02 오후 6:39:46

5

-

2

BRANSON K SERIES

CHECKING BEFORE OPERATION

Do no t provide illumination with a lit cigarette or a lighter when fueling.

Never fill the fuel tank while the engine is running or hot.

After lling the fuel tank, close

the fuel filler cap completely and wipe off the excess fuel thoroughly.

If the fuel hoses are damaged,

fuel will leak. Make sure that you check for any leakage.

•

DANGER

Perform the maintenance on a

at and safe location that will

keep the tractor in place and will not cause a risk to people passing by. Before carry-

ing out the maintenance, place

blocks at the front tires to prevent movement.

[Otherwise] An unexpected accident may oc-

cur, such as overturning of the

tractor.

When going under the imple-

ment, fully close the slow/stop

valve.

[Otherwise] There is a risk of injury due to

implement falling.

•

WARNING

Stop the engine during check-

ing, maintenance, or repair

Carry o u t the ma intenance work after heated area such as

the mufer or the engine have

fully cooled down.

[Otherwise] There is risk of burn.

Afte r detac h ing th e cove r s

for checking or maintenance,

make sure to put them back in their place.

[Otherwise] There is a risk that you may get

entangled in the tractor or get injured.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-05.indd2 2 2014-09-02 오후 6:39:46

5

-

3

OPERATION & WORK

5

To ensure a safe and comfortable operation, please carry out the routine check-up everyday before starting work. Correct any problem immediately, and also check for problems after work. This checking should be done in the following sequence.

1. Check the suspicious parts of the previous day.

• Check the parts that you thought

were not normal during the work of previous day.

LXN5O501A

2. Check around the tractor.

• Parking deformation, damage or stains.

• Tire pressure and abrasion.

• Damage to the tractor, or loosened bolts.

• Loosening of wheel bolts.

• Fuel quantity, fuel leaks, or damage to the fuel hose.

LXN5O502A

3. Open the engine hood.

• Engine oil level, contamination, or leakage.

BRANSON K SERIES 트랙터-영문판-05.indd3 3 2014-09-02 오후 6:39:46

5

-

4

BRANSON K SERIES

LXN5O503A

• Engine coolant level, leakage, or damage to the hose.

LXN5O504A LXN5O505A

• Battery solution level. • Air cleaner.

BRANSON K SERIES 트랙터-영문판-05.indd4 4 2014-09-02 오후 6:39:47

5

-

5

OPERATION & WORK

5

LXN5O506A

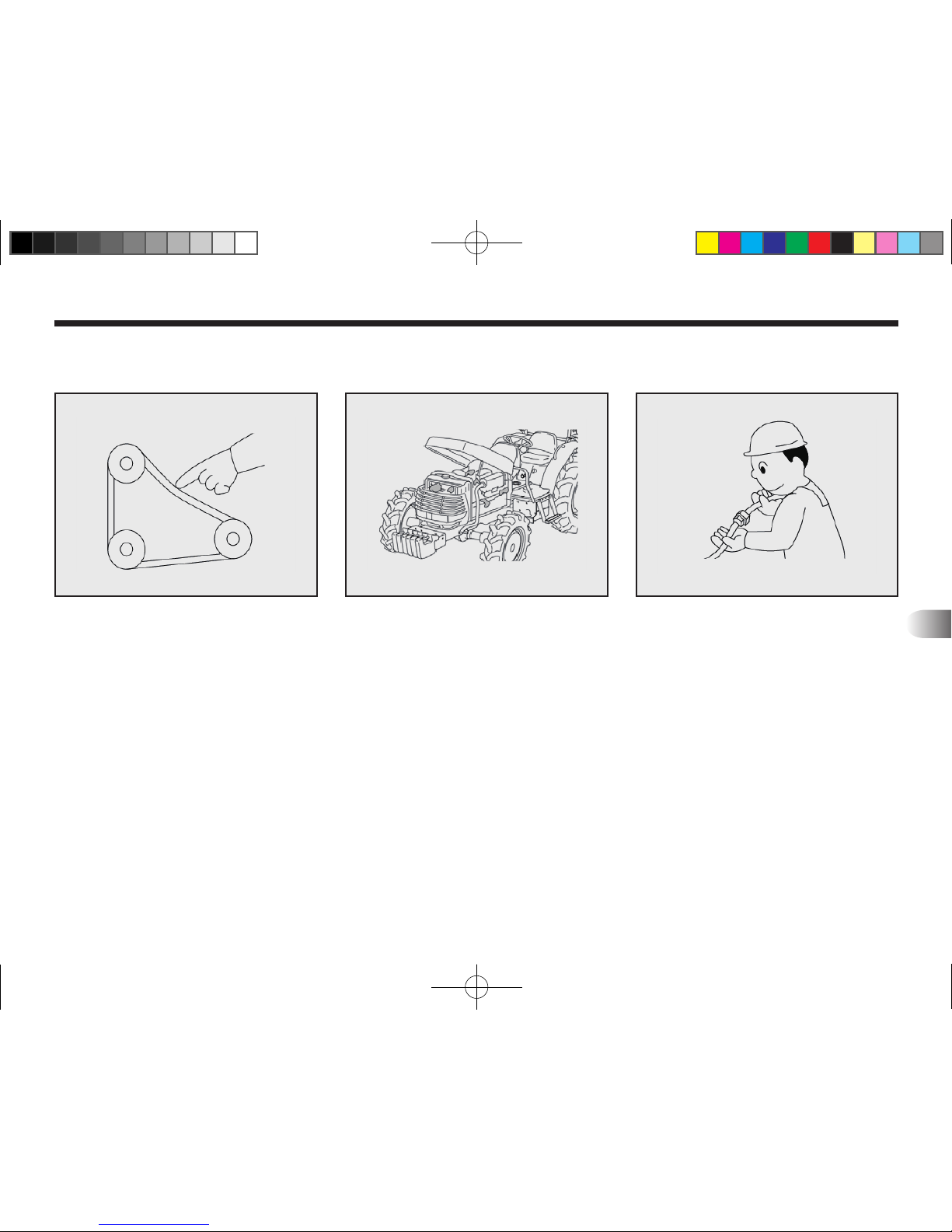

• Cooling fan belt tension, damage.

LXN5O507A

• Dust or straw on the radiator grill or the engine.

LXN5O508A

• Damage to the coating of the cables, or loosening of the contacts.

BRANSON K SERIES 트랙터-영문판-05.indd5 5 2014-09-02 오후 6:39:49

5

-

6

BRANSON K SERIES

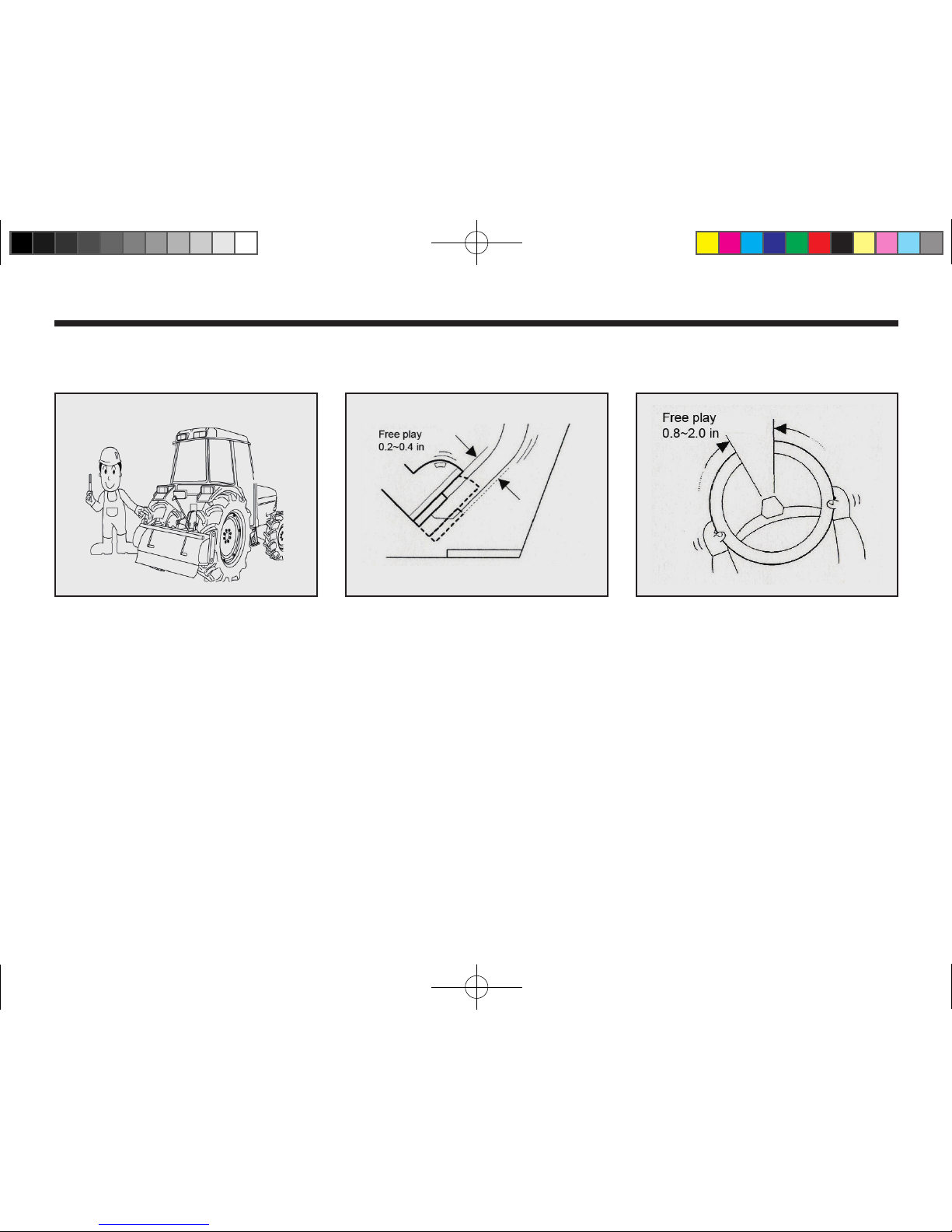

LXN5O509A

4. Check around the implement.

• Condition of the locking pin of the universal joint inserted in the PTO shaft.

• Condition of R pins in each part.

• Loosening of the bolts holding the blade.

• Quantity of oil in each part. For more details, please refer to the implement man ufacturer ’s in structions.

LXN5O510A LXN5O511A

5. Check on the driver seat.

• Operational condition and free play of the brake. (0.2~0.4in)

• Free play of the steering wheel. (0.8~2.0in)

BRANSON K SERIES 트랙터-영문판-05.indd6 6 2014-09-02 오후 6:39:50

5

-

7

OPERATION & WORK

5

LXN5O512A

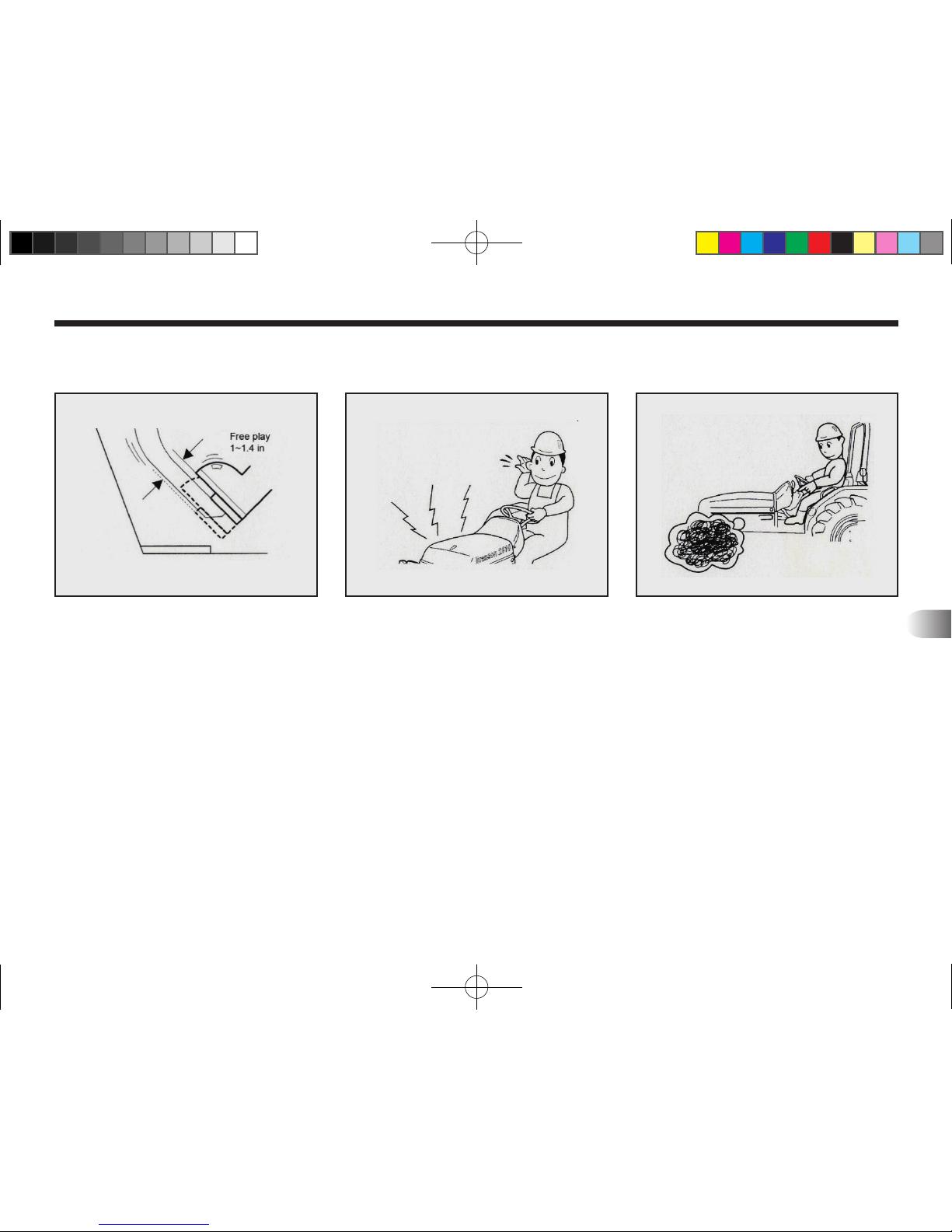

• Operational condition and free play of the clutch pedal. (Manual transmission only)

LXN5O513A LXN5O514A

6. Start the engine.

• Abnormal noise from the engine.

• Color of the exhaust gas.

BRANSON K SERIES 트랙터-영문판-05.indd7 7 2014-09-02 오후 6:39:53

5

-

8

BRANSON K SERIES

LXN5O515A

• Operation of lamps and gauges

▶

Note: Breaking in your tractor

(First 50 hours)

The operation of a new tractor during the first 50 hours in very important,

as it will greatly inuence the life and

performance of the tractor.

Pay attention to the following precautions during the break-in period.

1. Avo i d rapid ac c e lerati n g and abrupt stopping.

2. Av oid ov er- speeding a nd over

-

loads.

3. Drive the tractor after the engine has been warmed up.

4. Reduce the speed while driving on a rough road or a slope.

5. At the rst 50th hour, carry out inspections of each part and replace the engine oil.

STARTING / STOPPING THE ENGINE

Whe n st a rt i ng the engin e ,

make sure that you are seated in the driver’s seat and check position of the levers and the safety around the tractor.

[Otherwise] There is a risk of injury.

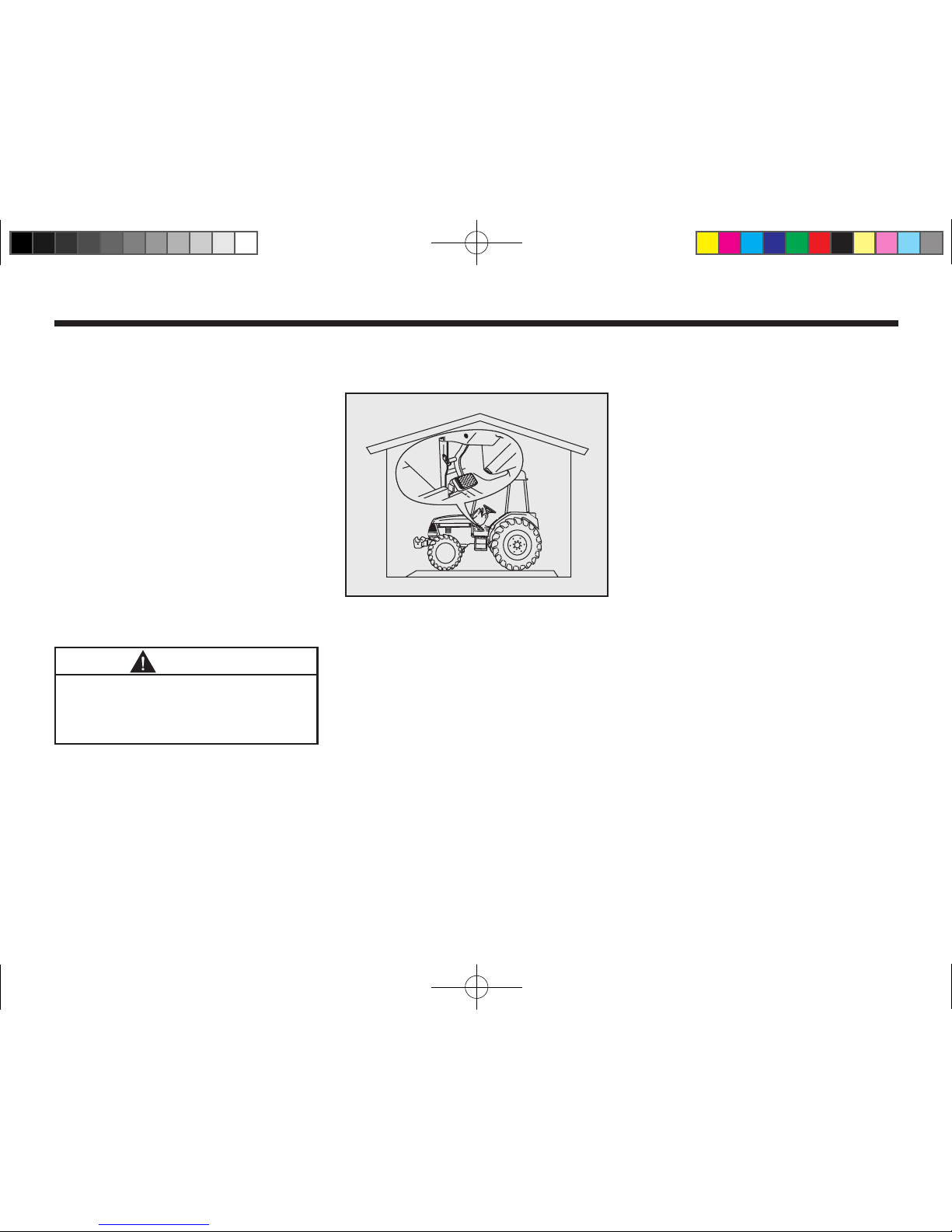

Do not start the engine in an enclosed space . You must start the engine outside where there is open air. If you should have to start the engine inside

a building, make sure that the

space is well ventilated. [Otherwise] The exhaust gas can cause in-

toxication and can lead to fatal consequences.

•

DANGER

BRANSON K SERIES 트랙터-영문판-05.indd8 8 2014-09-02 오후 6:39:54

5

-

9

OPERATION & WORK

5

Make sure to carry out checking and maintenance before and after the use of the tractor, particu larl y the opera ting devices such as the clutch and the brake lever.

[Otherwise] There is a risk of injury or ma-

chinery breakdown. Engage the parking brake during warming-

up. Otherwise, the tractor may

move and cause an accident.

Don’t crank en g i n e u n l e s s hi tch cont rol leve r is in the

lowest position. [Otherwise] Implem e n t might r i s e quick-

ly and there is a risk of injury or machinery breakdown.

•

CAUTION

TO START THE ENGINE

1. Check fuel.

• Check if there is enough fuel by observing fuel gauge.

LXN5O516A LXN5O517A

2. F-R shuttle lever into “NEUTRAL” position.

(1) Shuttle Lever

BRANSON K SERIES 트랙터-영문판-05.indd9 9 2014-09-02 오후 6:39:54

5

-

10

BRANSON K SERIES

(A) Lowering

LXN5O518A LXN5O519A

3. Put the position control lever into the “ lowest” posit i on an d PTO switch turn to “OFF” position.

Don’t crank engine unless position control lever is in the lowest position.

[Otherwise] Implem e n t might r i s e quick-

ly and there is a risk of injury or machinery breakdown.

•

WARNING

Check the safety around the tractor and start to move slowly.

[Otherwise] There is a risk of injury.

•

WARNING

BRANSON K SERIES 트랙터-영문판-05.indd10 10 2014-09-02 오후 6:39:54

5

-

11

OPERATION & WORK

5

4. Put the hand throttle to low position.

5. Main shift lever / range shift lever into “NEUTRAL” position.

6. Af t er the thermos tat lamp h a s turned off, depress the clutch pedal fully and turn the MAIN KEY SWITH to START.

7. On c e the en g ine has s t a r t e d, take your hand off the MAIN KEY SWITCH.

LXN5O521A LXN5O522ALXN5O520A

(1) Hand Throttle Lever (1) Main Gear Shift Lever(1) Range Gear Shift Lever

8. Increase th e e n g i n e t o a bo u t 1,500rpm and warm it up for about

ve minutes without a load.

BRANSON K SERIES 트랙터-영문판-05.indd11 11 2014-09-02 오후 6:39:55

5

-

12

BRANSON K SERIES

1. Pu t th e a c ce l er a t io n le v er o n LOW, and turn the main switch to “OFF”.

2. Put shuttle lever, main gearshift lever and PTO shift lever to “N”. put PTO ON/OFF switch in to the “OFF” position and front wheel lever to the “OFF”.

3. Put the hitch control lever on “DOWN”

TO STOP THE ENGINE

Whe n sto p ping t h e en g ine,

never stop it with the reducer lever.

After st o p p i n g t h e e n g i n e ,

make sure to apply the parking brake.

•

CAUTION

For w a r ming-up o p eration,

strong l y s t e p on th e brake pedal and pull your parking brake.

•

NOTE

When leaving the tractor, park

the tractor in a flat and safe

pla ce, put the shuttl e lev er and the main shift lever to “N”,

and block the tires.

[Otherwise] The tractor may move and cause

an accident. Always set the parking brake.

•

WARNING

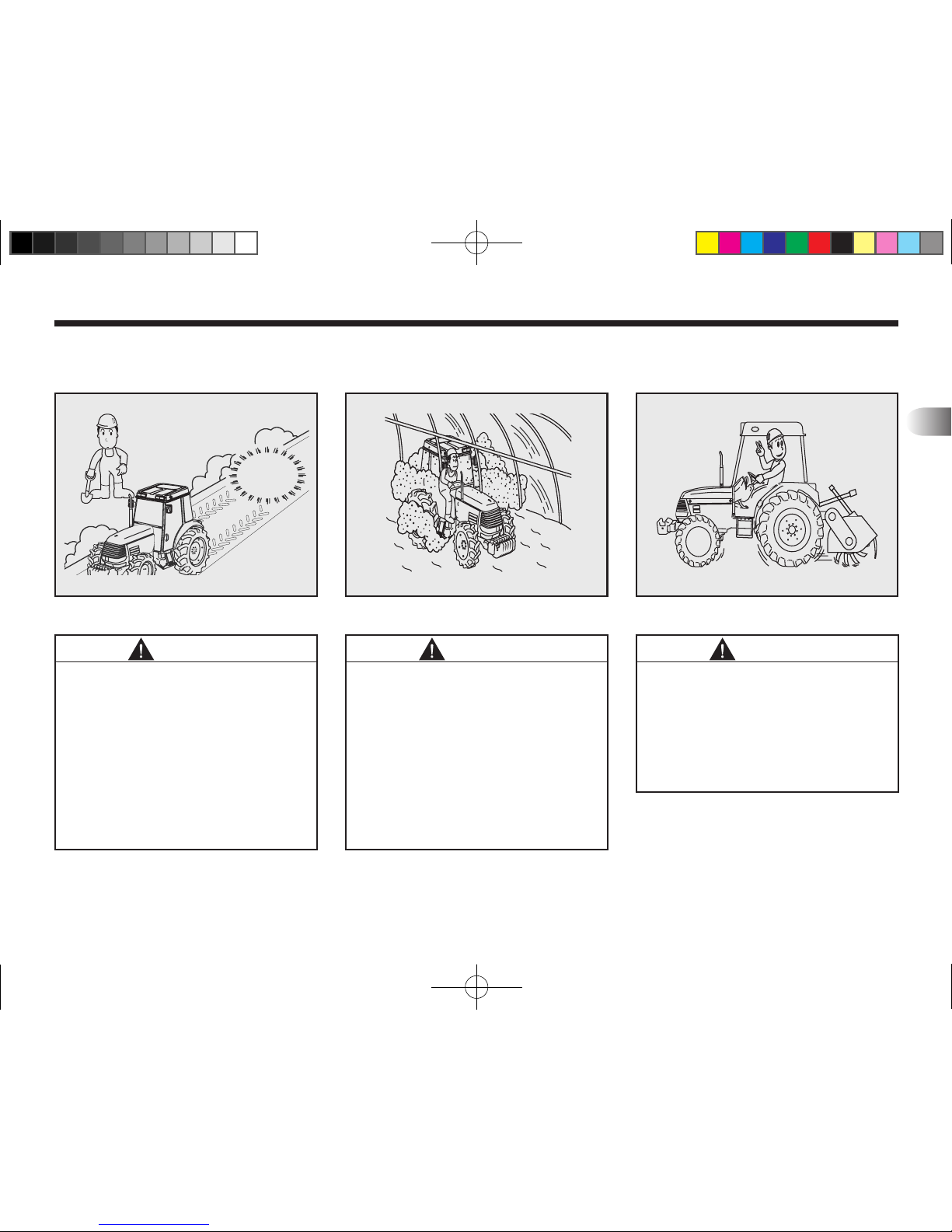

DRIVING ON THE ROAD

When driving on a ro a d or

crossing a dike, make sure to

connect the brake pedals. Oth-

erwise, the tractor may turn

abruptly or turn over due to one-sided braking.

Observe the trafc regulations

when driving on the road. Oth-

erwise, you may be involved

in an accident.

•

WARNING

LXN5O523A

BRANSON K SERIES 트랙터-영문판-05.indd12 12 2014-09-02 오후 6:39:55

5

-

13

OPERATION & WORK

5

This tractor is designed to accommodate only one person. Do not allow anyone on the tractor

other than the driver. Otherwise,

you will be exposed to a risk of accident.

Put the PTO lever into “N” and connect the brake pedals.

When making a turn, turn on the

direction indicator lamp to inform other vehicles of your intention.

Pay particular cautions to narrow

farm roads, slopes, and grassy shoulders, and reduce the speed.

Put the position control lever to UP and lock it with the stopper.

Otherwise, you will be exposed

to a risk of an accident. Connect the brake pedals when

driving on a road. Otherwise,

there is a risk of abrupt turning or overturning due to one-sided braking.

Before every operation, make

sure that operator wears safety belt.

•

WARNING

DRIVING ON THE SLOPE

LXN5O524A

Select a proper speed, and do

not shift the gear. Do not park on a slope. Oth-

erwise, the tractor may slip or

overturn and cause an accident.

•

WARNING

Do not dep r e s s th e cl ut c h pedal when driving on a slope. Th e tract or m ay s lide down and lead to a serious situation.

When starting the tractor upwards on a slope, start slowly in low gear with low engine

rpm. Otherwise, the front of

the tractor may be lifted and cause a very dangerous situation.

You may shift the gear when y o u are no lo ng e r o n th e

slope. If you stop on a slope,

apply the parking brake. Oth-

erwise, you may be exposed

to a risk of accident.

•

WARNING

BRANSON K SERIES 트랙터-영문판-05.indd13 13 2014-09-02 오후 6:39:56

5

-

14

BRANSON K SERIES

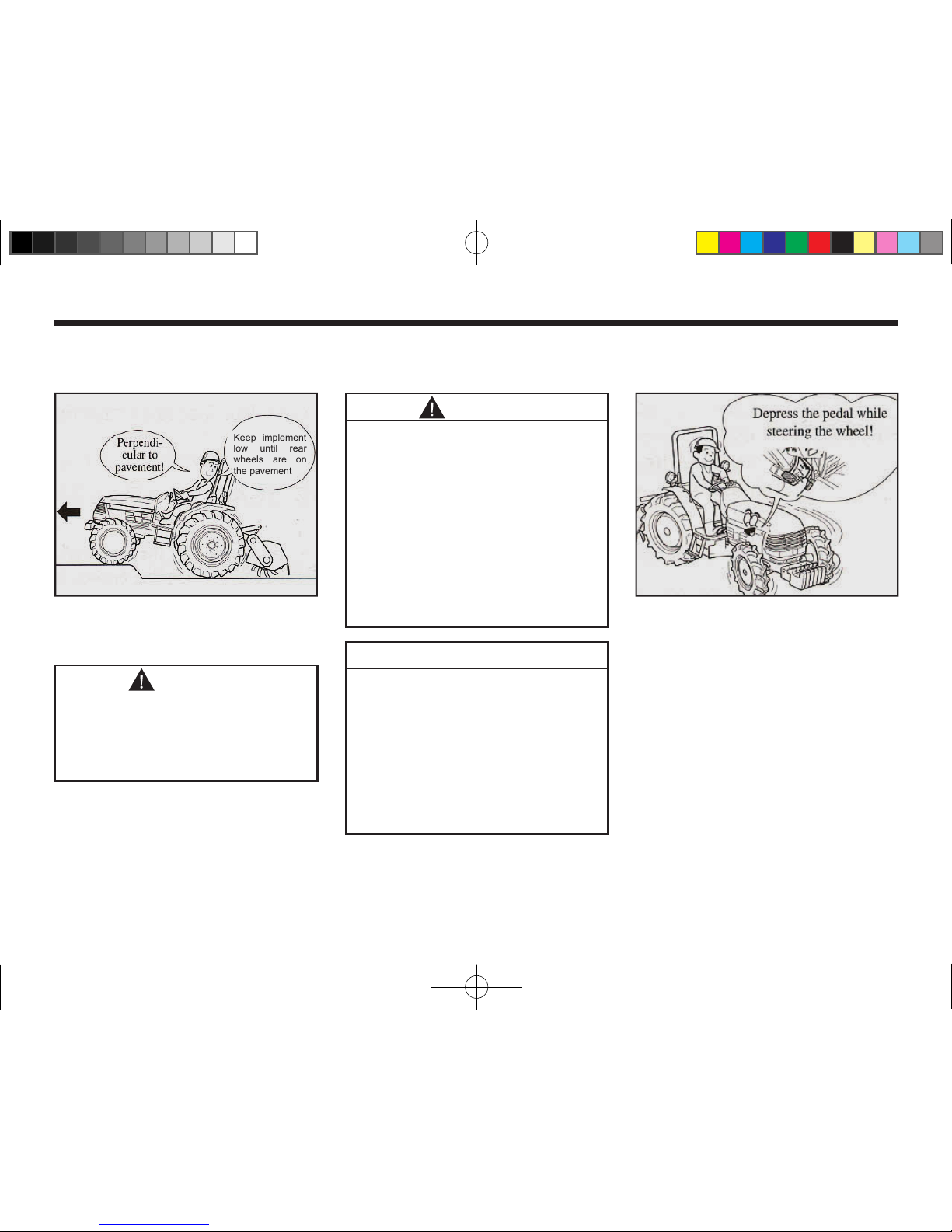

Keep implement low until rear wheels are on the pavement

LXN5O525A

ENTERING AND LEAVING THE PAVEMENT

Ma k e su r e to con n e ct th e

brake pedal. Otherwise, the

tractor may turnover due to one-sided braking.

•

WARNING

Wh e n you cros s a dik e or raised ground to enter or leave

the pa v e m ent, use l o a d i n g ramps with sufcient strength,

an d lower th e implemen t to achieve a lower center of gravity.

Drive backward when climb-

ing up a steep slope, and drive

forward when climbing down.

•

WARNING

Enter or leave the pavement in a perpendicular direction. When climbing onto the pave-

ment, lower the implement to

achieve a lower center of gravity. Once all wheels of the trac-

tor are on the pavement, raise

the implement.

•

NOTE

LXN5O526A

TURNING ON THE PAVEMENT

When making a turn, reduce the engine rpm a nd make a s low turn . When making a turn on the pavement, remove the connector of the brake pedals. Depress the brake pedal on the side to which to make a turn, while steering the wheel, this will allow the tractor to make the turn without moving ahead. Make sure to keep the implement in the up position when making a turn.

BRANSON K SERIES 트랙터-영문판-05.indd14 14 2014-09-02 오후 6:39:57

5

-

15

OPERATION & WORK

5

Make sure to release the differential gear lock before making a turn.

[Otherwise] The tractor will not turn in the in-

tended direction but may cause an accident.

•

WARNING

DIFFERENTIAL GEAR LOCK

Make sure to release the differential gear lock when making a turn.

[Otherwise] The tractor will not turn in the in-

tended direction and may cause an accident.

•

WARNING

Never lock the differential gear when driving on a road.

[Otherwise] Driving will be unstable and the

tractor may cause an accident.

•

CAUTION

Depressing the differential gear lock pedal will make both rear wheels roll at the same speed. Releasing the pedal will automatically unlock the differential gear.

TRACTOR LOADING / UNLOADING

Fix the direction so that the tractor will not have to modify its direction on the load-

ing bridge, and proceed at the

lowest speed. Never depress the clutch pedal to change di-

rection or stop. [Otherwise] There is a danger that the tractor

may turn over.

•

DANGER

The loading lamp must be non-

slippery and have sufficient

strength, length, and width for

the tractor. To avoid slipping

of the loading lamp, latch it se-

curely onto the truck. Move the

tractor backward when loading,

and forward when unloading.

Fasten the tractor to the truck

securely with rope. [Otherwise] The tractor may fall off the truck

and cause an accident.

•

WARNING

BRANSON K SERIES 트랙터-영문판-05.indd15 15 2014-09-02 오후 6:39:57

5

-

16

BRANSON K SERIES

INSTALLING 3POINT LINK

(1) Lift Link (2) Lower Link

(3) Center Link (4) Check Bar

(5) Draw Bar

LXN5O527A

1. Attach the lower link to the link hook and insert pin into hook.

2. Connect Check chain to bracket & Lift link mounting hole and adjust length.

󲄄

Refer to instruction of implement for adjusting swing clearance.

BRANSON K SERIES 트랙터-영문판-05.indd16 16 2014-09-02 오후 6:39:57

5

-

17

OPERATION & WORK

5

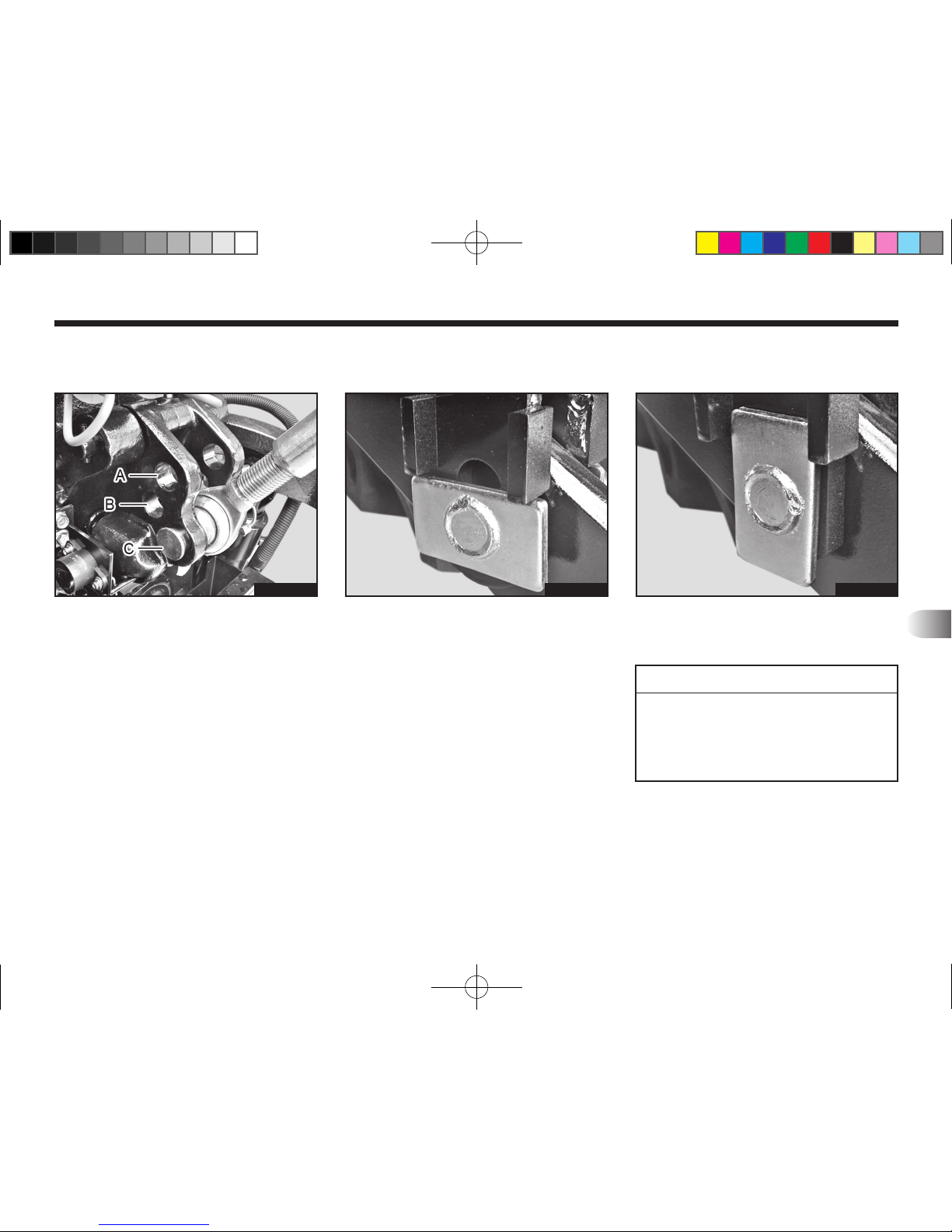

3. There are 3- holes in center link mounting bracket.

Center link needs to be moved from (A) to (C) as followed.

• The Position “A” allows the minimum pressure.

• The Position “B” is standard.

• The Position “C” allows the maximum pressure.

(A) Low Traction (B) Middle Traction (C) High Traction

LXN5O528A LXN5O529A LXN5O530A

4. Adjusting for vertical oat.

Depending on the position of the steel plate, lift links can be adjusted

to allow for vertical oat or to lock out oat.

May be damag ed the screw th read when center link ex cessively over the adjustment range.

•

NOTE

BRANSON K SERIES 트랙터-영문판-05.indd17 17 2014-09-02 오후 6:39:58

5

-

18

BRANSON K SERIES

LXN5O531A

5. Turn the A-lever clockwise to rise up lift links. On the contrary, turn the A-lever counter clockwise to lower down lift links.

(1) Lift Link

After adjusting, turn down the

lever for locking.

•

CAUTION

PRECAUTIONS FOR CONNECTING THE IMPLEMENT

When the PTO shaft is not in

use, affix the safety cover on

it.

[Otherwise] There is a risk of getting entan-

gled in the tractor or injured.

•

WARNING

1. When engaging or disengaging the implement by moving the tractor, make sure that no one is allowed around the tractor or between the implement and the tractor.

2. Engage or disengage the implemen t on a flat and safe pl ace. Supply proper lighting at all times and especially at night.

3. When engaging a heavy implement, load the weight on the front to keep the balance of the tractor.

4. When adjusting the implement, apply the parking brake, switch off the engine, and confirm that the PTO lever is on the “N” position.

5. Whe n towing s omething, make sure to use the drawbar.

6. Incre a se th e whe e l tre a d on a slope or when towing.

7. Depending on the implement, the overall length may become very long. Pay particular attention to people or objects near by when making a turn.

8. Do not s u b s t i t u te the ba l a nce weight with a person or anything else. Always use the recommended balance weight.

9. For front loader work, mount an implement on the rear to keep the balance of the tractor.

10. Read the in s tructio n manu a l of the implement mounted to the tractor.

BRANSON K SERIES 트랙터-영문판-05.indd18 18 2014-09-02 오후 6:39:58

5

-

19

OPERATION & WORK

5

DESCRIPTION

TIGHTENING

TORQUE

Bolts on wheels

and axle

280 lbf-ft

(40 kgf.m)

Bolts on rim and

disk of wheels

250 lbf-ft

(35 kgf.m)

ADJUSTING WHEEL TREAD

LXN5O532A

Adjust the wheel tread depending on the type and condition of the work. Also, increase the wheel tread when working on a slope or towing.

1. Pull the parking brake, block the front wheels, and raise the body with a jack to make the rear wheel separate from the ground.

2. To make sure adjustments alternatively between the left and right wheel.

When changing tires, please

use a hoist or st r on g s up port and make sure the tractor does not move.

[Otherwise] There is a risk of death or injury.

•

WARNING

POWER STEERING

Pay attention to the steering

wheel while driving, because

it can be very lightly manipulated when the engine is running.

Power steering will run only when engine is running. When engine is idling, power steering may feel a little heavy.

If the wheel is steered to the

maximum, the relief valve is

opened and a warning sound will be made. Do not continue to operate the tractor with the warning sound.

Do not steer the wheel unnec-

essarily, because steering the

wheel without moving will attribute to early wear of tires and rims.

•

CAUTION

BRANSON K SERIES 트랙터-영문판-05.indd19 19 2014-09-02 오후 6:39:59

MEMO

............................................................................................................................................................................

Branson Machinery LLC

BRANSON K SERIES 트랙터-영문판-05.indd20 20 2014-09-02 오후 6:39:59

6

6. MAINTENANCE AFTER WORK

MAINTENANCE AFTER WORK ............................................................... 6-2

MAINTENANCE FOR PROLONGED STORAGE ....................................6-2

BRANSON K SERIES 트랙터-영문판-06.indd1 1 2014-09-02 오후 6:40:36

6

-

2

BRANSON K SERIES

MAINTENANCE AFTER WORK

LXN5O601A

When c overing t he tr a c tor, make sure that the engine or the muffler has fully cooled down.

[Otherwise]

There is a risk of re.

•

DANGER

After work, clean the tractor. After cleaning, dry the moisture and supply grease into each grease nipple.

Avoid water on electrical parts whenever possible, as it will cause equipment breakdown.

When carrying out checking, maintenance, or repair, make

sure to turn off the engine. [Otherwise] There is a risk that you may be

entangled in the tractor or get injured.

•

CAUTION

MAINTENANCE FOR PROLONGED STORAGE

When storing the tractor for a long time, take out the key and keep it in a safe place. Otherwise, there is a risk of acci-

dent. [Otherwise] There is a risk of getting entan-

gled in the tractor or injured.

•

CAUTION

If you carry out maintenance during the off season, you can ensure optimum condition of the tractor as well as safe and comfortabl e working conditions during the busy season. Also, in order to secure the safety of each part of the tractor and to prevent an accident that may occur due to poor maintenance, arrange with your authorized dealer for periodic maintenance once a year.

In particular, we recommend that the electrical cables and the rubber hoses, such as fuel hose, steering wheel hoses and radiator hoses, be replaced every two years.

BRANSON K SERIES 트랙터-영문판-06.indd2 2 2014-09-02 오후 6:40:36

6

-

3

MAINTENANCE AFTER WORK

6

Carry out maintenance on a flat and safe place where the tr actor will not fall or mo ve

and there is no trafc danger.

Also, block the front tires to prevent moving of the tractor. Otherwise, there is a risk of accident, such as overturning of the tractor.

Carry out checking and maintenance for each part every year.

In particular, replace the fuel pipe and the steering wheel hose every two years. Otherwise, there is a risk of accident or machinery breakdown due to poor maintenance.

When carrying out checking or maintenance, make sure to stop the engine.

Replace the covers that have been detached for checking or maintenance.

•

WARNING

Carry out checking or maintenance after heated parts, such as mufer, engine or transmis-

sion, have fully cooled down. [Otherwise] There is a risk of getting burnt.

•

WARNING

LXN5o602A

Remove

&

When the tractor will not be used for a long time, store it in the following manner.

1. For long storage, put the ignition switch to “OFF”

2. Select a dr y and well-drained place f or stora ge. R emov e the weights & im p l e m e n t o r p u t i t down onto the ground.

3. Apply the anti-corrosion oil or engine oil and grease on the parts that are subject to rust.

BRANSON K SERIES 트랙터-영문판-06.indd3 3 2014-09-02 오후 6:40:37

6

-

4

BRANSON K SERIES

LXN5o603A

4. Fill up the fuel tank. Empty space in the fuel tank will produce dewdrops that will produce condensation that will be the cause of rust formation. And lock the fuel cock to “C”. (closed)

5. Disconnect the battery completely and store it away from the tractor in a well-ventilated, dry, dark place if possible. When the battery is attached to the tractor, make sure to

connect the (+) terminal rst.

The battery will be discharged even if it is not in use. Recharge it fully every 12 months.

•

CAUTION

6. Drain the coolant.

7. Cover the air cleaner, mufer, and

engine oil inlet with plastic sheets to keep moisture away.

8. Keep the c lutch ped a l in a d epressed position to avoid rust on the clutch.

9. Maintain the air pressure in the tires.

BRANSON K SERIES 트랙터-영문판-06.indd4 4 2014-09-02 오후 6:40:37

7

7. PERIODIC MAINTENANCE AND ADJUSTMENT

PERIODIC MAINTENANCE SCHEDULE ..............7-2

OIL, GREASE, AND ANTI-FREEZE CHART .........7-4

FUEL, OIL, AND COOLANT CHART .....................7-5

CHECKING AND CHANGING OF OIL ...................7-6

ENGINE OIL .............................................................. 7-6

TRANSMISSION / HYD OIL FLUID .......................... 7-7
