Vibration Welding
HyLine-2i Series

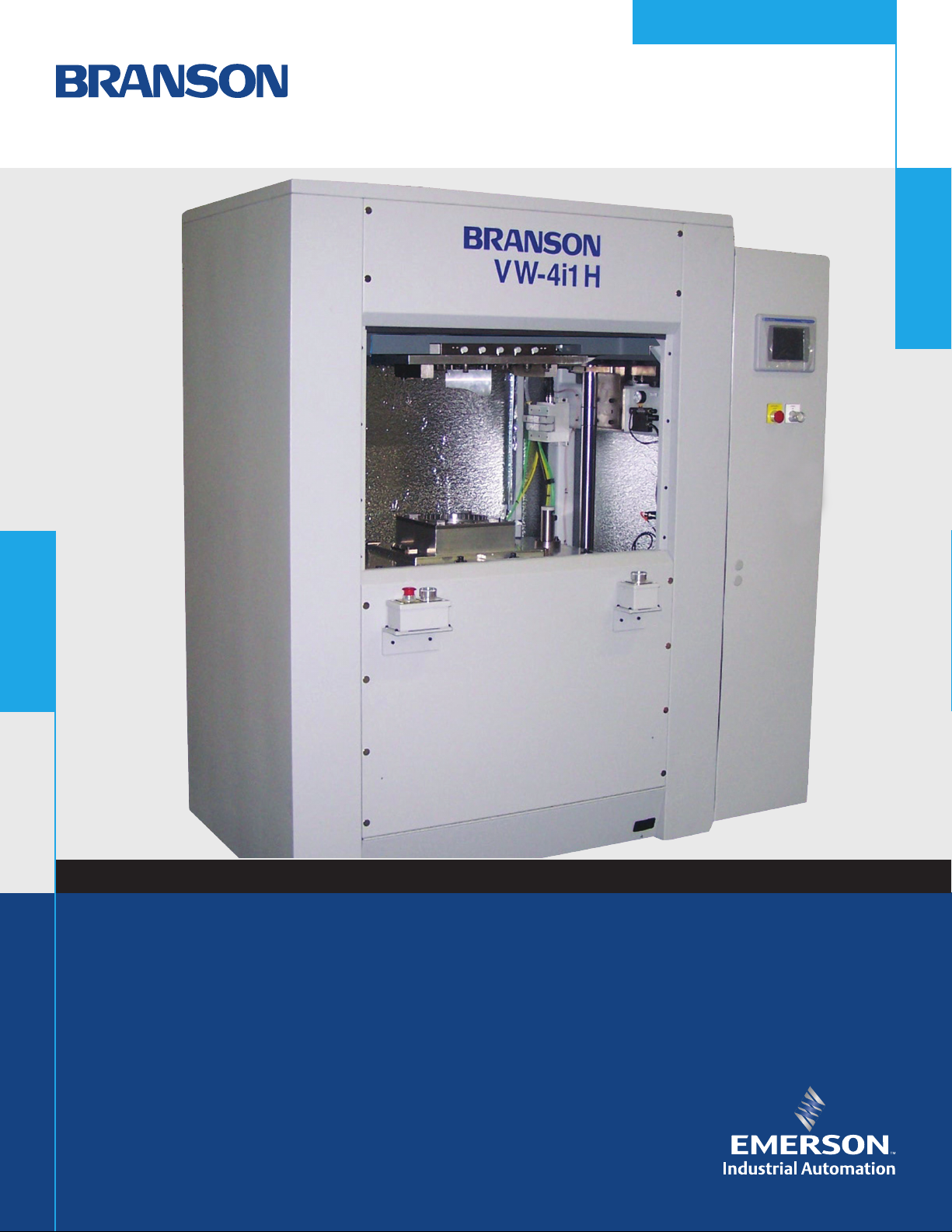

Models VW-4i1 H, VW-6i2 H, and VW-6i3 H
Linear Vibration Welders
HyLine-2i Series Models
VW-4i1 H, VW-6i2 H,
and VW-6i3 H Linear
Vibration Welders
GENERAL DESCRIPTION: Branson, the pioneer in vibration
welding with over 40 years of production experience
is proud to offer the enhanced version of our popular HyLine
2 Series linear vibration welder. Featuring the
all-new I-Class weld heads, Branson’s HyLine-2i Series
welders are complete assembly systems designed to weld
parts of various sizes and/or irregular shapes.
The I-Class weld heads offer multiple benefits including: increased tool weight capacities, increased
tool weight to frequency ratios, higher power drives (more plastic joining capacity), PPL technology
(see Machine Description section), interchangeable/common parts across weld head models, global
commonality, and lower noise output.
Three models, VW-4i1 H, VW-6i2 H, and VW-6i3 H are available to handle parts up to 46” by 22”
(1148 by 559 mm), or multiple smaller parts.
The Branson power supplies that drive the weld heads have an adjustable vibrating frequency range of
180 to 240 Hz. Modular construction allows the individual vibrator assembly and power supply/controller
components to be adapted to automated or custom systems.
Process Description
Vibration welding is a proven welding technology capable of producing
strong, pressure tight joints in thermoplastic parts.
Frictional heat is generated by pressing the surfaces of two plastic parts
together and vibrating one of the parts through a small linear
displacement in the plane of the joint. When a molten state is reached at
the joint interface, vibration is stopped and the parts are automatically
aligned. Clamping pressure is maintained briefly while the molten plastic
solidifies to form a bond approaching or equal to the strength of the
parent material.
Process Advantages
The major advantage of vibration welding lies in its
application to large (up to 60”/1524 mm long or 24”/610
mm wide), irregularly-shaped parts. Even cross ribs which
create separate compartments can be sealed. The process
also works with multi-plane and curved surfaces.
The technology offers the capability of welding more than
one part at a time; it also readily lends itself to automation.
Material Compatibility
Almost all thermoplastics can be vibration welded,
regardless of whether they have been injection molded,
extruded, foamed, or thermoformed. This process,
when compared with ultrasonic assembly, is particularly
advantageous for semi-crystalline resins such as acetal,
nylon, thermoplastic polyester, and polypropylene;
also polyvinyl chloride, cellulosics, and elastomers, filled
and reinforced resins, as well as those exhibiting
hygroscopic properties.
Markets/Applications
Automotive
• Instrument panels
• Clusters
• Door panels
• Lighting
• Reservoirs
• HVAC ducts
• Intake manifolds
• Bumpers
• Glove boxes
• Air resonators
Medical
• Chest drainage units
• Filters
• I-V units
•
Surgical instruments
• Insulated food trays
• Cassettes
Appliance
Pumps • Spray arms
•
•
Shelving • Fill funnels
•
Liquid dispensers • Water reservoirs
•
Small/large power tools • Vacuum cleaner housings
•
Ducts • Vacuum cleaner accessories
Instrument Panel
Medical Fluid Meter
Machine Sequence
The operator manually loads the parts to be welded. The
automatic sequence is initiated by activating the start
buttons:
• Sound door closes.
• Lift table moves to weld position and applies pressure.
• Weld and hold times sequence.
• Lift table moves to home position.
• Sound door opens.
• Part manually unloaded.
Spray Arms
Business/Consumer Electronics
Toner housings • Display assemblies
•
•
Door stiffeners • Circuit board encapsulation
Ink-jet cartridges
•
Packaging
•
Pallets • Display stands/shelves
• Point of purchase display blisters
Standard Machine Description
Vibration Welding
• Machine Frame - Welded
construction of steel tubing and
profiles incorporates four heightadjustable rubber mounts to allow
both machine leveling and absorption of mechanical vibrations.
• Vibrator Housing - A rigid steel
wassembly houses the individual
vibrator components; the main
assembly areas are precision
machined.
• Weld Head (Vibrator) - The elec-
tromagnetic principle of Branson’s
vibrator assembly is patented
and operates in a linear mode. The
vibrator assembly consists of a
set of laminations and cantilever
springs suspended from the
vibrator housing. Electromagnets
mounted in the housing act directly
upon the mechanical suspension
producing a peak-to-peak reciprocating displacement of 0.020 to
0.070 inch (0.5 to 1.8 mm) at
240 Hz. The springs return the
vibrator to the precisely-aligned
position when the electro-magnets
are de-energized, ensuring final
part alignment.
• PPL Technology (Weld Head
Drive) - The “Power Package
Linear” approach delivers consistent power output to the weld
head across the machine’s
frequency range. This prevents
“out of phase” mechanical versus
electrical resonances and ensures
maximum plastic joining capacity
across the tooling weight range
of the weld head.
• Sound Protection Cabinet -
The sound protection cabinet is
lined with sound absorbing material. An automatic vertical sliding
access door with acoustic lining
is incorporated in the front of the
cabinet. For operator safety, the
door automatically retracts if
the start buttons are released
before the door is closed.
• Door Drive - The two major
components for the door drive
are an air cylinder and specially
designed plastic and steel elements to provide smooth and
consistent movement.
• Rear Access Door - The rear
panel of the machine is fitted
with a full-size, interlocked door
to allow full access to tooling and
other machine components.
• Hydraulic Power Supply -
completely self-contained with
drip pan, is located inside the
rear access door.
product nameVW-HYLINE-2i
Vibration Welding
Key Features
• Controls system using an Allen
Bradley Compact Logix PLC. All
system parameters are set through
an Allen Bradley Panelview Plus 700
(optional 1000). The PLC system
monitors the welding parameters
and controls all functions of the
machine including: frequency
(direct reading in Hz), weld time,
melt distance (collapse), hold time,
amplitude, weld clamp forces,
and hold clamp forces.
• Storage of up to twenty sets of
weld parameters. By calling up
one of these presets, the operator
automatically programs the machine
to the setpoints for that particular
application.
• The system also provides process
verification during each weld
cycle. This verification is a live
reading of the actual amplitude,
force, weld time, and melt distance
occurring during that cycle.
• Linear displacement transducer
for table positioning and meltdown.
The transducer provides a
positioning repeatability of 0.001”
over the length of the transducer
and a meltdown resolution of
0.0005”. This ensures tight control
of the pre-weld stack-up height and
precise meltdown capabilities, as
well as the ability to set the table
loading height.
• SPC capabilities. The PLC program
can provide a data stream to a
communications port to enable the
user to connect to a computer and
log the weld parameters over a
period of time. The data can then be
processed by the user’s program
to provide a printout in any number
of forms: bar charts, histograms,
range charts, etc.
• Diagnostic program which allows
the machine to be compared
against a known set of conditions. This
enhances troubleshooting capabilities
by matching the unit’s current outputs
with a standard set of values recorded
during initial setup.
• Digital power supply provides
increased starting power and better
control of the weld process.
• Self-tuning frequency program.
Pressing a button on the interface will
allow the machine to automatically
find and store the resonant frequency
of the upper tooling mass. This known
value can then be saved in a preset or
manually input the next time the same
upper tool is installed for production.
The frequency range of the unit is
variable between 200 Hz and 250 Hz.
• Precise amplitude input and control
in a range between 0.020” and 0.70”
(0.5 -1.8 mm). The peak-to-peak
welding amplitude
can be set at the keypad in 0.001”
increments.
• Simple maintenance-free
electromechanical vibrator with only
one moving part and no bearing
surfaces to lubricate or wear.
• Hydraulic lift/clamp system includes
two proportional valves to control the
speed of the lift table and the clamp
force applied to the parts.
• Force profiling - The HyLine control
has up to four programmable weld
forces to provide more accurate
control of weld meltdown velocity.
It also has one programmable
hold force.
• Amplitude profiling - Four
programmable amplitudes are
available for controlling welding.
• Configurable user I/O is available
for tooling functions - Up to 32
I/O’s are optional.
Available Options
• Light curtain
• Light curtain protection guards
• Duplex electrical outlet (120 V)
• Dual lift cylinders (provides
21”/533 mm stroke and table
opening depth of 12.5”/317 mm)
• Panel-mounted resettable
cycle counter
• Exterior overhead light
• Air system for part eject from tools
• Air system for vacuum in upper tool
• Air system for slides in bottom tool
• Electrical tooling quick disconnect
block (Turck) – 8-port
• Electrical tooling quick disconnect –
HAN connector
• Pneumatic tooling quick disconnect
manifold – 8-port
• Ext. PLC programming port
• Three-color light tower
• PLC window in electrical cabinet
• Light in e-box
• E-box fan
• E-box heat exchanger
• Custom color
• Machine crating, if required
• Hydraulic quick change clamping on
lower table
• ECPL lockout tags
Vibration Welding
product name
Specifications
VW-4i1 H VW-6i2 H VW-6i3 H
MECHANICAL
Weight Approx. 4,500 lbs. (2,040 kg) Approx. 5,000 lbs. (2,268 kg) Approx. 5,000 lbs. (2,268 kg)
Overall
Dimensions
Lift table
Overall 33.5” long x 21” deep (851 x 534 mm) 46” long x 21.5” wide (1168 x 546 mm) 46” long x 21.5” wide (1168 x 546 mm)
Central opening
Table to Spring Distance
Head Lift Option 3” (76.2 mm) 3” (76.2 mm) 3” (76.2 mm)
Height to Adapter for
Legacy Tooling
Drive platen
all
Over
Front opening 39” wide x 25” high (991 x 635 mm) 51” wide x 25” high (1295 x 635 mm) 51” wide x 25” high (1295 x 635 mm)
Variable stroke 20” (508 mm) maximum 20” (508 mm) maximum 20” (508 mm) maximum
Noise level 83 dBA standard 83 dBA standard 83 dBA standard
Drive power 15 kW 15 kW 30 kW
Air Pressure Requirement
ELECTRICAL
Power requirements 480 VAC, 30 amps, 3 phase, 50/60 Hz 480 VAC, 30 amps, 3 phase, 50/60 Hz
Output frequency 200 - 250 Hz variable 200 - 250 Hz variable 200 - 250 Hz variable
Ambient temp 32 - 105° F (0 - 40° C) 32 - 105° F (0 - 40° C) 32 - 105° F (0 - 40° C)
PERFORMANCE
Driven platen fixture
weight capacity
Max. clamp force 4,000 lbs. (17.8 kN) 6,000 lbs. (26.7 kN) 6,000 lbs. (26.7 kN)
Amplitude range 0.020” to 0.070” (0.5 to 1.8 mm) 0.020” to 0.070” (0.5 to 1.8 mm) 0.020” to 0.070” (0.5 to 1.8 mm)
Lift table speed 10”/sec. (254 mm/sec.) 10”/sec. (254 mm/sec.) 10”/sec. (254 mm/sec.)
76” wide x 77.5” high x 48” deep
(1930 x 1969 x 1220 mm)
23.5” long x 11.5” wide x 1.3” deep
(597 x 292 x 33 mm)
24” (610 mm) ) 24” (610 mm) 24” (610 mm)
3” (76.2 mm)
Old VW4 Tooling
15.4” long x 14.8” wide
(390 x 376 mm)
Minimum 80 PSI Minimum 80 PSI Minimum 80 PSI
44-88 lbs. (20-40 kg) 77-143 lbs. (35 – 65 kg) 88-154 lbs. (40 – 70 kg)
88” wide x 77.5” high x 48” deep
(2235 x 1969 x 1220 mm)
38” long x 11.5” wide x 1.75” deep
(965 x 292 x 44.4 mm)
1.5” (38 mm)
Old VW6 Tooling
34.6” long x 14.8” wide
(880 x 376 mm
)
88” wide x 77.5” high x 48” deep
(2235 x 1969 x 1220 mm)
38” long x 11.5” wide x 1.75” deep
(965 x 292 x 44.4 mm)
1.5” (38 mm)
Old VW6 Tooling
34.6” long x 14.8” wide
(880 x 376 mm
480 VAC, 60 amps, 3 phase, 50/60 Hz
Total dry cycle time
(without welding)
(at 20” [508 mm max.] stroke)
Americas
Branson Ultrasonics Corp.
41 Eagle Road
Danbury, CT 06810, USA
T: 203-796-0400
F: 203-796-0450
www.bransonultrasonics.com
Note: All sales shall be subject to the Supplier’s terms and conditions of sale as described in Branson’s quotations and sales contracts.
Warranty: The HyLine-2i Vibration Welder Models VW-4i1 H, VW-6i2 H and VW-6i3 H are warrantied to be free from
defects two years for parts and one year for labor from the date of shipment.
ISO Certifications
5.0 sec.
(at 20” [508 mm max.] stroke)
Europe
Branson Ultraschall
Niederlassung der Emerson
Technologies GmbH & Co. OHG
Waldstrasse 53-55
63128 Dietzenbach, Germany
T: +49-6074-497-0
F: +49-6074-497-199
www.branson.eu
5.0 sec.
Asia
Branson Ultrasonics (Shanghai) Co., Ltd.
758 Rong Le Dong Road
Song Jiang, Shanghai, PRC, 201613
T: 86-21-3781-0588
F: 86-21-5774-5100
www.branson-china.com
(at 20” [508 mm max.] stroke)
5.0 sec.
VW-HYLINE-2i © Branson Ultrasonics Corporation 2016
The Emerson logo is a trademark and service mark
of Emerson Electric Co.
Revised and printed in the U.S.A. 8/16
PJ-DAN-0010-12
Loading...
