BMP71 Label Printer
The Brady Advantage
When it comes to identification, safety and
compliance, there’s a clear advantage to
working with Brady. We put our customers
first in everything we do.
Our goal is to give you an unrivalled
customer experience. We are relentlessly
committed to performance and excellence
- in our products, services and people.
Our products and solutions perform in
ways that others simply can’t match.
Our people perform in ways that regularly
exceed your expectations. And our focus
and discipline work toward solid,
long-term performance for our customers.
In short, Brady is the company you trust
when performance matters most.
Learn more about the Brady Advantage at:
www.bradyeurope.com
Contents
4 BMP71 at a glance
5 One smart printer to print it all
6 Font sizes & symbol library
7 Applications
10 Advantages of labelling
11 What is a professional label?
12 BMP71 media offering
13 Ribbons
14 Electrical, voice/datacom identification
29 General & industrial identification
33 Safety & facility identification
38 Electronics identification
40 Laboratory identification
49 Master material index
52 Brady Workstation software suites
53 Printer specifications
54 BMP71 Printer, kits and accessories
55 Brady Technical Service
www.bradyeurope.com
3
BMP71 at a glance
LARGE COLOUR TOUCHSCREEN WITH INDICATORS:
Label part number
Font size
Number of labels in
print file
Labels remaining Ribbon remaining
Battery charge remaining
Lid to easily open
the cover
Label output tray
Cutter lever
Label size
Label rotation
Number of areas
on current label
Press the power
button to turn the
printer on/off
USB port
Main menus display
at the bottom of the
screen when a Function
key is pressed.
Get access to predefined application
templates (APPS-key).
Ergonomic handle
Navigation keys
and OK button
Full AZERTY/
QWERTY/QWERTZ/
CYRILLIC KEYBOARD
Watch the how
to videos on our
Brady YouTube
channel.
Alt
Used to access
special characters
on the alphabetical
keys, indicated in
yellow
2 YEAR
WARRANTY
4

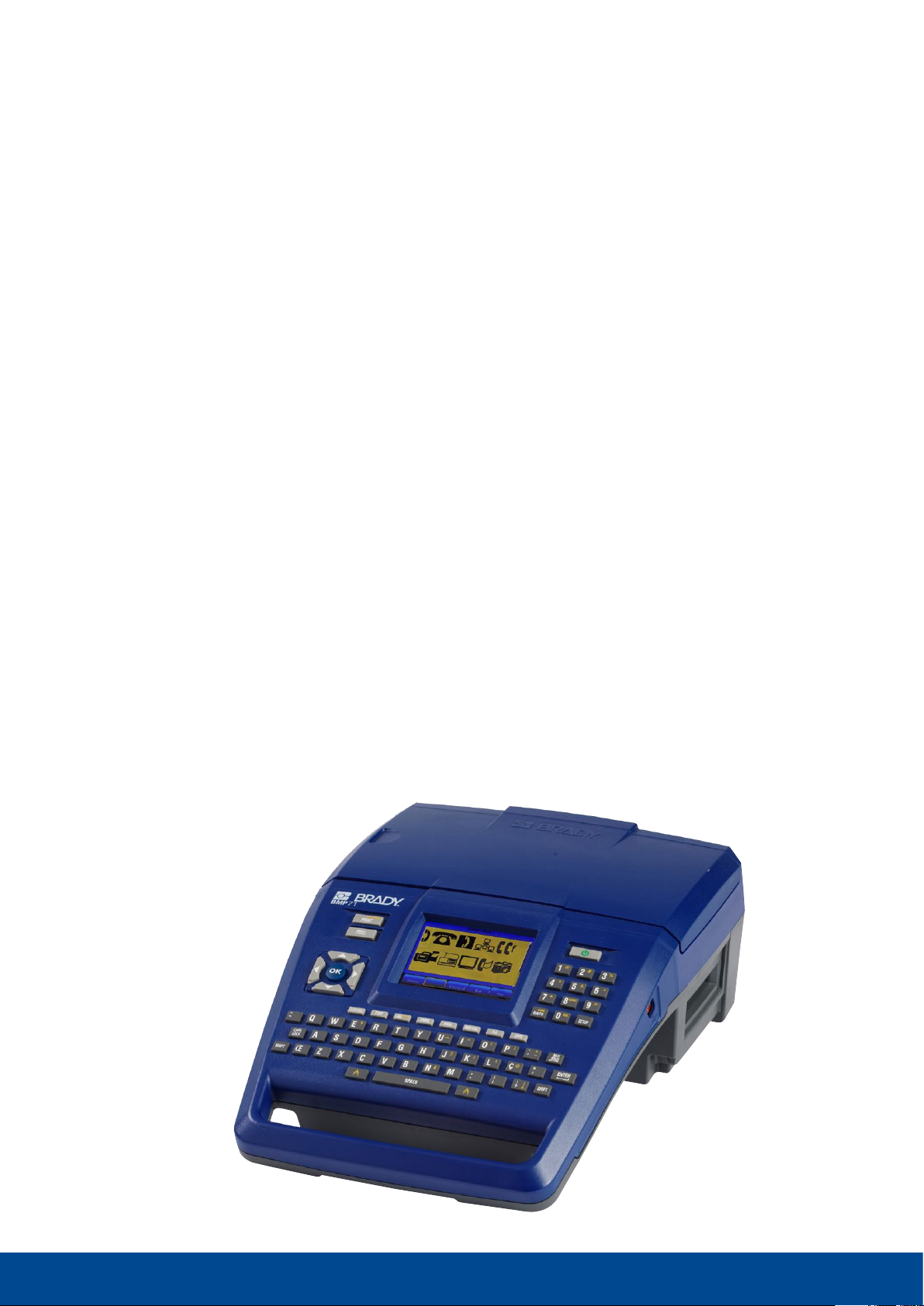

One smart printer to print it all

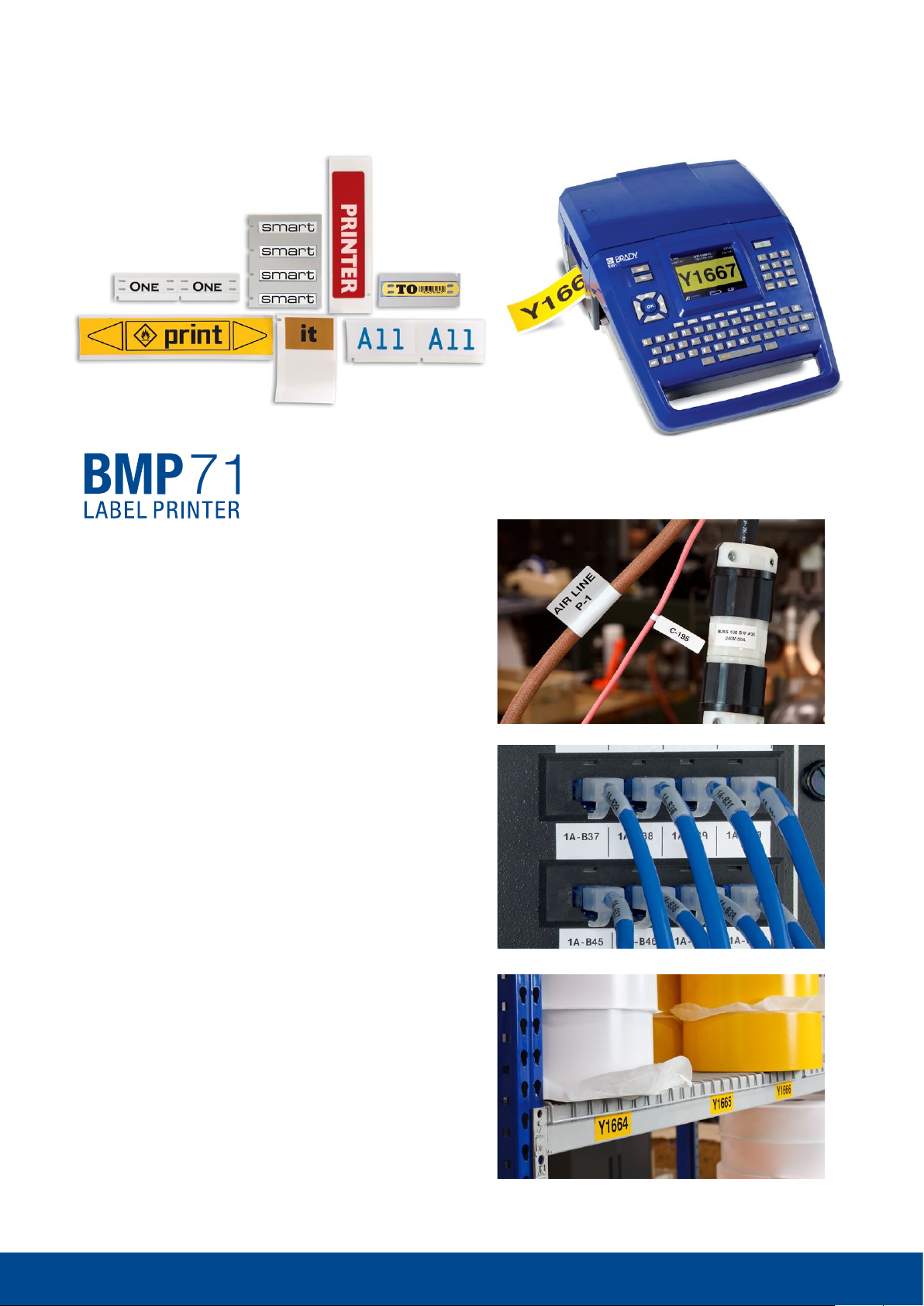

The BMP71 Label Printer is the premium mobile printer.
Able to print the widest range of materials, including
custom labels, BMP71 features a large and sharp screen,
is easily portable and has a built-in keyboard, available
in various configurations. Whether you need heat-shrink
sleeves, die-cut labels or indoor/outdoor vinyl, you can
be confident that the BMP71 printer has the right label
material for your application.
Helps you deal with every situation
• Over 500 built-in symbols
• Over 400 parts + customs
• Over 30 different types of label material
• Label width up to 50 mm
Keeps you going on and on
• AA batteries or rechargeable Lithium-ion battery
• Ideal for 1000 continuous or die-cut labels a day
• 2 year warranty
Shows the whole label at once
• Enlarged full colour screen
Speeds up your labelling
• Swift typing with both hands
• Full Qwerty/Azerty/Qwertz/Cyrillic keyboards
• Fast printing : 38 mm/sec
The BMP71 is your essential tool that
handles all your label printing needs.
www.bradyeurope.com
5
Font sizes & symbol library
Variable font sizes
Font sizes range from 4 to 170 point.
The maximum font size available depends on factors such
as label size, number of characters, number of lines, as
well as font sizes in other lines.
Barcode types
CODE 39 CODE 128
Symbol library
ABC12345
AB
Also available: full height, auto and custom font sizes.
• Code 39 and Code 128
• Other barcodes supported
• Standard electrical and datacom symbols
• Over 500 built-in graphics
• Built-in time/date stamp
• Signs can easily be imported
Arrows Datacom Electrical
GHS International Mandatory
FireExit First aid
Misc. Packaging PPE
Prohibition
6
Public info
Safety
Warning
WHMIS
...and many more
Applications
Electrical, voice/datacom identification

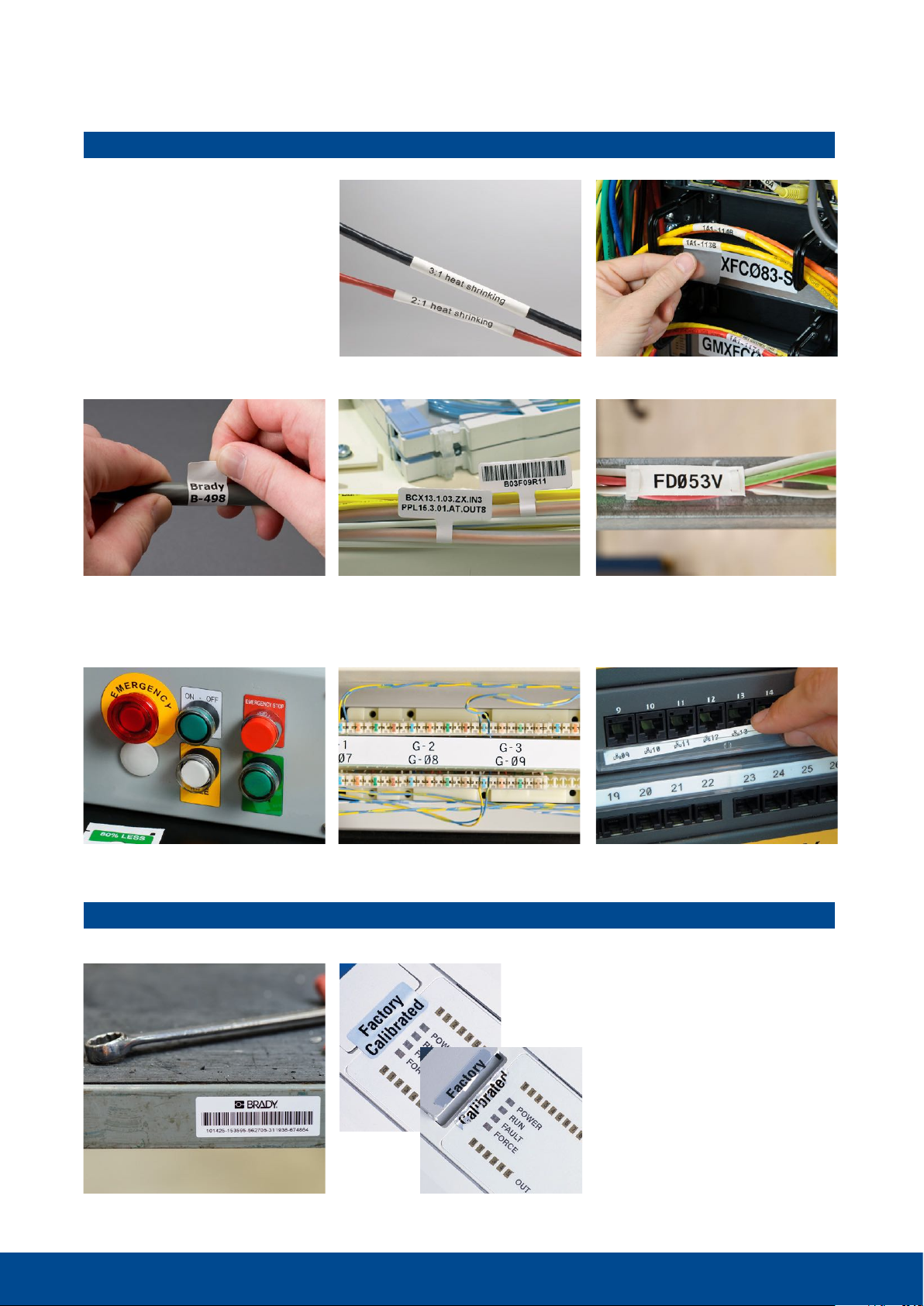

Wire & cable marking for twisted
pair data cables (UTP, FTP...), fibre
optic cables, conductors, computer
wires, electrical installation wires
& cables, power & ground cables,
energy cables...
Sleeves
Wrap-around labels Flags Tags
Component marking for patch panels, control panels, punch blocks, terminal blocks, breaker boxes, face-plates...
Self-lams
Raised panels Ter mi na l bl oc k l ab el s Punch block & patch panel labels
General & industrial identification
Asset & component marking to be used on all kind of surfaces (smooth, rough, textured, low energy...).
Rating & name plate labels Security identification labels
www.bradyeurope.com
7
Applications
Safety & facility identification
Pipe & valve marking
Maintenance labels Area & pathway marking Safety signs and labels
Food processing equipment marking Exit & directional signs
Lean warehouse labels
Electronics identification
Circuit Board Marking for printed circuit board identification (also static dissipative), PCB SMT – Top/Bottom...
Polyester labels
Polyimide labels
8
Applications
Laboratory identification

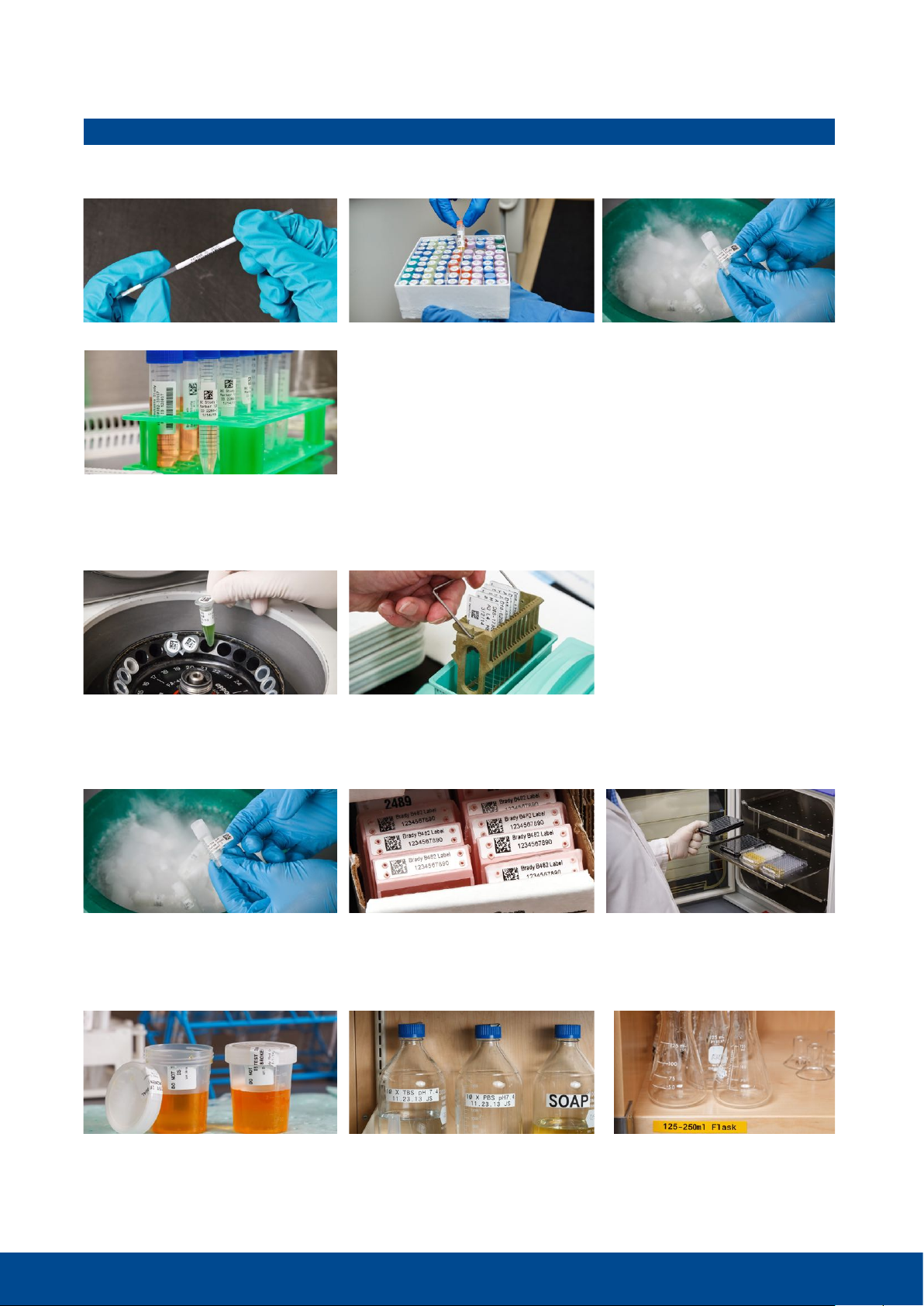

Specimen tracking identification for sample tracking within histology labs: use barcode technology to prevent
misdiagnosis.
Straws & rods
Conical & large tube labels
Specimen process marking supporting microscopic analysis of cells and tissues within pathology and clinical labs.
Centrifuge/microcentrifuge labels Slide labels
Specimen storage identification supporting specimen collection and handling such as blood samples,
cryo-samples etc.
Vial top labels Vial & tube labels
Cryo labels Tissue cassette labels Well plate labels
Lean lab identification for general supplies marking.
Bottle tamper seals Bottles, flasks & dishes General lab equipment labels
www.bradyeurope.com
9
Advantages of labelling
Ever lost time figuring out where each wire goes?
Durable professional labels that remain legible and stay attached in harsh conditions are
extremely important to keep power, network, voice and data cables and components organised
and running effectively.
Professional identification on wires, cables and components
enables you to:
• immediately recognise what needs checking during troubleshooting
• clearly mark parts for upcoming maintenance upgrades
• trace history, lifespan and supplier
• add safety warnings or precautions
Ask yourself how much time or money you lose while trying to trace an unidentified faulty cable,
wire or component.
Ask yourself how fast pressure builds when machinery, production lines, servers and services
are impacted.
This is when professional labelling pays off big time.
10
www.bradyeurope.com
11
1
2
3
4
What is a professional label?

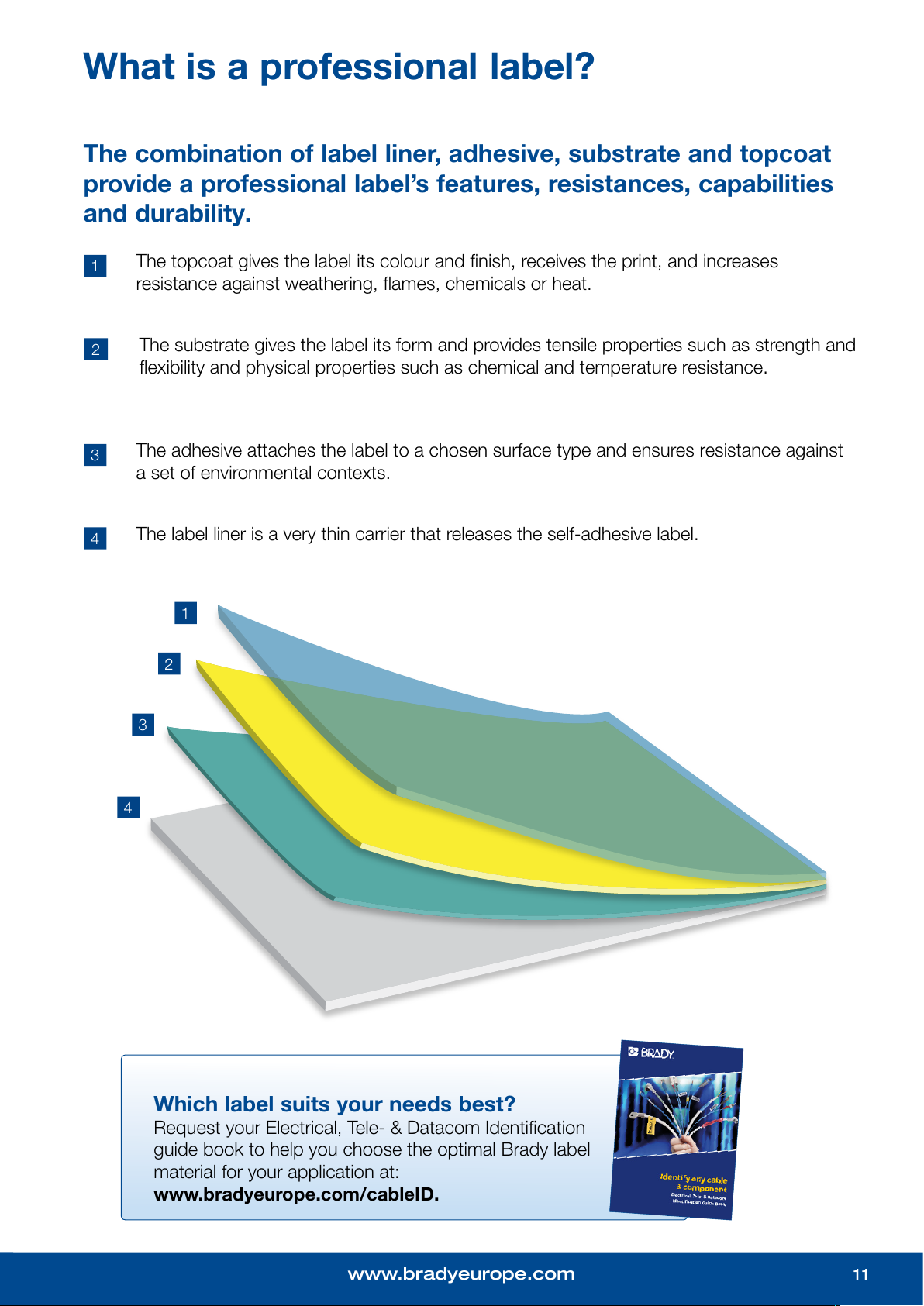

The combination of label liner, adhesive, substrate and topcoat
provide a professional label’s features, resistances, capabilities
and durability.
The topcoat gives the label its colour and finish, receives the print, and increases
resistance against weathering, flames, chemicals or heat.
1
The substrate gives the label its form and provides tensile properties such as strength and
flexibility and physical properties such as chemical and temperature resistance.
2
The label liner is a very thin carrier that releases the self-adhesive label.
4
The adhesive attaches the label to a chosen surface type and ensures resistance against
a set of environmental contexts.
3
Which label suits your needs best?
Request your Electrical, Tele- & Datacom Identification
guide book to help you choose the optimal Brady label
material for your application at:
www.bradyeurope.com/cableID.
BMP71 media offering
We continuously try to improve & extend our label material offering, therefore make sure to check for firmware
upgrades regularly, in order to make sure you always have access to the newest materials.
Material
B-109 Polyethylene Tag
B-145 Polyethylene Tag
B-342 Heat-shrink Polyolefin Sleeve
B-351 Tamper-resistant Vinyl
B-362 Tamper-resistant Metallised Vinyl
B-403 Paper
B-412 Polypropylene Tag
B-422 Polyester
B-423 Polyester
B-424 Paper
B-425 Polypropylene
B-427 Self-laminating Vinyl
B-428 Metallised Polyester
B-430 Polyester
B-437 Polyvinylfluoride
B-459 Polyester
B-461 Self-laminating Polyester
B-472 Polyimide
B-473 Static Dissipative Polyester
B-481 StainerBondz™ Polyester
B-483 Polyester
B-483/B-634 Polyester with Polyester Overlaminate
B-486 Metallised Polyester
B-488 Polyester
B-489 Polyester
Material
B-490 Freezerbondz™ Polyester
B-492 Freezerbondz™ Polyester
B-498 Vinyl Cloth
B-499 Nylon Cloth
B-529 Polypropylene
B-530 Tamper-resistant Vinyl
B-582 Phosphorescent Polyester
B-584 Reflective Tape
B-595 Vinyl
B-642 Polyvinylfluoride
B-717 Polyimide
B-718 Polyimide
B-719 Polyimide
B-724 Polyimide
B-727 Polyimide
B-7593 Polyethylene Foam Laminate Polyester
B-7598 Polyester Tag
B-7599 Polyethylene Tag
B-7641 Heat-shrink Polyolefin Sleeve
B-7643 Thermoplastic Polyether Polyurethane
B-7696 Vinyl Tag
B-7697 Polyester Tag
B-854 Metal Detectable Polyester
B-855 Polyester
Backwards compatibility
Prints all TLS2000 & Handimark
label parts including bulk rolls.
Users interested in upgrading to
a BMP71 Label Printer do not
need to invest in a new set of
consumables.
Most of the BMP61 consumables
are also compatible with the
BMP71 Label Printer by using the
black media guide provided with
the BMP61.
Get your custom BMP71 labels according to your specifications!
Frequently used custom labels include:
• Specific shapes and/or dimensions
• Specific colouring: material appearance through label colouring
• Specific materials to meet your requirements: chemical resistance, UV
• Specific printing or layout
Bulk packaging for high volume
printing
resistance, scratch resistance
Bulk labels are designed as
a cost-effective solution for
high volume labelling needs.
Order references beginning
with ‘B’ indicate bulk rolls.
Bulk Label printing requires
the media feeder and smart
cell spool which are included
in the bulk label material
packaging.
12
Ribbons
All materials in the printer work with a series
of M71 ribbons that easily fit into the printer.
It is recommended to insert the ribbon before
loading the consumable.
Watch the how to videos
on our Brady YouTube
channel.
Roll
Order Reference Colour
M71-R4400-WT White 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6000HF Black 50.80 46.00 Resin High density ribbon, excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6200 Black 50.80 46.00 Resin Designed for harsh environment labelling applications. Superior abrasion, chemical and heat resistance.
M71-R6400 Black 50.80 46.00 Resin Ultra high chemical resistance at high temperatures. Superior solvent resistance.
M71-R6600 Black 50.80 46.00 Resin
M71-R6800-WT White 50.80 46.00 Resin
M71-R6900-BL Blue 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-GN Green 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-MA Magenta 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-RD Red 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-YL Yellow 50.80 46.00 Resin High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R4300 Black 50.80 46.00 Wax/Resin
M71-R6700-WT White 50.80 46.00 Wax/Resin
Width
(mm)
Roll
Length
(m) Formulation Notes / Details
Diesel resistant ribbon for thermal printing on Brady PermaSleeve and Heatex Sleeves. This ribbon has with
excellent chemical and abrasion resistance
Strong environmental resistance against smearing and chemicals. Also, reliable, sharp-edge print quality
to maximise bar code readability.
Strong environmental resistance against smearing and chemicals. Also, reliable, sharp-edge print quality
to maximise bar code readability.
The White 6700 Series Thermal Transfer Ribbon offers high performance against scratching, smudging,
and harsh chemicals. The ribbon can be used for printing on Brady’s Black PermaSleeve™ materials
Smart-Cell Technology
With smart-cell technology built into label
rolls and ribbons, the printer is able to
automatically format the label and place
objects so that there is no guess work
on your part. If the label material & ribbon
are not compatible, the screen will show
an error message.
www.bradyeurope.com
13
Electrical, voice/datacom identification
Wire & cable marking
PermaSleeve heat-shrink sleeve markers
• These heat-shrink sleeves are the ultimate in marker identification,
protection, durability and aesthetic appearance.
• Fast shrink rate saves time and costs during installation.
Diagram Order Reference
B-342: Heat-shrink Polyolefin
BM71C-125-342 3:1 White 6.00 - 1.17 2.79 1 M71-R4300 BMP71
BM71C-187-342 3:1 White 8.50 - 1.57 3.81 1 M71-R4300 BMP71
BM71C-250-342 3:1 White 11.15 - 2.39 5.46 1 M71-R4300 BMP71
BM71C-375-342 3:1 White 16.40 - 3.18 8.13 1 M71-R4300 BMP71
BM71C-500-342 3:1 White 21.60 - 4.75 11.43 1 M71-R4300 BMP71
BM71C-1000-342 3:1 White 42.16 - 9.53 24.13 1 M71-R4300 BMP71
BM71-94-1-342-2 3:1 White 12.70 4.60 0.58 2.03 5000 R4300 M611, BMP61, BMP71
BM71-94-175-342-2 3:1 White 22.22 4.60 0.58 2.03 5000 R4300 M611, BMP61, BMP71
BM71-94-1-342 3:1 White 25.78 4.60 0.58 2.03 2500 R4300 M611, BMP61, BMP71
M71-94-1-342YL 3:1 Yellow 25.78 4.60 0.58 2.03 100 M71-R4300 BMP71
BM71-94-1-342YL 3:1 Yellow 25.78 4.60 0.58 2.03 2500 R4300 M611, BMP61, BMP71
M71-94-175-342 3:1 White 44.83 4.60 0.58 2.03 100 M71-R4300 BMP71
BM71-94-175-342 3:1 White 44.83 4.60 0.58 2.03 2500 R4300 M611, BMP61, BMP71
M71-94-175-342YL 3:1 Yellow 44.83 4.60 0.58 2.03 100 M71-R4300 BMP71
BM71-94-175-342YL 3:1 Yellow 44.83 4.60 0.58 2.03 2500 R4300 M611, BMP61, BMP71
M71-94-1-342 3:1 White 25.78 4.62 0.58 2.03 100 M71-R4300 BMP71
BM71-125-1-342-2 3:1 White 12.70 6.00 1.17 2.79 2000 R4300 M611, BMP61, BMP71
BM71-125-175-342-3 3:1 White 14.81 6.00 1.17 2.79 3000 R4300 M611, BMP61, BMP71
BM71-125-175-342-2 3:1 White 22.22 6.00 1.17 2.79 2000 R4300 M611, BMP61, BMP71
BM71-125-1-342-YL 3:1 Yellow 25.40 6.00 1.17 2.79 1000 R4300 M611, BMP61, BMP71
BM71-125-1-342 3:1 White 25.78 6.00 1.17 2.79 1000 R4300 M611, BMP61, BMP71
M71-125-1-342 3:1 White 25.78 6.00 1.17 2.79 100 M71-R4300 BMP71
M71-125-1-342YL 3:1 Yellow 25.78 6.00 1.17 2.79 100 M71-R4300 BMP71
M71-125-175-342 3:1 White 44.83 6.00 1.17 2.79 100 M71-R4300 BMP71
BM71-125-175-342 3:1 White 44.83 6.00 1.17 2.79 1000 R4300 M611, BMP61, BMP71
M71-125-175-342YL 3:1 Yellow 44.83 6.00 1.17 2.79 100 M71-R4300 BMP71
BM71-125-175-342YL 3:1 Yellow 44.83 6.00 1.17 2.79 1000 R4300 M611, BMP61, BMP71
BM71-187-175-342-4 3:1 White 11.10 8.50 1.57 3.81 4000 R4300 M611, BMP61, BMP71
BM71-187-1-342-2 3:1 White 12.70 8.50 1.57 3.81 2000 R4300 M611, BMP61, BMP71
BM71-187-175-342-3 3:1 White 14.81 8.50 1.57 3.81 3000 R4300 M611, BMP61, BMP71
BM71-187-175-342-2 3:1 White 22.22 8.50 1.57 3.81 2000 R4300 M611, BMP61, BMP71
M71-187-1-342 3:1 White 25.78 8.50 1.57 3.81 100 M71-R4300 BMP71
BM71-187-1-342 3:1 White 25.78 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
M71-187-1-342YL 3:1 Yellow 25.78 8.50 1.57 3.81 100 M71-R4300 BMP71
BM71-187-1-342YL 3:1 Yellow 25.78 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
BM71-187-175-342OR 3:1 Orange 44.45 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
BM71-187-175-342RD 3:1 Red 44.45 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
BM71-187-175-342 3:1 White 44.83 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
M71-187-175-342 3:1 White 44.83 8.50 1.57 3.81 100 M71-R4300 BMP71
Shrink
Ratio Colour
Order references beginning with “B” indicate bulk rolls.
Sleeve
Width A
(mm)
Sleeve
Height B
(mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Sleeves
per roll
Printer
Ribbon Series Printer Compatibility
>>
14
Electrical, voice/datacom identification
Wire & cable marking
PermaSleeve heat-shrink sleeve markers (continued)
Diagram Order Reference
M71-187-175-342YL 3:1 Yellow 44.83 8.50 1.57 3.81 100 M71-R4300 BMP71
BM71-187-175-342YL 3:1 Yellow 44.83 8.50 1.57 3.81 1000 R4300 M611, BMP61, BMP71
BM71-250-1-342-YL 3:1 Yellow 25.40 11.15 2.39 5.46 1000 R4300 M611, BMP61, BMP71
BM71-250-1-342 3:1 White 25.78 11.15 2.39 5.46 1000 R4300 M611, BMP61, BMP71
M71-250-1-342 3:1 White 25.78 11.15 2.39 5.46 100 M71-R4300 BMP71
M71-250-1-342YL 3:1 Yellow 25.78 11.15 2.39 5.46 100 M71-R4300 BMP71
BM71-250-175-342RD 3:1 Red 44.45 11.15 2.39 5.46 1000 R4300 M611, BMP61, BMP71
BM71-250-175-342 3:1 White 44.83 11.15 2.39 5.46 1000 R4300 M611, BMP61, BMP71
M71-250-175-342 3:1 White 44.83 11.15 2.39 5.46 100 M71-R4300 BMP71
M71-250-175-342YL 3:1 Yellow 44.83 11.15 2.39 5.46 100 M71-R4300 BMP71
BM71-250-175-342YL 3:1 Yellow 44.83 11.15 2.39 5.46 1000 R4300 M611, BMP61, BMP71
BM71-375-1-342-2 3:1 White 12.70 16.40 3.18 8.13 2000 R4300 M611, BMP61, BMP71
BM71-375-175-342-2 3:1 White 22.22 16.40 3.18 8.13 2000 R4300 M611, BMP61, BMP71
M71-375-1-342 3:1 White 25.78 16.40 3.18 8.13 100 M71-R4300 BMP71
BM71-375-1-342 3:1 White 25.78 16.40 3.18 8.13 1000 R4300 M611, BMP61, BMP71
M71-375-1-342YL 3:1 Yellow 25.78 16.40 3.18 8.13 100 M71-R4300 BMP71
BM71-375-1-342-YL 3:1 Yellow 25.78 16.40 3.18 8.13 1000 R4300 M611, BMP61, BMP71
BM71-375-175-342YL 3:1 Yellow 44.45 16.40 3.18 8.13 1000 R4300 M611, BMP61, BMP71
M71-375-175-342 3:1 White 44.83 16.40 3.18 8.13 100 M71-R4300 BMP71
BM71-375-175-342 3:1 White 44.83 16.40 3.18 8.13 1000 R4300 M611, BMP61, BMP71
M71-375-175-342YL 3:1 Yellow 44.83 16.40 3.18 8.13 100 M71-R4300 BMP71
BM71-500-175-342Y3 3:1 Yellow 14.81 21.60 4.75 11.43 3000 R4300 M611, BMP61, BMP71
M71-500-1-342 3:1 White 25.78 21.60 4.75 11.43 100 M71-R4300 BMP71
BM71-500-1-342 3:1 White 25.78 21.60 4.75 11.43 1000 R4300 M611, BMP61, BMP71
M71-500-1-342YL 3:1 Yellow 25.78 21.60 4.75 11.43 100 M71-R4300 BMP71
BM71-500-1-342YL 3:1 Yellow 25.78 21.60 4.75 11.43 1000 R4300 M611, BMP61, BMP71
BM71-500-175-342RD 3:1 Red 44.45 21.60 4.75 11.43 1000 M71-R4300 M611, BMP61, BMP71
M71-500-175-342 3:1 White 44.83 21.60 4.75 11.43 100 M71-R4300 BMP71
BM71-500-175-342 3:1 White 44.83 21.60 4.75 11.43 1000 R4300 M611, BMP61, BMP71
M71-500-175-342YL 3:1 Yellow 44.83 21.60 4.75 11.43 100 M71-R4300 BMP71
BM71-500-175-342YL 3:1 Yellow 44.83 21.60 4.75 11.43 1000 R4300 M611, BMP61, BMP71
M71-1000-1-342 3:1 White 25.78 42.16 9.53 24.13 50 M71-R4300 BMP71
142072 3:1 Yellow 25.78 42.16 9.53 24.13 50 M71-R4300 BMP71
BM71-1000-175-342 3:1 White 44.83 42.16 9.53 24.13 500 R4300 M611, BMP61, BMP71
M71-1000-175-341 3:1 White 44.83 42.16 9.53 24.13 50 M71-R4300 BMP71
M71-1000-175-342YL 3:1 Yellow 44.83 42.16 9.53 24.13 50 M71-R4300 BMP71
Shrink
Ratio Colour
Order references beginning with “B” indicate bulk rolls.
Sleeve
Width A
(mm)
Sleeve
Height B
(mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Sleeves
per roll
Printer
Ribbon Series Printer Compatibility
www.bradyeurope.com
See pages 49 - 51 for a detailed material index.
15
Electrical, voice/datacom identification
Wire & cable marking
PermaSleeve low smoke zero halogen
wire marking sleeves, 2:1 shrink ratio
• These heat-shrink sleeves are the ultimate in
marker identification, protection, durability and
aesthetic appearance.
• These low smoke zero halogen wire marking
sleeves offer outstanding fire safety properties and
minimal smoke emission.
• Fast shrink rate saves time and costs during
installation. Available as individual die-cut markers
or continuous cut-to-length tubing.
Sleeves are shown in order of sleeve height and per sleeve width.
Diagram Order Reference
B-7641: Heat-shrink Polyolefin
M71-94-1-7641 2:1 White 25.40 4.60 1.19 2.03 100 M71-R6600 BMP71
BM71-94-1-7641 2:1 White 25.40 4.60 1.19 2.03 2500 M71-R6600 BMP71
M71-94-1-7641Y 2:1 Yellow 25.40 4.60 1.19 2.03 100 M71-R6600 BMP71
BM71-94-1-7641Y 2:1 Yellow 25.40 4.60 1.19 2.03 2500 M71-R6600 BMP71
M71-94-175-7641 2:1 White 44.45 4.60 1.19 2.03 100 M71-R6600 BMP71
BM71-94-175-7641 2:1 White 44.45 4.60 1.19 2.03 2500 M71-R6600 BMP71
M71-94-175-7641Y 2:1 Yellow 44.45 4.60 1.19 2.03 100 M71-R6600 BMP71
BM71-94-175-7641Y 2:1 Yellow 44.45 4.60 1.19 2.03 2500 M71-R6600 BMP71
M71-125-1-7641 2:1 White 25.40 6.00 1.57 2.80 100 M71-R6600 BMP71
BM71-125-1-7641 2:1 White 25.40 6.00 1.57 2.80 1000 M71-R6600 BMP71
M71-125-1-7641YL 2:1 Yellow 25.40 6.00 1.57 2.80 100 M71-R6600 BMP71
BM71-125-1-7641Y 2:1 Yellow 25.40 6.00 1.57 2.80 1000 M71-R6600 BMP71
M71-125-175-7641 2:1 White 44.45 6.00 1.57 2.80 100 M71-R6600 BMP71
BM71-125-175-7641 2:1 White 44.45 6.00 1.57 2.80 1000 M71-R6600 BMP71
M71-125-175-7641YL 2:1 Yellow 44.45 6.00 1.57 2.80 100 M71-R6600 BMP71
BM71-125-175-7641Y 2:1 Yellow 44.45 6.00 1.57 2.80 1000 M71-R6600 BMP71
M71-187-1-7641 2:1 White 25.40 8.50 2.39 3.81 100 M71-R6600 BMP71
BM71-187-1-7641 2:1 White 25.40 8.50 2.39 3.81 1000 M71-R6600 BMP71
M71-187-1-7641YL 2:1 Yellow 25.40 8.50 2.39 3.81 100 M71-R6600 BMP71
BM71-187-1-7641Y 2:1 Yellow 25.40 8.50 2.39 3.81 1000 M71-R6600 BMP71
M71-187-175-7641 2:1 White 44.45 8.50 2.39 3.81 100 M71-R6600 BMP71
BM71-187-175-7641 2:1 White 44.45 8.50 2.39 3.81 1000 M71-R6600 BMP71
M71-187-175-7641YL 2:1 Yellow 44.45 8.50 2.39 3.81 100 M71-R6600 BMP71
BM71-187-175-7641Y 2:1 Yellow 44.45 8.50 2.39 3.81 1000 M71-R6600 BMP71
M71-250-1-7641 2:1 White 25.40 11.15 3.18 5.46 100 M71-R6600 BMP71
BM71-250-1-7641 2:1 White 25.40 11.15 3.18 5.46 1000 M71-R6600 BMP71
M71-250-1-7641YL 2:1 Yellow 25.40 11.15 3.18 5.46 100 M71-R6600 BMP71
BM71-250-1-7641Y 2:1 Yellow 25.40 11.15 3.18 5.46 1000 M71-R6600 BMP71
141297 2:1 White 44.45 11.15 3.18 5.46 100 M71-R6600 BMP71
BM71-250-175-7641 2:1 White 44.45 11.15 3.18 5.46 1000 M71-R6600 BMP71
M71-250-175-7641YL 2:1 Yellow 44.45 11.15 3.18 5.46 100 M71-R6600 BMP71
BM71-250-175-7641Y 2:1 Yellow 44.45 11.15 3.18 5.46 1000 M71-R6600 BMP71
BM71-375-1-7641 2:1 White 25.40 16.38 4.78 8.13 1000 M71-R6600 BMP71
BM71-375-1-7641YL 2:1 Yellow 25.40 16.38 4.78 8.13 1000 M71-R6600 BMP71
BM71-375-175-7641 2:1 White 44.45 16.38 4.78 8.13 1000 M71-R6600 BMP71
BM71-375-175-7641Y 2:1 Yellow 44.45 16.38 4.78 8.13 1000 M71-R6600 BMP71
M71-375-1-7641 2:1 White 25.40 16.40 4.78 8.13 100 M71-R6600 BMP71
Order references beginning with “B” indicate bulk rolls.
Shrink
Ratio Colour
Sleeve
Width A
(mm)
Sleeve
Height B
(mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Sleeves per
roll
Printer
Ribbon Series
Printer
Compatibility
>>
16
Electrical, voice/datacom identification
Wire & cable marking
PermaSleeve low smoke zero halogen wire marking sleeves,
2:1 shrink ratio (continued)
Sleeves are shown in order of sleeve height and per sleeve width.
Diagram Order Reference
M71-375-1-7641YL 2:1 Yellow 25.40 16.40 4.78 8.13 100 M71-R6600 BMP71
M71-375-175-7641 2:1 White 44.45 16.40 4.78 8.13 100 M71-R6600 BMP71
M71-375-175-7641YL 2:1 Yellow 44.83 16.40 4.78 8.13 100 M71-R6600 BMP71
M71-500-1-7641 2:1 White 25.40 21.60 6.35 11.43 100 M71-R6600 BMP71
BM71-500-1-7641 2:1 White 25.40 21.60 6.35 11.43 600 M71-R6600 BMP71
M71-500-1-7641YL 2:1 Yellow 25.40 21.60 6.35 11.43 100 M71-R6600 BMP71
BM71-500-1-7641YL 2:1 Yellow 25.40 21.60 6.35 11.43 600 M71-R6600 BMP71
M71-500-175-7641 2:1 White 44.45 21.60 6.35 11.43 100 M71-R6600 BMP71
BM71-500-175-7641 2:1 White 44.45 21.60 6.35 11.43 600 M71-R6600 BMP71
M71-500-175-7641YL 2:1 Yellow 44.45 21.60 6.35 11.43 100 M71-R6600 BMP71
BM71-500-175-7641Y 2:1 Yellow 44.45 21.60 6.35 11.43 600 M71-R6600 BMP71
M71-750-1-7641 2:1 White 25.40 31.75 9.53 17.78 75 M71-R6600 BMP71
BM71-750-1-7641 2:1 White 25.40 31.75 9.53 17.78 600 M71-R6600 BMP71
M71-750-1-7641YL 2:1 Yellow 25.40 31.75 9.53 17.78 75 M71-R6600 BMP71
BM71-750-1-7641Y 2:1 Yellow 25.40 31.75 9.53 17.78 600 M71-R6600 BMP71
M71-750-175-7641 2:1 White 44.45 31.75 9.53 17.78 75 M71-R6600 BMP71
BM71-750-175-7641 2:1 White 44.45 31.75 9.53 17.78 600 M71-R6600 BMP71
M71-750-175-7641YL 2:1 Yellow 44.45 31.75 9.53 17.78 75 M71-R6600 BMP71
BM71-750-175-7641Y 2:1 Yellow 44.45 31.75 9.53 17.78 600 M71-R6600 BMP71
Order references beginning with “B” indicate bulk rolls.
Shrink
Ratio Colour
Sleeve
Width A
(mm)
Sleeve
Height B
(mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Sleeves per
roll
Printer
Ribbon Series
Printer
Compatibility
www.bradyeurope.com
See pages 49 - 51 for a detailed material index.
17
Loading...
