Brady BC1000 Users Manual

User Manual

Censys: UHF Reader

Contents

Introduction ....................................................................................................................................................................... 2

Installation Procedures ..................................................................................................................................................... 2

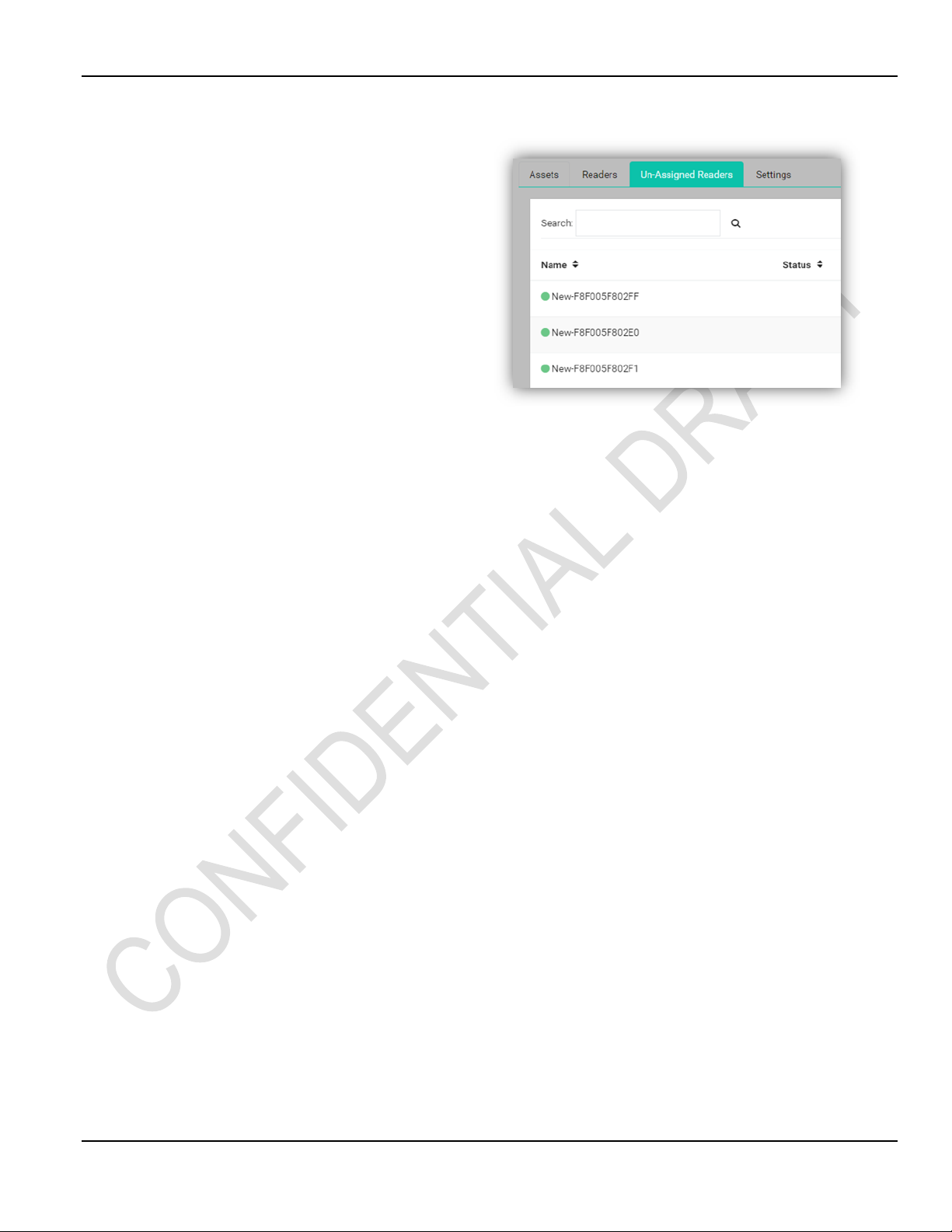

Configuration Procedures ................................................................................................................................................. 5

FCC / Industry Canada Compliance ................................................................................................................................. 7

Censys User Guide March 2017 Version 1.0

Censys: UHF Reader

Introduction

This user manual describes the features, specifications, and operation of the Censys UHF Reader from Brady
Corporation.

The Censys reader is a small, low cost, easy to install UHF RFID reader with wireless data transport to a an
application server. Its purpose is to provide a function similar to real time location system (RTLS) at reduced
complexity and cost using only passive tags. Model BCENSYS-1000 takes power from a 5V 2A USB interface
which can be provided using common plugin wall adapters or outlets with a properly rated USB port. Model
BCENSYS12-1000 can alternatively be powered from a 12-24V central power supply for longer power runs. Each
reader unit periodically scans its local area which is constrained by its read range performance. The UHF reader
sub system is an EPC Gen 2 and ISO 18000-63 compliant reader. The embedded software application notifies
the server of all tag events that occurred during the last scan cycle using a wireless network. A tag event may be
for example when a tag first enters the reader’s range. The wireless network is built upon WiFi and will typically
bridge to a wired Ethernet system to provide connectivity to the server. The server may also be cloud hosted.
The server and reader may also have two way communications using the wireless (and wired) network. A high
level block diagram is shown below.

The RFID Reader Kit is delivered with the following components and accessories:

 One RFID Reader with Integrated Circular Polarized Antenna
 One AC/DC Power Supply
 Mounting Hardware Kit

Read this manual first

Read and understand the contents of this manual before installing or operating this equipment. These
instructions cannot cover all details, variations of the equipment, or use cases.

Installation Procedures

Contained in the box will be the following: CenSys RFID Reader, 6’ 5V 2A Micro-USB Power Supply, 4ct Screw
Mounting Pack, Grommet.

Product Installation for 5V USB Version

Censys User Guide March 2017 Version 1.0

Censys: UHF Reader

1

Insert the Micro-USB plus into the

port on the reader board

2

Wrap the cord around the cord-

secure posts

3

Insert the grommet around the

cord, and slide into the grommet

channel

4

Position reader in mounting

location and drill through guide

holes*

* Note: Other mounting methods such as Velcro®
may be used in lieu of screw mounting.

5

Use drywall anchors to secure in the

wall

6

Secure the unit to the wall and

attach the front cover

Product Installation for 12V input version
