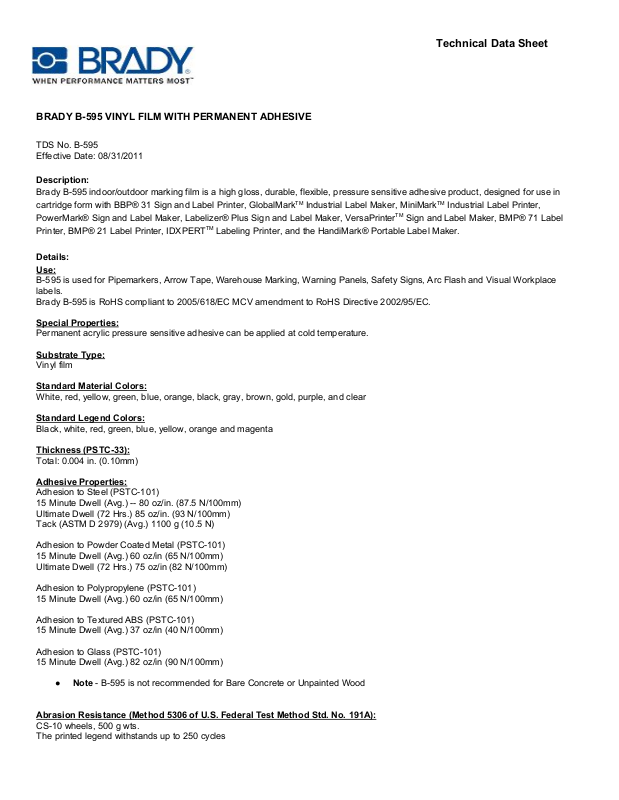

Technical Data Sheet
BRADY B-595 VINYL FILM WITH PERMANENT ADHESIVE
TDS No. B-595
Effective Date: 08/31/2011
Description:
Brady B-595 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product, designed for use in
cartridge form with BBP® 31 Sign and Label Printer, GlobalMark
PowerMark® Sign and Label Maker, Labelizer® Plus Sign and Label Maker, VersaPrinter
Printer, BMP® 21 Label Printer, IDXPERT
TM
Labeling Printer, and the HandiMark® Portable Label Maker.
Details:
Use:
B-595 is used for Pipemarkers, Arrow Tape, Warehouse Marking, Warning Panels, Safety Signs, Arc Flash and Visual Workplace
labels.
Brady B-595 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC.
Special Properties:
Permanent acrylic pressure sensitive adhesive can be applied at cold temperature.
Substrate Type:
Vinyl film
Standard Material Colors:
White, red, yellow, green, blue, orange, black, gray, brown, gold, purple, and clear
Standard Legend Colors:
Black, white, red, green, blue, yellow, orange and magenta
Thickness (PSTC-33):
Total: 0.004 in. (0.10mm)
Adhesive Properties:
Adhesion to Steel (PSTC-101)
15 Minute Dwell (Avg.) -- 80 oz/in. (87.5 N/100mm)
Ultimate Dwell (72 Hrs.) 85 oz/in. (93 N/100mm)
Tack (ASTM D 2979) (Avg.) 1100 g (10.5 N)
Adhesion to Powder Coated Metal (PSTC-101)
15 Minute Dwell (Avg.) 60 oz/in (65 N/100mm)
Ultimate Dwell (72 Hrs.) 75 oz/in (82 N/100mm)
Adhesion to Polypropylene (PSTC-101)
15 Minute Dwell (Avg.) 60 oz/in (65 N/100mm)
Adhesion to Textured ABS (PSTC-101)
15 Minute Dwell (Avg.) 37 oz/in (40 N/100mm)
Adhesion to Glass (PSTC-101)
15 Minute Dwell (Avg.) 82 oz/in (90 N/100mm)
● Note - B-595 is not recommended for Bare Concrete or Unpainted Wood
Abrasion Resistance (Method 5306 of U.S. Federal Test Method Std. No. 191A):
CS-10 wheels, 500 g wts.
The printed legend withstands up to 250 cycles
TM
Industrial Label Maker, MiniMark
TM
Sign and Label Maker, BMP® 71 Label
TM
Industrial Label Printer,
REAGENT
7 DAY IMMERSION
DIP TEST
RUB TEST
30% Sulfuric Acid
NE
NE
NE
10% Sulfuric Acid
NE
NE
NE
30% Hydrochloric Acid
NE
NE
NE
10% Hydrochloric Acid
NE
NE
NE
Glacial Acetic Acid
F F NE
5% Acetic Acid
NE
NE
NE
50% Sodium Hydroxide
NE
NE
NE
10% Sodium Hydroxide
F
NE
NE
10% Ammonia
NE
NE
NE
5% Sodium Hypochlorite
NE
NE
NE
Methyl Ethyl Ketone
F F F
Acetone
F F F
Toluene
F F F
Methanol F NE
F
Isopropyl Alcohol F NE
NE
Heptane F NE
NE
Mineral Spirits F F
NE
Turpentine F F
NE
Kerosene F F
NE
Diesel Fuel
NE
NE
NE
Gasoline F F
F
ASTM #3 Oil
NE
NE
NE
Gloss (ASTM D 523):
60° 50 Gardner Units minimum
Minimum Application Temperature
0°F (-18°C)
Service Temperature
-40°F to 180°F (-40°C to 82°C)
Average Outdoor Durability:
8-10 years (Average expected outdoor life of product will depend on user definition of failure, climatic conditions, mounting
techniques, and material color.) The 8-10 year outdoor durability applies to the vinyl label stock only; ribbon durability will vary. A
polyester overlaminate is recommended for harsh environments - long term exposure to wind and rain.
Chemical Resistance:
Samples were printed with the standard performance R10000 ribbon using the BBP® 31 Sign and Label Printer. Testing conducted
at room temperature.
SAE 20 Oil
NE
NE
NE
10% Sodium Chloride
NE
NE
NE
Alconox®
NE
NE
NE
Deionized Water
NE
NE
NE
NE = No Effect
NT = Not Tested
F = Failed (affected sample)
7 Day Immersion: Immersed in reagent for 7 days.
Dip Test: Five 10 minute dips in reagent with 30 minute recovery.
Rub Test: Rubbed sample for 1 minute with swab soaked in reagent.
Shelf Life and Fitness for Use: Product testing, customer feedback, and history of similar products, support a customer performance
expectation of one year from the date of receipt for this product as long as this product is stored in its original packaging in an
environment below 80°F (27°C) and 60% RH. However, it remains the responsibility of the user to assess the risk of using such
product. We encourage customers to develop functional testing protocols that will qualify a product's fitness for use, in their actual
applications.
Trademarks:
ANSI: American National Standards Institute (U.S.A.)
ASTM: American Society for Testing and Materials (U.S.A)
Alconox® is a registered trademark of Alconox Co.
BBP® 31 is a registered trademark of Brady Worldwide, Inc.
BMP® 21 is a registered trademark of Brady Worldwide, Inc.
BMP® 71 is a registered trademark of Brady Worldwide, Inc.
Fed. Spec.: United States Federal Specification (U.S.A.)
GlobalMark
HandiMark® is a registered trademark of Brady Worldwide, Inc.
IDXPERT
Labelizer® is a registered trademark of Brady Worldwide, Inc.
MINIMARK
PSTC: Pressure Sensitive Tape Council (U.S.A.)
Powermark
SAE: Society of Automotive Engineers (U.S.A.)
VersaPrinter
TM
Industrial Label Maker is a trademark of Brady Worldwide, Inc.
TM
is a trademark of Brady Worldwide, Inc.
TM
is a trademark of Brady Worldwide, Inc.
TM
is a trademark of Brady Worldwide, Inc.
TM
is a trademark of Brady Worldwide, Inc.
Note: All values shown are averages and should not be used for specification purposes.
Test data and test results contained in this document are for general information only and shall not be relied upon by Brady
customers for designs and specifications, or be relied on as meeting specified performance criteria. Customers desiring to develop
specifications or performance criteria for specific product applications should contact Brady for further information.
Product compliance information is based upon information provided by suppliers of the raw materials used by Brady to manufacture
this product or based on results of testing using recognized analytical methods performed by a third party, independent laboratory.
As such, Brady makes no independent representation or warranties, express or implied, and assumes no liability in connection with
the use of this information.
WARRANTY
Brady products are sold with the understanding that the buyers will test them in actual use and determine for themselves their
adaptability to their intended uses. Brady warrants to the buyers that its products are free from defects in material and
workmanship, but limits its obligations under this warranty to replacement of the product shown to Brady’s satisfaction to have been
defective at the time Brady sold it. This warranty does not extend to any persons obtaining the product from the buyers. This
warranty is in lieu of any other warranty, express or implied, including, but not limited to, any implied warranty of merchantability or
fitness for a particular purpose, and any other obligations or liability on Brady’s part. Under no circumstances will Brady be liable for
any loss, damage, expense, or consequential damages of any kind arising in connection with the use, or inability to use, Brady’s
products.
Material may not be reproduced or distributed in any form without written permission
Copyright 2017 Brady Worldwide, Inc.│ All Rights Reserved
