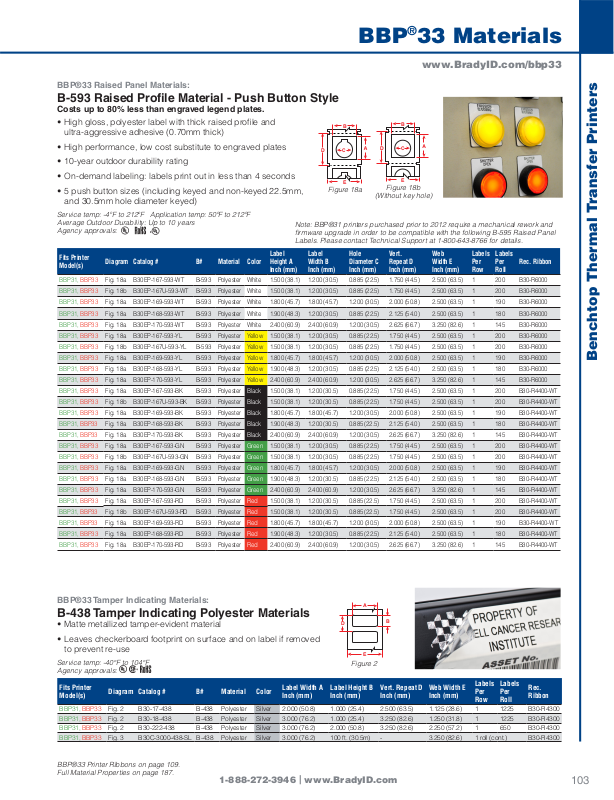

Brady B-593 Catalog Page
BBP®33 Materials
www.BradyID.com/bbp33
BBP®33 Raised Panel Materials:
B-593 Raised Prole Material - Push Button Style
Costs up to 80% less than engraved legend plates.
tHigh gloss, polyester label with thick raised profile and
ultra-aggressive adhesive (0.70mm thick)
tHigh performance, low cost substitute to engraved plates
B
C
D
t10-year outdoor durability rating
tOn-demand labeling: labels print out in less than 4 seconds
t5 push button sizes (including keyed and non-keyed 22.5mm,
E
Figure 18a
and 30.5mm hole diameter keyed)
Service temp: -4ºF to 212ºF Application temp: 50ºF to 212ºF
Average Outdoor Durability: Up to 10 years
Agency approvals:
Fits Printer
Model(s)
BBP31, BBP33 Fig. 18a B30EP-167-593-WT B-593 Polyester White 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R6000
BBP31, BBP33 Fig. 18b B30EP-167U-593-WT B-593 Polyester White 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-169-593-WT B-593 Polyester White 1.800 (45.7) 1.800 (45.7) 1.200 (30.5) 2.000 (50.8) 2.500 (63.5) 1 190 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-168-593-WT B-593 Polyester White 1.900 (48.3) 1.200 (30.5) 0.885 (22.5) 2.125 (54.0) 2.500 (63.5) 1 180 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-170-593-WT B-593 Polyester White 2.400 (60.9) 2.400 (60.9) 1.200 (30.5) 2.625 (66.7) 3.250 (82.6) 1 145 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-167-593-YL B-593 Polyester Yellow 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1
BBP31, BBP33 Fig. 18b B30EP-167U-593-YL B-593 Polyester Yellow 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-169-593-YL B-593 Polyester Yellow 1.800 (45.7) 1.800 (45.7) 1.200 (30.5) 2.000 (50.8) 2.500 (63.5) 1 190 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-168-593-YL B-593 Polyester Yellow 1.900 (48.3) 1.200 (30.5) 0.885 (22.5) 2.125 (54.0) 2.500 (63.5) 1 180 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-170-593-YL B-593 Polyester Yellow 2.400 (60.9) 2.400 (60.9) 1.200 (30.5) 2.625 (66.7) 3.250 (82.6) 1 145 B30-R6000
BBP31, BBP33 Fig. 18a B30EP-167-593-BK B-593 Polyester Black 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18b B30EP-167U-593-BK B-593 Polyester Black 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-169-593-BK B-593 Polyester Black 1.800 (45.7) 1.800 (45.7) 1.200 (30.5) 2.000 (50.8) 2.500 (63.5) 1 190 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-168-593-BK B-593 Polyester Black 1.900 (48.3) 1.200 (30.5) 0.885 (22.5) 2.125 (54.0) 2.500 (63.5) 1 180 B30-R4400-WT
BBP31, BBP33 Fig. 18a
BBP31, BBP33 Fig. 18a B30EP-167-593-GN B-593 Polyester Green 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18b B30EP-167U-593-GN B-593 Polyester Green 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-169-593-GN B-593 Polyester Green 1.800 (45.7) 1.800 (45.7) 1.200 (30.5) 2.000 (50.8) 2.500 (63.5) 1 190 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-168-593-GN B-593 Polyester Green 1.900 (48.3) 1.200 (30.5) 0.885 (22.5) 2.125 (54.0) 2.500 (63.5) 1 180 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-170-593-GN B-593 Polyester Green 2.400 (60.9) 2.400 (60.9) 1.200 (30.5) 2.625 (66.7) 3.250 (82.6) 1 145 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-167-593-RD B-593 Polyester Red 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18b B30EP-167U-593-RD B-593 Polyester Red 1.500 (38.1) 1.200 (30.5) 0.885 (22.5) 1.750 (44.5) 2.500 (63.5) 1 200 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-169-593-RD B-593 Polyester Red 1.800 (45.7) 1.800 (45.7)
BBP31, BBP33 Fig. 18a B30EP-168-593-RD B-593 Polyester Red 1.900 (48.3) 1.200 (30.5) 0.885 (22.5) 2.125 (54.0) 2.500 (63.5) 1 180 B30-R4400-WT
BBP31, BBP33 Fig. 18a B30EP-170-593-RD B-593 Polyester Red 2.400 (60.9) 2.400 (60.9) 1.200 (30.5) 2.625 (66.7) 3.250 (82.6) 1 145 B30-R4400-WT
®
c
®
Diagram Catalog # B# Material Color
B30EP-170-593-BK B-593 Polyester
Black 2.400 (60.9) 2.400 (60.9) 1.200 (30.5) 2.625 (66.7) 3.250 (82.6) 1 145 B30-R4400-WT
Note: BBP®31 printers purchased prior to 2012 require a mechanical rework and
firmware upgrade in order to be compatible with the following B-595 Raised Panel
Labels. Please contact Technical Support at 1-800-643-8766 for details.
Label
Height A
Inch (mm)
Label
Width B
Inch (mm)
Hole
Diameter C
Inch (mm)
1.200 (30.5) 2.000 (50.8) 2.500 (63.5) 1 190 B30-R4400-WT
B
C
D
E
Figure 18b
(Without key hole)
Vert.
Repeat D
Inch (mm)
Web
Width E
Inch (mm)
Labels
Per
Row
Labels
Per
Rec. Ribbon
Roll
200 B30-R6000
Benchtop Thermal Transfer Printers
BBP®33 Tamper Indicating Materials:
B-438 Tamper Indicating Polyester Materials
tMatte metallized tamper-evident material
tLeaves checkerboard footprint on surface and on label if removed
to prevent re-use
Service temp: -40°F to 104°F
Agency approvals:
Fits Printer
Model(s)
BBP31, BBP33 Fig. 2 B30-17-438 B-438 Polyester Silver 2.000 (50.8) 1.000 (25.4) 2.500 (63.5) 1.125 (28.6) 1 1225 B30-R4300
BBP31, BBP33 Fig. 2 B30-18-438 B-438 Polyester Silver 3.000 (76.2) 1.000 (25.4) 3.250 (82.6) 1.250 (31.8) 1 1225 B30-R4300
BBP31, BBP33 Fig. 2 B30-222-438 B-438 Polyester Silver 3.000 (76.2) 2.000 (50.8) 3.250 (82.6) 2.250 (57.2) 1 650 B30-R4300
BBP31, BBP33 Fig. 3 B30C-3000-438-SL B-438 Polyester Silver 3.000 (76.2) 100 ft. (30.5m) - 3.250 (82.6) 1 roll (cont.) B30-R4300
BBP®33 Printer Ribbons on page 109.
Full Material Properties on page 187.
®
Diagram Catalog # B# Material Color
Label Width A
Inch (mm)
Label Height B
Inch (mm)
Figure 2
Vert. Repeat D
Inch (mm)
Web Width E
Inch (mm)
Labels
Per
Row
Labels
Per
Roll
Rec.
Ribbon
1-888-272-3946 | www.BradyID.com
103
