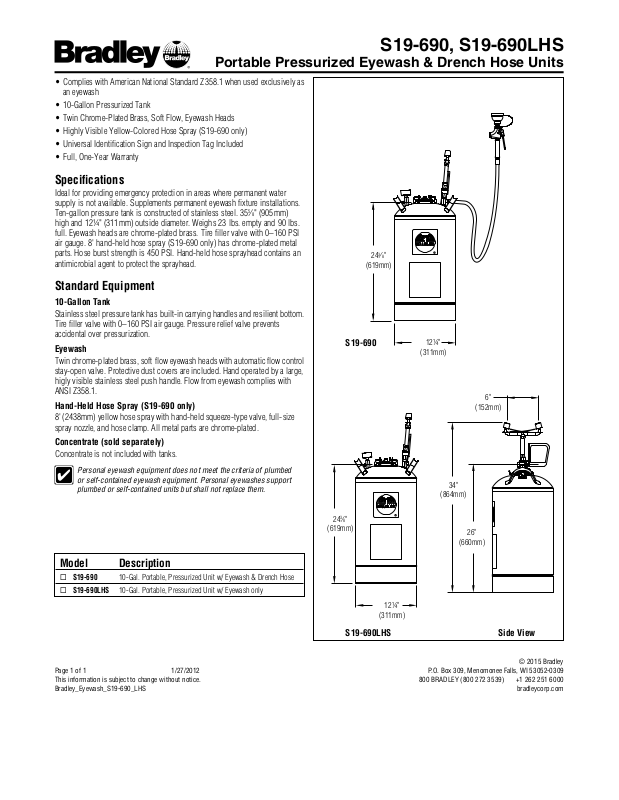

Bradley Corporation S19-690, S19-690LHS User Manual
Portable Pressurized Eyewash & Drench Hose Units
•
Complies with American National Standard Z358.1 when used exclusively as
an eyewash
•
10-Gallon Pressurized Tank
•
Twin Chrome-Plated Brass, Soft Flow, Eyewash Heads
•
Highly Visible Yellow-Colored Hose Spray (S19-690 only)
•
Universal Identification Sign and Inspection Tag Included
•
Full, One-Year Warranty
Specifications
Ideal for providing emergency protection in areas where permanent water
supply is not available. Supplements permanent eyewash fixture installations.
Ten-gallon pressure tank is constructed of stainless steel. 35
5
⁄8" (905mm)
high and 12¼" (311mm) outside diameter. Weighs 23 lbs. empty and 90 lbs.
full. Eyewash heads are chrome-plated brass. Tire filler valve with 0–160 PSI
air gauge. 8' hand-held hose spray (S19-690 only) has chrome-plated metal
parts. Hose burst strength is 450 PSI. Hand-held hose sprayhead contains an
antimicrobial agent to protect the sprayhead.
Standard Equipment
10-Gallon Tank
Stainless steel pressure tank has built-in carrying handles and resilient bottom.
Tire filler valve with 0–160 PSI air gauge. Pressure relief valve prevents
accidental over pressurization.
Eyewash
Twin chrome-plated brass, soft flow eyewash heads with automatic flow control
stay-open valve. Protective dust covers are included. Hand operated by a large,
higly visible stainless steel push handle. Flow from eyewash complies with
ANSI Z358.1.
Hand-Held Hose Spray (S19-690 only)
8' (2438mm) yellow hose spray with hand-held squeeze-type valve, full-size
spray nozzle, and hose clamp. All metal parts are chrome-plated.
Concentrate (sold separately)
Concentrate is not included with tanks.
Personal eyewash equipment does not meet the criteria of plumbed
or self-contained eyewash equipment. Personal eyewashes support
plumbed or self-contained units but shall not replace them.
(619mm)
S19-690
S19-690, S19-690LHS
3
⁄8"
24
12¼"
(311mm)
6"
(152mm)
34"
(864mm)
Model Description
S19-690
S19-690LHS
Page 1 of 1 1/27/2012
This information is subject to change without notice.
Bradley_Eyewash_S19-690_LHS
10-Gal. Portable, Pressurized Unit w/ Eyewash & Drench Hose
10-Gal. Portable, Pressurized Unit w/ Eyewash only
243⁄8"
(619mm)
12¼"
(311mm)
26"
(660mm)
S19-690LHS Side View
P.O. Box 309, Menomonee Falls, WI 53052-0309
800 BRADLEY (800 272 3539) +1 262 251 6000
© 2015 Bradley
bradleycorp.com
