Bowflex Treadmill 7, Treadmill 18 User manual

™

Treadmill 7

/ Treadmill 18

ASSEMBLY / OWNER’S MANUAL

Welcome to the Bowflex™ Treadmill 7 / Treadmill 18 machine!

You’re about to experience an incredible workout that can help you lose weight and reshape your entire body so you’ll look and feel better than ever

before. We thank you for trusting in the Bowex brand.

Use this Manual as a guide to getting started on your Bowex™ workouts and for tips to keep your machine well maintained.

Yours in Health,

The Bowex Family

Table of Contents

Important Safety Instructions .................................3

Safety Warning Labels and Serial Number.............5

Grounding Instructions ...........................................6

Emergency Stop Procedure ...................................7

Specications / Before Assembly ........................... 8

Parts ...................................................................... 9

Hardware / Tools ..................................................10

Assembly ............................................................. 10

Moving Y our Machine ........................................... 21

Unfolding the Machine ..........................................23

Leveling Your Machine .........................................24

Features ...............................................................25

Using App on your Device ................................... 30

Bluetooth® Heart Rate Armband .......................... 31

Bluetooth® Audio ..................................................31

Fitness Basics ......................................................34

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________ Date of Purchase __________________________

Operations ............................................................ 41

Initial Console Set-Up ..........................................41

Getting Started ....................................................41

Power Up Mode / Just For You tab ...................... 42

Pausing or Stopping ............................................ 43

Power Off and Restart the Machine ....................43

Maintenance ......................................................... 44

Adjust the Belt Tension ......................................... 44

Aligning the Walking Belt ......................................44

Lubricating the Walking Belt ................................. 46

Maintenance Parts ................................................47

Troubleshooting ....................................................49

Body Weight Loss Guide ...................................... 51

Warranty ............................................................... 59

If purchased in US/Canada: To register your product warranty, go to: www.bowex.com/register or call 1 (800) 605–3369.

If purchased outside US/Canada: To register your product warranty, contact your local distributor.

For warranty and service of products purchased outside US/Canada, please contact your local distributor. Nautilus, Inc. will cover the frame and drive motor. Contact your local distributor for key details. To nd your local international distributor, go to: www.nautilusinternational.com.

Nautilus, Inc., 5415 Centerpoint Parkway, Groveport, OH 43125 USA, www.NautilusInc.com - Customer Service: North America (800) 605-3369, csnls@nautilus.com | Nautilus (Shanghai) Fitness Equipments Co, Ltd, Room 1701 &1702, 1018 Changning Road, Changning District, Shanghai, China 200042, www.nautilus.cn - 86 21 6115 9668 | outside U.S. www.nautilusinternational.com | Printed in China | © 2020 Nautilus, Inc. | Bowex, the B logo, JRNY, Nautilus, and Schwinn are trademarks owned or licensed by Nautilus, Inc., registered or otherwise protected by common law in the U.S. and other countries. Android™, Google Play™, and Nut Thins® are trademarks of their respective owners. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license. Other trademarks are the

property of their respective owners.

ORIGINAL MANUAL - ENGLISH VERSION ONLY

Assembly / Owner’s Manual

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Obey the following warnings:

Read and understand all Warnings on this machine.

Carefully read and understand the Assembly/Owner’s Manual.

Carefully read and understand the Assembly instructions. Read and understand the complete Manual. Keep the Manual

for future reference.

To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug this machine from the electrical outlet immediately after using and before cleaning.

To decrease the risk of burns, electric shock, or injury to persons, read and understand the complete Assembly/Owner’s Manual. Failure to follow these guidelines can cause a serious or possibly fatal electrical shock or other serious injury.

• Keep bystanders and children away from the product you are assembling at all times.

• Do not connect power supply to the machine until instructed to do so.

• The machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.

• Before each use, examine the machine for damage to power cord, loose parts or signs of wear. Do not use if found in this condition. If purchased

in US/Canada, contact Customer Service for repair information. If purchased outside US/Canada, contact your local distributor for repair information.

• Not intended for use by persons with medical conditions where those conditions may impact the safe operation of the treadmill or pose a risk of

injury to the user.

• Do not drop or put objects into any opening of the machine.

• Never operate this treadmill with the air openings blocked. Keep the air openings free of lint, hair and the like.

• Do not assemble this machine outdoors or in a wet or moist location.

• Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not

do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and will void the warranty.

• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts can

cause a risk to users, keep the machine from operating correctly and void the warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Manual.

• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

• Connect this machine to a properly grounded outlet only (see Grounding or Earthing Instructions).

• Keep the power cord away from heat sources and hot surfaces.

• Do not operate where aerosol products are being used.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

• SAVE THESE INSTRUCTIONS.

Assembly / Owner’s Manual

Before using this equipment, obey the following warnings:

Read and understand the complete Manual. Keep the Manual for future reference.

Read and understand all warnings on this machine. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.

• Not intended for use by anyone under 14 years of age.

• Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or

feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine’s computer for reference

purposes only.

• Before each use, examine this machine for damage to power cord, power receptacle, loose parts or signs of wear. Do not use if found in this

condition. Contact Nautilus Customer Service for repair information.

• Maximum user weight limit: 170 kg (375 lbs). Do not use if you are over this weight.

• Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put fingers or other objects into moving parts of the exercise

equipment.

• Always wear rubber soled athletic shoes when you use this machine. Do not use the machine with bare feet or only wearing socks.

• Set up and operate this machine on a solid, level, horizontal surface.

• Use caution when you step on and off the machine. Use the supplied foot support platforms for stability before walking on the moving belt.

• To prevent injury, stand on the foot support platforms before you start the machine or end a workout. Do not dismount the machine by standing on

the moving Walking Belts and exiting off the rear of the machine.

• Disconnect all power before servicing this machine.

• Do not operate this machine outdoors or in moist or wet locations.

• Keep at least 0.6 m (24”) on each side of the machine and 2 m (79”) behind the machine clear. This is the recommended safe distance for access

and passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in use.

• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.

• Perform all regular and periodic maintenance procedures recommended in the manual.

• Read, understand, and test the Emergency Stop Procedure before use

• Keep the walking belt clean and dry.

• Do not drop or put objects into any opening of the machine.

• Do not stand on machine motor cover or front trim cover.

• Keep power cord away from heat source and hot surfaces.

• This machine must be connected to an appropriate, dedicated electrical circuit. Nothing else must be connected to the circuit.

• Always connect the power cord to a circuit capable of handling 15 amperes for 110V AC or 10 amperes for 220-240V AC with no other loads applied.

• Connect this machine to a correctly grounded outlet; consult a licensed electrician for assistance.

• Do not operate where aerosol products are being used.

• Do not let liquids touch the electronic controller. If it does, the controller must be inspected and tested for safety by an approved technician before it can be used again.

• The electrical wiring for the residence in which the machine will be used must obey the applicable local and provincial requirements.

• Exercise on this machine requires coordination and balance. Be sure to anticipate that changes in belt speed and incline angle of deck can occur

during workouts, and be attentive in order to avoid loss of balance and possible injury.

• A machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.

• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep children under the age of 14 away from this machine.

Important Safety Instructions

To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the

wall outlet and/or the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the

power cord in a secure location.

Assembly / Owner’s Manual

Safety Warning Labels and Serial Number

REVISIONS

ECO

REVISION

REV DESCRIPTION

APPROVED

DATE

A DRAWING RELEASE

B CHANGED SIZE

8/17/0912745

12247 DLOVELY

DLOVELY

30.5mm

REVISIONS

ECO

REVISION

REV DESCRIPTION

APPROVED

DATE

30.5mm

A DRAWING RELEASE B CHANGED SIZE

8/17/0912745

12247 DLOVELY

DLOVELY

CAUTION

Risk of Injury to Persons - To Avoid injury, use extreme caution when stepping onto or off of a moving belt. Read instruction manual before using.

WARNING!

• Injury or death is possible if caution is not used while using this machine.

• Keep children and pets away.

• Read and follow all warnings on this machine.

• Refer to the Owner’s Manual for additional warnings and safety information.

• The heart rate displayed is an approximation and should be used

for reference only.

• Not intended for use by anyone under 14 years of age.

• The maximum user weight for this machine is 375 lbs (170 kg).

• This machine is for home use only.

• Consult a physician prior to using any exercise equipment.

• REMOVE SAFETY KEY WHEN NOT IN USE, AND STORE OUT OF REACH OF CHILDREN.

Console Serial Number Label

WARNING! Keep young children away

from this machine at all times. Contact with the moving surface may result in

severe friction burns. (This label is only available on the

Bowex™ Treadmill 18 machine in English and Chinese.)

(This label is only available on the Bowex™ Treadmill 7 machine in English and French Canadian.)

WARNING!

HAZARDOUS VOLTAGE.

- Contact may cause electrical shock or burn.

- Turn off and lock out power before servicing.

WARNING!

- Moving parts can crush and cut.

- Keep guards in place.

- Lock out power before servicing.

(These labels are in English and French Canadian on the Bowex™ Treadmill 7 machine, and English, French Canadian and Chinese on the Bowex™ Treadmill 18 machine.)

Serial Number and Product Specication

Assembly / Owner’s Manual

Grounding Instructions (for a 120V AC system )

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service person if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product – if it will not t the outlet, have a proper outlet installed by a qualied electrician.

If you connect the machine to an outlet with GFI (ground fault interrupt) or AFI (arc fault interrupt), machine operation can cause the circuit to trip.

This machine is for use on a nominal 120-V circuit, and has a grounding plug that looks like the plug illustrated below. A temporary adapter that looks like the adapter illustrated may be used to connect this plug to a 2-pole receptacle as shown if a properly grounded outlet is not available.

The temporary adapter should be used only until a properly grounded outlet can be installed by a qualied electrician. The tab for the grounding screw must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

Grounded

Outlet

Adapter

Metal Screw

Grounded

Grounding Pin

Outlet Box

Tab for Grounding

Screw

Earthing Instructions (for a 220-240V AC system )

This product must be electrically earthed. If a malfunction occurs, correct earthing decreases the risk of electric shock. The power cord is equipped with an equipment-earthing conductor, and must be connected to an outlet that is properly installed and earthed.

The electrical wiring must comply with all applicable local and provincial standards and requirements. Incorrect connection of the equipment-earthing conductor can result in a risk of electric shock. Consult a licensed electrician if you are not sure that the machine is correctly earthed. Do not change the plug on the machine – if it does not t the

outlet, have a correct outlet installed by a licensed electrician.

If you connect the machine to an outlet with RCBO (Residual-Current circuit Breaker with Overload protection), machine operation can cause the circuit to trip. A Surge Protector Device is recommended to protect the machine.

If a Surge Protector Device (SPD) is used with this machine, be sure that it matches the power rating of this equipment (220-240V

AC). Do not connect other appliances or devices to the surge protector in combination with this machine.

Make sure that the product is connected to an outlet having the same conguration as the plug. Use the appropriate adapter

supplied with this product.

Assembly / Owner’s Manual

Emergency Stop Procedure

The Treadmill machine is equipped with a Safety Key that can prevent serious injury, as well as prevent children from playing with and/or being injured on the machine. If the Safety Key is not correctly inserted into the Safety Key Port, the belt will not operate.

Always attach the Safety Key Clip to your clothing during your workout.

When you use the machine, only remove the Safety Key in an emergency. When the key is removed while the machine is in operation, it will stop quickly, which could cause the loss of balance and possible injury.

For safe storage of the machine, and to prevent unsupervised operation of the machine, always remove the Safety Key and disconnect the power cord from the wall outlet and the AC input. Place the power cord in a secure location.

The Console will display “ + SAFETY KEY ”, or add Safety Key, for a Safety Key fault. The Treadmill machine will not start a Workout, or will end and clear an active Workout, when the Safety Key is removed. Inspect the Safety Key and be sure it is connected to the Console correctly.

Assembly / Owner’s Manual

Specifications / Before Assembly

Power Requirements:

Operational Voltage: 110-127V, 60Hz 220V - 240V AC, 50Hz Operating Current: 15 A 8 A

Heart Rate Armband: 1 Lithium Polymer battery (not replaceable)

Maximum User Weight: 170 kg (375 lbs) Total Surface Area (footprint) of equipment: 19826 cm Maximum Inclined Deck Height: 40.6 cm (16 inches) Machine Weight: approx. 127 kg (280 lbs)

Sound Emission: Less than 70 db average without load. Noise emission under load is higher

than without load.

This product complies with the European Radio Equipment Directive 2014/53/ EU

DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product, please follow the prescribed methods at an approved waste

center.

120V 220V

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a minimum workout area of 214.1 cm x

415.5 cm (84.3” x 163.6”). Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration the height of the user and the maximum incline of the machine.

140.1 cm (55.2”)

214.8 cm (84.6”)

92.3 cm (36.3”)

170.2 cm (67”)

133.4 cm (52.5”)

Basic Assembly

Follow these basic points when you assemble your machine:

• Read and understand the “Important Safety

Instructions” before assembly.

• Collect all the pieces necessary for each assembly step.

• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclockwise) to loosen, unless instructed otherwise.

• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.

• The assembly requires 2 people.

• Do not use any power tools for assembly.

0.6m

( 24” )

2.1m

( 84.3” )

0.6m

( 24” )

4.2m ( 163.6” )

( 79” )

Machine Mat

The Bowex™ Machine Mat is an optional accessory that helps keep your workout area clear and adds a layer of protection to your oor. The rubber machine mat provides a non-slip, rubber surface which limits static discharge and reduces the possibility of display errors. If possible, put your Bowex™ Machine Mat in your selected workout area before you begin assembly.

To order the optional machine mat, contact Customer Service (if purchased in US/Canada) or your local distributor (if purchased outside US/ Canada).

Assembly / Owner’s Manual

Parts

Item Qty Description Item Qty Description

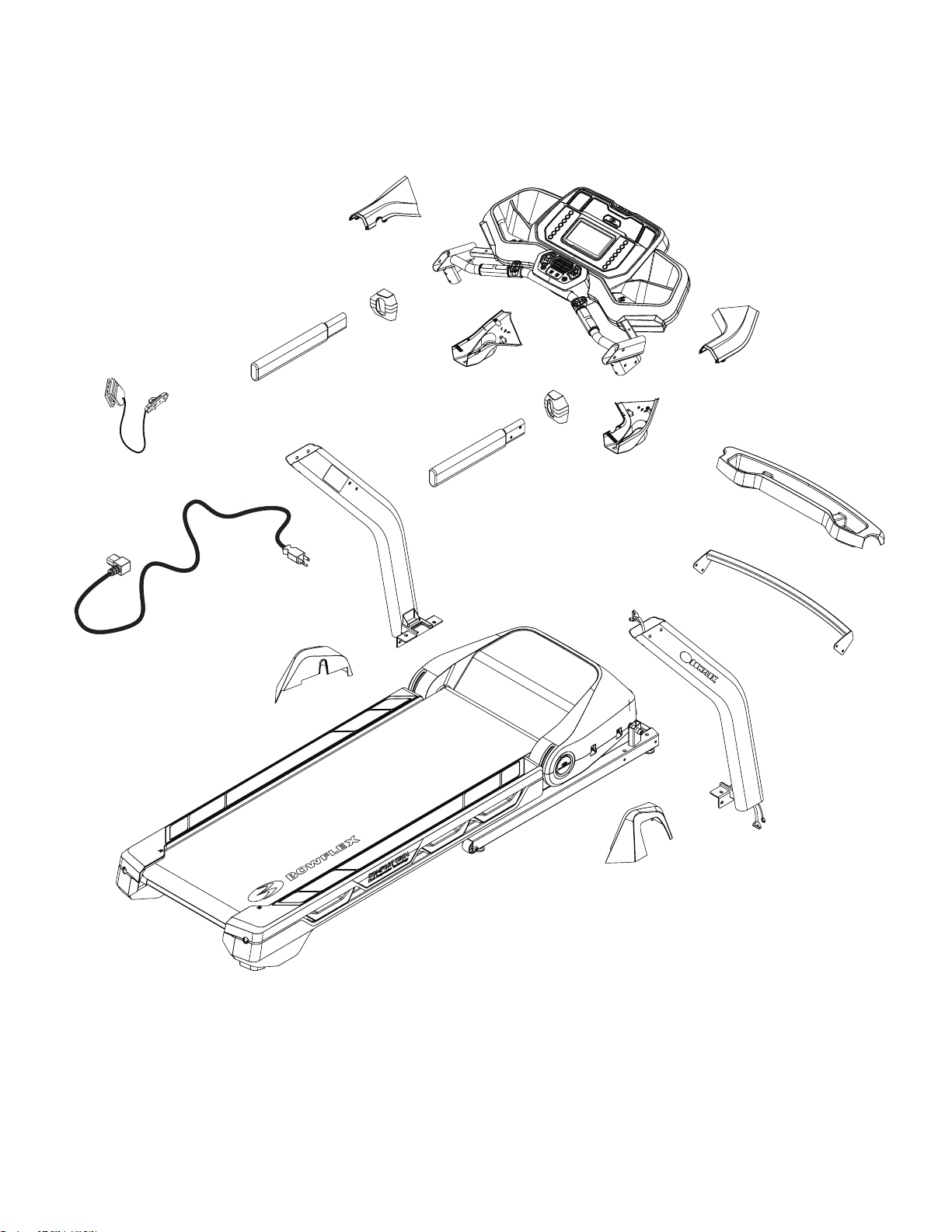

1 1 Console Assembly 11 1 Crossbar 2 1 Upper Junction Cover, Left 12 1 Upright, Right 3 1 Handlebar Assembly, Left 13 1 Base Shroud, Right 4 1 Junction Cover End Cap, Left 14 1 Base Assembly

5 1 Lower Junction Cover, Left 15 1 Upright, Left 6 1 Handlebar Assembly, Right 16 1 Base Shroud, Left 7 1 Junction Cover End Cap, Right 17 1 Power Cord 8 1 Lower Junction Cover, Right 18 1 Safety Key 9 1 Upper Junction Cover, Right 19 1 Document Kit / Hardware Card

10 1 Tray 20 1 Heart Rate Armband

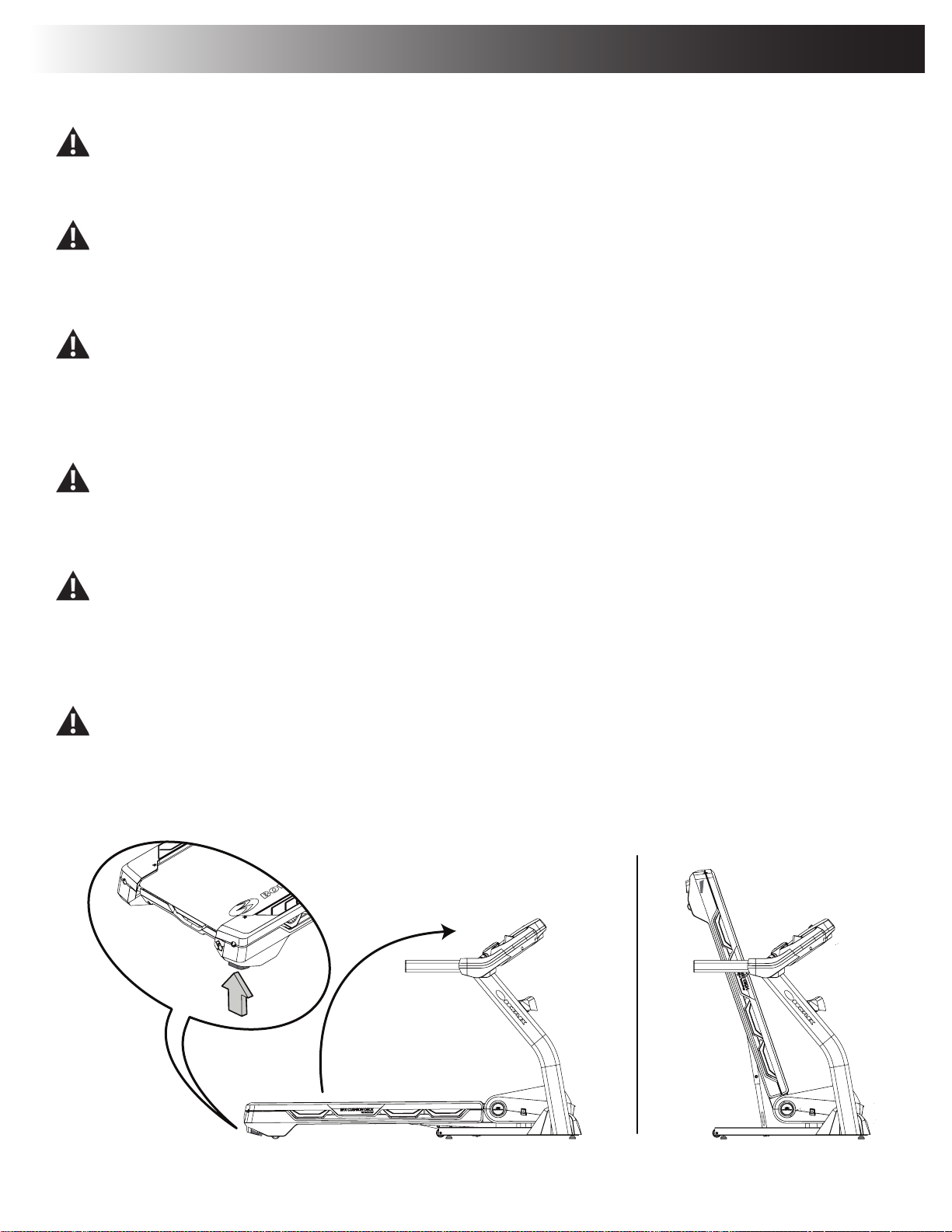

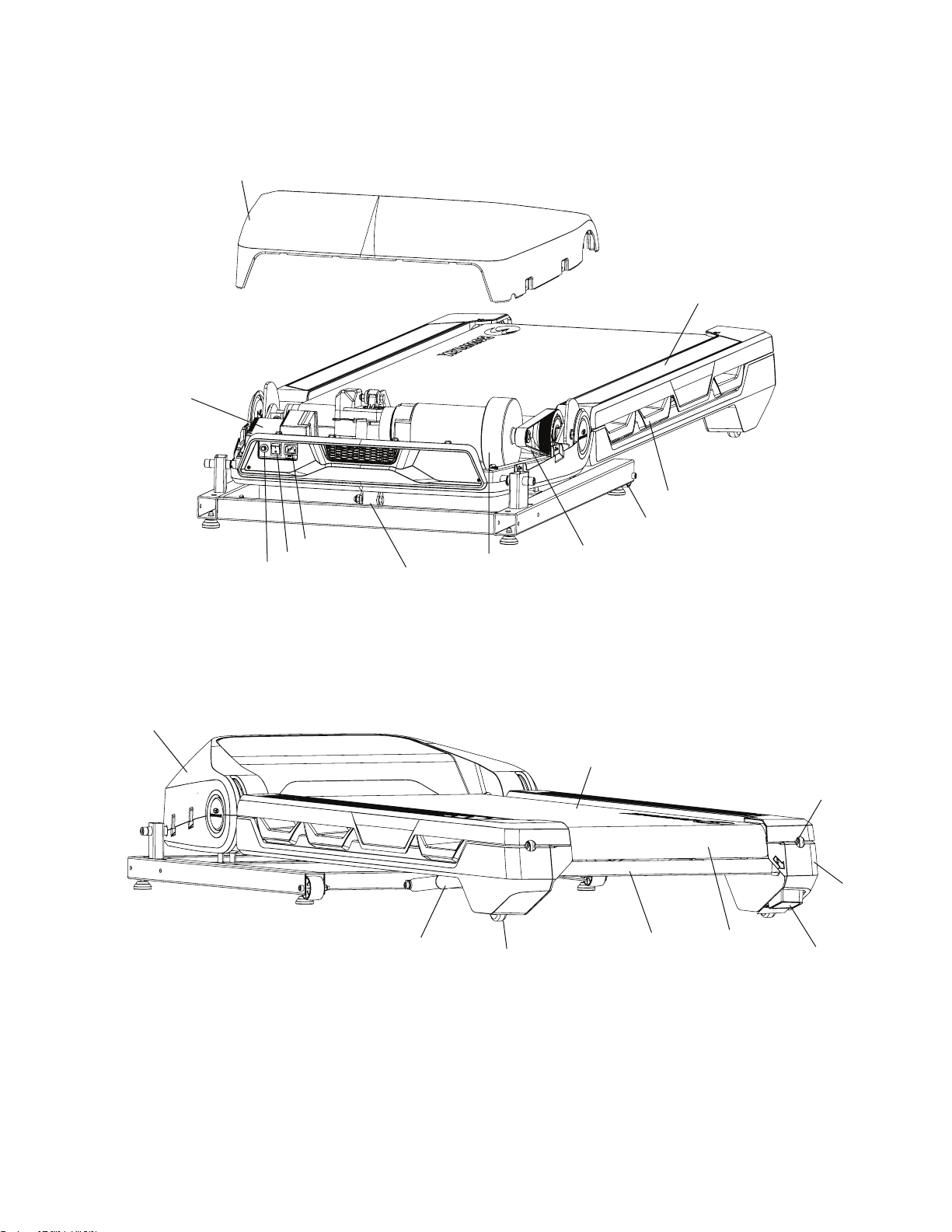

DO NOT CUT the Shipping Strap ( * ) or Shipping Zip-Tie ( ** ) on the Treadle Assembly until instructed.

When moving the Deck Assembly, be sure to grasp the sides of it. Do not grasp the Walking Deck Release Button. Pressing the Walking Deck Release Button releases the locking mechanism on the hydraulic lift.

Assembly / Owner’s Manual

Hardware / Tools / Assembly

F G

Item Qty Description Item Qty Description

A 22 Socket Hex Head Screw, M8x1.25x20 Black E 6 Curved Washer, M8x18 Black B 4 Socket Hex Head Screw, M8x1.25x70 Black F 4 Pan Phillips Head Screw, M3.9x16 Black

C 26 Lock Washer, M8x18 Black G 2 Pan Phillips Head Screw, M5x10 Black

D 20 Flat Washer, M8x18 Black

Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remaining Hardware

after the proper assembly of your machine.

Tools

Included

6mm #2

DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as shown in the

appropriate work space.

Assembly / Owner’s Manual

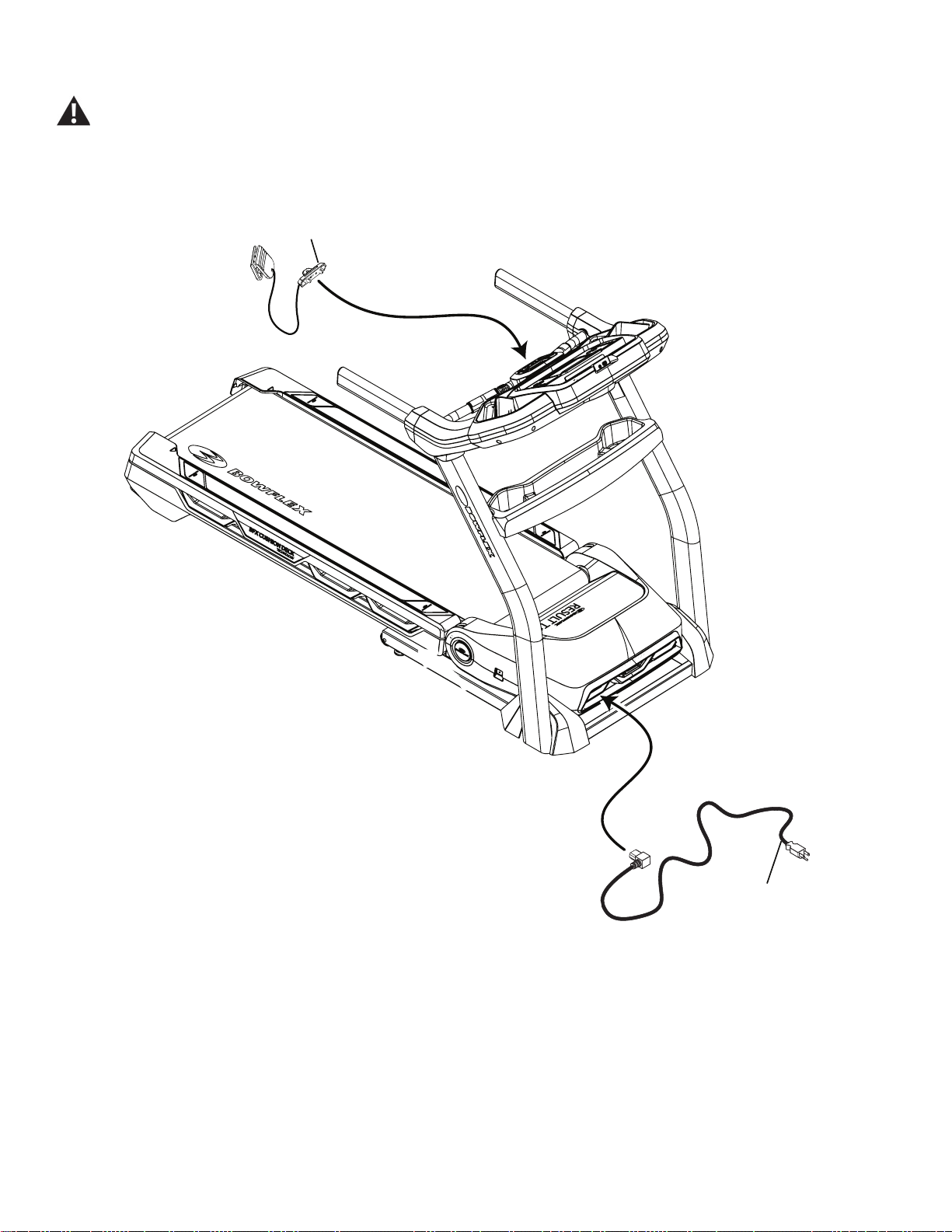

1. Connect the Input/Output (I/O) Cables and Attach the Uprights to Frame

Note: Do not crimp cables. Do not fully tighten Hardware until instructed.

6 m m

Assembly / Owner’s Manual

6 m m

2. Attach the Crossbar to the Frame Assembly

6mm

Note: Do not crimp cables. Do not fully tighten Hardware until instructed. A right (“ R ”) decal has been applied to the right side of this part to assist with assembly.

Assembly / Owner’s Manual
