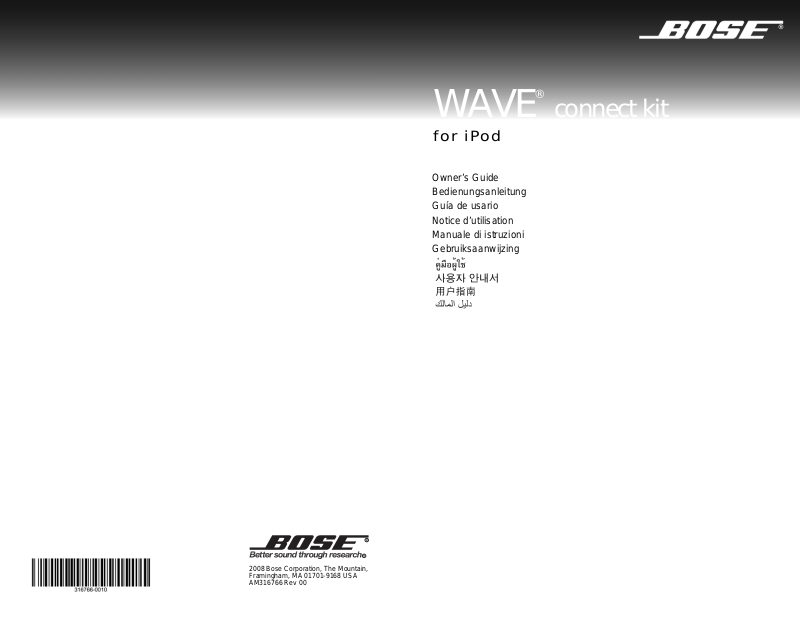

Page 1
WAVE® connect kit
for iPod
Owner’s Guide
Bedienungsanleitung
Guía de usario
Notice d’utilisation
Manuale di istruzioni
Gebruiksaanwijzing
Page 2
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions – for all components before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture – Do not use this
product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, near a swimming pool, or anywhere else that water or moisture
are present.
6. Clean only with a dry cloth – and as directed by Bose Corporation. Unplug
this product from the wall outlet before cleaning.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions – To ensure reliable operation of the product
and to protect it from overheating, put the product in a position and location
that will not interfere with its proper ventilation. For example, do not place
the product on a bed, sofa, or similar surface that may block the ventilation
openings. Do not put it in a built-in system, such as a bookcase or a cabinet,
that may keep air from flowing through its ventilation openings.
8. Do not install near any heat sources, such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding pro ng. The wider
blade or third prong are provided for your safety. If the provided plug does
not fit in your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord fr om being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long
periods of time – to prevent damage to this product.
Page 3
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
IMPORTANT SAFETY INSTRUCTIONS
13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way: such as powersupply cord or plug is damaged; liquid has been spilled or objects have
fallen into the apparatus; the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped – Do not
attempt to service this product yourself. Opening or removing covers may
expose you to dangerous voltages or other hazards. Please call Bose to be
referred to an authorized service ce nte r ne ar you.
14. To prevent risk of fire or electric shock, avoid overloading wall outlets,
extension cords, or integral convenience receptacles.
15. Do not let objects or liquids enter the product – as they may touch
dangerous voltage points or short-out parts that could result in a fire or
electric shock.
16. See product enclosure for safety-related markings.
17. Use proper power sources – Plug the product into a proper power source,
as described in the operating instructions or as marked on the product
.
For further information on product regulatory compliance, please see the Wave®
music system owner’s guide.
Page 4
SAFETY INFORMATION
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully.
It will help you set up and operate your system properly and enjoy all of its
advanced features. Please save this owner’s guide for future reference.
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
WARNING: T
rain or moisture.
WARNING:
objects filled with liquids, such as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any part of the system. Liquids can
cause a failure and/or a fire hazar
Class B emissions
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regula tion s (Can ad a only).
WARNING:
chemical burn if mishandled. Do not recharge, disassemble, heat above 100º C (212º F),
or incinerate. Dispose of used batteries promptly. Replace only with a battery of the
correct type and model number.
WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with
Duracell, Eveready, Energizer, Maxell, Toshi b a, or Shun Wo CR2032 or DL2032
3-volt lithium battery.
WARNING: Do not place any naked flame sources, such as lighted candles, on or
near the apparatus.
CAUTION: Make no modification to the system or accessories. Unauthorized altera-
tions may compromise safety, regulatory compliance, and system performance.
CAUTION: Bose recommends using a high-quality, safety agency-approved (i.e. UL,
ETL) surge suppressor on all electronic equipment.
o reduce the risk of fire or electrical shock, do not expose the product to
Do not expose this apparatus to dripping or splashing, and do not place
d
.
The lightning flash with arrowhead symbol within an equilateral triangle
alerts the user to the presence of uninsulated, dangerous voltage within
the system enclosure that may be of sufficient magnitude to constitute a
risk of electrical shock.
The exclamation point within an equilateral triangle, as marked on
the system, is intended to alert the user to the presence of important
operating and maintenance instructions in this owner’s guide.
K
eep the remote control battery away from children. It may cause a fire or
2
Page 5
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
OR
U.S./Canada 120V;
Japan 100V
EU/AU 220-240V
SAFETY INFORMATION
Please dispose of used batteries properly, following any local regulations.
Do not incinerate.
This product conforms to the EMC Directive 2004/108/EC and to the Low Voltage
Directive 2006/95/EC. The complete Declaration of Conformity can be found at
w.Bose.com/static/compliance/index.html
ww
Note: Where the mains plug or appliance coupler is used as the disconnect device,
such disconnect device shall remain readily operable.
Note: The product must be used indoors. It is neither designed nor tested for use
outdoors, in recreation vehicles, or on boats.
Note: This product is intended to be used only with the power supply provided.
CAUTION: Long-term exposure to loud music may cause hearing damage. It is best
to avoid extreme volume when using headphones,
especially for extended periods.
Contents of your kit
Dock with adapter insert
(iPod not included)
Power pack only (left) or power pack with line cord (right)
Remote control RCA audio cable Mini audio cable
Compatibility
This kit is fully compatible with most iPod models.
®
For the Wave
version of iPod software installed. If you
iPod web site and follow the instructions there.
connect kit to work as expected, your iPod must have the latest
need to upgrade, simply visit the Apple
3
Page 6
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
iPod
dock
Wave
®
music system
IR sensor
®
IR sensor
Mini audio cable
AUX IN
®
AUDIO
OUT
iPod
dock
USING YOUR WAVE® CONNECT KIT
Recommended placement
We recommend that you place the dock to the right of your Bose® Wave® music
system so the iPod has minimal effect on FM or AM reception.
Be sure the IR sensor on the front of the iPod dock is visible and aligned with the
Wave system IR sensor so both products respond to the remote.
Connecting the two products
Please be sure to make all other connections before plugging either Bose system
(your Wave
Use the supplied audio cable that is appr
For a Wave® music system or Wave® radio II: Use the mini audio cable and connect
AUX IN to AUDIO OUT on the dock.
®
music system or Wave® radio II) into a power outlet.
opriate for your Bose system.
4
Page 7
USING YOUR WAVE® CONNECT KIT
RCA audio cable
INPUT AUX 1
L and R
iPod
dock
®
AUDIO
OUT
Power
pack
iPod
dock
Audio cable
to the system
Power
pack cable
DC
POWER
For a Wave® music system with Multi-CD Changer: Use the RCA audio cable
and connect from AUDIO OUT on the dock to INPUT AUX 1 L and R. (See the
note below.)
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
Connecting the dock to power
1. Connect the free end of the power pack cable to the dock.
2. Plug the power pack into an AC (mains) outlet.
5
Page 8
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
iPod
• Selects iPod as the source.
• Switches between AUX
input jacks on the Multi-CD
Changer.
See the Multi-CD Changer
guide for more information.
*The response to some remote commands depends on which source
(FM/AM/CD/iPod/AUX) is playing. If the remote does not work as you expect,
press the button for that source to reset the intended mode of operation.
On/Off
Turns off iPod.
Seek/Track
• Single pr ess
skips one track.
• Press and hold
scans quickly
through a track.
Tune/Playlist
Moves from one
playlist to the
next.
Play/Pause
• Pauses or resumes iPod play.
FM/AM
• Selects the
FM or AM source.
• Turns off iPod.
CD
• Selects the Wave
®
music system
CD source.
• Turns off iPod.
U
SING YOUR WAVE
®
CONNECT KIT
Control of your iPod and Bose® system
We recommend replacing the remote that came with your Wave® music system
with this new remote (shown below). Then you can use the new remote exclusively (not the buttons on your Wave
performing together
as intended.
Note: The remote that came with your Wave
the iPod kit. Use the AUX button on the original remote instead of the iPod button on
the new remote.
Most of the remote control buttons are describ
with your Bose system. The remote buttons below provide added features.
Important note:
The Sleep button and three Alarm buttons on the remote control
affect system sound sources only . They do not control the iPod and cannot be set
for use with that source.
®
system), to keep your iPod and system
®
system can also be used to control
ed in the owner’s guide that came
6
Page 9
USING YOUR WAVE® CONNECT KIT
Docking your iPod
Insert your iPod firmly into the dock and make sure it is securely seated in the
dock adapter. Your iPod turns on in a paused state and begins charging, as
needed. Even if the paused iPod turns off automatically, it continues to charge.
If you prefer, you can replace this dock adapter with the
er specifically designed for and provided with your
adapt
iPod.
Use a fingernail or a slender tool carefully to pry the
adapter free, as shown.
Playing your iPod
Be sure to aim the remote so its signals reach the IR sensor on the front of the
dock. Then use these buttons as follows:
• Press iPod to turn on your system and begin iPod
playback.
• Press Play/Pause to pause or resume iPod play.
• Press Tune/Playlist to move from one playlist to another.
• Press Play to hear that
list play.
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
• Press Seek/Track once to skip back or ahead one track.
• Press and hold Seek/T
rack to scan through a track.
•Press Volume to adjust the sound volume.
Your Wave® system is designed to work with an iPod set at
full volume. Volume adjustments can be made using the
new remote, instead of using the iPod control.
Note: Volume changes using the iPod controls will not affect
the Wave system
®
volume.
• Press On/Off once to turn off both products, aiming the
remote at the dock until the iPod turns off.
• Press any source button (FM/AM or CD) to turn off the iPod
and listen to that source.
Important note: Having your iPod turned off helps prevent interference when
you switch to an FM or AM station.
7
Page 10
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
U
SING YOUR WAVE
®
CONNECT KIT
Troubleshooting
Problem What to do
The remote does not
contr
ol the iPod.
The iPod is on when it
should not be.
The volume varies
when the iPod plays
different songs.
The iPod is connected
to the Multi-CD
Changer and it is on
but does not play.
Press iPod to reset the mode of operation
for the iPod.
You may then need to press Play/Pause to
resume play.
If the system is off or you are playing
another source, press iPod.
Then press On/Off or another source button
(FM/AM or CD).
With the remote aimed properly, your iPod
shoul
d turn off within 2 seconds.
Use the new remote Volume to set the
volume to the level you prefer for a
particular song.
The recording quality of songs varies,
producing inconsistent
Be sure the audio cable from the dock is
connected to INPUT AUX 1 on the changer.
Press iPod and check to see that AUX 1
appears on the Bose
play volumes.
®
system display.
The Bose® system
speakers play even
when headphones
are plugged into the
dock
ed iPod.
If your iPod has four buttons above the touch wheel, it is not compatible
with th
is Wave
8
You may then need to press Play/Pause.
Connect the headphones to the mini jack on the
®
Wa
ve
system.
This silences the system so
the sound plays through
the headphones only.
®
connect kit.
Page 11
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
iPod is a trademark of Apple Inc., registered in the U.S. and other countries. The
distinctive design of the Wave
®
music system and Wave® radio II is a registered
trademark of Bose Corporation in the U.S. and other countries. All other marks
are registered trademarks and trademarks of Bose Corporation.
USING YOUR WAVE® CONNECT KIT
Battery replacement
T o r eplace the remote control battery, use a Duracell, Eveready , Energizer, Maxell,
Toshiba, or Shun W o CR2032 or DL2032, 3-volt lithium battery. Be sure to match
the + polarity on the battery to the + symbol inside the battery tray. Refer to your
®
Bose
system owner’s guide for further information.
Limited warranty
For Bose product limited warranty information, please refer to the owner’s
guide for the Wave
®
music system or Wave radio II.
9
Page 12
BOSE CORPORATION
EnglishDeutschFrançaisArabic EspañolItalianoThai NederlandsS. Chin Korean
USA Customer Support
Bose Corporation, The Mountain
Framingham, MA 01701-9168
1-800-367-4008
Canada Customer Support
Bose Ltd., 1-35 East Beaver Creek
Rd.
Richmond Hill, Ontario L4B 1B3
1-800-465-2673
European Office
Bose Products B.V., Nijverheidstraat 8
1135 GE Edam, Nederland
TEL 0299-390111
FAX 0299-390114
Australia
Bose Pty Limited,
Unit 3, 2 Holker Street
Newington NSW, 2127
TEL +61 (0)2 8737 9999
FAX +61 (0)2 8737 9924
Deutschland
Postfach 1468
48504 Nordhorn
TEL 05921 3030 123
FAX 05921-724250
Bose AG
Hauptstraße 134
CH-4450 Sissach
TEL 061 975 77 33
FAX 061 975 77 44
Bose Ges.m.b.H
Wienerbergstraße 7
A-1100 Wien
TEL 01 604 043 40
FAX 01 604 043 423
United Kingdom
Customer Support
Freepost EX 151
Exeter EX1 1ZY
TEL 0800 614 293
FAX 0870 240 2013
France
Bose S.A.S
12 rue de Témara
F-78100 ST. GERMAIN-EN-LAYE
France
TEL 0820 820 995
FAX 01 30 61 63 88
Poland
Bose Sp. z o.o.
ul. Woloska 12
02-675 Warszawa, Poland
TEL (48-22) 852-2928
FAX (48-22) 852-2927
Nederland
Bose B.V., Nijverheidstraat 8
1135 GE Edam, Nederland
TEL 0299-390111
FAX 0299-390114
Bose China
Bose Electronics (Shanghai Co., Ltd.)
2203-2205 22F, West Gate Tower
1038 West Nanjing Road
MeiLongzhen Plaza
Shanghai 200041,
Peoples Republic of China
TEL 86 21 62713800
Bose Hong Kong
Bose Limited
Suite 2410-11 Shell Tower
Times Square
1 Matheson Street
Causeway Bay, Hong Kong
TEL 852 2110 3330
Page 13
ArabicS. ChinThaiEnglish KoreanNederlandsFrançais ItalianoDeutsch Español
BOSE CORPORATION
Bose Taiwan
Worldwide House
Room 905, Floor 9
131 Min Sheng East Road
Section 3
Taipei, Taiwan
TEL 886 2 2514 7676
Bose India
Bose Corporation India Private
Limited
4th Floor, Shriram Bhartiya Kala
Kendra
1 Copernicus Marg
New Delhi 110 001, India
TEL 91 11 2307 3825 / 26 /27
India Toll Free: 1600 11 2673
Website: www.boseindia.com
Atlas Hi-Fi Pte. Ltd.
68 Orchard Road
#03-19/21 Plaza Singapura
Singapore 238839
Republic of Singapore
TEL 65-6-339-0966
The Asavasopon Co. Ltd.
50-52 Siphya Road
Mahaprudtharam, Bangrak
Bangkok 10500
Thailand
TEL 66-2-234-6467
CSI Corporation
Seki Building
23, 2-Ga Namsan-Dong
Joong-Gu
Seoul 100-042
South Korea
TEL 82-2-344-635-114
Eleksis Marketing
Corporation
269 Connecticut Street
Greenhills East
Mandaluyong City
Metro Manila 1550
Philippines
TEL 63-2-724-9566
G&M International LLC
P.O. Box 1229
Dubai, United Arab Emirates
TEL 971-4-2669-000
Sound Imports
Shop 40
The Mall of Rosebank
Cradock Avenue
Rosebank 2196
South Africa
TEL 27-11-880-1933
World Wide Web
www.Bose.com
PT Audio Pratama
JL. Lodan Raya No. 1
Block CO/CN
Jakarta 14430
Indonesia
TEL 62-21-659-8719
Page 14
2008 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM316766 Rev 0
1
Loading...
